Airpower | GRACO INC. S10595 branded products

Mixer, Spiral, Pipe, .779inDia

GG FAA040509

Mixer, Spiral, Pipe, .779InDia

$775.00

Screw, Shcs, 5/16-18X2.25, 18-8Sst

GG FAA040529

Screw, Shcs, 5/16-18X2.25, 18-8Sst

$9.00

Nut, Hex Jam Nut, 1/2-13 G 8, Ss

GG FAA040583

Nut, Hex Jam Nut, 1/2-13 G 8, Ss

$6.00

Nut, Hex Jam Nut, 1/2-13 G 8, Pl

GG FAA040584

Nut, Hex Jam Nut, 1/2-13 G 8, Pl

$6.00

Lsr Valve, Solenoid, Air, 110V

GG FAA080350

Lsr Valve, Solenoid, Air, 110V

$350.00

Seal Kit, 3in Tube 5-Gallon Ram, Double

GG FAR-5DK

Seal Kit, 3In Tube 5-Gallon Ram, Double

$115.00

Kit, Seal, 3inTubes, 5Gal, Ram

GG FAR-5K

Kit, Seal, 3InTubes, 5Gal, Ram

$63.00

Saniforce Aodd Pump, 1040Fg-Ps01As13Ssptptpt31

GG FD1111C31

SANIFORCE AODD PUMP, 1040FG-PS01AS13SSPTPTPT31

Graco FD1111C31 SaniForce 1040, 1" FG SST Pneumatic Diaphragm Pump, SS Center, SS Seats, PT Balls, PT Diaphragms

Graco's SaniForce 1040, 1-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 41 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership.

Application: Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials.

1 inch sanitary pump with flow rates up to 41 gpm (155 lpm) and pressures up to 120 psi (8 bar)
Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions
Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves
Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process
316 stainless steel wetted section
All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21
Pass solids up to 0.125 in. (3.2 mm)

Model: SaniForce
Series: 1040 FG

Air Exhaust Port Size (in): 3/4
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT

Application: Sanitary

Ball Material: PTFE

Center Section Material: Stainless Steel

Compatible Material: Edible Oil, Food and Personal Care

Compressor Required: Yes
Connection Type: Tri-Clamp

Diaphragm Material: PTFE/Santoprene 2-Piece

Fluid Section Material: 316 Stainless Steel

For Use With: Food and Personal Care

Hazardous Location Approval: ATEX, IECEx

Manifold Configuration: End Port
Manifold O-Ring Material: PTFE
Material: Stainless Steel
Material Certification: EN 1024:2004 Type 3.1 (Serialized)

Maximum Air Consumption (SCFM): 50
Maximum Air Pressure (bar): 8

Maximum Air Pressure (kPa): 800
Maximum Air Pressure (MPa): 0.8
Maximum Air Pressure (psi): 120

Maximum Cycle Rate (CPM): 256

Maximum Flow Rate (GPM): 41
Maximum Flow Rate (L/min): 155

Maximum Fluid Operating Temperature (Â°C): 82
Maximum Fluid Operating Temperature (Â°F): 180
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120

Maximum Solid Size (cm): 0.32
Maximum Solid Size (in): 0.125
Maximum Solid Size (mm): 3.2

Minimum Fluid Operating Temperature (Â°C): -40
Minimum Fluid Operating Temperature (Â°F): -40

$6,400.00

SANIFORCE AODD PUMP, 1040FG-PS01AS13SSSPSPPT21

GG FD1122

SANIFORCE AODD PUMP, 1040FG-PS01AS13SSSPSPPT21

SaniForce 1040, 1" FG SST Pneumatic Diaphragm Pump, SS Center, SS Seats, SP Balls, SP Diaphragms Graco's SaniForce 1040, 1-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 41 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership. Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials. 1 inch sanitary pump with flow rates up to 41 gpm (155 lpm) and pressures up to 120 psi (8 bar) Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves Externally serviceable air valves deliver leading efficiency and reduce downtime. Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process 316 stainless steel wetted section All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21 Pass solids up to 0.125 in. (3.2 mm)

$5,390.00

SANIFORCE AODD PUMP, 1040FG-PS01AS13SSPTPTEP21

GG FD1211

SANIFORCE AODD PUMP, 1040FG-PS01AS13SSPTPTEP21

SaniForce 1040, 1" FG SST Pneumatic Diaphragm Pump, SS Center, SS Seats, PT Balls, PT Diaphragms Graco's SaniForce 1040, 1-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 41 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership. Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials. 1 inch sanitary pump with flow rates up to 41 gpm (155 lpm) and pressures up to 120 psi (8 bar) Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves Externally serviceable air valves deliver leading efficiency and reduce downtime. Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process 316 stainless steel wetted section All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21 Pass solids up to 0.125 in. (3.2 mm)

$5,710.00

Saniforce Aodd Pump, 1040Fg-Ps01As13Sscwpoep21

GG FD1233

SANIFORCE AODD PUMP, 1040FG-PS01AS13SSCWPOEP21

Graco FD1233 SaniForce 1040, 1" FG SST Pneumatic Diaphragm Pump, SS Center, SS Seats, CW Balls, PO Diaphragms

Graco's SaniForce 1040, 1-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 41 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership.

Application: Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials.

1 inch sanitary pump with flow rates up to 41 gpm (155 lpm) and pressures up to 120 psi (8 bar)
Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions
Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves
Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process
PTFE/EPDM overmolded diaphragm design reduces areas that harbor bacteria while improving wear and diaphragm life with no exposed diaphragm plate on the fluid side
316 stainless steel wetted section
All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21
Pass solids up to 0.125 in. (3.2 mm)

Model: SaniForce
Series: 1040 FG

Air Exhaust Port Size (in): 3/4
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT

Application: Sanitary

Ball Material: Polychloroprene Weighted

Center Section Material: Stainless Steel

Compatible Material: Edible Oil, Food and Personal Care

Compressor Required: Yes
Connection Type: Tri-Clamp

Diaphragm Material: PTFE/EPDM Overmold

Fluid Section Material: 316 Stainless Steel

For Use With: Food and Personal Care

Hazardous Location Approval: ATEX, IECEx

Manifold Configuration: End Port
Manifold O-Ring Material: EPDM
Material: Stainless Steel
Material Certification: EN 1024:2004 Type 2.1 (Standard)

Maximum Air Consumption (SCFM): 50
Maximum Air Pressure (bar): 8

Maximum Air Pressure (kPa): 800
Maximum Air Pressure (MPa): 0.8
Maximum Air Pressure (psi): 120

Maximum Cycle Rate (CPM): 256

Maximum Flow Rate (GPM): 41
Maximum Flow Rate (L/min): 155

Maximum Fluid Operating Temperature (Â°C): 80
Maximum Fluid Operating Temperature (Â°F): 176
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120

Maximum Solid Size (cm): 0.32
Maximum Solid Size (in): 0.125
Max

$5,800.00

Saniforce Aodd Pump, 1040Fg-Ps01As13Ssfkfkep21

GG FD1288

SANIFORCE AODD PUMP, 1040FG-PS01AS13SSFKFKEP21

Graco FD1288 SaniForce 1040, 1" FG SST Pneumatic Diaphragm Pump, SS Center, SS Seats, FK Balls, FK Diaphragms

Graco's SaniForce 1040, 1-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 41 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership.

Application: Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials.

1 inch sanitary pump with flow rates up to 41 gpm (155 lpm) and pressures up to 120 psi (8 bar)
Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions
Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves
Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process
316 stainless steel wetted section
All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21
Pass solids up to 0.125 in. (3.2 mm)

Model: SaniForce
Series: 1040 FG

Air Exhaust Port Size (in): 3/4
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT

Application: Sanitary

Ball Material: FKM (Viton)

Center Section Material: Stainless Steel

Compatible Material: Edible Oil, Food and Personal Care

Compressor Required: Yes
Connection Type: Tri-Clamp

Diaphragm Material: FKM (Viton)

Fluid Section Material: 316 Stainless Steel

For Use With: Food and Personal Care

Hazardous Location Approval: ATEX, IECEx

Manifold Configuration: End Port
Manifold O-Ring Material: EPDM
Material: Stainless Steel
Material Certification: EN 1024:2004 Type 2.1 (Standard)

Maximum Air Consumption (SCFM): 50
Maximum Air Pressure (bar): 8

Maximum Air Pressure (kPa): 800
Maximum Air Pressure (MPa): 0.8
Maximum Air Pressure (psi): 120

Maximum Cycle Rate (CPM): 256

Maximum Flow Rate (GPM): 41
Maximum Flow Rate (L/min): 155

Maximum Fluid Operating Temperature (Â°C): 121
Maximum Fluid Operating Temperature (Â°F): 250
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120

Maximum Solid Size (cm): 0.32
Maximum Solid Size (in): 0.125
Maximum Solid Size (mm): 3.2

Minimum Fluid Operating Temperature (Â°C): -40
Minimum Fluid Operating Temperature (Â°F): -40

Overal

$6,640.00

SANIFORCE AODD PUMP, 1590FG-PS01AS13SSPTPTPT31

GG FD2111C31

SANIFORCE AODD PUMP, 1590FG-PS01AS13SSPTPTPT31

SaniForce 1590, 1.5" FG SST Pneumatic Diaphragm Pump, SS Center, SS Seats, PT Balls, PT Diaphragms Graco's SaniForce 1590, 1.5-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 100 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership. Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials. 1.5 inch sanitary pump with flow rates up to 100 gpm (379 lpm) and pressures up to 120 psi (8 bar) Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves Externally serviceable air valves deliver leading efficiency and reduce downtime. Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process 316 stainless steel wetted section All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21 Pass solids up to 0.1875 in. (4.8 mm)

$8,990.00

SANIFORCE AODD PUMP, 1590FG-PS01AS13SSPTPOPT21

GG FD2113

SANIFORCE AODD PUMP, 1590FG-PS01AS13SSPTPOPT21

SaniForce 1590, 1.5" FG SST Pneumatic Diaphragm Pump, SS Center, SS Seats, PT Balls, PO Diaphragms Graco's SaniForce 1590, 1.5-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 100 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership. Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials. 1.5 inch sanitary pump with flow rates up to 100 gpm (379 lpm) and pressures up to 120 psi (8 bar) Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves Externally serviceable air valves deliver leading efficiency and reduce downtime. Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process PTFE/EPDM overmolded diaphragm design reduces areas that harbor bacteria while improving wear and diaphragm life with no exposed diaphragm plate on the fluid side 316 stainless steel wetted section All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21 Pass solids up to 0.1875 in. (4.8 mm)

$9,310.00

SANIFORCE AODD PUMP, 1590FG-PS01AS13SSCWSPPT21

GG FD2132

SANIFORCE AODD PUMP, 1590FG-PS01AS13SSCWSPPT21

SaniForce 1590, 1.5" FG SST Pneumatic Diaphragm Pump, SS Center, SS Seats, CW Balls, SP Diaphragms Graco's SaniForce 1590, 1.5-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 100 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership. Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials. 1.5 inch sanitary pump with flow rates up to 100 gpm (379 lpm) and pressures up to 120 psi (8 bar) Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves Externally serviceable air valves deliver leading efficiency and reduce downtime. Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process 316 stainless steel wetted section All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21 Pass solids up to 0.1875 in. (4.8 mm)

$8,190.00

SANIFORCE AODD PUMP, 1590FG-PS01AS13SSPTPTEP21

GG FD2211

SANIFORCE AODD PUMP, 1590FG-PS01AS13SSPTPTEP21

SaniForce 1590, 1.5" FG SST Pneumatic Diaphragm Pump, SS Center, SS Seats, PT Balls, PT Diaphragms Graco's SaniForce 1590, 1.5-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 100 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership. Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials. 1.5 inch sanitary pump with flow rates up to 100 gpm (379 lpm) and pressures up to 120 psi (8 bar) Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves Externally serviceable air valves deliver leading efficiency and reduce downtime. Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process 316 stainless steel wetted section All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21 Pass solids up to 0.1875 in. (4.8 mm)

$8,030.00

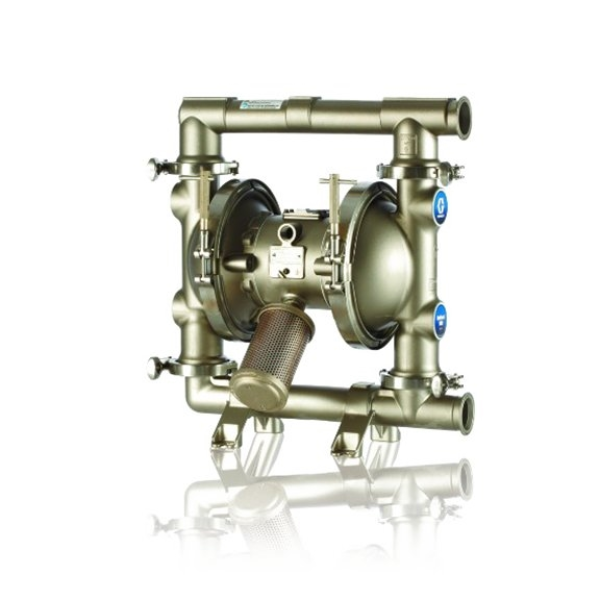

SANIFORCE AODD PUMP, 1590FG-PS01AS13SSSPSPEP21

GG FD2222

SANIFORCE AODD PUMP, 1590FG-PS01AS13SSSPSPEP21

SaniForce 1590, 1.5" FG SST Pneumatic Diaphragm Pump, SS Center, SS Seats, SP Balls, SP Diaphragms Graco's SaniForce 1590, 1.5-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 100 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership. Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials. 1.5 inch sanitary pump with flow rates up to 100 gpm (379 lpm) and pressures up to 120 psi (8 bar) Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves Externally serviceable air valves deliver leading efficiency and reduce downtime. Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process 316 stainless steel wetted section All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21 Pass solids up to 0.1875 in. (4.8 mm)

$7,810.00

SANIFORCE AODD PUMP, 1590FG-PS01AS13SSCWSPEP21

GG FD2232

SANIFORCE AODD PUMP, 1590FG-PS01AS13SSCWSPEP21

SaniForce 1590, 1.5" FG SST Pneumatic Diaphragm Pump, SS Center, SS Seats, CW Balls, SP Diaphragms Graco's SaniForce 1590, 1.5-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 100 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership. Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials. 1.5 inch sanitary pump with flow rates up to 100 gpm (379 lpm) and pressures up to 120 psi (8 bar) Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves Externally serviceable air valves deliver leading efficiency and reduce downtime. Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process 316 stainless steel wetted section All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21 Pass solids up to 0.1875 in. (4.8 mm)

$8,190.00

SANIFORCE AODD PUMP, 2150FG-PS01AS13SSSPSPPT21

GG FD3122

SANIFORCE AODD PUMP, 2150FG-PS01AS13SSSPSPPT21

SaniForce 2150, 2" FG SST Pneumatic Diaphragm Pump, SS Center, SS Seats, SP Balls, SP Diaphragms Graco's SaniForce 2150, 2-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 160 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership. Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials. 2 inch sanitary pump with flow rates up to 160 gpm (568 lpm) and pressures up to 120 psi (8 bar) Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves Externally serviceable air valves deliver leading efficiency and reduce downtime. Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process 316 stainless steel wetted section All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21 Pass solids up to 0.25 in. (6.3 mm)

$10,890.00

Saniforce Aodd Pump, 1590Fg-Ps01As13Ssfkfkep21

GG FD2244

SANIFORCE AODD PUMP, 1590FG-PS01AS13SSFKFKEP21

Graco FD2244 SaniForce 1590, 1.5" FG SST Pneumatic Diaphragm Pump, SS Center, SS Seats, FK Balls, FK Diaphragms

Graco's SaniForce 1590, 1.5-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 100 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership.

Application: Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials.

1.5 inch sanitary pump with flow rates up to 100 gpm (379 lpm) and pressures up to 120 psi (8 bar)
Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions
Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves
Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process
316 stainless steel wetted section
All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21
Pass solids up to 0.1875 in. (4.8 mm)

Model: SaniForce
Series: 1590 FG

Air Exhaust Port Size (in): 3/4
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT

Application: Sanitary

Ball Material: FKM (Viton)

Center Section Material: Stainless Steel

Compatible Material: Edible Oil, Food and Personal Care

Compressor Required: Yes
Connection Type: Tri-Clamp

Diaphragm Material: FKM (Viton)

Fluid Section Material: 316 Stainless Steel

For Use With: Food and Personal Care

Hazardous Location Approval: ATEX, IECEx

Manifold Configuration: End Port
Manifold O-Ring Material: EPDM
Material: Stainless Steel
Material Certification: EN 1024:2004 Type 2.1 (Standard)

Maximum Air Consumption (SCFM): 130
Maximum Air Pressure (bar): 8

Maximum Air Pressure (kPa): 800
Maximum Air Pressure (MPa): 0.8
Maximum Air Pressure (psi): 120

Maximum Cycle Rate (CPM): 200

Maximum Flow Rate (GPM): 100
Maximum Flow Rate (L/min): 379

Maximum Fluid Operating Temperature (Â°C): 135
Maximum Fluid Operating Temperature (Â°F): 275
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120

Maximum Solid Size (cm): 0.48
Maximum Solid Size (in): 0.1875
Maximum Solid Size (mm): 4.8

Minimum Fluid Operating Temperature (Â°C): -40
Minimum Fluid Operating Temperature (Â°F): -40

<

$8,690.00

SANIFORCE AODD PUMP, 2150FG-PS01AS13SSPTPTEP21

GG FD3211

SANIFORCE AODD PUMP, 2150FG-PS01AS13SSPTPTEP21

SaniForce 2150, 2" FG SST Pneumatic Diaphragm Pump, SS Center, SS Seats, PT Balls, PT Diaphragms Graco's SaniForce 2150, 2-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 160 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership. Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials. 2 inch sanitary pump with flow rates up to 160 gpm (568 lpm) and pressures up to 120 psi (8 bar) Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves Externally serviceable air valves deliver leading efficiency and reduce downtime. Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process 316 stainless steel wetted section All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21 Pass solids up to 0.25 in. (6.3 mm)

$11,610.00

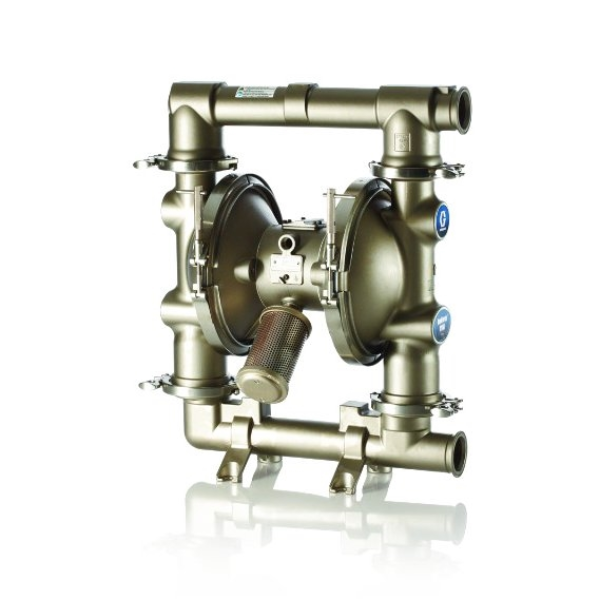

SANIFORCE AODD PUMP, 2150FG-PS01AS13SSPTPOEP21

GG FD3213

SANIFORCE AODD PUMP, 2150FG-PS01AS13SSPTPOEP21

SaniForce 2150, 2" FG SST Pneumatic Diaphragm Pump, SS Center, SS Seats, PT Balls, PO Diaphragms Graco's SaniForce 2150, 2-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 160 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership. Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials. 2 inch sanitary pump with flow rates up to 160 gpm (568 lpm) and pressures up to 120 psi (8 bar) Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves Externally serviceable air valves deliver leading efficiency and reduce downtime. Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process PTFE/EPDM overmolded diaphragm design reduces areas that harbor bacteria while improving wear and diaphragm life with no exposed diaphragm plate on the fluid side 316 stainless steel wetted section All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21 Pass solids up to 0.25 in. (6.3 mm)

$11,860.00

SANIFORCE AODD PUMP, 2150FG-PS01AS13SSSPSPEP21

GG FD3222

SANIFORCE AODD PUMP, 2150FG-PS01AS13SSSPSPEP21

SaniForce 2150, 2" FG SST Pneumatic Diaphragm Pump, SS Center, SS Seats, SP Balls, SP Diaphragms Graco's SaniForce 2150, 2-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 160 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership. Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials. 2 inch sanitary pump with flow rates up to 160 gpm (568 lpm) and pressures up to 120 psi (8 bar) Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves Externally serviceable air valves deliver leading efficiency and reduce downtime. Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process 316 stainless steel wetted section All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21 Pass solids up to 0.25 in. (6.3 mm)

$10,890.00

Saniforce Aodd Pump, 2150Fg-Ps01As13Ssfkfkep21

GG FD3244

SANIFORCE AODD PUMP, 2150FG-PS01AS13SSFKFKEP21

Graco FD3244 SaniForce 2150, 2" FG SST Pneumatic Diaphragm Pump, SS Center, SS Seats, FK Balls, FK Diaphragms

Graco's SaniForce 2150, 2-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 160 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership.

Application: Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials.

2 inch sanitary pump with flow rates up to 160 gpm (568 lpm) and pressures up to 120 psi (8 bar)
Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions
Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves
Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process
316 stainless steel wetted section
All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21
Pass solids up to 0.25 in. (6.3 mm)

Model: SaniForce
Series: 2150 FG

Air Exhaust Port Size (in): 3/4
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT

Application: Sanitary

Ball Material: FKM (Viton)

Center Section Material: Stainless Steel

Compatible Material: Edible Oil, Food, Personal Care

Compressor Required: Yes
Connection Type: Tri-Clamp

Diaphragm Material: FKM (Viton)

Fluid Section Material: 316 Stainless Steel

For Use With: Food and Personal Care

Hazardous Location Approval: ATEX, IECEx

Manifold Configuration: End Port
Manifold O-Ring Material: EPDM
Material: Stainless Steel
Material Certification: EN 1024:2004 Type 2.1 (Standard)

Maximum Air Consumption (SCFM): 175
Maximum Air Pressure (bar): 8

Maximum Air Pressure (kPa): 800
Maximum Air Pressure (MPa): 0.8
Maximum Air Pressure (psi): 120

Maximum Cycle Rate (CPM): 165

Maximum Flow Rate (GPM): 160
Maximum Flow Rate (L/min): 568

Maximum Fluid Operating Temperature (Â°C): 135
Maximum Fluid Operating Temperature (Â°F): 275
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120

Maximum Solid Size (cm): 0.63
Maximum Solid Size (in): 0.25
Maximum Solid Size (mm): 6.3

Minimum Fluid Operating Temperature (Â°C): -40
Minimum Fluid Operating Temperature (Â°F): -40

Overall

$12,320.00

SANIFORCE AODD PUMP, 515FG-PP01AS13SSSPSPPT21

GG FD5122

SANIFORCE AODD PUMP, 515FG-PP01AS13SSSPSPPT21

SaniForce 515, 1/2" FG SST Pneumatic Diaphragm Pump, Poly Center, SS Seats, SP Balls, SP Diaphragms Graco's SaniForce 515 1/2-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing a pump with lower flow rates up to 16 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership. Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials up to 5,000 cps. 1/2 inch Sanitary pump with flow rates up to 16 gpm (61 lpm) and pressures up to 100 psi (6.9 bar) Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves Externally serviceable air valves deliver leading efficiency and reduce downtime. Quickly unload drums with the drum-mount suction kit: Graco part number #262828 Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process Pass solids up to 0.093 in. (2.4 mm)

$3,380.00

SANIFORCE AODD PUMP, 515FG-PP01AS13SSPTPTEP21

GG FD5611

SANIFORCE AODD PUMP, 515FG-PP01AS13SSPTPTEP21

SaniForce 515, 1/2" FG SST Pneumatic Diaphragm Pump, Poly Center, SS Seats, PT Balls, PT Diaphragms Graco's SaniForce 515 1/2-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing a pump with lower flow rates up to 16 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership. Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials up to 5,000 cps. 1/2 inch Sanitary pump with flow rates up to 16 gpm (61 lpm) and pressures up to 100 psi (6.9 bar) Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves Externally serviceable air valves deliver leading efficiency and reduce downtime. Quickly unload drums with the drum-mount suction kit: Graco part number #262828 Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process Pass solids up to 0.093 in. (2.4 mm)

$3,510.00

SANIFORCE AODD PUMP, 515FG-PP01AS13SSSPSPEP21

GG FD5622

SANIFORCE AODD PUMP, 515FG-PP01AS13SSSPSPEP21

SaniForce 515, 1/2" FG SST Pneumatic Diaphragm Pump, Poly Center, SS Seats, SP Balls, SP Diaphragms Graco's SaniForce 515 1/2-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing a pump with lower flow rates up to 16 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership. Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials up to 5,000 cps. 1/2 inch Sanitary pump with flow rates up to 16 gpm (61 lpm) and pressures up to 100 psi (6.9 bar) Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves Externally serviceable air valves deliver leading efficiency and reduce downtime. Quickly unload drums with the drum-mount suction kit: Graco part number #262828 Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process Pass solids up to 0.093 in. (2.4 mm)

$3,390.00

SANIFORCE AODD PUMP, 515FG-PP01AS13SSSSFKEP21

GG FD5638

SANIFORCE AODD PUMP, 515FG-PP01AS13SSSSFKEP21

SaniForce 515, 1/2" FG SST Pneumatic Diaphragm Pump, Poly Center, SS Seats, SS Balls, FK Diaphragms Graco's SaniForce 515 1/2-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing a pump with lower flow rates up to 16 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership. Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials up to 5,000 cps. 1/2 inch Sanitary pump with flow rates up to 16 gpm (61 lpm) and pressures up to 100 psi (6.9 bar) Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves Externally serviceable air valves deliver leading efficiency and reduce downtime. Quickly unload drums with the drum-mount suction kit: Graco part number #262828 Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process Pass solids up to 0.093 in. (2.4 mm)

$3,930.00

SANIFORCE AODD PUMP, 515FG-PP01AS14SSPTPTPT21

GG FD6111

SANIFORCE AODD PUMP, 515FG-PP01AS14SSPTPTPT21

SaniForce 515, 1/2" FG SST Pneumatic Diaphragm Pump, Poly Center, SS Seats, PT Balls, PT Diaphragms Graco's SaniForce 515 1/2-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing a pump with lower flow rates up to 16 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership. Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials up to 5,000 cps. 1/2 inch Sanitary pump with flow rates up to 16 gpm (61 lpm) and pressures up to 100 psi (6.9 bar) Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves Externally serviceable air valves deliver leading efficiency and reduce downtime. Quickly unload drums with the drum-mount suction kit: Graco part number #262828 Features DIN inlet and outlet connections Pass solids up to 0.093 in. (2.4 mm)

$4,080.00

SANIFORCE AODD PUMP, 515FG-PP01AS14SSPTPOPT21

GG FD6113

SANIFORCE AODD PUMP, 515FG-PP01AS14SSPTPOPT21

SaniForce 515, 1/2" FG SST Pneumatic Diaphragm Pump, Poly Center, SS Seats, PT Balls, PO Diaphragms Graco's SaniForce 515 1/2-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing a pump with lower flow rates up to 16 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership. Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials up to 5,000 cps. 1/2 inch Sanitary pump with flow rates up to 16 gpm (61 lpm) and pressures up to 100 psi (6.9 bar) Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves Externally serviceable air valves deliver leading efficiency and reduce downtime. Quickly unload drums with the drum-mount suction kit: Graco part number #262828 Features DIN inlet and outlet connections PTFE/EPDM overmolded diaphragm design reduces areas that harbor bacteria while improving wear and diaphragm life with no exposed diaphragm plate on the fluid side Pass solids up to 0.093 in. (2.4 mm)

$4,310.00

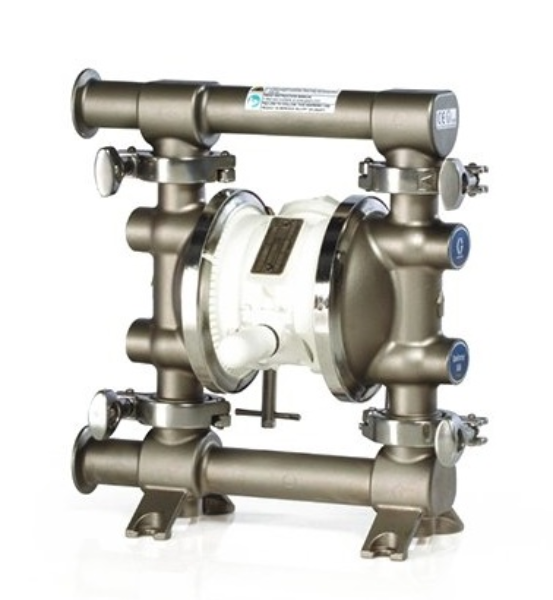

SANIFORCE AODD PUMP, 515FG-PP01AS14SSSPSPPT21

GG FD6122

SANIFORCE AODD PUMP, 515FG-PP01AS14SSSPSPPT21

SaniForce 515, 1/2" FG SST Pneumatic Diaphragm Pump, Poly Center, SS Seats, SP Balls, SP Diaphragms Graco's SaniForce 515 1/2-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing a pump with lower flow rates up to 16 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership. Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials up to 5,000 cps. 1/2 inch Sanitary pump with flow rates up to 16 gpm (61 lpm) and pressures up to 100 psi (6.9 bar) Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves Externally serviceable air valves deliver leading efficiency and reduce downtime. Quickly unload drums with the drum-mount suction kit: Graco part number #262828 Features DIN inlet and outlet connections Pass solids up to 0.093 in. (2.4 mm)

$3,870.00

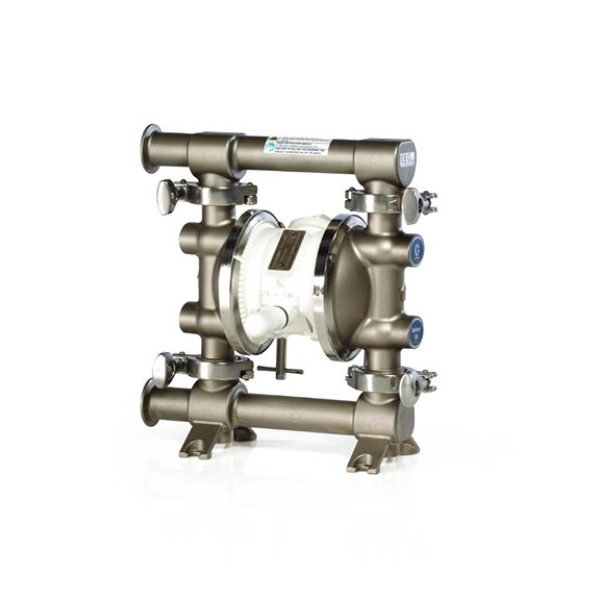

SANIFORCE AODD PUMP, 515FG-PP01AS14SSSPSPEP21

GG FD6622

SANIFORCE AODD PUMP, 515FG-PP01AS14SSSPSPEP21

SaniForce 515, 1/2" FG SST Pneumatic Diaphragm Pump, Poly Center, SS Seats, SP Balls, SP Diaphragms Graco's SaniForce 515 1/2-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing a pump with lower flow rates up to 16 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership. Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials up to 5,000 cps. 1/2 inch Sanitary pump with flow rates up to 16 gpm (61 lpm) and pressures up to 100 psi (6.9 bar) Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves Externally serviceable air valves deliver leading efficiency and reduce downtime. Quickly unload drums with the drum-mount suction kit: Graco part number #262828 Features DIN inlet and outlet connections Pass solids up to 0.093 in. (2.4 mm)

$6,680.00

SANIFORCE AODD PUMP, 1040FG-PS01AS14SSPTPTPT21

GG FD7111

SANIFORCE AODD PUMP, 1040FG-PS01AS14SSPTPTPT21

SaniForce 1040, 1" FG SST Pneumatic Diaphragm Pump, SS Center, SS Seats, PT Balls, PT Diaphragms Graco's SaniForce 1040, 1-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 41 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership. Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials. 1 inch sanitary pump with flow rates up to 41 gpm (155 lpm) and pressures up to 120 psi (8 bar) Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves Externally serviceable air valves deliver leading efficiency and reduce downtime. Features DIN inlet and outlet connections 316 stainless steel wetted section All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21 Pass solids up to 0.125 in. (3.2 mm)

$6,670.00

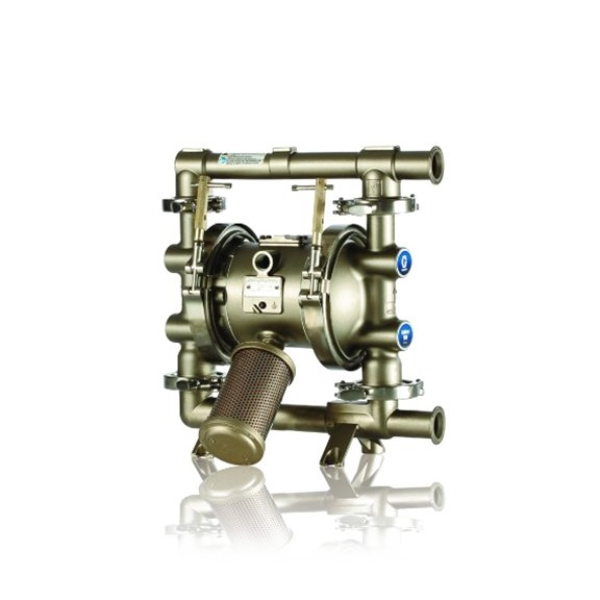

SANIFORCE AODD PUMP, 1040FG-PS01AS14SSPTPOPT21

GG FD7113

SANIFORCE AODD PUMP, 1040FG-PS01AS14SSPTPOPT21

SaniForce 1040, 1" FG SST Pneumatic Diaphragm Pump, SS Center, SS Seats, PT Balls, PO Diaphragms Graco's SaniForce 1040, 1-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 41 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership. Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials. 1 inch sanitary pump with flow rates up to 41 gpm (155 lpm) and pressures up to 120 psi (8 bar) Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves Externally serviceable air valves deliver leading efficiency and reduce downtime. Features DIN inlet and outlet connections PTFE/EPDM overmolded diaphragm design reduces areas that harbor bacteria while improving wear and diaphragm life with no exposed diaphragm plate on the fluid side 316 stainless steel wetted section All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21 Pass solids up to 0.125 in. (3.2 mm)

$9,840.00

SANIFORCE AODD PUMP, 1040FG-PS01AS14SSCWSPEP21

GG FD7232

SANIFORCE AODD PUMP, 1040FG-PS01AS14SSCWSPEP21

SaniForce 1040, 1" FG SST Pneumatic Diaphragm Pump, SS Center, SS Seats, CW Balls, SP Diaphragms Graco's SaniForce 1040, 1-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 41 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership. Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials. 1 inch sanitary pump with flow rates up to 41 gpm (155 lpm) and pressures up to 120 psi (8 bar) Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves Externally serviceable air valves deliver leading efficiency and reduce downtime. Features DIN inlet and outlet connections 316 stainless steel wetted section All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21 Pass solids up to 0.125 in. (3.2 mm)

$6,680.00

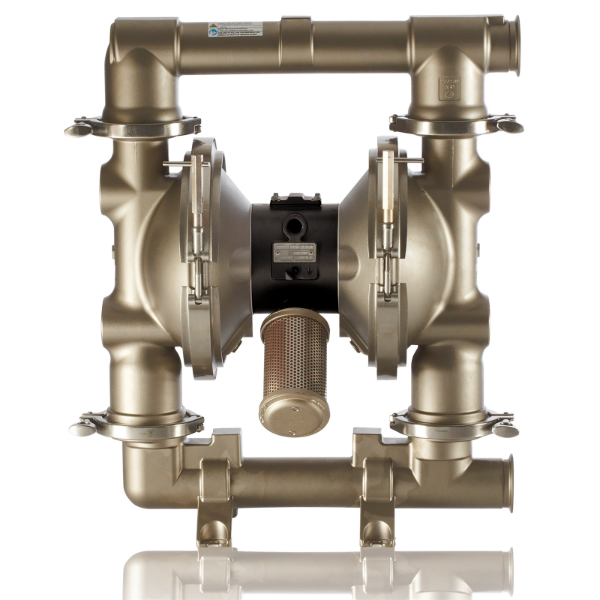

SANIFORCE AODD PUMP, 1040FG-PS01AS14SSFKFKEP31

GG FD7288C31

SANIFORCE AODD PUMP, 1040FG-PS01AS14SSFKFKEP31

SaniForce 1040, 1" FG SST Pneumatic Diaphragm Pump, SS Center, SS Seats, FK Balls, FK Diaphragms Graco's SaniForce 1040, 1-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 41 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership. Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials. 1 inch sanitary pump with flow rates up to 41 gpm (155 lpm) and pressures up to 120 psi (8 bar) Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves Externally serviceable air valves deliver leading efficiency and reduce downtime. Features DIN inlet and outlet connections 316 stainless steel wetted section All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21 Pass solids up to 0.125 in. (3.2 mm)

$8,140.00

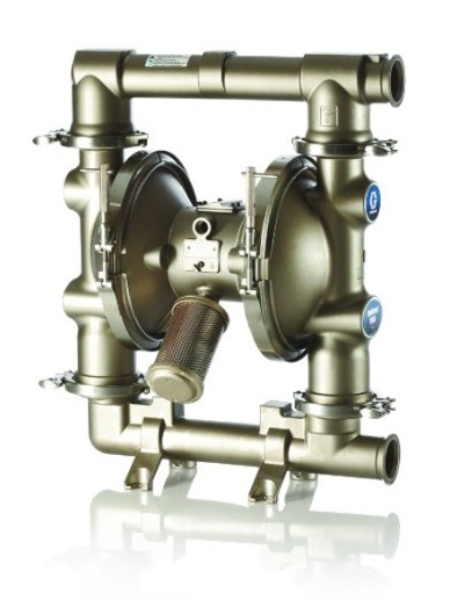

SANIFORCE AODD PUMP, 1590FG-PS01AS14SSPTPTPT21

GG FD8111

SANIFORCE AODD PUMP, 1590FG-PS01AS14SSPTPTPT21

SaniForce 1590, 1.5" FG SST Pneumatic Diaphragm Pump, SS Center, SS Seats, PT Balls, PT Diaphragms Graco's SaniForce 1590, 1.5-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 100 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership. Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials. 1.5 inch sanitary pump with flow rates up to 100 gpm (379 lpm) and pressures up to 120 psi (8 bar) Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves Externally serviceable air valves deliver leading efficiency and reduce downtime. Features DIN inlet and outlet connections 316 stainless steel wetted section All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21 Pass solids up to 0.1875 in. (4.8 mm)

$9,080.00

Saniforce Aodd Pump, 2150Fg-Ps01As14Ssptptpt21

GG FD9111

SANIFORCE AODD PUMP, 2150FG-PS01AS14SSPTPTPT21

Graco FD9111 SaniForce 2150, 2" FG SST Pneumatic Diaphragm Pump, SS Center, SS Seats, PT Balls, PT Diaphragms

Graco's SaniForce 2150, 2-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 160 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership.

Application: Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials.

2 inch sanitary pump with flow rates up to 160 gpm (568 lpm) and pressures up to 120 psi (8 bar)
Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions
Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves
Features DIN inlet and outlet connections
316 stainless steel wetted section
All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21
Pass solids up to 0.25 in. (6.3 mm)

Model: SaniForce
Series: 2150 FG

Air Exhaust Port Size (in): 3/4
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT

Application: Sanitary

Ball Material: PTFE

Center Section Material: Stainless Steel

Compatible Material: Edible Oil, Food and Personal Care

Compressor Required: Yes
Connection Type: DIN

Diaphragm Material: PTFE/Santoprene 2-Piece

Fluid Section Material: 316 Stainless Steel

For Use With: Food and Personal Care

Hazardous Location Approval: ATEX, IECEx

Manifold Configuration: End Port
Manifold O-Ring Material: PTFE
Material: Stainless Steel
Material Certification: EN 1024:2004 Type 2.1 (Standard)

Maximum Air Consumption (SCFM): 175
Maximum Air Pressure (bar): 8

Maximum Air Pressure (kPa): 800
Maximum Air Pressure (MPa): 0.8
Maximum Air Pressure (psi): 120

Maximum Cycle Rate (CPM): 165

Maximum Flow Rate (GPM): 160
Maximum Flow Rate (L/min): 568

Maximum Fluid Operating Temperature (Â°C): 104
Maximum Fluid Operating Temperature (Â°F): 220
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120

Maximum Solid Size (cm): 0.63
Maximum Solid Size (in): 0.25
Maximum Solid Size (mm): 6.3

Minimum Fluid Operating Temperature (Â°C): -40
Minimum Fluid Operating Temperature (Â°F): -40

Overall Height (in): 25.9

Power Source: Pneumatic

Pump Ra

$13,540.00

RAC X FFLP TIP, SPRAY, (106)

GG FFLP106

RAC X FFLP TIP, SPRAY, (106)

Fine Finish Low Pressure RAC X FF LP SwitchTip, 106 Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 106 Fine Finish Low Pressure (FF LP) RAC X SwitchTip. This fine finish tip produces a 2 to 4 inch Fan pattern and has a 0.006 inch orifice, ideal for finishing materials. Reverse the SwitchTip to easily clear clogs. For fine finish applications Less Prep & Cleanup Time

Less mess with less overspray
Put the paint where you want it

Easiest Pattern Overlap

Softer spray fan pattern
Easy to apply any material to any surfance
Consistent blended finish quality

Extended Life

Spraying at half pressure doubles tip life
Reduced sprayer maintenance – up to 2X life

SmartTip Technology

Exclusive internal tip geometry
Reduces energy required to atomize paints, stains, and other materials
Delivers a superior finish with less pressure
Works with SmartControl on select Graco sprayers

Best Tip on the Market

Works with any airless sprayer
Longest lasting Fan pattern
Highest quality finish with a consistent spray pattern

Easy to Identify Tip Size

Large raised tip size numbers are always legible – even when covered with paint

Superior Tip Design

Locking tab ensures tip stays securely in guard
Snaps tip in spray or reverse position
OneSeal tip gasket installs with no tools
Solvent seal available when using extremely hot solvents

$82.00

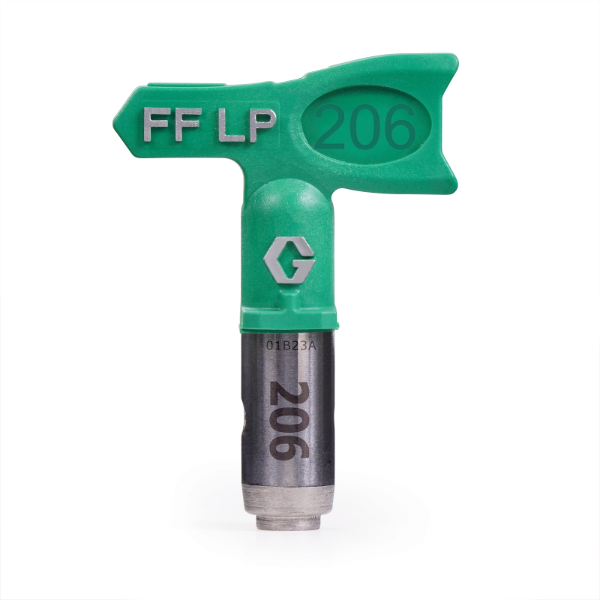

TIP, SPRAY, FFLP (206)

GG FFLP206

TIP, SPRAY, FFLP (206)

Fine Finish Low Pressure RAC X FF LP SwitchTip, 206 Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 206 Fine Finish Low Pressure (FF LP) RAC X SwitchTip. This fine finish tip produces a 4 to 6 inch Fan pattern and has a 0.006 inch orifice, ideal for finishing materials. Reverse the SwitchTip to easily clear clogs. For fine finish applications Less Prep & Cleanup Time

Less mess with less overspray
Put the paint where you want it

Easiest Pattern Overlap

Softer spray fan pattern
Easy to apply any material to any surfance
Consistent blended finish quality

Extended Life

Spraying at half pressure doubles tip life
Reduced sprayer maintenance – up to 2X life

SmartTip Technology

Exclusive internal tip geometry
Reduces energy required to atomize paints, stains, and other materials
Delivers a superior finish with less pressure
Works with SmartControl on select Graco sprayers

Best Tip on the Market

Works with any airless sprayer
Longest lasting Fan pattern
Highest quality finish with a consistent spray pattern

Easy to Identify Tip Size

Large raised tip size numbers are always legible – even when covered with paint

Superior Tip Design

Locking tab ensures tip stays securely in guard
Snaps tip in spray or reverse position
OneSeal tip gasket installs with no tools
Solvent seal available when using extremely hot solvents

$82.00

RAC X FFLP TIP, SPRAY, (408)

GG FFLP408

RAC X FFLP TIP, SPRAY, (408)

Fine Finish Low Pressure RAC X FF LP SwitchTip, 408 Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 408 Fine Finish Low Pressure (FF LP) RAC X SwitchTip. This fine finish tip produces a 8 to 10 inch Fan pattern and has a 0.008 inch orifice, ideal for finishing materials. Reverse the SwitchTip to easily clear clogs. For fine finish applications Less Prep & Cleanup Time

Less mess with less overspray
Put the paint where you want it

Easiest Pattern Overlap

Softer spray fan pattern
Easy to apply any material to any surfance
Consistent blended finish quality

Extended Life

Spraying at half pressure doubles tip life
Reduced sprayer maintenance – up to 2X life

SmartTip Technology

Exclusive internal tip geometry
Reduces energy required to atomize paints, stains, and other materials
Delivers a superior finish with less pressure
Works with SmartControl on select Graco sprayers

Best Tip on the Market

Works with any airless sprayer
Longest lasting Fan pattern
Highest quality finish with a consistent spray pattern

Easy to Identify Tip Size

Large raised tip size numbers are always legible – even when covered with paint

Superior Tip Design

Locking tab ensures tip stays securely in guard
Snaps tip in spray or reverse position
OneSeal tip gasket installs with no tools
Solvent seal available when using extremely hot solvents

$82.00

Reactor 2 E-30 System, 10Kw, Pc

GG FH2010

Reactor 2 E-30 System, 10Kw, Pc

$52,810.00

Reactor 2 E-30 System, 15Kw, Pc

GG FH2011

Reactor 2 E-30 System, 15Kw, Pc

$55,100.00

Reactor 2 E-Xp2 System, Pkg, Pc

GG FH2012

Reactor 2 E-Xp2 System, Pkg, Pc

$62,390.00

Reactor 2 E-30 System, 10Kw, Elite, Pc

GG FH2110

Reactor 2 E-30 System, 10Kw, Elite, Pc

$57,740.00

Reactor 2 E-30 System, 15Kw, Elite, Pc

GG FH2111

Reactor 2 E-30 System, 15Kw, Elite, Pc

$60,020.00

Reactor 2 E-Xp2 System, Pkg, Elite, Pc

GG FH2112

Reactor 2 E-Xp2 System, Pkg, Elite, Pc

$67,630.00

Gusmer Gh-2 System, 10Kw, 1Ph, Pc

GG FHC200

Gusmer Gh-2 System, 10Kw, 1Ph, Pc

$40,490.00

Gusmer Gh-2 System, 10Kw, 3Ph, Pc

GG FHC201

Gusmer Gh-2 System, 10Kw, 3Ph, Pc

$40,490.00

Gusmer Ghx-2 System, 15Kw, 1Ph, Pc

GG FHC203

Gusmer Ghx-2 System, 15Kw, 1Ph, Pc

$46,560.00

Gusmer Gh-2 System, 10Kw, 3Ph/N, Pc

GG FHC202

Gusmer Gh-2 System, 10Kw, 3Ph/N, Pc

$40,490.00

Gusmer Ghx-2 System, 15Kw, 3Ph, Pc

GG FHC204

Gusmer Ghx-2 System, 15Kw, 3Ph, Pc

$46,560.00

Gusmer Ghx-2 System, 15Kw, 3Ph/N, Pc

GG FHC205

Gusmer Ghx-2 System, 15Kw, 3Ph/N, Pc

$46,560.00

Gusmer Gh-4 System, 15Kw, 3Ph, Pc, Multi

GG FHC699

Gusmer Gh-4 System, 15Kw, 3Ph, Pc, Multi

$53,840.00

Gusmer Gh-4 System, 15Kw, 3Ph/N, Pc, Multi

GG FHC700

Gusmer Gh-4 System, 15Kw, 3Ph/N, Pc, Multi

$53,840.00

Reactor 2 H-30 System, 10Kw, Pc

GG FHH031

Reactor 2 H-30 System, 10Kw, Pc

$58,500.00

Reactor 2 H-30 System, 15Kw, Pc

GG FHH032

Reactor 2 H-30 System, 15Kw, Pc

$60,780.00

Reactor 2 H-40 System, 230V, 15Kw, Pc

GG FHH043

Reactor 2 H-40 System, 230V, 15Kw, Pc

$67,680.00

Reactor 2 H-40 System, 230V, 20Kw, Pc

GG FHH044

Reactor 2 H-40 System, 230V, 20Kw, Pc

$69,210.00

Reactor 2 H-40 System, 400V, 15Kw, Pc

GG FHH045

Reactor 2 H-40 System, 400V, 15Kw, Pc

$67,680.00

Reactor 2 H-40 System, 400V, 20Kw, Pc

GG FHH046

Reactor 2 H-40 System, 400V, 20Kw, Pc

$69,210.00

Reactor 2 H-50 System, 230V, 20Kw, Pc

GG FHH053

Reactor 2 H-50 System, 230V, 20Kw, Pc

$70,720.00

Reactor 2 H-50 System, 400V, 20Kw, Pc

GG FHH056

Reactor 2 H-50 System, 400V, 20Kw, Pc

$70,720.00

Reactor 2 H-Xp3 System, 230, 20Kw, Pc

GG FHH074

Reactor 2 H-Xp3 System, 230, 20Kw, Pc

$75,670.00

Reactor 2 H-Xp2 System, Sel, 15Kw, Pc

GG FHH062

Reactor 2 H-Xp2 System, Sel, 15Kw, Pc

$68,640.00

Reactor 2 H-Xp3 System, 400, 20Kw, Pc

GG FHH076

Reactor 2 H-Xp3 System, 400, 20Kw, Pc

$75,670.00

Reactor 2 H-30 System, 10Kw, Elite, Pc

GG FHH131

Reactor 2 H-30 System, 10Kw, Elite, Pc

$62,550.00

Reactor 2 H-30 System, 15Kw, Elite, Pc

GG FHH132

Reactor 2 H-30 System, 15Kw, Elite, Pc

$64,810.00

Reactor 2 H-40 System, 230V, 15Kw, Elite, Pc

GG FHH143

Reactor 2 H-40 System, 230V, 15Kw, Elite, Pc

$72,000.00

Reactor 2 H-40 System, 400V, 15Kw, Elite, Pc

GG FHH145

Reactor 2 H-40 System, 400V, 15Kw, Elite, Pc

$72,000.00

Reactor 2 H-40 System, 400V, 20Kw, Elite, Pc

GG FHH146

Reactor 2 H-40 System, 400V, 20Kw, Elite, Pc

$73,530.00

Reactor 2 H-40 System, 230V, 20Kw, Elite, Pc

GG FHH144

Reactor 2 H-40 System, 230V, 20Kw, Elite, Pc

$73,530.00

Reactor 2 H-50 System, 230V, 20Kw, Elite, Pc

GG FHH153

Reactor 2 H-50 System, 230V, 20Kw, Elite, Pc

$75,040.00

Reactor 2 H-50 System, 400V, 20Kw, Elite, Pc

GG FHH156

Reactor 2 H-50 System, 400V, 20Kw, Elite, Pc

$75,040.00

Reactor 2 H-Xp2 System, Sel, 15Kw, Elite, Pc

GG FHH162

Reactor 2 H-Xp2 System, Sel, 15Kw, Elite, Pc

$73,030.00

Reactor 2 H-Xp3 System, 400, 20Kw, Elite, Pc

GG FHH176

Reactor 2 H-Xp3 System, 400, 20Kw, Elite, Pc

$80,320.00

Kit, 1040 Fg Ss, Cw, Sp, Pt

GG FK1132

KIT, 1040 FG SS, CW, SP, PT

Graco FK1132 SaniForce 1040 FG Complete Fluid Repair Kit with SS Seat, CW Ball, SP Diaphragm, PT Seal

$1,010.00

KIT, 1040 FG SS, PT, PO, EP

GG FK1213

KIT, 1040 FG SS, PT, PO, EP

SaniForce 1040 FG Complete Fluid Repair Kit with SS Seat, PT Ball, PO Diaphragm, EP Seal

$1,055.00

KIT, 1040 FG SS, SP, SP, EP

GG FK1222

KIT, 1040 FG SS, SP, SP, EP

SaniForce 1040 FG Complete Fluid Repair Kit with SS Seat, SP Ball, SP Diaphragm, EP Seal

$296.00

KIT, 1040 FG SS, FK, FK, EP

GG FK1288

KIT, 1040 FG SS, FK, FK, EP

SaniForce 1040 FG Complete Fluid Repair Kit with SS Seat, FK Ball, FK Diaphragm, EP Seal

$1,060.00

Kit, 1040 Fg Ss, Cw, Po, Ep

GG FK1233

KIT, 1040 FG SS, CW, PO, EP

Graco FK1233 SaniForce 1040 FG Complete Fluid Repair Kit with SS Seat, CW Ball, PO Diaphragm, EP Seal

$1,455.00

KIT, 1040 FG SS, CW, SP, EP

GG FK1232

KIT, 1040 FG SS, CW, SP, EP

SaniForce 1040 FG Complete Fluid Repair Kit with SS Seat, CW Ball, SP Diaphragm, EP Seal

$918.00

KIT, 1590 FG SS, PT, PO, PT

GG FK2113

KIT, 1590 FG SS, PT, PO, PT

SaniForce 1590 FG Complete Fluid Repair Kit with SS Seat, PT Ball, PO Diaphragm, PT Seal

$1,875.00

KIT, 1590 FG SS, SP, SP, PT

GG FK2122

KIT, 1590 FG SS, SP, SP, PT

SaniForce 1590 FG Complete Fluid Repair Kit with SS Seat, SP Ball, SP Diaphragm, PT Seal

$642.00

KIT, 1590 FG SS, CW, SP, PT

GG FK2132

KIT, 1590 FG SS, CW, SP, PT

SaniForce 1590 FG Complete Fluid Repair Kit with SS Seat, CW Ball, SP Diaphragm, PT Seal

$1,740.00

KIT, 1590 FG SS, CW, PO, PT

GG FK2133

KIT, 1590 FG SS, CW, PO, PT

SaniForce 1590 FG Complete Fluid Repair Kit with SS Seat, CW Ball, PO Diaphragm, PT Seal

$3,120.00

KIT, 1590 FG SS, PT, PT, EP

GG FK2211

KIT, 1590 FG SS, PT, PT, EP

SaniForce 1590 FG Complete Fluid Repair Kit with SS Seat, PT Ball, PT Diaphragm, EP Seal

$1,465.00

KIT, 1590 FG SS, CW, SP, EP

GG FK2232

KIT, 1590 FG SS, CW, SP, EP

SaniForce 1590 FG Complete Fluid Repair Kit with SS Seat, CW Ball, SP Diaphragm, EP Seal

$4,470.00

Kit, 1590 Fg Ss, Cw, Po, Ep

GG FK2233

KIT, 1590 FG SS, CW, PO, EP

Graco FK2233 SaniForce 1590 FG Complete Fluid Repair Kit with SS Seat, CW Ball, PO Diaphragm, EP Seal

$3,120.00

Kit, 1590 Fg Ss, Fk, Fk, Ep

GG FK2244

KIT, 1590 FG SS, FK, FK, EP

Graco FK2244 SaniForce 1590 FG Complete Fluid Repair Kit with SS Seat, FK Ball, FK Diaphragm, EP Seal

$1,520.00

KIT, 2150 FG SS, SP, SP, PT

GG FK3122

KIT, 2150 FG SS, SP, SP, PT

SaniForce 2150 FG Complete Fluid Repair Kit with SS Seat, SP Ball, SP Diaphragm, PT Seal

$531.00

Kit, 2150 Fg Ss, Cw, Sp, Pt

GG FK3132

Kit, 2150 Fg Ss, Cw, Sp, Pt

$2,980.00

KIT, 2150 FG SS, CW, PO, PT

GG FK3133

KIT, 2150 FG SS, CW, PO, PT

SaniForce 2150 FG Complete Fluid Repair Kit with SS Seat, CW Ball, PO Diaphragm, PT Seal

$3,360.00

KIT, 2150 FG SS, PT, PT, EP

GG FK3211

KIT, 2150 FG SS, PT, PT, EP

SaniForce 2150 FG Complete Fluid Repair Kit with SS Seat, PT Ball, PT Diaphragm, EP Seal

$1,945.00

KIT, 2150 FG SS, PT, PO, EP

GG FK3213

KIT, 2150 FG SS, PT, PO, EP

SaniForce 2150 FG Complete Fluid Repair Kit with SS Seat, PT Ball, PO Diaphragm, EP Seal

$2,780.00

KIT, 2150 FG SS, SP, SP, EP

GG FK3222

KIT, 2150 FG SS, SP, SP, EP

SaniForce 2150 FG Complete Fluid Repair Kit with SS Seat, SP Ball, SP Diaphragm, EP Seal

$533.00

Kit, 2150 Fg Ss, Cw, Po, Ep

GG FK3233

KIT, 2150 FG SS, CW, PO, EP

Graco FK3233 SaniForce 2150 FG Complete Fluid Repair Kit with SS Seat, CW Ball, PO Diaphragm, EP Seal

$3,010.00

Kit, 2150 Fg Ss, Fk, Fk, Ep

GG FK3244

KIT, 2150 FG SS, FK, FK, EP

Graco FK3244 SaniForce 2150 FG Complete Fluid Repair Kit with SS Seat, FK Ball, FK Diaphragm, EP Seal

$1,530.00

KIT, 515 FG SS, SP, SP, PT

GG FK5122

KIT, 515 FG SS, SP, SP, PT

SaniForce 515 FG Complete Fluid Repair Kit with SS Seat, SP Ball, SP Diaphragm, PT Seal

$128.50

KIT, 515 FG SS, PT, PT, EP

GG FK5611

KIT, 515 FG SS, PT, PT, EP

SaniForce 515 FG Complete Fluid Repair Kit with SS Seat, PT Ball, PT Diaphragm, EP Seal

$343.00
