GRACO INC. S10595

GG HE80-0125

Quantm Pump, Qhd-3Aff1Ssptpoepssa0031

GG HE80-0130

Quantm Pump, Qhd-3Aff1Sspteoepssa0031

GG HE80-0148

Quantm Pump, Qhd-Phff1Ssfkfkfkssa0021

GG HE80-0168

Quantm Pump, Qhd-Phff1Sscwpoepssa0031

GG HE80-0153

Quantm Pump, Qhd-Phff1Ssepeoepssa0021

GG HE80-0152

Quantm Pump, Qhd-Phff1Ssbnbnbnssa0021

GG HE80-0151

Quantm Pump, Qhd-Phff1Ssspspepssa0021

GG HE80-0144

Quantm Pump, Qhd-Phff1Sscwpoepssa0021

GG HSLC8B

XD SERIES 30 REEL, 1/2 X 75, A/W, BLUE

XD30™, Air/Water/Antifreeze/WWS, 1/2 in. (13 mm) Inlet, 1/2 in. X 75 ft. (13 mm X 23 m) Hose, NPT, Truck/Bench Mount, Metallic Blue Graco’s XD30 Series Hose Reels are used in applications requiring longer-range dispense and higher capacity than the standard XD10 and XD20 Series. The Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (9.1-22.8 meters) hose capacity for a wide variety of applications. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze, windshield washer fluid, pressure wash, waste oil and diesel exhaust fluid (DEF). Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks. Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop Optional Adjustable Arm - Easily change the arm position for your application, order with arm (HS models) or without (HN models) Durable Finish - Baked-on enamel finish protects reel from corrosion Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (91-228 meters) hose capacity for a wide variety of applications

GG HSLC8D

Xd Series 30 Reel, 1/2 X 75, A/W, Black

GG HSLC8F

XD SERIES 30 REEL, 1/2 X 75, A/W, YELLOW

XD30™, Air/Water/Antifreeze/WWS, 1/2 in. (13 mm) Inlet, 1/2 in. X 75 ft. (13 mm X 23 m) Hose, NPT, Truck/Bench Mount, Yellow Graco’s XD30 Series Hose Reels are used in applications requiring longer-range dispense and higher capacity than the standard XD10 and XD20 Series. The Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (9.1-22.8 meters) hose capacity for a wide variety of applications. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze, windshield washer fluid, pressure wash, waste oil and diesel exhaust fluid (DEF). Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks. Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop Optional Adjustable Arm - Easily change the arm position for your application, order with arm (HS models) or without (HN models) Durable Finish - Baked-on enamel finish protects reel from corrosion Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (91-228 meters) hose capacity for a wide variety of applications

GG HSLD5D

Xd Series 30 Reel, 3/4 X 50, A/W, Black

GG HSLD5F

XD SERIES 30 REEL, 3/4 X 50, A/W, YELLOW

XD30™, Air/Water/Antifreeze/WWS, 3/4 in. (19 mm) Inlet, 3/4 in. X 50 ft. (19 mm X 15 m) Hose, NPT, Truck/Bench Mount, Yellow Graco’s XD30 Series Hose Reels are used in applications requiring longer-range dispense and higher capacity than the standard XD10 and XD20 Series. The Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (9.1-22.8 meters) hose capacity for a wide variety of applications. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze, windshield washer fluid, pressure wash, waste oil and diesel exhaust fluid (DEF). Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks. Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop Optional Adjustable Arm - Easily change the arm position for your application, order with arm (HS models) or without (HN models) Durable Finish - Baked-on enamel finish protects reel from corrosion Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (91-228 meters) hose capacity for a wide variety of applications

GG HSLE3B

XD SERIES 30 REEL, 1 X 30, FUEL/EVAC, BLUE

XD30™, Fuel/Evacuation, 3/4 in. (19 mm) Inlet, 1 in. X 30 ft. (25 mm X 9 m) Hose, NPT, Truck/Bench Mount, Metallic Blue Graco’s XD30 Series Hose Reels are used in applications requiring longer-range dispense and higher capacity than the standard XD10 and XD20 Series. The Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (9.1-22.8 meters) hose capacity for a wide variety of applications. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze, windshield washer fluid, pressure wash, waste oil and diesel exhaust fluid (DEF). Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks. Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop Optional Adjustable Arm - Easily change the arm position for your application, order with arm (HS models) or without (HN models) Durable Finish - Baked-on enamel finish protects reel from corrosion Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (91-228 meters) hose capacity for a wide variety of applications

GG HSLE3D

Xd Series 30 Reel, 1 X 30, Fuel/Evac, Black

GG HSLE3F

XD SERIES 30 REEL, 1 X 30, FUEL/EVAC, YELLOW

XD30™, Fuel/Evacuation, 3/4 in. (19 mm) Inlet, 1 in. X 30 ft. (25 mm X 9 m) Hose, NPT, Truck/Bench Mount, Yellow Graco’s XD30 Series Hose Reels are used in applications requiring longer-range dispense and higher capacity than the standard XD10 and XD20 Series. The Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (9.1-22.8 meters) hose capacity for a wide variety of applications. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze, windshield washer fluid, pressure wash, waste oil and diesel exhaust fluid (DEF). Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks. Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop Optional Adjustable Arm - Easily change the arm position for your application, order with arm (HS models) or without (HN models) Durable Finish - Baked-on enamel finish protects reel from corrosion Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (91-228 meters) hose capacity for a wide variety of applications

GG HSLEEB

Xd Series 30 Reel, Hose, Bare, Blue, Fuel/Evac

GG HSLEEF

Xd Series 30 Reel, Hose, Bare, Yellow, Fuel/Evac

GG HSMC8B

XD SERIES 30 REEL, 1/2 X 75, OIL, BLUE

XD30™, Oil, 1/2 in. (13 mm) Inlet, 1/2 in. X 75 ft. (13 mm X 23 m) Hose, NPT, Truck/Bench Mount, Metallic Blue Graco’s XD30 Series Hose Reels are used in applications requiring longer-range dispense and higher capacity than the standard XD10 and XD20 Series. The Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (9.1-22.8 meters) hose capacity for a wide variety of applications. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze, windshield washer fluid, pressure wash, waste oil and diesel exhaust fluid (DEF). Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks. Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop Optional Adjustable Arm - Easily change the arm position for your application, order with arm (HS models) or without (HN models) Durable Finish - Baked-on enamel finish protects reel from corrosion Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (91-228 meters) hose capacity for a wide variety of applications

GG HSMC8D

Xd Series 30 Reel, 1/2 X 75, Oil, Black

GG HSMC8F

XD SERIES 30 REEL, 1/2 X 75, OIL, YELLOW

XD30™, Oil, 1/2 in. (13 mm) Inlet, 1/2 in. X 75 ft. (13 mm X 23 m) Hose, NPT, Truck/Bench Mount, Yellow Graco’s XD30 Series Hose Reels are used in applications requiring longer-range dispense and higher capacity than the standard XD10 and XD20 Series. The Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (9.1-22.8 meters) hose capacity for a wide variety of applications. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze, windshield washer fluid, pressure wash, waste oil and diesel exhaust fluid (DEF). Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks. Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop Optional Adjustable Arm - Easily change the arm position for your application, order with arm (HS models) or without (HN models) Durable Finish - Baked-on enamel finish protects reel from corrosion Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (91-228 meters) hose capacity for a wide variety of applications

GG HSMCFB

XD SERIES 30 REEL, 1/2 X BARE, OIL, BLUE

XD30™, Oil, 1/2 in. (13 mm) Inlet, Bare Reel (1/2 in. X 75 ft. (13 mm X 23 m) Capacity), NPT, Truck/Bench Mount, Metallic Blue Graco’s XD30 Series Hose Reels are used in applications requiring longer-range dispense and higher capacity than the standard XD10 and XD20 Series. The Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (9.1-22.8 meters) hose capacity for a wide variety of applications. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze, windshield washer fluid, pressure wash, waste oil and diesel exhaust fluid (DEF). Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks. Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop Optional Adjustable Arm - Easily change the arm position for your application, order with arm (HS models) or without (HN models) Durable Finish - Baked-on enamel finish protects reel from corrosion Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (91-228 meters) hose capacity for a wide variety of applications

GG HSMCFD

Xd Series 30 Reel, 1/2 X Bare, Oil, Black

GG HSMCFF

XD SERIES 30 REEL, 1/2 X BARE, OIL, YELLOW

XD30™, Oil, 1/2 in. (13 mm) Inlet, Bare Reel (1/2 in. X 75 ft. (13 mm X 23 m) Capacity), NPT, Truck/Bench Mount, Yellow Graco’s XD30 Series Hose Reels are used in applications requiring longer-range dispense and higher capacity than the standard XD10 and XD20 Series. The Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (9.1-22.8 meters) hose capacity for a wide variety of applications. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze, windshield washer fluid, pressure wash, waste oil and diesel exhaust fluid (DEF). Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks. Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop Optional Adjustable Arm - Easily change the arm position for your application, order with arm (HS models) or without (HN models) Durable Finish - Baked-on enamel finish protects reel from corrosion Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (91-228 meters) hose capacity for a wide variety of applications

GG HSMD5D

Xd Series 30 Reel, 3/4 X 50, Oil, Black

GG HSMD5F

XD SERIES 30 REEL, 3/4 X 50, OIL, YELLOW

XD30™, Oil, 3/4 in. (19 mm) Inlet, 3/4 in. X 50 ft. (19 mm X 15 m) Hose, NPT, Truck/Bench Mount, Yellow Graco’s XD30 Series Hose Reels are used in applications requiring longer-range dispense and higher capacity than the standard XD10 and XD20 Series. The Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (9.1-22.8 meters) hose capacity for a wide variety of applications. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze, windshield washer fluid, pressure wash, waste oil and diesel exhaust fluid (DEF). Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks. Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop Optional Adjustable Arm - Easily change the arm position for your application, order with arm (HS models) or without (HN models) Durable Finish - Baked-on enamel finish protects reel from corrosion Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (91-228 meters) hose capacity for a wide variety of applications

GG HSMDDB

XD SERIES 30 REEL, 3/4 X BARE, OIL, BLUE

XD30™, Oil, 3/4 in. (19 mm) Inlet, Bare Reel (3/4 in. X 50 ft. (19 mm X 15 m) Capacity), NPT, Truck/Bench Mount, Metallic Blue Graco’s XD30 Series Hose Reels are used in applications requiring longer-range dispense and higher capacity than the standard XD10 and XD20 Series. The Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (9.1-22.8 meters) hose capacity for a wide variety of applications. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze, windshield washer fluid, pressure wash, waste oil and diesel exhaust fluid (DEF). Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks. Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop Optional Adjustable Arm - Easily change the arm position for your application, order with arm (HS models) or without (HN models) Durable Finish - Baked-on enamel finish protects reel from corrosion Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (91-228 meters) hose capacity for a wide variety of applications

GG HSMDDD

Xd Series 30 Reel, 3/4 X Bare, Oil, Black

GG HSMDDF

XD SERIES 30 REEL, 3/4 X BARE, OIL, YELLOW

XD30™, Oil, 3/4 in. (19 mm) Inlet, Bare Reel (3/4 in. X 50 ft. (19 mm X 15 m) Capacity), NPT, Truck/Bench Mount, Yellow Graco’s XD30 Series Hose Reels are used in applications requiring longer-range dispense and higher capacity than the standard XD10 and XD20 Series. The Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (9.1-22.8 meters) hose capacity for a wide variety of applications. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze, windshield washer fluid, pressure wash, waste oil and diesel exhaust fluid (DEF). Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks. Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop Optional Adjustable Arm - Easily change the arm position for your application, order with arm (HS models) or without (HN models) Durable Finish - Baked-on enamel finish protects reel from corrosion Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (91-228 meters) hose capacity for a wide variety of applications

GG HSPB8B

XD SERIES 30 REEL, 3/8 X 75, P/W, BLUE

XD30™, Pressure Wash, 1/2 in. (13 mm) Inlet, 3/8 in. X 75 ft. (10 mm X 23 m) Hose, NPT, Truck/Bench Mount, Metallic Blue Graco’s XD30 Series Hose Reels are used in applications requiring longer-range dispense and higher capacity than the standard XD10 and XD20 Series. The Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (9.1-22.8 meters) hose capacity for a wide variety of applications. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze, windshield washer fluid, pressure wash, waste oil and diesel exhaust fluid (DEF). Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks. Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop Optional Adjustable Arm - Easily change the arm position for your application, order with arm (HS models) or without (HN models) Durable Finish - Baked-on enamel finish protects reel from corrosion Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (91-228 meters) hose capacity for a wide variety of applications

GG HSPB8D

Xd Series 30 Reel, 3/8 X 75, P/W, Black

GG HSPB8F

XD SERIES 30 REEL, 3/8 X 75, P/W, YELLOW

XD30™, Pressure Wash, 1/2 in. (13 mm) Inlet, 3/8 in. X 75 ft. (10 mm X 23 m) Hose, NPT, Truck/Bench Mount, Yellow Graco’s XD30 Series Hose Reels are used in applications requiring longer-range dispense and higher capacity than the standard XD10 and XD20 Series. The Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (9.1-22.8 meters) hose capacity for a wide variety of applications. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze, windshield washer fluid, pressure wash, waste oil and diesel exhaust fluid (DEF). Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks. Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop Optional Adjustable Arm - Easily change the arm position for your application, order with arm (HS models) or without (HN models) Durable Finish - Baked-on enamel finish protects reel from corrosion Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (91-228 meters) hose capacity for a wide variety of applications

GG I1000034

Spring, Comp, .180 Odx.380Lg, 80.80

GG IH2010

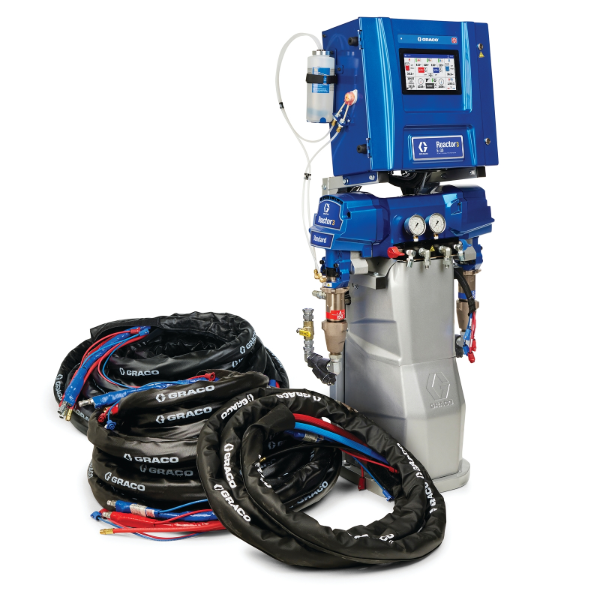

PACKAGE, E30, R2, 10KW, MULTI, IH

Reactor 2 E-30 Spray Foam Proportioner Package, 200 ft Internal Heated Hose, 20 ft Whip, 10 kW

Each feature in the Reactor 2 was strategically designed to help your business, with innovations that help your operation run smoothly. Software and hardware enhancements for better spray performance. And new technologies that add to your bottom line.

Next generation technology for spray foam insulation and polyurea.

Reactor 2 E-30 gives you:

• Compact footprint - more room in your spray rig
• Ergonomic design - easier to service
• Advanced control modules
• Better spraying performance compared to traditional electric Reactor systems
• Troubleshooting made quick and easy with QR codes

Reactor Connect : Communication and Control at your Fingertips

• Control your Reactor using your phone
• Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
• Monitor your rigs/crews using the multi-system dashboard
• Troubleshoot an issue quickly using real-time data
• Provide documentation to a customer
• Use reports to better manage your business
• Saves all your spray data to the cloud
• Utilize account management to better manage your equipment and crews
• Reactor Connect comes standard with all Reactor 2 models

Advanced control technology

• Tracks, monitors and saves project data
• Data can be saved and downloaded onto a USB drive
• Stores up to 24 chemical recipes
• Drum level indicators

Quick and easy troubleshooting thanks to QR code shortcuts

• Results in less downtime

Easy to reach, conveniently-placed electronics

Advanced control modules

• Handles power fluctuations

Sacrificial surge protector

• Protects your electronics against excessive power spikes

Smooth, consistent spray performance - similar to hydraulic systems

Three-year warranty

• Covers user display module, control modules and electric motor
• One of the best in the industry

GG IH2011

PACKAGE, E30, R2, 15KW, MULTI, IH

Reactor 2 E-30 Spray Foam Proportioner Package, 200 ft Internal Heated Hose, 20 ft Whip, 15kW

Each feature in the Reactor 2 was strategically designed to help your business, with innovations that help your operation run smoothly. Software and hardware enhancements for better spray performance. And new technologies that add to your bottom line.

Next generation technology for spray foam insulation and polyurea.

Reactor 2 E-30 gives you:

• Compact footprint - more room in your spray rig
• Ergonomic design - easier to service
• Advanced control modules
• Better spraying performance compared to traditional electric Reactor systems
• Troubleshooting made quick and easy with QR codes

Reactor Connect : Communication and Control at your Fingertips

• Control your Reactor using your phone
• Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
• Monitor your rigs/crews using the multi-system dashboard
• Troubleshoot an issue quickly using real-time data
• Provide documentation to a customer
• Use reports to better manage your business
• Saves all your spray data to the cloud
• Utilize account management to better manage your equipment and crews
• Reactor Connect comes standard with all Reactor 2 models

Advanced control technology

• Tracks, monitors and saves project data
• Data can be saved and downloaded onto a USB drive
• Stores up to 24 chemical recipes
• Drum level indicators

Quick and easy troubleshooting thanks to QR code shortcuts

• Results in less downtime

Easy to reach, conveniently-placed electronics

Advanced control modules

• Handles power fluctuations

Sacrificial surge protector

• Protects your electronics against excessive power spikes

Smooth, consistent spray performance - similar to hydraulic systems

Three-year warranty

• Covers user display module, control modules and electric motor
• One of the best in the industry

GG IH2110

PACKAGE, E-30, R2, 10KW, ELITE, MULTI, IH

Reactor 2 E-30 Elite Spray Foam Proportioner Package, 200 ft Internal Heated Hose, 20 ft Whip, 10kW

Each feature in the Reactor 2 was strategically designed to help your business, with innovations that help your operation run smoothly. Software and hardware enhancements for better spray performance. And new technologies that add to your bottom line.

Next generation technology for spray foam insulation and polyurea.

Reactor 2 E-30 gives you:

• Compact footprint - more room in your spray rig
• Ergonomic design - easier to service
• Advanced control modules
• Better spraying performance compared to traditional electric Reactor systems
• Troubleshooting made quick and easy with QR codes

Reactor Connect : Communication and Control at your Fingertips

• Control your Reactor using your phone
• Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
• Monitor your rigs/crews using the multi-system dashboard
• Troubleshoot an issue quickly using real-time data
• Provide documentation to a customer
• Use reports to better manage your business
• Saves all your spray data to the cloud
• Utilize account management to better manage your equipment and crews
• Reactor Connect comes standard with all Reactor 2 models

Advanced control technology

• Tracks, monitors and saves project data
• Data can be saved and downloaded onto a USB drive
• Stores up to 24 chemical recipes
• Drum level indicators

Quick and easy troubleshooting thanks to QR code shortcuts

• Results in less downtime

Easy to reach, conveniently-placed electronics

Advanced control modules

• Handles power fluctuations

Sacrificial surge protector

• Protects your electronics against excessive power spikes

Smooth, consistent spray performance - similar to hydraulic systems

Three-year warranty

• Covers user display module, control modules and electric motor
• One of the best in the industry

GG IH2111

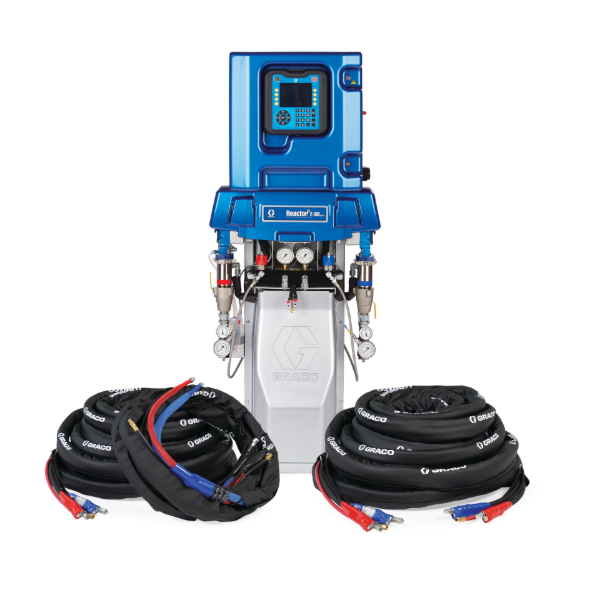

PACKAGE, E-30, R2, 15KW, ELITE, MULTI, IH

Reactor 2 E-30 Elite Spray Foam Proportioner Package, 200 ft Internal Heated Hose, 20 ft Whip, 15kW

Each feature in the Reactor 2 was strategically designed to help your business, with innovations that help your operation run smoothly. Software and hardware enhancements for better spray performance. And new technologies that add to your bottom line.

Next generation technology for spray foam insulation and polyurea.

Reactor 2 E-30 gives you:

• Compact footprint - more room in your spray rig
• Ergonomic design - easier to service
• Advanced control modules
• Better spraying performance compared to traditional electric Reactor systems
• Troubleshooting made quick and easy with QR codes

Reactor Connect : Communication and Control at your Fingertips

• Control your Reactor using your phone
• Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
• Monitor your rigs/crews using the multi-system dashboard
• Troubleshoot an issue quickly using real-time data
• Provide documentation to a customer
• Use reports to better manage your business
• Saves all your spray data to the cloud
• Utilize account management to better manage your equipment and crews
• Reactor Connect comes standard with all Reactor 2 models

Advanced control technology

• Tracks, monitors and saves project data
• Data can be saved and downloaded onto a USB drive
• Stores up to 24 chemical recipes
• Drum level indicators

Quick and easy troubleshooting thanks to QR code shortcuts

• Results in less downtime

Easy to reach, conveniently-placed electronics

Advanced control modules

• Handles power fluctuations

Sacrificial surge protector

• Protects your electronics against excessive power spikes

Smooth, consistent spray performance - similar to hydraulic systems

Three-year warranty

• Covers user display module, control modules and electric motor
• One of the best in the industry

GG IHH031

PACKAGE, H-30, R2, SEL, 10KW, MULTI, IH

Graco IHH031 Reactor 2 H-30 Spray Foam Proportioner Package, 200 ft Internal Heated Hose, 20 ft Whip, 10 kW

Graco's hydraulic Reactor H-30 brings increased yield and high output spraying. Ideal for in-plant OEM's or applicators that spray at high volumes.

Application: For medium to high-output foam applications and roofing projects – applies up to 28 lb (12.3 kg) per minute.

• What a hydraulic system can do for you:
  • Dependability - robust, durable, longest life spray system
  • Reduce downtime - allows for longer time in between required maintenance
  • Increase daily productivity - capable of extremely high duty cycle
• Reactor Connect : Communication and Control at your Fingertips
  • Control your Reactor using your phone
  • Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
  • Monitor your rigs/crews using the multi-system dashboard
  • Troubleshoot an issue quickly using real-time data
  • Provide documentation to a customer
  • Use reports to better manage your business
  • Saves all your spray data to the cloud
  • Utilize account management to better manage your equipment and crews
  • Reactor Connect comes standard with all Reactor 2 models
• Advanced control technology
  • Tracks, monitors and saves project data
  • Data can be saved and downloaded onto a USB drive
  • Stores up to 24 chemical recipes
  • Drum level indicators
• Sacrificial surge protector
  • Protects your electronics against excessive power spikes
• Three-year warranty
  • Covers user display and control modules
  • One of the best in the industry

• Model: Reactor 2
• Series: H-30
• Product Series: Non-Elite

• Gun Type: No Gun

• Hose Heating Type: Internal Heated

• Hose Package: Internal Heated Multi-Hose
• Includes: Proportioner, Internal Heated Hose, Heated Whip Hose

• Power Rating (kW): 10

GG IHH032

PACKAGE, H-30, R2, SEL, 15KW, MULTI, IH

Graco IHH032 Reactor 2 H-30 Spray Foam Proportioner Package, 200 ft Internal Heated Hose, 20 ft Whip, 15kW

Graco's hydraulic Reactor H-30 brings increased yield and high output spraying. Ideal for in-plant OEM's or applicators that spray at high volumes.

Application: For medium to high-output foam applications and roofing projects – applies up to 28 lb (12.3 kg) per minute.

• What a hydraulic system can do for you:
  • Dependability - robust, durable, longest life spray system
  • Reduce downtime - allows for longer time in between required maintenance
  • Increase daily productivity - capable of extremely high duty cycle
• Reactor Connect : Communication and Control at your Fingertips
  • Control your Reactor using your phone
  • Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
  • Monitor your rigs/crews using the multi-system dashboard
  • Troubleshoot an issue quickly using real-time data
  • Provide documentation to a customer
  • Use reports to better manage your business
  • Saves all your spray data to the cloud
  • Utilize account management to better manage your equipment and crews
  • Reactor Connect comes standard with all Reactor 2 models
• Advanced control technology
  • Tracks, monitors and saves project data
  • Data can be saved and downloaded onto a USB drive
  • Stores up to 24 chemical recipes
  • Drum level indicators
• Sacrificial surge protector
  • Protects your electronics against excessive power spikes
• Three-year warranty
  • Covers user display and control modules
  • One of the best in the industry

• Model: Reactor 2
• Series: H-30
• Product Series: Non-Elite

• Gun Type: No Gun

• Hose Heating Type: Internal Heated

• Hose Package: Internal Heated Multi-Hose
• Includes: Proportioner, Internal Heated Hose, Heated Whip Hose

• Power Rating (kW): 15

GG IHH043

PACKAGE, H-40, R2, 230V, 15KW, MULTI, IH

Graco IHH043 Reactor 2 H-40 Proportioner Package, 300 ft Internal Heated Hose, 20 ft Whip, 15 kW, 230 V, 3 PH

Graco's hydraulic Reactor H-40 brings increased yield and high output spraying. Ideal for in-plant OEM's or applicators that spray at high volumes.

Application: For medium to high-output foam applications and roofing projects – applies up to 52 lb (23.6 kg) per minute.

• What a hydraulic system can do for you:

  • Dependability - robust, durable, longest life spray system
  • Reduce downtime - allows for longer time in between required maintenance
  • Increase daily productivity - capable of extremely high duty cycle
• Reactor Connect : Communication and Control at your Fingertips

  • Control your Reactor using your phone
  • Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
  • Monitor your rigs/crews using the multi-system dashboard
  • Troubleshoot an issue quickly using real-time data
  • Provide documentation to a customer
  • Use reports to better manage your business
  • Saves all your spray data to the cloud
  • Utilize account management to better manage your equipment and crews
  • Reactor Connect comes standard with all Reactor 2 model
• Advanced control technology

  • Tracks, monitors and saves project data
  • Data can be saved and downloaded onto a USB drive
  • Stores up to 24 chemical recipes
  • Drum level indicators
• Sacrificial surge protector

  • Protects your electronics against excessive power spikes
• Three-year warranty

  • Covers user display and control modules
  • One of the best in the industry

• Model: Reactor 2
• Series: H-40
• Product Series: Non-Elite

• Gun Type: No Gun

• Hose Heating Type: Internal Heated

• Hose Package: Internal Heated Multi-Hose
• Includes: Proportioner, Internal Heated Hose, Heated Whip Hose

• Power Rating (kW): 15

GG IHH044

PACKAGE, H-40, R2, 230V, 20KW, MULTI, IH

Graco IHH044 Reactor 2 H-40 Proportioner Package, 300 ft Internal Heated Hose, 20 ft Whip, 20 kW, 230 V, 3 PH

Graco's hydraulic Reactor H-40 brings increased yield and high output spraying. Ideal for in-plant OEM's or applicators that spray at high volumes.

Application: For medium to high-output foam applications and roofing projects – applies up to 52 lb (23.6 kg) per minute.

• What a hydraulic system can do for you:

  • Dependability - robust, durable, longest life spray system
  • Reduce downtime - allows for longer time in between required maintenance
  • Increase daily productivity - capable of extremely high duty cycle
• Reactor Connect : Communication and Control at your Fingertips

  • Control your Reactor using your phone
  • Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
  • Monitor your rigs/crews using the multi-system dashboard
  • Troubleshoot an issue quickly using real-time data
  • Provide documentation to a customer
  • Use reports to better manage your business
  • Saves all your spray data to the cloud
  • Utilize account management to better manage your equipment and crews
  • Reactor Connect comes standard with all Reactor 2 model
• Advanced control technology

  • Tracks, monitors and saves project data
  • Data can be saved and downloaded onto a USB drive
  • Stores up to 24 chemical recipes
  • Drum level indicators
• Sacrificial surge protector

  • Protects your electronics against excessive power spikes
• Three-year warranty

  • Covers user display and control modules
  • One of the best in the industry

• Model: Reactor 2
• Series: H-40
• Product Series: Non-Elite

• Gun Type: No Gun

• Hose Heating Type: Internal Heated

• Hose Package: Internal Heated Multi-Hose
• Includes: Proportioner, Internal Heated Hose, Heated Whip Hose

• Power Rating (kW): 20

GG IHH045

PACKAGE, H-40, R2, 400V, 15KW, MULTI, IH

Graco IHH045 Reactor 2 H-40 Proportioner Package, 300 ft Internal Heated Hose, 20 ft Whip, 15 kW, 400 V, 3 PH

Graco's hydraulic Reactor H-40 brings increased yield and high output spraying. Ideal for in-plant OEM's or applicators that spray at high volumes.

Application: For medium to high-output foam applications and roofing projects – applies up to 52 lb (23.6 kg) per minute.

• What a hydraulic system can do for you:

  • Dependability - robust, durable, longest life spray system
  • Reduce downtime - allows for longer time in between required maintenance
  • Increase daily productivity - capable of extremely high duty cycle
• Reactor Connect : Communication and Control at your Fingertips

  • Control your Reactor using your phone
  • Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
  • Monitor your rigs/crews using the multi-system dashboard
  • Troubleshoot an issue quickly using real-time data
  • Provide documentation to a customer
  • Use reports to better manage your business
  • Saves all your spray data to the cloud
  • Utilize account management to better manage your equipment and crews
  • Reactor Connect comes standard with all Reactor 2 model
• Advanced control technology

  • Tracks, monitors and saves project data
  • Data can be saved and downloaded onto a USB drive
  • Stores up to 24 chemical recipes
  • Drum level indicators
• Sacrificial surge protector

  • Protects your electronics against excessive power spikes
• Three-year warranty

  • Covers user display and control modules
  • One of the best in the industry

• Model: Reactor 2
• Series: H-40
• Product Series: Non-Elite

• Gun Type: No Gun

• Hose Heating Type: Internal Heated

• Hose Package: Internal Heated Multi-Hose
• Includes: Proportioner, Internal Heated Hose, Heated Whip Hose

• Power Rating (kW): 15

GG IHH046

PACKAGE, H-40, R2, 400V, 20KW, MULTI, IH

Graco IHH046 Reactor 2 H-40 Proportioner Package, 300 ft Internal Heated Hose, 20 ft Whip, 20 kW, 400 V, 3 PH

Graco's hydraulic Reactor H-40 brings increased yield and high output spraying. Ideal for in-plant OEM's or applicators that spray at high volumes.

Application: For medium to high-output foam applications and roofing projects – applies up to 52 lb (23.6 kg) per minute.

• What a hydraulic system can do for you:

  • Dependability - robust, durable, longest life spray system
  • Reduce downtime - allows for longer time in between required maintenance
  • Increase daily productivity - capable of extremely high duty cycle
• Reactor Connect : Communication and Control at your Fingertips

  • Control your Reactor using your phone
  • Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
  • Monitor your rigs/crews using the multi-system dashboard
  • Troubleshoot an issue quickly using real-time data
  • Provide documentation to a customer
  • Use reports to better manage your business
  • Saves all your spray data to the cloud
  • Utilize account management to better manage your equipment and crews
  • Reactor Connect comes standard with all Reactor 2 model
• Advanced control technology

  • Tracks, monitors and saves project data
  • Data can be saved and downloaded onto a USB drive
  • Stores up to 24 chemical recipes
  • Drum level indicators
• Sacrificial surge protector

  • Protects your electronics against excessive power spikes
• Three-year warranty

  • Covers user display and control modules
  • One of the best in the industry

• Model: Reactor 2
• Series: H-40
• Product Series: Non-Elite

• Gun Type: No Gun

• Hose Heating Type: Internal Heated

• Hose Package: Internal Heated Multi-Hose
• Includes: Proportioner, Internal Heated Hose, Heated Whip Hose

• Power Rating (kW): 20

GG IHH053

PACKAGE, H-50, R2, 230V, 20KW, MULTI, IH

Graco IHH053 Reactor 2 H-50 Proportioner Package, 300 ft Internal Heated Hose, 20 ft Whip, 20 kW, 230 V, 3 PH

Graco's hydraulic Reactor H-50 brings increased yield and high output spraying. Ideal for in-plant OEM's or applicators that spray at high volumes.

Application: For medium to high-output foam applications and roofing projects – applies up to 52 lb (23.6 kg) per minute.

• What a hydraulic system can do for you:
  • Dependability - robust, durable, longest life spray system
  • Reduce downtime - allows for longer time in between required maintenance
  • Increase daily productivity - capable of extremely high duty cycle
• Reactor Connect : Communication and Control at your Fingertips
  • Control your Reactor using your phone
  • Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
  • Monitor your rigs/crews using the multi-system dashboard
  • Troubleshoot an issue quickly using real-time data
  • Provide documentation to a customer
  • Use reports to better manage your business
  • Saves all your spray data to the cloud
  • Utilize account management to better manage your equipment and crews
  • Reactor Connect comes standard with all Reactor 2 models
• Advanced control technology
  • Tracks, monitors and saves project data
  • Data can be saved and downloaded onto a USB drive
  • Stores up to 24 chemical recipes
  • Drum level indicators
• Sacrificial surge protector
  • Protects your electronics against excessive power spikes
• Three-year warranty
  • Covers user display and control modules
  • One of the best in the industry

• Model: Reactor 2
• Series: H-50
• Product Series: Non-Elite

• Gun Type: No Gun

• Hose Heating Type: Internal Heated

• Hose Package: Internal Heated Multi-Hose
• Includes: Proportioner, Internal Heated Hose, Heated Whip Hose

• Power Rating (kW): 20

GG IHH056

PACKAGE, H-50, R2, 400V, 20KW, MULTI, IH

Graco IHH056 Reactor 2 H-50 Proportioner Package, 300 ft Internal Heated Hose, 20 ft Whip, 20 kW, 400 V, 3 PH

Graco's hydraulic Reactor H-50 brings increased yield and high output spraying. Ideal for in-plant OEM's or applicators that spray at high volumes.

Application: For medium to high-output foam applications and roofing projects – applies up to 52 lb (23.6 kg) per minute.

• What a hydraulic system can do for you:
  • Dependability - robust, durable, longest life spray system
  • Reduce downtime - allows for longer time in between required maintenance
  • Increase daily productivity - capable of extremely high duty cycle
• Reactor Connect : Communication and Control at your Fingertips
  • Control your Reactor using your phone
  • Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
  • Monitor your rigs/crews using the multi-system dashboard
  • Troubleshoot an issue quickly using real-time data
  • Provide documentation to a customer
  • Use reports to better manage your business
  • Saves all your spray data to the cloud
  • Utilize account management to better manage your equipment and crews
  • Reactor Connect comes standard with all Reactor 2 models
• Advanced control technology
  • Tracks, monitors and saves project data
  • Data can be saved and downloaded onto a USB drive
  • Stores up to 24 chemical recipes
  • Drum level indicators
• Sacrificial surge protector
  • Protects your electronics against excessive power spikes
• Three-year warranty
  • Covers user display and control modules
  • One of the best in the industry

• Model: Reactor 2
• Series: H-50
• Product Series: Non-Elite

• Gun Type: No Gun

• Hose Heating Type: Internal Heated

• Hose Package: Internal Heated Multi-Hose
• Includes: Proportioner, Internal Heated Hose, Heated Whip Hose

• Power Rating (kW): 20

GG IHH131

PACKAGE, H-30, R2, SEL, 10KW, ELITE, MULTI, IH

Graco IHH131 Reactor 2 H-30 Elite Spray Foam Proportioner Package, 200 ft Internal Heated Hose, 20 ft Whip, 10kW

Graco's hydraulic Reactor H-30 brings increased yield and high output spraying. Ideal for in-plant OEM's or applicators that spray at high volumes.

Application: For medium to high-output foam applications and roofing projects – applies up to 28 lb (12.3 kg) per minute.

• What a hydraulic system can do for you:
  • Dependability - robust, durable, longest life spray system
  • Reduce downtime - allows for longer time in between required maintenance
  • Increase daily productivity - capable of extremely high duty cycle
• Reactor Connect : Communication and Control at your Fingertips
  • Control your Reactor using your phone
  • Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
  • Monitor your rigs/crews using the multi-system dashboard
  • Troubleshoot an issue quickly using real-time data
  • Provide documentation to a customer
  • Use reports to better manage your business
  • Saves all your spray data to the cloud
  • Utilize account management to better manage your equipment and crews
  • Reactor Connect comes standard with all Reactor 2 models
• Advanced control technology
  • Tracks, monitors and saves project data
  • Data can be saved and downloaded onto a USB drive
  • Stores up to 24 chemical recipes
  • Drum level indicators
• Sacrificial surge protector
  • Protects your electronics against excessive power spikes
• Three-year warranty
  • Covers user display and control modules
  • One of the best in the industry

• Model: Reactor 2
• Series: H-30
• Product Series: Elite

• Gun Type: No Gun

• Hose Heating Type: Internal Heated

• Hose Package: Internal Heated Multi-Hose
• Includes: Proportioner, Internal Heated Hose, Heated Whip Hose

• Power Rating (kW): 10

GG IHH132

PACKAGE, H-30, R2, SEL, 15KW, ELITE, MULTI, IH

Graco IHH132 Reactor 2 H-30 Elite Spray Foam Proportioner Package, 200 ft Internal Heated Hose, 20 ft Whip, 15kW

Graco's hydraulic Reactor H-30 brings increased yield and high output spraying. Ideal for in-plant OEM's or applicators that spray at high volumes.

Application: For medium to high-output foam applications and roofing projects – applies up to 28 lb (12.3 kg) per minute.

• What a hydraulic system can do for you:
  • Dependability - robust, durable, longest life spray system
  • Reduce downtime - allows for longer time in between required maintenance
  • Increase daily productivity - capable of extremely high duty cycle
• Reactor Connect : Communication and Control at your Fingertips
  • Control your Reactor using your phone
  • Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
  • Monitor your rigs/crews using the multi-system dashboard
  • Troubleshoot an issue quickly using real-time data
  • Provide documentation to a customer
  • Use reports to better manage your business
  • Saves all your spray data to the cloud
  • Utilize account management to better manage your equipment and crews
  • Reactor Connect comes standard with all Reactor 2 models
• Advanced control technology
  • Tracks, monitors and saves project data
  • Data can be saved and downloaded onto a USB drive
  • Stores up to 24 chemical recipes
  • Drum level indicators
• Sacrificial surge protector
  • Protects your electronics against excessive power spikes
• Three-year warranty
  • Covers user display and control modules
  • One of the best in the industry

• Model: Reactor 2
• Series: H-30
• Product Series: Elite

• Gun Type: No Gun

• Hose Heating Type: Internal Heated

• Hose Package: Internal Heated Multi-Hose
• Includes: Proportioner, Internal Heated Hose, Heated Whip Hose

• Power Rating (kW): 15

GG IHH143

PACKAGE, H-40, R2, 230V, 15KW, ELITE, MULTI, IH

Graco IHH143 Reactor 2 H-40 Elite Proportioner Package, 300 ft Internal Heated Hose, 20 ft Whip, 15 kW, 230 V, 3 PH

Graco's hydraulic Reactor H-40 brings increased yield and high output spraying. Ideal for in-plant OEM's or applicators that spray at high volumes.

Application: For medium to high-output foam applications and roofing projects – applies up to 52 lb (23.6 kg) per minute.

• What a hydraulic system can do for you:

  • Dependability - robust, durable, longest life spray system
  • Reduce downtime - allows for longer time in between required maintenance
  • Increase daily productivity - capable of extremely high duty cycle
• Reactor Connect : Communication and Control at your Fingertips

  • Control your Reactor using your phone
  • Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
  • Monitor your rigs/crews using the multi-system dashboard
  • Troubleshoot an issue quickly using real-time data
  • Provide documentation to a customer
  • Use reports to better manage your business
  • Saves all your spray data to the cloud
  • Utilize account management to better manage your equipment and crews
  • Reactor Connect comes standard with all Reactor 2 model
• Advanced control technology

  • Tracks, monitors and saves project data
  • Data can be saved and downloaded onto a USB drive
  • Stores up to 24 chemical recipes
  • Drum level indicators
• Sacrificial surge protector

  • Protects your electronics against excessive power spikes
• Three-year warranty

  • Covers user display and control modules
  • One of the best in the industry

• Model: Reactor 2
• Series: H-40
• Product Series: Elite

• Gun Type: No Gun

• Hose Heating Type: Internal Heated

• Hose Package: Internal Heated Multi-Hose
• Includes: Proportioner, Internal Heated Hose, Heated Whip Hose

• Power Rating (kW): 15

GG IHH144

PACKAGE, H-40, R2, 230V, 20KW, ELITE, MULTI, IH

Graco IHH144 Reactor 2 H-40 Elite Proportioner Package, 300 ft Internal Heated Hose, 20 ft Whip, 20 kW, 230 V, 3 PH

Graco's hydraulic Reactor H-40 brings increased yield and high output spraying. Ideal for in-plant OEM's or applicators that spray at high volumes.

Application: For medium to high-output foam applications and roofing projects – applies up to 52 lb (23.6 kg) per minute.

• What a hydraulic system can do for you:

  • Dependability - robust, durable, longest life spray system
  • Reduce downtime - allows for longer time in between required maintenance
  • Increase daily productivity - capable of extremely high duty cycle
• Reactor Connect : Communication and Control at your Fingertips

  • Control your Reactor using your phone
  • Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
  • Monitor your rigs/crews using the multi-system dashboard
  • Troubleshoot an issue quickly using real-time data
  • Provide documentation to a customer
  • Use reports to better manage your business
  • Saves all your spray data to the cloud
  • Utilize account management to better manage your equipment and crews
  • Reactor Connect comes standard with all Reactor 2 model
• Advanced control technology

  • Tracks, monitors and saves project data
  • Data can be saved and downloaded onto a USB drive
  • Stores up to 24 chemical recipes
  • Drum level indicators
• Sacrificial surge protector

  • Protects your electronics against excessive power spikes
• Three-year warranty

  • Covers user display and control modules
  • One of the best in the industry

• Model: Reactor 2
• Series: H-40
• Product Series: Elite

• Gun Type: No Gun

• Hose Heating Type: Internal Heated

• Hose Package: Internal Heated Multi-Hose
• Includes: Proportioner, Internal Heated Hose, Heated Whip Hose

• Power Rating (kW): 15

GG IHH145

PACKAGE, H-40, R2, 400V, 15KW, ELITE, MULTI, IH

Graco IHH145 Reactor 2 H-40 Elite Proportioner Package, 300 ft Internal Heated Hose, 20 ft Whip, 15 kW, 400 V, 3 PH

Graco's hydraulic Reactor H-40 brings increased yield and high output spraying. Ideal for in-plant OEM's or applicators that spray at high volumes.

Application: For medium to high-output foam applications and roofing projects – applies up to 52 lb (23.6 kg) per minute.

• What a hydraulic system can do for you:

  • Dependability - robust, durable, longest life spray system
  • Reduce downtime - allows for longer time in between required maintenance
  • Increase daily productivity - capable of extremely high duty cycle
• Reactor Connect : Communication and Control at your Fingertips

  • Control your Reactor using your phone
  • Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
  • Monitor your rigs/crews using the multi-system dashboard
  • Troubleshoot an issue quickly using real-time data
  • Provide documentation to a customer
  • Use reports to better manage your business
  • Saves all your spray data to the cloud
  • Utilize account management to better manage your equipment and crews
  • Reactor Connect comes standard with all Reactor 2 model
• Advanced control technology

  • Tracks, monitors and saves project data
  • Data can be saved and downloaded onto a USB drive
  • Stores up to 24 chemical recipes
  • Drum level indicators
• Sacrificial surge protector

  • Protects your electronics against excessive power spikes
• Three-year warranty

  • Covers user display and control modules
  • One of the best in the industry

• Model: Reactor 2
• Series: H-40
• Product Series: Elite

• Gun Type: No Gun

• Hose Heating Type: Internal Heated

• Hose Package: Internal Heated Multi-Hose
• Includes: Proportioner, Internal Heated Hose, Heated Whip Hose

• Power Rating (kW): 10

GG IHH146

PACKAGE, H-40, R2, 400V, 20KW, ELITE, MULTI, IH

Graco IHH146 Reactor 2 H-40 Elite Proportioner Package, 300 ft Internal Heated Hose, 20 ft Whip, 20 kW, 400 V, 3 PH

Graco's hydraulic Reactor H-40 brings increased yield and high output spraying. Ideal for in-plant OEM's or applicators that spray at high volumes.

Application: For medium to high-output foam applications and roofing projects – applies up to 52 lb (23.6 kg) per minute.

• What a hydraulic system can do for you:

  • Dependability - robust, durable, longest life spray system
  • Reduce downtime - allows for longer time in between required maintenance
  • Increase daily productivity - capable of extremely high duty cycle
• Reactor Connect : Communication and Control at your Fingertips

  • Control your Reactor using your phone
  • Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
  • Monitor your rigs/crews using the multi-system dashboard
  • Troubleshoot an issue quickly using real-time data
  • Provide documentation to a customer
  • Use reports to better manage your business
  • Saves all your spray data to the cloud
  • Utilize account management to better manage your equipment and crews
  • Reactor Connect comes standard with all Reactor 2 model
• Advanced control technology

  • Tracks, monitors and saves project data
  • Data can be saved and downloaded onto a USB drive
  • Stores up to 24 chemical recipes
  • Drum level indicators
• Sacrificial surge protector

  • Protects your electronics against excessive power spikes
• Three-year warranty

  • Covers user display and control modules
  • One of the best in the industry

• Model: Reactor 2
• Series: H-40
• Product Series: Elite

• Gun Type: No Gun

• Hose Heating Type: Internal Heated

• Hose Package: Internal Heated Multi-Hose
• Includes: Proportioner, Internal Heated Hose, Heated Whip Hose

• Power Rating (kW): 15

GG IHH153

PACKAGE, H-50, R2, 230V, 20KW, ELITE, MULTI, IH

Graco IHH153 Reactor 2 H-50 Elite Proportioner Package, 300 ft Internal Heated Hose, 20 ft Whip, 20 kW, 230 V, 3 PH

Graco's hydraulic Reactor H-50 brings increased yield and high output spraying. Ideal for in-plant OEM's or applicators that spray at high volumes.

Application: For medium to high-output foam applications and roofing projects – applies up to 52 lb (23.6 kg) per minute.

• What a hydraulic system can do for you:
  • Dependability - robust, durable, longest life spray system
  • Reduce downtime - allows for longer time in between required maintenance
  • Increase daily productivity - capable of extremely high duty cycle
• Reactor Connect : Communication and Control at your Fingertips
  • Control your Reactor using your phone
  • Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
  • Monitor your rigs/crews using the multi-system dashboard
  • Troubleshoot an issue quickly using real-time data
  • Provide documentation to a customer
  • Use reports to better manage your business
  • Saves all your spray data to the cloud
  • Utilize account management to better manage your equipment and crews
  • Reactor Connect comes standard with all Reactor 2 models
• Advanced control technology
  • Tracks, monitors and saves project data
  • Data can be saved and downloaded onto a USB drive
  • Stores up to 24 chemical recipes
  • Drum level indicators
• Sacrificial surge protector
  • Protects your electronics against excessive power spikes
• Three-year warranty
  • Covers user display and control modules
  • One of the best in the industry

• Model: Reactor 2
• Series: H-50
• Product Series: Elite

• Gun Type: No Gun

• Hose Heating Type: Internal Heated

• Hose Package: Internal Heated Multi-Hose
• Includes: Proportioner, Internal Heated Hose, Heated Whip Hose

• Power Rating (kW): 20

GG IHH156

PACKAGE, H-50, R2, 400V, 20KW, ELITE, MULTI, IH

Graco IHH156 Reactor 2 H-50 Elite Proportioner Package, 300 ft Internal Heated Hose, 20 ft Whip, 20 kW, 400 V, 3 PH

Graco's hydraulic Reactor H-50 brings increased yield and high output spraying. Ideal for in-plant OEM's or applicators that spray at high volumes.

Application: For medium to high-output foam applications and roofing projects – applies up to 52 lb (23.6 kg) per minute.

• What a hydraulic system can do for you:
  • Dependability - robust, durable, longest life spray system
  • Reduce downtime - allows for longer time in between required maintenance
  • Increase daily productivity - capable of extremely high duty cycle
• Reactor Connect : Communication and Control at your Fingertips
  • Control your Reactor using your phone
  • Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
  • Monitor your rigs/crews using the multi-system dashboard
  • Troubleshoot an issue quickly using real-time data
  • Provide documentation to a customer
  • Use reports to better manage your business
  • Saves all your spray data to the cloud
  • Utilize account management to better manage your equipment and crews
  • Reactor Connect comes standard with all Reactor 2 models
• Advanced control technology
  • Tracks, monitors and saves project data
  • Data can be saved and downloaded onto a USB drive
  • Stores up to 24 chemical recipes
  • Drum level indicators
• Sacrificial surge protector
  • Protects your electronics against excessive power spikes
• Three-year warranty
  • Covers user display and control modules
  • One of the best in the industry

• Model: Reactor 2
• Series: H-50
• Product Series: Elite

• Gun Type: No Gun

• Hose Heating Type: Internal Heated

• Hose Package: Internal Heated Multi-Hose
• Includes: Proportioner, Internal Heated Hose, Heated Whip Hose

• Power Rating (kW): 20

GG IHR310

PACKAGE, E20, R3, STD, MULTI, IH

Reactor 3 E-20 Standard Tier Spray Foam Proportioner Package, 200 ft Internal Heated Hose, 7 kW Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for spray foam applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity. The E-20 is a spray foam system build for contractors focused on smaller jobs or for contractors just entering the business, it is a great starter machine. Due to the smaller heaters the E-20 is also a good choice for contractors in tempered climates where larger heaters are not required. ISO Lube Pump

• Active ISO Lube system with peristaltic pump
• Automatic timed circulation improves TSL Life
• Reduced maintenance (No check valves)
• New larger easy-to-change ISO lube bottle

Touchscreen Advanced Display Module (ADM)

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen

Independent Hose Control

• Control A and B materials to different temperatures for improved pressure balancing
• Optimizes yield

Advanced Electric Design

• Brushless motor for improved pressure/flow performance
• New temperature control boards for independent hose heat
• Voltage jumpers for easy changing between voltages
• Robust UL listed electrical hose connectors are color coded and keyed for error proof assembly
• New Reactor 3 exclusive: connect with Tier 4 engines for ADM engine diagnostic

Reduced Size

• Reduced footprint provides additional room in your rig
• Compact design protects the flow meters and hose connections from being damaged in your rig

GG IHR311

PACKAGE, E20, R3, PRO, MULTI, 7KW, IH

Reactor 3 E-20 Pro Tier Spray Foam Proportioner Package, 200 ft Internal Heated Hose, 7 kW Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for spray foam applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity. The E-20 is a spray foam system build for contractors focused on smaller jobs or for contractors just entering the business, it is a great starter machine. Due to the smaller heaters the E-20 is also a good choice for contractors in tempered climates where larger heaters are not required. Auto Pressure Balance

• Automatically adjusts temperatures to optimize fluid pressures and maximize yield

Power Management

• Select desired heater wattage for reduced power consumption

Cellular Software Updates

• Automatically stay up to date with the latest Reactor software

Touchscreen Advanced Display Module (ADM)

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen

Independent Hose Control

• Control A and B materials to different temperatures for improved pressure balancing
• Optimizes yield

Advanced Electric Design

• Brushless motor for improved pressure/flow performance
• New temperature control boards for independent hose heat
• Voltage jumpers for easy changing between voltages
• Robust UL listed electrical hose connectors are color coded and keyed for error proof assembly

Reduced Size

• Reduced footprint provides additional room in your rig
• Compact design protects the flow meters and hose connections from being damaged in your rig

GG IHR312

PACKAGE, E20, R3, ELITE, MULTI, IH

Reactor 3 E-20 Elite Tier Spray Foam Proportioner Package, 200 ft Internal Heated Hose, 10 kW Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for spray foam applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity. The E-20 is a spray foam system build for contractors focused on smaller jobs or for contractors just entering the business, it is a great starter machine. Due to the smaller heaters the E-20 is also a good choice for contractors in tempered climates where larger heaters are not required. Katalyst

• Katalyst full system communication and control that improves performance, ratio and yield
• Requires Core E1 pumps

Supply Pump Shutdown

• Automatically shuts down when you run out of material
• Prevents air from entering the system that can cause off-ratio issues
• Requires Core E1 pumps

Smart Supply

• Automatically monitors and adjusts fluid inlet pressures to compensate for high viscosity materials

Auto Pressure Balance

• Automatically adjusts temperatures to optimize fluid pressures and maximize yield

Power Management

• Select desired heater wattage for reduced power consumption

Cellular Software Updates

• Automatically stay up to date with the latest Reactor software

Touchscreen Advanced Display Module (ADM)

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen

Independent Hose Control

• Control A and B materials to different temperatures for improved pressure balancing
• Optimizes yield

Advanced Electric Design

• Brushless motor for improved pressure/flow performance
• New temperature control boards for independent hose heat
• Voltage jumpers for easy changing between voltages
• Robust UL listed electrical hose connectors are color coded and keyed for error proof assembly

Reduced Size

• Reduced footprint provides additional room in your rig
• Compact design protects the flow meters and hose connections from being damaged in your rig

GG IHR313

PACKAGE, E20, R3, PRO, MULTI, 10KW, IH

Reactor 3 E-20 Pro Tier Spray Foam Proportioner Package, 200 ft Internal Heated Hose, 10 kW Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for spray foam applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity. The E-20 is a spray foam system build for contractors focused on smaller jobs or for contractors just entering the business, it is a great starter machine. Due to the smaller heaters the E-20 is also a good choice for contractors in tempered climates where larger heaters are not required. Auto Pressure Balance

• Automatically adjusts temperatures to optimize fluid pressures and maximize yield

Power Management

• Select desired heater wattage for reduced power consumption

Cellular Software Updates

• Automatically stay up to date with the latest Reactor software

Touchscreen Advanced Display Module (ADM)

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen

Independent Hose Control

• Control A and B materials to different temperatures for improved pressure balancing
• Optimizes yield

Advanced Electric Design

• Brushless motor for improved pressure/flow performance
• New temperature control boards for independent hose heat
• Voltage jumpers for easy changing between voltages
• Robust UL listed electrical hose connectors are color coded and keyed for error proof assembly

Reduced Size

• Reduced footprint provides additional room in your rig
• Compact design protects the flow meters and hose connections from being damaged in your rig

GG IHR320

PACKAGE, EXP1, R3, STD, MULTI, IH

Graco IHR320 Reactor 3 E-XP1 Standard Tier Polyurea Proportioner Package, 200 ft Internal Heated Hose, 10 kW

Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for polyurea applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity.

Application: The E-XP1 is a polyurea system build for a customer focused on smaller jobs or for someone just entering the business, it is a great starter machine. Due to the smaller heaters the E-XP1 is also a good choice for contractors in tempered climates where larger heaters are not required.

• ISO Lube Pump

  • Active ISO Lube system with peristaltic pump
  • Automatic timed circulation improves TSL Life
  • Reduced maintenance (No check valves)
  • New larger easy-to-change ISO lube bottle
• Touchscreen Advanced Display Module (ADM)

  • Large new touchscreen interface
  • Intuitive operation and navigation
  • All spray operations from one screen
• Independent Hose Control

  • Control A and B materials to different temperatures for improved pressure balancing
  • Optimizes yield
• Reduced Size

  • Reduced footprint provides additional room in your rig
  • Compact design protects the flow meters and hose connections from being damaged in your rig

• Model: Reactor 3
• Series: E-XP1
• Product Series: Standard

• Amperage (A): 65A 1–ph, 39A 3–ph DELTA, 24A 3–ph WYE

• Frequency (Hz): 50/60

• Hose Heating Type: Internal Heated
• Hose Length (ft): 200

• Maximum Flow Rate (GPM): 1.0
• Maximum Flow Rate (L/min): 3.8

• Maximum Fluid Temperature (°C): 88
• Maximum Fluid Temperature (°F): 190

• Maximum Fluid Temperature (°C): 88
• Maximum Fluid Temperature (°F): 190

• Maximum Spray Pressure (bar): 207

• Maximum Spray Pressure (MPa): 20.7
• Maximum Spray Pressure (psi): 3000

• Overall Depth (in): 15

• Overall Height (in): 56.5
• Overall Width (in): 24.9

• Power Rating (kW): 10

GG IHR321

PACKAGE, EXP1, R3, PRO, MULTI, IH

Graco IHR321 Reactor 3 E-XP1 Pro Tier Polyurea Proportioner Package, 200 ft Internal Heated Hose, 10 kW

Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for polyurea applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity.

Application: The E-XP1 is a polyurea system build for a customer focused on smaller jobs or for someone just entering the business, it is a great starter machine. Due to the smaller heaters the E-XP1 is also a good choice for contractors in tempered climates where larger heaters are not required.

• Auto Pressure Balance

  • Automatically adjusts temperatures to optimize fluid pressures and maximize yield
• Power Management

  • Select desired heater wattage for reduced power consumption
• Cellular Software Updates

  • Automatically stay up to date with the latest Reactor software
• Independent Hose Control

  • Control A and B materials to different temperatures for improved pressure balancing
  • Optimizes yield
• Advanced Electric Design

  • Brushless motor for improved pressure/flow performance
  • New temperature control boards for independent hose heat
  • Voltage jumpers for easy changing between voltages
  • Robust UL listed electrical hose connectors are color coded and keyed for error proof assembly
• Reduced Size

  • Reduced footprint provides additional room in your rig
  • Compact design protects the flow meters and hose connections from being damaged in your rig

• Model: Reactor 3
• Series: E-XP1
• Product Series: Pro

• Amperage (A): 65A 1–ph, 39A 3–ph DELTA, 24A 3–ph WYE

• Frequency (Hz): 50/60

• Hose Heating Type: Internal Heated
• Hose Length (ft): 200

• Maximum Flow Rate (GPM): 1.0
• Maximum Flow Rate (L/min): 3.8

• Maximum Fluid Temperature (°C): 88
• Maximum Fluid Temperature (°F): 190

• Maximum Fluid Temperature (°C): 88
• Maximum Fluid Temperature (°F): 190

• Maximum Spray Pressure (bar): 207

• Maximum Spray Pressure (MPa): 20.7
• Maximum Spray Pressure (psi): 3000

• Overall Depth (in): 15

• Overall Height (in): 56.5
• Overall Width (in): 24.9

• Power Rating (kW): 10

GG IHR322

PACKAGE, EXP1, R3, ELITE, MULTI, IH

Graco IHR322 Reactor 3 E-XP1 Elite Tier Polyurea Proportioner Package, 200 ft Internal Heated Hose, 10 kW

Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for polyurea applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity.

Application: The E-XP1 is a polyurea system build for a customer focused on smaller jobs or for someone just entering the business, it is a great starter machine. Due to the smaller heaters the E-XP1 is also a good choice for contractors in tempered climates where larger heaters are not required.

• Katalyst

  • Katalyst full system communication and control that improves performance, ratio and yield. * Requires Core E1 pumps
• Smart Suppl

  • Automatically monitors and adjusts fluid inlet pressures to compensate for high viscosity materials
• Auto Pressure Balance

  • Automatically adjusts temperatures to optimize fluid pressures and maximize yield
• Cellular Software Updates

  • Automatically stay up to date with the latest Reactor software
• Touchscreen Advanced Display Module (ADM)

  • Large new touchscreen interface
  • Intuitive operation and navigation
  • All spray operations from one screen
• Independent Hose Control

  • Control A and B materials to different temperatures for improved pressure balancing
  • Optimizes yield
• Advanced Electric Design

  • Brushless motor for improved pressure/flow performance
  • New temperature control boards for independent hose heat
  • Voltage jumpers for easy changing between voltages
  • Robust UL listed electrical hose connectors are color coded and keyed for error proof assembly
• Reduced Size

  • Reduced footprint provides additional room in your rig
  • Compact design protects the flow meters and hose connections from being damaged in your rig

• Model: Reactor 3
• Series: E-XP1
• Product Series: Elite

• Amperage (A): 65A 1–ph, 39A 3–ph DELTA, 24A 3–ph WYE

• Frequency (Hz): 50/60

• Hose Heating Type: Internal Heated
• Hose Length (ft): 200

• Maximum Flow Rate (GPM): 1
• Maximum Flow Rate (L/min): 3.8

• Maximum Fluid Temperature (°C): 88
• Maximum Fluid Temperature (°F): 190

• Maximum Fluid Temperature (°C): 88
• Maximum Fluid Temperature (°F): 190

• Maximum Spray Pressure (bar): 207

• Maximum Spray Pressure (MPa): 20.7
• Maximum Spray Pressure (psi): 3000

• Overall Depth (in): 15

• Overall Height (in): 56.5
• Overall Width (in): 24.9

• Power Rating (kW): 10

GG IHR330

PACKAGE, E30, R3, STD, MULTI, IH

Reactor 3 E-30 Standard Tier Spray Foam Proportioner Package, 200 ft Internal Heated Hose, 10 kW Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for spray foam applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity. The E-30 is a spray foam system build for contractors looking for a machine with more output and capabilities. It is ideal for contractors focused on growing their business doing typical residential and commercial spray foam work. The E-30 is an ideal machine that can be the workhorse of your fleet, capable of handling most types of jobs with a good mix of output, heat and features. ISO Lube Pump

• Active ISO Lube system with peristaltic pump
• Automatic timed circulation improves TSL Life
• Reduced maintenance (No check valves)
• New larger easy-to-change ISO lube bottle

Touchscreen Advanced Display Module (ADM)

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen

Independent Hose Control

• Control A and B materials to different temperatures for improved pressure balancing
• Optimizes yield

Advanced Electric Design

• Brushless motor for improved pressure/flow performance
• New temperature control boards for independent hose heat
• Voltage jumpers for easy changing between voltages
• Robust UL listed electrical hose connectors are color coded and keyed for error proof assembly
• New Reactor 3 exclusive: connect with Tier 4 engines for ADM engine diagnostic

Reduced Size

• Reduced footprint provides additional room in your rig
• Compact design protects the flow meters and hose connections from being damaged in your rig

GG IHR331

PACKAGE, E30, R3, PRO, 10KW, MULTI, IH

Reactor 3 E-30 Pro Tier Spray Foam Proportioner Package, 200 ft Internal Heated Hose, 10 kW Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for spray foam applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity. The E-30 is a spray foam system build for contractors looking for a machine with more output and capabilities. It is ideal for contractors focused on growing their business doing typical residential and commercial spray foam work. The E-30 is an ideal machine that can be the workhorse of your fleet, capable of handling most types of jobs with a good mix of output, heat and features. Auto Pressure Balance

• Automatically adjusts temperatures to optimize fluid pressures and maximize yield

Power Management

• Select desired heater wattage for reduced power consumption

Cellular Software Updates

• Automatically stay up to date with the latest Reactor software

Touchscreen Advanced Display Module (ADM)

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen

Independent Hose Control

• Control A and B materials to different temperatures for improved pressure balancing
• Optimizes yield

Advanced Electric Design

• Brushless motor for improved pressure/flow performance
• New temperature control boards for independent hose heat
• Voltage jumpers for easy changing between voltages
• Robust UL listed electrical hose connectors are color coded and keyed for error proof assembly

Reduced Size

• Reduced footprint provides additional room in your rig
• Compact design protects the flow meters and hose connections from being damaged in your rig

GG IHR332

PACKAGE, E30, R3, ELITE, MULTI, IH

Reactor 3 E-30 Elite Tier Spray Foam Proportioner Package, 200 ft Internal Heated Hose, 15 kW Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for spray foam applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity. The E-30 is a spray foam system build for contractors looking for a machine with more output and capabilities. It is ideal for contractors focused on growing their business doing typical residential and commercial spray foam work. The E-30 is an ideal machine that can be the workhorse of your fleet, capable of handling most types of jobs with a good mix of output, heat and features. Katalyst

• Katalyst full system communication and control that improves performance, ratio and yield. * Requires Core E1 pumps

Smart Supply

• Automatically monitors and adjusts fluid inlet pressures to compensate for high viscosity materials

Auto Pressure Balance

• Automatically adjusts temperatures to optimize fluid pressures and maximize yield

Power Management

• Select desired heater wattage for reduced power consumption

Cellular Software Updates

• Automatically stay up to date with the latest Reactor software

Touchscreen Advanced Display Module (ADM)

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen

Independent Hose Control

• Control A and B materials to different temperatures for improved pressure balancing
• Optimizes yield

Advanced Electric Design

• Brushless motor for improved pressure/flow performance
• New temperature control boards for independent hose heat
• Voltage jumpers for easy changing between voltages
• Robust UL listed electrical hose connectors are color coded and keyed for error proof assembly

Reduced Size

• Reduced footprint provides additional room in your rig
• Compact design protects the flow meters and hose connections from being damaged in your rig

GG IHR333

PACKAGE, E30, R3, PRO, 15KW, MULTI, IH

Reactor 3 E-30 Pro Tier Spray Foam Proportioner Package, 200 ft Internal Heated Hose, 15 kW Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for spray foam applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity. The E-30 is a spray foam system build for contractors looking for a machine with more output and capabilities. It is ideal for contractors focused on growing their business doing typical residential and commercial spray foam work. The E-30 is an ideal machine that can be the workhorse of your fleet, capable of handling most types of jobs with a good mix of output, heat and features. Auto Pressure Balance

• Automatically adjusts temperatures to optimize fluid pressures and maximize yield

Power Management

• Select desired heater wattage for reduced power consumption

Cellular Software Updates

• Automatically stay up to date with the latest Reactor software

Touchscreen Advanced Display Module (ADM)

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen

Independent Hose Control

• Control A and B materials to different temperatures for improved pressure balancing
• Optimizes yield

Advanced Electric Design

• Brushless motor for improved pressure/flow performance
• New temperature control boards for independent hose heat
• Voltage jumpers for easy changing between voltages
• Robust UL listed electrical hose connectors are color coded and keyed for error proof assembly

Reduced Size

• Reduced footprint provides additional room in your rig
• Compact design protects the flow meters and hose connections from being damaged in your rig

GG IHR340

PACKAGE, EXP2, R3, STD, MULTI, IH

Graco IHR340 Reactor 3 E-XP2 Standard Tier Polyurea Proportioner Package, 200 ft Internal Heated Hose, 15 kW

Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for polyurea applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity.

Application: The E-XP2 is a polyurea system build for customers looking for a machine with more output and capabilities. It is ideal for use on medium to large jobs and applications. The E-XP2 is an ideal machine that can be the workhorse of your fleet, capable of handling most types of jobs with a good mix of output, heat and features.

• ISO Lube Pump

  • Active ISO Lube system with peristaltic pump
  • Automatic timed circulation improves TSL Life
  • Reduced maintenance (No check valves)
  • New larger easy-to-change ISO lube bottle
• Touchscreen Advanced Display Module (ADM)

  • Large new touchscreen interface
  • Intuitive operation and navigation
  • All spray operations from one screen
• Independent Hose Control

  • Control A and B materials to different temperatures for improved pressure balancing
  • Optimizes yield
• Reduced Size

  • Reduced footprint provides additional room in your rig
  • Compact design protects the flow meters and hose connections from being damaged in your rig

• Model: Reactor 3
• Series: E-XP2
• Product Series: Standard

• Amperage (A): 97A 1–ph, 59A 3–ph DELTA, 35A 3–ph WYE

• Frequency (Hz): 50/60

• Hose Heating Type: Internal Heated
• Hose Length (ft): 200

• Maximum Flow Rate (GPM): 2
• Maximum Flow Rate (L/min): 7.6

• Maximum Fluid Temperature (°C): 88
• Maximum Fluid Temperature (°F): 190

• Maximum Fluid Temperature (°C): 88
• Maximum Fluid Temperature (°F): 190

• Maximum Spray Pressure (bar): 241

• Maximum Spray Pressure (MPa): 24.1
• Maximum Spray Pressure (psi): 3500

• Overall Depth (in): 15

• Overall Height (in): 56.5
• Overall Width (in): 26.8

• Power Rating (kW): 15

GG IHR341

PACKAGE, EXP2, R3, PRO, MULTI, IH

Reactor 3 E-XP2 Pro Tier Polyurea Proportioner Package, 200 ft Internal Heated Hose, 15 kW Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for polyurea applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity. The E-XP2 is a polyurea system build for customers looking for a machine with more output and capabilities. It is ideal for use on medium to large jobs and applications. The E-XP2 is an ideal machine that can be the workhorse of your fleet, capable of handling most types of jobs with a good mix of output, heat and features. Auto Pressure Balance

• Automatically adjusts temperatures to optimize fluid pressures and maximize yield

Power Management

• Select desired heater wattage for reduced power consumption

Cellular Software Updates

• Automatically stay up to date with the latest Reactor software

Touchscreen Advanced Display Module (ADM)

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen

Independent Hose Control

• Control A and B materials to different temperatures for improved pressure balancing
• Optimizes yield

Advanced Electric Design

• Brushless motor for improved pressure/flow performance
• New temperature control boards for independent hose heat
• Voltage jumpers for easy changing between voltages
• Robust UL listed electrical hose connectors are color coded and keyed for error proof assembly

Reduced Size

• Reduced footprint provides additional room in your rig
• Compact design protects the flow meters and hose connections from being damaged in your rig

GG IHR342

PACKAGE, EXP2, R3, ELITE, MULTI, IH

Reactor 3 E-XP2 Elite Tier Polyurea Proportioner Package, 200 ft Internal Heated Hose, 15 kW Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for polyurea applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity. The E-XP2 is a polyurea system build for customers looking for a machine with more output and capabilities. It is ideal for use on medium to large jobs and applications. The E-XP2 is an ideal machine that can be the workhorse of your fleet, capable of handling most types of jobs with a good mix of output, heat and features. Katalyst

• Katalyst full system communication and control that improves performance, ratio and yield. * Requires Core E1 pumps

Supply Pump Shutdown

• Automatically shuts down when you run out of material.
• Prevents air from entering the system that can cause off-ratio issues. * Requires Core E1 pumps

Smart Supply

• Automatically monitors and adjusts fluid inlet pressures to compensate for high viscosity materials

Auto Pressure Balance

• Automatically adjusts temperatures to optimize fluid pressures and maximize yield

Power Management

• Select desired heater wattage for reduced power consumption

Cellular Software Updates

• Automatically stay up to date with the latest Reactor software

Touchscreen Advanced Display Module (ADM)

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen

Independent Hose Control

• Control A and B materials to different temperatures for improved pressure balancing
• Optimizes yield

Advanced Electric Design

• Brushless motor for improved pressure/flow performance
• New temperature control boards for independent hose heat
• Voltage jumpers for easy changing between voltages
• Robust UL listed electrical hose connectors are color coded and keyed for error proof assembly

Reduced Size

• Reduced footprint provides additional room in your rig
• Compact design protects the flow meters and hose connections from being damaged in your rig

GG IHR355

PACKAGE, H30, R3, 60HZ, PRO, IH

Reactor 3 H-30 Pro Tier Spray Foam Proportioner Package, 200 ft Internal Heated Hose, 20 ft Xcelerator Whip Hose, 60 Hz The Reactor 3 hydraulic proportioners builds on the robust legacy and performance of hydraulic Reactors, now incorporating advanced features from the electric Reactor 3 platform. Designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity. Designed for construction applications, including roofing, residential and commercial projects, as well as for in-plant OEM applications, it offers unmatched performance, durability and profitability. Direct Drive Hydraulic Pump

• Simplified robust design eliminates fly wheel and belt system for reduced maintenance
• Smaller compact footprint
• Reduced noise

Horizontal Pump Line

• Positive displacement pumps
• Easy service
• Long life
• Smooth changeovers and spray pattern
• Multiple pump sizes for non 1:1 dispensing

Hydraulic Cooling System

• Powerful fan to maintain optimal oil temperature for longer oil life

New Touchscreen Advanced Display Module (ADM)

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen
• Electronic pressure control (Elite models)

R3 Hybrid Heaters

• Robust heating design
• Heats materials quickly and efficiently
• Maintains temperature set points at max flow rates

New Independent Hose Control

• Control A and B materials to different temperatures for improved pressure balancing and optimized yield

Easy-Access Oil Maintenance Points

• Easy-to-access oil dip stick and oil drain valve simplifies preventive maintenance

New Inlet Filters and Fluid Manifold

• New easy-to-maintain design
• 2X larger filter area
• Separate temperature and pressure sensors for more accurate temperature readings
• Redesigned with side-mounted fluid valves for easier turning and improved control

Reactor Connect

• Real-time dashboard and reports via cellular connectivity
• Improved cellular antenna
• New GPS antenna
• GPS location available in Reactor Connect
• Job naming and reporting

Oval Gear Flow Meters

• Verifies fluid ratio
• Provides real-time ratio data: displayed on the ADM and Reactor Connect
• Accurate for a wide range of fluid viscosities

GG IHR357

PACKAGE, H30, R3, 60HZ, ELITE, IH

Reactor 3 H-30 Elite Tier Spray Foam Proportioner Package, 200 ft Internal Heated Hose, 20 ft Xcelerator Whip Hose, 60 Hz The Reactor 3 hydraulic proportioners builds on the robust legacy and performance of hydraulic Reactors, now incorporating advanced features from the electric Reactor 3 platform. Designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity. Designed for construction applications, including roofing, residential and commercial projects, as well as for in-plant OEM applications, it offers unmatched performance, durability and profitability. Direct Drive Hydraulic Pump

• Simplified robust design eliminates fly wheel and belt system for reduced maintenance
• Smaller compact footprint
• Reduced noise

Horizontal Pump Line

• Positive displacement pumps
• Easy service
• Long life
• Smooth changeovers and spray pattern
• Multiple pump sizes for non 1:1 dispensing

Hydraulic Cooling System

• Powerful fan to maintain optimal oil temperature for longer oil life

New Touchscreen Advanced Display Module (ADM)

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen
• Electronic pressure control (Elite models)

R3 Hybrid Heaters

• Robust heating design
• Heats materials quickly and efficiently
• Maintains temperature set points at max flow rates

New Independent Hose Control

• Control A and B materials to different temperatures for improved pressure balancing and optimized yield

Easy-Access Oil Maintenance Points

• Easy-to-access oil dip stick and oil drain valve simplifies preventive maintenance

New Inlet Filters and Fluid Manifold

• New easy-to-maintain design
• 2X larger filter area
• Separate temperature and pressure sensors for more accurate temperature readings
• Redesigned with side-mounted fluid valves for easier turning and improved control

Reactor Connect

• Real-time dashboard and reports via cellular connectivity
• Improved cellular antenna
• New GPS antenna
• GPS location available in Reactor Connect
• Job naming and reporting

Oval Gear Flow Meters

• Verifies fluid ratio
• Provides real-time ratio data: displayed on the ADM and Reactor Connect
• Accurate for a wide range of fluid viscosities

GG IHR365

PACKAGE, HXP2, R3, 60HZ, PRO, IH

Reactor 3 H-XP2 Pro Tier Polyurea Proportioner Package, 200 ft Internal Heated Hose, 20 ft Xcelerator Whip Hose, 60 Hz The Reactor 3 hydraulic proportioners builds on the robust legacy and performance of hydraulic Reactors, now incorporating advanced features from the electric Reactor 3 platform. Designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity. Designed for construction applications, including roofing, residential and commercial projects, as well as for in-plant OEM applications, it offers unmatched performance, durability and profitability. Direct Drive Hydraulic Pump

• Simplified robust design eliminates fly wheel and belt system for reduced maintenance
• Smaller compact footprint
• Reduced noise

Horizontal Pump Line

• Positive displacement pumps
• Easy service
• Long life
• Smooth changeovers and spray pattern
• Multiple pump sizes for non 1:1 dispensing

Hydraulic Cooling System

• Powerful fan to maintain optimal oil temperature for longer oil life

New Touchscreen Advanced Display Module (ADM)

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen
• Electronic pressure control (Elite models)

R3 Hybrid Heaters

• Robust heating design
• Heats materials quickly and efficiently
• Maintains temperature set points at max flow rates

New Independent Hose Control

• Control A and B materials to different temperatures for improved pressure balancing and optimized yield

Easy-Access Oil Maintenance Points

• Easy-to-access oil dip stick and oil drain valve simplifies preventive maintenance

New Inlet Filters and Fluid Manifold

• New easy-to-maintain design
• 2X larger filter area
• Separate temperature and pressure sensors for more accurate temperature readings
• Redesigned with side-mounted fluid valves for easier turning and improved control

Reactor Connect

• Real-time dashboard and reports via cellular connectivity
• Improved cellular antenna
• New GPS antenna
• GPS location available in Reactor Connect
• Job naming and reporting

Oval Gear Flow Meters

• Verifies fluid ratio
• Provides real-time ratio data: displayed on the ADM and Reactor Connect
• Accurate for a wide range of fluid viscosities

GG IHR367

PACKAGE, HXP2, R3, 60HZ, ELITE, IH

Reactor 3 H-XP2 Elite Tier Polyurea Proportioner Package, 200 ft Internal Heated Hose, 20 ft Xcelerator Whip Hose, 60 Hz The Reactor 3 hydraulic proportioners builds on the robust legacy and performance of hydraulic Reactors, now incorporating advanced features from the electric Reactor 3 platform. Designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity. Designed for construction applications, including roofing, residential and commercial projects, as well as for in-plant OEM applications, it offers unmatched performance, durability and profitability. Direct Drive Hydraulic Pump

• Simplified robust design eliminates fly wheel and belt system for reduced maintenance
• Smaller compact footprint
• Reduced noise

Horizontal Pump Line

• Positive displacement pumps
• Easy service
• Long life
• Smooth changeovers and spray pattern
• Multiple pump sizes for non 1:1 dispensing

Hydraulic Cooling System

• Powerful fan to maintain optimal oil temperature for longer oil life

New Touchscreen Advanced Display Module (ADM)

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen
• Electronic pressure control (Elite models)

R3 Hybrid Heaters

• Robust heating design
• Heats materials quickly and efficiently
• Maintains temperature set points at max flow rates

New Independent Hose Control

• Control A and B materials to different temperatures for improved pressure balancing and optimized yield

Easy-Access Oil Maintenance Points

• Easy-to-access oil dip stick and oil drain valve simplifies preventive maintenance

New Inlet Filters and Fluid Manifold

• New easy-to-maintain design
• 2X larger filter area
• Separate temperature and pressure sensors for more accurate temperature readings
• Redesigned with side-mounted fluid valves for easier turning and improved control

Reactor Connect

• Real-time dashboard and reports via cellular connectivity
• Improved cellular antenna
• New GPS antenna
• GPS location available in Reactor Connect
• Job naming and reporting

Oval Gear Flow Meters

• Verifies fluid ratio
• Provides real-time ratio data: displayed on the ADM and Reactor Connect
• Accurate for a wide range of fluid viscosities

GG IHR375

PACKAGE, H50, R3, 230V, PRO, IH

Reactor 3 H-50 Pro Tier Spray Foam Proportioner Package, 300 ft Internal Heated Hose, 20 ft Xcelerator Whip Hose, 230V The Reactor 3 hydraulic proportioners builds on the robust legacy and performance of hydraulic Reactors, now incorporating advanced features from the electric Reactor 3 platform. Designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity. Designed for construction applications, including roofing, residential and commercial projects, as well as for in-plant OEM applications, it offers unmatched performance, durability and profitability. Direct Drive Hydraulic Pump

• Simplified robust design eliminates fly wheel and belt system for reduced maintenance
• Smaller compact footprint
• Reduced noise

Horizontal Pump Line

• Positive displacement pumps
• Easy service
• Long life
• Smooth changeovers and spray pattern
• Multiple pump sizes for non 1:1 dispensing

Hydraulic Cooling System

• Powerful fan to maintain optimal oil temperature for longer oil life

New Touchscreen Advanced Display Module (ADM)

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen
• Electronic pressure control (Elite models)

R3 Hybrid Heaters

• Robust heating design
• Heats materials quickly and efficiently
• Maintains temperature set points at max flow rates

New Independent Hose Control

• Control A and B materials to different temperatures for improved pressure balancing and optimized yield

Easy-Access Oil Maintenance Points

• Easy-to-access oil dip stick and oil drain valve simplifies preventive maintenance

New Inlet Filters and Fluid Manifold

• New easy-to-maintain design
• 2X larger filter area
• Separate temperature and pressure sensors for more accurate temperature readings
• Redesigned with side-mounted fluid valves for easier turning and improved control

Reactor Connect

• Real-time dashboard and reports via cellular connectivity
• Improved cellular antenna
• New GPS antenna
• GPS location available in Reactor Connect
• Job naming and reporting

Oval Gear Flow Meters

• Verifies fluid ratio
• Provides real-time ratio data: displayed on the ADM and Reactor Connect
• Accurate for a wide range of fluid viscosities

GG IHR376

PACKAGE, H50, R3, 400V, PRO, IH

Reactor 3 H-50 Pro Tier Spray Foam Proportioner Package, 300 ft Internal Heated Hose, 20 ft Xcelerator Whip Hose, 400V The Reactor 3 hydraulic proportioners builds on the robust legacy and performance of hydraulic Reactors, now incorporating advanced features from the electric Reactor 3 platform. Designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity. Designed for construction applications, including roofing, residential and commercial projects, as well as for in-plant OEM applications, it offers unmatched performance, durability and profitability. Direct Drive Hydraulic Pump

• Simplified robust design eliminates fly wheel and belt system for reduced maintenance
• Smaller compact footprint
• Reduced noise

Horizontal Pump Line

• Positive displacement pumps
• Easy service
• Long life
• Smooth changeovers and spray pattern
• Multiple pump sizes for non 1:1 dispensing

Hydraulic Cooling System

• Powerful fan to maintain optimal oil temperature for longer oil life

New Touchscreen Advanced Display Module (ADM)

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen
• Electronic pressure control (Elite models)

R3 Hybrid Heaters

• Robust heating design
• Heats materials quickly and efficiently
• Maintains temperature set points at max flow rates

New Independent Hose Control

• Control A and B materials to different temperatures for improved pressure balancing and optimized yield

Easy-Access Oil Maintenance Points

• Easy-to-access oil dip stick and oil drain valve simplifies preventive maintenance

New Inlet Filters and Fluid Manifold

• New easy-to-maintain design
• 2X larger filter area
• Separate temperature and pressure sensors for more accurate temperature readings
• Redesigned with side-mounted fluid valves for easier turning and improved control

Reactor Connect

• Real-time dashboard and reports via cellular connectivity
• Improved cellular antenna
• New GPS antenna
• GPS location available in Reactor Connect
• Job naming and reporting

Oval Gear Flow Meters

• Verifies fluid ratio
• Provides real-time ratio data: displayed on the ADM and Reactor Connect
• Accurate for a wide range of fluid viscosities

GG IHR377

PACKAGE, H50, R3, 230V, ELITE, IH

Reactor 3 H-50 Elite Tier Spray Foam Proportioner Package, 300 ft Internal Heated Hose, 20 ft Xcelerator Whip Hose, 230V The Reactor 3 hydraulic proportioners builds on the robust legacy and performance of hydraulic Reactors, now incorporating advanced features from the electric Reactor 3 platform. Designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity. Designed for construction applications, including roofing, residential and commercial projects, as well as for in-plant OEM applications, it offers unmatched performance, durability and profitability. Direct Drive Hydraulic Pump

• Simplified robust design eliminates fly wheel and belt system for reduced maintenance
• Smaller compact footprint
• Reduced noise

Horizontal Pump Line

• Positive displacement pumps
• Easy service
• Long life
• Smooth changeovers and spray pattern
• Multiple pump sizes for non 1:1 dispensing

Hydraulic Cooling System

• Powerful fan to maintain optimal oil temperature for longer oil life

New Touchscreen Advanced Display Module (ADM)

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen
• Electronic pressure control (Elite models)

R3 Hybrid Heaters

• Robust heating design
• Heats materials quickly and efficiently
• Maintains temperature set points at max flow rates

New Independent Hose Control

• Control A and B materials to different temperatures for improved pressure balancing and optimized yield

Easy-Access Oil Maintenance Points

• Easy-to-access oil dip stick and oil drain valve simplifies preventive maintenance

New Inlet Filters and Fluid Manifold

• New easy-to-maintain design
• 2X larger filter area
• Separate temperature and pressure sensors for more accurate temperature readings
• Redesigned with side-mounted fluid valves for easier turning and improved control

Reactor Connect

• Real-time dashboard and reports via cellular connectivity
• Improved cellular antenna
• New GPS antenna
• GPS location available in Reactor Connect
• Job naming and reporting

Oval Gear Flow Meters

• Verifies fluid ratio
• Provides real-time ratio data: displayed on the ADM and Reactor Connect
• Accurate for a wide range of fluid viscosities

GG IHR378

PACKAGE, H50, R3, 400V, ELITE, IH

Reactor 3 H-50 Elite Tier Spray Foam Proportioner Package, 300 ft Internal Heated Hose, 20 ft Xcelerator Whip Hose, 400V The Reactor 3 hydraulic proportioners builds on the robust legacy and performance of hydraulic Reactors, now incorporating advanced features from the electric Reactor 3 platform. Designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity. Designed for construction applications, including roofing, residential and commercial projects, as well as for in-plant OEM applications, it offers unmatched performance, durability and profitability. Direct Drive Hydraulic Pump

• Simplified robust design eliminates fly wheel and belt system for reduced maintenance
• Smaller compact footprint
• Reduced noise

Horizontal Pump Line

• Positive displacement pumps
• Easy service
• Long life
• Smooth changeovers and spray pattern
• Multiple pump sizes for non 1:1 dispensing

Hydraulic Cooling System

• Powerful fan to maintain optimal oil temperature for longer oil life

New Touchscreen Advanced Display Module (ADM)

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen
• Electronic pressure control (Elite models)

R3 Hybrid Heaters

• Robust heating design
• Heats materials quickly and efficiently
• Maintains temperature set points at max flow rates

New Independent Hose Control

• Control A and B materials to different temperatures for improved pressure balancing and optimized yield

Easy-Access Oil Maintenance Points

• Easy-to-access oil dip stick and oil drain valve simplifies preventive maintenance

New Inlet Filters and Fluid Manifold

• New easy-to-maintain design
• 2X larger filter area
• Separate temperature and pressure sensors for more accurate temperature readings
• Redesigned with side-mounted fluid valves for easier turning and improved control

Reactor Connect

• Real-time dashboard and reports via cellular connectivity
• Improved cellular antenna
• New GPS antenna
• GPS location available in Reactor Connect
• Job naming and reporting

Oval Gear Flow Meters

• Verifies fluid ratio
• Provides real-time ratio data: displayed on the ADM and Reactor Connect
• Accurate for a wide range of fluid viscosities

GG IHR385

PACKAGE, HXP3, R3, 230V, PRO, IH

Reactor 3 H-XP3 Pro Tier Polyurea Proportioner Package, 300 ft Internal Heated Hose, 20 ft Xcelerator Whip Hose, 230V The Reactor 3 hydraulic proportioners builds on the robust legacy and performance of hydraulic Reactors, now incorporating advanced features from the electric Reactor 3 platform. Designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity. Designed for construction applications, including roofing, residential and commercial projects, as well as for in-plant OEM applications, it offers unmatched performance, durability and profitability. Direct Drive Hydraulic Pump

• Simplified robust design eliminates fly wheel and belt system for reduced maintenance
• Smaller compact footprint
• Reduced noise

Horizontal Pump Line

• Positive displacement pumps
• Easy service
• Long life
• Smooth changeovers and spray pattern
• Multiple pump sizes for non 1:1 dispensing

Hydraulic Cooling System

• Powerful fan to maintain optimal oil temperature for longer oil life

New Touchscreen Advanced Display Module (ADM)

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen
• Electronic pressure control (Elite models)

R3 Hybrid Heaters

• Robust heating design
• Heats materials quickly and efficiently
• Maintains temperature set points at max flow rates

New Independent Hose Control

• Control A and B materials to different temperatures for improved pressure balancing and optimized yield

Easy-Access Oil Maintenance Points

• Easy-to-access oil dip stick and oil drain valve simplifies preventive maintenance

New Inlet Filters and Fluid Manifold

• New easy-to-maintain design
• 2X larger filter area
• Separate temperature and pressure sensors for more accurate temperature readings
• Redesigned with side-mounted fluid valves for easier turning and improved control

Reactor Connect

• Real-time dashboard and reports via cellular connectivity
• Improved cellular antenna
• New GPS antenna
• GPS location available in Reactor Connect
• Job naming and reporting

Oval Gear Flow Meters

• Verifies fluid ratio
• Provides real-time ratio data: displayed on the ADM and Reactor Connect
• Accurate for a wide range of fluid viscosities

GG IHR386

PACKAGE, HXP3, R3, 400V, PRO, IH

Reactor 3 H-XP3 Pro Tier Polyurea Proportioner Package, 300 ft Internal Heated Hose, 20 ft Xcelerator Whip Hose, 400V The Reactor 3 hydraulic proportioners builds on the robust legacy and performance of hydraulic Reactors, now incorporating advanced features from the electric Reactor 3 platform. Designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity. Designed for construction applications, including roofing, residential and commercial projects, as well as for in-plant OEM applications, it offers unmatched performance, durability and profitability. Direct Drive Hydraulic Pump

• Simplified robust design eliminates fly wheel and belt system for reduced maintenance
• Smaller compact footprint
• Reduced noise

Horizontal Pump Line

• Positive displacement pumps
• Easy service
• Long life
• Smooth changeovers and spray pattern
• Multiple pump sizes for non 1:1 dispensing

Hydraulic Cooling System

• Powerful fan to maintain optimal oil temperature for longer oil life

New Touchscreen Advanced Display Module (ADM)

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen
• Electronic pressure control (Elite models)

R3 Hybrid Heaters

• Robust heating design
• Heats materials quickly and efficiently
• Maintains temperature set points at max flow rates

New Independent Hose Control

• Control A and B materials to different temperatures for improved pressure balancing and optimized yield

Easy-Access Oil Maintenance Points

• Easy-to-access oil dip stick and oil drain valve simplifies preventive maintenance

New Inlet Filters and Fluid Manifold

• New easy-to-maintain design
• 2X larger filter area
• Separate temperature and pressure sensors for more accurate temperature readings
• Redesigned with side-mounted fluid valves for easier turning and improved control

Reactor Connect

• Real-time dashboard and reports via cellular connectivity
• Improved cellular antenna
• New GPS antenna
• GPS location available in Reactor Connect
• Job naming and reporting

Oval Gear Flow Meters

• Verifies fluid ratio
• Provides real-time ratio data: displayed on the ADM and Reactor Connect
• Accurate for a wide range of fluid viscosities

GG IHR387

PACKAGE, HXP3, R3, 230V, ELITE, IH

Reactor 3 H-XP3 Elite Tier Polyurea Proportioner Package, 300 ft Internal Heated Hose, 20 ft Xcelerator Whip Hose, 230V The Reactor 3 hydraulic proportioners builds on the robust legacy and performance of hydraulic Reactors, now incorporating advanced features from the electric Reactor 3 platform. Designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity. Designed for construction applications, including roofing, residential and commercial projects, as well as for in-plant OEM applications, it offers unmatched performance, durability and profitability. Direct Drive Hydraulic Pump

• Simplified robust design eliminates fly wheel and belt system for reduced maintenance
• Smaller compact footprint
• Reduced noise

Horizontal Pump Line

• Positive displacement pumps
• Easy service
• Long life
• Smooth changeovers and spray pattern
• Multiple pump sizes for non 1:1 dispensing

Hydraulic Cooling System

• Powerful fan to maintain optimal oil temperature for longer oil life

New Touchscreen Advanced Display Module (ADM)

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen
• Electronic pressure control (Elite models)

R3 Hybrid Heaters

• Robust heating design
• Heats materials quickly and efficiently
• Maintains temperature set points at max flow rates

New Independent Hose Control

• Control A and B materials to different temperatures for improved pressure balancing and optimized yield

Easy-Access Oil Maintenance Points

• Easy-to-access oil dip stick and oil drain valve simplifies preventive maintenance

New Inlet Filters and Fluid Manifold

• New easy-to-maintain design
• 2X larger filter area
• Separate temperature and pressure sensors for more accurate temperature readings
• Redesigned with side-mounted fluid valves for easier turning and improved control

Reactor Connect

• Real-time dashboard and reports via cellular connectivity
• Improved cellular antenna
• New GPS antenna
• GPS location available in Reactor Connect
• Job naming and reporting

Oval Gear Flow Meters

• Verifies fluid ratio
• Provides real-time ratio data: displayed on the ADM and Reactor Connect
• Accurate for a wide range of fluid viscosities

GG IHR388

PACKAGE, HXP3, R3, 400V, ELITE, IH

Reactor 3 H-XP3 Elite Tier Polyurea Proportioner Package, 300 ft Internal Heated Hose, 20 ft Xcelerator Whip Hose, 400V The Reactor 3 hydraulic proportioners builds on the robust legacy and performance of hydraulic Reactors, now incorporating advanced features from the electric Reactor 3 platform. Designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity. Designed for construction applications, including roofing, residential and commercial projects, as well as for in-plant OEM applications, it offers unmatched performance, durability and profitability. Direct Drive Hydraulic Pump

• Simplified robust design eliminates fly wheel and belt system for reduced maintenance
• Smaller compact footprint
• Reduced noise

Horizontal Pump Line

• Positive displacement pumps
• Easy service
• Long life
• Smooth changeovers and spray pattern
• Multiple pump sizes for non 1:1 dispensing

Hydraulic Cooling System

• Powerful fan to maintain optimal oil temperature for longer oil life

New Touchscreen Advanced Display Module (ADM)

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen
• Electronic pressure control (Elite models)

R3 Hybrid Heaters

• Robust heating design
• Heats materials quickly and efficiently
• Maintains temperature set points at max flow rates

New Independent Hose Control

• Control A and B materials to different temperatures for improved pressure balancing and optimized yield

Easy-Access Oil Maintenance Points

• Easy-to-access oil dip stick and oil drain valve simplifies preventive maintenance

New Inlet Filters and Fluid Manifold

• New easy-to-maintain design
• 2X larger filter area
• Separate temperature and pressure sensors for more accurate temperature readings
• Redesigned with side-mounted fluid valves for easier turning and improved control

Reactor Connect

• Real-time dashboard and reports via cellular connectivity
• Improved cellular antenna
• New GPS antenna
• GPS location available in Reactor Connect
• Job naming and reporting

Oval Gear Flow Meters

• Verifies fluid ratio
• Provides real-time ratio data: displayed on the ADM and Reactor Connect
• Accurate for a wide range of fluid viscosities

GG IHR389

PACKAGE, H30, R3, 50HZ, PRO, IH

Reactor 3 H-30 Pro Tier Spray Foam Proportioner Package, 200 ft Internal Heated Hose, 20 ft Xcelerator Whip Hose, 50 Hz The Reactor 3 hydraulic proportioners builds on the robust legacy and performance of hydraulic Reactors, now incorporating advanced features from the electric Reactor 3 platform. Designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity. Designed for construction applications, including roofing, residential and commercial projects, as well as for in-plant OEM applications, it offers unmatched performance, durability and profitability. Direct Drive Hydraulic Pump

• Simplified robust design eliminates fly wheel and belt system for reduced maintenance
• Smaller compact footprint
• Reduced noise

Horizontal Pump Line

• Positive displacement pumps
• Easy service
• Long life
• Smooth changeovers and spray pattern
• Multiple pump sizes for non 1:1 dispensing

Hydraulic Cooling System

• Powerful fan to maintain optimal oil temperature for longer oil life

New Touchscreen Advanced Display Module (ADM)

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen
• Electronic pressure control (Elite models)

R3 Hybrid Heaters

• Robust heating design
• Heats materials quickly and efficiently
• Maintains temperature set points at max flow rates

New Independent Hose Control

• Control A and B materials to different temperatures for improved pressure balancing and optimized yield

Easy-Access Oil Maintenance Points

• Easy-to-access oil dip stick and oil drain valve simplifies preventive maintenance

New Inlet Filters and Fluid Manifold

• New easy-to-maintain design
• 2X larger filter area
• Separate temperature and pressure sensors for more accurate temperature readings
• Redesigned with side-mounted fluid valves for easier turning and improved control

Reactor Connect

• Real-time dashboard and reports via cellular connectivity
• Improved cellular antenna
• New GPS antenna
• GPS location available in Reactor Connect
• Job naming and reporting

Oval Gear Flow Meters

• Verifies fluid ratio
• Provides real-time ratio data: displayed on the ADM and Reactor Connect
• Accurate for a wide range of fluid viscosities

GG IHR390

PACKAGE, H30, R3, 50HZ, ELITE, IH

Reactor 3 H-30 Elite Tier Spray Foam Proportioner Package, 200 ft Internal Heated Hose, 20 ft Xcelerator Whip Hose, 50 Hz The Reactor 3 hydraulic proportioners builds on the robust legacy and performance of hydraulic Reactors, now incorporating advanced features from the electric Reactor 3 platform. Designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity. Designed for construction applications, including roofing, residential and commercial projects, as well as for in-plant OEM applications, it offers unmatched performance, durability and profitability. Direct Drive Hydraulic Pump

• Simplified robust design eliminates fly wheel and belt system for reduced maintenance
• Smaller compact footprint
• Reduced noise

Horizontal Pump Line

• Positive displacement pumps
• Easy service
• Long life
• Smooth changeovers and spray pattern
• Multiple pump sizes for non 1:1 dispensing

Hydraulic Cooling System

• Powerful fan to maintain optimal oil temperature for longer oil life

New Touchscreen Advanced Display Module (ADM)

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen
• Electronic pressure control (Elite models)

R3 Hybrid Heaters

• Robust heating design
• Heats materials quickly and efficiently
• Maintains temperature set points at max flow rates

New Independent Hose Control

• Control A and B materials to different temperatures for improved pressure balancing and optimized yield

Easy-Access Oil Maintenance Points

• Easy-to-access oil dip stick and oil drain valve simplifies preventive maintenance

New Inlet Filters and Fluid Manifold

• New easy-to-maintain design
• 2X larger filter area
• Separate temperature and pressure sensors for more accurate temperature readings
• Redesigned with side-mounted fluid valves for easier turning and improved control

Reactor Connect

• Real-time dashboard and reports via cellular connectivity
• Improved cellular antenna
• New GPS antenna
• GPS location available in Reactor Connect
• Job naming and reporting

Oval Gear Flow Meters

• Verifies fluid ratio
• Provides real-time ratio data: displayed on the ADM and Reactor Connect
• Accurate for a wide range of fluid viscosities

GG IHR391

PACKAGE, HXP2, R3, 50HZ, PRO, IH

Reactor 3 H-XP2 Pro Tier Polyurea Proportioner Package, 200 ft Internal Heated Hose, 20 ft Xcelerator Whip Hose, 50 Hz The Reactor 3 hydraulic proportioners builds on the robust legacy and performance of hydraulic Reactors, now incorporating advanced features from the electric Reactor 3 platform. Designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity. Designed for construction applications, including roofing, residential and commercial projects, as well as for in-plant OEM applications, it offers unmatched performance, durability and profitability. Direct Drive Hydraulic Pump

• Simplified robust design eliminates fly wheel and belt system for reduced maintenance
• Smaller compact footprint
• Reduced noise

Horizontal Pump Line

• Positive displacement pumps
• Easy service
• Long life
• Smooth changeovers and spray pattern
• Multiple pump sizes for non 1:1 dispensing

Hydraulic Cooling System

• Powerful fan to maintain optimal oil temperature for longer oil life

New Touchscreen Advanced Display Module (ADM)

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen
• Electronic pressure control (Elite models)

R3 Hybrid Heaters

• Robust heating design
• Heats materials quickly and efficiently
• Maintains temperature set points at max flow rates

New Independent Hose Control

• Control A and B materials to different temperatures for improved pressure balancing and optimized yield

Easy-Access Oil Maintenance Points

• Easy-to-access oil dip stick and oil drain valve simplifies preventive maintenance

New Inlet Filters and Fluid Manifold

• New easy-to-maintain design
• 2X larger filter area
• Separate temperature and pressure sensors for more accurate temperature readings
• Redesigned with side-mounted fluid valves for easier turning and improved control

Reactor Connect

• Real-time dashboard and reports via cellular connectivity
• Improved cellular antenna
• New GPS antenna
• GPS location available in Reactor Connect
• Job naming and reporting

Oval Gear Flow Meters

• Verifies fluid ratio
• Provides real-time ratio data: displayed on the ADM and Reactor Connect
• Accurate for a wide range of fluid viscosities

GG IHR392

PACKAGE, HXP2, R3, 50HZ, ELITE, IH

Reactor 3 H-XP2 Elite Tier Polyurea Proportioner Package, 200 ft Internal Heated Hose, 20 ft Xcelerator Whip Hose, 50 Hz The Reactor 3 hydraulic proportioners builds on the robust legacy and performance of hydraulic Reactors, now incorporating advanced features from the electric Reactor 3 platform. Designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity. Designed for construction applications, including roofing, residential and commercial projects, as well as for in-plant OEM applications, it offers unmatched performance, durability and profitability. Direct Drive Hydraulic Pump

• Simplified robust design eliminates fly wheel and belt system for reduced maintenance
• Smaller compact footprint
• Reduced noise

Horizontal Pump Line

• Positive displacement pumps
• Easy service
• Long life
• Smooth changeovers and spray pattern
• Multiple pump sizes for non 1:1 dispensing

Hydraulic Cooling System

• Powerful fan to maintain optimal oil temperature for longer oil life

New Touchscreen Advanced Display Module (ADM)

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen
• Electronic pressure control (Elite models)

R3 Hybrid Heaters

• Robust heating design
• Heats materials quickly and efficiently
• Maintains temperature set points at max flow rates

New Independent Hose Control

• Control A and B materials to different temperatures for improved pressure balancing and optimized yield

Easy-Access Oil Maintenance Points

• Easy-to-access oil dip stick and oil drain valve simplifies preventive maintenance

New Inlet Filters and Fluid Manifold

• New easy-to-maintain design
• 2X larger filter area
• Separate temperature and pressure sensors for more accurate temperature readings
• Redesigned with side-mounted fluid valves for easier turning and improved control

Reactor Connect

• Real-time dashboard and reports via cellular connectivity
• Improved cellular antenna
• New GPS antenna
• GPS location available in Reactor Connect
• Job naming and reporting

Oval Gear Flow Meters

• Verifies fluid ratio
• Provides real-time ratio data: displayed on the ADM and Reactor Connect
• Accurate for a wide range of fluid viscosities

GG ISD-123

Fitting, Retainer, Hose

GG ISD-156

O-Ring, Silicone, 2-017

GG ISR310

PACKAGE, E20, R3, STD, IH

Reactor 3 E-20 Standard Tier Spray Foam Proportioner Package, 50 ft Internal Heated Hose, 7 kW Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for spray foam applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity. The E-20 is a spray foam system build for contractors focused on smaller jobs or for contractors just entering the business, it is a great starter machine. Due to the smaller heaters the E-20 is also a good choice for contractors in tempered climates where larger heaters are not required. ISO Lube Pump

• Active ISO Lube system with peristaltic pump
• Automatic timed circulation improves TSL Life
• Reduced maintenance (No check valves)
• New larger easy-to-change ISO lube bottle

Touchscreen Advanced Display Module (ADM)

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen

Independent Hose Control

• Control A and B materials to different temperatures for improved pressure balancing
• Optimizes yield

Advanced Electric Design

• Brushless motor for improved pressure/flow performance
• New temperature control boards for independent hose heat
• Voltage jumpers for easy changing between voltages
• Robust UL listed electrical hose connectors are color coded and keyed for error proof assembly
• New Reactor 3 exclusive: connect with Tier 4 engines for ADM engine diagnostic

Reduced Size

• Reduced footprint provides additional room in your rig
• Compact design protects the flow meters and hose connections from being damaged in your rig

GG ISR311

PACKAGE, E20, R3, PRO, 7KW, IH

Reactor 3 E-20 Pro Tier Spray Foam Proportioner Package, 50 ft Internal Heated Hose, 7 kW Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for spray foam applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity. The E-20 is a spray foam system build for contractors focused on smaller jobs or for contractors just entering the business, it is a great starter machine. Due to the smaller heaters the E-20 is also a good choice for contractors in tempered climates where larger heaters are not required. Auto Pressure Balance

• Automatically adjusts temperatures to optimize fluid pressures and maximize yield

Power Management

• Select desired heater wattage for reduced power consumption

Cellular Software Updates

• Automatically stay up to date with the latest Reactor software

Touchscreen Advanced Display Module (ADM)

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen

Independent Hose Control

• Control A and B materials to different temperatures for improved pressure balancing
• Optimizes yield

Advanced Electric Design

• Brushless motor for improved pressure/flow performance
• New temperature control boards for independent hose heat
• Voltage jumpers for easy changing between voltages
• Robust UL listed electrical hose connectors are color coded and keyed for error proof assembly

Reduced Size

• Reduced footprint provides additional room in your rig
• Compact design protects the flow meters and hose connections from being damaged in your rig

GG ISR312

PACKAGE, E20, R3, ELITE, IH

Reactor 3 E-20 Elite Tier Spray Foam Proportioner Package, 50 ft Internal Heated Hose, 10 kW Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for spray foam applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity. The E-20 is a spray foam system build for contractors focused on smaller jobs or for contractors just entering the business, it is a great starter machine. Due to the smaller heaters the E-20 is also a good choice for contractors in tempered climates where larger heaters are not required. Katalyst

• Katalyst full system communication and control that improves performance, ratio and yield
• Requires Core E1 pumps

Supply Pump Shutdown

• Automatically shuts down when you run out of material
• Prevents air from entering the system that can cause off-ratio issues
• Requires Core E1 pumps

Smart Supply

• Automatically monitors and adjusts fluid inlet pressures to compensate for high viscosity materials

Auto Pressure Balance

• Automatically adjusts temperatures to optimize fluid pressures and maximize yield

Power Management

• Select desired heater wattage for reduced power consumption

Cellular Software Updates

• Automatically stay up to date with the latest Reactor software

Touchscreen Advanced Display Module (ADM)

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen

Independent Hose Control

• Control A and B materials to different temperatures for improved pressure balancing
• Optimizes yield

Advanced Electric Design

• Brushless motor for improved pressure/flow performance
• New temperature control boards for independent hose heat
• Voltage jumpers for easy changing between voltages
• Robust UL listed electrical hose connectors are color coded and keyed for error proof assembly

Reduced Size

• Reduced footprint provides additional room in your rig
• Compact design protects the flow meters and hose connections from being damaged in your rig

GG ISR313

PACKAGE, E20, R3, PRO, 10KW, IH

Graco ISR313 Reactor 3 E-20 Pro Tier Spray Foam Proportioner Package, 50 ft Internal Heated Hose, 10 kW

Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for spray foam applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity.

Application: The E-20 is a spray foam system build for contractors focused on smaller jobs or for contractors just entering the business, it is a great starter machine. Due to the smaller heaters the E-20 is also a good choice for contractors in tempered climates where larger heaters are not required.

• Auto Pressure Balance

  • Automatically adjusts temperatures to optimize fluid pressures and maximize yield
• Power Management

  • Select desired heater wattage for reduced power consumption
• Cellular Software Updates

  • Automatically stay up to date with the latest Reactor software
• Independent Hose Control

  • Control A and B materials to different temperatures for improved pressure balancing
  • Optimizes yield
• Advanced Electric Design

  • Brushless motor for improved pressure/flow performance
  • New temperature control boards for independent hose heat
  • Voltage jumpers for easy changing between voltages
  • Robust UL listed electrical hose connectors are color coded and keyed for error proof assembly
• Reduced Size

  • Reduced footprint provides additional room in your rig
  • Compact design protects the flow meters and hose connections from being damaged in your rig

• Model: Reactor 3
• Series: E-20
• Product Series: Pro

• Amperage (A): 65A 1–ph, 39A 3–ph DELTA, 24A 3–ph WYE

• Frequency (Hz): 50/60

• Hose Heating Type: Internal Heated
• Hose Length (ft): 50

• Maximum Flow Rate (kg/min): 9.1
• Maximum Flow Rate (lb/min): 20

• Maximum Fluid Temperature (°C): 88
• Maximum Fluid Temperature (°F): 190

• Maximum Fluid Temperature (°C): 88
• Maximum Fluid Temperature (°F): 190

• Maximum Spray Pressure (bar): 140

• Maximum Spray Pressure (MPa): 14
• Maximum Spray Pressure (psi): 2000

• Overall Depth (in): 15

• Overall Height (in): 56.5
• Overall Width (in): 24.9

• Power Rating (kW): 10

GG ISR320

PACKAGE, EXP1, R3, STD, IH

Reactor 3 E-XP1 Standard Tier Polyurea Proportioner Package, 50 ft Internal Heated Hose, 10 kW Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for polyurea applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity. The E-XP1 is a polyurea system build for a customer focused on smaller jobs or for someone just entering the business, it is a great starter machine. Due to the smaller heaters the E-XP1 is also a good choice for contractors in tempered climates where larger heaters are not required. ISO Lube Pump

• Active ISO Lube system with peristaltic pump
• Automatic timed circulation improves TSL Life
• Reduced maintenance (No check valves)
• New larger easy-to-change ISO lube bottle

Touchscreen Advanced Display Module (ADM)

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen

Independent Hose Control

• Control A and B materials to different temperatures for improved pressure balancing
• Optimizes yield

Advanced Electric Design

• Brushless motor for improved pressure/flow performance
• New temperature control boards for independent hose heat
• Voltage jumpers for easy changing between voltages
• Robust UL listed electrical hose connectors are color coded and keyed for error proof assembly
• New Reactor 3 exclusive: connect with Tier 4 engines for ADM engine diagnostic

Reduced Size

• Reduced footprint provides additional room in your rig
• Compact design protects the flow meters and hose connections from being damaged in your rig

GG ISR321

PACKAGE, EXP1, R3, PRO, IH

Reactor 3 E-XP1 Pro Tier Polyurea Proportioner Package, 50 ft Internal Heated Hose, 10 kW Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for polyurea applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity. The E-XP1 is a polyurea system build for a customer focused on smaller jobs or for someone just entering the business, it is a great starter machine. Due to the smaller heaters the E-XP1 is also a good choice for contractors in tempered climates where larger heaters are not required. Auto Pressure Balance

• Automatically adjusts temperatures to optimize fluid pressures and maximize yield

Power Management

• Select desired heater wattage for reduced power consumption

Cellular Software Updates

• Automatically stay up to date with the latest Reactor software

Touchscreen Advanced Display Module (ADM)

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen

Independent Hose Control

• Control A and B materials to different temperatures for improved pressure balancing
• Optimizes yield

Advanced Electric Design

• Brushless motor for improved pressure/flow performance
• New temperature control boards for independent hose heat
• Voltage jumpers for easy changing between voltages
• Robust UL listed electrical hose connectors are color coded and keyed for error proof assembly

Reduced Size

• Reduced footprint provides additional room in your rig
• Compact design protects the flow meters and hose connections from being damaged in your rig

GG ISR322

PACKAGE, EXP1, R3, ELITE, IH

Reactor 3 E-XP1 Elite Tier Polyurea Proportioner Package, 50 ft Internal Heated Hose, 10 kW Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for polyurea applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity. The E-XP1 is a polyurea system build for a customer focused on smaller jobs or for someone just entering the business, it is a great starter machine. Due to the smaller heaters the E-XP1 is also a good choice for contractors in tempered climates where larger heaters are not required. Katalyst

• Katalyst full system communication and control that improves performance, ratio and yield. * Requires Core E1 pumps

Smart Suppl

• Automatically monitors and adjusts fluid inlet pressures to compensate for high viscosity materials

Auto Pressure Balance

• Automatically adjusts temperatures to optimize fluid pressures and maximize yield

Power Management

• Select desired heater wattage for reduced power consumption

Cellular Software Updates

• Automatically stay up to date with the latest Reactor software

Touchscreen Advanced Display Module (ADM)

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen

Independent Hose Control

• Control A and B materials to different temperatures for improved pressure balancing
• Optimizes yield

Advanced Electric Design

• Brushless motor for improved pressure/flow performance
• New temperature control boards for independent hose heat
• Voltage jumpers for easy changing between voltages
• Robust UL listed electrical hose connectors are color coded and keyed for error proof assembly

Reduced Size

• Reduced footprint provides additional room in your rig
• Compact design protects the flow meters and hose connections from being damaged in your rig

GG ISR330

PACKAGE, E30, R3, STD, IH

Graco ISR330 Reactor 3 E-30 Standard Tier Spray Foam Proportioner Package, 50 ft Internal Heated Hose, 10 kW

Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for spray foam applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity.

Application: The E-30 is a spray foam system build for contractors looking for a machine with more output and capabilities. It is ideal for contractors focused on growing their business doing typical residential and commercial spray foam work. The E-30 is an ideal machine that can be the workhorse of your fleet, capable of handling most types of jobs with a good mix of output, heat and features.

• ISO Lube Pump

  • Active ISO Lube system with peristaltic pump
  • Automatic timed circulation improves TSL Life
  • Reduced maintenance (No check valves)
  • New larger easy-to-change ISO lube bottle
• Touchscreen Advanced Display Module (ADM)

  • Large new touchscreen interface
  • Intuitive operation and navigation
  • All spray operations from one screen
• Independent Hose Control

  • Control A and B materials to different temperatures for improved pressure balancing
  • Optimizes yield
• Reduced Size

  • Reduced footprint provides additional room in your rig
  • Compact design protects the flow meters and hose connections from being damaged in your rig

• Model: Reactor 3
• Series: E-30
• Product Series: Standard

• Amperage (A): 76A 1–ph, 49A 3–ph DELTA, 35A 3–ph WYE

• Frequency (Hz): 50/60

• Hose Heating Type: Internal Heated
• Hose Length (ft): 50

• Maximum Flow Rate (kg/min): 13.5
• Maximum Flow Rate (lb/min): 30

• Maximum Fluid Temperature (°C): 88
• Maximum Fluid Temperature (°F): 190

• Maximum Fluid Temperature (°C): 88
• Maximum Fluid Temperature (°F): 190

• Maximum Spray Pressure (bar): 140

• Maximum Spray Pressure (MPa): 14
• Maximum Spray Pressure (psi): 2000

• Overall Depth (in): 15

• Overall Height (in): 56.5
• Overall Width (in): 26.8

• Power Rating (kW): 10

GG ISR331

PACKAGE, E30, R3, PRO, 10KW, IH

Reactor 3 E-30 Pro Tier Spray Foam Proportioner Package, 50 ft Internal Heated Hose, 10 kW Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for spray foam applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity. The E-30 is a spray foam system build for contractors looking for a machine with more output and capabilities. It is ideal for contractors focused on growing their business doing typical residential and commercial spray foam work. The E-30 is an ideal machine that can be the workhorse of your fleet, capable of handling most types of jobs with a good mix of output, heat and features. Auto Pressure Balance

• Automatically adjusts temperatures to optimize fluid pressures and maximize yield

Power Management

• Select desired heater wattage for reduced power consumption

Cellular Software Updates

• Automatically stay up to date with the latest Reactor software

Touchscreen Advanced Display Module (ADM)

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen

Independent Hose Control

• Control A and B materials to different temperatures for improved pressure balancing
• Optimizes yield

Advanced Electric Design

• Brushless motor for improved pressure/flow performance
• New temperature control boards for independent hose heat
• Voltage jumpers for easy changing between voltages
• Robust UL listed electrical hose connectors are color coded and keyed for error proof assembly

Reduced Size

• Reduced footprint provides additional room in your rig
• Compact design protects the flow meters and hose connections from being damaged in your rig

GG ISR332

PACKAGE, E30, R3, ELITE, IH

Reactor 3 E-30 Elite Tier Spray Foam Proportioner Package, 50 ft Internal Heated Hose, 15 kW Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for spray foam applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity. The E-30 is a spray foam system build for contractors looking for a machine with more output and capabilities. It is ideal for contractors focused on growing their business doing typical residential and commercial spray foam work. The E-30 is an ideal machine that can be the workhorse of your fleet, capable of handling most types of jobs with a good mix of output, heat and features. Katalyst

• Katalyst full system communication and control that improves performance, ratio and yield. * Requires Core E1 pumps

Smart Supply

• Automatically monitors and adjusts fluid inlet pressures to compensate for high viscosity materials

Auto Pressure Balance

• Automatically adjusts temperatures to optimize fluid pressures and maximize yield

Power Management

• Select desired heater wattage for reduced power consumption

Cellular Software Updates

• Automatically stay up to date with the latest Reactor software

Touchscreen Advanced Display Module (ADM)

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen

Independent Hose Control

• Control A and B materials to different temperatures for improved pressure balancing
• Optimizes yield

Advanced Electric Design

• Brushless motor for improved pressure/flow performance
• New temperature control boards for independent hose heat
• Voltage jumpers for easy changing between voltages
• Robust UL listed electrical hose connectors are color coded and keyed for error proof assembly

Reduced Size

• Reduced footprint provides additional room in your rig
• Compact design protects the flow meters and hose connections from being damaged in your rig

GG ISR333

PACKAGE, E30, R3, PRO, 15KW, IH

Graco ISR333 Reactor 3 E-30 Pro Tier Spray Foam Proportioner Package, 50 ft Internal Heated Hose, 15 kW

Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for spray foam applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity.

Application: The E-30 is a spray foam system build for contractors looking for a machine with more output and capabilities. It is ideal for contractors focused on growing their business doing typical residential and commercial spray foam work. The E-30 is an ideal machine that can be the workhorse of your fleet, capable of handling most types of jobs with a good mix of output, heat and features.

• Auto Pressure Balance

  • Automatically adjusts temperatures to optimize fluid pressures and maximize yield
• Power Management

  • Select desired heater wattage for reduced power consumption
• Cellular Software Updates

  • Automatically stay up to date with the latest Reactor software
• Independent Hose Control

  • Control A and B materials to different temperatures for improved pressure balancing
  • Optimizes yield
• Advanced Electric Design

  • Brushless motor for improved pressure/flow performance
  • New temperature control boards for independent hose heat
  • Voltage jumpers for easy changing between voltages
  • Robust UL listed electrical hose connectors are color coded and keyed for error proof assembly
• Reduced Size

  • Reduced footprint provides additional room in your rig
  • Compact design protects the flow meters and hose connections from being damaged in your rig

• Model: Reactor 3
• Series: E-30
• Product Series: Pro

• Amperage (A): 97A 1–ph, 59A 3–ph DELTA, 35A 3–ph WYE

• Frequency (Hz): 50/60

• Hose Heating Type: Internal Heated
• Hose Length (ft): 50

• Maximum Flow Rate (kg/min): 13.5
• Maximum Flow Rate (lb/min): 30

• Maximum Fluid Temperature (°C): 88
• Maximum Fluid Temperature (°F): 190

• Maximum Fluid Temperature (°C): 88
• Maximum Fluid Temperature (°F): 190

• Maximum Spray Pressure (bar): 140

• Maximum Spray Pressure (MPa): 14
• Maximum Spray Pressure (psi): 2000

• Overall Depth (in): 15

• Overall Height (in): 56.5
• Overall Width (in): 26.8

• Power Rating (kW): 15

GG ISR340

PACKAGE, EXP2, R3, STD, IH

Reactor 3 E-XP2 Standard Tier Polyurea Proportioner Package, 50 ft Internal Heated Hose, 15 kW Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for polyurea applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity. The E-XP2 is a polyurea system build for customers looking for a machine with more output and capabilities. It is ideal for use on medium to large jobs and applications. The E-XP2 is an ideal machine that can be the workhorse of your fleet, capable of handling most types of jobs with a good mix of output, heat and features. ISO Lube Pump

• Active ISO Lube system with peristaltic pump
• Automatic timed circulation improves TSL Life
• Reduced maintenance (No check valves)
• New larger easy-to-change ISO lube bottle

Touchscreen Advanced Display Module (ADM)

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen

Independent Hose Control

• Control A and B materials to different temperatures for improved pressure balancing
• Optimizes yield

Advanced Electric Design

• Brushless motor for improved pressure/flow performance
• New temperature control boards for independent hose heat
• Voltage jumpers for easy changing between voltages
• Robust UL listed electrical hose connectors are color coded and keyed for error proof assembly
• New Reactor 3 exclusive: connect with Tier 4 engines for ADM engine diagnostic

Reduced Size

• Reduced footprint provides additional room in your rig
• Compact design protects the flow meters and hose connections from being damaged in your rig

GG ISR341

PACKAGE, EXP2, R3, PRO, IH

Reactor 3 E-XP2 Pro Tier Polyurea Proportioner Package, 50 ft Internal Heated Hose, 15 kW Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for polyurea applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity. The E-XP2 is a polyurea system build for customers looking for a machine with more output and capabilities. It is ideal for use on medium to large jobs and applications. The E-XP2 is an ideal machine that can be the workhorse of your fleet, capable of handling most types of jobs with a good mix of output, heat and features. Auto Pressure Balance

• Automatically adjusts temperatures to optimize fluid pressures and maximize yield

Power Management

• Select desired heater wattage for reduced power consumption

Cellular Software Updates

• Automatically stay up to date with the latest Reactor software

Touchscreen Advanced Display Module (ADM)

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen

Independent Hose Control

• Control A and B materials to different temperatures for improved pressure balancing
• Optimizes yield

Advanced Electric Design

• Brushless motor for improved pressure/flow performance
• New temperature control boards for independent hose heat
• Voltage jumpers for easy changing between voltages
• Robust UL listed electrical hose connectors are color coded and keyed for error proof assembly

Reduced Size

• Reduced footprint provides additional room in your rig
• Compact design protects the flow meters and hose connections from being damaged in your rig

GG ISR342

PACKAGE, EXP2, R3, ELITE, IH

Reactor 3 E-XP2 Elite Tier Polyurea Proportioner Package, 50 ft Internal Heated Hose, 15 kW Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for polyurea applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity. The E-XP2 is a polyurea system build for customers looking for a machine with more output and capabilities. It is ideal for use on medium to large jobs and applications. The E-XP2 is an ideal machine that can be the workhorse of your fleet, capable of handling most types of jobs with a good mix of output, heat and features. Katalyst

• Katalyst full system communication and control that improves performance, ratio and yield. * Requires Core E1 pumps

Supply Pump Shutdown

• Automatically shuts down when you run out of material.
• Prevents air from entering the system that can cause off-ratio issues. * Requires Core E1 pumps

Smart Supply

• Automatically monitors and adjusts fluid inlet pressures to compensate for high viscosity materials

Auto Pressure Balance

• Automatically adjusts temperatures to optimize fluid pressures and maximize yield

Power Management

• Select desired heater wattage for reduced power consumption

Cellular Software Updates

• Automatically stay up to date with the latest Reactor software

Touchscreen Advanced Display Module (ADM)

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen

Independent Hose Control

• Control A and B materials to different temperatures for improved pressure balancing
• Optimizes yield

Advanced Electric Design

• Brushless motor for improved pressure/flow performance
• New temperature control boards for independent hose heat
• Voltage jumpers for easy changing between voltages
• Robust UL listed electrical hose connectors are color coded and keyed for error proof assembly

Reduced Size

• Reduced footprint provides additional room in your rig
• Compact design protects the flow meters and hose connections from being damaged in your rig

GG ISR355

PACKAGE, H30, R3, 60HZ, PRO, IS

Reactor 3 H-30 Pro Tier Spray Foam Proportioner Package, 50 ft Internal Heated Hose, 20 ft Xcelerator Whip Hose, 60 Hz The Reactor 3 hydraulic proportioners builds on the robust legacy and performance of hydraulic Reactors, now incorporating advanced features from the electric Reactor 3 platform. Designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity. Designed for construction applications, including roofing, residential and commercial projects, as well as for in-plant OEM applications, it offers unmatched performance, durability and profitability. Direct Drive Hydraulic Pump

• Simplified robust design eliminates fly wheel and belt system for reduced maintenance
• Smaller compact footprint
• Reduced noise

Horizontal Pump Line

• Positive displacement pumps
• Easy service
• Long life
• Smooth changeovers and spray pattern
• Multiple pump sizes for non 1:1 dispensing

Hydraulic Cooling System

• Powerful fan to maintain optimal oil temperature for longer oil life

New Touchscreen Advanced Display Module (ADM)

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen
• Electronic pressure control (Elite models)

R3 Hybrid Heaters

• Robust heating design
• Heats materials quickly and efficiently
• Maintains temperature set points at max flow rates

New Independent Hose Control

• Control A and B materials to different temperatures for improved pressure balancing and optimized yield

Easy-Access Oil Maintenance Points

• Easy-to-access oil dip stick and oil drain valve simplifies preventive maintenance

New Inlet Filters and Fluid Manifold

• New easy-to-maintain design
• 2X larger filter area
• Separate temperature and pressure sensors for more accurate temperature readings
• Redesigned with side-mounted fluid valves for easier turning and improved control

Reactor Connect

• Real-time dashboard and reports via cellular connectivity
• Improved cellular antenna
• New GPS antenna
• GPS location available in Reactor Connect
• Job naming and reporting

Oval Gear Flow Meters

• Verifies fluid ratio
• Provides real-time ratio data: displayed on the ADM and Reactor Connect
• Accurate for a wide range of fluid viscosities
