XP System, XP70S, 1:1, 145/145, 240H, Wj

GG 577111

XP SYSTEM, XP70S, 1:1, 145/145, 240H, WJ

Graco 577111 XP70s-hf Skid System, Hazardous Location, 1:1 With Water Jacketed Hose, 240V

The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 94 litres heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications â€“ making you more productive.

Approved for Ordinary Location use, Designed for Hazardous Location approval
94 litres Stainless Steel lined hoppers with heater and agitator
Solvent flush pump included

Series: XP70s-hf

Air Inlet Size (in): 1
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM

Applicator Type: Automatic Airless, Manual Airless

Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents

Component Type: Plural-Component
Configuration: Water Jacketed Hose

Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT

Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Solvent

Hose Length (ft): 35
Hose Length (m): 10.7

Includes: Merkur Solvent Flush Pump, Remote Manifold Carriage, XTR5+ Gun, 35 ft Integration Hose and Static Mixer, Heated Hose Controller, Ratio Check Kit

Location Category: Hazardous Location

Material Application: Coatings, Paints, Primers

Maximum Cycle Rate (CPM): 40

Maximum Flow Rate (cc/min): 11600

Maximum Flow Rate (GPM): 3
Maximum Flow Rate (L/min): 11.3

Maximum Fluid Temperature (Â°C): 71
Maximum Fluid Temperature (Â°F): 160
Maximum Fluid Viscosity (cP): 20000

Maximum Hose Length (ft): 300
Maximum Hose Length (m): 91.4

Maximum Operating Temperature (Â°C): 54
Maximum Operating Temperature (Â°F): 130

Maximum Spray Pressure (bar): 490

Maximum Spray Pressure (kPa): 49000
Maximum Spray Pressure (MPa): 49
Maximum Spray Pressure (psi): 7100

Maximum Working Pressure (bar): 490
Maximum Working Pressure (kPa): 49000
Maximum Working Pressure (MPa): 49
Maximum Working Pressure (psi): 7100
Measuring Type: Fixed Mechanical Positive Displacement

Minimum Fluid Viscosity (cP): 200

Mix Ratio: 1:1

Power Source: Air

Product Type: Plural Component

$123,050.00

XP System, XP70S, 1:1, 145/145, 240H, Eh

GG 577113

XP SYSTEM, XP70S, 1:1, 145/145, 240H, EH

Graco 577113 XP70s-hf Skid System, Hazardous Location, 1:1 With Electric Heated Hose, 240V

The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 94 litres heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications â€“ making you more productive.

Approved for Ordinary Location use, Designed for Hazardous Location approval
94 litres Stainless Steel lined hoppers with heater and agitator
Solvent flush pump included

Series: XP70s-hf

Air Inlet Size (in): 1
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM

Applicator Type: Automatic Airless, Manual Airless

Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents

Component Type: Plural-Component
Configuration: Electric Heated Hose

Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT

Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Solvent

Hose Length (ft): 35
Hose Length (m): 10.7

Includes: Merkur Solvent Flush Pump, Remote Manifold Carriage, XTR5+ Gun, 35 ft Integration Hose and Static Mixer, Electric Heated Hose Controller, Ratio Check Kit

Location Category: Hazardous Location

Material Application: Coatings, Paints, Primers

Maximum Cycle Rate (CPM): 40

Maximum Flow Rate (cc/min): 11600

Maximum Flow Rate (GPM): 3
Maximum Flow Rate (L/min): 11.3

Maximum Fluid Temperature (Â°C): 71
Maximum Fluid Temperature (Â°F): 160
Maximum Fluid Viscosity (cP): 20000

Maximum Hose Length (ft): 300
Maximum Hose Length (m): 91.4

Maximum Operating Temperature (Â°C): 54
Maximum Operating Temperature (Â°F): 130

Maximum Spray Pressure (bar): 490

Maximum Spray Pressure (kPa): 49000
Maximum Spray Pressure (MPa): 49
Maximum Spray Pressure (psi): 7100

Maximum Working Pressure (bar): 490
Maximum Working Pressure (kPa): 49000
Maximum Working Pressure (MPa): 49
Maximum Working Pressure (psi): 7100
Measuring Type: Fixed Mechanical Positive Displacement

Minimum Fluid Viscosity (cP): 200

Mix Ratio: 1:1

Power Source: Air

Product Type: Plural Component

$122,210.00

XP System, XP70S, 1:1, 145/145, 480, Wj

GG 577121

XP SYSTEM, XP70S, 1:1, 145/145, 480, WJ

Graco 577121 XP70 High Flow Skid, 1:1 Mix Ratio, 480V, Viscon HF Heaters, Junction Box, Water Heated Hose Control

The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 94 litres heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications â€“ making you more productive.

Approved for Ordinary Location use
94 litres Stainless Steel lined hoppers with heater and agitator
Solvent flush pump included

Series: XP70s-hf

Air Inlet Size (in): 1
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM

Applicator Type: Automatic Airless, Manual Airless

Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents

Component Type: Plural-Component
Configuration: Water Jacketed Hose

Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT

Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Solvent

Hose Length (ft): 35
Hose Length (m): 10.7

Location Category: Non-Hazardous Location

Material Application: Coatings, Paints, Primers

Maximum Cycle Rate (CPM): 40

Maximum Flow Rate (cc/min): 11600

Maximum Flow Rate (GPM): 3
Maximum Flow Rate (L/min): 11.3

Maximum Fluid Temperature (Â°C): 71
Maximum Fluid Temperature (Â°F): 160
Maximum Fluid Viscosity (cP): 20000

Maximum Hose Length (ft): 300
Maximum Hose Length (m): 91.4

Maximum Operating Temperature (Â°C): 54
Maximum Operating Temperature (Â°F): 130

Maximum Spray Pressure (bar): 490

Maximum Spray Pressure (kPa): 49000
Maximum Spray Pressure (MPa): 49
Maximum Spray Pressure (psi): 7100

Maximum Working Pressure (bar): 490
Maximum Working Pressure (kPa): 49000
Maximum Working Pressure (MPa): 49
Maximum Working Pressure (psi): 7100
Measuring Type: Fixed Mechanical Positive Displacement

Minimum Fluid Viscosity (cP): 200

Mix Ratio: 1:1

Power Source: Air

Product Type: Plural Component

$100,400.00

XP System, XP70S, 1:1, 145/145, 480, Eh

GG 577123

XP SYSTEM, XP70S, 1:1, 145/145, 480, EH

Graco 577123 XP70 High Flow Skid, 1:1 Mix Ratio, 480V, Viscon HF Heaters, Junction Box, Electric Heated Hose Control

The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 94 litres heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications â€“ making you more productive.

Approved for Ordinary Location use
94 litres Stainless Steel lined hoppers with heater and agitator
Solvent flush pump included

Air Inlet Size (in): 1
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM

Applicator Type: Automatic Airless, Manual Airless

Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents

Component Type: Plural-Component
Configuration: Electric Heated Hose

Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT

Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Solvent

Hose Length (ft): 35
Hose Length (m): 10.7

Location Category: Non-Hazardous Location

Material Application: Coatings, Paints, Primers

Maximum Cycle Rate (CPM): 40

Maximum Flow Rate (cc/min): 11600

Maximum Flow Rate (GPM): 3
Maximum Flow Rate (L/min): 11.3

Maximum Fluid Temperature (Â°C): 71
Maximum Fluid Temperature (Â°F): 160
Maximum Fluid Viscosity (cP): 20000

Maximum Hose Length (ft): 300
Maximum Hose Length (m): 91.4

Maximum Operating Temperature (Â°C): 54
Maximum Operating Temperature (Â°F): 130

Maximum Spray Pressure (bar): 490

Maximum Spray Pressure (kPa): 49000
Maximum Spray Pressure (MPa): 49
Maximum Spray Pressure (psi): 7100

Maximum Working Pressure (bar): 490
Maximum Working Pressure (kPa): 49000
Maximum Working Pressure (MPa): 49
Maximum Working Pressure (psi): 7100
Measuring Type: Fixed Mechanical Positive Displacement

Minimum Fluid Viscosity (cP): 200

Mix Ratio: 1:1

Power Source: Air

Product Type: Plural Component

$101,710.00

XP SYSTEM, XP70S, 1:1, 145/145, 480H, WJ

GG 577131

XP SYSTEM, XP70S, 1:1, 145/145, 480H, WJ

XP70 High Flow Skid, 1:1 Mix Ratio, 480V, Hazardous Viscon HF Heaters, Hazardous Junction Box, Water Heated Hose Control The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 94 litres heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications – making you more productive. Approved for Ordinary Location use, Designed for Hazardous Location approval 94 litres Stainless Steel lined hoppers with heater and agitator Solvent flush pump included

$123,050.00

XP System, XP70S, 1:1, 145/145, 480H, Eh

GG 577133

XP SYSTEM, XP70S, 1:1, 145/145, 480H, EH

Graco 577133 XP70 High Flow Skid, 1:1 Mix Ratio, 480V, Hazardous Viscon HF Heaters, Hazardous Junction Box, Electric Heated Hose Control

The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 25 gallon heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications â€“ making you more productive.

Approved for Ordinary Location use, Designed for Hazardous Location approval
25 gallon Stainless Steel lined hoppers with heater and agitator
Solvent flush pump included

Air Inlet Size (in): 1
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM

Applicator Type: Automatic Airless, Manual Airless

Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents

Component Type: Plural-Component
Configuration: Electric Heated Hose

Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT

Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Solvent

Hose Length (ft): 35
Hose Length (m): 10.7

Location Category: Hazardous Location

Material Application: Coatings, Paints, Primers

Maximum Cycle Rate (CPM): 40

Maximum Flow Rate (cc/min): 11600

Maximum Flow Rate (GPM): 3
Maximum Flow Rate (L/min): 11.3

Maximum Fluid Temperature (Â°C): 71
Maximum Fluid Temperature (Â°F): 160
Maximum Fluid Viscosity (cP): 20000

Maximum Hose Length (ft): 300
Maximum Hose Length (m): 91.4

Maximum Operating Temperature (Â°C): 54
Maximum Operating Temperature (Â°F): 130

Maximum Spray Pressure (bar): 490

Maximum Spray Pressure (kPa): 49000
Maximum Spray Pressure (MPa): 49
Maximum Spray Pressure (psi): 7100

Maximum Working Pressure (bar): 490
Maximum Working Pressure (kPa): 49000
Maximum Working Pressure (MPa): 49
Maximum Working Pressure (psi): 7100
Measuring Type: Fixed Mechanical Positive Displacement

Minimum Fluid Viscosity (cP): 200

Mix Ratio: 1:1

Power Source: Air

Product Type: Plural Component

$182,040.00

XP SYSTEM, XP70S, 2:1, 180/90, 240, WJ

GG 577201

XP SYSTEM, XP70S, 2:1, 180/90, 240, WJ

XP70s-hf Skid System, Non-Hazardous, 2:1 With Water Jacketed Hose, 240V The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 25 gallon heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications – making you more productive. Approved for Ordinary Location use 25 gallon Stainless Steel lined hoppers with heater and agitator Solvent flush pump included

$100,400.00

XP SYSTEM, XP70S, 2:1, 180/90, 240, EH

GG 577203

XP SYSTEM, XP70S, 2:1, 180/90, 240, EH

XP70s-hf Skid System, Non-Hazardous, 2:1 With Electric Heated Hose, 240V The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 94 litres heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications – making you more productive. Approved for Ordinary Location use 94 litres Stainless Steel lined hoppers with heater and agitator Solvent flush pump included

$99,590.00

XP System, XP70S, 2:1, 180/90, 240H, Wj

GG 577211

XP SYSTEM, XP70S, 2:1, 180/90, 240H, WJ

Graco 577211 XP70s-hf Skid System, Hazardous Location, 2:1 With Water Jacketed Hose, 240V

The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 94 litres heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications â€“ making you more productive.

Approved for Ordinary Location use, Designed for Hazardous Location approval
94 litres Stainless Steel lined hoppers with heater and agitator
Solvent flush pump included

Series: XP70s-hf

Air Inlet Size (in): 1
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM

Applicator Type: Automatic Airless, Manual Airless

Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents

Component Type: Plural-Component
Configuration: Water Jacketed Hose

Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT

Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Solvent

Hose Length (ft): 35
Hose Length (m): 10.7

Includes: Merkur Solvent Flush Pump, Remote Manifold Carriage, XTR5+ Gun, 35 ft Integration Hose and Static Mixer, Heated Hose Controller, Ratio Check Kit

Location Category: Hazardous Location

Material Application: Coatings, Paints, Primers

Maximum Cycle Rate (CPM): 40

Maximum Flow Rate (cc/min): 10800

Maximum Flow Rate (GPM): 2.8
Maximum Flow Rate (L/min): 10.6

Maximum Fluid Temperature (Â°C): 71
Maximum Fluid Temperature (Â°F): 160
Maximum Fluid Viscosity (cP): 20000

Maximum Hose Length (ft): 300
Maximum Hose Length (m): 91.4

Maximum Operating Temperature (Â°C): 54
Maximum Operating Temperature (Â°F): 130

Maximum Spray Pressure (bar): 500

Maximum Spray Pressure (kPa): 50000
Maximum Spray Pressure (MPa): 50
Maximum Spray Pressure (psi): 7250

Maximum Working Pressure (bar): 500
Maximum Working Pressure (kPa): 50000
Maximum Working Pressure (MPa): 50
Maximum Working Pressure (psi): 7250
Measuring Type: Fixed Mechanical Positive Displacement

Minimum Fluid Viscosity (cP): 200

Mix Ratio: 2:1

Power Source: Air

Product Type: Plural Component

$123,050.00

XP SYSTEM, XP70S, 2:1, 180/90, 480, WJ

GG 577221

XP SYSTEM, XP70S, 2:1, 180/90, 480, WJ

XP70 High Flow Skid, 2:1 Mix Ratio, 480V, Viscon HF Heaters, Junction Box, Water Heated Hose Control The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 94 litres heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications – making you more productive. Approved for Ordinary Location use 94 litres Stainless Steel lined hoppers with heater and agitator Solvent flush pump included

$100,400.00

XP System, XP70S, 2:1, 180/90, 240H, Eh

GG 577213

XP SYSTEM, XP70S, 2:1, 180/90, 240H, EH

Graco 577213 XP70s-hf Skid System, Hazardous Location, 2:1 With Electric Heated Hose, 240V

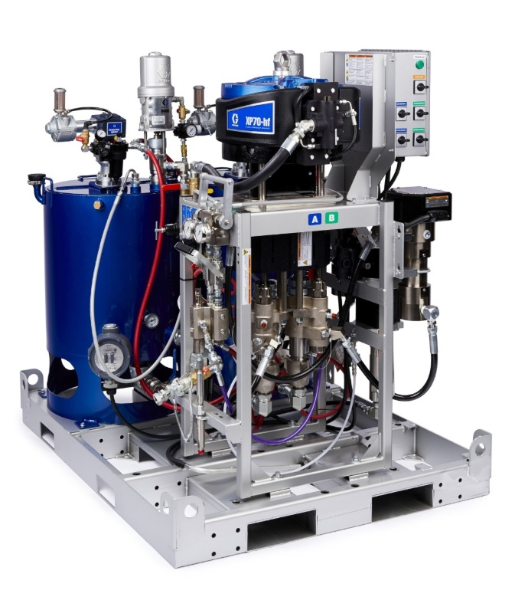

The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 94 litres heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications â€“ making you more productive.

Approved for Ordinary Location use, Designed for Hazardous Location approval
94 litres Stainless Steel lined hoppers with heater and agitator
Solvent flush pump included

Series: XP70s-hf

Air Inlet Size (in): 1
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM

Applicator Type: Automatic Airless, Manual Airless

Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents

Component Type: Plural-Component
Configuration: Electric Heated Hose

Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT

Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Solvent

Hose Length (ft): 35
Hose Length (m): 10.7

Includes: Merkur Solvent Flush Pump, Remote Manifold Carriage, XTR5+ Gun, 35 ft Integration Hose and Static Mixer, Electric Heated Hose Controller, Ratio Check Kit

Location Category: Hazardous Location

Material Application: Coatings, Paints, Primers

Maximum Cycle Rate (CPM): 40

Maximum Flow Rate (cc/min): 10800

Maximum Flow Rate (GPM): 2.8
Maximum Flow Rate (L/min): 10.6

Maximum Fluid Temperature (Â°C): 71
Maximum Fluid Temperature (Â°F): 160
Maximum Fluid Viscosity (cP): 20000

Maximum Hose Length (ft): 300
Maximum Hose Length (m): 91.4

Maximum Operating Temperature (Â°C): 54
Maximum Operating Temperature (Â°F): 130

Maximum Spray Pressure (bar): 500

Maximum Spray Pressure (kPa): 50000
Maximum Spray Pressure (MPa): 50
Maximum Spray Pressure (psi): 7250

Maximum Working Pressure (bar): 500
Maximum Working Pressure (kPa): 50000
Maximum Working Pressure (MPa): 50
Maximum Working Pressure (psi): 7250
Measuring Type: Fixed Mechanical Positive Displacement

Minimum Fluid Viscosity (cP): 200

Mix Ratio: 2:1

Power Source: Air

Product Type: Plural Component

$122,210.00

XP System, XP70S, 2:1, 180/90, 480, Eh

GG 577223

XP SYSTEM, XP70S, 2:1, 180/90, 480, EH

Graco 577223 XP70 High Flow Skid, 2:1 Mix Ratio, 480V, Viscon HF Heaters, Junction Box, Electric Heated Hose Control

The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 94 litres heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications â€“ making you more productive.

Approved for Ordinary Location use
94 litres Stainless Steel lined hoppers with heater and agitator
Solvent flush pump included

Series: XP70s-hf

Air Inlet Size (in): 1
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM

Applicator Type: Automatic Airless, Manual Airless

Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents

Component Type: Plural-Component
Configuration: Electric Heated Hose

Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT

Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Solvent

Hose Length (ft): 35
Hose Length (m): 10.7

Location Category: Non-Hazardous Location

Material Application: Coatings, Paints, Primers

Maximum Cycle Rate (CPM): 40

Maximum Flow Rate (cc/min): 10800

Maximum Flow Rate (GPM): 2.8
Maximum Flow Rate (L/min): 10.6

Maximum Fluid Temperature (Â°C): 71
Maximum Fluid Temperature (Â°F): 160
Maximum Fluid Viscosity (cP): 20000

Maximum Hose Length (ft): 300
Maximum Hose Length (m): 91.4

Maximum Operating Temperature (Â°C): 54
Maximum Operating Temperature (Â°F): 130

Maximum Spray Pressure (bar): 500

Maximum Spray Pressure (kPa): 50000
Maximum Spray Pressure (MPa): 50
Maximum Spray Pressure (psi): 7250

Maximum Working Pressure (bar): 500
Maximum Working Pressure (kPa): 50000
Maximum Working Pressure (MPa): 50
Maximum Working Pressure (psi): 7250
Measuring Type: Fixed Mechanical Positive Displacement

Minimum Fluid Viscosity (cP): 200

Mix Ratio: 2:1

Power Source: Air

Product Type: Plural Component

$101,710.00

XP SYSTEM, XP70S, 2:1, 180/90, 480H, WJ

GG 577231

XP SYSTEM, XP70S, 2:1, 180/90, 480H, WJ

XP70 High Flow Skid, 2:1 Mix Ratio, 480V, Hazardous Viscon HF Heaters, Hazardous Junction Box, Water Heated Hose Control The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 94 litres heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications – making you more productive. Approved for Ordinary Location use, Designed for Hazardous Location approval 94 litres Stainless Steel lined hoppers with heater and agitator Solvent flush pump included

$123,050.00

XP System, XP70S, 2:1, 180/90, 480H, Eh

GG 577233

XP SYSTEM, XP70S, 2:1, 180/90, 480H, EH

Graco 577233 XP70 High Flow Skid, 2:1 Mix Ratio, 480V, Hazardous Viscon HF Heaters, Hazardous Junction Box, Electric Heated Hose Control

The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 94 litres heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications â€“ making you more productive.

Approved for Ordinary Location use, Designed for Hazardous Location approval
94 litres Stainless Steel lined hoppers with heater and agitator
Solvent flush pump included

Series: XP70s-hf

Air Inlet Size (in): 1
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM

Applicator Type: Automatic Airless, Manual Airless

Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents

Component Type: Plural-Component
Configuration: Electric Heated Hose

Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT

Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Solvent

Hose Length (ft): 35
Hose Length (m): 10.7

Location Category: Hazardous Location

Material Application: Coatings, Paints, Primers

Maximum Cycle Rate (CPM): 40

Maximum Flow Rate (cc/min): 10800

Maximum Flow Rate (GPM): 2.8
Maximum Flow Rate (L/min): 10.6

Maximum Fluid Temperature (Â°C): 71
Maximum Fluid Temperature (Â°F): 160
Maximum Fluid Viscosity (cP): 20000

Maximum Hose Length (ft): 300
Maximum Hose Length (m): 91.4

Maximum Operating Temperature (Â°C): 54
Maximum Operating Temperature (Â°F): 130

Maximum Spray Pressure (bar): 500

Maximum Spray Pressure (kPa): 50000
Maximum Spray Pressure (MPa): 50
Maximum Spray Pressure (psi): 7250

Maximum Working Pressure (bar): 500
Maximum Working Pressure (kPa): 50000
Maximum Working Pressure (MPa): 50
Maximum Working Pressure (psi): 7250
Measuring Type: Fixed Mechanical Positive Displacement

Minimum Fluid Viscosity (cP): 200

Mix Ratio: 2:1

Power Source: Air

Product Type: Plural Component

$182,040.00

XP SYSTEM, XP70S, 3:1, 220/72, 240, WJ

GG 577301

XP SYSTEM, XP70S, 3:1, 220/72, 240, WJ

XP70s-hf Skid System, Non-Hazardous, 3:1 With Water Jacketed Hose, 240V The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 25 gallon heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications – making you more productive. Approved for Ordinary Location use 25 gallon Stainless Steel lined hoppers with heater and agitator Solvent flush pump included

$100,400.00

XP System, XP70S, 3:1, 220/72, 240H, Wj

GG 577311

XP SYSTEM, XP70S, 3:1, 220/72, 240H, WJ

Graco 577311 XP70s-hf Skid System, Hazardous Location, 3:1 With Water Jacketed Hose, 240V

The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 94 litres heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications â€“ making you more productive.

Approved for Ordinary Location use, Designed for Hazardous Location approval
94 litres Stainless Steel lined hoppers with heater and agitator
Solvent flush pump included

Series: XP70s-hf

Air Inlet Size (in): 1
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM

Applicator Type: Automatic Airless, Manual Airless

Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents

Component Type: Plural-Component
Configuration: Water Jacketed Hose

Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT

Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Solvent

Hose Length (ft): 35
Hose Length (m): 10.7

Includes: Merkur Solvent Flush Pump, Remote Manifold Carriage, XTR5+ Gun, 35 ft Integration Hose and Static Mixer, Heated Hose Controller, Ratio Check Kit

Location Category: Hazardous Location

Material Application: Coatings, Paints, Primers

Maximum Cycle Rate (CPM): 40

Maximum Flow Rate (cc/min): 11680

Maximum Flow Rate (GPM): 3
Maximum Flow Rate (L/min): 11.3

Maximum Fluid Temperature (Â°C): 71
Maximum Fluid Temperature (Â°F): 160
Maximum Fluid Viscosity (cP): 20000

Maximum Hose Length (ft): 300
Maximum Hose Length (m): 91.4

Maximum Operating Temperature (Â°C): 54
Maximum Operating Temperature (Â°F): 130

Maximum Spray Pressure (bar): 490

Maximum Spray Pressure (kPa): 49000
Maximum Spray Pressure (MPa): 49
Maximum Spray Pressure (psi): 7100

Maximum Working Pressure (bar): 490
Maximum Working Pressure (kPa): 49000
Maximum Working Pressure (MPa): 49
Maximum Working Pressure (psi): 7100
Measuring Type: Fixed Mechanical Positive Displacement

Minimum Fluid Viscosity (cP): 200

Mix Ratio: 3:1

Power Source: Air

Product Type: Plural Component

$123,050.00

XP System, XP70S, 3:1, 220/72, 240H, Eh

GG 577313

XP SYSTEM, XP70S, 3:1, 220/72, 240H, EH

Graco 577313 XP70s-hf Skid System, Hazardous Location, 3:1 With Electric Heated Hose, 240V

The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 94 litres heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications â€“ making you more productive.

Approved for Ordinary Location use, Designed for Hazardous Location approval
94 litres Stainless Steel lined hoppers with heater and agitator
Solvent flush pump included

Series: XP70s-hf

Air Inlet Size (in): 1
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM

Applicator Type: Automatic Airless, Manual Airless

Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents

Component Type: Plural-Component
Configuration: Electric Heated Hose

Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT

Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Solvent

Hose Length (ft): 35
Hose Length (m): 10.7

Includes: Merkur Solvent Flush Pump, Remote Manifold Carriage, XTR5+ Gun, 35 ft Integration Hose and Static Mixer, Electric Heated Hose Controller, Ratio Check Kit

Location Category: Hazardous Location

Material Application: Coatings, Paints, Primers

Maximum Cycle Rate (CPM): 40

Maximum Flow Rate (cc/min): 11680

Maximum Flow Rate (GPM): 3
Maximum Flow Rate (L/min): 11.3

Maximum Fluid Temperature (Â°C): 71
Maximum Fluid Temperature (Â°F): 160
Maximum Fluid Viscosity (cP): 20000

Maximum Hose Length (ft): 300
Maximum Hose Length (m): 91.4

Maximum Operating Temperature (Â°C): 54
Maximum Operating Temperature (Â°F): 130

Maximum Spray Pressure (bar): 490

Maximum Spray Pressure (kPa): 49000
Maximum Spray Pressure (MPa): 49
Maximum Spray Pressure (psi): 7100

Maximum Working Pressure (bar): 490
Maximum Working Pressure (kPa): 49000
Maximum Working Pressure (MPa): 49
Maximum Working Pressure (psi): 7100
Measuring Type: Fixed Mechanical Positive Displacement

Minimum Fluid Viscosity (cP): 200

Mix Ratio: 3:1

Power Source: Air

Product Type: Plural Component

$122,210.00

XP SYSTEM, XP70S, 3:1, 220/72, 240, EH

GG 577303

XP SYSTEM, XP70S, 3:1, 220/72, 240, EH

XP70s-hf Skid System, Non-Hazardous, 3:1 With Electric Heated Hose, 240V The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 94 litres heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications – making you more productive. Approved for Ordinary Location use 94 litres Stainless Steel lined hoppers with heater and agitator Solvent flush pump included

$99,590.00

XP System, XP70S, 3:1, 220/72, 480, Wj

GG 577321

XP SYSTEM, XP70S, 3:1, 220/72, 480, WJ

Graco 577321 XP70 High Flow Skid, 3:1 Mix Ratio, 480V, Viscon HF Heaters, Junction Box, Water Heated Hose Control

The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 94 litres heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications â€“ making you more productive.

Approved for Ordinary Location use
94 litres Stainless Steel lined hoppers with heater and agitator
Solvent flush pump included

Series: XP70s-hf

Air Inlet Size (in): 1
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM

Applicator Type: Automatic Airless, Manual Airless

Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents

Component Type: Plural-Component
Configuration: Water Jacketed Hose

Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT

Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Solvent

Hose Length (ft): 35
Hose Length (m): 10.7

Location Category: Non-Hazardous Location

Material Application: Coatings, Paints, Primers

Maximum Cycle Rate (CPM): 40

Maximum Flow Rate (cc/min): 11680

Maximum Flow Rate (GPM): 3
Maximum Flow Rate (L/min): 11.3

Maximum Fluid Temperature (Â°C): 71
Maximum Fluid Temperature (Â°F): 160
Maximum Fluid Viscosity (cP): 20000

Maximum Hose Length (ft): 300
Maximum Hose Length (m): 91.4

Maximum Operating Temperature (Â°C): 54
Maximum Operating Temperature (Â°F): 130

Maximum Spray Pressure (bar): 490

Maximum Spray Pressure (kPa): 49000
Maximum Spray Pressure (MPa): 49
Maximum Spray Pressure (psi): 7100

Maximum Working Pressure (bar): 490
Maximum Working Pressure (kPa): 49000
Maximum Working Pressure (MPa): 49
Maximum Working Pressure (psi): 7100
Measuring Type: Fixed Mechanical Positive Displacement

Minimum Fluid Viscosity (cP): 200

Mix Ratio: 3:1

Power Source: Air

Product Type: Plural Component

$100,400.00

XP System, XP70S, 3:1, 220/72, 480, Eh

GG 577323

XP SYSTEM, XP70S, 3:1, 220/72, 480, EH

Graco 577323 XP70 High Flow Skid, 3:1 Mix Ratio, 480V, Viscon HF Heaters, Junction Box, Electric Heated Hose Control

The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 94 litres heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications â€“ making you more productive.

Approved for Ordinary Location use
94 litres Stainless Steel lined hoppers with heater and agitator
Solvent flush pump included

Series: XP70s-hf

Air Inlet Size (in): 1
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM

Applicator Type: Automatic Airless, Manual Airless

Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents

Component Type: Plural-Component
Configuration: Electric Heated Hose

Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT

Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Solvent

Hose Length (ft): 35
Hose Length (m): 10.7

Location Category: Non-Hazardous Location

Material Application: Coatings, Paints, Primers

Maximum Cycle Rate (CPM): 40

Maximum Flow Rate (cc/min): 11680

Maximum Flow Rate (GPM): 3
Maximum Flow Rate (L/min): 11.3

Maximum Fluid Temperature (Â°C): 71
Maximum Fluid Temperature (Â°F): 160
Maximum Fluid Viscosity (cP): 20000

Maximum Hose Length (ft): 300
Maximum Hose Length (m): 91.4

Maximum Operating Temperature (Â°C): 54
Maximum Operating Temperature (Â°F): 130

Maximum Spray Pressure (bar): 490

Maximum Spray Pressure (kPa): 49000
Maximum Spray Pressure (MPa): 49
Maximum Spray Pressure (psi): 7100

Maximum Working Pressure (bar): 490
Maximum Working Pressure (kPa): 49000
Maximum Working Pressure (MPa): 49
Maximum Working Pressure (psi): 7100
Measuring Type: Fixed Mechanical Positive Displacement

Minimum Fluid Viscosity (cP): 200

Mix Ratio: 3:1

Power Source: Air

Product Type: Plural Component

$101,710.00

XP System, XP70S, 3:1, 220/72, 480H, Wj

GG 577331

XP SYSTEM, XP70S, 3:1, 220/72, 480H, WJ

Graco 577331 XP70 High Flow Skid, 3:1 Mix Ratio, 480V, Hazardous Viscon HF Heaters, Hazardous Junction Box, Water Heated Hose Control

The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 94 litres heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications â€“ making you more productive.

Approved for Ordinary Location use, Designed for Hazardous Location approval
94 litres Stainless Steel lined hoppers with heater and agitator
Solvent flush pump included

Series: XP70s-hf

Air Inlet Size (in): 1
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM

Applicator Type: Automatic Airless, Manual Airless

Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents

Component Type: Plural-Component
Configuration: Water Jacketed Hose

Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT

Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Solvent

Hose Length (ft): 35
Hose Length (m): 10.7

Location Category: Hazardous Location

Material Application: Coatings, Paints, Primers

Maximum Cycle Rate (CPM): 40

Maximum Flow Rate (cc/min): 11680

Maximum Flow Rate (GPM): 3
Maximum Flow Rate (L/min): 11.3

Maximum Fluid Temperature (Â°C): 71
Maximum Fluid Temperature (Â°F): 160
Maximum Fluid Viscosity (cP): 20000

Maximum Hose Length (ft): 300
Maximum Hose Length (m): 91.4

Maximum Operating Temperature (Â°C): 54
Maximum Operating Temperature (Â°F): 130

Maximum Spray Pressure (bar): 490

Maximum Spray Pressure (kPa): 49000
Maximum Spray Pressure (MPa): 49
Maximum Spray Pressure (psi): 7100

Maximum Working Pressure (bar): 490
Maximum Working Pressure (kPa): 49000
Maximum Working Pressure (MPa): 49
Maximum Working Pressure (psi): 7100
Measuring Type: Fixed Mechanical Positive Displacement

Minimum Fluid Viscosity (cP): 200

Mix Ratio: 3:1

Power Source: Air

Product Type: Plural Component

$123,050.00

XP System, XP70S, 3:1, 220/72, 480H, Eh

GG 577333

XP SYSTEM, XP70S, 3:1, 220/72, 480H, EH

Graco 577333 XP70 High Flow Skid, 3:1 Mix Ratio, 480V, Hazardous Viscon HF Heaters, Hazardous Junction Box, Electric Heated Hose Control

The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 94 litres heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications â€“ making you more productive.

Approved for Ordinary Location use, Designed for Hazardous Location approval
94 litres Stainless Steel lined hoppers with heater and agitator
Solvent flush pump included

Series: XP70s-hf

Air Inlet Size (in): 1
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM

Applicator Type: Automatic Airless, Manual Airless

Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents

Component Type: Plural-Component
Configuration: Electric Heated Hose

Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT

Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Solvent

Hose Length (ft): 35
Hose Length (m): 10.7

Location Category: Hazardous Location

Material Application: Coatings, Paints, Primers

Maximum Cycle Rate (CPM): 40

Maximum Flow Rate (cc/min): 11680

Maximum Flow Rate (GPM): 3
Maximum Flow Rate (L/min): 11.3

Maximum Fluid Temperature (Â°C): 71
Maximum Fluid Temperature (Â°F): 160
Maximum Fluid Viscosity (cP): 20000

Maximum Hose Length (ft): 300
Maximum Hose Length (m): 91.4

Maximum Operating Temperature (Â°C): 54
Maximum Operating Temperature (Â°F): 130

Maximum Spray Pressure (bar): 490

Maximum Spray Pressure (kPa): 49000
Maximum Spray Pressure (MPa): 49
Maximum Spray Pressure (psi): 7100

Maximum Working Pressure (bar): 490
Maximum Working Pressure (kPa): 49000
Maximum Working Pressure (MPa): 49
Maximum Working Pressure (psi): 7100
Measuring Type: Fixed Mechanical Positive Displacement

Minimum Fluid Viscosity (cP): 200

Mix Ratio: 3:1

Power Source: Air

Product Type: Plural Component

$182,040.00

XP SYSTEM, XP70S, 4:1, 220/54, 240, WJ

GG 577401

XP SYSTEM, XP70S, 4:1, 220/54, 240, WJ

XP70s-hf Skid System, Non-Hazardous, 4:1 With Water Jacketed Hose, 240V The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 25 gallon heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications – making you more productive. Approved for Ordinary Location use 25 gallon Stainless Steel lined hoppers with heater and agitator Solvent flush pump included

$100,400.00

XP SYSTEM, XP70S, 4:1, 220/54, 240, EH

GG 577403

XP SYSTEM, XP70S, 4:1, 220/54, 240, EH

XP70s-hf Skid System, Non-Hazardous, 4:1 With Electric Heated Hose, 240V The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 94 litres heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications – making you more productive. Approved for Ordinary Location use 94 litres Stainless Steel lined hoppers with heater and agitator Solvent flush pump included

$99,590.00

XP System, XP70S, 4:1, 220/54, 240H, Wj

GG 577411

XP SYSTEM, XP70S, 4:1, 220/54, 240H, WJ

Graco 577411 XP70s-hf Skid System, Hazardous Location, 4:1 With Water Jacketed Hose, 240V

The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 94 litres heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications â€“ making you more productive.

Approved for Ordinary Location use, Designed for Hazardous Location approval
94 litres Stainless Steel lined hoppers with heater and agitator
Solvent flush pump included

Series: XP70s-hf

Air Inlet Size (in): 1
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM

Applicator Type: Automatic Airless, Manual Airless

Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents

Component Type: Plural-Component
Configuration: Water Jacketed Hose

Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT

Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Solvent

Hose Length (ft): 35
Hose Length (m): 10.7

Includes: Merkur Solvent Flush Pump, Remote Manifold Carriage, XTR5+ Gun, 35 ft Integration Hose and Static Mixer, Heated Hose Controller, Ratio Check Kit

Location Category: Hazardous Location

Material Application: Coatings, Paints, Primers

Maximum Cycle Rate (CPM): 40

Maximum Flow Rate (cc/min): 10960

Maximum Flow Rate (GPM): 2.8
Maximum Flow Rate (L/min): 10.6

Maximum Fluid Temperature (Â°C): 71
Maximum Fluid Temperature (Â°F): 160
Maximum Fluid Viscosity (cP): 20000

Maximum Hose Length (ft): 300
Maximum Hose Length (m): 91.4

Maximum Operating Temperature (Â°C): 54
Maximum Operating Temperature (Â°F): 130

Maximum Spray Pressure (bar): 500

Maximum Spray Pressure (kPa): 50000
Maximum Spray Pressure (MPa): 50
Maximum Spray Pressure (psi): 7250

Maximum Working Pressure (bar): 500
Maximum Working Pressure (kPa): 50000
Maximum Working Pressure (MPa): 50
Maximum Working Pressure (psi): 7250
Measuring Type: Fixed Mechanical Positive Displacement

Minimum Fluid Viscosity (cP): 200

Mix Ratio: 4:1

Power Source: Air

Product Type: Plural Component

$123,050.00

XP System, XP70S, 4:1, 220/54, 480, Eh

GG 577423

XP SYSTEM, XP70S, 4:1, 220/54, 480, EH

Graco 577423 XP70 High Flow Skid, 4:1 Mix Ratio, 480V, Viscon HF Heaters, Junction Box, Electric Heated Hose Control

The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 94 litres heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications â€“ making you more productive.

Approved for Ordinary Location use
94 litres Stainless Steel lined hoppers with heater and agitator
Solvent flush pump included

Series: XP70s-hf

Air Inlet Size (in): 1
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM

Applicator Type: Automatic Airless, Manual Airless

Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents

Component Type: Plural-Component
Configuration: Electric Heated Hose

Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT

Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Solvent

Hose Length (ft): 35
Hose Length (m): 10.7

Location Category: Non-Hazardous Location

Material Application: Coatings, Paints, Primers

Maximum Cycle Rate (CPM): 40

Maximum Flow Rate (cc/min): 10960

Maximum Flow Rate (GPM): 2.8
Maximum Flow Rate (L/min): 10.6

Maximum Fluid Temperature (Â°C): 71
Maximum Fluid Temperature (Â°F): 160
Maximum Fluid Viscosity (cP): 20000

Maximum Hose Length (ft): 300
Maximum Hose Length (m): 91.4

Maximum Operating Temperature (Â°C): 54
Maximum Operating Temperature (Â°F): 130

Maximum Spray Pressure (bar): 500

Maximum Spray Pressure (kPa): 50000
Maximum Spray Pressure (MPa): 50
Maximum Spray Pressure (psi): 7250

Maximum Working Pressure (bar): 500
Maximum Working Pressure (kPa): 50000
Maximum Working Pressure (MPa): 50
Maximum Working Pressure (psi): 7250
Measuring Type: Fixed Mechanical Positive Displacement

Minimum Fluid Viscosity (cP): 200

Mix Ratio: 4:1

Power Source: Air

Product Type: Plural Component

$101,710.00

XP System, XP70S, 4:1, 220/54, 480, Wj

GG 577421

XP SYSTEM, XP70S, 4:1, 220/54, 480, WJ

Graco 577421 XP70 High Flow Skid, 4:1 Mix Ratio, 480V, Viscon HF Heaters, Junction Box, Water Heated Hose Control

The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 94 litres heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications â€“ making you more productive.

Approved for Ordinary Location use
94 litres Stainless Steel lined hoppers with heater and agitator
Solvent flush pump included

Series: XP70s-hf

Air Inlet Size (in): 1
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM

Applicator Type: Automatic Airless, Manual Airless

Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents

Component Type: Plural-Component
Configuration: Water Jacketed Hose

Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT

Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Solvent

Hose Length (ft): 35
Hose Length (m): 10.7

Location Category: Non-Hazardous Location

Material Application: Coatings, Paints, Primers

Maximum Cycle Rate (CPM): 40

Maximum Flow Rate (cc/min): 10960

Maximum Flow Rate (GPM): 2.8
Maximum Flow Rate (L/min): 10.6

Maximum Fluid Temperature (Â°C): 71
Maximum Fluid Temperature (Â°F): 160
Maximum Fluid Viscosity (cP): 20000

Maximum Hose Length (ft): 300
Maximum Hose Length (m): 91.4

Maximum Operating Temperature (Â°C): 54
Maximum Operating Temperature (Â°F): 130

Maximum Spray Pressure (bar): 500

Maximum Spray Pressure (kPa): 50000
Maximum Spray Pressure (MPa): 50
Maximum Spray Pressure (psi): 7250

Maximum Working Pressure (bar): 500
Maximum Working Pressure (kPa): 50000
Maximum Working Pressure (MPa): 50
Maximum Working Pressure (psi): 7250
Measuring Type: Fixed Mechanical Positive Displacement

Minimum Fluid Viscosity (cP): 200

Mix Ratio: 4:1

Power Source: Air

Product Type: Plural Component

$100,400.00

XP System, XP70S, 4:1, 220/54, 240H, Eh

GG 577413

XP SYSTEM, XP70S, 4:1, 220/54, 240H, EH

Graco 577413 XP70s-hf Skid System, Hazardous Location, 4:1 With Electric Heated Hose, 240V

The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 94 litres heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications â€“ making you more productive.

Approved for Ordinary Location use, Designed for Hazardous Location approval
94 litres Stainless Steel lined hoppers with heater and agitator
Solvent flush pump included

Series: XP70s-hf

Air Inlet Size (in): 1
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM

Applicator Type: Automatic Airless, Manual Airless

Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents

Component Type: Plural-Component
Configuration: Electric Heated Hose

Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT

Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Solvent

Hose Length (ft): 35
Hose Length (m): 10.7

Includes: Merkur Solvent Flush Pump, Remote Manifold Carriage, XTR5+ Gun, 35 ft Integration Hose and Static Mixer, Electric Heated Hose Controller, Ratio Check Kit

Location Category: Hazardous Location

Material Application: Coatings, Paints, Primers

Maximum Cycle Rate (CPM): 40

Maximum Flow Rate (cc/min): 10960

Maximum Flow Rate (GPM): 2.8
Maximum Flow Rate (L/min): 10.6

Maximum Fluid Temperature (Â°C): 71
Maximum Fluid Temperature (Â°F): 160
Maximum Fluid Viscosity (cP): 20000

Maximum Hose Length (ft): 300
Maximum Hose Length (m): 91.4

Maximum Operating Temperature (Â°C): 54
Maximum Operating Temperature (Â°F): 130

Maximum Spray Pressure (bar): 500

Maximum Spray Pressure (kPa): 50000
Maximum Spray Pressure (MPa): 50
Maximum Spray Pressure (psi): 7250

Maximum Working Pressure (bar): 500
Maximum Working Pressure (kPa): 50000
Maximum Working Pressure (MPa): 50
Maximum Working Pressure (psi): 7250
Measuring Type: Fixed Mechanical Positive Displacement

Minimum Fluid Viscosity (cP): 200

Mix Ratio: 4:1

Power Source: Air

Product Type: Plural Component

$122,210.00

XP System, XP70S, 4:1, 220/54, 480H, Wj

GG 577431

XP SYSTEM, XP70S, 4:1, 220/54, 480H, WJ

Graco 577431 XP70 High Flow Skid, 4:1 Mix Ratio, 480V, Hazardous Viscon HF Heaters, Hazardous Junction Box, Water Heated Hose Control

The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 94 litres heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications â€“ making you more productive.

Approved for Ordinary Location use, Designed for Hazardous Location approval
94 litres Stainless Steel lined hoppers with heater and agitator
Solvent flush pump included

Series: XP70s-hf

Air Inlet Size (in): 1
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM

Applicator Type: Automatic Airless, Manual Airless

Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents

Component Type: Plural-Component
Configuration: Water Jacketed Hose

Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT

Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Solvent

Hose Length (ft): 35
Hose Length (m): 10.7

Location Category: Hazardous Location

Material Application: Coatings, Paints, Primers

Maximum Cycle Rate (CPM): 40

Maximum Flow Rate (cc/min): 10960

Maximum Flow Rate (GPM): 2.8
Maximum Flow Rate (L/min): 10.6

Maximum Fluid Temperature (Â°C): 71
Maximum Fluid Temperature (Â°F): 160
Maximum Fluid Viscosity (cP): 20000

Maximum Hose Length (ft): 300
Maximum Hose Length (m): 91.4

Maximum Operating Temperature (Â°C): 54
Maximum Operating Temperature (Â°F): 130

Maximum Spray Pressure (bar): 500

Maximum Spray Pressure (kPa): 50000
Maximum Spray Pressure (MPa): 50
Maximum Spray Pressure (psi): 7250

Maximum Working Pressure (bar): 500
Maximum Working Pressure (kPa): 50000
Maximum Working Pressure (MPa): 50
Maximum Working Pressure (psi): 7250
Measuring Type: Fixed Mechanical Positive Displacement

Minimum Fluid Viscosity (cP): 200

Mix Ratio: 4:1

Power Source: Air

Product Type: Plural Component

$123,050.00

XP System, XP70S, 4:1, 220/54, 480H, Eh

GG 577433

XP SYSTEM, XP70S, 4:1, 220/54, 480H, EH

Graco 577433 XP70 High Flow Skid, 4:1 Mix Ratio, 480V, Hazardous Viscon HF Heaters, Hazardous Junction Box, Electric Heated Hose Control

The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 94 litres heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications â€“ making you more productive.

Approved for Ordinary Location use, Designed for Hazardous Location approval
94 litres Stainless Steel lined hoppers with heater and agitator
Solvent flush pump included

Series: XP70s-hf

Air Inlet Size (in): 1
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM

Applicator Type: Automatic Airless, Manual Airless

Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents

Component Type: Plural-Component
Configuration: Skid Mount with 25 gal Heated & Agitated Hoppers

Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT

Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Solvent

Hose Length (ft): 35
Hose Length (m): 10.7

Material Application: Coatings, Paints, Primers

Maximum Cycle Rate (CPM): 40

Maximum Flow Rate (cc/min): 10960

Maximum Flow Rate (GPM): 2.8
Maximum Flow Rate (L/min): 10.6

Maximum Fluid Temperature (Â°C): 71
Maximum Fluid Temperature (Â°F): 160
Maximum Fluid Viscosity (cP): 20000

Maximum Hose Length (ft): 300
Maximum Hose Length (m): 91.4

Maximum Operating Temperature (Â°C): 54
Maximum Operating Temperature (Â°F): 130

Maximum Spray Pressure (bar): 500

Maximum Spray Pressure (kPa): 50000
Maximum Spray Pressure (MPa): 50
Maximum Spray Pressure (psi): 7250

Maximum Working Pressure (bar): 500
Maximum Working Pressure (kPa): 50000
Maximum Working Pressure (MPa): 50
Maximum Working Pressure (psi): 7250
Measuring Type: Fixed Mechanical Positive Displacement

Minimum Fluid Viscosity (cP): 200

Mix Ratio: 4:1

Power Source: Air

Product Type: Plural Component

$182,040.00

XP SYSTEM, XP50S, 1:1, 220/220, 240, WJ

GG 578101

XP SYSTEM, XP50S, 1:1, 220/220, 240, WJ

XP50s-hf Skid System, Non-Hazardous, 1:1 With Water Jacketed Hose, 240V The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 25 gallon heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications – making you more productive. Approved for Ordinary Location use 25 gallon Stainless Steel lined hoppers with heater and agitator Solvent flush pump included

$100,400.00

Kit, Piston Assembly

GG 578002

Kit, Piston Assembly

$177.50

XP System, XP50S, 1:1, 220/220, 240, Eh

GG 578103

XP SYSTEM, XP50S, 1:1, 220/220, 240, EH

Graco 578103 XP50s-hf Skid System, Non-Hazardous, 1:1 With Electric Heated Hose, 240V

The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 94 litres heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications â€“ making you more productive.

Approved for Ordinary Location use
94 litres Stainless Steel lined hoppers with heater and agitator
Solvent flush pump included

Series: XP50s-hf

Air Inlet Size (in): 1
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM

Applicator Type: Automatic Airless, Manual Airless

Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents

Component Type: Plural-Component
Configuration: Electric Heated Hose

Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT

Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Solvent

Hose Length (ft): 35
Hose Length (m): 10.7

Includes: Merkur Solvent Flush Pump, Remote Manifold Carriage, XTR5+ Gun, 35 ft Integration Hose and Static Mixer, Electric Heated Hose Controller, Ratio Check Kit

Location Category: Non-Hazardous Location

Material Application: Coatings, Paints, Primers

Maximum Cycle Rate (CPM): 40

Maximum Flow Rate (cc/min): 17600

Maximum Flow Rate (GPM): 4.6
Maximum Flow Rate (L/min): 17.4

Maximum Fluid Temperature (Â°C): 71
Maximum Fluid Temperature (Â°F): 160
Maximum Fluid Viscosity (cP): 20000

Maximum Hose Length (ft): 300
Maximum Hose Length (m): 91.4

Maximum Operating Temperature (Â°C): 54
Maximum Operating Temperature (Â°F): 130

Maximum Spray Pressure (bar): 330

Maximum Spray Pressure (kPa): 33000
Maximum Spray Pressure (MPa): 33
Maximum Spray Pressure (psi): 4750

Maximum Working Pressure (bar): 330
Maximum Working Pressure (kPa): 33000
Maximum Working Pressure (MPa): 33
Maximum Working Pressure (psi): 4750
Measuring Type: Fixed Mechanical Positive Displacement

Minimum Fluid Viscosity (cP): 200

Mix Ratio: 1:1

Power Source: Air

Product Type: Plural Component

$99,590.00

XP System, XP50S, 1:1, 220/220, 240H, Wj

GG 578111

XP SYSTEM, XP50S, 1:1, 220/220, 240H, WJ

Graco 578111 XP50s-hf Skid System, Hazardous Location, 1:1 With Water Jacketed Hose, 240V

The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 94 litres heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications â€“ making you more productive.

Approved for Ordinary Location use, Designed for Hazardous Location approval
94 litres Stainless Steel lined hoppers with heater and agitator
Solvent flush pump included

Series: XP50s-hf

Air Inlet Size (in): 1
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM

Applicator Type: Automatic Airless, Manual Airless

Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents

Component Type: Plural-Component
Configuration: Water Jacketed Hose

Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT

Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Solvent

Hose Length (ft): 35
Hose Length (m): 10.7

Includes: Merkur Solvent Flush Pump, Remote Manifold Carriage, XTR5+ Gun, 35 ft Integration Hose and Static Mixer, Heated Hose Controller, Ratio Check Kit

Location Category: Hazardous Location

Material Application: Coatings, Paints, Primers

Maximum Cycle Rate (CPM): 40

Maximum Flow Rate (cc/min): 17600

Maximum Flow Rate (GPM): 4.6
Maximum Flow Rate (L/min): 17.4

Maximum Fluid Temperature (Â°C): 71
Maximum Fluid Temperature (Â°F): 160
Maximum Fluid Viscosity (cP): 20000

Maximum Hose Length (ft): 300
Maximum Hose Length (m): 91.4

Maximum Operating Temperature (Â°C): 54
Maximum Operating Temperature (Â°F): 130

Maximum Spray Pressure (bar): 330

Maximum Spray Pressure (kPa): 33000
Maximum Spray Pressure (MPa): 33
Maximum Spray Pressure (psi): 4750

Maximum Working Pressure (bar): 330
Maximum Working Pressure (kPa): 33000
Maximum Working Pressure (MPa): 33
Maximum Working Pressure (psi): 4750
Measuring Type: Fixed Mechanical Positive Displacement

Minimum Fluid Viscosity (cP): 200

Mix Ratio: 1:1

Power Source: Air

Product Type: Plural Component

$123,050.00

XP System, XP50S, 1:1, 220/220, 240H, Eh

GG 578113

XP SYSTEM, XP50S, 1:1, 220/220, 240H, EH

Graco 578113 XP50s-hf Skid System, Hazardous Location, 1:1 With Electric Heated Hose, 240V

The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 25 gallon heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications â€“ making you more productive.

Approved for Ordinary Location use, Designed for Hazardous Location approval
25 gallon Stainless Steel lined hoppers with heater and agitator
Solvent flush pump included

Series: XP50s-hf

Air Inlet Size (in): 1
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM

Applicator Type: Automatic Airless, Manual Airless

Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents

Component Type: Plural-Component
Configuration: Electric Heated Hose

Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT

Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Solvent

Hose Length (ft): 35
Hose Length (m): 10.7

Includes: Merkur Solvent Flush Pump, Remote Manifold Carriage, XTR5+ Gun, 35 ft Integration Hose and Static Mixer, Electric Heated Hose Controller, Ratio Check Kit

Location Category: Hazardous Location

Material Application: Coatings, Paints, Primers

Maximum Cycle Rate (CPM): 40

Maximum Flow Rate (cc/min): 17600

Maximum Flow Rate (GPM): 4.6
Maximum Flow Rate (L/min): 17.4

Maximum Fluid Temperature (Â°C): 71
Maximum Fluid Temperature (Â°F): 160
Maximum Fluid Viscosity (cP): 20000

Maximum Hose Length (ft): 300
Maximum Hose Length (m): 91.4

Maximum Operating Temperature (Â°C): 54
Maximum Operating Temperature (Â°F): 130

Maximum Spray Pressure (bar): 330

Maximum Spray Pressure (kPa): 33000
Maximum Spray Pressure (MPa): 33
Maximum Spray Pressure (psi): 4750

Maximum Working Pressure (bar): 330
Maximum Working Pressure (kPa): 33000
Maximum Working Pressure (MPa): 33
Maximum Working Pressure (psi): 4750
Measuring Type: Fixed Mechanical Positive Displacement

Minimum Fluid Viscosity (cP): 200

Mix Ratio: 1:1

Power Source: Air

Product Type: Plural Component

$122,210.00

XP System, XP50S, 1:1, 220/220, 480, Wj

GG 578121

XP SYSTEM, XP50S, 1:1, 220/220, 480, WJ

Graco 578121 XP50 High Flow Skid, 1:1 Mix Ratio, 480V, Viscon HF Heaters, Junction Box, Water Heated Hose Control

The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 94 litres heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications â€“ making you more productive.

Approved for Ordinary Location use
94 litres Stainless Steel lined hoppers with heater and agitator
Solvent flush pump included

Series: XP50s-hf

Air Inlet Size (in): 1
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM

Applicator Type: Automatic Airless, Manual Airless

Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents

Component Type: Plural-Component
Configuration: Water Jacketed Hose

Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT

Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Solvent

Hose Length (ft): 35
Hose Length (m): 10.7

Location Category: Non-Hazardous Location

Material Application: Coatings, Paints, Primers

Maximum Cycle Rate (CPM): 40

Maximum Flow Rate (cc/min): 17600

Maximum Flow Rate (GPM): 4.6
Maximum Flow Rate (L/min): 17.4

Maximum Fluid Temperature (Â°C): 71
Maximum Fluid Temperature (Â°F): 160
Maximum Fluid Viscosity (cP): 20000

Maximum Hose Length (ft): 300
Maximum Hose Length (m): 91.4

Maximum Operating Temperature (Â°C): 54
Maximum Operating Temperature (Â°F): 130

Maximum Spray Pressure (bar): 330

Maximum Spray Pressure (kPa): 33000
Maximum Spray Pressure (MPa): 33
Maximum Spray Pressure (psi): 4750

Maximum Working Pressure (bar): 330
Maximum Working Pressure (kPa): 33000
Maximum Working Pressure (MPa): 33
Maximum Working Pressure (psi): 4750
Measuring Type: Fixed Mechanical Positive Displacement

Minimum Fluid Viscosity (cP): 200

Mix Ratio: 1:1

Power Source: Air

Product Type: Plural Component

$100,400.00

XP SYSTEM, XP50S, 1:1, 220/220, 480, EH

GG 578123

XP SYSTEM, XP50S, 1:1, 220/220, 480, EH

XP50 High Flow Skid, 1:1 Mix Ratio, 480V, Viscon HF Heaters, Junction Box, Electric Heated Hose Control The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 25 gallon heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications – making you more productive. Approved for Ordinary Location use 25 gallon Stainless Steel lined hoppers with heater and agitator Solvent flush pump included

$101,710.00

XP SYSTEM, XP50S, 1:1, 220/220, 480H, WJ

GG 578131

XP SYSTEM, XP50S, 1:1, 220/220, 480H, WJ

XP50 High Flow Skid, 1:1 Mix Ratio, 480V, Hazardous Viscon HF Heaters, Hazardous Junction Box, Water Heated Hose Control The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 25 gallon heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications – making you more productive. Approved for Ordinary Location use, Designed for Hazardous Location approval 25 gallon Stainless Steel lined hoppers with heater and agitator Solvent flush pump included

$123,050.00

XP System, XP50S, 2:1, 290/145, 240, Wj

GG 578201

XP SYSTEM, XP50S, 2:1, 290/145, 240, WJ

Graco 578201 XP50s-hf Skid System, Non-Hazardous, 2:1 With Water Jacketed Hose, 240V

The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 25 gallon heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications â€“ making you more productive.

Approved for Ordinary Location use
25 gallon Stainless Steel lined hoppers with heater and agitator
Solvent flush pump included

Series: XP50s-hf

Air Inlet Size (in): 1
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM

Applicator Type: Automatic Airless, Manual Airless

Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents

Component Type: Plural-Component
Configuration: Water Jacketed Hose

Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT

Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Solvent

Hose Length (ft): 35
Hose Length (m): 10.7

Includes: Merkur Solvent Flush Pump, Remote Manifold Carriage, XTR5+ Gun, 35 ft Integration Hose and Static Mixer, Heated Hose Controller, Ratio Check Kit

Location Category: Non-Hazardous Location

Material Application: Coatings, Paints, Primers

Maximum Cycle Rate (CPM): 40

Maximum Flow Rate (cc/min): 17400

Maximum Flow Rate (GPM): 4.6
Maximum Flow Rate (L/min): 17.4

Maximum Fluid Temperature (Â°C): 71
Maximum Fluid Temperature (Â°F): 160
Maximum Fluid Viscosity (cP): 20000

Maximum Hose Length (ft): 300
Maximum Hose Length (m): 91.4

Maximum Operating Temperature (Â°C): 54
Maximum Operating Temperature (Â°F): 130

Maximum Spray Pressure (bar): 330

Maximum Spray Pressure (kPa): 33000
Maximum Spray Pressure (MPa): 33
Maximum Spray Pressure (psi): 4750

Maximum Working Pressure (bar): 330
Maximum Working Pressure (kPa): 33000
Maximum Working Pressure (MPa): 33
Maximum Working Pressure (psi): 4750
Measuring Type: Fixed Mechanical Positive Displacement

Minimum Fluid Viscosity (cP): 200

Mix Ratio: 2:1

Power Source: Air

Product Type: Plural Component

$100,400.00

XP System, XP50S, 1:1, 220/220, 480H, Eh

GG 578133

XP SYSTEM, XP50S, 1:1, 220/220, 480H, EH

Graco 578133 XP50 High Flow Skid, 1:1 Mix Ratio, 480V, Hazardous Viscon HF Heaters, Hazardous Junction Box, Electric Heated Hose Control

The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 25 gallon heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications â€“ making you more productive.

Approved for Ordinary Location use, Designed for Hazardous Location approval
25 gallon Stainless Steel lined hoppers with heater and agitator
Solvent flush pump included

Series: XP50s-hf

Air Inlet Size (in): 1
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM

Applicator Type: Automatic Airless, Manual Airless

Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents

Component Type: Plural-Component
Configuration: Electric Heated Hose

Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT

Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Solvent

Hose Length (ft): 35
Hose Length (m): 10.7

Location Category: Hazardous Location

Material Application: Coatings, Paints, Primers

Maximum Cycle Rate (CPM): 40

Maximum Flow Rate (cc/min): 17600

Maximum Flow Rate (GPM): 4.6
Maximum Flow Rate (L/min): 17.4

Maximum Fluid Temperature (Â°C): 71
Maximum Fluid Temperature (Â°F): 160
Maximum Fluid Viscosity (cP): 20000

Maximum Hose Length (ft): 300
Maximum Hose Length (m): 91.4

Maximum Operating Temperature (Â°C): 54
Maximum Operating Temperature (Â°F): 130

Maximum Spray Pressure (bar): 330

Maximum Spray Pressure (kPa): 33000
Maximum Spray Pressure (MPa): 33
Maximum Spray Pressure (psi): 4750

Maximum Working Pressure (bar): 330
Maximum Working Pressure (kPa): 33000
Maximum Working Pressure (MPa): 33
Maximum Working Pressure (psi): 4750
Measuring Type: Fixed Mechanical Positive Displacement

Minimum Fluid Viscosity (cP): 200

Mix Ratio: 1:1

Power Source: Air

Product Type: Plural Component

$182,040.00

XP System, XP50S, 2:1, 290/145, 240H, Wj

GG 578211

XP SYSTEM, XP50S, 2:1, 290/145, 240H, WJ

Graco 578211 XP50s-hf Skid System, Hazardous Location, 2:1 With Water Jacketed Hose, 240V

The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 25 gallon heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications â€“ making you more productive.

Approved for Ordinary Location use, Designed for Hazardous Location approval
25 gallon Stainless Steel lined hoppers with heater and agitator
Solvent flush pump included

Series: XP50s-hf

Air Inlet Size (in): 1
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM

Applicator Type: Automatic Airless, Manual Airless

Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents

Component Type: Plural-Component
Configuration: Water Jacketed Hose

Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT

Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Solvent

Hose Length (ft): 35
Hose Length (m): 10.7

Includes: Merkur Solvent Flush Pump, Remote Manifold Carriage, XTR5+ Gun, 35 ft Integration Hose and Static Mixer, Heated Hose Controller, Ratio Check Kit

Location Category: Hazardous Location

Material Application: Coatings, Paints, Primers

Maximum Cycle Rate (CPM): 40

Maximum Flow Rate (cc/min): 17400

Maximum Flow Rate (GPM): 4.6
Maximum Flow Rate (L/min): 17.4

Maximum Fluid Temperature (Â°C): 71
Maximum Fluid Temperature (Â°F): 160
Maximum Fluid Viscosity (cP): 20000

Maximum Hose Length (ft): 300
Maximum Hose Length (m): 91.4

Maximum Operating Temperature (Â°C): 54
Maximum Operating Temperature (Â°F): 130

Maximum Spray Pressure (bar): 330

Maximum Spray Pressure (kPa): 33000
Maximum Spray Pressure (MPa): 33
Maximum Spray Pressure (psi): 4750

Maximum Working Pressure (bar): 330
Maximum Working Pressure (kPa): 33000
Maximum Working Pressure (MPa): 33
Maximum Working Pressure (psi): 4750
Measuring Type: Fixed Mechanical Positive Displacement

Minimum Fluid Viscosity (cP): 200

Mix Ratio: 2:1

Power Source: Air

Product Type: Plural Component

$123,050.00

XP System, XP50S, 2:1, 290/145, 240H, Eh

GG 578213

XP SYSTEM, XP50S, 2:1, 290/145, 240H, EH

Graco 578213 XP50s-hf Skid System, Hazardous Location, 2:1 With Electric Heated Hose, 240V

The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 94 litres heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications â€“ making you more productive.

Approved for Ordinary Location use, Designed for Hazardous Location approval
94 litres Stainless Steel lined hoppers with heater and agitator
Solvent flush pump included

Series: XP50s-hf

Air Inlet Size (in): 1
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM

Applicator Type: Automatic Airless, Manual Airless

Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents

Component Type: Plural-Component
Configuration: Electric Heated Hose

Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT

Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Solvent

Hose Length (ft): 35
Hose Length (m): 10.7

Includes: Merkur Solvent Flush Pump, Remote Manifold Carriage, XTR5+ Gun, 35 ft Integration Hose and Static Mixer, Electric Heated Hose Controller, Ratio Check Kit

Location Category: Hazardous Location

Material Application: Coatings, Paints, Primers

Maximum Cycle Rate (CPM): 40

Maximum Flow Rate (cc/min): 17400

Maximum Flow Rate (GPM): 4.6
Maximum Flow Rate (L/min): 17.4

Maximum Fluid Temperature (Â°C): 71
Maximum Fluid Temperature (Â°F): 160
Maximum Fluid Viscosity (cP): 20000

Maximum Hose Length (ft): 300
Maximum Hose Length (m): 91.4

Maximum Operating Temperature (Â°C): 54
Maximum Operating Temperature (Â°F): 130

Maximum Spray Pressure (bar): 330

Maximum Spray Pressure (kPa): 33000
Maximum Spray Pressure (MPa): 33
Maximum Spray Pressure (psi): 4750

Maximum Working Pressure (bar): 330
Maximum Working Pressure (kPa): 33000
Maximum Working Pressure (MPa): 33
Maximum Working Pressure (psi): 4750
Measuring Type: Fixed Mechanical Positive Displacement

Minimum Fluid Viscosity (cP): 200

Mix Ratio: 2:1

Power Source: Air

Product Type: Plural Component

$122,210.00

XP System, XP50S, 2:1, 290/145, 240, Eh

GG 578203

XP SYSTEM, XP50S, 2:1, 290/145, 240, EH

Graco 578203 XP50s-hf Skid System, Non-Hazardous, 2:1 With Electric Heated Hose, 240V

The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 94 litres heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications â€“ making you more productive.

Approved for Ordinary Location use
94 litres Stainless Steel lined hoppers with heater and agitator
Solvent flush pump included

Series: XP50s-hf

Air Inlet Size (in): 1
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM

Applicator Type: Automatic Airless, Manual Airless

Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents

Component Type: Plural-Component
Configuration: Electric Heated Hose

Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT

Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Solvent

Hose Length (ft): 35
Hose Length (m): 10.7

Includes: Merkur Solvent Flush Pump, Remote Manifold Carriage, XTR5+ Gun, 35 ft Integration Hose and Static Mixer, Electric Heated Hose Controller, Ratio Check Kit

Location Category: Non-Hazardous Location

Material Application: Coatings, Paints, Primers

Maximum Cycle Rate (CPM): 40

Maximum Flow Rate (cc/min): 17400

Maximum Flow Rate (GPM): 4.6
Maximum Flow Rate (L/min): 17.4

Maximum Fluid Temperature (Â°C): 71
Maximum Fluid Temperature (Â°F): 160
Maximum Fluid Viscosity (cP): 20000

Maximum Hose Length (ft): 300
Maximum Hose Length (m): 91.4

Maximum Operating Temperature (Â°C): 54
Maximum Operating Temperature (Â°F): 130

Maximum Spray Pressure (bar): 330

Maximum Spray Pressure (kPa): 33000
Maximum Spray Pressure (MPa): 33
Maximum Spray Pressure (psi): 4750

Maximum Working Pressure (bar): 330
Maximum Working Pressure (kPa): 33000
Maximum Working Pressure (MPa): 33
Maximum Working Pressure (psi): 4750
Measuring Type: Fixed Mechanical Positive Displacement

Minimum Fluid Viscosity (cP): 200

Mix Ratio: 2:1

Power Source: Air

Product Type: Plural Component

$99,590.00

XP System, XP50S, 2:1, 290/145, 480, Wj

GG 578221

XP SYSTEM, XP50S, 2:1, 290/145, 480, WJ

Graco 578221 XP50 High Flow Skid, 2:1 Mix Ratio, 480V, Viscon HF Heaters, Junction Box, Water Heated Hose Control

The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 94 litres heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications â€“ making you more productive.

Approved for Ordinary Location use
94 litres Stainless Steel lined hoppers with heater and agitator
Solvent flush pump included

Series: XP50s-hf

Air Inlet Size (in): 1
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM

Applicator Type: Automatic Airless, Manual Airless

Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents

Component Type: Plural-Component
Configuration: Water Jacketed Hose

Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT

Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Solvent

Hose Length (ft): 35
Hose Length (m): 10.7

Location Category: Non-Hazardous Location

Material Application: Coatings, Paints, Primers

Maximum Cycle Rate (CPM): 40

Maximum Flow Rate (cc/min): 17400

Maximum Flow Rate (GPM): 4.6
Maximum Flow Rate (L/min): 17.4

Maximum Fluid Temperature (Â°C): 71
Maximum Fluid Temperature (Â°F): 160
Maximum Fluid Viscosity (cP): 20000

Maximum Hose Length (ft): 300
Maximum Hose Length (m): 91.4

Maximum Operating Temperature (Â°C): 54
Maximum Operating Temperature (Â°F): 130

Maximum Spray Pressure (bar): 330

Maximum Spray Pressure (kPa): 33000
Maximum Spray Pressure (MPa): 33
Maximum Spray Pressure (psi): 4750

Maximum Working Pressure (bar): 330
Maximum Working Pressure (kPa): 33000
Maximum Working Pressure (MPa): 33
Maximum Working Pressure (psi): 4750
Measuring Type: Fixed Mechanical Positive Displacement

Minimum Fluid Viscosity (cP): 200

Mix Ratio: 2:1

Power Source: Air

Product Type: Plural Component

$100,400.00

XP System, XP50S, 2:1, 290/145, 480, Eh

GG 578223

XP SYSTEM, XP50S, 2:1, 290/145, 480, EH

Graco 578223 XP50 High Flow Skid, 2:1 Mix Ratio, 480V, Viscon HF Heaters, Junction Box, Electric Heated Hose Control

The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 94 litres heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications â€“ making you more productive.

Approved for Ordinary Location use
94 litres Stainless Steel lined hoppers with heater and agitator
Solvent flush pump included

Series: XP50s-hf

Air Inlet Size (in): 1
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM

Applicator Type: Automatic Airless, Manual Airless

Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents

Component Type: Plural-Component
Configuration: Electric Heated Hose

Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT

Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Solvent

Hose Length (ft): 35
Hose Length (m): 10.7

Location Category: Non-Hazardous Location

Material Application: Coatings, Paints, Primers

Maximum Cycle Rate (CPM): 40

Maximum Flow Rate (cc/min): 17400

Maximum Flow Rate (GPM): 4.6
Maximum Flow Rate (L/min): 17.4

Maximum Fluid Temperature (Â°C): 71
Maximum Fluid Temperature (Â°F): 160
Maximum Fluid Viscosity (cP): 20000

Maximum Hose Length (ft): 300
Maximum Hose Length (m): 91.4

Maximum Operating Temperature (Â°C): 54
Maximum Operating Temperature (Â°F): 130

Maximum Spray Pressure (bar): 330

Maximum Spray Pressure (kPa): 33000
Maximum Spray Pressure (MPa): 33
Maximum Spray Pressure (psi): 4750

Maximum Working Pressure (bar): 330
Maximum Working Pressure (kPa): 33000
Maximum Working Pressure (MPa): 33
Maximum Working Pressure (psi): 4750
Measuring Type: Fixed Mechanical Positive Displacement

Minimum Fluid Viscosity (cP): 200

Mix Ratio: 2:1

Power Source: Air

Product Type: Plural Component

$101,710.00

XP System, XP50S, 2:1, 290/145, 480H, Wj

GG 578231

XP SYSTEM, XP50S, 2:1, 290/145, 480H, WJ

Graco 578231 XP50 High Flow Skid, 2:1 Mix Ratio, 480V, Hazardous Viscon HF Heaters, Hazardous Junction Box, Water Heated Hose Control

The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 25 gallon heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications â€“ making you more productive.

Approved for Ordinary Location use, Designed for Hazardous Location approval
25 gallon Stainless Steel lined hoppers with heater and agitator
Solvent flush pump included

Series: XP50s-hf

Air Inlet Size (in): 1
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM

Applicator Type: Automatic Airless, Manual Airless

Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents

Component Type: Plural-Component
Configuration: Water Jacketed Hose

Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT

Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Solvent

Hose Length (ft): 35
Hose Length (m): 10.7

Location Category: Hazardous Location

Material Application: Coatings, Paints, Primers

Maximum Cycle Rate (CPM): 40

Maximum Flow Rate (cc/min): 17400

Maximum Flow Rate (GPM): 4.6
Maximum Flow Rate (L/min): 17.4

Maximum Fluid Temperature (Â°C): 71
Maximum Fluid Temperature (Â°F): 160
Maximum Fluid Viscosity (cP): 20000

Maximum Hose Length (ft): 300
Maximum Hose Length (m): 91.4

Maximum Operating Temperature (Â°C): 54
Maximum Operating Temperature (Â°F): 130

Maximum Spray Pressure (bar): 330

Maximum Spray Pressure (kPa): 33000
Maximum Spray Pressure (MPa): 33
Maximum Spray Pressure (psi): 4750

Maximum Working Pressure (bar): 330
Maximum Working Pressure (kPa): 33000
Maximum Working Pressure (MPa): 33
Maximum Working Pressure (psi): 4750
Measuring Type: Fixed Mechanical Positive Displacement

Minimum Fluid Viscosity (cP): 200

Mix Ratio: 2:1

Power Source: Air

Product Type: Plural Component

$123,050.00

XP System, XP50S, 2:1, 290/145, 480H, Eh

GG 578233

XP SYSTEM, XP50S, 2:1, 290/145, 480H, EH

Graco 578233 XP50 High Flow Skid, 2:1 Mix Ratio, 480V, Hazardous Viscon HF Heaters, Hazardous Junction Box, Electric Heated Hose Control

The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 25 gallon heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications â€“ making you more productive.

Approved for Ordinary Location use, Designed for Hazardous Location approval
25 gallon Stainless Steel lined hoppers with heater and agitator
Solvent flush pump included

Series: XP50s-hf

Air Inlet Size (in): 1
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM

Applicator Type: Automatic Airless, Manual Airless

Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents

Component Type: Plural-Component
Configuration: Electric Heated Hose

Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT

Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Solvent

Hose Length (ft): 35
Hose Length (m): 10.7

Location Category: Hazardous Location

Material Application: Coatings, Paints, Primers

Maximum Cycle Rate (CPM): 40

Maximum Flow Rate (cc/min): 17400

Maximum Flow Rate (GPM): 4.6
Maximum Flow Rate (L/min): 17.4

Maximum Fluid Temperature (Â°C): 71
Maximum Fluid Temperature (Â°F): 160
Maximum Fluid Viscosity (cP): 20000

Maximum Hose Length (ft): 300
Maximum Hose Length (m): 91.4

Maximum Operating Temperature (Â°C): 54
Maximum Operating Temperature (Â°F): 130

Maximum Spray Pressure (bar): 330

Maximum Spray Pressure (kPa): 33000
Maximum Spray Pressure (MPa): 33
Maximum Spray Pressure (psi): 4750

Maximum Working Pressure (bar): 330
Maximum Working Pressure (kPa): 33000
Maximum Working Pressure (MPa): 33
Maximum Working Pressure (psi): 4750
Measuring Type: Fixed Mechanical Positive Displacement

Minimum Fluid Viscosity (cP): 200

Mix Ratio: 2:1

Power Source: Air

Product Type: Plural Component

$182,040.00

XP System, XP50S, 3:1, 290/97, 240, Wj

GG 578301

XP SYSTEM, XP50S, 3:1, 290/97, 240, WJ

Graco 578301 XP50s-hf Skid System, Non-Hazardous, 3:1 With Water Jacketed Hose, 240V

The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 25 gallon heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications â€“ making you more productive.

Approved for Ordinary Location use
25 gallon Stainless Steel lined hoppers with heater and agitator
Solvent flush pump included

Series: XP50s-hf

Air Inlet Size (in): 1
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM

Applicator Type: Automatic Airless, Manual Airless

Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents

Component Type: Plural-Component
Configuration: Water Jacketed Hose

Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT

Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Solvent

Hose Length (ft): 35
Hose Length (m): 10.7

Includes: Merkur Solvent Flush Pump, Remote Manifold Carriage, XTR5+ Gun, 35 ft Integration Hose and Static Mixer, Heated Hose Controller, Ratio Check Kit

Location Category: Non-Hazardous Location

Material Application: Coatings, Paints, Primers

Maximum Cycle Rate (CPM): 40

Maximum Flow Rate (cc/min): 15480

Maximum Flow Rate (GPM): 4
Maximum Flow Rate (L/min): 15.1

Maximum Fluid Temperature (Â°C): 71
Maximum Fluid Temperature (Â°F): 160
Maximum Fluid Viscosity (cP): 20000

Maximum Hose Length (ft): 300
Maximum Hose Length (m): 91.4

Maximum Operating Temperature (Â°C): 54
Maximum Operating Temperature (Â°F): 130

Maximum Spray Pressure (bar): 345

Maximum Spray Pressure (kPa): 34500
Maximum Spray Pressure (MPa): 34.5
Maximum Spray Pressure (psi): 5000

Maximum Working Pressure (bar): 345
Maximum Working Pressure (kPa): 34500
Maximum Working Pressure (MPa): 34.5
Maximum Working Pressure (psi): 5000
Measuring Type: Fixed Mechanical Positive Displacement

Minimum Fluid Viscosity (cP): 200

Mix Ratio: 3:1

Power Source: Air

Product Type: Plural Component

$100,400.00

XP System, XP50S, 3:1, 290/97, 240, Eh

GG 578303

XP SYSTEM, XP50S, 3:1, 290/97, 240, EH

Graco 578303 XP50s-hf Skid System, Non-Hazardous, 3:1 With Electric Heated Hose, 240V

The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 94 litres heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications â€“ making you more productive.

Approved for Ordinary Location use
94 litres Stainless Steel lined hoppers with heater and agitator
Solvent flush pump included

Series: XP50s-hf

Air Inlet Size (in): 1
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM

Applicator Type: Automatic Airless, Manual Airless

Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents

Component Type: Plural-Component
Configuration: Electric Heated Hose

Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT

Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Solvent

Hose Length (ft): 35
Hose Length (m): 10.7

Includes: Merkur Solvent Flush Pump, Remote Manifold Carriage, XTR5+ Gun, 35 ft Integration Hose and Static Mixer, Electric Heated Hose Controller, Ratio Check Kit

Location Category: Non-Hazardous Location

Material Application: Coatings, Paints, Primers

Maximum Cycle Rate (CPM): 40

Maximum Flow Rate (cc/min): 15480

Maximum Flow Rate (GPM): 4
Maximum Flow Rate (L/min): 15.1

Maximum Fluid Temperature (Â°C): 71
Maximum Fluid Temperature (Â°F): 160
Maximum Fluid Viscosity (cP): 20000

Maximum Hose Length (ft): 300
Maximum Hose Length (m): 91.4

Maximum Operating Temperature (Â°C): 54
Maximum Operating Temperature (Â°F): 130

Maximum Spray Pressure (bar): 345

Maximum Spray Pressure (kPa): 34500
Maximum Spray Pressure (MPa): 34.5
Maximum Spray Pressure (psi): 5000

Maximum Working Pressure (bar): 345
Maximum Working Pressure (kPa): 34500
Maximum Working Pressure (MPa): 34.5
Maximum Working Pressure (psi): 5000
Measuring Type: Fixed Mechanical Positive Displacement

Minimum Fluid Viscosity (cP): 200

Mix Ratio: 3:1

Power Source: Air

Product Type: Plural Component

$99,590.00

XP System, XP50S, 3:1, 290/97, 240H, Wj

GG 578311

XP SYSTEM, XP50S, 3:1, 290/97, 240H, WJ

Graco 578311 XP50s-hf Skid System, Hazardous Location, 3:1 With Water Jacketed Hose, 240V

The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 25 gallon heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications â€“ making you more productive.

Approved for Ordinary Location use, Designed for Hazardous Location approval
25 gallon Stainless Steel lined hoppers with heater and agitator
Solvent flush pump included

Series: XP50s-hf

Air Inlet Size (in): 1
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM

Applicator Type: Automatic Airless, Manual Airless

Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents

Component Type: Plural-Component
Configuration: Water Jacketed Hose

Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT

Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Solvent

Hose Length (ft): 35
Hose Length (m): 10.7

Includes: Merkur Solvent Flush Pump, Remote Manifold Carriage, XTR5+ Gun, 35 ft Integration Hose and Static Mixer, Heated Hose Controller, Ratio Check Kit

Location Category: Hazardous Location

Material Application: Coatings, Paints, Primers

Maximum Cycle Rate (CPM): 40

Maximum Flow Rate (cc/min): 15480

Maximum Flow Rate (GPM): 4
Maximum Flow Rate (L/min): 15.1

Maximum Fluid Temperature (Â°C): 71
Maximum Fluid Temperature (Â°F): 160
Maximum Fluid Viscosity (cP): 20000

Maximum Hose Length (ft): 300
Maximum Hose Length (m): 91.4

Maximum Operating Temperature (Â°C): 54
Maximum Operating Temperature (Â°F): 130

Maximum Spray Pressure (bar): 345

Maximum Spray Pressure (kPa): 34500
Maximum Spray Pressure (MPa): 34.5
Maximum Spray Pressure (psi): 5000

Maximum Working Pressure (bar): 345
Maximum Working Pressure (kPa): 34500
Maximum Working Pressure (MPa): 34.5
Maximum Working Pressure (psi): 5000
Measuring Type: Fixed Mechanical Positive Displacement

Minimum Fluid Viscosity (cP): 200

Mix Ratio: 3:1

Power Source: Air

Product Type: Plural Component

$123,050.00

XP System, XP50S, 3:1, 290/97, 240H, Eh

GG 578313

XP SYSTEM, XP50S, 3:1, 290/97, 240H, EH

Graco 578313 XP50s-hf Skid System, Hazardous Location, 3:1 With Electric Heated Hose, 240V

The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 25 gallon heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications â€“ making you more productive.

Approved for Ordinary Location use, Designed for Hazardous Location approval
25 gallon Stainless Steel lined hoppers with heater and agitator
Solvent flush pump included

Series: XP50s-hf

Air Inlet Size (in): 1
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM

Applicator Type: Automatic Airless, Manual Airless

Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents

Component Type: Plural-Component
Configuration: Electric Heated Hose

Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT

Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Solvent

Hose Length (ft): 35
Hose Length (m): 10.7

Includes: Merkur Solvent Flush Pump, Remote Manifold Carriage, XTR5+ Gun, 35 ft Integration Hose and Static Mixer, Electric Heated Hose Controller, Ratio Check Kit

Location Category: Hazardous Location

Material Application: Coatings, Paints, Primers

Maximum Cycle Rate (CPM): 40

Maximum Flow Rate (cc/min): 15480

Maximum Flow Rate (GPM): 4
Maximum Flow Rate (L/min): 15.1

Maximum Fluid Temperature (Â°C): 71
Maximum Fluid Temperature (Â°F): 160
Maximum Fluid Viscosity (cP): 20000

Maximum Hose Length (ft): 300
Maximum Hose Length (m): 91.4

Maximum Operating Temperature (Â°C): 54
Maximum Operating Temperature (Â°F): 130

Maximum Spray Pressure (bar): 345

Maximum Spray Pressure (kPa): 34500
Maximum Spray Pressure (MPa): 34.5
Maximum Spray Pressure (psi): 5000

Maximum Working Pressure (bar): 345
Maximum Working Pressure (kPa): 34500
Maximum Working Pressure (MPa): 34.5
Maximum Working Pressure (psi): 5000
Measuring Type: Fixed Mechanical Positive Displacement

Minimum Fluid Viscosity (cP): 200

Mix Ratio: 3:1

Power Source: Air

Product Type: Plural Component

$122,210.00

XP System, XP50S, 3:1, 290/97, 480, Wj

GG 578321

XP SYSTEM, XP50S, 3:1, 290/97, 480, WJ

Graco 578321 XP50 High Flow Skid, 3:1 Mix Ratio, 480V, Viscon HF Heaters, Junction Box, Water Heated Hose Control

The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 94 litres heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications â€“ making you more productive.

Approved for Ordinary Location use
94 litres Stainless Steel lined hoppers with heater and agitator
Solvent flush pump included

Series: XP50s-hf

Air Inlet Size (in): 1
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM

Applicator Type: Automatic Airless, Manual Airless

Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents

Component Type: Plural-Component
Configuration: Water Jacketed Hose

Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT

Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Solvent

Hose Length (ft): 35
Hose Length (m): 10.7

Location Category: Non-Hazardous Location

Material Application: Coatings, Paints, Primers

Maximum Cycle Rate (CPM): 40

Maximum Flow Rate (cc/min): 15480

Maximum Flow Rate (GPM): 4
Maximum Flow Rate (L/min): 15.1

Maximum Fluid Temperature (Â°C): 71
Maximum Fluid Temperature (Â°F): 160
Maximum Fluid Viscosity (cP): 20000

Maximum Hose Length (ft): 300
Maximum Hose Length (m): 91.4

Maximum Operating Temperature (Â°C): 54
Maximum Operating Temperature (Â°F): 130

Maximum Spray Pressure (bar): 345

Maximum Spray Pressure (kPa): 34500
Maximum Spray Pressure (MPa): 34.5
Maximum Spray Pressure (psi): 5000

Maximum Working Pressure (bar): 345
Maximum Working Pressure (kPa): 34500
Maximum Working Pressure (MPa): 34.5
Maximum Working Pressure (psi): 5000
Measuring Type: Fixed Mechanical Positive Displacement

Minimum Fluid Viscosity (cP): 200

Mix Ratio: 3:1

Power Source: Air

Product Type: Plural Component

$100,400.00

XP System, XP50S, 3:1, 290/97, 480, Eh

GG 578323

XP SYSTEM, XP50S, 3:1, 290/97, 480, EH

Graco 578323 XP50 High Flow Skid, 3:1 Mix Ratio, 480V, Viscon HF Heaters, Junction Box, Electric Heated Hose Control

The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 25 gallon heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications â€“ making you more productive.

Approved for Ordinary Location use
25 gallon Stainless Steel lined hoppers with heater and agitator
Solvent flush pump included

Series: XP50s-hf

Air Inlet Size (in): 1
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM

Applicator Type: Automatic Airless, Manual Airless

Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents

Component Type: Plural-Component
Configuration: Electric Heated Hose

Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT

Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Solvent

Hose Length (ft): 35
Hose Length (m): 10.7

Location Category: Non-Hazardous Location

Material Application: Coatings, Paints, Primers

Maximum Cycle Rate (CPM): 40

Maximum Flow Rate (cc/min): 15480

Maximum Flow Rate (GPM): 4
Maximum Flow Rate (L/min): 15.1

Maximum Fluid Temperature (Â°C): 71
Maximum Fluid Temperature (Â°F): 160
Maximum Fluid Viscosity (cP): 20000

Maximum Hose Length (ft): 300
Maximum Hose Length (m): 91.4

Maximum Operating Temperature (Â°C): 54
Maximum Operating Temperature (Â°F): 130

Maximum Spray Pressure (bar): 345

Maximum Spray Pressure (kPa): 34500
Maximum Spray Pressure (MPa): 34.5
Maximum Spray Pressure (psi): 5000

Maximum Working Pressure (bar): 345
Maximum Working Pressure (kPa): 34500
Maximum Working Pressure (MPa): 34.5
Maximum Working Pressure (psi): 5000
Measuring Type: Fixed Mechanical Positive Displacement

Minimum Fluid Viscosity (cP): 200

Mix Ratio: 3:1

Power Source: Air

Product Type: Plural Component

$101,710.00

XP System, XP50S, 3:1, 290/97, 480H, Wj

GG 578331

XP SYSTEM, XP50S, 3:1, 290/97, 480H, WJ

Graco 578331 XP50 High Flow Skid, 3:1 Mix Ratio, 480V, Hazardous Viscon HF Heaters, Hazardous Junction Box, Water Heated Hose Control

The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 25 gallon heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications â€“ making you more productive.

Approved for Ordinary Location use, Designed for Hazardous Location approval
25 gallon Stainless Steel lined hoppers with heater and agitator
Solvent flush pump included

Series: XP50s-hf

Air Inlet Size (in): 1
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM

Applicator Type: Automatic Airless, Manual Airless

Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents

Component Type: Plural-Component
Configuration: Water Jacketed Hose

Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT

Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Solvent

Hose Length (ft): 35
Hose Length (m): 10.7

Location Category: Hazardous Location

Material Application: Coatings, Paints, Primers

Maximum Cycle Rate (CPM): 40

Maximum Flow Rate (cc/min): 15480

Maximum Flow Rate (GPM): 4
Maximum Flow Rate (L/min): 15.1

Maximum Fluid Temperature (Â°C): 71
Maximum Fluid Temperature (Â°F): 160
Maximum Fluid Viscosity (cP): 20000

Maximum Hose Length (ft): 300
Maximum Hose Length (m): 91.4

Maximum Operating Temperature (Â°C): 54
Maximum Operating Temperature (Â°F): 130

Maximum Spray Pressure (bar): 345

Maximum Spray Pressure (kPa): 34500
Maximum Spray Pressure (MPa): 34.5
Maximum Spray Pressure (psi): 5000

Maximum Working Pressure (bar): 345
Maximum Working Pressure (kPa): 34500
Maximum Working Pressure (MPa): 34.5
Maximum Working Pressure (psi): 5000
Measuring Type: Fixed Mechanical Positive Displacement

Minimum Fluid Viscosity (cP): 200

Mix Ratio: 3:1

Power Source: Air

Product Type: Plural Component

$123,050.00

XP System, XP50S, 3:1, 290/97, 480H, Eh

GG 578333

XP SYSTEM, XP50S, 3:1, 290/97, 480H, EH

Graco 578333 XP50 High Flow Skid, 3:1 Mix Ratio, 480V, Hazardous Viscon HF Heaters, Hazardous Junction Box, Electric Heated Hose Control

The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 25 gallon heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications â€“ making you more productive.

Approved for Ordinary Location use, Designed for Hazardous Location approval
25 gallon Stainless Steel lined hoppers with heater and agitator
Solvent flush pump included

Series: XP50s-hf

Air Inlet Size (in): 1
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM

Applicator Type: Automatic Airless, Manual Airless

Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents

Component Type: Plural-Component
Configuration: Electric Heated Hose

Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT

Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Solvent

Hose Length (ft): 35
Hose Length (m): 10.7

Location Category: Hazardous Location

Material Application: Coatings, Paints, Primers

Maximum Cycle Rate (CPM): 40

Maximum Flow Rate (cc/min): 15480

Maximum Flow Rate (GPM): 4
Maximum Flow Rate (L/min): 15.1

Maximum Fluid Temperature (Â°C): 71
Maximum Fluid Temperature (Â°F): 160
Maximum Fluid Viscosity (cP): 20000

Maximum Hose Length (ft): 300
Maximum Hose Length (m): 91.4

Maximum Operating Temperature (Â°C): 54
Maximum Operating Temperature (Â°F): 130

Maximum Spray Pressure (bar): 345

Maximum Spray Pressure (kPa): 34500
Maximum Spray Pressure (MPa): 34.5
Maximum Spray Pressure (psi): 5000

Maximum Working Pressure (bar): 345
Maximum Working Pressure (kPa): 34500
Maximum Working Pressure (MPa): 34.5
Maximum Working Pressure (psi): 5000
Measuring Type: Fixed Mechanical Positive Displacement

Minimum Fluid Viscosity (cP): 200

Mix Ratio: 3:1

Power Source: Air

Product Type: Plural Component

$182,040.00

XP System, XP50S, 4:1, 290/72, 240, Wj

GG 578401

XP SYSTEM, XP50S, 4:1, 290/72, 240, WJ

Graco 578401 XP50s-hf Skid System, Non-Hazardous, 4:1 With Water Jacketed Hose, 240V

The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 25 gallon heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications â€“ making you more productive.

Approved for Ordinary Location use
25 gallon Stainless Steel lined hoppers with heater and agitator
Solvent flush pump included

Series: XP50s-hf

Air Inlet Size (in): 1
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM

Applicator Type: Automatic Airless, Manual Airless

Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents

Component Type: Plural-Component
Configuration: Water Jacketed Hose

Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT

Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Solvent

Hose Length (ft): 35
Hose Length (m): 10.7

Includes: Merkur Solvent Flush Pump, Remote Manifold Carriage, XTR5+ Gun, 35 ft Integration Hose and Static Mixer, Heated Hose Controller, Ratio Check Kit

Location Category: Non-Hazardous Location

Material Application: Coatings, Paints, Primers

Maximum Cycle Rate (CPM): 40

Maximum Flow Rate (cc/min): 14480

Maximum Flow Rate (GPM): 3.8
Maximum Flow Rate (L/min): 14.4

Maximum Fluid Temperature (Â°C): 71
Maximum Fluid Temperature (Â°F): 160
Maximum Fluid Viscosity (cP): 20000

Maximum Hose Length (ft): 300
Maximum Hose Length (m): 91.4

Maximum Operating Temperature (Â°C): 54
Maximum Operating Temperature (Â°F): 130

Maximum Spray Pressure (bar): 345

Maximum Spray Pressure (kPa): 34500
Maximum Spray Pressure (MPa): 34.5
Maximum Spray Pressure (psi): 5000

Maximum Working Pressure (bar): 345
Maximum Working Pressure (kPa): 34500
Maximum Working Pressure (MPa): 34.5
Maximum Working Pressure (psi): 5000
Measuring Type: Fixed Mechanical Positive Displacement

Minimum Fluid Viscosity (cP): 200

Mix Ratio: 4:1

Power Source: Air

Product Type: Plural Component

$100,400.00

XP System, XP50S, 4:1, 290/72, 240, Eh

GG 578403

XP SYSTEM, XP50S, 4:1, 290/72, 240, EH

Graco 578403 XP50s-hf Skid System, Non-Hazardous, 4:1 With Electric Heated Hose, 240V

The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 94 litres heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications â€“ making you more productive.

Approved for Ordinary Location use
94 litres Stainless Steel lined hoppers with heater and agitator
Solvent flush pump included

Series: XP50s-hf

Air Inlet Size (in): 1
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM

Applicator Type: Automatic Airless, Manual Airless

Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents

Component Type: Plural-Component
Configuration: Electric Heated Hose

Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT

Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Solvent

Hose Length (ft): 35
Hose Length (m): 10.7

Includes: Merkur Solvent Flush Pump, Remote Manifold Carriage, XTR5+ Gun, 35 ft Integration Hose and Static Mixer, Electric Heated Hose Controller, Ratio Check Kit

Location Category: Non-Hazardous Location

Material Application: Coatings, Paints, Primers

Maximum Cycle Rate (CPM): 40

Maximum Flow Rate (cc/min): 14480

Maximum Flow Rate (GPM): 3.8
Maximum Flow Rate (L/min): 14.4

Maximum Fluid Temperature (Â°C): 71
Maximum Fluid Temperature (Â°F): 160
Maximum Fluid Viscosity (cP): 20000

Maximum Hose Length (ft): 300
Maximum Hose Length (m): 91.4

Maximum Operating Temperature (Â°C): 54
Maximum Operating Temperature (Â°F): 130

Maximum Spray Pressure (bar): 345

Maximum Spray Pressure (kPa): 34500
Maximum Spray Pressure (MPa): 34.5
Maximum Spray Pressure (psi): 5000

Maximum Working Pressure (bar): 345
Maximum Working Pressure (kPa): 34500
Maximum Working Pressure (MPa): 34.5
Maximum Working Pressure (psi): 5000
Measuring Type: Fixed Mechanical Positive Displacement

Minimum Fluid Viscosity (cP): 200

Mix Ratio: 4:1

Power Source: Air

Product Type: Plural Component

$99,590.00

XP System, XP50S, 4:1, 290/72, 240H, Wj

GG 578411

XP SYSTEM, XP50S, 4:1, 290/72, 240H, WJ

Graco 578411 XP50s-hf Skid System, Hazardous Location, 4:1 With Water Jacketed Hose, 240V

The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 25 gallon heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications â€“ making you more productive.

Approved for Ordinary Location use, Designed for Hazardous Location approval
25 gallon Stainless Steel lined hoppers with heater and agitator
Solvent flush pump included

Series: XP50s-hf

Air Inlet Size (in): 1
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM

Applicator Type: Automatic Airless, Manual Airless

Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents

Component Type: Plural-Component
Configuration: Water Jacketed Hose

Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT

Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Solvent

Hose Length (ft): 35
Hose Length (m): 10.7

Includes: Merkur Solvent Flush Pump, Remote Manifold Carriage, XTR5+ Gun, 35 ft Integration Hose and Static Mixer, Heated Hose Controller, Ratio Check Kit

Location Category: Hazardous Location

Material Application: Coatings, Paints, Primers

Maximum Cycle Rate (CPM): 40

Maximum Flow Rate (cc/min): 14480

Maximum Flow Rate (GPM): 3.8
Maximum Flow Rate (L/min): 14.4

Maximum Fluid Temperature (Â°C): 71
Maximum Fluid Temperature (Â°F): 160
Maximum Fluid Viscosity (cP): 20000

Maximum Hose Length (ft): 300
Maximum Hose Length (m): 91.4

Maximum Operating Temperature (Â°C): 54
Maximum Operating Temperature (Â°F): 130

Maximum Spray Pressure (bar): 345

Maximum Spray Pressure (kPa): 34500
Maximum Spray Pressure (MPa): 34.5
Maximum Spray Pressure (psi): 5000

Maximum Working Pressure (bar): 345
Maximum Working Pressure (kPa): 34500
Maximum Working Pressure (MPa): 34.5
Maximum Working Pressure (psi): 5000
Measuring Type: Fixed Mechanical Positive Displacement

Minimum Fluid Viscosity (cP): 200

Mix Ratio: 4:1

Power Source: Air

Product Type: Plural Component

$123,050.00

XP System, XP50S, 4:1, 290/72, 240H, Eh

GG 578413

XP SYSTEM, XP50S, 4:1, 290/72, 240H, EH

Graco 578413 XP50s-hf Skid System, Hazardous Location, 4:1 With Electric Heated Hose, 240V

The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 25 gallon heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications â€“ making you more productive.

Approved for Ordinary Location use, Designed for Hazardous Location approval
25 gallon Stainless Steel lined hoppers with heater and agitator
Solvent flush pump included

Series: XP50s-hf

Air Inlet Size (in): 1
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM

Applicator Type: Automatic Airless, Manual Airless

Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents

Component Type: Plural-Component
Configuration: Electric Heated Hose

Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT

Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Solvent

Hose Length (ft): 35
Hose Length (m): 10.7

Includes: Merkur Solvent Flush Pump, Remote Manifold Carriage, XTR5+ Gun, 35 ft Integration Hose and Static Mixer, Electric Heated Hose Controller, Ratio Check Kit

Location Category: Hazardous Location

Material Application: Coatings, Paints, Primers

Maximum Cycle Rate (CPM): 40

Maximum Flow Rate (cc/min): 14480

Maximum Flow Rate (GPM): 3.8
Maximum Flow Rate (L/min): 14.4

Maximum Fluid Temperature (Â°C): 71
Maximum Fluid Temperature (Â°F): 160
Maximum Fluid Viscosity (cP): 20000

Maximum Hose Length (ft): 300
Maximum Hose Length (m): 91.4

Maximum Operating Temperature (Â°C): 54
Maximum Operating Temperature (Â°F): 130

Maximum Spray Pressure (bar): 345

Maximum Spray Pressure (kPa): 34500
Maximum Spray Pressure (MPa): 34.5
Maximum Spray Pressure (psi): 5000

Maximum Working Pressure (bar): 345
Maximum Working Pressure (kPa): 34500
Maximum Working Pressure (MPa): 34.5
Maximum Working Pressure (psi): 5000
Measuring Type: Fixed Mechanical Positive Displacement

Minimum Fluid Viscosity (cP): 200

Mix Ratio: 4:1

Power Source: Air

Product Type: Plural Component

$122,210.00

XP System, XP50S, 4:1, 290/72, 480, Wj

GG 578421

XP SYSTEM, XP50S, 4:1, 290/72, 480, WJ

Graco 578421 XP50 High Flow Skid, 4:1 Mix Ratio, 480V, Viscon HF Heaters, Junction Box, Water Heated Hose Control

The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 94 litres heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications â€“ making you more productive.

Approved for Ordinary Location use
94 litres Stainless Steel lined hoppers with heater and agitator
Solvent flush pump included

Series: XP50s-hf

Air Inlet Size (in): 1
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM

Applicator Type: Automatic Airless, Manual Airless

Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents

Component Type: Plural-Component
Configuration: Water Jacketed Hose

Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT

Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Solvent

Hose Length (ft): 35
Hose Length (m): 10.7

Location Category: Non-Hazardous Location

Material Application: Coatings, Paints, Primers

Maximum Cycle Rate (CPM): 40

Maximum Flow Rate (cc/min): 14480

Maximum Flow Rate (GPM): 3.8
Maximum Flow Rate (L/min): 14.4

Maximum Fluid Temperature (Â°C): 71
Maximum Fluid Temperature (Â°F): 160
Maximum Fluid Viscosity (cP): 20000

Maximum Hose Length (ft): 300
Maximum Hose Length (m): 91.4

Maximum Operating Temperature (Â°C): 54
Maximum Operating Temperature (Â°F): 130

Maximum Spray Pressure (bar): 345

Maximum Spray Pressure (kPa): 34500
Maximum Spray Pressure (MPa): 34.5
Maximum Spray Pressure (psi): 5000

Maximum Working Pressure (bar): 345
Maximum Working Pressure (kPa): 34500
Maximum Working Pressure (MPa): 34.5
Maximum Working Pressure (psi): 5000
Measuring Type: Fixed Mechanical Positive Displacement

Minimum Fluid Viscosity (cP): 200

Mix Ratio: 4:1

Power Source: Air

Product Type: Plural Component

$100,400.00

XP System, XP50S, 4:1, 290/72, 480, Eh

GG 578423

XP SYSTEM, XP50S, 4:1, 290/72, 480, EH

Graco 578423 XP50 High Flow Skid, 4:1 Mix Ratio, 480V, Viscon HF Heaters, Junction Box, Electric Heated Hose Control

The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 25 gallon heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications â€“ making you more productive.

Approved for Ordinary Location use
25 gallon Stainless Steel lined hoppers with heater and agitator
Solvent flush pump included

Series: XP50s-hf

Air Inlet Size (in): 1
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM

Applicator Type: Automatic Airless, Manual Airless

Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents

Component Type: Plural-Component
Configuration: Electric Heated Hose

Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT

Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Solvent

Hose Length (ft): 35
Hose Length (m): 10.7

Location Category: Non-Hazardous Location

Material Application: Coatings, Paints, Primers

Maximum Cycle Rate (CPM): 40

Maximum Flow Rate (cc/min): 14480

Maximum Flow Rate (GPM): 3.8
Maximum Flow Rate (L/min): 14.4

Maximum Fluid Temperature (Â°C): 71
Maximum Fluid Temperature (Â°F): 160
Maximum Fluid Viscosity (cP): 20000

Maximum Hose Length (ft): 300
Maximum Hose Length (m): 91.4

Maximum Operating Temperature (Â°C): 54
Maximum Operating Temperature (Â°F): 130

Maximum Spray Pressure (bar): 345

Maximum Spray Pressure (kPa): 34500
Maximum Spray Pressure (MPa): 34.5
Maximum Spray Pressure (psi): 5000

Maximum Working Pressure (bar): 345
Maximum Working Pressure (kPa): 34500
Maximum Working Pressure (MPa): 34.5
Maximum Working Pressure (psi): 5000
Measuring Type: Fixed Mechanical Positive Displacement

Minimum Fluid Viscosity (cP): 200

Mix Ratio: 4:1

Power Source: Air

Product Type: Plural Component

$101,710.00

XP System, XP50S, 4:1, 290/72, 480H, Wj

GG 578431

XP SYSTEM, XP50S, 4:1, 290/72, 480H, WJ

Graco 578431 XP50 High Flow Skid, 4:1 Mix Ratio, 480V, Hazardous Viscon HF Heaters, Hazardous Junction Box, Water Heated Hose Control

The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 25 gallon heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications â€“ making you more productive.

Approved for Ordinary Location use, Designed for Hazardous Location approval
25 gallon Stainless Steel lined hoppers with heater and agitator
Solvent flush pump included

Series: XP50s-hf

Air Inlet Size (in): 1
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM

Applicator Type: Automatic Airless, Manual Airless

Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents

Component Type: Plural-Component
Configuration: Water Jacketed Hose

Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT

Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Solvent

Hose Length (ft): 35
Hose Length (m): 10.7

Location Category: Hazardous Location

Material Application: Coatings, Paints, Primers

Maximum Cycle Rate (CPM): 40

Maximum Flow Rate (cc/min): 14480

Maximum Flow Rate (GPM): 3.8
Maximum Flow Rate (L/min): 14.4

Maximum Fluid Temperature (Â°C): 71
Maximum Fluid Temperature (Â°F): 160
Maximum Fluid Viscosity (cP): 20000

Maximum Hose Length (ft): 300
Maximum Hose Length (m): 91.4

Maximum Operating Temperature (Â°C): 54
Maximum Operating Temperature (Â°F): 130

Maximum Spray Pressure (bar): 345

Maximum Spray Pressure (kPa): 34500
Maximum Spray Pressure (MPa): 34.5
Maximum Spray Pressure (psi): 5000

Maximum Working Pressure (bar): 345
Maximum Working Pressure (kPa): 34500
Maximum Working Pressure (MPa): 34.5
Maximum Working Pressure (psi): 5000
Measuring Type: Fixed Mechanical Positive Displacement

Minimum Fluid Viscosity (cP): 200

Mix Ratio: 4:1

Power Source: Air

Product Type: Plural Component

$123,050.00

XP System, XP50S, 4:1, 290/72, 480H, Eh

GG 578433

XP SYSTEM, XP50S, 4:1, 290/72, 480H, EH

Graco 578433 XP50 High Flow Skid, 4:1 Mix Ratio, 480V, Hazardous Viscon HF Heaters, Hazardous Junction Box, Electric Heated Hose Control

The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 94 litres heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications â€“ making you more productive.

Approved for Ordinary Location use, Designed for Hazardous Location approval
94 litres Stainless Steel lined hoppers with heater and agitator
Solvent flush pump included

Series: XP50s-hf

Air Inlet Size (in): 1
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM

Applicator Type: Automatic Airless, Manual Airless

Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents

Component Type: Plural-Component
Configuration: Electric Heated Hose

Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT

Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Flush Type: Solvent

Hose Length (ft): 35
Hose Length (m): 10.7

Location Category: Hazardous Location

Material Application: Coatings, Paints, Primers

Maximum Cycle Rate (CPM): 40

Maximum Flow Rate (cc/min): 14480

Maximum Flow Rate (GPM): 3.8
Maximum Flow Rate (L/min): 14.4

Maximum Fluid Temperature (Â°C): 71
Maximum Fluid Temperature (Â°F): 160
Maximum Fluid Viscosity (cP): 20000

Maximum Hose Length (ft): 300
Maximum Hose Length (m): 91.4

Maximum Operating Temperature (Â°C): 54
Maximum Operating Temperature (Â°F): 130

Maximum Spray Pressure (bar): 345
