GRACO INC. S10595
FILTER, 50 MICRON, 3-5/8" LG
GG 557805
FILTER, 50 MICRON, 3-5/8" LG
Replacement Cartridge for Trabon Filter Assemblies, 50-micron Standard; Lubriquip part 540-273-001, replaces part 540-273-000 and Trabon part 40273 For use with Single and Dual Cartridge Filters.50 micron Replacement Filter Element
2-5/8 in (67 mm) OD x 3-5/8 in (92 mm) Standard Length Element
FILTER, 10 MICRON, 9-5/8" LG
GG 557806
FILTER, 10 MICRON, 9-5/8" LG
Replacement Filter Cartridge, 10-micron Ex-Lng; Lubriquip part 540-274-001, replaces part 540-274-000 and Trabon part 40274; Genuine Trabon replacement element for Lubriquip filter assemblies 183-000-070, 183-000-071, 183-000-110, 183-000-111, 183-000-200, 183-000-201 For use with Single and Dual Cartridge Filters.10 micron Replacement Filter Element
2-5/8 in (67 mm) OD x 9-5/8 in (92 mm) Extra Long Element
FILTER, 50 MICRON, 9-5/8" LG
GG 557808
FILTER, 50 MICRON, 9-5/8" LG
Replacement Cartridge for Trabon Filter Assemblies, 50-micron Extra-Long; Lubriquip part 540-276-001, replaces Lubriquip part number 540-276-000 and Trabon part number 40276 For use with Single and Dual Cartridge Filters.50 micron Replacement Filter Element
2-5/8 in (67 mm) OD x 9-5/8 in (92 mm) Extra Long Element
FILTER, TANK
GG 557810
FILTER, TANK
Suction Strainer for Miniature Meter-Flo®; Lubriquip part number 540-666-008 For use with Miniature Meter Flo Pumps.Suction Strainer
FILTER, 1 MICRON, 10 LG
GG 557811
FILTER, 1 MICRON, 10 LG
Replacement Cartridge for Trabon Filter Assemblies, 1-2 micron Extra-Long; Lubriquip part 540-686-001, replaces Lubriquip part number 540-686-000 and Trabon part number 40686 For use with Single and Dual Cartridge Filters.1-2 micron Extra-Long Replacement Filter Cartridge
2-5/8 in (67 mm) OD x 9-5/8 in (92 mm) Extra Long Element
METER-FLO PUMP, 111/167 CU IN/MIN CCW NPT
GG 557817
METER-FLO PUMP, 111/167 CU IN/MIN CCW NPT
Meter-Flo® Electric Pump, 168 cu in/min (2753 cc/min) @ 1,725 rpm, NPT Ports, CCWWith its solid pump housing, these rugged gear pumps are designed for dependable operation in high demand applications. The gear pump is available with a direct-coupled 1/2 horsepower motor capable of 1,725 rpm’s with output volumes of 245 cubic inches per minute (4015 cc/min).
Direct-drive, smoothly operating pumps ideal for applications requiring continuous delivery of hydraulic or lube oils. Ideal for applications requiring continuous oil delivery up to 1,000 lubrication points Positive displacement helps assure constant delivery of proper volume. Match-ground heat-treated steel gears are enclosed in a rigid, cast-iron housing to assure dependability and long life. Standard SAE 4-bolt mounting simplifies installation. Adjustable pressure relief valve protects pump against overload conditions. Meter-flo pumps are available with a special coupling that allows easy replacement of older Meter-Flo pumps. Lubriquip part number 540-800-061
METER-FLO PUMP, 9/14 CU IN/MIN CW NPT
GG 557819
METER-FLO PUMP, 9/14 CU IN/MIN CW NPT
Meter-Flo® Electric Pump, 14 cu in/min (229 cc/min) @ 1,725 rpm, NPT Ports, CWWith its solid pump housing, these rugged gear pumps are designed for dependable operation in high demand applications. The gear pump is available with a direct-coupled 1/2 horsepower motor capable of 1,725 rpm’s with output volumes of 245 cubic inches per minute (4015 cc/min).
Direct-drive, smoothly operating pumps ideal for applications requiring continuous delivery of hydraulic or lube oils. Ideal for applications requiring continuous oil delivery up to 1,000 lubrication points Positive displacement helps assure constant delivery of proper volume. Match-ground heat-treated steel gears are enclosed in a rigid, cast-iron housing to assure dependability and long life. Standard SAE 4-bolt mounting simplifies installation. Adjustable pressure relief valve protects pump against overload conditions. Meter-flo pumps are available with a special coupling that allows easy replacement of older Meter-Flo pumps. Lubriquip part number 540-800-101
KIT, REPAIR, 4L PADDLE
GG 571046
KIT, REPAIR, 4L PADDLE
G-Series Repair Kit - 4-8L Reservoir, Paddle For use with G-Series Pumps.Stirring Paddle - 4 and 8 Liter models without follower plates
KIT, ACC, OUTPUT ADAPTER BSPP
GG 571070
KIT, ACC, OUTPUT ADAPTER BSPP
G-Series Pump Accessories - Pressure Relief Valve Adapter, 1/4” BSPP For use with G-Series Pumps.Pressure relief valve adapter, 1/4” BSPP
KIT, ACC, OUTPUT UNION 2 PUMPS
GG 571063
KIT, ACC, OUTPUT UNION 2 PUMPS
G-Series Pump Accessories - Two Pump Union Kit For use with G-Series Pumps.Two pump union kit–combines the output of the left and right pumps for larger lubrication needs
XP SYSTEM, 1:1, 90/90, BF, CH, HS
GG 571104
XP SYSTEM, 1:1, 90/90, BF, CH, HS
XP70 Cart System, Hazardous Location, 1:1 With Primary Heaters, 240VThe Graco XP70 Plural-Component Sprayer is designed to pump, mix and atomize high-viscosity, high-solids coatings with superior results. In addition, the XP70’s design allows you to gravity feed, which may eliminate the need for feed pumps, saving you money. When you upgrade from hand mixing, you'll find that the XP70 provides excellent return on investment, by reducing material waste and by using less clean-up solvent.
High-pressure performance for two-part high-solids coatings. Reduced material waste No more throwing away unused mixed material at the end of the day Save money by using less clean-up solvent Consistent material quality - no more guesswork or human error in measuring materials Easy to operate - minimal training required Reduced maintenance costs Rated for 7250 psi (500 bar, 50 MPa) to handle viscous materials and long hose lengths
KIT, ACC, COVER WITH "G" LOGO
GG 571036
KIT, ACC, COVER WITH "G" LOGO
G-Series Pump Accessories - Protective Front Cover Kit For use with G-Series Pumps.Protective front cover kit–snaps over the front control panel on Pro and Max G3 models–black
KIT, 4L RESERVOIR UPSIZE
GG 571155
KIT, 4L RESERVOIR UPSIZE
Reservoir Repair Kit - 4L Reservoir with Low Level For use with G3 Pumps.Repair kit 4L reservoir with low level
KIT, REPAIR, 2L RESERVOIR FP
GG 571069
KIT, REPAIR, 2L RESERVOIR FP
G-Series Repair Kit - 2L Reservoir For use with G-Series Pumps.Reservoir Repair Kit - for 2 Liter models without follow plate
KIT, 8L RESERVOIR UPSIZE
GG 571156
KIT, 8L RESERVOIR UPSIZE
Reservoir Repair Kit - 8L Reservoir with Low Level For use with G3 Pumps.Repair kit 8L reservoir with low level
KIT, 12L RESERVOIR UPSIZE
GG 571157
KIT, 12L RESERVOIR UPSIZE
Reservoir Repair Kit - 12L Reservoir with Low Level For use with G3 Pumps.Repair kit 12L reservoir with low level
KIT, 16L RESERVOIR UPSIZE
GG 571158
KIT, 16L RESERVOIR UPSIZE
Reservoir Repair Kit - 16L Reservoir with Low Level For use with G3 Pumps.Repair kit 16L reservoir with low level
VALVE, VENT 12VDC N.C. NPT
GG 571169
VALVE, VENT 12VDC N.C. NPT
Direct-Mount Vent Valves for G3™ Pumps - NPT, 12 VDC, 500-3500 psi (35-241 bar), Normally Closed, RHIndustry leading feature for your lube system needs.
Vent valves are designed to be mounted to the G3 Electric Lubrication Pump to make it simple to install your injector based lube systems. Easily mounts to your G3 pump. Eliminates time and material costs associated with remote mounted vent valves. 12 VDC Normally Closed The normally closed valve works with the G3 Max pumps controller, and vents pressure based on the time duration you program into the G3 control. Adjustable pressure relief is integrated into the valve, no need to purchase an additional relief valve.
VALVE, VENT 24VDC N.C. BSPP
GG 571172
VALVE, VENT 24VDC N.C. BSPP
Direct-Mount Vent Valves for G3™ Pumps - BSPP, 24 VDC, 500-3500 psi (35-241 bar), Normally Closed, RHIndustry leading feature for your lube system needs.
Vent valves are designed to be mounted to the G3 Electric Lubrication Pump to make it simple to install your injector based lube systems. Easily mounts to your G3 pump. Eliminates time and material costs associated with remote mounted vent valves. 24 VDC Normally Closed The normally closed valve works with the G3 Max pumps controller, and vents pressure based on the time duration you program into the G3 control. Adjustable pressure relief is integrated into the valve, no need to purchase an additional relief valve.Deutsch Power Connection
XP SYSTEM, 2:1, 115/58, BF, CH, HS
GG 571204
XP SYSTEM, 2:1, 115/58, BF, CH, HS
XP70 Cart System, Hazardous Location, 2:1 With Primary Heaters, 240VThe Graco XP70 Plural-Component Sprayer is designed to pump, mix and atomize high-viscosity, high-solids coatings with superior results. In addition, the XP70’s design allows you to gravity feed, which may eliminate the need for feed pumps, saving you money. When you upgrade from hand mixing, you'll find that the XP70 provides excellent return on investment, by reducing material waste and by using less clean-up solvent.
High-pressure performance for two-part high-solids coatings. Reduced material waste No more throwing away unused mixed material at the end of the day Save money by using less clean-up solvent Consistent material quality - no more guesswork or human error in measuring materials Easy to operate - minimal training required Reduced maintenance costs Rated for 7250 psi (500 bar, 50 MPa) to handle viscous materials and long hose lengths
XP SYSTEM, 2:1, 115/58, BF, CH
GG 571202
XP SYSTEM, 2:1, 115/58, BF, CH
XP70 Cart System, Hazardous Location, 2:1 Bare, 240VThe Graco XP70 Plural-Component Sprayer is designed to pump, mix and atomize high-viscosity, high-solids coatings with superior results. In addition, the XP70’s design allows you to gravity feed, which may eliminate the need for feed pumps, saving you money. When you upgrade from hand mixing, you'll find that the XP70 provides excellent return on investment, by reducing material waste and by using less clean-up solvent.
High-pressure performance for two-part high-solids coatings. Reduced material waste No more throwing away unused mixed material at the end of the day Save money by using less clean-up solvent Consistent material quality - no more guesswork or human error in measuring materials Easy to operate - minimal training required Reduced maintenance costs Rated for 7250 psi (500 bar, 50 MPa) to handle viscous materials and long hose lengths
KIT, REPAIR, RESERVOIR, OIL 4L
GG 571182
KIT, REPAIR, RESERVOIR, OIL 4L
G3 Reservoir and O-Ring Replacement Kit - 4 Liter, Oil For use with G-Series Pumps.4 Liter Reservoir, Oil Models
KIT, REPAIR, RESERVOIR, OIL 2L
GG 571179
KIT, REPAIR, RESERVOIR, OIL 2L
G-Series Repair Kit - 2L Reservoir For use with G-Series Pumps.Reservoir Repair Kit - for 2 Liter Oil models
COVER, FRONT, W/ LOGO, CLEAR
GG 571255
COVER, FRONT, W/ LOGO, CLEAR
Protective Front Cover Kit for G-Series Pumps, Clear For use with G3 Pro and Max Pumps.Protective front cover kit–snaps over the front control panel on Pro and Max G3 models–clear
XP SYSTEM, 3:1, 145/48, BF, CH
GG 571302
XP SYSTEM, 3:1, 145/48, BF, CH
XP70 Cart System, Hazardous Location, 3:1 Bare, 240VThe Graco XP70 Plural-Component Sprayer is designed to pump, mix and atomize high-viscosity, high-solids coatings with superior results. In addition, the XP70’s design allows you to gravity feed, which may eliminate the need for feed pumps, saving you money. When you upgrade from hand mixing, you'll find that the XP70 provides excellent return on investment, by reducing material waste and by using less clean-up solvent.
High-pressure performance for two-part high-solids coatings. Reduced material waste No more throwing away unused mixed material at the end of the day Save money by using less clean-up solvent Consistent material quality - no more guesswork or human error in measuring materials Easy to operate - minimal training required Reduced maintenance costs Rated for 7250 psi (500 bar, 50 MPa) to handle viscous materials and long hose lengths

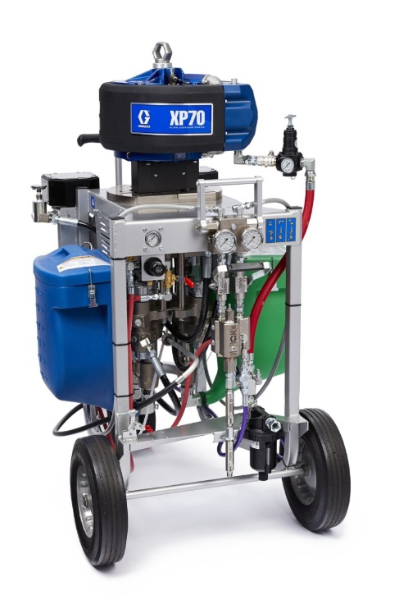

XP SYSTEM, 3:1, 145/48, BF, CH, HS
GG 571304
XP SYSTEM, 3:1, 145/48, BF, CH, HS
XP50 Cart System, Hazardous Location, 3:1 With Primary Heaters, 240VThe Graco XP70 Plural-Component Sprayer is designed to pump, mix and atomize high-viscosity, high-solids coatings with superior results. In addition, the XP70’s design allows you to gravity feed, which may eliminate the need for feed pumps, saving you money. When you upgrade from hand mixing, you'll find that the XP70 provides excellent return on investment, by reducing material waste and by using less clean-up solvent.
High-pressure performance for two-part high-solids coatings. Reduced material waste No more throwing away unused mixed material at the end of the day Save money by using less clean-up solvent Consistent material quality - no more guesswork or human error in measuring materials Easy to operate - minimal training required Reduced maintenance costs Rated for 7250 psi (500 bar, 50 MPa) to handle viscous materials and long hose lengths
XP SYSTEM, 4:1, 145/36, BF, CH
GG 571402
XP SYSTEM, 4:1, 145/36, BF, CH
XP70 Cart System, Hazardous Location, 4:1 Bare, 240VThe Graco XP70 Plural-Component Sprayer is designed to pump, mix and atomize high-viscosity, high-solids coatings with superior results. In addition, the XP70's design allows you to gravity feed, which may eliminate the need for feed pumps, saving you money. When you upgrade from hand mixing, you'll find that the XP70 provides excellent return on investment, by reducing material waste and by using less clean-up solvent.
High-pressure performance for two-part high-solids coatings. Reduced material waste No more throwing away unused mixed material at the end of the day Save money by using less clean-up solvent Consistent material quality - no more guesswork or human error in measuring materials Easy to operate - minimal training required Reduced maintenance costs Rated for 7250 psi (500 bar, 50 MPa) to handle viscous materials and long hose lengths
XP SYSTEM, 4:1, 145/36, BF, CH, HS
GG 571404
XP SYSTEM, 4:1, 145/36, BF, CH, HS
XP70 Cart System, Hazardous Location, 4:1 With Primary Heaters, 240VThe Graco XP70 Plural-Component Sprayer is designed to pump, mix and atomize high-viscosity, high-solids coatings with superior results. In addition, the XP70’s design allows you to gravity feed, which may eliminate the need for feed pumps, saving you money. When you upgrade from hand mixing, you'll find that the XP70 provides excellent return on investment, by reducing material waste and by using less clean-up solvent.
High-pressure performance for two-part high-solids coatings. Reduced material waste No more throwing away unused mixed material at the end of the day Save money by using less clean-up solvent Consistent material quality - no more guesswork or human error in measuring materials Easy to operate - minimal training required Reduced maintenance costs Rated for 7250 psi (500 bar, 50 MPa) to handle viscous materials and long hose lengths
XP SYSTEM, 1:1, 145/145, BF, CH, HS
GG 572104
XP SYSTEM, 1:1, 145/145, BF, CH, HS
XP70-hf Cart System, Hazardous Location, 1:1 With Primary Heaters, 240VTwo-component spraying made easy and affordable. The XP-hf system combines the popular XP70 Sprayers with the powerful XL 10000 air motor. Combining these two technologies, you get more flow - getting jobs done faster and with less wear and tear. Engineered for more flow capacity, the Graco XP70-hf is great for applications where you want to spray with multiple guns or larger tip sizes. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
High-pressure performance for two-part high-solids coatings. Reduced material waste No more throwing away unused mixed material at the end of the day Save money by using less clean-up solvent Consistent material quality - no more guesswork or human error in measuring materials Easy to operate - minimal training required Reduced maintenance costs Rated for 7250 psi (500 bar, 50 MPa) to handle viscous materials and long hose lengths
XP SYSTEM, 1:1, 145/145, BF, CH, HS, JB
GG 572105
XP SYSTEM, 1:1, 145/145, BF, CH, HS, JB
XP70-hf Cart System, Non-Hazardous, 1:1 With Primary Heaters, 240VTwo-component spraying made easy and affordable. The XP-hf system combines the popular XP70 Sprayers with the powerful XL 10000 air motor. Combining these two technologies, you get more flow - getting jobs done faster and with less wear and tear. Engineered for more flow capacity, the Graco XP70-hf is great for applications where you want to spray with multiple guns or larger tip sizes. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
High-pressure performance for two-part high-solids coatings. Reduced material waste No more throwing away unused mixed material at the end of the day Save money by using less clean-up solvent Consistent material quality - no more guesswork or human error in measuring materials Easy to operate - minimal training required Reduced maintenance costs Rated for 7250 psi (500 bar, 50 MPa) to handle viscous materials and long hose lengths
XP System, 1:1, 145/145, Complete, Haz
GG 572106
XP SYSTEM, 1:1, 145/145, COMPLETE, HAZ
Graco 572106 XP70-hf Skid System, Hazardous Location, 1:1 With Primary Heaters Hose Heat, 240V
Two-component spraying made easy and affordable. The XP-hf system combines the popular XP70 Sprayers with the powerful XL 10000 air motor. Combining these two technologies, you get more flow - getting jobs done faster and with less wear and tear. Engineered for more flow capacity, the Graco XP70-hf is great for applications where you want to spray with multiple guns or larger tip sizes. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
Application: High-pressure performance for two-part high-solids coatings.- Reduced material waste
- No more throwing away unused mixed material at the end of the day
- Save money by using less clean-up solvent
- Easy to operate - minimal training required
- Reduced maintenance costs
- Rated for 7250 psi (500 bar, 50 MPa) to handle viscous materials and long hose lengths
- Series: XP70-hf
- Air Inlet Size (in): 1
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Applicator Type: Automatic Airless, Manual Airless
- Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents
- Component Type: Plural-Component
- Configuration: Water Jacketed Hose
- Fluid Inlet Size (in): 1-1/4
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Flush Type: Solvent
- Hose Length (ft): 35
- Hose Length (m): 10.7
- Includes: 7 Gallon Hoppers, XTR+ Gun, 35 ft integration Hose and Static Mixer, Merkur Flush Pump, Viscon HF Heaters, Hose Heat Circulation Kit, Remote Carriage, PressureTrak
- Location Category: Hazardous Location
- Material Application: Coatings, Paints, Primers
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (MPa): 0.69
- Maximum Air Inlet Pressure (psi): 100
- Maximum Air Pressure (bar): 6.9
- Maximum Air Pressure (kPa): 690
- Maximum Air Pressure (MPa): 0.69
- Maximum Air Pressure (psi): 100
- Maximum Cycle Rate (CPM): 40
- Maximum Flow Rate (cc/min): 11360
- Maximum Flow Rate (GPM): 3
- Maximum Flow Rate (L/min): 11.36
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Hose Length (ft): 300
- Maximum Hose Length (m): 91.4
- Maximum Operating Temperature (°C): 54
- Maximum Operating Temperature (°F): 130
- Maximum Spray Pressure (bar): 500
- Maximum Spray Pressure (kPa): 50000
- Maximum Spray Pressure (MPa): 50
- Maximum Spray Pressure (psi): 7250
- Maximum Working Pressure (bar):
XP System, 1:1, 145/145, Cmplt, Non-Haz
GG 572107
XP SYSTEM, 1:1, 145/145, CMPLT, NON-HAZ
Graco 572107 XP70-hf Skid System, Non-Hazardous, 1:1 with Primary Heaters & Hose Heat, 240V
Two-component spraying made easy and affordable. The XP-hf system combines the popular XP70 Sprayers with the powerful XL 10000 air motor. Combining these two technologies, you get more flow - getting jobs done faster and with less wear and tear. Engineered for more flow capacity, the Graco XP70-hf is great for applications where you want to spray with multiple guns or larger tip sizes. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
Application: High-pressure performance for two-part high-solids coatings.- Reduced material waste
- No more throwing away unused mixed material at the end of the day
- Save money by using less clean-up solvent
- Easy to operate - minimal training required
- Reduced maintenance costs
- Rated for 7250 psi (500 bar, 50 MPa) to handle viscous materials and long hose lengths
- Series: XP70-hf
- Air Inlet Size (in): 1
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Applicator Type: Automatic Airless, Manual Airless
- Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents
- Component Type: Plural-Component
- Configuration: With Primary Heaters & Hose Heat
- Fluid Inlet Size (in): 1-1/4
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Flush Type: Solvent
- Hose Length (ft): 35
- Hose Length (m): 10.7
- Includes: 7 Gallon Hoppers, Merkur Solvent Flush Pump, XTR+ Gun, 35 ft integration Hose and Static Mixer, Junction Box, Viscon HF Heaters, Hose Heat Circulation Kit, Remote Carriage, PressureTrak
- Location Category: Non-Hazardous Location
- Material Application: Coatings, Paints, Primers
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (MPa): 0.69
- Maximum Air Inlet Pressure (psi): 100
- Maximum Air Pressure (bar): 6.9
- Maximum Air Pressure (kPa): 690
- Maximum Air Pressure (MPa): 0.69
- Maximum Air Pressure (psi): 100
- Maximum Cycle Rate (CPM): 40
- Maximum Flow Rate (cc/min): 11360
- Maximum Flow Rate (GPM): 3
- Maximum Flow Rate (L/min): 11.36
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Hose Length (ft): 300
- Maximum Hose Length (m): 91.4
- Maximum Operating Temperature (°C): 54
- Maximum Operating Temperature (°F): 130
- Maximum Spray Pressure (bar): 500
- Maximum Spray Pressure (kPa): 50000
- Maximum Spray Pressure (MPa): 50
- Maximum Spray Pressure (psi): 7250
- <
XP SYSTEM, 2:1, 180/90, BF, CH
GG 572202
XP SYSTEM, 2:1, 180/90, BF, CH
XP70-hf Cart System, Hazardous Location, 2:1 Bare, 240VTwo-component spraying made easy and affordable. The XP-hf system combines the popular XP70 Sprayers with the powerful XL 10000 air motor. Combining these two technologies, you get more flow - getting jobs done faster and with less wear and tear. Engineered for more flow capacity, the Graco XP70-hf is great for applications where you want to spray with multiple guns or larger tip sizes. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
High-pressure performance for two-part high-solids coatings. Reduced material waste No more throwing away unused mixed material at the end of the day Save money by using less clean-up solvent Consistent material quality - no more guesswork or human error in measuring materials Easy to operate - minimal training required Reduced maintenance costs Rated for 7250 psi (500 bar, 50 MPa) to handle viscous materials and long hose lengths
XP SYSTEM, 2:1, 180/90, BF, CH, HS
GG 572204
XP SYSTEM, 2:1, 180/90, BF, CH, HS
XP70-hf Cart System, Hazardous Location, 2:1 With Primary Heaters, 240VTwo-component spraying made easy and affordable. The XP-hf system combines the popular XP70 Sprayers with the powerful XL 10000 air motor. Combining these two technologies, you get more flow - getting jobs done faster and with less wear and tear. Engineered for more flow capacity, the Graco XP70-hf is great for applications where you want to spray with multiple guns or larger tip sizes. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
High-pressure performance for two-part high-solids coatings. Reduced material waste No more throwing away unused mixed material at the end of the day Save money by using less clean-up solvent Consistent material quality - no more guesswork or human error in measuring materials Easy to operate - minimal training required Reduced maintenance costs Rated for 7250 psi (500 bar, 50 MPa) to handle viscous materials and long hose lengths
XP SYSTEM, 2:1, 180/90, BF, CH, HS, JB
GG 572205
XP SYSTEM, 2:1, 180/90, BF, CH, HS, JB
XP70-hf Cart System, Non-Hazardous, 2:1 With Primary Heaters, 240VTwo-component spraying made easy and affordable. The XP-hf system combines the popular XP70 Sprayers with the powerful XL 10000 air motor. Combining these two technologies, you get more flow - getting jobs done faster and with less wear and tear. Engineered for more flow capacity, the Graco XP70-hf is great for applications where you want to spray with multiple guns or larger tip sizes. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
High-pressure performance for two-part high-solids coatings. Reduced material waste No more throwing away unused mixed material at the end of the day Save money by using less clean-up solvent Consistent material quality - no more guesswork or human error in measuring materials Easy to operate - minimal training required Reduced maintenance costs Rated for 7250 psi (500 bar, 50 MPa) to handle viscous materials and long hose lengths
XP SYSTEM, 2:1, 180/90, COMPLETE, HAZ
GG 572206
XP SYSTEM, 2:1, 180/90, COMPLETE, HAZ
XP70-hf Cart System, Hazardous Location, 2:1 With Primary Heaters Hose Heat, 240VTwo-component spraying made easy and affordable. The XP-hf system combines the popular XP70 Sprayers with the powerful XL 10000 air motor. Combining these two technologies, you get more flow - getting jobs done faster and with less wear and tear. Engineered for more flow capacity, the Graco XP70-hf is great for applications where you want to spray with multiple guns or larger tip sizes. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
High-pressure performance for two-part high-solids coatings. Reduced material waste No more throwing away unused mixed material at the end of the day Save money by using less clean-up solvent Consistent material quality - no more guesswork or human error in measuring materials Easy to operate - minimal training required Reduced maintenance costs Rated for 7250 psi (500 bar, 50 MPa) to handle viscous materials and long hose lengths
XP SYSTEM, 2:1, 180/90, CMPLT, NON-HAZ
GG 572207
XP SYSTEM, 2:1, 180/90, CMPLT, NON-HAZ
XP70-hf Cart System, Non-Hazardous, 2:1 with Primary Heaters & Hose Heat, 240VTwo-component spraying made easy and affordable. The XP-hf system combines the popular XP70 Sprayers with the powerful XL 10000 air motor. Combining these two technologies, you get more flow - getting jobs done faster and with less wear and tear. Engineered for more flow capacity, the Graco XP70-hf is great for applications where you want to spray with multiple guns or larger tip sizes. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
High-pressure performance for two-part high-solids coatings. Reduced material waste No more throwing away unused mixed material at the end of the day Save money by using less clean-up solvent Consistent material quality - no more guesswork or human error in measuring materials Easy to operate - minimal training required Reduced maintenance costs Rated for 7250 psi (500 bar, 50 MPa) to handle viscous materials and long hose lengths
XP System, 2:1, 180/90, Cmplt, 480V
GG 572209
Xp System, 2:1, 180/90, Cmplt, 480V
XP System, 3:1, 220/72, Bf, Ch
GG 572302
XP SYSTEM, 3:1, 220/72, BF, CH
Graco 572302 XP70-hf Skid System, Hazardous Location, 3:1 Bare, 240V
Two-component spraying made easy and affordable. The XP-hf system combines the popular XP70 Sprayers with the powerful XL 10000 air motor. Combining these two technologies, you get more flow - getting jobs done faster and with less wear and tear. Engineered for more flow capacity, the Graco XP70-hf is great for applications where you want to spray with multiple guns or larger tip sizes. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
Application: High-pressure performance for two-part high-solids coatings.- Reduced material waste
- No more throwing away unused mixed material at the end of the day
- Save money by using less clean-up solvent
- Easy to operate - minimal training required
- Reduced maintenance costs
- Rated for 7250 psi (500 bar, 50 MPa) to handle viscous materials and long hose lengths
- Series: XP70-hf
- Air Inlet Size (in): 1
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Applicator Type: Automatic Airless, Manual Airless
- Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents
- Component Type: Plural-Component
- Configuration: Bare
- Fluid Inlet Size (in): 1-1/4
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Flush Type: Solvent
- Hose Length (ft): 35
- Hose Length (m): 10.7
- Includes: 7 Gallon Hoppers, XTR+ Gun, 35 ft integration Hose and Static Mixer
- Location Category: Hazardous Location
- Material Application: Coatings, Paints, Primers
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (MPa): 0.69
- Maximum Air Inlet Pressure (psi): 100
- Maximum Air Pressure (bar): 6.9
- Maximum Air Pressure (kPa): 690
- Maximum Air Pressure (MPa): 0.69
- Maximum Air Pressure (psi): 100
- Maximum Cycle Rate (CPM): 40
- Maximum Flow Rate (cc/min): 11360
- Maximum Flow Rate (GPM): 3
- Maximum Flow Rate (L/min): 11.36
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Hose Length (ft): 300
- Maximum Hose Length (m): 91.4
- Maximum Operating Temperature (°C): 54
- Maximum Operating Temperature (°F): 130
- Maximum Spray Pressure (bar): 500
- Maximum Spray Pressure (kPa): 50000
- Maximum Spray Pressure (MPa): 50
- Maximum Spray Pressure (psi): 7250
- Maximum Working Pressure (bar): 490
- Maximum Working Pressure (kPa): 49000
- Maximum Working Pressure (MPa): 49
- Maximum Working Pressure (psi):
XP System, 3:1, 220/72, Bf, Ch, Hs
GG 572304
XP SYSTEM, 3:1, 220/72, BF, CH, HS
Graco 572304 XP70-hf Skid System, Hazardous Location, 3:1 With Primary Heaters, 240V
Two-component spraying made easy and affordable. The XP-hf system combines the popular XP70 Sprayers with the powerful XL 10000 air motor. Combining these two technologies, you get more flow - getting jobs done faster and with less wear and tear. Engineered for more flow capacity, the Graco XP70-hf is great for applications where you want to spray with multiple guns or larger tip sizes. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
Application: High-pressure performance for two-part high-solids coatings.- Reduced material waste
- No more throwing away unused mixed material at the end of the day
- Save money by using less clean-up solvent
- Easy to operate - minimal training required
- Reduced maintenance costs
- Rated for 7250 psi (500 bar, 50 MPa) to handle viscous materials and long hose lengths
- Series: XP70-hf
- Air Inlet Size (in): 1
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Applicator Type: Automatic Airless, Manual Airless
- Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents
- Component Type: Plural-Component
- Configuration: With Primary Heater
- Fluid Inlet Size (in): 1-1/4
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Flush Type: Solvent
- Hose Length (ft): 35
- Hose Length (m): 10.7
- Includes: 7 Gallon Hoppers, XTR+ Gun, 35 ft integration Hose and Static Mixer, Merkur Flush Pump, Viscon HF Heaters
- Location Category: Hazardous Location
- Material Application: Coatings, Paints, Primers
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (MPa): 0.69
- Maximum Air Inlet Pressure (psi): 100
- Maximum Air Pressure (bar): 6.9
- Maximum Air Pressure (kPa): 690
- Maximum Air Pressure (MPa): 0.69
- Maximum Air Pressure (psi): 100
- Maximum Cycle Rate (CPM): 40
- Maximum Flow Rate (cc/min): 11360
- Maximum Flow Rate (GPM): 3
- Maximum Flow Rate (L/min): 11.36
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Hose Length (ft): 300
- Maximum Hose Length (m): 91.4
- Maximum Operating Temperature (°C): 54
- Maximum Operating Temperature (°F): 130
- Maximum Spray Pressure (bar): 500
- Maximum Spray Pressure (kPa): 50000
- Maximum Spray Pressure (MPa): 50
- Maximum Spray Pressure (psi): 7250
- Maximum Working Pressure (bar): 490
- Maximum Working Pressure (kPa): 49000
- Maximum
XP SYSTEM, 3:1, 220/72, BF, CH, HS, JB
GG 572305
XP SYSTEM, 3:1, 220/72, BF, CH, HS, JB
XP70-hf Cart System, Non-Hazardous, 3:1 With Primary Heaters, 240VTwo-component spraying made easy and affordable. The XP-hf system combines the popular XP70 Sprayers with the powerful XL 10000 air motor. Combining these two technologies, you get more flow - getting jobs done faster and with less wear and tear. Engineered for more flow capacity, the Graco XP70-hf is great for applications where you want to spray with multiple guns or larger tip sizes. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
High-pressure performance for two-part high-solids coatings. Reduced material waste No more throwing away unused mixed material at the end of the day Save money by using less clean-up solvent Consistent material quality - no more guesswork or human error in measuring materials Easy to operate - minimal training required Reduced maintenance costs Rated for 7250 psi (500 bar, 50 MPa) to handle viscous materials and long hose lengths
XP SYSTEM, 3:1, 220/72, COMPLETE, HAZ
GG 572306
XP SYSTEM, 3:1, 220/72, COMPLETE, HAZ
XP70-hf Cart System, Hazardous Location, 3:1 With Primary Heaters Hose Heat, 240VTwo-component spraying made easy and affordable. The XP-hf system combines the popular XP70 Sprayers with the powerful XL 10000 air motor. Combining these two technologies, you get more flow - getting jobs done faster and with less wear and tear. Engineered for more flow capacity, the Graco XP70-hf is great for applications where you want to spray with multiple guns or larger tip sizes. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
High-pressure performance for two-part high-solids coatings. Reduced material waste No more throwing away unused mixed material at the end of the day Save money by using less clean-up solvent Consistent material quality - no more guesswork or human error in measuring materials Easy to operate - minimal training required Reduced maintenance costs Rated for 7250 psi (500 bar, 50 MPa) to handle viscous materials and long hose lengths
XP SYSTEM, 3:1, 220/72, CMPLT, NON-HAZ
GG 572307
XP SYSTEM, 3:1, 220/72, CMPLT, NON-HAZ
XP70-hf Cart System, Non-Hazardous, 3:1 with Primary Heaters & Hose Heat, 240VTwo-component spraying made easy and affordable. The XP-hf system combines the popular XP70 Sprayers with the powerful XL 10000 air motor. Combining these two technologies, you get more flow - getting jobs done faster and with less wear and tear. Engineered for more flow capacity, the Graco XP70-hf is great for applications where you want to spray with multiple guns or larger tip sizes. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
High-pressure performance for two-part high-solids coatings. Reduced material waste No more throwing away unused mixed material at the end of the day Save money by using less clean-up solvent Consistent material quality - no more guesswork or human error in measuring materials Easy to operate - minimal training required Reduced maintenance costs Rated for 7250 psi (500 bar, 50 MPa) to handle viscous materials and long hose lengths
XP SYSTEM, 4:1, 220/54, BF, CH
GG 572402
XP SYSTEM, 4:1, 220/54, BF, CH
XP70-hf Cart System, Hazardous Location, 4:1 Bare, 240VTwo-component spraying made easy and affordable. The XP-hf system combines the popular XP70 Sprayers with the powerful XL 10000 air motor. Combining these two technologies, you get more flow - getting jobs done faster and with less wear and tear. Engineered for more flow capacity, the Graco XP70-hf is great for applications where you want to spray with multiple guns or larger tip sizes. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
High-pressure performance for two-part high-solids coatings. Reduced material waste No more throwing away unused mixed material at the end of the day Save money by using less clean-up solvent Consistent material quality - no more guesswork or human error in measuring materials Easy to operate - minimal training required Reduced maintenance costs Rated for 7250 psi (500 bar, 50 MPa) to handle viscous materials and long hose lengths
XP SYSTEM, 4:1, 220/54, BF, CH, HS
GG 572404
XP SYSTEM, 4:1, 220/54, BF, CH, HS
XP70-hf Cart System, Hazardous Location, 4:1 With Primary Heaters, 240VTwo-component spraying made easy and affordable. The XP-hf system combines the popular XP70 Sprayers with the powerful XL 10000 air motor. Combining these two technologies, you get more flow - getting jobs done faster and with less wear and tear. Engineered for more flow capacity, the Graco XP70-hf is great for applications where you want to spray with multiple guns or larger tip sizes. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
High-pressure performance for two-part high-solids coatings. Reduced material waste No more throwing away unused mixed material at the end of the day Save money by using less clean-up solvent Consistent material quality - no more guesswork or human error in measuring materials Easy to operate - minimal training required Reduced maintenance costs Rated for 7250 psi (500 bar, 50 MPa) to handle viscous materials and long hose lengths
XP SYSTEM, 4:1, 220/54, BF, CH, HS, JB
GG 572405
XP SYSTEM, 4:1, 220/54, BF, CH, HS, JB
XP70-hf Cart System, Non-Hazardous, 4:1 With Primary Heaters, 240VTwo-component spraying made easy and affordable. The XP-hf system combines the popular XP70 Sprayers with the powerful XL 10000 air motor. Combining these two technologies, you get more flow - getting jobs done faster and with less wear and tear. Engineered for more flow capacity, the Graco XP70-hf is great for applications where you want to spray with multiple guns or larger tip sizes. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
High-pressure performance for two-part high-solids coatings. Reduced material waste No more throwing away unused mixed material at the end of the day Save money by using less clean-up solvent Consistent material quality - no more guesswork or human error in measuring materials Easy to operate - minimal training required Reduced maintenance costs Rated for 7250 psi (500 bar, 50 MPa) to handle viscous materials and long hose lengths
XP SYSTEM, 4:1, 220/54, COMPLETE, HAZ
GG 572406
XP SYSTEM, 4:1, 220/54, COMPLETE, HAZ
XP70-hf Cart System, Hazardous Location, 4:1 With Primary Heaters Hose Heat, 240VTwo-component spraying made easy and affordable. The XP-hf system combines the popular XP70 Sprayers with the powerful XL 10000 air motor. Combining these two technologies, you get more flow - getting jobs done faster and with less wear and tear. Engineered for more flow capacity, the Graco XP70-hf is great for applications where you want to spray with multiple guns or larger tip sizes. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
High-pressure performance for two-part high-solids coatings. Reduced material waste No more throwing away unused mixed material at the end of the day Save money by using less clean-up solvent Consistent material quality - no more guesswork or human error in measuring materials Easy to operate - minimal training required Reduced maintenance costs Rated for 7250 psi (500 bar, 50 MPa) to handle viscous materials and long hose lengths
XP System, 4:1, 220/54, Cmplt, Non-Haz
GG 572407
XP SYSTEM, 4:1, 220/54, CMPLT, NON-HAZ
Graco 572407 XP70-hf Skid System, Non-Hazardous, 4:1 with Primary Heaters & Hose Heat, 240V
Two-component spraying made easy and affordable. The XP-hf system combines the popular XP70 Sprayers with the powerful XL 10000 air motor. Combining these two technologies, you get more flow - getting jobs done faster and with less wear and tear. Engineered for more flow capacity, the Graco XP70-hf is great for applications where you want to spray with multiple guns or larger tip sizes. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
Application: High-pressure performance for two-part high-solids coatings.- Reduced material waste
- No more throwing away unused mixed material at the end of the day
- Save money by using less clean-up solvent
- Easy to operate - minimal training required
- Reduced maintenance costs
- Rated for 7250 psi (500 bar, 50 MPa) to handle viscous materials and long hose lengths
- Series: XP70-hf
- Air Inlet Size (in): 1
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Applicator Type: Automatic Airless, Manual Airless
- Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents
- Component Type: Plural-Component
- Configuration: With Primary Heaters & Hose Heat
- Fluid Inlet Size (in): 1-1/4
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Flush Type: Solvent
- Hose Length (ft): 35
- Hose Length (m): 10.7
- Includes: 7 Gallon Hoppers, Merkur Solvent Flush Pump, XTR+ Gun, 35 ft integration Hose and Static Mixer, Junction Box, Viscon HF Heaters, Hose Heat Circulation Kit, Remote Carriage, PressureTrak
- Location Category: Non-Hazardous Location
- Material Application: Coatings, Paints, Primers
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (MPa): 0.69
- Maximum Air Inlet Pressure (psi): 100
- Maximum Air Pressure (bar): 6.9
- Maximum Air Pressure (kPa): 690
- Maximum Air Pressure (MPa): 0.69
- Maximum Air Pressure (psi): 100
- Maximum Cycle Rate (CPM): 40
- Maximum Flow Rate (cc/min): 11360
- Maximum Flow Rate (GPM): 3
- Maximum Flow Rate (L/min): 11.36
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Hose Length (ft): 300
- Maximum Hose Length (m): 91.4
- Maximum Operating Temperature (°C): 54
- Maximum Operating Temperature (°F): 130
- Maximum Spray Pressure (bar): 500
- Maximum Spray Pressure (kPa): 50000
- Maximum Spray Pressure (MPa): 50
- Maximum Spray Pressure (psi): 7250
XP System, 1:1, 220/220, Bf, Ch
GG 573102
XP SYSTEM, 1:1, 220/220, BF, CH
Graco 573102 XP50-hf Cart System, Hazardous Location, 1:1 Bare, 240V
Two-component spraying made easy and affordable. The XP-hf system combines the XP50 Sprayers with the powerful XL 10000 air motor. Combining these two technologies, you get more flow - getting jobs done faster and with less wear and tear. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
Application: For higher-volume protective coatings.- Reduced material waste
- No more throwing away unused mixed material at the end of the day
- Save money by using less clean-up solvent
- Easy to operate - minimal training required
- Reduced maintenance costs
- Rated for 5000 psi (345 bar) to handle viscous materials and long hose lengths
- Series: XP50-hf
- Air Inlet Size (in): 1
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Applicator Type: Automatic Airless, Manual Airless
- Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents
- Component Type: Plural-Component
- Configuration: Bare
- Fluid Inlet Size (in): 1-1/4
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Flush Type: Solvent
- Hose Length (ft): 35
- Hose Length (m): 10.7
- Includes: 7 Gallon Hoppers, XTR+ Gun, 35 ft integration Hose and Static Mixer
- Location Category: Hazardous Location
- Material Application: Coatings, Paints, Primers
- Maximum Air Consumption (SCFM): 60 scfm/gpm at 100 psi
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (MPa): 0.69
- Maximum Air Inlet Pressure (psi): 100
- Maximum Cycle Rate (CPM): 40
- Maximum Flow Rate (cc/min): 17400
- Maximum Flow Rate (GPM): 4.6
- Maximum Flow Rate (L/min): 17.4
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Hose Length (ft): 300
- Maximum Hose Length (m): 91.4
- Maximum Operating Temperature (°C): 54
- Maximum Operating Temperature (°F): 130
- Maximum Spray Pressure (bar): 344
- Maximum Spray Pressure (kPa): 34400
- Maximum Spray Pressure (MPa): 34
- Maximum Spray Pressure (psi): 5000
- Maximum Working Pressure (bar): 330
- Maximum Working Pressure (kPa): 33000
- Maximum Working Pressure (MPa): 33
- Maximum Working Pressure (psi): 4750
- Measuring Type: Fixed Mechanical Positive Displacement
- Minimum Fluid Viscosity (cP): 200
- Mix Accuracy (%): +/- 5
- Mix Ratio: 1:1
- Number of Catalysts: 1
- Number of Reducers: 0
XP System, 1:1, 220/220, Bf, Ch, Hs
GG 573104
XP SYSTEM, 1:1, 220/220, BF, CH, HS
Graco 573104 XP50-hf Cart System, Hazardous Location, 1:1 With Primary Heaters, 240V
Two-component spraying made easy and affordable. The XP-hf system combines the XP50 Sprayers with the powerful XL 10000 air motor. Combining these two technologies, you get more flow - getting jobs done faster and with less wear and tear. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
Application: For higher-volume protective coatings.- Reduced material waste
- No more throwing away unused mixed material at the end of the day
- Save money by using less clean-up solvent
- Easy to operate - minimal training required
- Reduced maintenance costs
- Rated for 5000 psi (345 bar) to handle viscous materials and long hose lengths
- Series: XP50-hf
- Air Inlet Size (in): 1
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Applicator Type: Automatic Airless, Manual Airless
- Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents
- Component Type: Plural-Component
- Configuration: With Primary Heater
- Fluid Inlet Size (in): 1-1/4
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Flush Type: Solvent
- Hose Length (ft): 35
- Hose Length (m): 10.7
- Includes: 7 Gallon Hoppers, XTR+ Gun, 35 ft integration Hose and Static Mixer, Merkur Flush Pump, Viscon HF Heaters
- Location Category: Hazardous Location
- Material Application: Coatings, Paints, Primers
- Maximum Air Consumption (SCFM): 60 scfm/gpm at 100 psi
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (MPa): 0.69
- Maximum Air Inlet Pressure (psi): 100
- Maximum Cycle Rate (CPM): 40
- Maximum Flow Rate (cc/min): 17400
- Maximum Flow Rate (GPM): 4.6
- Maximum Flow Rate (L/min): 17.4
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Hose Length (ft): 300
- Maximum Hose Length (m): 91.4
- Maximum Operating Temperature (°C): 54
- Maximum Operating Temperature (°F): 130
- Maximum Spray Pressure (bar): 344
- Maximum Spray Pressure (kPa): 34400
- Maximum Spray Pressure (MPa): 34
- Maximum Spray Pressure (psi): 5000
- Maximum Working Pressure (bar): 330
- Maximum Working Pressure (kPa): 33000
- Maximum Working Pressure (MPa): 33
- Maximum Working Pressure (psi): 4750
- Measuring Type: Fixed Mechanical Positive Displacement
- Minimum Fluid Viscosity (cP): 200
- Mix Accuracy (%): +/- 5
- Mix Ratio: 1:1
- <
XP SYSTEM, 1:1, 220/220, BF, CH, HS, JB
GG 573105
XP SYSTEM, 1:1, 220/220, BF, CH, HS, JB
XP50-hf Cart System, Non-Hazardous, 1:1 With Primary Heaters, 240VTwo-component spraying made easy and affordable. The XP-hf system combines the XP50 Sprayers with the powerful XL 10000 air motor. Combining these two technologies, you get more flow - getting jobs done faster and with less wear and tear. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
For higher-volume protective coatings. Reduced material waste No more throwing away unused mixed material at the end of the day Save money by using less clean-up solvent Consistent material quality - no more guesswork or human error in measuring materials Easy to operate - minimal training required Reduced maintenance costs Rated for 5000 psi (345 bar) to handle viscous materials and long hose lengths
XP System, 1:1, 220/220, Complete, Haz
GG 573106
XP SYSTEM, 1:1, 220/220, COMPLETE, HAZ
Graco 573106 XP50-hf Cart System, Hazardous Location, 1:1 With Primary Heaters & Hose Heat, 240V
Two-component spraying made easy and affordable. The XP-hf system combines the XP50 Sprayers with the powerful XL 10000 air motor. Combining these two technologies, you get more flow - getting jobs done faster and with less wear and tear. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
Application: For higher-volume protective coatings.- Reduced material waste
- No more throwing away unused mixed material at the end of the day
- Save money by using less clean-up solvent
- Easy to operate - minimal training required
- Reduced maintenance costs
- Rated for 5000 psi (345 bar) to handle viscous materials and long hose lengths
- Series: XP50-hf
- Air Inlet Size (in): 1
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Applicator Type: Automatic Airless, Manual Airless
- Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents
- Component Type: Plural-Component
- Configuration: With Primary Heaters & Hose Heat
- Fluid Inlet Size (in): 1-1/4
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Flush Type: Solvent
- Hose Length (ft): 35
- Hose Length (m): 10.7
- Includes: 7 Gallon Hoppers, XTR+ Gun, 35 ft integration Hose and Static Mixer, Merkur Flush Pump, Viscon HF Heaters, Hose Heat Circulation Kit, Remote Carriage, PressureTrak
- Location Category: Hazardous Location
- Material Application: Coatings, Paints, Primers
- Maximum Air Consumption (SCFM): 60 scfm/gpm at 100 psi
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (MPa): 0.69
- Maximum Air Inlet Pressure (psi): 100
- Maximum Cycle Rate (CPM): 40
- Maximum Flow Rate (cc/min): 17400
- Maximum Flow Rate (GPM): 4.6
- Maximum Flow Rate (L/min): 17.4
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Hose Length (ft): 300
- Maximum Hose Length (m): 91.4
- Maximum Operating Temperature (°C): 54
- Maximum Operating Temperature (°F): 130
- Maximum Spray Pressure (bar): 344
- Maximum Spray Pressure (kPa): 34400
- Maximum Spray Pressure (MPa): 34
- Maximum Spray Pressure (psi): 5000
- Maximum Working Pressure (bar): 330
- Maximum Working Pressure (kPa): 33000
- Maximum Working Pressure (MPa): 33
- Maximum Working Pressure (psi): 4750
- Measuring Type: Fixed Mechanical Positive Displacement
- Minimum Fluid Viscosity (cP): 200
XP System, 1:1, 220/220, Cmplt, Non-Haz
GG 573107
XP SYSTEM, 1:1, 220/220, CMPLT, NON-HAZ
Graco 573107 XP50-hf Cart System, Non-Hazardous, 1:1 with Primary Heaters & Hose Heat, 240V
Two-component spraying made easy and affordable. The XP-hf system combines the XP50 Sprayers with the powerful XL 10000 air motor. Combining these two technologies, you get more flow - getting jobs done faster and with less wear and tear. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
Application: For higher-volume protective coatings.- Reduced material waste
- No more throwing away unused mixed material at the end of the day
- Save money by using less clean-up solvent
- Easy to operate - minimal training required
- Reduced maintenance costs
- Rated for 5000 psi (345 bar) to handle viscous materials and long hose lengths
- Series: XP50-hf
- Air Inlet Size (in): 1
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Applicator Type: Automatic Airless, Manual Airless
- Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents
- Component Type: Plural-Component
- Configuration: With Primary Heaters & Hose Heat
- Fluid Inlet Size (in): 1-1/4
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Flush Type: Solvent
- Hose Length (ft): 35
- Hose Length (m): 10.7
- Includes: 7 Gallon Hoppers, Merkur Solvent Flush Pump, XTR+ Gun, 35 ft integration Hose and Static Mixer, Junction Box, Viscon HF Heaters, Hose Heat Circulation Kit, Remote Carriage, PressureTrak
- Location Category: Non-Hazardous Location
- Material Application: Coatings, Paints, Primers
- Maximum Air Consumption (SCFM): 60 scfm/gpm at 100 psi
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (MPa): 0.69
- Maximum Air Inlet Pressure (psi): 100
- Maximum Cycle Rate (CPM): 40
- Maximum Flow Rate (cc/min): 17400
- Maximum Flow Rate (GPM): 4.6
- Maximum Flow Rate (L/min): 17.4
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Hose Length (ft): 300
- Maximum Hose Length (m): 91.4
- Maximum Operating Temperature (°C): 54
- Maximum Operating Temperature (°F): 130
- Maximum Spray Pressure (bar): 344
- Maximum Spray Pressure (kPa): 34400
- Maximum Spray Pressure (MPa): 34
- Maximum Spray Pressure (psi): 5000
- Maximum Working Pressure (bar): 330
- Maximum Working Pressure (kPa): 33000
- Maximum Working Pressure (MPa): 33
- Maximum Working Pressure (psi): 4750
- Measuring Type: Fixed Mechanical Positive Displacement
- Minimum Fluid Viscos
XP System, 2:1, 290/145, Bf, Ch
GG 573202
XP SYSTEM, 2:1, 290/145, BF, CH
Graco 573202 XP50-hf Cart System, Hazardous Location, 2:1 Bare, 240V
Two-component spraying made easy and affordable. The XP-hf system combines the XP50 Sprayers with the powerful XL 10000 air motor. Combining these two technologies, you get more flow - getting jobs done faster and with less wear and tear. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
Application: For higher-volume protective coatings.- Reduced material waste
- No more throwing away unused mixed material at the end of the day
- Save money by using less clean-up solvent
- Easy to operate - minimal training required
- Reduced maintenance costs
- Rated for 5000 psi (345 bar) to handle viscous materials and long hose lengths
- Series: XP50-hf
- Air Inlet Size (in): 1
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Applicator Type: Automatic Airless, Manual Airless
- Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents
- Component Type: Plural-Component
- Configuration: Bare
- Fluid Inlet Size (in): 1-1/4
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Flush Type: Solvent
- Hose Length (ft): 35
- Hose Length (m): 10.7
- Includes: 7 Gallon Hoppers, XTR+ Gun, 35 ft integration Hose and Static Mixer
- Location Category: Hazardous Location
- Material Application: Coatings, Paints, Primers
- Maximum Air Consumption (SCFM): 60 scfm/gpm at 100 psi
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (MPa): 0.69
- Maximum Air Inlet Pressure (psi): 100
- Maximum Cycle Rate (CPM): 40
- Maximum Flow Rate (cc/min): 17400
- Maximum Flow Rate (GPM): 4.6
- Maximum Flow Rate (L/min): 17.4
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Hose Length (ft): 300
- Maximum Hose Length (m): 91.4
- Maximum Operating Temperature (°C): 54
- Maximum Operating Temperature (°F): 130
- Maximum Spray Pressure (bar): 344
- Maximum Spray Pressure (kPa): 34400
- Maximum Spray Pressure (MPa): 34
- Maximum Spray Pressure (psi): 5000
- Maximum Working Pressure (bar): 330
- Maximum Working Pressure (kPa): 33000
- Maximum Working Pressure (MPa): 33
- Maximum Working Pressure (psi): 4750
- Measuring Type: Fixed Mechanical Positive Displacement
- Minimum Fluid Viscosity (cP): 200
- Mix Accuracy (%): +/- 5
- Mix Ratio: 2:1
- Number of Catalysts: 1
- Number of Reducers: 0
XP System, 2:1, 290/145, Bf, Ch, Hs
GG 573204
XP SYSTEM, 2:1, 290/145, BF, CH, HS
Graco 573204 XP50-hf Cart System, Hazardous Location, 2:1 With Primary Heaters, 240V
Two-component spraying made easy and affordable. The XP-hf system combines the XP50 Sprayers with the powerful XL 10000 air motor. Combining these two technologies, you get more flow - getting jobs done faster and with less wear and tear. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
Application: For higher-volume protective coatings.- Reduced material waste
- No more throwing away unused mixed material at the end of the day
- Save money by using less clean-up solvent
- Easy to operate - minimal training required
- Reduced maintenance costs
- Rated for 5000 psi (345 bar) to handle viscous materials and long hose lengths
- Series: XP50-hf
- Air Inlet Size (in): 1
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Applicator Type: Automatic Airless, Manual Airless
- Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents
- Component Type: Plural-Component
- Configuration: With Primary Heater
- Fluid Inlet Size (in): 1-1/4
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Flush Type: Solvent
- Hose Length (ft): 35
- Hose Length (m): 10.7
- Includes: 7 Gallon Hoppers, XTR+ Gun, 35 ft integration Hose and Static Mixer, Merkur Flush Pump, Viscon HF Heaters
- Location Category: Hazardous Location
- Material Application: Coatings, Paints, Primers
- Maximum Air Consumption (SCFM): 60 scfm/gpm at 100 psi
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (MPa): 0.69
- Maximum Air Inlet Pressure (psi): 100
- Maximum Cycle Rate (CPM): 40
- Maximum Flow Rate (cc/min): 17400
- Maximum Flow Rate (GPM): 4.6
- Maximum Flow Rate (L/min): 17.4
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Hose Length (ft): 300
- Maximum Hose Length (m): 91.4
- Maximum Operating Temperature (°C): 54
- Maximum Operating Temperature (°F): 130
- Maximum Spray Pressure (bar): 344
- Maximum Spray Pressure (kPa): 34400
- Maximum Spray Pressure (MPa): 34
- Maximum Spray Pressure (psi): 5000
- Maximum Working Pressure (bar): 330
- Maximum Working Pressure (kPa): 33000
- Maximum Working Pressure (MPa): 33
- Maximum Working Pressure (psi): 4750
- Measuring Type: Fixed Mechanical Positive Displacement
- Minimum Fluid Viscosity (cP): 200
- Mix Accuracy (%): +/- 5
- Mix Ratio: 2:1
- <
XP SYSTEM, 2:1, 290/145, BF, CH, HS, JB
GG 573205
XP SYSTEM, 2:1, 290/145, BF, CH, HS, JB
XP50-hf Cart System, Non-Hazardous, 2:1 With Primary Heaters, 240VTwo-component spraying made easy and affordable. The XP-hf system combines the XP50 Sprayers with the powerful XL 10000 air motor. Combining these two technologies, you get more flow - getting jobs done faster and with less wear and tear. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
For higher-volume protective coatings. Reduced material waste No more throwing away unused mixed material at the end of the day Save money by using less clean-up solvent Consistent material quality - no more guesswork or human error in measuring materials Easy to operate - minimal training required Reduced maintenance costs Rated for 5000 psi (345 bar) to handle viscous materials and long hose lengths
XP System, 2:1, 290/145, Complete, Haz
GG 573206
XP SYSTEM, 2:1, 290/145, COMPLETE, HAZ
Graco 573206 XP50-hf Cart System, Hazardous Location, 2:1 With Primary Heaters & Hose Heat, 240V
Two-component spraying made easy and affordable. The XP-hf system combines the XP50 Sprayers with the powerful XL 10000 air motor. Combining these two technologies, you get more flow - getting jobs done faster and with less wear and tear. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
Application: For higher-volume protective coatings.- Reduced material waste
- No more throwing away unused mixed material at the end of the day
- Save money by using less clean-up solvent
- Easy to operate - minimal training required
- Reduced maintenance costs
- Rated for 5000 psi (345 bar) to handle viscous materials and long hose lengths
- Series: XP50-hf
- Air Inlet Size (in): 1
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Applicator Type: Automatic Airless, Manual Airless
- Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents
- Component Type: Plural-Component
- Configuration: With Primary Heaters & Hose Heat
- Fluid Inlet Size (in): 1-1/4
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Flush Type: Solvent
- Hose Length (ft): 35
- Hose Length (m): 10.7
- Includes: 7 Gallon Hoppers, XTR+ Gun, 35 ft integration Hose and Static Mixer, Merkur Flush Pump, Viscon HF Heaters, Hose Heat Circulation Kit, Remote Carriage, PressureTrak
- Location Category: Hazardous Location
- Material Application: Coatings, Paints, Primers
- Maximum Air Consumption (SCFM): 60 scfm/gpm at 100 psi
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (MPa): 0.69
- Maximum Air Inlet Pressure (psi): 100
- Maximum Cycle Rate (CPM): 40
- Maximum Flow Rate (cc/min): 17400
- Maximum Flow Rate (GPM): 4.6
- Maximum Flow Rate (L/min): 17.4
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Hose Length (ft): 300
- Maximum Hose Length (m): 91.4
- Maximum Operating Temperature (°C): 54
- Maximum Operating Temperature (°F): 130
- Maximum Spray Pressure (bar): 344
- Maximum Spray Pressure (kPa): 34400
- Maximum Spray Pressure (MPa): 34
- Maximum Spray Pressure (psi): 5000
- Maximum Working Pressure (bar): 330
- Maximum Working Pressure (kPa): 33000
- Maximum Working Pressure (MPa): 33
- Maximum Working Pressure (psi): 4750
- Measuring Type: Fixed Mechanical Positive Displacement
- Minimum Fluid Viscosity (cP): 200
XP System, 3:1, 290/97, Bf, Ch
GG 573302
XP SYSTEM, 3:1, 290/97, BF, CH
Graco 573302 XP50-hf Cart System, Hazardous Location, 3:1 Bare, 240V
Two-component spraying made easy and affordable. The XP-hf system combines the XP50 Sprayers with the powerful XL 10000 air motor. Combining these two technologies, you get more flow - getting jobs done faster and with less wear and tear. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
Application: For higher-volume protective coatings.- Reduced material waste
- No more throwing away unused mixed material at the end of the day
- Save money by using less clean-up solvent
- Easy to operate - minimal training required
- Reduced maintenance costs
- Rated for 5000 psi (345 bar) to handle viscous materials and long hose lengths
- Series: XP50-hf
- Air Inlet Size (in): 1
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Applicator Type: Automatic Airless, Manual Airless
- Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents
- Component Type: Plural-Component
- Configuration: Bare
- Fluid Inlet Size (in): 1-1/4
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Flush Type: Solvent
- Hose Length (ft): 35
- Hose Length (m): 10.7
- Includes: 7 Gallon Hoppers, XTR+ Gun, 35 ft integration Hose and Static Mixer
- Location Category: Hazardous Location
- Material Application: Coatings, Paints, Primers
- Maximum Air Consumption (SCFM): 60 scfm/gpm at 100 psi
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (MPa): 0.69
- Maximum Air Inlet Pressure (psi): 100
- Maximum Cycle Rate (CPM): 40
- Maximum Flow Rate (cc/min): 15140
- Maximum Flow Rate (GPM): 4
- Maximum Flow Rate (L/min): 15.14
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Hose Length (ft): 300
- Maximum Hose Length (m): 91.4
- Maximum Operating Temperature (°C): 54
- Maximum Operating Temperature (°F): 130
- Maximum Spray Pressure (bar): 344
- Maximum Spray Pressure (kPa): 34400
- Maximum Spray Pressure (MPa): 34
- Maximum Spray Pressure (psi): 5000
- Maximum Working Pressure (bar): 344
- Maximum Working Pressure (kPa): 34400
- Maximum Working Pressure (MPa): 34
- Maximum Working Pressure (psi): 5000
- Measuring Type: Fixed Mechanical Positive Displacement
- Minimum Fluid Viscosity (cP): 200
- Mix Accuracy (%): +/- 5
- Mix Ratio: 3:1
- Number of Catalysts: 1
- Number of Reducers: 0
XP System, 2:1, 290/145, Cmplt, Non-Haz
GG 573207
XP SYSTEM, 2:1, 290/145, CMPLT, NON-HAZ
Graco 573207 XP50-hf Cart System, Non-Hazardous, 2:1 with Primary Heaters & Hose Heat, 240V
Two-component spraying made easy and affordable. The XP-hf system combines the XP50 Sprayers with the powerful XL 10000 air motor. Combining these two technologies, you get more flow - getting jobs done faster and with less wear and tear. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
Application: For higher-volume protective coatings.- Reduced material waste
- No more throwing away unused mixed material at the end of the day
- Save money by using less clean-up solvent
- Easy to operate - minimal training required
- Reduced maintenance costs
- Rated for 5000 psi (345 bar) to handle viscous materials and long hose lengths
- Series: XP50-hf
- Air Inlet Size (in): 1
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Applicator Type: Automatic Airless, Manual Airless
- Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents
- Component Type: Plural-Component
- Configuration: With Primary Heaters & Hose Heat
- Fluid Inlet Size (in): 1-1/4
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Flush Type: Solvent
- Hose Length (ft): 35
- Hose Length (m): 10.7
- Includes: 7 Gallon Hoppers, Merkur Solvent Flush Pump, XTR+ Gun, 35 ft integration Hose and Static Mixer, Junction Box, Viscon HF Heaters, Hose Heat Circulation Kit, Remote Carriage, PressureTrak
- Location Category: Non-Hazardous Location
- Material Application: Coatings, Paints, Primers
- Maximum Air Consumption (SCFM): 60 scfm/gpm at 100 psi
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (MPa): 0.69
- Maximum Air Inlet Pressure (psi): 100
- Maximum Cycle Rate (CPM): 40
- Maximum Flow Rate (cc/min): 17400
- Maximum Flow Rate (GPM): 4.6
- Maximum Flow Rate (L/min): 17.4
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Hose Length (ft): 300
- Maximum Hose Length (m): 91.4
- Maximum Operating Temperature (°C): 54
- Maximum Operating Temperature (°F): 130
- Maximum Spray Pressure (bar): 344
- Maximum Spray Pressure (kPa): 34400
- Maximum Spray Pressure (MPa): 34
- Maximum Spray Pressure (psi): 5000
- Maximum Working Pressure (bar): 330
- Maximum Working Pressure (kPa): 33000
- Maximum Working Pressure (MPa): 33
- Maximum Working Pressure (psi): 4750
- Measuring Type: Fixed Mechanical Positive Displacement
- Minimum Fluid Viscos
XP System, 3:1, 290/97, Bf, Ch, Hs
GG 573304
XP SYSTEM, 3:1, 290/97, BF, CH, HS
Graco 573304 XP50-hf Cart System, Hazardous Location, 3:1 With Primary Heaters, 240V
Two-component spraying made easy and affordable. The XP-hf system combines the XP50 Sprayers with the powerful XL 10000 air motor. Combining these two technologies, you get more flow - getting jobs done faster and with less wear and tear. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
Application: For higher-volume protective coatings.- Reduced material waste
- No more throwing away unused mixed material at the end of the day
- Save money by using less clean-up solvent
- Easy to operate - minimal training required
- Reduced maintenance costs
- Rated for 5000 psi (345 bar) to handle viscous materials and long hose lengths
- Series: XP50-hf
- Air Inlet Size (in): 1
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Applicator Type: Automatic Airless, Manual Airless
- Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents
- Component Type: Plural-Component
- Configuration: With Primary Heater
- Fluid Inlet Size (in): 1-1/4
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Flush Type: Solvent
- Hose Length (ft): 35
- Hose Length (m): 10.7
- Includes: 7 Gallon Hoppers, XTR+ Gun, 35 ft integration Hose and Static Mixer, Merkur Flush Pump, Viscon HF Heaters
- Location Category: Hazardous Location
- Material Application: Coatings, Paints, Primers
- Maximum Air Consumption (SCFM): 60 scfm/gpm at 100 psi
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (MPa): 0.69
- Maximum Air Inlet Pressure (psi): 100
- Maximum Cycle Rate (CPM): 40
- Maximum Flow Rate (cc/min): 15140
- Maximum Flow Rate (GPM): 4
- Maximum Flow Rate (L/min): 15.14
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Hose Length (ft): 300
- Maximum Hose Length (m): 91.4
- Maximum Operating Temperature (°C): 54
- Maximum Operating Temperature (°F): 130
- Maximum Spray Pressure (bar): 344
- Maximum Spray Pressure (kPa): 34400
- Maximum Spray Pressure (MPa): 34
- Maximum Spray Pressure (psi): 5000
- Maximum Working Pressure (bar): 344
- Maximum Working Pressure (kPa): 34400
- Maximum Working Pressure (MPa): 34
- Maximum Working Pressure (psi): 5000
- Measuring Type: Fixed Mechanical Positive Displacement
- Minimum Fluid Viscosity (cP): 200
- Mix Accuracy (%): +/- 5
- Mix Ratio: 3:1
XP SYSTEM, 3:1, 290/97, BF, CH, HS, JB
GG 573305
XP SYSTEM, 3:1, 290/97, BF, CH, HS, JB
XP50-hf Cart System, Non-Hazardous, 3:1 With Primary Heaters, 240VTwo-component spraying made easy and affordable. The XP-hf system combines the XP50 Sprayers with the powerful XL 10000 air motor. Combining these two technologies, you get more flow - getting jobs done faster and with less wear and tear. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
For higher-volume protective coatings. Reduced material waste No more throwing away unused mixed material at the end of the day Save money by using less clean-up solvent Consistent material quality - no more guesswork or human error in measuring materials Easy to operate - minimal training required Reduced maintenance costs Rated for 5000 psi (345 bar) to handle viscous materials and long hose lengths
XP System, 3:1, 290/97, Complete, Haz
GG 573306
XP SYSTEM, 3:1, 290/97, COMPLETE, HAZ
Graco 573306 XP50-hf Cart System, Hazardous Location, 3:1 With Primary Heaters Hose Heat, 240V
Two-component spraying made easy and affordable. The XP-hf system combines the XP50 Sprayers with the powerful XL 10000 air motor. Combining these two technologies, you get more flow - getting jobs done faster and with less wear and tear. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
Application: For higher-volume protective coatings.- Reduced material waste
- No more throwing away unused mixed material at the end of the day
- Save money by using less clean-up solvent
- Easy to operate - minimal training required
- Reduced maintenance costs
- Rated for 5000 psi (345 bar) to handle viscous materials and long hose lengths
- Series: XP50-hf
- Air Inlet Size (in): 1
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Applicator Type: Automatic Airless, Manual Airless
- Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents
- Component Type: Plural-Component
- Configuration: Water Jacketed Hose
- Fluid Inlet Size (in): 1-1/4
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Flush Type: Solvent
- Hose Length (ft): 35
- Hose Length (m): 10.7
- Includes: 7 Gallon Hoppers, XTR+ Gun, 35 ft integration Hose and Static Mixer, Merkur Flush Pump, Viscon HF Heaters, Hose Heat Circulation Kit, Remote Carriage, PressureTrak
- Location Category: Hazardous Location
- Material Application: Coatings, Paints, Primers
- Maximum Air Consumption (SCFM): 60 scfm/gpm at 100 psi
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (MPa): 0.69
- Maximum Air Inlet Pressure (psi): 100
- Maximum Cycle Rate (CPM): 40
- Maximum Flow Rate (cc/min): 15140
- Maximum Flow Rate (GPM): 4
- Maximum Flow Rate (L/min): 15.14
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Hose Length (ft): 300
- Maximum Hose Length (m): 91.4
- Maximum Operating Temperature (°C): 54
- Maximum Operating Temperature (°F): 130
- Maximum Spray Pressure (bar): 344
- Maximum Spray Pressure (kPa): 34400
- Maximum Spray Pressure (MPa): 34
- Maximum Spray Pressure (psi): 5000
- Maximum Working Pressure (bar): 344
- Maximum Working Pressure (kPa): 34400
- Maximum Working Pressure (MPa): 34
- Maximum Working Pressure (psi): 5000
- Measuring Type: Fixed Mechanical Positive Displacement
- Minimum Fluid Viscosity (cP): 200
- Mix
XP SYSTEM, 3:1, 290/97, CMPLT, NON-HAZ
GG 573307
XP SYSTEM, 3:1, 290/97, CMPLT, NON-HAZ
XP50-hf Cart System, Non-Hazardous, 3:1 with Primary Heaters & Hose Heat, 240VTwo-component spraying made easy and affordable. The XP-hf system combines the XP50 Sprayers with the powerful XL 10000 air motor. Combining these two technologies, you get more flow - getting jobs done faster and with less wear and tear. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
For higher-volume protective coatings. Reduced material waste No more throwing away unused mixed material at the end of the day Save money by using less clean-up solvent Consistent material quality - no more guesswork or human error in measuring materials Easy to operate - minimal training required Reduced maintenance costs Rated for 5000 psi (345 bar) to handle viscous materials and long hose lengths
XP SYSTEM, 4:1, 290/72, BF, CH
GG 573402
XP SYSTEM, 4:1, 290/72, BF, CH
XP50-hf Cart System, Hazardous Location, 4:1 Bare, 240VTwo-component spraying made easy and affordable. The XP-hf system combines the XP50 Sprayers with the powerful XL 10000 air motor. Combining these two technologies, you get more flow - getting jobs done faster and with less wear and tear. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
For higher-volume protective coatings. Reduced material waste No more throwing away unused mixed material at the end of the day Save money by using less clean-up solvent Consistent material quality - no more guesswork or human error in measuring materials Easy to operate - minimal training required Reduced maintenance costs Rated for 5000 psi (345 bar) to handle viscous materials and long hose lengths
XP System, 4:1, 290/72, Bf, Ch, Hs
GG 573404
XP SYSTEM, 4:1, 290/72, BF, CH, HS
Graco 573404 XP50-hf Cart System, Hazardous Location, 4:1 With Primary Heaters, 240V
Two-component spraying made easy and affordable. The XP-hf system combines the XP50 Sprayers with the powerful XL 10000 air motor. Combining these two technologies, you get more flow - getting jobs done faster and with less wear and tear. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
Application: For higher-volume protective coatings.- Reduced material waste
- No more throwing away unused mixed material at the end of the day
- Save money by using less clean-up solvent
- Easy to operate - minimal training required
- Reduced maintenance costs
- Rated for 5000 psi (345 bar) to handle viscous materials and long hose lengths
- Series: XP50-hf
- Air Inlet Size (in): 1
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Applicator Type: Automatic Airless, Manual Airless
- Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents
- Component Type: Plural-Component
- Configuration: With Primary Heater
- Fluid Inlet Size (in): 1-1/4
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Flush Type: Solvent
- Hose Length (ft): 35
- Hose Length (m): 10.7
- Includes: 7 Gallon Hoppers, XTR+ Gun, 35 ft integration Hose and Static Mixer, Merkur Flush Pump, Viscon HF Heaters
- Location Category: Hazardous Location
- Material Application: Coatings, Paints, Primers
- Maximum Air Consumption (SCFM): 60 scfm/gpm at 100 psi
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (MPa): 0.69
- Maximum Air Inlet Pressure (psi): 100
- Maximum Cycle Rate (CPM): 40
- Maximum Flow Rate (cc/min): 14380
- Maximum Flow Rate (GPM): 3.8
- Maximum Flow Rate (L/min): 14.38
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Hose Length (ft): 300
- Maximum Hose Length (m): 91.4
- Maximum Operating Temperature (°C): 54
- Maximum Operating Temperature (°F): 130
- Maximum Spray Pressure (bar): 344
- Maximum Spray Pressure (kPa): 34400
- Maximum Spray Pressure (MPa): 34
- Maximum Spray Pressure (psi): 5000
- Maximum Working Pressure (bar): 344
- Maximum Working Pressure (kPa): 34400
- Maximum Working Pressure (MPa): 34
- Maximum Working Pressure (psi): 5000
- Measuring Type: Fixed Mechanical Positive Displacement
- Minimum Fluid Viscosity (cP): 200
- Mix Accuracy (%): +/- 5
- Mix Ratio: 4:1
- <
XP System, 4:1, 290/72, Bf, Ch, Hs, Jb
GG 573405
Xp System, 4:1, 290/72, Bf, Ch, Hs, Jb
XP System, 4:1, 290/72, Complete, Haz
GG 573406
XP SYSTEM, 4:1, 290/72, COMPLETE, HAZ
Graco 573406 XP50-hf Cart System, Hazardous Location, 4:1 With Primary Heaters Hose Heat, 240V
Two-component spraying made easy and affordable. The XP-hf system combines the XP50 Sprayers with the powerful XL 10000 air motor. Combining these two technologies, you get more flow - getting jobs done faster and with less wear and tear. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
Application: For higher-volume protective coatings.- Reduced material waste
- No more throwing away unused mixed material at the end of the day
- Save money by using less clean-up solvent
- Easy to operate - minimal training required
- Reduced maintenance costs
- Rated for 5000 psi (345 bar) to handle viscous materials and long hose lengths
- Series: XP50-hf
- Air Inlet Size (in): 1
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Applicator Type: Automatic Airless, Manual Airless
- Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents
- Component Type: Plural-Component
- Configuration: Water Jacketed Hose
- Fluid Inlet Size (in): 1-1/4
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Flush Type: Solvent
- Hose Length (ft): 35
- Hose Length (m): 10.7
- Includes: 7 Gallon Hoppers, XTR+ Gun, 35 ft integration Hose and Static Mixer, Merkur Flush Pump, Viscon HF Heaters, Hose Heat Circulation Kit, Remote Carriage, PressureTrak
- Location Category: Hazardous Location
- Material Application: Coatings, Paints, Primers
- Maximum Air Consumption (SCFM): 60 scfm/gpm at 100 psi
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (MPa): 0.69
- Maximum Air Inlet Pressure (psi): 100
- Maximum Cycle Rate (CPM): 40
- Maximum Flow Rate (cc/min): 14380
- Maximum Flow Rate (GPM): 3.8
- Maximum Flow Rate (L/min): 14.38
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Hose Length (ft): 300
- Maximum Hose Length (m): 91.4
- Maximum Operating Temperature (°C): 54
- Maximum Operating Temperature (°F): 130
- Maximum Spray Pressure (bar): 344
- Maximum Spray Pressure (kPa): 34400
- Maximum Spray Pressure (MPa): 34
- Maximum Spray Pressure (psi): 5000
- Maximum Working Pressure (bar): 344
- Maximum Working Pressure (kPa): 34400
- Maximum Working Pressure (MPa): 34
- Maximum Working Pressure (psi): 5000
- Measuring Type: Fixed Mechanical Positive Displacement
- Minimum Fluid Viscosity (cP): 200
- M
XP System, 4:1, 290/72, Cmplt, Non-Haz
GG 573407
XP SYSTEM, 4:1, 290/72, CMPLT, NON-HAZ
Graco 573407 XP50-hf Cart System, Non-Hazardous, 4:1 with Primary Heaters & Hose Heat, 240V
Two-component spraying made easy and affordable. The XP-hf system combines the XP50 Sprayers with the powerful XL 10000 air motor. Combining these two technologies, you get more flow - getting jobs done faster and with less wear and tear. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
Application: For higher-volume protective coatings.- Reduced material waste
- No more throwing away unused mixed material at the end of the day
- Save money by using less clean-up solvent
- Easy to operate - minimal training required
- Reduced maintenance costs
- Rated for 5000 psi (345 bar) to handle viscous materials and long hose lengths
- Series: XP50-hf
- Air Inlet Size (in): 1
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Applicator Type: Automatic Airless, Manual Airless
- Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents
- Component Type: Plural-Component
- Configuration: With Primary Heaters & Hose Heat
- Fluid Inlet Size (in): 1-1/4
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Flush Type: Solvent
- Hose Length (ft): 35
- Hose Length (m): 10.7
- Includes: 7 Gallon Hoppers, Merkur Solvent Flush Pump, XTR+ Gun, 35 ft integration Hose and Static Mixer, Junction Box, Viscon HF Heaters, Hose Heat Circulation Kit, Remote Carriage, PressureTrak
- Location Category: Non-Hazardous Location
- Material Application: Coatings, Paints, Primers
- Maximum Air Consumption (SCFM): 60 scfm/gpm at 100 psi
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (MPa): 0.69
- Maximum Air Inlet Pressure (psi): 100
- Maximum Cycle Rate (CPM): 40
- Maximum Flow Rate (cc/min): 14380
- Maximum Flow Rate (GPM): 3.8
- Maximum Flow Rate (L/min): 14.38
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Hose Length (ft): 300
- Maximum Hose Length (m): 91.4
- Maximum Operating Temperature (°C): 54
- Maximum Operating Temperature (°F): 130
- Maximum Spray Pressure (bar): 344
- Maximum Spray Pressure (kPa): 34400
- Maximum Spray Pressure (MPa): 34
- Maximum Spray Pressure (psi): 5000
- Maximum Working Pressure (bar): 344
- Maximum Working Pressure (kPa): 34400
- Maximum Working Pressure (MPa): 34
- Maximum Working Pressure (psi): 5000
- Measuring Type: Fixed Mechanical Positive Displacement
- Minimum Fluid Viscos
XP SYSTEM, 1:1, 145/145, BF, CH, HS, JB
GG 575105
XP SYSTEM, 1:1, 145/145, BF, CH, HS, JB
XP50 Cart System, Non-Hazardous, 1:1 With Primary Heater, 240VTwo-component spraying made easy and affordable. Graco XP50 Plural-Component Sprayers are designed to pump, mix and atomize medium to high solid coatings with superior results. When you upgrade from hand mixing, you'll find that the XP provides excellent return on investment, by reducing material waste and by using less clean-up solvent. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
For higher-volume protective coatings. Reduced material waste No more throwing away unused mixed material at the end of the day Save money by using less clean-up solvent Consistent material quality - no more guesswork or human error in measuring materials Easy to operate - minimal training required Reduced maintenance costs Rated for 5000 psi (345 bar) to handle viscous materials and long hose lengths
XP System, 1:1, 145/145, Complete, Haz
GG 575106
XP SYSTEM, 1:1, 145/145, COMPLETE, HAZ
Graco 575106 XP50 Cart System, Hazardous Location, 1:1 With Primary Heaters & Hose Heat, 240V
Two-component spraying made easy and affordable. Graco XP50 Plural-Component Sprayers are designed to pump, mix and atomize medium to high solid coatings with superior results. When you upgrade from hand mixing, you'll find that the XP provides excellent return on investment, by reducing material waste and by using less clean-up solvent. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
Application: For higher-volume protective coatings.- Reduced material waste
- No more throwing away unused mixed material at the end of the day
- Save money by using less clean-up solvent
- Easy to operate - minimal training required
- Reduced maintenance costs
- Rated for 5000 psi (345 bar) to handle viscous materials and long hose lengths
- Series: XP50
- Air Inlet Size (in): 3/4
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPSM
- Applicator Type: Automatic Airless, Manual Airless
- Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents
- Component Type: Plural-Component
- Configuration: With Primary Heaters & Hose Heat
- Fluid Inlet Size (in): 1-1/4
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Flush Type: Solvent
- Hose Length (ft): 35
- Hose Length (m): 10.7
- Includes: 7 Gallon Hoppers, XTR+ Gun, 35 ft integration Hose and Static Mixer, Merkur Flush Pump, Viscon HP Heaters, Hose Heat Circulation Kit, Remote Carriage, PressureTrak
- Location Category: Hazardous Location
- Material Application: Coatings, Paints, Primers
- Maximum Air Consumption (SCFM): 60 scfm/gpm at 100 psi
- Maximum Air Inlet Pressure (bar): 12.07
- Maximum Air Inlet Pressure (kPa): 1207
- Maximum Air Inlet Pressure (MPa): 1.21
- Maximum Air Inlet Pressure (psi): 175
- Maximum Cycle Rate (CPM): 40
- Maximum Flow Rate (cc/min): 11730
- Maximum Flow Rate (GPM): 3.1
- Maximum Flow Rate (L/min): 11.73
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Hose Length (ft): 300
- Maximum Hose Length (m): 91.4
- Maximum Operating Temperature (°C): 54
- Maximum Operating Temperature (°F): 130
- Maximum Spray Pressure (bar): 344
- Maximum Spray Pressure (kPa): 34400
- Maximum Spray Pressure (MPa): 34
- Maximum Spray Pressure (psi): 5000
- Maximum Working Pressure (bar): 310
- Maximum Working Pressure (kPa): 31000
- Maximum Working Pressure (MPa): 31
- Maximum Working Pressure (psi): 4500
- Measuring Type:
XP System, 1:1, 145/145, Cmplt, Non-Haz
GG 575107
XP SYSTEM, 1:1, 145/145, CMPLT, NON-HAZ
Graco 575107 XP50 Cart System, Non-Hazardous, 1:1 With Primary Heaters & Hose Heat, 240V
Two-component spraying made easy and affordable. Graco XP50 Plural-Component Sprayers are designed to pump, mix and atomize medium to high solid coatings with superior results. When you upgrade from hand mixing, you'll find that the XP provides excellent return on investment, by reducing material waste and by using less clean-up solvent. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
Application: For higher-volume protective coatings.- Reduced material waste
- No more throwing away unused mixed material at the end of the day
- Save money by using less clean-up solvent
- Easy to operate - minimal training required
- Reduced maintenance costs
- Rated for 5000 psi (345 bar) to handle viscous materials and long hose lengths
- Series: XP50
- Air Inlet Size (in): 3/4
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPSM
- Applicator Type: Automatic Airless, Manual Airless
- Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents
- Component Type: Plural-Component
- Configuration: With Primary Heaters & Hose Heat
- Fluid Inlet Size (in): 1-1/4
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Flush Type: Solvent
- Hose Length (ft): 35
- Hose Length (m): 10.7
- Includes: 7 Gallon Hoppers, Merkur Solvent Flush Pump, XTR+ Gun, 35 ft integration Hose and Static Mixer, 240V Junction Box, Viscon HP Heaters, Hose Heat Circulation Kit, Remote Carriage, PressureTrak
- Location Category: Non-Hazardous Location
- Material Application: Coatings, Paints, Primers
- Maximum Air Consumption (SCFM): 60 scfm/gpm at 100 psi
- Maximum Air Inlet Pressure (bar): 12.07
- Maximum Air Inlet Pressure (kPa): 1207
- Maximum Air Inlet Pressure (MPa): 1.21
- Maximum Air Inlet Pressure (psi): 175
- Maximum Cycle Rate (CPM): 40
- Maximum Flow Rate (cc/min): 11730
- Maximum Flow Rate (GPM): 3.1
- Maximum Flow Rate (L/min): 11.73
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Hose Length (ft): 300
- Maximum Hose Length (m): 91.4
- Maximum Operating Temperature (°C): 54
- Maximum Operating Temperature (°F): 130
- Maximum Spray Pressure (bar): 344
- Maximum Spray Pressure (kPa): 34400
- Maximum Spray Pressure (MPa): 34
- Maximum Spray Pressure (psi): 5000
- Maximum Working Pressure (bar): 310
- Maximum Working Pressure (kPa): 31000
- Maximum Working Pressure (MPa): 31
- Maximum Working Pressure (psi): 4500
XP SYSTEM, 2:1, 180/90, BF, CH, HS, JB
GG 575205
XP SYSTEM, 2:1, 180/90, BF, CH, HS, JB
XP50 Cart System, Non-Hazardous, 2:1 With Primary Heater, 240VTwo-component spraying made easy and affordable. Graco XP50 Plural-Component Sprayers are designed to pump, mix and atomize medium to high solid coatings with superior results. When you upgrade from hand mixing, you'll find that the XP provides excellent return on investment, by reducing material waste and by using less clean-up solvent. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
For higher-volume protective coatings. Reduced material waste No more throwing away unused mixed material at the end of the day Save money by using less clean-up solvent Consistent material quality - no more guesswork or human error in measuring materials Easy to operate - minimal training required Reduced maintenance costs Rated for 5000 psi (345 bar) to handle viscous materials and long hose lengths
XP System, 2:1, 180/90, Cmplt, Non-Haz
GG 575207
XP SYSTEM, 2:1, 180/90, CMPLT, NON-HAZ
Graco 575207 XP50 Cart System, Non-Hazardous, 2:1 With Primary Heaters & Hose Heat, 240V
Two-component spraying made easy and affordable. Graco XP50 Plural-Component Sprayers are designed to pump, mix and atomize medium to high solid coatings with superior results. When you upgrade from hand mixing, you'll find that the XP provides excellent return on investment, by reducing material waste and by using less clean-up solvent. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
Application: For higher-volume protective coatings.- Reduced material waste
- No more throwing away unused mixed material at the end of the day
- Save money by using less clean-up solvent
- Easy to operate - minimal training required
- Reduced maintenance costs
- Rated for 5000 psi (345 bar) to handle viscous materials and long hose lengths
- Series: XP50
- Air Inlet Size (in): 3/4
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPSM
- Applicator Type: Automatic Airless, Manual Airless
- Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents
- Component Type: Plural-Component
- Configuration: With Primary Heaters & Hose Heat
- Fluid Inlet Size (in): 1-1/4
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Flush Type: Solvent
- Hose Length (ft): 35
- Hose Length (m): 10.7
- Includes: 7 Gallon Hoppers, Merkur Solvent Flush Pump, XTR+ Gun, 35 ft integration Hose and Static Mixer, 240V Junction Box, Viscon HP Heaters, Hose Heat Circulation Kit, Remote Carriage, PressureTrak
- Location Category: Non-Hazardous Location
- Material Application: Coatings, Paints, Primers
- Maximum Air Consumption (SCFM): 60 scfm/gpm at 100 psi
- Maximum Air Inlet Pressure (bar): 12.07
- Maximum Air Inlet Pressure (kPa): 1207
- Maximum Air Inlet Pressure (MPa): 1.21
- Maximum Air Inlet Pressure (psi): 175
- Maximum Cycle Rate (CPM): 40
- Maximum Flow Rate (cc/min): 10970
- Maximum Flow Rate (GPM): 2.9
- Maximum Flow Rate (L/min): 10.97
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Hose Length (ft): 300
- Maximum Hose Length (m): 91.4
- Maximum Operating Temperature (°C): 54
- Maximum Operating Temperature (°F): 130
- Maximum Spray Pressure (bar): 344
- Maximum Spray Pressure (kPa): 34400
- Maximum Spray Pressure (MPa): 34
- Maximum Spray Pressure (psi): 5000
- Maximum Working Pressure (bar): 331
- Maximum Working Pressure (kPa): 33100
- Maximum Working Pressure (MPa): 33
- Maximum Working Pressure (psi): 4800
Spring, Comp, .240Odx.687L, 1.70Lb/
GG 5-753-04
Spring, Comp, .240Odx.687L, 1.70Lb/
XP SYSTEM, 3:1, 220/72, BF, CH, HS, JB
GG 575305
XP SYSTEM, 3:1, 220/72, BF, CH, HS, JB
XP50 Cart System, Non-Hazardous, 3:1 With Primary Heater, 240VTwo-component spraying made easy and affordable. Graco XP50 Plural-Component Sprayers are designed to pump, mix and atomize medium to high solid coatings with superior results. When you upgrade from hand mixing, you'll find that the XP provides excellent return on investment, by reducing material waste and by using less clean-up solvent. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
For higher-volume protective coatings. Reduced material waste No more throwing away unused mixed material at the end of the day Save money by using less clean-up solvent Consistent material quality - no more guesswork or human error in measuring materials Easy to operate - minimal training required Reduced maintenance costs Rated for 5000 psi (345 bar) to handle viscous materials and long hose lengths
XP System, 3:1, 220/72, Complete, Haz
GG 575306
XP SYSTEM, 3:1, 220/72, COMPLETE, HAZ
Graco 575306 XP50 Cart System, Hazardous Location, 3:1 With Primary Heaters & Hose Heat, 240V
Two-component spraying made easy and affordable. Graco XP50 Plural-Component Sprayers are designed to pump, mix and atomize medium to high solid coatings with superior results. When you upgrade from hand mixing, you'll find that the XP provides excellent return on investment, by reducing material waste and by using less clean-up solvent. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
Application: For higher-volume protective coatings.- Reduced material waste
- No more throwing away unused mixed material at the end of the day
- Save money by using less clean-up solvent
- Easy to operate - minimal training required
- Reduced maintenance costs
- Rated for 5000 psi (345 bar) to handle viscous materials and long hose lengths
- Series: XP50
- Air Inlet Size (in): 3/4
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPSM
- Applicator Type: Automatic Airless, Manual Airless
- Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents
- Component Type: Plural-Component
- Configuration: With Primary Heaters & Hose Heat
- Fluid Inlet Size (in): 1-1/4
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Flush Type: Solvent
- Hose Length (ft): 35
- Hose Length (m): 10.7
- Includes: 7 Gallon Hoppers, XTR+ Gun, 35 ft integration Hose and Static Mixer, Merkur Flush Pump, Viscon HP Heaters, Hose Heat Circulation Kit, Remote Carriage, PressureTrak
- Location Category: Hazardous Location
- Material Application: Coatings, Paints, Primers
- Maximum Air Consumption (SCFM): 60 scfm/gpm at 100 psi
- Maximum Air Inlet Pressure (bar): 12.07
- Maximum Air Inlet Pressure (kPa): 1207
- Maximum Air Inlet Pressure (MPa): 1.21
- Maximum Air Inlet Pressure (psi): 175
- Maximum Cycle Rate (CPM): 40
- Maximum Flow Rate (cc/min): 11730
- Maximum Flow Rate (GPM): 3.1
- Maximum Flow Rate (L/min): 11.73
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Hose Length (ft): 300
- Maximum Hose Length (m): 91.4
- Maximum Operating Temperature (°C): 54
- Maximum Operating Temperature (°F): 130
- Maximum Spray Pressure (bar): 344
- Maximum Spray Pressure (kPa): 34400
- Maximum Spray Pressure (MPa): 34
- Maximum Spray Pressure (psi): 5000
- Maximum Working Pressure (bar): 310
- Maximum Working Pressure (kPa): 31000
- Maximum Working Pressure (MPa): 31
- Maximum Working Pressure (psi): 4500
- Measuring Type: F
XP SYSTEM, 3:1, 220/72, CMPLT, NON-HAZ
GG 575307
XP SYSTEM, 3:1, 220/72, CMPLT, NON-HAZ
XP50 Cart System, Non-Hazardous, 3:1 With Primary Heaters & Hose Heat, 240VTwo-component spraying made easy and affordable. Graco XP50 Plural-Component Sprayers are designed to pump, mix and atomize medium to high solid coatings with superior results. When you upgrade from hand mixing, you'll find that the XP provides excellent return on investment, by reducing material waste and by using less clean-up solvent. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
For higher-volume protective coatings. Reduced material waste No more throwing away unused mixed material at the end of the day Save money by using less clean-up solvent Consistent material quality - no more guesswork or human error in measuring materials Easy to operate - minimal training required Reduced maintenance costs Rated for 5000 psi (345 bar) to handle viscous materials and long hose lengths
XP System, 4:1, 220/54, Bf, Ch, Hs, Jb
GG 575405
XP SYSTEM, 4:1, 220/54, BF, CH, HS, JB
Graco 575405 XP50 Cart System, Non-Hazardous, 4:1 With Primary Heater, 240V
Two-component spraying made easy and affordable. Graco XP50 Plural-Component Sprayers are designed to pump, mix and atomize medium to high solid coatings with superior results. When you upgrade from hand mixing, you'll find that the XP provides excellent return on investment, by reducing material waste and by using less clean-up solvent. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
Application: For higher-volume protective coatings.- Reduced material waste
- No more throwing away unused mixed material at the end of the day
- Save money by using less clean-up solvent
- Easy to operate - minimal training required
- Reduced maintenance costs
- Rated for 5000 psi (345 bar) to handle viscous materials and long hose lengths
- Series: XP50
- Air Inlet Size (in): 3/4
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPSM
- Applicator Type: Automatic Airless, Manual Airless
- Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents
- Component Type: Plural-Component
- Configuration: With Primary Heater
- Fluid Inlet Size (in): 1-1/4
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Flush Type: Solvent
- Hose Length (ft): 35
- Hose Length (m): 10.7
- Includes: 7 Gallon Hoppers, Merkur Solvent Flush Pump, XTR+ Gun, 35 ft integration Hose and Static Mixer, 240V Junction Box, Viscon HP Heaters
- Location Category: Non-Hazardous Location
- Material Application: Coatings, Paints, Primers
- Maximum Air Consumption (SCFM): 60 scfm/gpm at 100 psi
- Maximum Air Inlet Pressure (bar): 12.07
- Maximum Air Inlet Pressure (kPa): 1207
- Maximum Air Inlet Pressure (MPa): 1.21
- Maximum Air Inlet Pressure (psi): 175
- Maximum Cycle Rate (CPM): 40
- Maximum Flow Rate (cc/min): 10970
- Maximum Flow Rate (GPM): 2.9
- Maximum Flow Rate (L/min): 10.97
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Hose Length (ft): 300
- Maximum Hose Length (m): 91.4
- Maximum Operating Temperature (°C): 54
- Maximum Operating Temperature (°F): 130
- Maximum Spray Pressure (bar): 344
- Maximum Spray Pressure (kPa): 34400
- Maximum Spray Pressure (MPa): 34
- Maximum Spray Pressure (psi): 5000
- Maximum Working Pressure (bar): 331
- Maximum Working Pressure (kPa): 33100
- Maximum Working Pressure (MPa): 33
- Maximum Working Pressure (psi): 4800
- Measuring Type: Fixed Mechanical Positive Displacement
- M
XP System, 4:1, 220/54, Complete, Haz
GG 575406
XP SYSTEM, 4:1, 220/54, COMPLETE, HAZ
Graco 575406 XP50 Cart System, Hazardous Location, 4:1 With Primary Heaters & Hose Heat, 240V
Two-component spraying made easy and affordable. Graco XP50 Plural-Component Sprayers are designed to pump, mix and atomize medium to high solid coatings with superior results. When you upgrade from hand mixing, you'll find that the XP provides excellent return on investment, by reducing material waste and by using less clean-up solvent. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
Application: For higher-volume protective coatings.- Reduced material waste
- No more throwing away unused mixed material at the end of the day
- Save money by using less clean-up solvent
- Easy to operate - minimal training required
- Reduced maintenance costs
- Rated for 5000 psi (345 bar) to handle viscous materials and long hose lengths
- Series: XP50
- Air Inlet Size (in): 3/4
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPSM
- Applicator Type: Automatic Airless, Manual Airless
- Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents
- Component Type: Plural-Component
- Configuration: With Primary Heaters & Hose Heat
- Fluid Inlet Size (in): 1-1/4
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Flush Type: Solvent
- Hose Length (ft): 35
- Hose Length (m): 10.7
- Includes: 7 Gallon Hoppers, XTR+ Gun, 35 ft integration Hose and Static Mixer, Merkur Flush Pump, Viscon HP Heaters, Hose Heat Circulation Kit, Remote Carriage, PressureTrak
- Location Category: Hazardous Location
- Material Application: Coatings, Paints, Primers
- Maximum Air Consumption (SCFM): 60 scfm/gpm at 100 psi
- Maximum Air Inlet Pressure (bar): 12.07
- Maximum Air Inlet Pressure (kPa): 1207
- Maximum Air Inlet Pressure (MPa): 1.21
- Maximum Air Inlet Pressure (psi): 175
- Maximum Cycle Rate (CPM): 40
- Maximum Flow Rate (cc/min): 10970
- Maximum Flow Rate (GPM): 2.9
- Maximum Flow Rate (L/min): 10.97
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Hose Length (ft): 300
- Maximum Hose Length (m): 91.4
- Maximum Operating Temperature (°C): 54
- Maximum Operating Temperature (°F): 130
- Maximum Spray Pressure (bar): 344
- Maximum Spray Pressure (kPa): 34400
- Maximum Spray Pressure (MPa): 34
- Maximum Spray Pressure (psi): 5000
- Maximum Working Pressure (bar): 331
- Maximum Working Pressure (kPa): 33100
- Maximum Working Pressure (MPa): 33
- Maximum Working Pressure (psi): 4800
- Measuring Type: F
XP System, 4:1, 220/54, Cmplt, Non-Haz
GG 575407
XP SYSTEM, 4:1, 220/54, CMPLT, NON-HAZ
Graco 575407 XP50 Cart System, Non-Hazardous, 4:1 With Primary Heaters & Hose Heat, 240V
Two-component spraying made easy and affordable. Graco XP50 Plural-Component Sprayers are designed to pump, mix and atomize medium to high solid coatings with superior results. When you upgrade from hand mixing, you'll find that the XP provides excellent return on investment, by reducing material waste and by using less clean-up solvent. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
Application: For higher-volume protective coatings.- Reduced material waste
- No more throwing away unused mixed material at the end of the day
- Save money by using less clean-up solvent
- Easy to operate - minimal training required
- Reduced maintenance costs
- Rated for 5000 psi (345 bar) to handle viscous materials and long hose lengths
- Series: XP50
- Air Inlet Size (in): 3/4
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPSM
- Applicator Type: Automatic Airless, Manual Airless
- Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents
- Component Type: Plural-Component
- Configuration: With Primary Heaters & Hose Heat
- Fluid Inlet Size (in): 1-1/4
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Flush Type: Solvent
- Hose Length (ft): 35
- Hose Length (m): 10.7
- Includes: 7 Gallon Hoppers, Merkur Solvent Flush Pump, XTR+ Gun, 35 ft integration Hose and Static Mixer, 240V Junction Box, Viscon HP Heaters, Hose Heat Circulation Kit, Remote Carriage, PressureTrak
- Location Category: Non-Hazardous Location
- Material Application: Coatings, Paints, Primers
- Maximum Air Consumption (SCFM): 60 scfm/gpm at 100 psi
- Maximum Air Inlet Pressure (bar): 12.07
- Maximum Air Inlet Pressure (kPa): 1207
- Maximum Air Inlet Pressure (MPa): 1.21
- Maximum Air Inlet Pressure (psi): 175
- Maximum Cycle Rate (CPM): 40
- Maximum Flow Rate (cc/min): 10970
- Maximum Flow Rate (GPM): 2.9
- Maximum Flow Rate (L/min): 10.97
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Hose Length (ft): 300
- Maximum Hose Length (m): 91.4
- Maximum Operating Temperature (°C): 54
- Maximum Operating Temperature (°F): 130
- Maximum Spray Pressure (bar): 344
- Maximum Spray Pressure (kPa): 34400
- Maximum Spray Pressure (MPa): 34
- Maximum Spray Pressure (psi): 5000
- Maximum Working Pressure (bar): 310
- Maximum Working Pressure (kPa): 31000
- Maximum Working Pressure (MPa): 31
- Maximum Working Pressure (psi): 4500
XP SYSTEM, 1:1, 90/90, BF, CH, HS, JB
GG 576105
XP SYSTEM, 1:1, 90/90, BF, CH, HS, JB
XP70 Cart System, Non-Hazardous, 1:1 With Primary Heater, 240VTwo-component spraying made easy and affordable. The Graco XP70 Plural-Component Sprayer is designed to pump, mix and atomize high to 100% solid coatings with superior results. In addition, the XP70’s design allows you to gravity feed, which may eliminate the need for feed pumps, saving you money. When you upgrade from hand mixing, you'll find that the XP70 provides excellent return on investment, by reducing material waste and by using less clean-up solvent. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
High-pressure performance for two-part high-solids coatings. Reduced material waste No more throwing away unused mixed material at the end of the day Save money by using less clean-up solvent Consistent material quality - no more guesswork or human error in measuring materials Easy to operate - minimal training required Reduced maintenance costs Rated for 7250 psi (500 bar, 50 MPa) to handle viscous materials and long hose lengths
XP System, 1:1, 90/90, Complete, Haz
GG 576106
XP SYSTEM, 1:1, 90/90, COMPLETE, HAZ
Graco 576106 XP70 Skid System, Hazardous Location, 1:1 With Primary Heaters & Hose Heat, 240V
Two-component spraying made easy and affordable. The Graco XP70 Plural-Component Sprayer is designed to pump, mix and atomize high to 100% solid coatings with superior results. In addition, the XP70’s design allows you to gravity feed, which may eliminate the need for feed pumps, saving you money. When you upgrade from hand mixing, you'll find that the XP70 provides excellent return on investment, by reducing material waste and by using less clean-up solvent. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
Application: High-pressure performance for two-part high-solids coatings.- Reduced material waste
- No more throwing away unused mixed material at the end of the day
- Save money by using less clean-up solvent
- Easy to operate - minimal training required
- Reduced maintenance costs
- Rated for 7250 psi (500 bar, 50 MPa) to handle viscous materials and long hose lengths
- Series: XP70
- Air Inlet Size (in): 3/4
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPSM
- Applicator Type: Automatic Airless, Manual Airless
- Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents
- Component Type: Plural-Component
- Configuration: With Primary Heaters & Hose Heat
- Fluid Inlet Size (in): 1-1/4
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Flush Type: Solvent
- Hose Length (ft): 35
- Hose Length (m): 10.7
- Includes: 7 Gallon Hoppers, XTR+ Gun, 35 ft integration Hose and Static Mixer, Merkur Flush Pump, Viscon HP Heaters, Hose Heat Circulation Kit, Remote Carriage, PressureTrak
- Location Category: Hazardous Location
- Material Application: Coatings, Paints, Primers
- Maximum Air Consumption (SCFM): 75 scfm/gpm at 100 psi
- Maximum Air Inlet Pressure (bar): 12.07
- Maximum Air Inlet Pressure (kPa): 1207
- Maximum Air Inlet Pressure (MPa): 1.21
- Maximum Air Inlet Pressure (psi): 175
- Maximum Cycle Rate (CPM): 40
- Maximum Flow Rate (cc/min): 7200
- Maximum Flow Rate (GPM): 1.9
- Maximum Flow Rate (L/min): 7.2
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Hose Length (ft): 300
- Maximum Hose Length (m): 91.4
- Maximum Operating Temperature (°C): 54
- Maximum Operating Temperature (°F): 130
- Maximum Spray Pressure (bar): 500
- Maximum Spray Pressure (kPa): 50000
- Maximum Spray Pressure (MPa): 50
- Maximum Spray Pressure (psi): 7250
- Maximum Working Pressure (bar): 500
- Maximum Working Pressure
XP SYSTEM, 1:1, 90/90, CMPLT, NON-HAZ
GG 576107
XP SYSTEM, 1:1, 90/90, CMPLT, NON-HAZ
XP70 Cart System, Non-Hazardous, 1:1 With Primary Heaters & Hose Heat, 240VTwo-component spraying made easy and affordable. The Graco XP70 Plural-Component Sprayer is designed to pump, mix and atomize high to 100% solid coatings with superior results. In addition, the XP70’s design allows you to gravity feed, which may eliminate the need for feed pumps, saving you money. When you upgrade from hand mixing, you'll find that the XP70 provides excellent return on investment, by reducing material waste and by using less clean-up solvent. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
High-pressure performance for two-part high-solids coatings. Reduced material waste No more throwing away unused mixed material at the end of the day Save money by using less clean-up solvent Consistent material quality - no more guesswork or human error in measuring materials Easy to operate - minimal training required Reduced maintenance costs Rated for 7250 psi (500 bar, 50 MPa) to handle viscous materials and long hose lengths
XP SYSTEM, 2:1, 115/58, COMPLETE, HAZ
GG 576206
XP SYSTEM, 2:1, 115/58, COMPLETE, HAZ
XP70 Cart System, Hazardous Location, 2:1 With Primary Heaters & Hose Heat, 240VTwo-component spraying made easy and affordable. The Graco XP70 Plural-Component Sprayer is designed to pump, mix and atomize high to 100% solid coatings with superior results. In addition, the XP70’s design allows you to gravity feed, which may eliminate the need for feed pumps, saving you money. When you upgrade from hand mixing, you'll find that the XP70 provides excellent return on investment, by reducing material waste and by using less clean-up solvent. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
High-pressure performance for two-part high-solids coatings. Reduced material waste No more throwing away unused mixed material at the end of the day Save money by using less clean-up solvent Consistent material quality - no more guesswork or human error in measuring materials Easy to operate - minimal training required Reduced maintenance costs Rated for 7250 psi (500 bar, 50 MPa) to handle viscous materials and long hose lengths
XP SYSTEM, 2:1, 115/58, CMPLT, NON-HAZ
GG 576207
XP SYSTEM, 2:1, 115/58, CMPLT, NON-HAZ
XP70 Cart System, Non-Hazardous, 2:1 With Primary Heaters & Hose Heat, 240VTwo-component spraying made easy and affordable. The Graco XP70 Plural-Component Sprayer is designed to pump, mix and atomize high to 100% solid coatings with superior results. In addition, the XP70’s design allows you to gravity feed, which may eliminate the need for feed pumps, saving you money. When you upgrade from hand mixing, you'll find that the XP70 provides excellent return on investment, by reducing material waste and by using less clean-up solvent. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
High-pressure performance for two-part high-solids coatings. Reduced material waste No more throwing away unused mixed material at the end of the day Save money by using less clean-up solvent Consistent material quality - no more guesswork or human error in measuring materials Easy to operate - minimal training required Reduced maintenance costs Rated for 7250 psi (500 bar, 50 MPa) to handle viscous materials and long hose lengths
XP SYSTEM, 3:1, 145/48, BF, CH, HS, JB
GG 576305
XP SYSTEM, 3:1, 145/48, BF, CH, HS, JB
XP70 Cart System, Non-Hazardous, 3:1 With Primary Heater, 240VTwo-component spraying made easy and affordable. The Graco XP70 Plural-Component Sprayer is designed to pump, mix and atomize high to 100% solid coatings with superior results. In addition, the XP70’s design allows you to gravity feed, which may eliminate the need for feed pumps, saving you money. When you upgrade from hand mixing, you'll find that the XP70 provides excellent return on investment, by reducing material waste and by using less clean-up solvent. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
High-pressure performance for two-part high-solids coatings. Reduced material waste No more throwing away unused mixed material at the end of the day Save money by using less clean-up solvent Consistent material quality - no more guesswork or human error in measuring materials Easy to operate - minimal training required Reduced maintenance costs Rated for 7250 psi (500 bar, 50 MPa) to handle viscous materials and long hose lengths
XP System, 3:1, 145/48, Complete, Haz
GG 576306
XP SYSTEM, 3:1, 145/48, COMPLETE, HAZ
Graco 576306 XP70 Skid System, Hazardous Location, 3:1 With Primary Heaters & Hose Heat, 240V
Two-component spraying made easy and affordable. The Graco XP70 Plural-Component Sprayer is designed to pump, mix and atomize high to 100% solid coatings with superior results. In addition, the XP70’s design allows you to gravity feed, which may eliminate the need for feed pumps, saving you money. When you upgrade from hand mixing, you'll find that the XP70 provides excellent return on investment, by reducing material waste and by using less clean-up solvent. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
Application: High-pressure performance for two-part high-solids coatings.- Reduced material waste
- No more throwing away unused mixed material at the end of the day
- Save money by using less clean-up solvent
- Easy to operate - minimal training required
- Reduced maintenance costs
- Rated for 7250 psi (500 bar, 50 MPa) to handle viscous materials and long hose lengths
- Series: XP70
- Air Inlet Size (in): 3/4
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPSM
- Applicator Type: Automatic Airless, Manual Airless
- Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents
- Component Type: Plural-Component
- Configuration: With Primary Heaters & Hose Heat
- Fluid Inlet Size (in): 1-1/4
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Flush Type: Solvent
- Hose Length (ft): 35
- Hose Length (m): 10.7
- Includes: 7 Gallon Hoppers, XTR+ Gun, 35 ft integration Hose and Static Mixer, Merkur Flush Pump, Viscon HP Heaters, Hose Heat Circulation Kit, Remote Carriage, PressureTrak
- Location Category: Hazardous Location
- Material Application: Coatings, Paints, Primers
- Maximum Air Consumption (SCFM): 75 scfm/gpm at 100 psi
- Maximum Air Inlet Pressure (bar): 12.07
- Maximum Air Inlet Pressure (kPa): 1207
- Maximum Air Inlet Pressure (MPa): 1.21
- Maximum Air Inlet Pressure (psi): 175
- Maximum Cycle Rate (CPM): 40
- Maximum Flow Rate (cc/min): 7570
- Maximum Flow Rate (GPM): 2
- Maximum Flow Rate (L/min): 7.57
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Hose Length (ft): 300
- Maximum Hose Length (m): 91.4
- Maximum Operating Temperature (°C): 54
- Maximum Operating Temperature (°F): 130
- Maximum Spray Pressure (bar): 500
- Maximum Spray Pressure (kPa): 50000
- Maximum Spray Pressure (MPa): 50
- Maximum Spray Pressure (psi): 7250
- Maximum Working Pressure (bar): 469
- Maximum Working Pressure
XP SYSTEM, 3:1, 145/48, CMPLT, NON-HAZ
GG 576307
XP SYSTEM, 3:1, 145/48, CMPLT, NON-HAZ
XP70 Cart System, Non-Hazardous, 3:1 With Primary Heaters & Hose Heat, 240VTwo-component spraying made easy and affordable. The Graco XP70 Plural-Component Sprayer is designed to pump, mix and atomize high to 100% solid coatings with superior results. In addition, the XP70’s design allows you to gravity feed, which may eliminate the need for feed pumps, saving you money. When you upgrade from hand mixing, you'll find that the XP70 provides excellent return on investment, by reducing material waste and by using less clean-up solvent. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
High-pressure performance for two-part high-solids coatings. Reduced material waste No more throwing away unused mixed material at the end of the day Save money by using less clean-up solvent Consistent material quality - no more guesswork or human error in measuring materials Easy to operate - minimal training required Reduced maintenance costs Rated for 7250 psi (500 bar, 50 MPa) to handle viscous materials and long hose lengths
XP SYSTEM, 4:1, 145/36, BF, CH, HS, JB
GG 576405
XP SYSTEM, 4:1, 145/36, BF, CH, HS, JB
XP70 Cart System, Non-Hazardous, 4:1 With Primary Heater, 240VTwo-component spraying made easy and affordable. The Graco XP70 Plural-Component Sprayer is designed to pump, mix and atomize high to 100% solid coatings with superior results. In addition, the XP70’s design allows you to gravity feed, which may eliminate the need for feed pumps, saving you money. When you upgrade from hand mixing, you'll find that the XP70 provides excellent return on investment, by reducing material waste and by using less clean-up solvent. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
High-pressure performance for two-part high-solids coatings. Reduced material waste No more throwing away unused mixed material at the end of the day Save money by using less clean-up solvent Consistent material quality - no more guesswork or human error in measuring materials Easy to operate - minimal training required Reduced maintenance costs Rated for 7250 psi (500 bar, 50 MPa) to handle viscous materials and long hose lengths
XP System, 4:1, 145/36, Complete, Haz
GG 576406
XP SYSTEM, 4:1, 145/36, COMPLETE, HAZ
Graco 576406 XP70 Skid System, Hazardous Location, 4:1 With Primary Heaters & Hose Heat, 240V
Two-component spraying made easy and affordable. The Graco XP70 Plural-Component Sprayer is designed to pump, mix and atomize high to 100% solid coatings with superior results. In addition, the XP70’s design allows you to gravity feed, which may eliminate the need for feed pumps, saving you money. When you upgrade from hand mixing, you'll find that the XP70 provides excellent return on investment, by reducing material waste and by using less clean-up solvent. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
Application: High-pressure performance for two-part high-solids coatings.- Reduced material waste
- No more throwing away unused mixed material at the end of the day
- Save money by using less clean-up solvent
- Easy to operate - minimal training required
- Reduced maintenance costs
- Rated for 7250 psi (500 bar, 50 MPa) to handle viscous materials and long hose lengths
- Series: XP70
- Air Inlet Size (in): 3/4
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPSM
- Applicator Type: Automatic Airless, Manual Airless
- Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents
- Component Type: Plural-Component
- Configuration: With Primary Heaters & Hose Heat
- Fluid Inlet Size (in): 1-1/4
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Flush Type: Solvent
- Hose Length (ft): 35
- Hose Length (m): 10.7
- Includes: 7 Gallon Hoppers, XTR+ Gun, 35 ft integration Hose and Static Mixer, Merkur Flush Pump, Viscon HP Heaters, Hose Heat Circulation Kit, Remote Carriage, PressureTrak
- Location Category: Hazardous Location
- Material Application: Coatings, Paints, Primers
- Maximum Air Consumption (SCFM): 75 scfm/gpm at 100 psi
- Maximum Air Inlet Pressure (bar): 12.07
- Maximum Air Inlet Pressure (kPa): 1207
- Maximum Air Inlet Pressure (MPa): 1.21
- Maximum Air Inlet Pressure (psi): 175
- Maximum Cycle Rate (CPM): 40
- Maximum Flow Rate (cc/min): 7200
- Maximum Flow Rate (GPM): 1.9
- Maximum Flow Rate (L/min): 7.2
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Hose Length (ft): 300
- Maximum Hose Length (m): 91.4
- Maximum Operating Temperature (°C): 54
- Maximum Operating Temperature (°F): 130
- Maximum Spray Pressure (bar): 500
- Maximum Spray Pressure (kPa): 50000
- Maximum Spray Pressure (MPa): 50
- Maximum Spray Pressure (psi): 7250
- Maximum Working Pressure (bar): 500
- Maximum Working Pressur
XP System, 4:1, 145/36, Cmplt, Non-Haz
GG 576407
XP SYSTEM, 4:1, 145/36, CMPLT, NON-HAZ
Graco 576407 XP70 Skid System, Non-Hazardous, 4:1 With Primary Heaters & Hose Heat, 240V
Two-component spraying made easy and affordable. The Graco XP70 Plural-Component Sprayer is designed to pump, mix and atomize high to 100% solid coatings with superior results. In addition, the XP70’s design allows you to gravity feed, which may eliminate the need for feed pumps, saving you money. When you upgrade from hand mixing, you'll find that the XP70 provides excellent return on investment, by reducing material waste and by using less clean-up solvent. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
Application: High-pressure performance for two-part high-solids coatings.- Reduced material waste
- No more throwing away unused mixed material at the end of the day
- Save money by using less clean-up solvent
- Easy to operate - minimal training required
- Reduced maintenance costs
- Rated for 7250 psi (500 bar, 50 MPa) to handle viscous materials and long hose lengths
- Series: XP70
- Air Inlet Size (in): 3/4
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPSM
- Applicator Type: Automatic Airless, Manual Airless
- Compatible Material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents
- Component Type: Plural-Component
- Configuration: With Primary Heaters & Hose Heat
- Fluid Inlet Size (in): 1-1/4
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Flush Type: Solvent
- Hose Length (ft): 35
- Hose Length (m): 10.7
- Includes: 7 Gallon Hoppers, Merkur Solvent Flush Pump, XTR+ Gun, 35 ft integration Hose and Static Mixer, 240V Junction Box, Viscon HP Heaters, Hose Heat Circulation Kit, Remote Carriage, PressureTrak
- Location Category: Non-Hazardous Location
- Material Application: Coatings, Paints, Primers
- Maximum Air Consumption (SCFM): 75 scfm/gpm at 100 psi
- Maximum Air Inlet Pressure (bar): 12.07
- Maximum Air Inlet Pressure (kPa): 1207
- Maximum Air Inlet Pressure (MPa): 1.21
- Maximum Air Inlet Pressure (psi): 175
- Maximum Cycle Rate (CPM): 40
- Maximum Flow Rate (cc/min): 7200
- Maximum Flow Rate (GPM): 1.9
- Maximum Flow Rate (L/min): 7.2
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Hose Length (ft): 300
- Maximum Hose Length (m): 91.4
- Maximum Operating Temperature (°C): 54
- Maximum Operating Temperature (°F): 130
- Maximum Spray Pressure (bar): 500
- Maximum Spray Pressure (kPa): 50000
- Maximum Spray Pressure (MPa): 50
- Maximum Spray Pressure (psi): 7250
- Maximum Working Pressure (bar): 500
XP SYSTEM, XP70S, 1:1, 145/145, 240, WJ
GG 577101
XP SYSTEM, XP70S, 1:1, 145/145, 240, WJ
XP70s-hf Skid System, Non-Hazardous, 1:1 With Water Jacketed Hose, 240V The XP high flow skid systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf systems provide greater performance, allowing the flexibility of multi-gun application to shorten your project completion time. With the durable, 25 gallon heated and agitated tanks, your coatings will obtain the best conditioning to meet the highest demand applications – making you more productive. Approved for Ordinary Location use 25 gallon Stainless Steel lined hoppers with heater and agitator Solvent flush pump included
