GRACO INC. S10595

GG CD3263

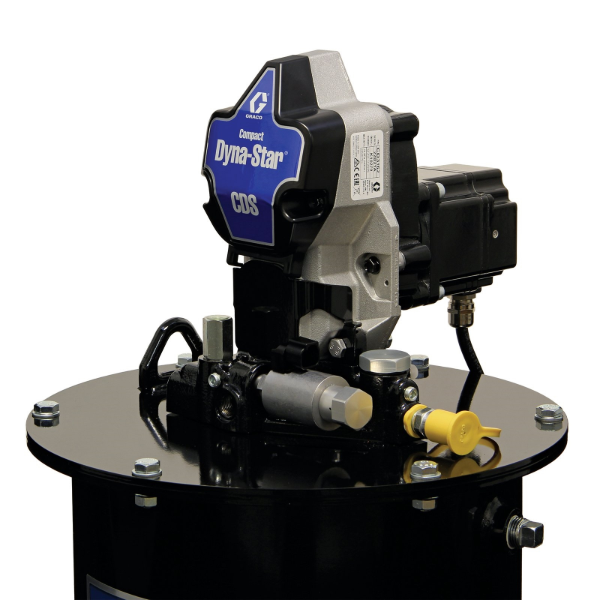

DYNA-STAR COMPACT PUMP, 60#

Graco CD3263 Compact Dyna-Star® 24 VDC Vent-Valve Grease Pump and 60 lb Reservoir, Follower Plate, Pressure and Low-Level Switch, Auto-Fill Shut Off

The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments.

• Compact Power - Fits easily in space-limited applications, powerful enough to keep up with aggressive lubrication interval.
• Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C.
• Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments.

• Application: In-Plant Machinery, Off-Road Equipment
• Approvals: CE, EAC, RCM

• Compatible Material: Grease
• Compatible Metering Device: Single Line Parallel

• Component Technology: Brushless Electric Motor, Shovel-loading pump tube

• Fluid Outlet Size (in): 3/8, 1/4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Input Voltage (V dc): 24

• IP Rating: IP69K

• Low Level Switch Rating (VDC): 24
• Low Level Switching Current (A): 0.2
• Lower Type: Integrated Shovel Loading

• Maximum Continuous Cycle Rate (CPM): 64
• Maximum cST Grade (cST): NLGI #2
• Maximum Cycle Rate (CPM): 64

• Maximum Cycle Rate (strokes/min): 64
• Maximum Fill Inlet Pressure (psi): 500

• Maximum Flow Rate (ci/min): 4.5
• Maximum Flow Rate (L/min): 0.074

• Maximum Fluid Output Pressure (bar): 241
• Maximum Fluid Output Pressure (psi): 3500

• Maximum Fluid Output Pressure (bar): 241
• Maximum Fluid Output Pressure (psi): 3500

• Maximum Intermittent Cycle Rate (CPM): 64

• Maximum NLGI Grade: 2

• Maximum Operating Temperature (°C): 149
• Maximum Operating Temperature (°F): 65

• Maximum Voltage (V dc): 30

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kPa): 24100
• Maximum Working Pressure (MPa): 24.1
• Maximum Working Pressure (psi): 3500

• Minimum Operating Temperature (°C): -40
• Minimum Operating Temperature (°F): -40

• Minimum Voltage (V dc): 18

• Motor Type: Brushless DC

• Number of Outlets: 2
• Number of Pump Elements: 1

• Output Per Cycle (cm³): 1
• Overall Depth (cm): 39.62
• Overall Depth (in): 15.6
• Overall Depth (mm): 396.2

• Overall Height (cm): 72.14
• Overall Height (in): 28.4
• Overall Height (mm): 721.4
• Overall Width (cm): 38.1
• Overall Width (in): 15
• Overall Width (mm): 381
• Package Options: Pump with Reservoir

• Power Connection Type: Deutsch DT04-12PB Housing

• Power Rating (HP): 0.25
• Power Type: Electric
• Pressure Reporting Maximum Signal (VDC): 5
• Pressure Reporting Minimum Signal (VDC): 1
• Pressure Reporting Transducer Full Range (psi): 5000

GG CD3271

DYNA-STAR COMPACT PUMP, 60#

Graco CD3271 Compact Dyna-Star® 24 VDC Vent-Valve Oil or Grease Pump and 60 lb Reservoir without Follower Plate, Pressure and Low-Level Switch

The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments.

• Compact Power - Fits easily in space-limited applications, powerful enough to keep up with aggressive lubrication interval.
• Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C.
• Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments.

• Application: In-Plant Machinery, Off-Road Equipment
• Approvals: CE, EAC, RCM

• Compatible Material: Oil & Grease
• Compatible Metering Device: Single Line Parallel

• Component Technology: Brushless Electric Motor, Shovel-loading pump tube

• Fluid Outlet Size (in): 3/8, 1/4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Input Voltage (V dc): 24

• IP Rating: IP69K

• Low Level Switch Rating (VDC): 24
• Low Level Switching Current (A): 0.2
• Lower Type: Integrated Shovel Loading

• Maximum Continuous Cycle Rate (CPM): 64
• Maximum cST Grade (cST): NLGI #2
• Maximum Cycle Rate (CPM): 64

• Maximum Cycle Rate (strokes/min): 64
• Maximum Fill Inlet Pressure (psi): 500

• Maximum Flow Rate (ci/min): 4.5
• Maximum Flow Rate (L/min): 0.074

• Maximum Fluid Output Pressure (bar): 241
• Maximum Fluid Output Pressure (psi): 3500

• Maximum Fluid Output Pressure (bar): 241
• Maximum Fluid Output Pressure (psi): 3500

• Maximum Intermittent Cycle Rate (CPM): 64

• Maximum NLGI Grade: 2

• Maximum Operating Temperature (°C): 149
• Maximum Operating Temperature (°F): 65

• Maximum Voltage (V dc): 30

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kPa): 24100
• Maximum Working Pressure (MPa): 24.1
• Maximum Working Pressure (psi): 3500

• Minimum Operating Temperature (°C): -40
• Minimum Operating Temperature (°F): -40

• Minimum Voltage (V dc): 18

• Motor Type: Brushless DC

• Number of Outlets: 2
• Number of Pump Elements: 1

• Output Per Cycle (cm³): 1
• Overall Depth (cm): 39.62
• Overall Depth (in): 15.6
• Overall Depth (mm): 396.2

• Overall Height (cm): 72.14
• Overall Height (in): 28.4
• Overall Height (mm): 721.4
• Overall Width (cm): 38.1
• Overall Width (in): 15
• Overall Width (mm): 381
• Package Options: Pump with Reservoir

• Power Connection Type: Deutsch DT04-12PB Housing

• Power Rating (HP): 0.25
• Power Type: Electric
• Pressure Reporting Maximum Signal (VDC): 5
• Pressure Reporting Minimum Signal (VDC): 1
• Pressure Reporting Transducer Full Range (psi): 5000

GG CD3362

DYNA-STAR COMPACT PUMP, 60#

GG CD3364

DYNA-STAR COMPACT PUMP, 60#

GG CD3372

GG CGMDN0

GG CH2011

GG CH2010

GG CH2110

GG CH2111

GG CHC200

GG CHC201

GG CHC202

GG CHH031

GG CHH032

GG CHH131

GG CHR312

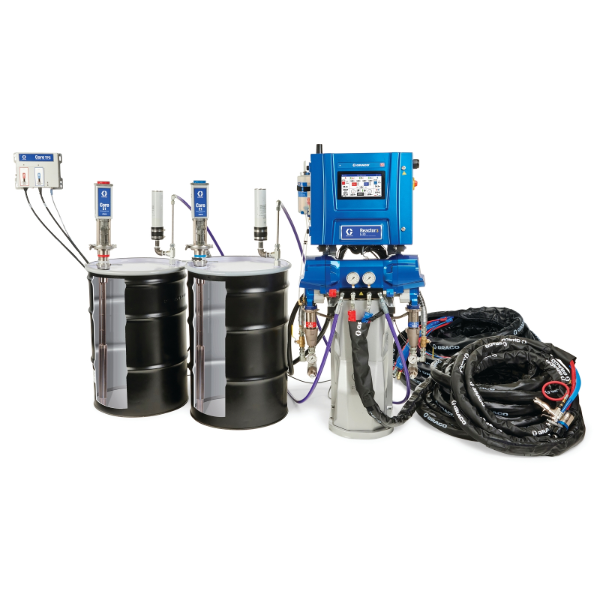

PACKAGE, E20, R3, ELITE, MULTI, IH, E1

• Katalyst full system communication and control that improves performance, ratio and yield. * Requires Core E1 pumps

• Automatically shuts down when you run out of material.
• Prevents air from entering the system that can cause off-ratio issues. * Requires Core E1 pumps

• Automatically monitors and adjusts fluid inlet pressures to compensate for high viscosity materials

• Automatically adjusts temperatures to optimize fluid pressures and maximize yield

• Select desired heater wattage for reduced power consumption

• Automatically stay up to date with the latest Reactor software

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen

• Control A and B materials to different temperatures for improved pressure balancing
• Optimizes yield

• Brushless motor for improved pressure/flow performance
• New temperature control boards for independent hose heat
• Voltage jumpers for easy changing between voltages
• Robust UL listed electrical hose connectors are color coded and keyed for error proof assembly

• Reduced footprint provides additional room in your rig
• Compact design protects the flow meters and hose connections from being damaged in your rig

GG CHH132

GG CHR322

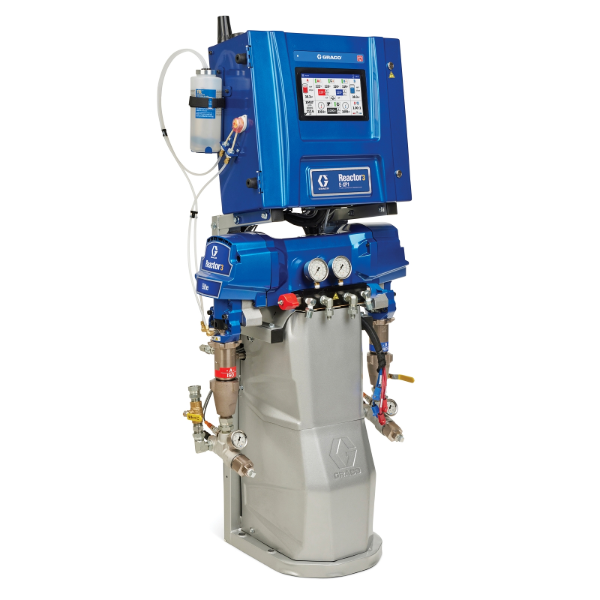

PACKAGE, EXP1, R3, ELITE, MULTI, IH, E1

• Katalyst full system communication and control that improves performance, ratio and yield. * Requires Core E1 pumps

• Automatically monitors and adjusts fluid inlet pressures to compensate for high viscosity materials

• Automatically adjusts temperatures to optimize fluid pressures and maximize yield

• Select desired heater wattage for reduced power consumption

• Automatically stay up to date with the latest Reactor software

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen

• Control A and B materials to different temperatures for improved pressure balancing
• Optimizes yield

• Brushless motor for improved pressure/flow performance
• New temperature control boards for independent hose heat
• Voltage jumpers for easy changing between voltages
• Robust UL listed electrical hose connectors are color coded and keyed for error proof assembly

• Reduced footprint provides additional room in your rig
• Compact design protects the flow meters and hose connections from being damaged in your rig

GG CHR332

PACKAGE, E30, R3, ELITE, MULTI, IH, E1

• Katalyst full system communication and control that improves performance, ratio and yield. * Requires Core E1 pumps

• Automatically monitors and adjusts fluid inlet pressures to compensate for high viscosity materials

• Automatically adjusts temperatures to optimize fluid pressures and maximize yield

• Select desired heater wattage for reduced power consumption

• Automatically stay up to date with the latest Reactor software

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen

• Control A and B materials to different temperatures for improved pressure balancing
• Optimizes yield

• Brushless motor for improved pressure/flow performance
• New temperature control boards for independent hose heat
• Voltage jumpers for easy changing between voltages
• Robust UL listed electrical hose connectors are color coded and keyed for error proof assembly

• Reduced footprint provides additional room in your rig
• Compact design protects the flow meters and hose connections from being damaged in your rig

GG CHR342

PACKAGE, EXP2, R3, ELITE, MULTI, IH, E1

• Katalyst full system communication and control that improves performance, ratio and yield. * Requires Core E1 pumps

• Automatically shuts down when you run out of material.
• Prevents air from entering the system that can cause off-ratio issues. * Requires Core E1 pumps

• Automatically monitors and adjusts fluid inlet pressures to compensate for high viscosity materials

• Automatically adjusts temperatures to optimize fluid pressures and maximize yield

• Select desired heater wattage for reduced power consumption

• Automatically stay up to date with the latest Reactor software

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen

• Control A and B materials to different temperatures for improved pressure balancing
• Optimizes yield

• Brushless motor for improved pressure/flow performance
• New temperature control boards for independent hose heat
• Voltage jumpers for easy changing between voltages
• Robust UL listed electrical hose connectors are color coded and keyed for error proof assembly

• Reduced footprint provides additional room in your rig
• Compact design protects the flow meters and hose connections from being damaged in your rig

GG CHR357

PACKAGE, H30, R3, 60HZ, ELITE, IH, CORE

• Simplified robust design eliminates fly wheel and belt system for reduced maintenance
• Smaller compact footprint
• Reduced noise

• Positive displacement pumps
• Easy service
• Long life
• Smooth changeovers and spray pattern
• Multiple pump sizes for non 1:1 dispensing

• Powerful fan to maintain optimal oil temperature for longer oil life

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen
• Electronic pressure control (Elite models)

• Robust heating design
• Heats materials quickly and efficiently
• Maintains temperature set points at max flow rates

• Control A and B materials to different temperatures for improved pressure balancing and optimized yield

• Easy-to-access oil dip stick and oil drain valve simplifies preventive maintenance

• New easy-to-maintain design
• 2X larger filter area
• Separate temperature and pressure sensors for more accurate temperature readings
• Redesigned with side-mounted fluid valves for easier turning and improved control

• Real-time dashboard and reports via cellular connectivity
• Improved cellular antenna
• New GPS antenna
• GPS location available in Reactor Connect
• Job naming and reporting

• Verifies fluid ratio
• Provides real-time ratio data: displayed on the ADM and Reactor Connect
• Accurate for a wide range of fluid viscosities

GG CHR367

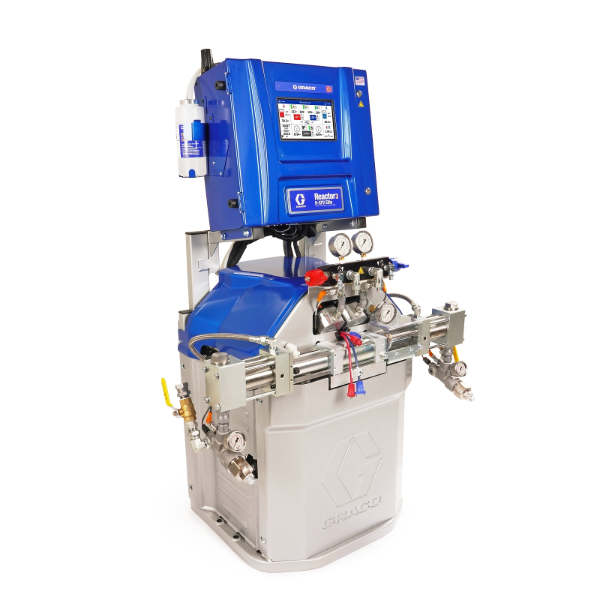

PACKAGE, HXP2, R3, 60HZ, ELITE, IH, CORE

• Simplified robust design eliminates fly wheel and belt system for reduced maintenance
• Smaller compact footprint
• Reduced noise

• Positive displacement pumps
• Easy service
• Long life
• Smooth changeovers and spray pattern
• Multiple pump sizes for non 1:1 dispensing

• Powerful fan to maintain optimal oil temperature for longer oil life

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen
• Electronic pressure control (Elite models)

• Robust heating design
• Heats materials quickly and efficiently
• Maintains temperature set points at max flow rates

• Control A and B materials to different temperatures for improved pressure balancing and optimized yield

• Easy-to-access oil dip stick and oil drain valve simplifies preventive maintenance

• New easy-to-maintain design
• 2X larger filter area
• Separate temperature and pressure sensors for more accurate temperature readings
• Redesigned with side-mounted fluid valves for easier turning and improved control

• Real-time dashboard and reports via cellular connectivity
• Improved cellular antenna
• New GPS antenna
• GPS location available in Reactor Connect
• Job naming and reporting

• Verifies fluid ratio
• Provides real-time ratio data: displayed on the ADM and Reactor Connect
• Accurate for a wide range of fluid viscosities

GG CHR377

GG CHR378

GG CHR387

PACKAGE, HXP3, R3, 230V, ELITE, IH, CORE

• Simplified robust design eliminates fly wheel and belt system for reduced maintenance
• Smaller compact footprint
• Reduced noise

• Positive displacement pumps
• Easy service
• Long life
• Smooth changeovers and spray pattern
• Multiple pump sizes for non 1:1 dispensing

• Powerful fan to maintain optimal oil temperature for longer oil life

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen
• Electronic pressure control (Elite models)

• Robust heating design
• Heats materials quickly and efficiently
• Maintains temperature set points at max flow rates

• Control A and B materials to different temperatures for improved pressure balancing and optimized yield

• Easy-to-access oil dip stick and oil drain valve simplifies preventive maintenance

• New easy-to-maintain design
• 2X larger filter area
• Separate temperature and pressure sensors for more accurate temperature readings
• Redesigned with side-mounted fluid valves for easier turning and improved control

• Real-time dashboard and reports via cellular connectivity
• Improved cellular antenna
• New GPS antenna
• GPS location available in Reactor Connect
• Job naming and reporting

• Verifies fluid ratio
• Provides real-time ratio data: displayed on the ADM and Reactor Connect
• Accurate for a wide range of fluid viscosities

GG CHR388

PACKAGE, HXP3, R3, 400, ELITE, IH, CORE

• Simplified robust design eliminates fly wheel and belt system for reduced maintenance
• Smaller compact footprint
• Reduced noise

• Positive displacement pumps
• Easy service
• Long life
• Smooth changeovers and spray pattern
• Multiple pump sizes for non 1:1 dispensing

• Powerful fan to maintain optimal oil temperature for longer oil life

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen
• Electronic pressure control (Elite models)

• Robust heating design
• Heats materials quickly and efficiently
• Maintains temperature set points at max flow rates

• Control A and B materials to different temperatures for improved pressure balancing and optimized yield

• Easy-to-access oil dip stick and oil drain valve simplifies preventive maintenance

• New easy-to-maintain design
• 2X larger filter area
• Separate temperature and pressure sensors for more accurate temperature readings
• Redesigned with side-mounted fluid valves for easier turning and improved control

• Real-time dashboard and reports via cellular connectivity
• Improved cellular antenna
• New GPS antenna
• GPS location available in Reactor Connect
• Job naming and reporting

• Verifies fluid ratio
• Provides real-time ratio data: displayed on the ADM and Reactor Connect
• Accurate for a wide range of fluid viscosities

GG CHR390

PACKAGE, H30, R3, 50HZ, ELITE, IH, CORE

• Simplified robust design eliminates fly wheel and belt system for reduced maintenance
• Smaller compact footprint
• Reduced noise

• Positive displacement pumps
• Easy service
• Long life
• Smooth changeovers and spray pattern
• Multiple pump sizes for non 1:1 dispensing

• Powerful fan to maintain optimal oil temperature for longer oil life

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen
• Electronic pressure control (Elite models)

• Robust heating design
• Heats materials quickly and efficiently
• Maintains temperature set points at max flow rates

• Control A and B materials to different temperatures for improved pressure balancing and optimized yield

• Easy-to-access oil dip stick and oil drain valve simplifies preventive maintenance

• New easy-to-maintain design
• 2X larger filter area
• Separate temperature and pressure sensors for more accurate temperature readings
• Redesigned with side-mounted fluid valves for easier turning and improved control

• Real-time dashboard and reports via cellular connectivity
• Improved cellular antenna
• New GPS antenna
• GPS location available in Reactor Connect
• Job naming and reporting

• Verifies fluid ratio
• Provides real-time ratio data: displayed on the ADM and Reactor Connect
• Accurate for a wide range of fluid viscosities

GG CHR392

PACKAGE, HXP2, R3, 50HZ, ELITE, IH, CORE

• Simplified robust design eliminates fly wheel and belt system for reduced maintenance
• Smaller compact footprint
• Reduced noise

• Positive displacement pumps
• Easy service
• Long life
• Smooth changeovers and spray pattern
• Multiple pump sizes for non 1:1 dispensing

• Powerful fan to maintain optimal oil temperature for longer oil life

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen
• Electronic pressure control (Elite models)

• Robust heating design
• Heats materials quickly and efficiently
• Maintains temperature set points at max flow rates

• Control A and B materials to different temperatures for improved pressure balancing and optimized yield

• Easy-to-access oil dip stick and oil drain valve simplifies preventive maintenance

• New easy-to-maintain design
• 2X larger filter area
• Separate temperature and pressure sensors for more accurate temperature readings
• Redesigned with side-mounted fluid valves for easier turning and improved control

• Real-time dashboard and reports via cellular connectivity
• Improved cellular antenna
• New GPS antenna
• GPS location available in Reactor Connect
• Job naming and reporting

• Verifies fluid ratio
• Provides real-time ratio data: displayed on the ADM and Reactor Connect
• Accurate for a wide range of fluid viscosities

GG CJ-131

GG CJ-162

GG CL-150

GG CL-200

GG CL-300

GG CL-400

GG CLB-01

GG CLB-12

GG CLB-13

GG CLB-14

GG CM114B

CHECK-MATE SUPPLY UNIT, 40:1, 0 VOLT, D60, 20L

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

GG CM1169

GG CM11YS

CHECK-MATE SUPPLY UNIT, 40:1, 0 VOLT, D60, 60L

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

GG CM154G

CHECK-MATE SUPPLY UNIT, 63:1, 0 VOLT, D60, 20L

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

GG CM154J

CHECK-MATE SUPPLY UNIT,63:1,0 VOLT,D60,30L

Graco CM154J 63:1 Ratio 30 L D60 Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

• 60 liter (16-gal) pail sizes provides the same proven technologies as the larger systems, but with small NXT Air Motors
• Graco D60 - Provides higher down-force and 60-liter pail capacity
• Industry-first controls give you immediate and important information at the touch of a button
• Platen wipers can be replaced in seconds
• Pump's quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
• High-quality, durable parts reduce maintenance time, maximize uptime

GG CM154S

CHECK-MATE SUPPLY UNIT,63:1,0 VOLT,D60,60L

Graco CM154S 63:1 Ratio 60 L D60 Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

• 60 liter (16-gal) pail sizes provides the same proven technologies as the larger systems, but with small NXT Air Motors
• Graco D60 - Provides higher down-force and 60-liter pail capacity
• Industry-first controls give you immediate and important information at the touch of a button
• Platen wipers can be replaced in seconds
• Pump's quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
• High-quality, durable parts reduce maintenance time, maximize uptime

GG CM1557

GG CM155N

GG CM155S

GG CM1579

CHECK-MATE SUPPLY UNIT,63:1,6.5 RAM,200L

Graco CM1579 63:1 Ratio 200 L 6.5 RAM Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

• For large drums up to 200 liter (55 gal)
• Graco D200s - For heavy-duty, high-volume applications of high-viscosity materials. Provides more down-force for difficult-to-move materials
• Industry-first controls give you immediate and important information at the touch of a button
• Platen wipers can be replaced in seconds
• Pump's quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
• High-quality, durable parts reduce maintenance time, maximize uptime

GG CM157A

GG CM15YB

CHECK-MATE SUPPLY UNIT, 63:1, 0 VOLT, D60, 20L

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

GG CM17BN

GG CM1E3B

GG CM1E4B

GG CM1T3F

GG CM1U3F

GG CM1U59

GG CM1U79

GG CM1U7A

GG CM214B

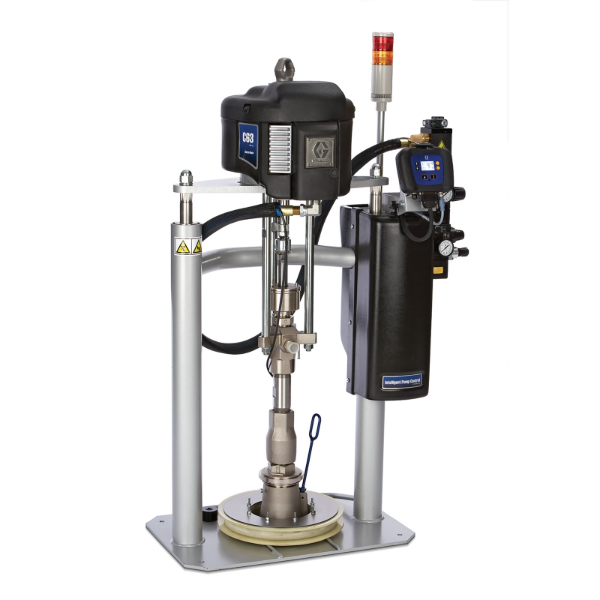

CHECK-MATE SUPPLY UNIT, 23:1, 0 VOLT, D60, 20L

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

GG CM21YH

GG CM21YJ

GG CM224C

GG CM2259

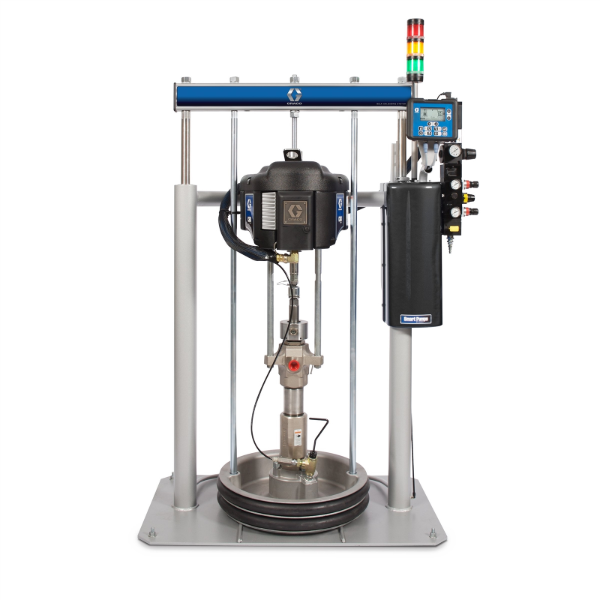

CHECK-MATE SUPPLY UNIT, 23:1, 3.0 RAM, 200L

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

GG CM254F

CHECK-MATE SUPPLY UNIT, 23:1, 0 VOLT, D60, 20L

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

GG CM2559

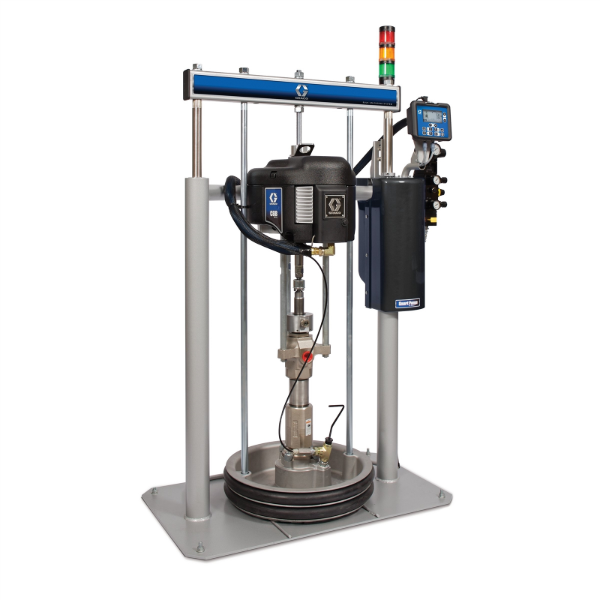

CHECK-MATE SUPPLY UNIT, 23:1, 3.0 RAM, 200L

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

GG CM2579

CHECK-MATE SUPPLY UNIT, 23:1, 6.5 RAM, 200L

Graco CM2579 23:1 Ratio 200 L 6.5 RAM Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

• For large drums up to 200 liter (55 gal)
• Graco D200 - For high-volume in-plant applications
• Industry-first controls give you immediate and important information at the touch of a button
• Platen wipers can be replaced in seconds
• Pump's quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
• High-quality, durable parts reduce maintenance time, maximize uptime

• Model: Check-Mate
• Series: D200s

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill

• Container Type: Drum

• Material Container Volume (gal): 52.8
• Material Container Volume (l): 200

• Maximum Air Inlet Pressure (bar): 8.62
• Maximum Air Inlet Pressure (kg/cm²): 8.79
• Maximum Air Inlet Pressure (kPa): 862
• Maximum Air Inlet Pressure (psi): 125

• Maximum Flow Rate (GPM): 3.2
• Maximum Flow Rate (L/min): 12.1

• Maximum Fluid Pressure (bar): 158.8
• Maximum Fluid Pressure (kPa): 15880
• Maximum Fluid Pressure (psi): 2300

• Maximum Fluid Pressure (bar): 158.8
• Maximum Fluid Pressure (kPa): 15880
• Maximum Fluid Pressure (psi): 2300

• Maximum Height (cm): 266.5
• Maximum Height (ft): 8.74
• Maximum Height (in): 104.9
• Maximum Height (m): 2.66
• Maximum Height (mm): 2665

• Maximum Operating Temperature (°C): 49
• Maximum Operating Temperature (°F): 120

• Maximum Working Pressure (bar): 161
• Maximum Working Pressure (kPa): 16100
• Maximum Working Pressure (MPa): 16.1
• Maximum Working Pressure (psi): 2300

• Minimum Height (cm): 178.5
• Minimum Height (ft): 5.86
• Minimum Height (in): 70.3
• Minimum Height (m): 1.79
• Minimum Height (mm): 1785

• Overall Depth (cm): 63.5
• Overall Depth (in): 25
• Overall Depth (mm): 635

• Overall Width (cm): 121.9
• Overall Width (in): 48
• Overall Width (mm): 1219

• Power Type: Pneumatic

• Pump Ratio: 23:1
• Pump Type: Priming Piston

• Ram Material: Carbon Steel

GG CM294B

CHECK-MATE SUPPLY UNIT,36:1,0 VOLT,D60,20L

Graco CM294B 36:1 Ratio 20 L D60 Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

• 60 liter (16-gal) pail sizes provides the same proven technologies as the larger systems, but with small NXT Air Motors
• Graco D60 - Provides higher down-force and 60-liter pail capacity
• Industry-first controls give you immediate and important information at the touch of a button
• Platen wipers can be replaced in seconds
• Pump's quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
• High-quality, durable parts reduce maintenance time, maximize uptime

GG CM295A

GG CM295B

GG CM295J

GG CM2979

GG CM2D4B

CHECK-MATE ELITE SUPPLY UNIT,36:1,0 VOLT,D60,20L

GG CM2D59

GG CM2F79

GG CM2G59

GG CM2G5F

GG CM2G79

GG CM2G7A

GG CM2K4B

GG CM2K59

GG CM2K79

GG CM2L4B

CHECK-MATE SUPPLY UNIT,68:1,0 VOLT,D60,20L

Graco CM2L4B 68:1 Ratio 20 L D60 Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

• 60 liter (16-gal) pail sizes provides the same proven technologies as the larger systems, but with small NXT Air Motors
• Graco D60 - Provides higher down-force and 60-liter pail capacity
• Industry-first controls give you immediate and important information at the touch of a button
• Platen wipers can be replaced in seconds
• Pump's quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
• High-quality, durable parts reduce maintenance time, maximize uptime

GG CM2L4H

CHECK-MATE SUPPLY UNIT, 68:1, 0 VOLT, D60, 20L

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

GG CM2L4S

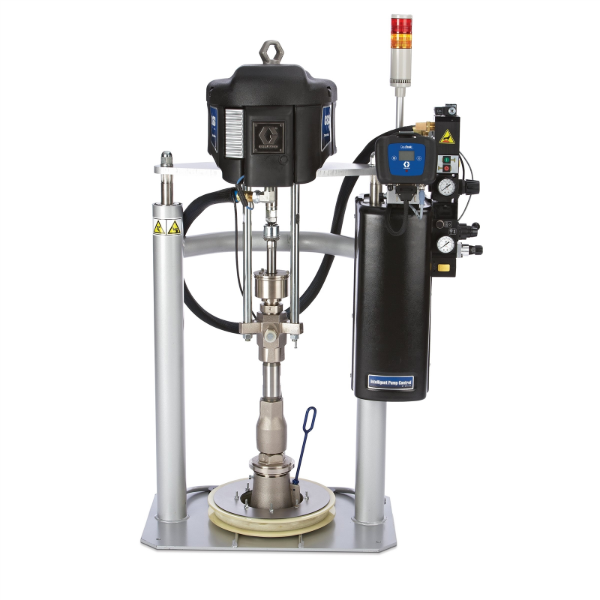

CHECK-MATE SUPPLY UNIT, 68:1, 0 VOLT, D60, 60L

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

GG CM2L5A

CHECK-MATE SUPPLY UNIT,68:1,3.0 RAM,200L

Graco CM2L5A 68:1 Ratio 200 L 3.0 RAM Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

• For large drums up to 200 liter (55 gal)
• Graco D200 - For high-volume in-plant applications
• Industry-first controls give you immediate and important information at the touch of a button
• Platen wipers can be replaced in seconds
• Pump's quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
• High-quality, durable parts reduce maintenance time, maximize uptime

GG CM2L5J

GG CM2L5S

GG CM2L69

GG CM2L7A

CHECK-MATE SUPPLY UNIT,68:1,6.5 RAM,200L

Graco CM2L7A 68:1 Ratio 200 L 6.5 RAM Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

• For large drums up to 200 liter (55 gal)
• Graco D200s - For heavy-duty, high-volume applications of high-viscosity materials. Provides more down-force for difficult-to-move materials
• Industry-first controls give you immediate and important information at the touch of a button
• Platen wipers can be replaced in seconds
• Pump's quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
• High-quality, durable parts reduce maintenance time, maximize uptime

GG CM2L89

GG CM2RBN

GG CM2T4F

GG CM2T59

GG CM2T5F

GG CM2T69

GG CM2T79

CHECK-MATE SUPPLY UNIT,68:1,6.5 RAM,200L

Graco CM2T79 68:1 Ratio 200 L 6.5 RAM Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

• For large drums up to 200 liter (55 gal)
• Graco D200s - For heavy-duty, high-volume applications of high-viscosity materials. Provides more down-force for difficult-to-move materials
• Industry-first controls give you immediate and important information at the touch of a button
• Platen wipers can be replaced in seconds
• Pump's quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
• High-quality, durable parts reduce maintenance time, maximize uptime

GG CM2U4F

GG CM2U59

GG CM2U79
