GRACO INC. S10595
GRACO INC. S10595 branded products

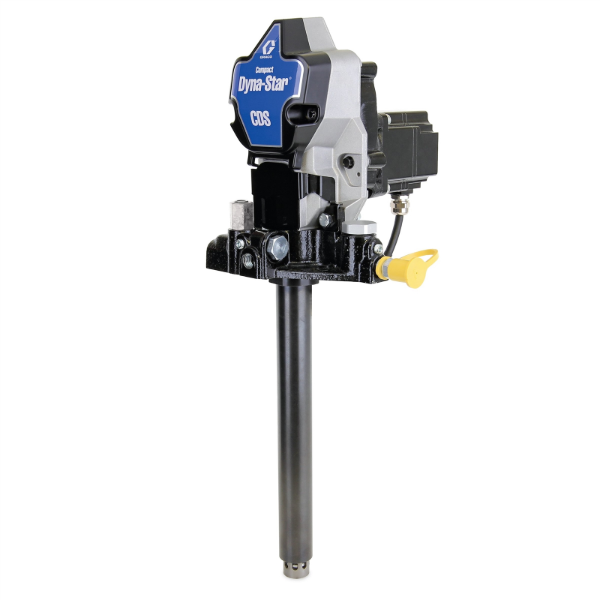

DYNA-STAR COMPACT PUMP, 12, BARE
GG CD1000
GG CD1000
DYNA-STAR COMPACT PUMP, 12, BARE
Compact Dyna-Star® 24 VDC Series progressive Bare Oil or Grease Pump, 12 L or 35 lb Bucket Length The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments. Compact Power - Fits easily in space-limited applications; powerful enough to keep up with aggressive lubrication interval. Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C. Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments. $4,110.00

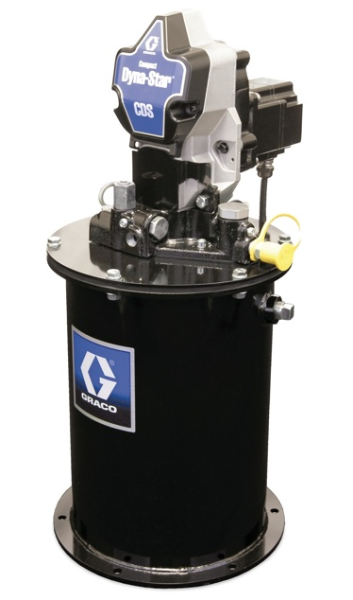

Dyna-Star Compact Pump, 12L
GG CD1011
GG CD1011
DYNA-STAR COMPACT PUMP, 12L
Graco CD1011 Compact Dyna-Star® 24 VDC Series progressive Grease Pump and 12 L Reservoir, Follower Plate, Low-Level Switch
The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments.
- Compact Power - Fits easily in space-limited applications, powerful enough to keep up with aggressive lubrication interval.
- Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C.
- Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments.
- Application: In-Plant Machinery, Off-Road Equipment
- Approvals: CE, RCM
- Compatible Material: Grease
- Compatible Metering Device: Series Progressive
- Component Technology: Brushless Electric Motor, Shovel-loading pump tube
- Control Options: Integrated electrical motor controller
- Fluid Outlet Size (in): 3/8 NPT and/or 1/4 NPT
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: Tapered Pipe Thread (NPT)
- For Use With: ISO 100 Oil up to NLGI #2 Grease
- Input Sensor Voltage (VDC): 24
- Input Voltage (V dc): 24
- IP Rating: IP69K
- Low Level Carry Current (A): 0.02
- Low Level Switch Rating (VDC): 24
- Low Level Switching Current (A): 0.2
- Lower Type: Shovel
- Material: Carbon Alloy Steel
- Maximum Continuous Cycle Rate (CPM): 64
- Maximum cST Grade (cST): NLGI #2 Grease
- Maximum Cycle Rate (CPM): 64
- Maximum Cycle Rate (strokes/min): 64
- Maximum Flow Rate (ci/min): 4.5
- Maximum Flow Rate (L/min): 0.074
- Maximum Fluid Output Pressure (bar): 241
- Maximum Fluid Output Pressure (psi): 3500
- Maximum Fluid Output Pressure (bar): 241
- Maximum Fluid Output Pressure (psi): 3500
- Maximum Input Amperage (A): 10
- Maximum NLGI Grade: 2
- Maximum Operating Temperature (°C): 65
- Maximum Operating Temperature (°F): 149
- Maximum Voltage (V dc): 30
- Maximum Working Pressure (bar): 241
- Maximum Working Pressure (kPa): 24132
- Maximum Working Pressure (MPa): 24.1
- Maximum Working Pressure (psi): 3500
- Minimum Operating Temperature (°C): -40
- Minimum Operating Temperature (°F): -40
- Minimum Voltage (V dc): 18
- Motor Type: Brushless DC
- Number of Pump Elements: 1
- Overall Depth (in): 13.9
- Overall Depth (mm): 353.1
- Overall Height (in): 39.0
- Overall Height (mm): 990
- Overall Width (in): 11.5
- Overall Width (mm): 292
- Package Options: Pump with Reservoir
- Power Connection Type: Deutsch DT04-2P Housing, M12
- Power Rating (HP): 0.25
- Power Type: Electric
$5,580.00

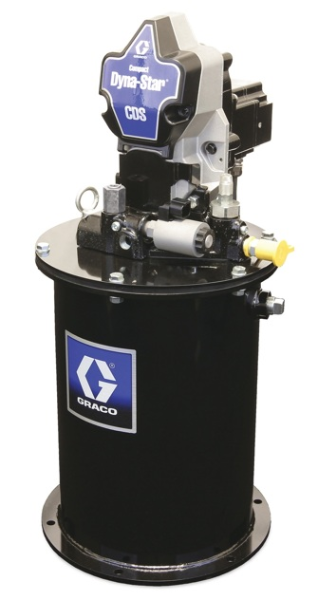

DYNA-STAR COMPACT PUMP, 12L
GG CD1012
GG CD1012
DYNA-STAR COMPACT PUMP, 12L
Compact Dyna-Star® 24 VDC Series progressive Grease Pump and 12 L Reservoir, Follower Plate, Level Reporting The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments. Compact Power - Fits easily in space-limited applications; powerful enough to keep up with aggressive lubrication interval. Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C. Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments. Intelligent Monitoring - Optional pressure and lubricant level sensors provide useful system information, in real time. $5,650.00
Dyna-Star Compact Pump, 12L
GG CD1013
GG CD1013
DYNA-STAR COMPACT PUMP, 12L
Graco CD1013 Compact Dyna-Star® 24 VDC Series progressive Grease Pump and 12 L Reservoir, Follower Plate, Low-Level Switch, Auto-Fill Shut Off
The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments.
- Compact Power - Fits easily in space-limited applications, powerful enough to keep up with aggressive lubrication interval.
- Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C.
- Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments.
- Application: In-Plant Machinery, Off-Road Equipment
- Approvals: CE, RCM
- Compatible Material: Grease
- Compatible Metering Device: Series Progressive
- Component Technology: Brushless Electric Motor, Shovel-loading pump tube
- Control Options: Integrated electrical motor controller
- Fluid Outlet Size (in): 3/8 NPT and/or 1/4 NPT
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: Tapered Pipe Thread (NPT)
- For Use With: ISO 100 Oil up to NLGI #2 Grease
- Input Sensor Voltage (VDC): 24
- Input Voltage (V dc): 24
- IP Rating: IP69K
- Low Level Carry Current (A): 0.02
- Low Level Switch Rating (VDC): 24
- Low Level Switching Current (A): 0.2
- Lower Type: Shovel
- Material: Carbon Alloy Steel
- Maximum Continuous Cycle Rate (CPM): 64
- Maximum cST Grade (cST): NLGI #2 Grease
- Maximum Cycle Rate (CPM): 64
- Maximum Cycle Rate (strokes/min): 64
- Maximum Flow Rate (ci/min): 4.5
- Maximum Flow Rate (L/min): 0.074
- Maximum Fluid Output Pressure (bar): 241
- Maximum Fluid Output Pressure (psi): 3500
- Maximum Fluid Output Pressure (bar): 241
- Maximum Fluid Output Pressure (psi): 3500
- Maximum Input Amperage (A): 10
- Maximum NLGI Grade: 2
- Maximum Operating Temperature (°C): 65
- Maximum Operating Temperature (°F): 149
- Maximum Voltage (V dc): 30
- Maximum Working Pressure (bar): 241
- Maximum Working Pressure (kPa): 24132
- Maximum Working Pressure (MPa): 24.1
- Maximum Working Pressure (psi): 3500
- Minimum Operating Temperature (°C): -40
- Minimum Operating Temperature (°F): -40
- Minimum Voltage (V dc): 18
- Motor Type: Brushless DC
- Number of Pump Elements: 1
- Overall Depth (in): 13.9
- Overall Depth (mm): 353.1
- Overall Height (in): 39.0
- Overall Height (mm): 990
- Overall Width (in): 11.5
- Overall Width (mm): 292
- Package Options: Pump with Reservoir
- Power Connection Type: Deutsch DT04-2P Housing, M12
- Power Rating (HP): 0.25
- Power Type: Electric
$6,120.00

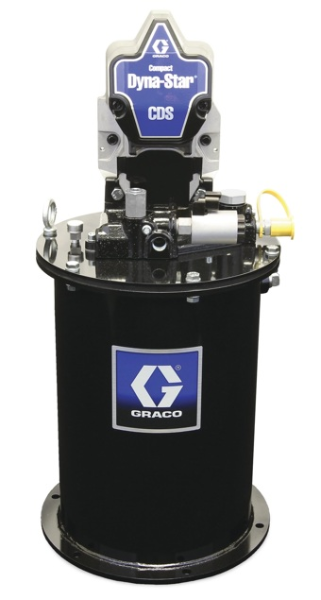

Dyna-Star Compact Pump, 12L
GG CD1014
GG CD1014
DYNA-STAR COMPACT PUMP, 12L
Graco CD1014 Compact Dyna-Star® 24 VDC Series progressive Grease Pump and 12 L Reservoir, Follower Plate, Level Reporting, Auto-Fill Shut Off
The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments.
- Compact Power - Fits easily in space-limited applications, powerful enough to keep up with aggressive lubrication interval.
- Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C.
- Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments.
- Integrated Auto-Fill Shut-Off - Option enables single-person, powered-down, ground-level refills, without the need to climb or worry about spills.
- Application: In-Plant Machinery, Off-Road Equipment
- Approvals: CE, RCM
- Compatible Material: Grease
- Compatible Metering Device: Series Progressive
- Component Technology: Brushless Electric Motor, Shovel-loading pump tube
- Control Options: Integrated electrical motor controller
- Fluid Outlet Size (in): 3/8 NPT and/or 1/4 NPT
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: Tapered Pipe Thread (NPT)
- For Use With: ISO 100 Oil up to NLGI #2 Grease
- Input Sensor Voltage (VDC): 24
- Input Voltage (V dc): 24
- IP Rating: IP69K
- Level Reporting Sensor Maximum Signal (VDC): 10
- Level Reporting Sensor Minimum Signal (VDC): 0
- Low Level Carry Current (A): 0.02
- Low Level Switch Rating (VDC): 24
- Lower Type: Shovel
- Material: Carbon Alloy Steel
- Maximum Continuous Cycle Rate (CPM): 64
- Maximum cST Grade (cST): NLGI #2 Grease
- Maximum Cycle Rate (CPM): 64
- Maximum Cycle Rate (strokes/min): 64
- Maximum Flow Rate (ci/min): 4.5
- Maximum Flow Rate (L/min): 0.074
- Maximum Fluid Output Pressure (bar): 241
- Maximum Fluid Output Pressure (psi): 3500
- Maximum Fluid Output Pressure (bar): 241
- Maximum Fluid Output Pressure (psi): 3500
- Maximum Input Amperage (A): 10
- Maximum NLGI Grade: 2
- Maximum Operating Temperature (°C): 65
- Maximum Operating Temperature (°F): 149
- Maximum Voltage (V dc): 30
- Maximum Working Pressure (bar): 241
- Maximum Working Pressure (kPa): 24132
- Maximum Working Pressure (MPa): 24.1
- Maximum Working Pressure (psi): 3500
- Minimum Operating Temperature (°C): -40
- Minimum Operating Temperature (°F): -40
- Minimum Voltage (V dc): 18
- Motor Type: Brushless DC
- Number of Pump Elements: 1
- Overall Depth (in): 13.9
- Overall Depth (mm): 353.1
- Overall Height (in): 39.0
- Overall Height (mm): 990
- Overall Width (in): 11.5
- Overall Width (mm): 292
- Package Options: Pump with Reservoir
- Power Connection Type: Deutsch DT04-2P Housing, M12
- Power Rating (HP): 0.25
- Power Type: Electric
$6,190.00

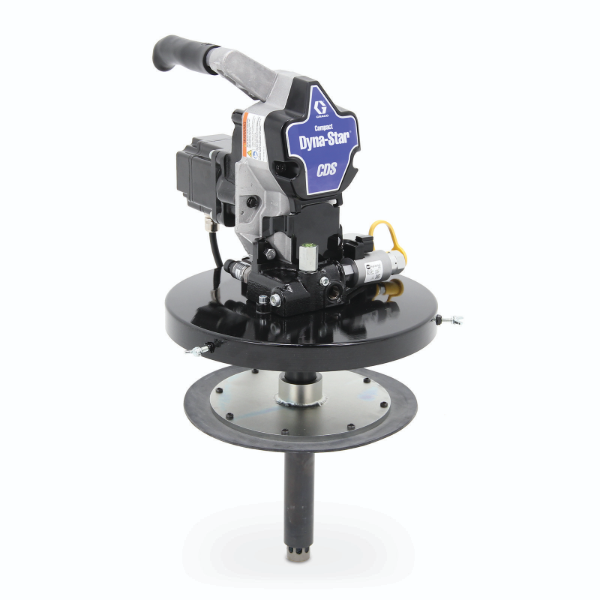

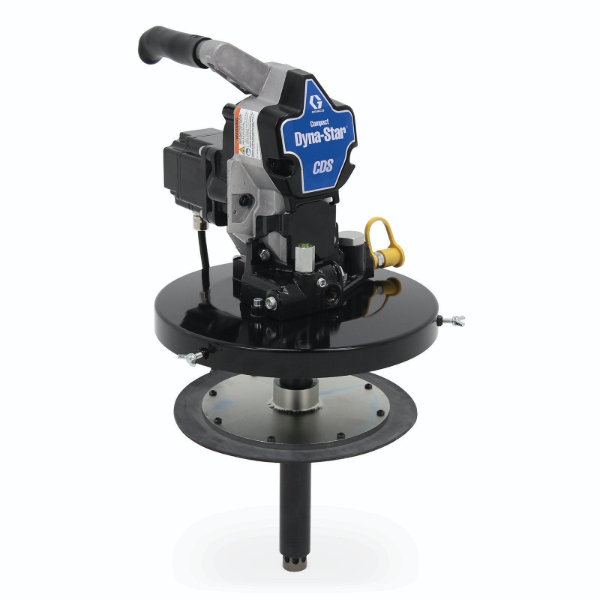

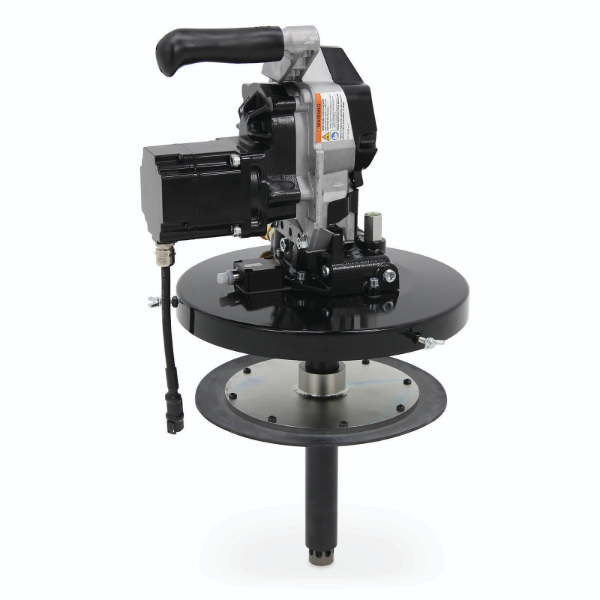

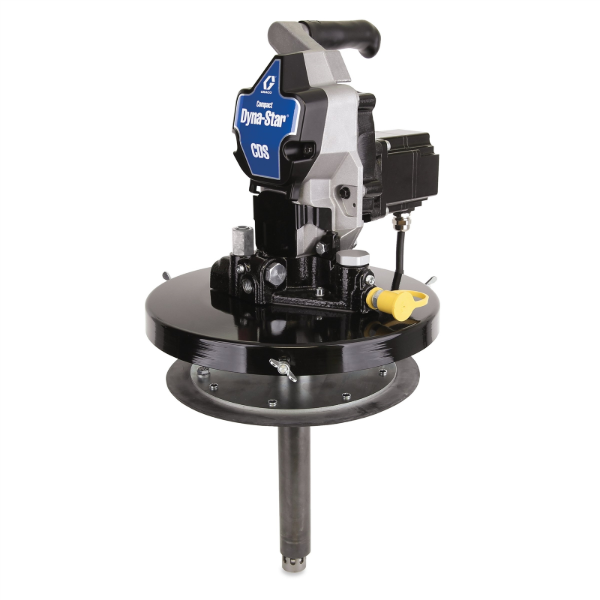

DYNA-STAR COMPACT PUMP, 35#
GG CD1030
GG CD1030
DYNA-STAR COMPACT PUMP, 35#
Compact Dyna-Star® 24 VDC Series progressive 35 lb Oil or Grease Bucket Kit, Pump, Lifting Handle The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments. Compact Power - Fits easily in space-limited applications; powerful enough to keep up with aggressive lubrication interval. Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C. Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments. $4,880.00
DYNA-STAR COMPACT PUMP, 35#
GG CD1031
GG CD1031
DYNA-STAR COMPACT PUMP, 35#
Compact Dyna-Star® 24 VDC Series progressive 35 lb Oil or Grease Bucket Kit, Pump, Lifting Handle, Low-Level Switch The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments. Compact Power - Fits easily in space-limited applications; powerful enough to keep up with aggressive lubrication interval. Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C. Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments. $5,200.00
DYNA-STAR COMPACT PUMP, 35#
GG CD1032
GG CD1032
DYNA-STAR COMPACT PUMP, 35#
Compact Dyna-Star® 24 VDC Series progressive 35 lb Oil or Grease Bucket Kit, Pump, Lifting Handle, Level Reporting The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments. Compact Power - Fits easily in space-limited applications; powerful enough to keep up with aggressive lubrication interval. Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C. Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments. $5,260.00
Dyna-Star Compact Pump, 12, Bare
GG CD1100
GG CD1100
DYNA-STAR COMPACT PUMP, 12, BARE
Graco CD1100 Compact Dyna-Star® 24 VDC Vent-Valve Bare Oil or Grease pump, 12 L or 35 lb Bucket Length
The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments.
- Compact Power - Fits easily in space-limited applications, powerful enough to keep up with aggressive lubrication interval.
- Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C.
- Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments.
- Application: In-Plant Machinery, Off-Road Equipment
- Approvals: CE, RCM
- Compatible Material: Oil & Grease
- Compatible Metering Device: Single Line Parallel
- Component Technology: Brushless Electric Motor, Shovel-loading pump tube
- Control Options: Integrated electrical motor controller
- Fluid Outlet Size (in): 3/8 NPT and/or 1/4 NPT
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: Tapered Pipe Thread (NPT)
- For Use With: ISO 100 Oil up to NLGI #2 Grease
- Input Sensor Voltage (VDC): 24
- Input Voltage (V dc): 24
- IP Rating: IP69K
- Lower Type: Shovel
- Material: Carbon Alloy Steel
- Maximum Continuous Cycle Rate (CPM): 64
- Maximum cST Grade (cST): NLGI #2 Grease
- Maximum Cycle Rate (CPM): 64
- Maximum Cycle Rate (strokes/min): 64
- Maximum Flow Rate (ci/min): 4.5
- Maximum Flow Rate (L/min): 0.074
- Maximum Fluid Output Pressure (bar): 241
- Maximum Fluid Output Pressure (psi): 3500
- Maximum Fluid Output Pressure (bar): 241
- Maximum Fluid Output Pressure (psi): 3500
- Maximum Input Amperage (A): 10
- Maximum NLGI Grade: 2
- Maximum Operating Temperature (°C): 65
- Maximum Operating Temperature (°F): 149
- Maximum Voltage (V dc): 30
- Maximum Working Pressure (bar): 241
- Maximum Working Pressure (kPa): 24132
- Maximum Working Pressure (MPa): 24.1
- Maximum Working Pressure (psi): 3500
- Minimum Operating Temperature (°C): -40
- Minimum Operating Temperature (°F): -40
- Minimum Voltage (V dc): 18
- Motor Type: Brushless DC
- Number of Pump Elements: 1
- Overall Depth (in): 7.63
- Overall Depth (mm): 194
- Overall Height (in): 23.9
- Overall Height (mm): 610
- Overall Width (in): 9.8
- Overall Width (mm): 249
- Package Options: Bare Pump
- Power Connection Type: Deutsch DT04-2P Housing, M12
- Power Rating (HP): 0.25
- Power Type: Electric
$4,380.00
Dyna-Star Compact Pump, 35#
GG CD1130
GG CD1130
DYNA-STAR COMPACT PUMP, 35#
Graco CD1130 Compact Dyna-Star® 24 VDC 35 lb Vent-Valve Oil or Grease Bucket Kit, Pump, Lifting Handle
The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments.
- Compact Power - Fits easily in space-limited applications, powerful enough to keep up with aggressive lubrication interval.
- Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C.
- Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments.
- Application: In-Plant Machinery, Off-Road Equipment
- Approvals: CE, RCM
- Compatible Material: Oil & Grease
- Compatible Metering Device: Single Line Parallel
- Component Technology: Brushless Electric Motor, Shovel-loading pump tube
- Control Options: Integrated electrical motor controller
- Fluid Outlet Size (in): 3/8 NPT and/or 1/4 NPT
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: Tapered Pipe Thread (NPT)
- For Use With: ISO 100 Oil up to NLGI #2 Grease
- Input Sensor Voltage (VDC): 24
- Input Voltage (V dc): 24
- IP Rating: IP69K
- Low Level Carry Current (A): 0.02
- Low Level Switch Rating (VDC): 24
- Lower Type: Shovel
- Material: Carbon Alloy Steel
- Maximum Continuous Cycle Rate (CPM): 64
- Maximum cST Grade (cST): NLGI #2 Grease
- Maximum Cycle Rate (CPM): 64
- Maximum Cycle Rate (strokes/min): 64
- Maximum Flow Rate (ci/min): 4.5
- Maximum Flow Rate (L/min): 0.074
- Maximum Fluid Output Pressure (bar): 241
- Maximum Fluid Output Pressure (psi): 3500
- Maximum Fluid Output Pressure (bar): 241
- Maximum Fluid Output Pressure (psi): 3500
- Maximum Input Amperage (A): 10
- Maximum NLGI Grade: 2
- Maximum Operating Temperature (°C): 65
- Maximum Operating Temperature (°F): 149
- Maximum Voltage (V dc): 30
- Maximum Working Pressure (bar): 241
- Maximum Working Pressure (kPa): 24132
- Maximum Working Pressure (MPa): 24.1
- Maximum Working Pressure (psi): 3500
- Minimum Operating Temperature (°C): -40
- Minimum Operating Temperature (°F): -40
- Minimum Voltage (V dc): 18
- Motor Type: Brushless DC
- Number of Pump Elements: 1
- Overall Depth (in): 13.9
- Overall Depth (mm): 353.1
- Overall Height (in): 39.0
- Overall Height (mm): 990
- Overall Width (in): 11.5
- Overall Width (mm): 292
- Package Options: Pump with Reservoir
- Power Connection Type: Deutsch DT04-12PB Housing
- Power Rating (HP): 0.25
- Power Type: Electric
$5,140.00
Dyna-Star Compact Pump, 35#
GG CD1132
GG CD1132
DYNA-STAR COMPACT PUMP, 35#
Graco CD1132 Compact Dyna-Star® 24 VDC 35 lb Oil or Grease Bucket Kit, Vent-Valve Pump, Lifting Handle, Level Reporting
The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments.
- Compact Power - Fits easily in space-limited applications, powerful enough to keep up with aggressive lubrication interval.
- Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C.
- Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments.
- Application: In-Plant Machinery, Off-Road Equipment
- Approvals: CE, RCM
- Compatible Material: Oil & Grease
- Compatible Metering Device: Single Line Parallel
- Component Technology: Brushless Electric Motor, Shovel-loading pump tube
- Control Options: Integrated electrical motor controller
- Fluid Outlet Size (in): 3/8 NPT and/or 1/4 NPT
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: Tapered Pipe Thread (NPT)
- For Use With: ISO 100 Oil up to NLGI #2 Grease
- Input Sensor Voltage (VDC): 24
- Input Voltage (V dc): 24
- IP Rating: IP69K
- Low Level Carry Current (A): 0.02
- Low Level Switch Rating (VDC): 24
- Lower Type: Shovel
- Material: Carbon Alloy Steel
- Maximum Continuous Cycle Rate (CPM): 64
- Maximum cST Grade (cST): NLGI #2 Grease
- Maximum Cycle Rate (CPM): 64
- Maximum Cycle Rate (strokes/min): 64
- Maximum Flow Rate (ci/min): 4.5
- Maximum Flow Rate (L/min): 0.074
- Maximum Fluid Output Pressure (bar): 241
- Maximum Fluid Output Pressure (psi): 3500
- Maximum Fluid Output Pressure (bar): 241
- Maximum Fluid Output Pressure (psi): 3500
- Maximum Input Amperage (A): 10
- Maximum NLGI Grade: 2
- Maximum Operating Temperature (°C): 65
- Maximum Operating Temperature (°F): 149
- Maximum Voltage (V dc): 30
- Maximum Working Pressure (bar): 241
- Maximum Working Pressure (kPa): 24132
- Maximum Working Pressure (MPa): 24.1
- Maximum Working Pressure (psi): 3500
- Minimum Operating Temperature (°C): -40
- Minimum Operating Temperature (°F): -40
- Minimum Voltage (V dc): 18
- Motor Type: Brushless DC
- Number of Pump Elements: 1
- Overall Depth (in): 13.9
- Overall Depth (mm): 353.1
- Overall Height (in): 39.0
- Overall Height (mm): 990
- Overall Width (in): 11.5
- Overall Width (mm): 292
- Package Options: Pump with Reservoir
- Power Connection Type: Deutsch DT04-2P Housing, M12
- Power Rating (HP): 0.25
- Power Type: Electric
$5,530.00
DYNA-STAR COMPACT PUMP, 12L
GG CD1211
GG CD1211
DYNA-STAR COMPACT PUMP, 12L
Compact Dyna-Star® 24 VDC Vent-Valve Grease Pump, 12 L Reservoir, Follower Plate, Pressure and Low-Level Switch The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments. Compact Power - Fits easily in space-limited applications; powerful enough to keep up with aggressive lubrication interval. Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C. Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments. $6,060.00
DYNA-STAR COMPACT PUMP, 12L
GG CD1213
GG CD1213
DYNA-STAR COMPACT PUMP, 12L
Compact Dyna-Star® 24 VDC Vent-Valve Grease Pump, 12 L Reservoir, Follower Plate, Pressure and Low-Level Switch, Auto-Fill Shut Off The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments. Compact Power - Fits easily in space-limited applications; powerful enough to keep up with aggressive lubrication interval. Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C. Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments. Integrated Auto-Fill Shut-Off - Option enables single-person, powered-down, ground-level refills, without the need to climb or worry about spills. $6,590.00
DYNA-STAR COMPACT PUMP, 35#
GG CD1231
GG CD1231
DYNA-STAR COMPACT PUMP, 35#
Compact Dyna-Star® 24 VDC 35 lb Oil or Grease Bucket Kit, Vent-Valve Pump, Lifting Handle, Pressure and Low-Level Switch The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments. Compact Power - Fits easily in space-limited applications; powerful enough to keep up with aggressive lubrication interval. Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C. Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments. $5,620.00
DYNA-STAR COMPACT PUMP, 12L
GG CD1312
GG CD1312
DYNA-STAR COMPACT PUMP, 12L
Compact Dyna-Star® 24 VDC Vent-Valve Grease Pump, 12 L Reservoir, Follower Plate, Pressure and Level Reporting The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments. Compact Power - Fits easily in space-limited applications; powerful enough to keep up with aggressive lubrication interval. Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C. Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments. Intelligent Monitoring - Optional pressure and lubricant level sensors provide useful system information, in real time. $6,190.00
DYNA-STAR COMPACT PUMP, 12L
GG CD1314
GG CD1314
DYNA-STAR COMPACT PUMP, 12L
Compact Dyna-Star® 24 VDC Vent-Valve Grease Pump, 12 L Reservoir, Follower Plate, Pressure and Level Reporting, Auto-Fill Shut Off The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments. Compact Power - Fits easily in space-limited applications; powerful enough to keep up with aggressive lubrication interval. Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C. Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments. Intelligent Monitoring - Optional pressure and lubricant level sensors provide useful system information, in real time. Integrated Auto-Fill Shut-Off - Option enables single-person, powered-down, ground-level refills, without the need to climb or worry about spills. $6,550.00
DYNA-STAR COMPACT PUMP, 35#
GG CD1332
GG CD1332
DYNA-STAR COMPACT PUMP, 35#
Compact Dyna-Star® 24 VDC 35 lb Oil or Grease Bucket Kit, Vent-Valve Pump, Lifting Handle, Pressure and Level Reporting The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments. Compact Power - Fits easily in space-limited applications; powerful enough to keep up with aggressive lubrication interval. Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C. Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments. $5,810.00
Dyna-Star Compact Pump, 12L
GG CD1342
GG CD1342
DYNA-STAR COMPACT PUMP, 12L
Graco CD1342 Compact Dyna-Star® 24 VDC Vent-Valve Pump, 12 L Reservoir, Pressure and Level Reporting, Oil Only
The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments.
- Compact Power - Fits easily in space-limited applications, powerful enough to keep up with aggressive lubrication interval.
- Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C.
- Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments.
- Application: In-Plant Machinery, Off-Road Equipment
- Approvals: CE, RCM
- Compatible Material: Oil
- Compatible Metering Device: Single Line Parallel
- Component Technology: Brushless Electric Motor, Shovel-loading pump tube
- Control Options: Integrated electrical motor controller
- Fluid Outlet Size (in): 3/8 NPT and/or 1/4 NPT
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: Tapered Pipe Thread (NPT)
- For Use With: ISO 100 Oil up to NLGI #2 Grease
- Input Sensor Voltage (VDC): 24
- Input Voltage (V dc): 24
- IP Rating: IP69K
- Level Reporting Sensor Maximum Signal (VDC): 10
- Level Reporting Sensor Minimum Signal (VDC): 0
- Low Level Carry Current (A): 0.02
- Low Level Switch Rating (VDC): 24
- Low Level Switching Current (A): 0.2
- Lower Type: Shovel
- Material: Carbon Alloy Steel
- Maximum Continuous Cycle Rate (CPM): 64
- Maximum cST Grade (cST): NLGI #2 Grease
- Maximum Cycle Rate (CPM): 64
- Maximum Cycle Rate (strokes/min): 64
- Maximum Flow Rate (ci/min): 4.5
- Maximum Flow Rate (L/min): 0.074
- Maximum Fluid Output Pressure (bar): 241
- Maximum Fluid Output Pressure (psi): 3500
- Maximum Fluid Output Pressure (bar): 241
- Maximum Fluid Output Pressure (psi): 3500
- Maximum Input Amperage (A): 10
- Maximum NLGI Grade: 2
- Maximum Operating Temperature (°C): 65
- Maximum Operating Temperature (°F): 149
- Maximum Voltage (V dc): 30
- Maximum Working Pressure (bar): 241
- Maximum Working Pressure (kPa): 24132
- Maximum Working Pressure (MPa): 24.1
- Maximum Working Pressure (psi): 3500
- Minimum Operating Temperature (°C): -40
- Minimum Operating Temperature (°F): -40
- Minimum Voltage (V dc): 18
- Motor Type: Brushless DC
- Number of Pump Elements: 1
- Overall Depth (in): 13.9
- Overall Depth (mm): 353.1
- Overall Height (in): 39.0
- Overall Height (mm): 990
- Overall Width (in): 11.5
- Overall Width (mm): 292
- Package Options: Pump with Reservoir
- Power Connection Type: Deutsch DT04-12PB Housing
- Power Rating (HP): 0.25
- Power Type: Electric
- Pressure Reporting Maximum Signal (VDC): 5
- Pressure Reporting Minimum Signal (VDC): 1
- Pressure Reporting Transducer Full Range (psi): 5000
$6,070.00

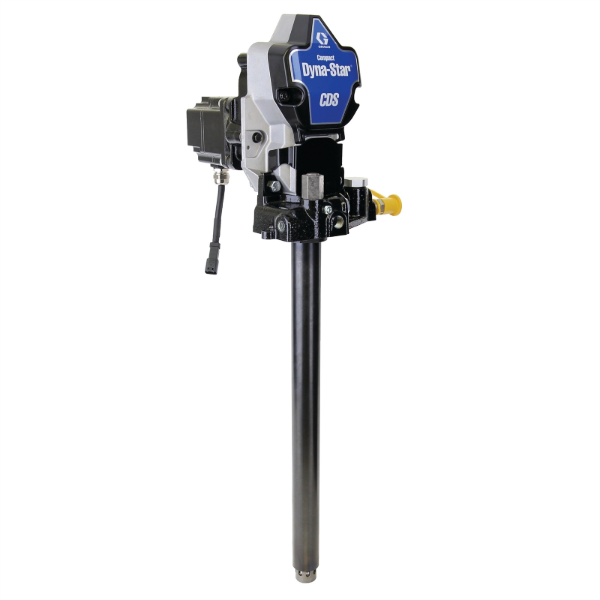

DYNA-STAR COMPACT PUMP, 20, BARE
GG CD2000
GG CD2000
DYNA-STAR COMPACT PUMP, 20, BARE
Compact Dyna-Star® 24 VDC Bare Oil or Grease Pump, 20 L Length The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments. Compact Power - Fits easily in space-limited applications; powerful enough to keep up with aggressive lubrication interval. Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C. Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments. $4,280.00

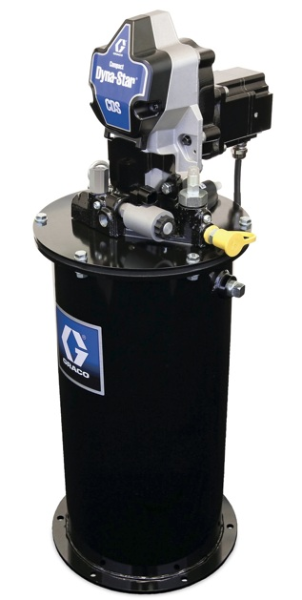

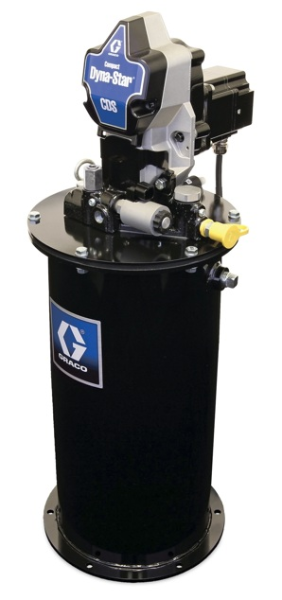

Dyna-Star Compact Pump, 20L
GG CD2021
GG CD2021
DYNA-STAR COMPACT PUMP, 20L
Graco CD2021 Compact Dyna-Star® 24 VDC Series Progressive Grease Pump and 20 L Reservoir, Follower Plate, Low-Level Switch
The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments.
- Compact Power - Fits easily in space-limited applications, powerful enough to keep up with aggressive lubrication interval.
- Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C.
- Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments.
- Application: In-Plant Machinery, Off-Road Equipment
- Approvals: CE, RCM
- Compatible Material: Grease
- Compatible Metering Device: Series Progressive
- Component Technology: Brushless Electric Motor, Shovel-loading pump tube
- Control Options: Integrated electrical motor controller
- Fluid Outlet Size (in): 3/8 NPT and/or 1/4 NPT
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: Tapered Pipe Thread (NPT)
- For Use With: ISO 100 Oil up to NLGI #2 Grease
- Input Sensor Voltage (VDC): 24
- Input Voltage (V dc): 24
- IP Rating: IP69K
- Low Level Carry Current (A): 0.02
- Low Level Switch Rating (VDC): 24
- Low Level Switching Current (A): 0.2
- Lower Type: Shovel
- Material: Carbon Alloy Steel
- Maximum Continuous Cycle Rate (CPM): 64
- Maximum cST Grade (cST): NLGI #2 Grease
- Maximum Cycle Rate (CPM): 64
- Maximum Cycle Rate (strokes/min): 64
- Maximum Flow Rate (ci/min): 4.5
- Maximum Flow Rate (L/min): 0.074
- Maximum Fluid Output Pressure (bar): 241
- Maximum Fluid Output Pressure (psi): 3500
- Maximum Fluid Output Pressure (bar): 241
- Maximum Fluid Output Pressure (psi): 3500
- Maximum Input Amperage (A): 10
- Maximum NLGI Grade: 2
- Maximum Operating Temperature (°C): 65
- Maximum Operating Temperature (°F): 149
- Maximum Voltage (V dc): 30
- Maximum Working Pressure (bar): 241
- Maximum Working Pressure (kPa): 24132
- Maximum Working Pressure (MPa): 24.1
- Maximum Working Pressure (psi): 3500
- Minimum Operating Temperature (°C): -40
- Minimum Operating Temperature (°F): -40
- Minimum Voltage (V dc): 18
- Motor Type: Brushless DC
- Number of Pump Elements: 1
- Overall Depth (in): 13.9
- Overall Depth (mm): 353.1
- Overall Height (in): 50.9
- Overall Height (mm): 1292
- Overall Width (in): 11.5
- Overall Width (mm): 292
- Package Options: Pump with Reservoir
- Power Connection Type: Deutsch DT04-2P Housing, M12
- Power Rating (HP): 0.25
- Power Type: Electric
$6,000.00

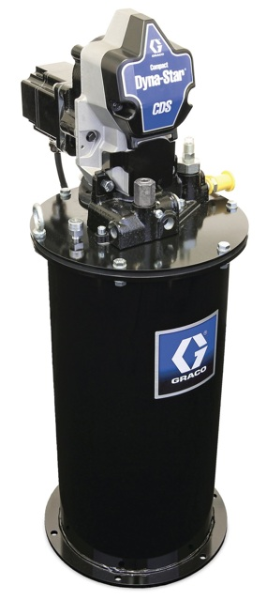

Dyna-Star Compact Pump, 20L
GG CD2022
GG CD2022
DYNA-STAR COMPACT PUMP, 20L
Graco CD2022 Compact Dyna-Star® 24 VDC Series Progressive Grease Pump and 20 L Reservoir, Follower Plate, Level Reporting
The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments.
- Compact Power - Fits easily in space-limited applications, powerful enough to keep up with aggressive lubrication interval.
- Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C.
- Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments.
- Application: In-Plant Machinery, Off-Road Equipment
- Approvals: CE, RCM
- Compatible Material: Grease
- Compatible Metering Device: Series Progressive
- Component Technology: Brushless Electric Motor, Shovel-loading pump tube
- Control Options: Integrated electrical motor controller
- Fluid Outlet Size (in): 3/8 NPT and/or 1/4 NPT
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: Tapered Pipe Thread (NPT)
- For Use With: ISO 100 Oil up to NLGI #2 Grease
- Input Sensor Voltage (VDC): 24
- Input Voltage (V dc): 24
- IP Rating: IP69K
- Level Reporting Sensor Maximum Signal (VDC): 10
- Level Reporting Sensor Minimum Signal (VDC): 0
- Low Level Carry Current (A): 0.02
- Low Level Switch Rating (VDC): 24
- Lower Type: Shovel
- Material: Carbon Alloy Steel
- Maximum Continuous Cycle Rate (CPM): 64
- Maximum cST Grade (cST): NLGI #2 Grease
- Maximum Cycle Rate (CPM): 64
- Maximum Cycle Rate (strokes/min): 64
- Maximum Flow Rate (ci/min): 4.5
- Maximum Flow Rate (L/min): 0.074
- Maximum Fluid Output Pressure (bar): 241
- Maximum Fluid Output Pressure (psi): 3500
- Maximum Fluid Output Pressure (bar): 241
- Maximum Fluid Output Pressure (psi): 3500
- Maximum Input Amperage (A): 10
- Maximum NLGI Grade: 2
- Maximum Operating Temperature (°C): 65
- Maximum Operating Temperature (°F): 149
- Maximum Voltage (V dc): 30
- Maximum Working Pressure (bar): 241
- Maximum Working Pressure (kPa): 24132
- Maximum Working Pressure (MPa): 24.1
- Maximum Working Pressure (psi): 3500
- Minimum Operating Temperature (°C): -40
- Minimum Operating Temperature (°F): -40
- Minimum Voltage (V dc): 18
- Motor Type: Brushless DC
- Number of Pump Elements: 1
- Overall Depth (in): 13.9
- Overall Depth (mm): 353.1
- Overall Height (in): 50.9
- Overall Height (mm): 1292
- Overall Width (in): 11.5
- Overall Width (mm): 292
- Package Options: Pump with Reservoir
- Power Connection Type: Deutsch DT04-2P Housing, M12
- Power Rating (HP): 0.25
- Power Type: Electric
$6,080.00
DYNA-STAR COMPACT PUMP, 20L
GG CD2024
GG CD2024
DYNA-STAR COMPACT PUMP, 20L
Compact Dyna-Star® 24 VDC Series Progressive Grease Pump and 20 L Reservoir, Follower Plate, Level Reporting, Auto-Fill Shut Off The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments. Compact Power - Fits easily in space-limited applications; powerful enough to keep up with aggressive lubrication interval. Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C. Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments. Intelligent Monitoring - Optional pressure and lubricant level sensors provide useful system information, in real time. Integrated Auto-Fill Shut-Off - Option enables single-person, powered-down, ground-level refills, without the need to climb or worry about spills. $6,420.00
Dyna-Star Compact Pump, 20L
GG CD2052
GG CD2052
DYNA-STAR COMPACT PUMP, 20L
Graco CD2052 Compact Dyna-Star® 24 VDC Series Progressive Pump and 20 L Reservoir, Level Reporting, Oil Only
The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments.
- Compact Power - Fits easily in space-limited applications, powerful enough to keep up with aggressive lubrication interval.
- Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C.
- Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments.
- Application: In-Plant Machinery, Off-Road Equipment
- Approvals: CE, RCM
- Compatible Material: Oil
- Compatible Metering Device: Series Progressive
- Component Technology: Brushless Electric Motor, Shovel-loading pump tube
- Control Options: Integrated electrical motor controller
- Fluid Outlet Size (in): 3/8 NPT and/or 1/4 NPT
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: Tapered Pipe Thread (NPT)
- For Use With: ISO 100 Oil up to NLGI #2 Grease
- Input Sensor Voltage (VDC): 24
- Input Voltage (V dc): 24
- IP Rating: IP69K
- Level Reporting Sensor Maximum Signal (VDC): 10
- Level Reporting Sensor Minimum Signal (VDC): 0
- Low Level Carry Current (A): 0.02
- Low Level Switch Rating (VDC): 24
- Lower Type: Shovel
- Material: Carbon Alloy Steel
- Maximum Continuous Cycle Rate (CPM): 64
- Maximum cST Grade (cST): NLGI #2 Grease
- Maximum Cycle Rate (CPM): 64
- Maximum Cycle Rate (strokes/min): 64
- Maximum Flow Rate (ci/min): 4.5
- Maximum Flow Rate (L/min): 0.074
- Maximum Fluid Output Pressure (bar): 241
- Maximum Fluid Output Pressure (psi): 3500
- Maximum Fluid Output Pressure (bar): 241
- Maximum Fluid Output Pressure (psi): 3500
- Maximum Input Amperage (A): 10
- Maximum NLGI Grade: 2
- Maximum Operating Temperature (°C): 65
- Maximum Operating Temperature (°F): 149
- Maximum Voltage (V dc): 30
- Maximum Working Pressure (bar): 241
- Maximum Working Pressure (kPa): 24132
- Maximum Working Pressure (MPa): 24.1
- Maximum Working Pressure (psi): 3500
- Minimum Operating Temperature (°C): -40
- Minimum Operating Temperature (°F): -40
- Minimum Voltage (V dc): 18
- Motor Type: Brushless DC
- Number of Pump Elements: 1
- Overall Depth (in): 13.9
- Overall Depth (mm): 353.1
- Overall Height (in): 50.9
- Overall Height (mm): 1292
- Overall Width (in): 11.5
- Overall Width (mm): 292
- Package Options: Pump with Reservoir
- Power Connection Type: Deutsch DT04-2P Housing, M12
- Power Rating (HP): 0.25
- Power Type: Electric
$5,900.00

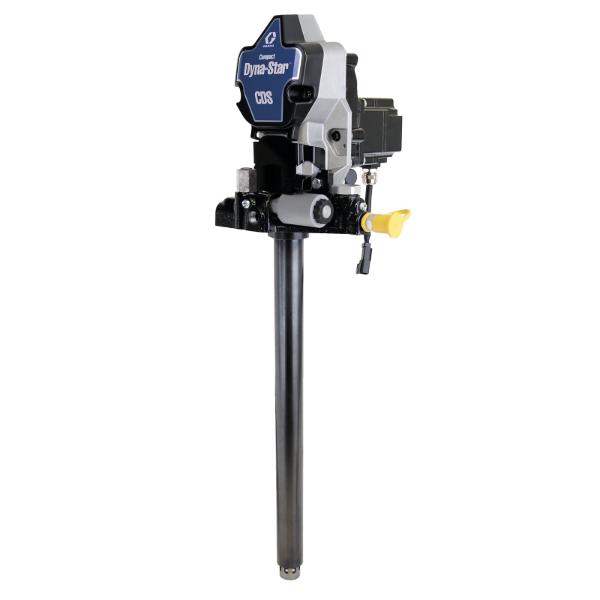

DYNA-STAR COMPACT PUMP, 20, BARE
GG CD2100
GG CD2100
DYNA-STAR COMPACT PUMP, 20, BARE
Compact Dyna-Star® 24 VDC Bare Oil or Grease Vent-Valve Pump, 20 L Length The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments. Compact Power - Fits easily in space-limited applications; powerful enough to keep up with aggressive lubrication interval. Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C. Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments. $4,550.00
Dyna-Star Compact Pump, 20L
GG CD2122
GG CD2122
DYNA-STAR COMPACT PUMP, 20L
Graco CD2122 Compact Dyna-Star® 24 VDC Vent-Valve Grease Pump and 20 L Reservoir, Follower Plate, Level Reporting
The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments.
- Compact Power - Fits easily in space-limited applications, powerful enough to keep up with aggressive lubrication interval.
- Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C.
- Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments.
- Application: In-Plant Machinery, Off-Road Equipment
- Approvals: CE, RCM
- Compatible Material: Grease
- Compatible Metering Device: Single Line Parallel
- Component Technology: Brushless Electric Motor, Shovel-loading pump tube
- Control Options: Integrated electrical motor controller
- Fluid Outlet Size (in): 3/8 NPT and/or 1/4 NPT
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: Tapered Pipe Thread (NPT)
- For Use With: ISO 100 Oil up to NLGI #2 Grease
- Input Sensor Voltage (VDC): 24
- Input Voltage (V dc): 24
- IP Rating: IP69K
- Level Reporting Sensor Maximum Signal (VDC): 10
- Level Reporting Sensor Minimum Signal (VDC): 0
- Low Level Carry Current (A): 0.02
- Low Level Switch Rating (VDC): 24
- Lower Type: Shovel
- Material: Carbon Alloy Steel
- Maximum Continuous Cycle Rate (CPM): 64
- Maximum cST Grade (cST): NLGI #2 Grease
- Maximum Cycle Rate (CPM): 64
- Maximum Cycle Rate (strokes/min): 64
- Maximum Flow Rate (ci/min): 4.5
- Maximum Flow Rate (L/min): 0.074
- Maximum Fluid Output Pressure (bar): 241
- Maximum Fluid Output Pressure (psi): 3500
- Maximum Fluid Output Pressure (bar): 241
- Maximum Fluid Output Pressure (psi): 3500
- Maximum Input Amperage (A): 10
- Maximum NLGI Grade: 2
- Maximum Operating Temperature (°C): 65
- Maximum Operating Temperature (°F): 149
- Maximum Voltage (V dc): 30
- Maximum Working Pressure (bar): 241
- Maximum Working Pressure (kPa): 24132
- Maximum Working Pressure (MPa): 24.1
- Maximum Working Pressure (psi): 3500
- Minimum Operating Temperature (°C): -40
- Minimum Operating Temperature (°F): -40
- Minimum Voltage (V dc): 18
- Motor Type: Brushless DC
- Number of Pump Elements: 1
- Overall Depth (in): 13.9
- Overall Depth (mm): 353.1
- Overall Height (in): 50.9
- Overall Height (mm): 1292
- Overall Width (in): 11.5
- Overall Width (mm): 292
- Package Options: Pump with Reservoir
- Power Connection Type: Deutsch DT04-2P Housing, M12
- Power Rating (HP): 0.25
- Power Type: Electric
$6,330.00
DYNA-STAR COMPACT PUMP, 20L
GG CD2322
GG CD2322
DYNA-STAR COMPACT PUMP, 20L
Compact Dyna-Star® 24 VDC Vent-Valve Grease Pump, 20 L Reservoir, Follower Plate, Pressure and Level Reporting The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments. Compact Power - Fits easily in space-limited applications; powerful enough to keep up with aggressive lubrication interval. Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C. Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments. Intelligent Monitoring - Optional pressure and lubricant level sensors provide useful system information, in real time. $6,610.00
DYNA-STAR COMPACT PUMP, 20L
GG CD2324
GG CD2324
DYNA-STAR COMPACT PUMP, 20L
Compact Dyna-Star® 24 VDC Vent-Valve Grease Pump, 20 L Reservoir, Follower Plate, Pressure and Level Reporting, Auto-Fill Shut Off The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments. Compact Power - Fits easily in space-limited applications; powerful enough to keep up with aggressive lubrication interval. Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C. Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments. Intelligent Monitoring - Optional pressure and lubricant level sensors provide useful system information, in real time. Integrated Auto-Fill Shut-Off - Option enables single-person, powered-down, ground-level refills, without the need to climb or worry about spills. $6,940.00
DYNA-STAR COMPACT PUMP, 60#
GG CD3000
GG CD3000
DYNA-STAR COMPACT PUMP, 60#
Compact Dyna-Star® 24 VDC Bare Oil or Grease Pump, 60 lb Length The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments. Compact Power - Fits easily in space-limited applications; powerful enough to keep up with aggressive lubrication interval. Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C. Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments. $4,300.00

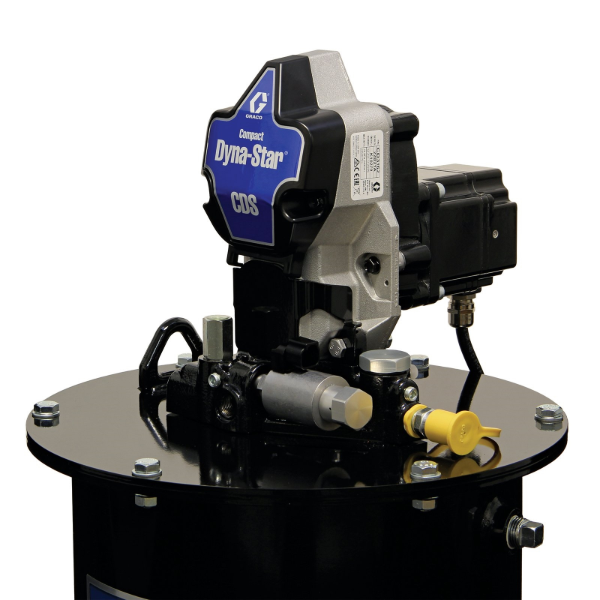

Dyna-Star Compact Pump, 60#
GG CD3063
GG CD3063
DYNA-STAR COMPACT PUMP, 60#
Graco CD3063 Compact Dyna-Star® 24 VDC Grease Pump and 60 lb Reservoir, Follower Plate, Low-Level Switch, Auto-Fill Shut Off
The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments.
- Compact Power - Fits easily in space-limited applications, powerful enough to keep up with aggressive lubrication interval.
- Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C.
- Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments.
- Model: Dyna-Star
- Application: In-Plant Machinery, Off-Road Equipment
- Approvals: CE, EAC, RCM
- Compatible Material: Grease
- Compatible Metering Device: Series Progressive
- Component Technology: Brushless Electric Motor, Shovel-loading pump tube
- Fluid Outlet Size (in): 3/8, 1/4
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Input Voltage (V dc): 24
- IP Rating: IP69K
- Low Level Switch Rating (VDC): 24
- Low Level Switching Current (A): 0.2
- Lower Type: Integrated Shovel Loading
- Maximum Continuous Cycle Rate (CPM): 64
- Maximum cST Grade (cST): NLGI #2
- Maximum Cycle Rate (CPM): 64
- Maximum Cycle Rate (strokes/min): 64
- Maximum Fill Inlet Pressure (psi): 500
- Maximum Flow Rate (ci/min): 4.5
- Maximum Flow Rate (L/min): 0.074
- Maximum Fluid Output Pressure (bar): 241
- Maximum Fluid Output Pressure (psi): 3500
- Maximum Fluid Output Pressure (bar): 241
- Maximum Fluid Output Pressure (psi): 3500
- Maximum Intermittent Cycle Rate (CPM): 64
- Maximum NLGI Grade: 2
- Maximum Operating Temperature (°C): 149
- Maximum Operating Temperature (°F): 65
- Maximum Voltage (V dc): 30
- Maximum Working Pressure (bar): 241
- Maximum Working Pressure (kPa): 24100
- Maximum Working Pressure (MPa): 24.1
- Maximum Working Pressure (psi): 3500
- Minimum Operating Temperature (°C): -40
- Minimum Operating Temperature (°F): -40
- Minimum Voltage (V dc): 18
- Motor Type: Brushless DC
- Number of Outlets: 2
- Number of Pump Elements: 1
- Output Per Cycle (cm³): 1
- Overall Depth (cm): 39.62
- Overall Depth (in): 15.6
- Overall Depth (mm): 396.2
- Overall Height (cm): 72.14
- Overall Height (in): 28.4
- Overall Height (mm): 721.4
- Overall Width (cm): 38.1
- Overall Width (in): 15
- Overall Width (mm): 381
- Package Options: Pump with Reservoir
- Power Connection Type: Deutsch DT04-2P Housing
- Power Rating (HP): 0.25
- Power Type: Electric
$7,570.00
Dyna-Star Compact Pump, 60#
GG CD3064
GG CD3064
DYNA-STAR COMPACT PUMP, 60#
Graco CD3064 Compact Dyna-Star® 24 VDC Grease Pump and 60 lb Reservoir, Follower Plate, Level Reporting, Auto-Fill Shut Off
The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments.
- Compact Power - Fits easily in space-limited applications, powerful enough to keep up with aggressive lubrication interval.
- Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C.
- Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments.
- Model: Dyna-Star
- Application: In-Plant Machinery, Off-Road Equipment
- Approvals: CE, EAC, RCM
- Compatible Material: Grease
- Compatible Metering Device: Series Progressive
- Component Technology: Brushless Electric Motor, Shovel-loading pump tube
- Fluid Outlet Size (in): 3/8, 1/4
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Input Voltage (V dc): 24
- IP Rating: IP69K
- Level Reporting Sensor Maximum Signal (VDC): 10
- Level Reporting Sensor Minimum Signal (VDC): 0
- Low Level Carry Current (A): 0.02
- Lower Type: Integrated Shovel Loading
- Maximum Continuous Cycle Rate (CPM): 64
- Maximum cST Grade (cST): NLGI #2
- Maximum Cycle Rate (CPM): 64
- Maximum Cycle Rate (strokes/min): 64
- Maximum Fill Inlet Pressure (psi): 500
- Maximum Flow Rate (ci/min): 4.5
- Maximum Flow Rate (L/min): 0.074
- Maximum Fluid Output Pressure (bar): 241
- Maximum Fluid Output Pressure (psi): 3500
- Maximum Fluid Output Pressure (bar): 241
- Maximum Fluid Output Pressure (psi): 3500
- Maximum Intermittent Cycle Rate (CPM): 64
- Maximum NLGI Grade: 2
- Maximum Operating Temperature (°C): 149
- Maximum Operating Temperature (°F): 65
- Maximum Voltage (V dc): 30
- Maximum Working Pressure (bar): 241
- Maximum Working Pressure (kPa): 24100
- Maximum Working Pressure (MPa): 24.1
- Maximum Working Pressure (psi): 3500
- Minimum Operating Temperature (°C): -40
- Minimum Operating Temperature (°F): -40
- Minimum Voltage (V dc): 18
- Motor Type: Brushless DC
- Number of Outlets: 2
- Number of Pump Elements: 1
- Output Per Cycle (cm³): 1
- Overall Depth (cm): 39.62
- Overall Depth (in): 15.6
- Overall Depth (mm): 396.2
- Overall Height (cm): 72.14
- Overall Height (in): 28.4
- Overall Height (mm): 721.4
- Overall Width (cm): 38.1
- Overall Width (in): 15
- Overall Width (mm): 381
- Package Options: Pump with Reservoir
- Power Connection Type: Deutsch DT04-2P Housing
- Power Rating (HP): 0.25
- Power Type: Electric
$7,650.00
Dyna-Star Compact Pump, 60#
GG CD3071
GG CD3071
DYNA-STAR COMPACT PUMP, 60#
Graco CD3071 Compact Dyna-Star® 24 VDC Oil or Grease Pump and 60 lb Reservoir without Follower Plate, Low-Level Switch
The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments.
- Compact Power - Fits easily in space-limited applications, powerful enough to keep up with aggressive lubrication interval.
- Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C.
- Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments.
- Model: Dyna-Star
- Application: In-Plant Machinery, Off-Road Equipment
- Approvals: CE, EAC, RCM
- Compatible Material: Oil & Grease
- Compatible Metering Device: Series Progressive
- Component Technology: Brushless Electric Motor, Shovel-loading pump tube
- Fluid Outlet Size (in): 3/8, 1/4
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Input Voltage (V dc): 24
- IP Rating: IP69K
- Low Level Switch Rating (VDC): 24
- Low Level Switching Current (A): 0.2
- Lower Type: Integrated Shovel Loading
- Maximum Continuous Cycle Rate (CPM): 64
- Maximum cST Grade (cST): NLGI #2
- Maximum Cycle Rate (CPM): 64
- Maximum Cycle Rate (strokes/min): 64
- Maximum Fill Inlet Pressure (psi): 500
- Maximum Flow Rate (ci/min): 4.5
- Maximum Flow Rate (L/min): 0.074
- Maximum Fluid Output Pressure (bar): 241
- Maximum Fluid Output Pressure (psi): 3500
- Maximum Fluid Output Pressure (bar): 241
- Maximum Fluid Output Pressure (psi): 3500
- Maximum Intermittent Cycle Rate (CPM): 64
- Maximum NLGI Grade: 2
- Maximum Operating Temperature (°C): 149
- Maximum Operating Temperature (°F): 65
- Maximum Voltage (V dc): 30
- Maximum Working Pressure (bar): 241
- Maximum Working Pressure (kPa): 24100
- Maximum Working Pressure (MPa): 24.1
- Maximum Working Pressure (psi): 3500
- Minimum Operating Temperature (°C): -40
- Minimum Operating Temperature (°F): -40
- Minimum Voltage (V dc): 18
- Motor Type: Brushless DC
- Number of Outlets: 2
- Number of Pump Elements: 1
- Output Per Cycle (cm³): 1
- Overall Depth (cm): 39.62
- Overall Depth (in): 15.6
- Overall Depth (mm): 396.2
- Overall Height (cm): 72.14
- Overall Height (in): 28.4
- Overall Height (mm): 721.4
- Overall Width (cm): 38.1
- Overall Width (in): 15
- Overall Width (mm): 381
- Package Options: Pump with Reservoir
- Power Connection Type: Deutsch DT04-2P Housing
- Power Rating (HP): 0.25
- Power Type: Electric
$6,770.00
DYNA-STAR COMPACT PUMP, 60#
GG CD3100
GG CD3100
DYNA-STAR COMPACT PUMP, 60#
Compact Dyna-Star® 24 VDC Bare Grease Vent-Valve Pump, 60 lb Length The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments. Compact Power - Fits easily in space-limited applications; powerful enough to keep up with aggressive lubrication interval. Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C. Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments. $4,550.00
Dyna-Star Compact Pump, 60#
GG CD3161
GG CD3161
DYNA-STAR COMPACT PUMP, 60#
Graco CD3161 Compact Dyna-Star® 24 VDC Vent-Valve Grease Pump and 60 lb Reservoir, Follower Plate, Low-Level Switch
The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments.
- Compact Power - Fits easily in space-limited applications, powerful enough to keep up with aggressive lubrication interval.
- Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C.
- Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments.
- Application: In-Plant Machinery, Off-Road Equipment
- Approvals: CE, EAC, RCM
- Compatible Material: Grease
- Compatible Metering Device: Single Line Parallel
- Component Technology: Brushless Electric Motor, Shovel-loading pump tube
- Fluid Outlet Size (in): 3/8, 1/4
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Input Voltage (V dc): 24
- IP Rating: IP69K
- Low Level Switch Rating (VDC): 24
- Low Level Switching Current (A): 0.2
- Lower Type: Integrated Shovel Loading
- Maximum Continuous Cycle Rate (CPM): 64
- Maximum cST Grade (cST): NLGI #2
- Maximum Cycle Rate (CPM): 64
- Maximum Cycle Rate (strokes/min): 64
- Maximum Fill Inlet Pressure (psi): 500
- Maximum Flow Rate (ci/min): 4.5
- Maximum Flow Rate (L/min): 0.074
- Maximum Fluid Output Pressure (bar): 241
- Maximum Fluid Output Pressure (psi): 3500
- Maximum Fluid Output Pressure (bar): 241
- Maximum Fluid Output Pressure (psi): 3500
- Maximum Intermittent Cycle Rate (CPM): 64
- Maximum NLGI Grade: 2
- Maximum Operating Temperature (°C): 149
- Maximum Operating Temperature (°F): 65
- Maximum Voltage (V dc): 30
- Maximum Working Pressure (bar): 241
- Maximum Working Pressure (kPa): 24100
- Maximum Working Pressure (MPa): 24.1
- Maximum Working Pressure (psi): 3500
- Minimum Operating Temperature (°C): -40
- Minimum Operating Temperature (°F): -40
- Minimum Voltage (V dc): 18
- Motor Type: Brushless DC
- Number of Outlets: 2
- Number of Pump Elements: 1
- Output Per Cycle (cm³): 1
- Overall Depth (cm): 39.62
- Overall Depth (in): 15.6
- Overall Depth (mm): 396.2
- Overall Height (cm): 72.14
- Overall Height (in): 28.4
- Overall Height (mm): 721.4
- Overall Width (cm): 38.1
- Overall Width (in): 15
- Overall Width (mm): 381
- Package Options: Pump with Reservoir
- Power Connection Type: Deutsch DT04-12PB Housing
- Power Rating (HP): 0.25
- Power Type: Electric
$8,080.00
Dyna-Star Compact Pump, 60#
GG CD3164
GG CD3164
DYNA-STAR COMPACT PUMP, 60#
Graco CD3164 Compact Dyna-Star® 24 VDC Vent-Valve Grease Pump and 60 lb Reservoir, Follower Plate, Level Reporting, Auto-Fill Shut Off
The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments.
- Compact Power - Fits easily in space-limited applications, powerful enough to keep up with aggressive lubrication interval.
- Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C.
- Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments.
- Integrated Auto-Fill Shut-Off - Option enables single-person, powered-down, ground-level refills, without the need to climb or worry about spills.
- Application: In-Plant Machinery, Off-Road Equipment
- Approvals: CE, EAC, RCM
- Compatible Material: Grease
- Compatible Metering Device: Single Line Parallel
- Component Technology: Brushless Electric Motor, Shovel-loading pump tube
- Fluid Outlet Size (in): 3/8, 1/4
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Input Voltage (V dc): 24
- IP Rating: IP69K
- Level Reporting Sensor Maximum Signal (VDC): 10
- Level Reporting Sensor Minimum Signal (VDC): 0
- Low Level Carry Current (A): 0.02
- Lower Type: Integrated Shovel Loading
- Maximum Continuous Cycle Rate (CPM): 64
- Maximum cST Grade (cST): NLGI #2
- Maximum Cycle Rate (CPM): 64
- Maximum Cycle Rate (strokes/min): 64
- Maximum Fill Inlet Pressure (psi): 500
- Maximum Flow Rate (ci/min): 4.5
- Maximum Flow Rate (L/min): 0.074
- Maximum Fluid Output Pressure (bar): 241
- Maximum Fluid Output Pressure (psi): 3500
- Maximum Fluid Output Pressure (bar): 241
- Maximum Fluid Output Pressure (psi): 3500
- Maximum Intermittent Cycle Rate (CPM): 64
- Maximum NLGI Grade: 2
- Maximum Operating Temperature (°C): 149
- Maximum Operating Temperature (°F): 65
- Maximum Voltage (V dc): 30
- Maximum Working Pressure (bar): 241
- Maximum Working Pressure (kPa): 24100
- Maximum Working Pressure (MPa): 24.1
- Maximum Working Pressure (psi): 3500
- Minimum Operating Temperature (°C): -40
- Minimum Operating Temperature (°F): -40
- Minimum Voltage (V dc): 18
- Motor Type: Brushless DC
- Number of Outlets: 2
- Number of Pump Elements: 1
- Output Per Cycle (cm³): 1
- Overall Depth (cm): 39.62
- Overall Depth (in): 15.6
- Overall Depth (mm): 396.2
- Overall Height (cm): 72.14
- Overall Height (in): 28.4
- Overall Height (mm): 721.4
- Overall Width (cm): 38.1
- Overall Width (in): 15
- Overall Width (mm): 381
- Package Options: Pump with Reservoir
- Power Connection Type: Deutsch DT04-12PB Housing
- Power Rating (HP): 0.25
- Power Type: Electric
$7,920.00
DYNA-STAR COMPACT PUMP, 60#
GG CD3261
GG CD3261
DYNA-STAR COMPACT PUMP, 60#
Compact Dyna-Star® 24 VDC Vent-Valve Grease Pump and 60 lb Reservoir, Follower Plate, Pressure and Low-Level Switch The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments. Compact Power - Fits easily in space-limited applications; powerful enough to keep up with aggressive lubrication interval. Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C. Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments. $7,510.00
