GRACO INC. S10595

GG 7423

Extension, Pole, Maxi, Ht, 3'

GG 7424

Extension, Pole, Maxi, Ht, 4'

GG 7426

Extension, Pole, Maxi, Ht, 6'

GG 7486-03

Washer, Flat, Std, #10

GG 7486-05

Washer, Flat, Fender, 1/4

GG 7500-F

F Angle Head W/Union

GG 7500-G

G Angle Head W/Union

GG 7502

Lock Nut

GG 7503

O-Ring, Ptfe O-Ring (3Pk)

GG 7504

Anglehead Bolt

GG 7505

Swivel Tip Adapter

GG 7506-A

Kit, Fitting, Angle Head

GG 7506-AG

Kit, Fitting, Angle Head

GG 7506-F

F Angle Head W/O Union

GG 7506-G

G Angle Head W/O Union

GG 7506-SF

F Anglehead W/O Union (Sz)

GG 7506-SG

G Anglehead W/O Union (Sz)

GG 7551-F

Ht Gun To Pole Adaptor/F

GG 7551-G

Adapter, Pole, Gun, G

GG 7556-F

Adapter, "F", Pole, W/Gasket

GG 7556-G

Adapter, "G", Pole, W/Gasket

GG 770900F

Roller, 9In Base, Unit/Female

GG 7716-04C

Screw, Set, Flpt, #8, 1/8, Sst

GG 770900M

Roller, 9In Base, Unit/Male, Rev

GG 7721

9 In.X3/8 In.Roller Cover

GG 7722

Kit, Accessory, Cover, 9In X 1/2In

GG 7723

Kit, Accessory, Cover, 9In X 3/4In

GG 7733-11

Nut, Hex, Std, 1/4-28, Unf

GG 7733-17

Nut, Hex, Std, 3/8-16, Unc

GG 77X000

DYNA-STAR ELECTRIC PUMP, 24VDC, HP, 35/60#

Electric Dyna-Star® HP 24 VDC, Stand Alone Pump for 35 or 60 lb (16 or 27 kg) Reservoir

Heavy-duty construction and mining equipment rely on fresh lubricant to flush contaminants from critical pivot points. An automatic lubrication system from Graco provides continuous lube replenishment, reducing expensive component failures to keep your equipment working.

Electric pumps for heavy duty automatic lubrication and transfer systems. Graco Advantage Drive™ - heavy duty gear drive - lubed for life Tube-in-tube vent and fill path - convert drum to injector system instantly Motor control - speed and AMP control Cold weather performance (-40°C) More efficient seal replacement

GG 77X001

DYNA-STAR ELECTRIC PUMP, 24VDC, HP, 35/60#

Electric Dyna-Star® HP 24 VDC, Stand Alone Pump with Tube-in-Tube for 35 or 60 lb (16 or 27 kg) Reservoir

Heavy-duty construction and mining equipment rely on fresh lubricant to flush contaminants from critical pivot points. An automatic lubrication system from Graco provides continuous lube replenishment, reducing expensive component failures to keep your equipment working.

Electric pumps for heavy duty automatic lubrication and transfer systems. Graco Advantage Drive™ - heavy duty gear drive - lubed for life Tube-in-tube vent and fill path - convert drum to injector system instantly Motor control - speed and AMP control Cold weather performance (-40°C) More efficient seal replacement

GG 77X002

DYNA-STAR ELECTRIC PUMP, 24VDC, HP, 90/120#

Electric Dyna-Star® HP 24 VDC, Stand Alone Pump with Tube-in-Tube for 90 or 120 lb (41 or 55 kg). Reservoir

Heavy-duty construction and mining equipment rely on fresh lubricant to flush contaminants from critical pivot points. An automatic lubrication system from Graco provides continuous lube replenishment, reducing expensive component failures to keep your equipment working.

Electric pumps for heavy duty automatic lubrication and transfer systems. Graco Advantage Drive™ - heavy duty gear drive - lubed for life Tube-in-tube vent and fill path - convert drum to injector system instantly Motor control - speed and AMP control Cold weather performance (-40°C) More efficient seal replacement

GG 77X011

DYNA-STAR ELECTRIC PUMP, 24VDC, HP, 35/60#, VV

Electric Dyna-Star® Custom Tank Injector Kit - 24 VDC HP pump, Vent Valve with Tube-in-Tube for 35 or 60 lb (16 or 27 kg) Reservoir

Heavy-duty construction and mining equipment rely on fresh lubricant to flush contaminants from critical pivot points. An automatic lubrication system from Graco provides continuous lube replenishment, reducing expensive component failures to keep your equipment working.

Electric pumps for heavy duty automatic lubrication and transfer systems. Graco Advantage Drive™ - heavy duty gear drive - lubed for life Tube-in-tube vent and fill path - convert drum to injector system instantly Vent valve mounted directly to pump - no more brackets or extra hoses and pipes Motor control - speed and AMP control Cold weather performance (-40°C) More efficient seal replacement

GG 77X003

DYNA-STAR ELECTRIC PUMP, 24VDC, HP, 400#

Electric Dyna-Star® HP 24 VDC, Stand Alone Pump with Tube-in-Tube for 400 lb (180 kg). Reservoir

Heavy-duty construction and mining equipment rely on fresh lubricant to flush contaminants from critical pivot points. An automatic lubrication system from Graco provides continuous lube replenishment, reducing expensive component failures to keep your equipment working.

Electric pumps for heavy duty automatic lubrication and transfer systems. Graco Advantage Drive™ - heavy duty gear drive - lubed for life Tube-in-tube vent and fill path - convert drum to injector system instantly Motor control - speed and AMP control Cold weather performance (-40°C) More efficient seal replacement

GG 77X012

DYNA-STAR ELECTRIC PUMP, 24VDC, HP, 90/120#, VV

Electric Dyna-Star® Custom Tank Injector Kit - 24 VDC HP pump, Vent Valve with Tube-in-Tube for 90 or 120 lb (41 or 55 kg) reservoir

Heavy-duty construction and mining equipment rely on fresh lubricant to flush contaminants from critical pivot points. An automatic lubrication system from Graco provides continuous lube replenishment, reducing expensive component failures to keep your equipment working.

Electric pumps for heavy duty automatic lubrication and transfer systems. Graco Advantage Drive™ - heavy duty gear drive - lubed for life Tube-in-tube vent and fill path - convert drum to injector system instantly Vent valve mounted directly to pump - no more brackets or extra hoses and pipes Motor control - speed and AMP control Cold weather performance (-40°C) More efficient seal replacement

GG 77X013

DYNA-STAR ELECTRIC PUMP, 24VDC, HP, 400#, VV

Electric Dyna-Star® Custom Tank Injector Kit - 24 VDC HP pump, Vent Valve with Tube-in-Tube for 400 lb (180 kg) Reservoir

Heavy-duty construction and mining equipment rely on fresh lubricant to flush contaminants from critical pivot points. An automatic lubrication system from Graco provides continuous lube replenishment, reducing expensive component failures to keep your equipment working.

Electric pumps for heavy duty automatic lubrication and transfer systems. Graco Advantage Drive™ - heavy duty gear drive - lubed for life Tube-in-tube vent and fill path - convert drum to injector system instantly Vent valve mounted directly to pump - no more brackets or extra hoses and pipes Motor control - speed and AMP control Cold weather performance (-40°C) More efficient seal replacement

GG 77X014

DYNA-STAR ELECTRIC PUMP, 24VDC, HF, 35/60#

Electric Dyna-Star® HF 24 VDC, Stand Alone Pump for 35 or 60 lb (16 or 27 kg) Reservoir

Heavy-duty construction and mining equipment rely on fresh lubricant to flush contaminants from critical pivot points. An automatic lubrication system from Graco provides continuous lube replenishment, reducing expensive component failures to keep your equipment working.

Electric pumps for heavy duty automatic lubrication and transfer systems. Graco Advantage Drive™ - heavy duty gear drive - lubed for life Tube-in-tube vent and fill path - convert drum to injector system instantly Motor control - speed and AMP control Cold weather performance (-40°C) More efficient seal replacement

GG 77X015

DYNA-STAR ELECTRIC PUMP, 24VDC, HF, 90/120#

Electric Dyna-Star® HF 24 VDC, Stand Alone Pump for 120 lb (55 kg). Reservoir

Heavy-duty construction and mining equipment rely on fresh lubricant to flush contaminants from critical pivot points. An automatic lubrication system from Graco provides continuous lube replenishment, reducing expensive component failures to keep your equipment working.

Electric pumps for heavy duty automatic lubrication and transfer systems. Graco Advantage Drive™ - heavy duty gear drive - lubed for life Tube-in-tube vent and fill path - convert drum to injector system instantly Motor control - speed and AMP control Cold weather performance (-40°C) More efficient seal replacement

GG 77X016

DYNA-STAR ELECTRIC PUMP, 24VDC, HF, 400#

Electric Dyna-Star® HF 24 VDC, Stand Alone Pump for 400 lb (180 kg) Reservoir

Heavy-duty construction and mining equipment rely on fresh lubricant to flush contaminants from critical pivot points. An automatic lubrication system from Graco provides continuous lube replenishment, reducing expensive component failures to keep your equipment working.

Electric pumps for heavy duty automatic lubrication and transfer systems. Graco Advantage Drive™ - heavy duty gear drive - lubed for life Tube-in-tube vent and fill path - convert drum to injector system instantly Motor control - speed and AMP control Cold weather performance (-40°C) More efficient seal replacement

GG 77X100

MODULE, INJ, 24VDC, HP, 60#

Electric Dyna-Star® HP 24 VDC Injector Module with Pump, Tube-in-Tube, Vent Valve, Cover, Tank, Dip Stick for 60 lb (27 kg). Reservoir

The Dyna-Star HP and HF 24VDC Electric Lubrication Pumps complement our Dyna-Star 10:1 Hydraulic and Fire-Ball 300 50:1 Pneumatic pump offering. For heavy-duty construction and mining equipment, rely on the Electric Dyna-star to supply fresh lubricant and flush contaminants from critical pivot points. An automatic lubrication system from Graco provides continuous lube replenishment, reducing expensive component failures to keep your equipment working.

For use in mining operations, milling and crushing, heavy-duty construction, well services, and industrial. High-quality helical hardened steel gears are lubricated for life and sealed to keep contaminants out for longer lasting performance. Ability to adjust motor controls like power input, motor speed, current control and signal input to perfectly match the pump to your application and environmental changes. Mechanical auto-fill shutoff and remote-mounted fill port ensures clean and efficient refills. Vent valve mounts directly to pump with no special brackets or hoses for a compact design and less parts to break or wear out. IP69K rated Built-in pressure relief for safety and compact, efficient installations. Cavitation-free fill and vent path provides simple and direct venting and filling to the foot of the pump. Built-in lift ring is rated to 500 lbs (226 kg). Strong 12 gauge steel reservoir, 60 lb (27 kg) size.

GG 77X101

MODULE, INJ, 24VDC, HP, 90#

Electric Dyna-Star® HP 24 VDC Injector Module with Pump, Tube-in-Tube, Vent Valve, Cover, Tank, Dip Stick for 90 lb (41 kg). Reservoir

The Dyna-Star HP and HF 24VDC Electric Lubrication Pumps complement our Dyna-Star 10:1 Hydraulic and Fire-Ball 300 50:1 Pneumatic pump offering. For heavy-duty construction and mining equipment, rely on the Electric Dyna-star to supply fresh lubricant and flush contaminants from critical pivot points. An automatic lubrication system from Graco provides continuous lube replenishment, reducing expensive component failures to keep your equipment working.

For use in mining operations, milling and crushing, heavy-duty construction, well services, and industrial. High-quality helical hardened steel gears are lubricated for life and sealed to keep contaminants out for longer lasting performance. Ability to adjust motor controls like power input, motor speed, current control and signal input to perfectly match the pump to your application and environmental changes. Mechanical auto-fill shutoff and remote-mounted fill port ensures clean and efficient refills. Vent valve mounts directly to pump with no special brackets or hoses for a compact design and less parts to break or wear out. IP69K rated Built-in pressure relief for safety and compact, efficient installations. Cavitation-free fill and vent path provides simple and direct venting and filling to the foot of the pump. Built-in lift ring is rated to 500 lbs (226 kg). Strong 12 gauge steel reservoir, 60 lb (27 kg) size.

GG 77X102

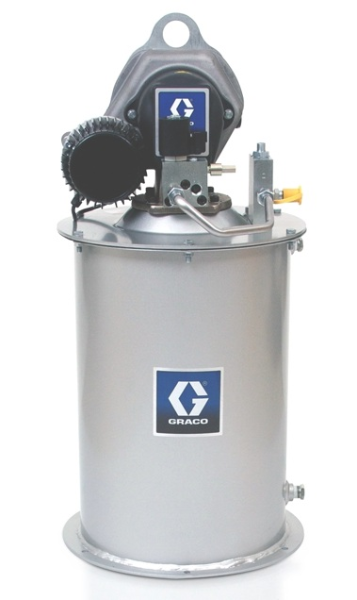

MODULE, INJ, 24VDC, HP, VV, 60#

Electric Dyna-Star® HP 24 VDC Injector Module with Pump, Tube-in-Tube, Vent Valve, Cover, Tank, AFSO for 60 lb (27 kg). Reservoir

The Dyna-Star HP and HF 24VDC Electric Lubrication Pumps complement our Dyna-Star 10:1 Hydraulic and Fire-Ball 300 50:1 Pneumatic pump offering. For heavy-duty construction and mining equipment, rely on the Electric Dyna-star to supply fresh lubricant and flush contaminants from critical pivot points. An automatic lubrication system from Graco provides continuous lube replenishment, reducing expensive component failures to keep your equipment working.

For use in mining operations, milling and crushing, heavy-duty construction, well services, and industrial. High-quality helical hardened steel gears are lubricated for life and sealed to keep contaminants out for longer lasting performance. Ability to adjust motor controls like power input, motor speed, current control and signal input to perfectly match the pump to your application and environmental changes. Mechanical auto-fill shutoff and remote-mounted fill port ensures clean and efficient refills. Vent valve mounts directly to pump with no special brackets or hoses for a compact design and less parts to break or wear out. IP69K rated Built-in pressure relief for safety and compact, efficient installations. Cavitation-free fill and vent path provides simple and direct venting and filling to the foot of the pump. Built-in lift ring is rated to 500 lbs (226 kg). Strong 12 gauge steel reservoir, 60 lb (27 kg) size. AC to DC Converter Box for fixed and in-plant applications.

GG 77X103

MODULE, INJ, 24VDC, HP, VV, 90#

Graco 77X103 Electric Dyna-Star® HP 24 VDC Injector Module with Pump, Tube-in-Tube, Vent Valve, Cover, Tank, AFSO for 90 lb (41 kg). Reservoir

The Dyna-Star HP and HF 24VDC Electric Lubrication Pumps complement our Dyna-Star 10:1 Hydraulic and Fire-Ball 300 50:1 Pneumatic pump offering. For heavy-duty construction and mining equipment, rely on the Electric Dyna-star to supply fresh lubricant and flush contaminants from critical pivot points. An automatic lubrication system from Graco provides continuous lube replenishment, reducing expensive component failures to keep your equipment working.

Application: For use in mining operations, milling and crushing, heavy-duty construction, well services, and industrial.

• High-quality helical hardened steel gears are lubricated for life and sealed to keep contaminants out for longer lasting performance.
• Ability to adjust motor controls like power input, motor speed, current control and signal input to perfectly match the pump to your application and environmental changes.
• Mechanical auto-fill shutoff and remote-mounted fill port ensures clean and efficient refills.
• IP69K rated
• Built-in pressure relief for safety and compact, efficient installations.
• Cavitation-free fill and vent path provides simple and direct venting and filling to the foot of the pump.
• Built-in lift ring is rated to 500 lbs (226 kg).
• Strong 12 gauge steel reservoir, 90 lb (41 kg) size.

• Model: Dyna-Star

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPT

• Application: In-Plant Machinery, Off-Road Equipment

• Compatible Material: Grease
• Compatible Metering Device: Single Line Parallel

• Fluid Outlet Size (in): 0.375
• Fluid Outlet Size (mm): 9.5250
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Includes: HP Pump 24 VDC, tube-in-tube, Vent Valve, cover, 90 lb. reservoir

• IP Rating: IP69K

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kPa): 24100
• Maximum Working Pressure (MPa): 24.1
• Maximum Working Pressure (psi): 3500

• Minimum cST Grade (cST): 40

• Motor Type: Electric Motor

• Overall Height (cm): 96.5
• Overall Height (in): 38
• Overall Height (mm): 965
• Overall Width (cm): 36.8
• Overall Width (in): 14.5
• Overall Width (mm): 368

• Power Connection Type: M12

• Power Type: Electric

GG 77X105

MODULE, INJ, 24V, HP, 90#, TANK, F, LL

Electric Dyna-Star® HP 24 VDC Injector Module with Pump, Tube-in-Tube, Vent Valve, Follower Plate, LL Kit, Cover, Tank for 90 lb (41 kg). Reservoir

The Dyna-Star HP and HF 24VDC Electric Lubrication Pumps complement our Dyna-Star 10:1 Hydraulic and Fire-Ball 300 50:1 Pneumatic pump offering. For heavy-duty construction and mining equipment, rely on the Electric Dyna-star to supply fresh lubricant and flush contaminants from critical pivot points. An automatic lubrication system from Graco provides continuous lube replenishment, reducing expensive component failures to keep your equipment working.

For use in mining operations, milling and crushing, heavy-duty construction, well services, and industrial. High-quality helical hardened steel gears are lubricated for life and sealed to keep contaminants out for longer lasting performance. Ability to adjust motor controls like power input, motor speed, current control and signal input to perfectly match the pump to your application and environmental changes. Mechanical auto-fill shutoff and remote-mounted fill port ensures clean and efficient refills. Vent valve mounts directly to pump with no special brackets or hoses for a compact design and less parts to break or wear out. IP69K rated Built-in pressure relief for safety and compact, efficient installations. Cavitation-free fill and vent path provides simple and direct venting and filling to the foot of the pump. Built-in lift ring is rated to 500 lbs (226 kg). Strong 12 gauge steel reservoir, 90 lb (41 kg) size.

GG 77X111

KIT, INJ, STDDRUM, 24VDC, HP, 120#

Graco 77X111 Standard Drum Injector Kits - 24 VDC HP Pump, Vent Valve, Cover with Tube-in-Tube for 120 lb (55 kg). Reservoir

The Dyna-Star HP and HF 24VDC Electric Lubrication Pumps complement our Dyna-Star 10:1 Hydraulic and Fire-Ball 300 50:1 Pneumatic pump offering. Now you have three power source options for automatic lubrication systems and transfer applications. Heavy-duty construction and mining equipment rely on fresh lubricant to flush contaminants from critical pivot points. An automatic lubrication system from Graco provides continuous lube replenishment, reducing expensive component failures to keep your equipment working.

Application: Electric pumps for heavy duty automatic lubrication and transfer systems.

• Auto Fill Shut Off - mechanical shut off of fill pump for clean and efficient refill
• Graco Advantage Drive - heavy duty gear drive-lubed for life
• Tube-in-tube vent and fill path - convert drum to injector system instantly
• Motor control - speed and AMP control
• Cold weather performance (-40º C)
• More efficient seal replacement

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPT

• Application: In-Plant Machinery, Off-Road Equipment

• Compatible Material: Grease
• Compatible Metering Device: Single Line Parallel

• Fluid Outlet Size (in): 0.375
• Fluid Outlet Size (mm): 9.5250
• Fluid Outlet Thread Type: NPT

• Includes: HP Pump 24 VDC, Vent Valve, Tube-in-Tube, Cover for 120 pound reservoir

• IP Rating: IP69K

• Maximum Working Pressure (bar): 345
• Maximum Working Pressure (kPa): 34500
• Maximum Working Pressure (MPa): 34.5
• Maximum Working Pressure (psi): 5000

• Minimum cST Grade (cST): 40

• Motor Type: Electric Motor

• Overall Height (cm): 92.7
• Overall Height (in): 36.5
• Overall Height (mm): 927
• Overall Width (cm): 27.9
• Overall Width (in): 11
• Overall Width (mm): 279

• Power Connection Type: M23

• Power Type: Electric

GG 77X112

KIT, INJ, STDDRUM, 24VDC, HP, 400#

Graco 77X112 Standard Drum Injector Kits - 24 VDC HP Pump, Vent Valve, Cover with Tube-in-Tube for 400 lb (180 kg) Reservoir

The Dyna-Star HP and HF 24VDC Electric Lubrication Pumps complement our Dyna-Star 10:1 Hydraulic and Fire-Ball 300 50:1 Pneumatic pump offering. Now you have three power source options for automatic lubrication systems and transfer applications. Heavy-duty construction and mining equipment rely on fresh lubricant to flush contaminants from critical pivot points. An automatic lubrication system from Graco provides continuous lube replenishment, reducing expensive component failures to keep your equipment working.

Application: Electric pumps for heavy duty automatic lubrication and transfer systems.

• Auto Fill Shut Off - mechanical shut off of fill pump for clean and efficient refill
• Graco Advantage Drive - heavy duty gear drive-lubed for life
• Tube-in-tube vent and fill path - convert drum to injector system instantly
• Motor control - speed and AMP control
• Cold weather performance (-40º C)
• More efficient seal replacement

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPT

• Application: In-Plant Machinery, Off-Road Equipment

• Compatible Material: Grease
• Compatible Metering Device: Single Line Parallel

• Fluid Outlet Size (in): 0.375
• Fluid Outlet Size (mm): 9.5250
• Fluid Outlet Thread Type: NPT

• Includes: HP Pump 24 VDC, Vent Valve, Tube-in-Tube, Cover for 400 lb (180 kg) reservoir

• IP Rating: IP69K

• Maximum Working Pressure (bar): 345
• Maximum Working Pressure (kPa): 34500
• Maximum Working Pressure (MPa): 34.5
• Maximum Working Pressure (psi): 5000

• Minimum cST Grade (cST): 40

• Motor Type: Electric Motor

• Overall Height (cm): 112.5
• Overall Height (in): 44.3
• Overall Height (mm): 1125
• Overall Width (cm): 27.9
• Overall Width (in): 11
• Overall Width (mm): 279

• Power Connection Type: M23

• Power Type: Electric

GG 77X121

KIT, STDRUM, 24VDC, HF, 90/120#

Graco 77X121 Standard Drum Kits - 24 VDC HF Pump and Cover for 120 lb (55 kg) Reservoir

The Dyna-Star HP and HF 24VDC Electric Lubrication Pumps complement our Dyna-Star 10:1 Hydraulic and Fire-Ball 300 50:1 Pneumatic pump offering. Now you have three power source options for automatic lubrication systems and transfer applications. Heavy-duty construction and mining equipment rely on fresh lubricant to flush contaminants from critical pivot points. An automatic lubrication system from Graco provides continuous lube replenishment, reducing expensive component failures to keep your equipment working.

Application: Electric pumps for heavy duty automatic lubrication and transfer systems.

• Auto Fill Shut Off - mechanical shut off of fill pump for clean and efficient refill
• Graco Advantage Drive - heavy duty gear drive-lubed for life
• Tube-in-tube vent and fill path - convert drum to injector system instantly
• Motor control - speed and AMP control
• Cold weather performance (-40º C)
• More efficient seal replacement

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPT

• Application: In-Plant Machinery, Off-Road Equipment

• Compatible Material: Grease
• Compatible Metering Device: Single Line Parallel

• Fluid Outlet Size (in): 0.375
• Fluid Outlet Size (mm): 9.5250
• Fluid Outlet Thread Type: NPT

• Includes: HF Pump 24 VDC, Cover for 400 pound reservoir

• IP Rating: IP69K

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kPa): 24100
• Maximum Working Pressure (MPa): 24.1
• Maximum Working Pressure (psi): 3500

• Minimum cST Grade (cST): 40

• Motor Type: Electric Motor

• Overall Height (cm): 92.7
• Overall Height (in): 36.5
• Overall Height (mm): 927
• Overall Width (cm): 27.9
• Overall Width (in): 11
• Overall Width (mm): 279

• Power Connection Type: M23

• Power Type: Electric

GG 77X127

Kit, Eds Parts, Bti

GG 77X202

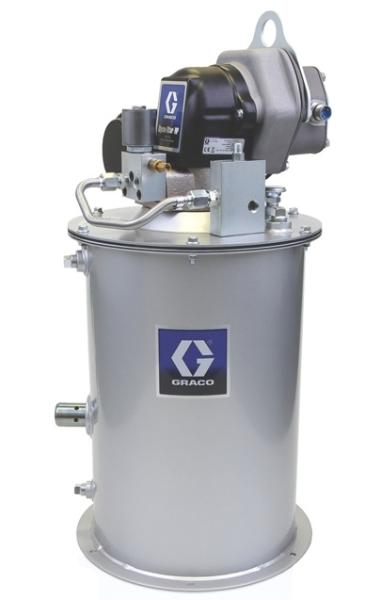

MODULE, EDS HP, AFSO, LL, 60#

Electric Dyna-Star® 24 VDC HP Injector Module with Pump, Tube-in-Tube, Vent Valve, Low-Level, Cover, Tank, AFSO for 60 lb (27 kg). Reservoir

Heavy-duty construction and mining equipment rely on fresh lubricant to flush contaminants from critical pivot points. An automatic lubrication system from Graco provides continuous lube replenishment, reducing expensive component failures to keep your equipment working.

Electric pumps for heavy duty automatic lubrication and transfer systems. Auto Fill Shut Off - mechanical shut off of fill pump for clean and efficient refill Graco Advantage Drive™ - heavy duty gear drive - lubed for life Tube-in-tube vent and fill path - convert drum to injector system instantly Vent valve mounted directly to pump - no more brackets or extra hoses and pipes Motor control - speed and AMP control Cold weather performance (-40°C) More efficient seal replacement Remote Fill Manifold with Vent (with built in pressure gauge) allows you to conveniently locate the fill port where you want it

GG 77X203

MODULE, EDS HP, AFSO, LL, 90#

Electric Dyna-Star® 24 VDC HP Injector Module with Pump, Tube-in-Tube, Vent Valve, Low-Level, Cover, Tank, AFSO for 90 lb (41 kg). Reservoir

Heavy-duty construction and mining equipment rely on fresh lubricant to flush contaminants from critical pivot points. An automatic lubrication system from Graco provides continuous lube replenishment, reducing expensive component failures to keep your equipment working.

Electric pumps for heavy duty automatic lubrication and transfer systems. Auto Fill Shut Off - mechanical shut off of fill pump for clean and efficient refill Graco Advantage Drive™ - heavy duty gear drive - lubed for life Tube-in-tube vent and fill path - convert drum to injector system instantly Vent valve mounted directly to pump - no more brackets or extra hoses and pipes Motor control - speed and AMP control Cold weather performance (-40°C) More efficient seal replacement Remote Fill Manifold with Vent (with built in pressure gauge) allows you to conveniently locate the fill port where you want it

GG 77X205

MODULE, EDS HP, LL, 90#

Electric Dyna-Star® HP Pump System, Low Level, 90 lb (41 kg). Reservoir

Heavy-duty construction and mining equipment rely on fresh lubricant to flush contaminants from critical pivot points. An automatic lubrication system from Graco provides continuous lube replenishment, reducing expensive component failures to keep your equipment working.

Electric pumps for heavy duty automatic lubrication and transfer systems. Graco Advantage Drive™ - heavy duty gear drive - lubed for life Tube-in-tube vent and fill path - convert drum to injector system instantly Vent valve mounted directly to pump - no more brackets or extra hoses and pipes Motor control - speed and AMP control Cold weather performance (-40°C) More efficient seal replacement

GG 77X204

MODULE, EDS HP, LL, 60#

Electric Dyna-Star® HP Pump System, Low Level, 60 lb (27 kg). Reservoir

Heavy-duty construction and mining equipment rely on fresh lubricant to flush contaminants from critical pivot points. An automatic lubrication system from Graco provides continuous lube replenishment, reducing expensive component failures to keep your equipment working.

Electric pumps for heavy duty automatic lubrication and transfer systems. Graco Advantage Drive™ - heavy duty gear drive - lubed for life Tube-in-tube vent and fill path - convert drum to injector system instantly Vent valve mounted directly to pump - no more brackets or extra hoses and pipes Motor control - speed and AMP control Cold weather performance (-40°C) More efficient seal replacement

GG 77X304

MODULE, 24V, HP, 60#, TANK, F, LL

Graco 77X304 Electric Dyna-Star® HP Pump System - 24 VDC, 60 lb (27 kg). Tank, Follower Plate, Low Level

The Dyna-Star HP and HF 24VDC Electric Lubrication Pumps complement our Dyna-Star 10:1 Hydraulic and Fire-Ball 300 50:1 Pneumatic pump offering. For heavy-duty construction and mining equipment, rely on the Electric Dyna-star to supply fresh lubricant and flush contaminants from critical pivot points. An automatic lubrication system from Graco provides continuous lube replenishment, reducing expensive component failures to keep your equipment working.

Application: Electric pumps for heavy duty automatic lubrication and transfer systems.

• Low Level Signal and Follower Plate
• Graco Advantage Drive - heavy duty gear drive-lubed for life
• Motor control - speed and AMP control
• Cold weather performance (-40º C)
• More efficient seal replacement

• Model: Dyna-Star

• Application: In-Plant Machinery, Off-Road Equipment

• Compatible Material: Grease

• Fluid Outlet Size (in): 0.375
• Fluid Outlet Size (mm): 9.5250
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Includes: HP Pump 24 VDC, 35 or 60 lb (16 or 27 kg) Reservoir, Dip Stick, Low Level, Follower Plate

• IP Rating: IP69K

• Maximum Voltage (V dc): 32

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kPa): 24100
• Maximum Working Pressure (MPa): 24.1
• Maximum Working Pressure (psi): 3500

• Minimum Voltage (V dc): 18

• Motor Type: Electric Motor

• Overall Height (cm): 73.7
• Overall Height (in): 29
• Overall Height (mm): 737
• Overall Width (cm): 27.9
• Overall Width (in): 11
• Overall Width (mm): 279

• Power Type: Electric

GG 77X305

MODULE, 24V, HP, 90#, TANK, F, LL

Graco 77X305 Electric Dyna-Star® HP Pump System - 24 VDC, 90 lb (41 kg). Tank, Follower Plate, Low Level

The Dyna-Star HP and HF 24VDC Electric Lubrication Pumps complement our Dyna-Star 10:1 Hydraulic and Fire-Ball 300 50:1 Pneumatic pump offering. For heavy-duty construction and mining equipment, rely on the Electric Dyna-star to supply fresh lubricant and flush contaminants from critical pivot points. An automatic lubrication system from Graco provides continuous lube replenishment, reducing expensive component failures to keep your equipment working.

Application: Electric pumps for heavy duty automatic lubrication and transfer systems.

• Low Level Signal and Follower Plate
• Graco Advantage Drive - heavy duty gear drive-lubed for life
• Motor control - speed and AMP control
• Cold weather performance (-40º C)
• More efficient seal replacement

• Model: Dyna-Star

• Application: In-Plant Machinery, Off-Road Equipment

• Compatible Material: Grease

• Fluid Outlet Size (in): 0.375
• Fluid Outlet Size (mm): 9.5250
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Includes: HP Pump 24 VDC, 90/120 Reservoir, Dip Stick, Low Level, Follower Plate

• IP Rating: IP69K

• Maximum Voltage (V dc): 32

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kPa): 24100
• Maximum Working Pressure (MPa): 24.1
• Maximum Working Pressure (psi): 3500

• Minimum Voltage (V dc): 18

• Motor Type: Electric Motor

• Overall Height (cm): 92.7
• Overall Height (in): 36.5
• Overall Height (mm): 927
• Overall Width (cm): 27.9
• Overall Width (in): 11
• Overall Width (mm): 279

• Power Type: Electric

GG 77X402

MODULE, EDS, HP, SP, AFSO, LL, 60#

Electric Dyna-Star® HP Lubrication Pump Module - 60 lb (27 kg). Reservoir

Heavy-duty construction and mining equipment rely on fresh lubricant to flush contaminants from critical pivot points. An automatic lubrication system from Graco provides continuous lube replenishment, reducing expensive component failures to keep your equipment working.

Electric pumps for heavy duty automatic lubrication and transfer systems. Graco Advantage Drive™ - heavy duty gear drive - lubed for life Tube-in-tube vent and fill path - convert drum to injector system instantly Motor control - speed and AMP control Cold weather performance (-40°C) More efficient seal replacement

GG 77X403

MODULE, EDS, HP, SP, AFSO, LL, 90#

Graco 77X403 Electric Dyna-Star® HP Lubrication Pump Module - 90 lb (41 kg). Reservoir

Heavy-duty construction and mining equipment rely on fresh lubricant to flush contaminants from critical pivot points. An automatic lubrication system from Graco provides continuous lube replenishment, reducing expensive component failures to keep your equipment working.

Application: Electric pumps for heavy duty automatic lubrication and transfer systems.

• Graco Advantage Drive - heavy duty gear drive - lubed for life
• Tube-in-tube vent and fill path - convert drum to injector system instantly
• Motor control - speed and AMP control
• More efficient seal replacement

• Application: In-Plant Machinery, Off-Road Equipment

• Compatible Material: Oil & Grease

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kPa): 24100
• Maximum Working Pressure (MPa): 24.1
• Maximum Working Pressure (psi): 3500

• Motor Type: Electric Motor

• Power Type: Electric

GG 77X500

KIT, PLATE, FOLLOWER, 60#/90#

Dyna-Star® Accessories - Follower Plate for 60 lb./90 lb. Graco Tank for Tube-in-Tube Follower plate for Graco 60 pound and 90 pound Graco tank for tube-in-tube.

GG 77X510

PLATE, FOLLOWER, 35#, EDS

Follower Plate for 35 lb. Bucket with and without Tube-in-Tube For use with Electric Dyna-Star® HP and HF 24 VDC Lubrication Systems. Follower plate for 35 pound bucket with and without tube-in-tube.

GG 77X511

KIT, PLATE, FOLLOWER, 120#

Dyna-Star® Accessories - Follower Plate for 120 lb. Drum with Tube-in-Tube For Electric Dyna-Star® Pump Systems

GG 77X512

KIT, PLATE, FOLLOWER, 400#

Dyna-Star® Accessories - Follower Plate for 400 lb. (180 kg) Drum with Tube-in-Tube For Electric Dyna-Star® Pump Systems

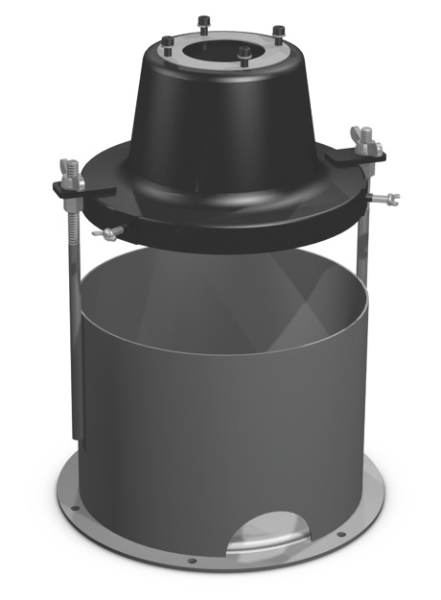

GG 77X513

COVER, PAIL, 35#

35 lb. (16 kg.) Pail Cover - Cylinder, Tie-Rods, Base to Convert 60 lb. (27 kg.) Length to 35 lb. (16 kg.) Bucket Cover, cylinder, tie-rods and base to convert 60 lb. (27 kg.) length to 35 lb. (16 kg.) bucket.

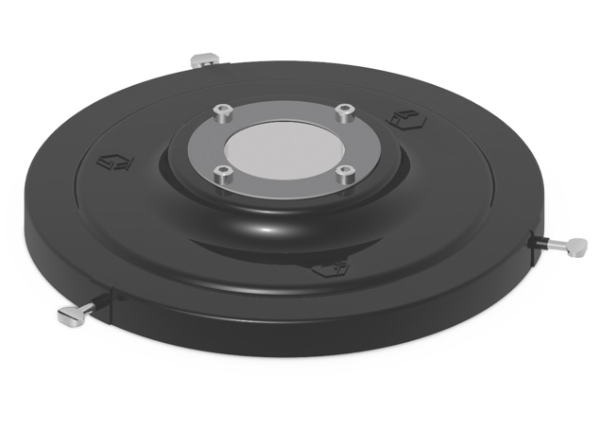

GG 77X514

COVER, DRUM, 120#

120 lb (54 kg) Drum Cover for Dyna-Star® Electrically-Powered HP and HF 24 VDC Cover for 120# Keg.

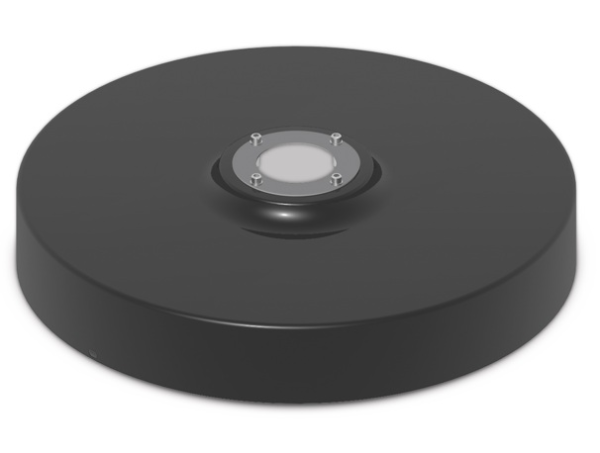

GG 77X515

COVER, DRUM, 400#

400 lb. (180 kg) Drum Cover for Dyna-Star® Electrically-Powered HP and HF 24 VDC For Electric Dyna-Star® Pump Systems

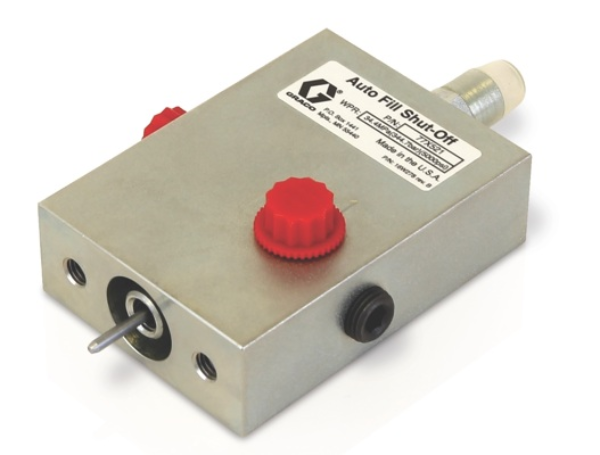

GG 77X521

MODULE, VALVE, OFF, SHUT, FILL

Auto-Fill Shut Off Retrofit kit for Electric Dyna-Star Pump and Reservoir For Electric Dyna-Star® Pump Systems Remote Fill Manifold and Auto-Fill Shut Off Kit Ground-level fill port eliminates climbing Spill-free, single-person operations Mechanical system enables mine-safety, powered-down, refilling best practices

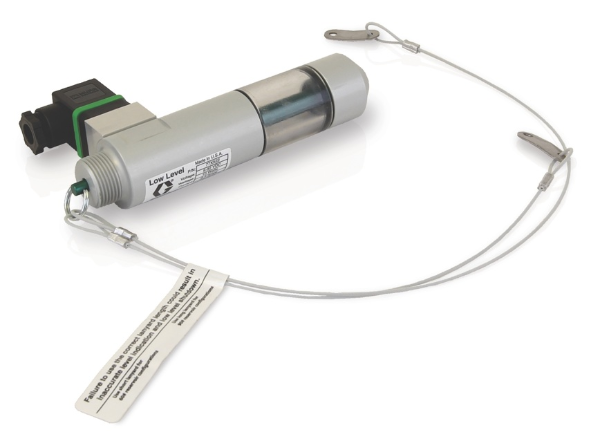

GG 77X522

INDICATOR, LOW LEVEL

Low-Level Kit Sight Glass, Electric Low-Level Switch, Cable, 3/4 in. NPT(m) Thread Mount For Dyna-Star systems, cannot be combined with Auto-Fill Shut-Off systems Low level kit sight glass, electric low level switch, and cable (requires follower plate 77X500)

GG 77X524

POWER SUPPLY, 24 VOLT W/ENCLOSURE

Dyna-Star® Electrically-Powered HP and HF AC to DC Converter Box - 110-230 VAC to 24 VDC Convert AC power to 24 VDC 110-230 VAC to 24 VDC converter box

GG 77X530

Indicator, Dipstick, 90#

GG 77X531

Indicator, Dipstick, 60#

GG 77X535

RESERVOIR, 60#, GREASE, EDS

Replacement Heavy Duty Reservoir and Cover Kit - 60# For Electric Dyna-Star® Pump Systems 60 lb Tank

GG 77X536

RESERVOIR, 90#, GREASE, EDS

Replacement Heavy Duty Reservoir and Cover Kit - 90# For Electric Dyna-Star® Pump Systems 90 lb Tank

GG 77X540

Kit, Vent, Valve 24Vdc Pump Mnt

GG 77X541

Kit, Filter And Seal

GG 77X543

KIT, ADAPTER, OUTLET, 4000PSI

Dyna-Star® Accessories - HF Manifold with 4,000 psi Pressure Relief

GG 77X544

KIT, ADAPTER, OUTLET, 5000PSI

Dyna-Star® Accessories - HP Manifold with 5,000 psi Pressure Relief

GG 77X545

KIT, HARNESS, EDS, 15', N/VV

Dyna-Star® Accessories - Power Cable for Series Progressive Systems, M23 Connector, 15 ft (4.6 m)

GG 77X546

KIT, HARNESS, EDS, 15', W/VV

Dyna-Star® Accessories - Power Cable for Injector Systems, M23 Connector, 15 ft (4.6 m)

GG 77X551

KIT, HARNESS, 4" FRONT MOUNT

Cable Harness Kits - Power Cable, Straight, 15 feet, Vent Valve For use with Electric Dyna-Star® HP Lubrication Systems.

GG 77X960

KIT, EDS HP, AFSO, LL, 60#

Graco 77X960 Dyna-Star® 24 VDC HP Pump, AFSO, Low Level, GLC 2200, Wiring Harness, Cables, Pressure Switch, Remote Fill Manifold for 60 lb (27 kg).

Heavy-duty construction and mining equipment rely on fresh lubricant to flush contaminants from critical pivot points. An automatic lubrication system from Graco provides continuous lube replenishment, reducing expensive component failures to keep your equipment working.

Application: Electric pumps for heavy duty automatic lubrication and transfer systems.

• Auto Fill Shut Off - mechanical shut off of fill pump for clean and efficient refill
• Graco Advantage Drive - heavy duty gear drive - lubed for life
• Tube-in-tube vent and fill path - convert drum to injector system instantly
• Motor control - speed and AMP control
• Cold weather performance (-40°C)
• More efficient seal replacement
• Remote Fill Manifold with Vent (with built in pressure gauge) allows you to conveniently locate the fill port where you want it

• Model: Dyna-Star

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35

• Application: On-Road Vehicles, Off-Road Equipment

• Compatible Material: Grease

• Fluid Outlet Size (in): 0.375
• Fluid Outlet Size (mm): 9.5250
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Includes: 24 VDC HP pump with Auto-Fill Shutoff and Low-Level Monitor, GLC2200 Controller, Wiring Harness, Low-Level Sensor Cable, Power Cable, Pressure Switch, Remote Fill Manifold for 60 pound (27 kg) reservoir

• IP Rating: IP69K

• Maximum NLGI Grade: #2

• Maximum Working Pressure (bar): 344
• Maximum Working Pressure (kPa): 34400
• Maximum Working Pressure (MPa): 34.4
• Maximum Working Pressure (psi): 5000

• Minimum cST Grade (cST): 40

• Minimum Voltage (V dc): 18

• Motor Type: Electric Motor

• Overall Depth (cm): 41
• Overall Depth (in): 16.13
• Overall Depth (mm): 410

• Overall Height (cm): 77.5
• Overall Height (in): 30.5
• Overall Height (mm): 775
• Overall Width (cm): 36.8
• Overall Width (in): 14.5
• Overall Width (mm): 368

• Power Connection Type: M12

• Power Type: Electric

GG 77X990

KIT, EDS HP, AFSO, LL, 90#

Graco 77X990 Dyna-Star® 24 VDC HP Pump, AFSO, Low Level, GLC 2200, Wiring Harness, Cables, Pressure Switch, Remote Fill Manifold for 90 lb (41 kg).

Heavy-duty construction and mining equipment rely on fresh lubricant to flush contaminants from critical pivot points. An automatic lubrication system from Graco provides continuous lube replenishment, reducing expensive component failures to keep your equipment working.

Application: Electric pumps for heavy duty automatic lubrication and transfer systems.

• Auto Fill Shut Off - mechanical shut off of fill pump for clean and efficient refill
• Graco Advantage Drive - heavy duty gear drive - lubed for life
• Tube-in-tube vent and fill path - convert drum to injector system instantly
• Motor control - speed and AMP control
• Cold weather performance (-40°C)
• More efficient seal replacement
• Remote Fill Manifold with Vent (with built in pressure gauge) allows you to conveniently locate the fill port where you want it

• Model: Dyna-Star

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35

• Application: On-Road Vehicles, Off-Road Equipment

• Compatible Material: Grease

• Fluid Outlet Size (in): 0.375
• Fluid Outlet Size (mm): 9.5250
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Includes: 24 VDC HP pump with Auto-Fill Shutoff and Low-Level Monitor, GLC2200 Controller, Wiring Harness, Low-Level Sensor Cable, Power Cable, Pressure Switch, Remote Fill Manifold for 90 pound reservoir

• IP Rating: IP69K

• Maximum NLGI Grade: #2

• Maximum Working Pressure (bar): 344
• Maximum Working Pressure (kPa): 34400
• Maximum Working Pressure (MPa): 34.4
• Maximum Working Pressure (psi): 5000

• Minimum cST Grade (cST): 40

• Minimum Voltage (V dc): 18

• Motor Type: Electric Motor

• Overall Depth (cm): 41
• Overall Depth (in): 16.13
• Overall Depth (mm): 410

• Overall Height (cm): 96.5
• Overall Height (in): 38
• Overall Height (mm): 965
• Overall Width (cm): 36.8
• Overall Width (in): 14.5
• Overall Width (mm): 368

• Power Connection Type: M12

• Power Type: Electric

GG 7884-07

Ftg, Elbow, 3/8Nptm X 1/4Tube Br

GG 800118

Nozzle, Adjustable

GG 800655

Valve, Unloader, 2500 Psi

GG 800708

Kit, Spray Tip #04

GG 800742

Kit, Thermal Relief Valve 3/8

GG 801009

Coupler, Female

GG 801012

Grommet

GG 801020

Nut, Lock, Hex

GG 801090

Coupler, Quick Disc, Male

GG 801091

Coupler, Male

GG 801111

Nut, Garden Hose

GG 801112

Screen, Inlet, Garden Hose

GG 801137

Key, Square

GG 801376

Bushing, H-1 1/8

GG 801472

Kit, Valve

GG 801473

Kit, Seal, Oil

GG 801474

Kit, Repair, Plunger

GG 801487

Kit, Packing And Retainer

GG 801490

Plunger

GG 801504

Base, Foot, Rubber

GG 801505

Retainer, Foot
