GRACO INC. S10595

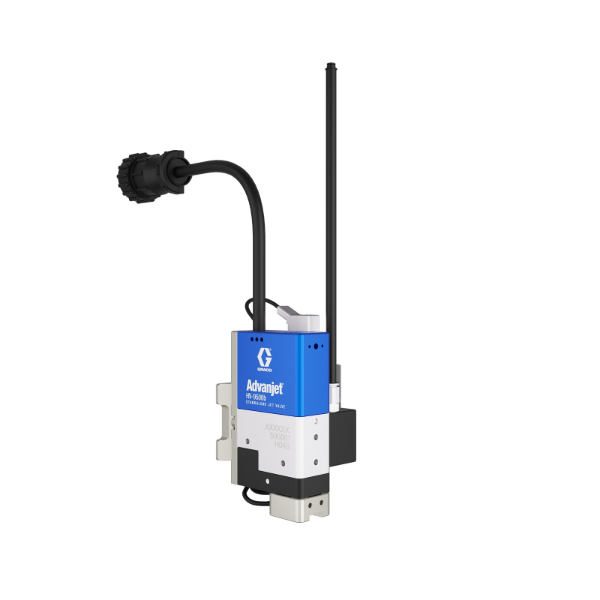

GG 26B951

ADVANJET VALVE, HV-9500B, 40W, 28P

Advanjet HV-9500b Jet Valve, 40W, 28 Pin The Advanjet HV-9500b Jet Valve provides non-contact jet dispensing for the successful application of fluids in the electronic, semiconductor, industrial and life science markets. A single, easily replaceable diaphragm eliminates dynamic fluid seals common in all other jets. No need to disassemble, clean and replace worn seals, saving time and money. The diaphragm allows fast cycle rates because of its very small mass. There is no large sliding valve stem slowing down the process. With this novel diaphragm design, the energy needed to eject a drop can be adjusted providing wider process windows. Diaphragm-Jet Technology Available for Standalone Operations Easy to CleanOnly two parts contact the fluid making it easy to exchange and replace parts. Easy to MaintainUnlike complicated piezo jets, the jet valve can be maintained within your factory with low-cost maintenance kits. Easy to IntegrateThe HV-9500b valve is a drop in replacement for existing operations. No external controller box required. VersatileChoose from a wide range of diaphragms and nozzles for material compatibility. Features:Up to 250 drops/secViscosities up to 400K cpsDrops as small as 5 nlNo fluid seals to clean or replaceIntegral heater for minimal fluid heatExternal controller box not requiredRight or left profile accommodates system layout or add-onsSyringe capacity from 5 cc to 6 oz.Available heated feed tube for enhanced flow rate stabilityAdd the PS-2000 Priming Station for an absolutely bubble-free fluid path

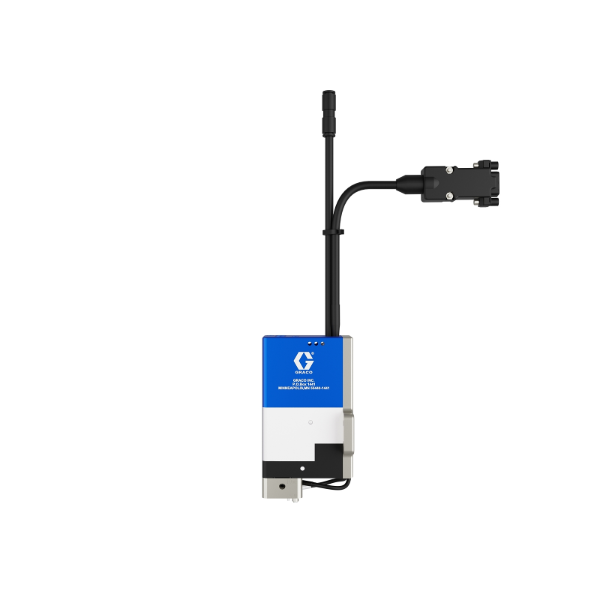

GG 26B961

ADVANJET VALVE, HV-2000B, 15P

Advanjet HV-2000b Jet Valve, 15 Pin The Advanjet HV-2000b Jet Valve provides non-contact jet dispensing for the successful application of fluids in the electronic, semiconductor, industrial and life science markets. A single, easily replaceable diaphragm eliminates dynamic fluid seals common in all other jets. No need to disassemble, clean and replace worn seals, saving time and money. The diaphragm allows fast cycle rates because of its very small mass. There is no large sliding valve stem slowing down the process. With this novel diaphragm design, the energy needed to eject a drop can be adjusted providing wider process windows. Diaphragm-Jet Technology Available for Standalone Operations Easy to CleanOnly two parts contact the fluid making it easy to exchange and replace parts. Easy to MaintainUnlike complicated piezo jets, the jet valve can be maintained within your factory with low-cost maintenance kits. Easy to IntegrateThe HV-2000b valve is a drop in replacement for existing operations. No external controller box required. VersatileChoose from a wide range of diaphragms and nozzles for material compatibility. Features:Up to 300 drops/secViscosities up to 400K cpsDrops as small as 5 nlNo fluid seals to clean or replaceIntegral heater for minimal fluid heatExternal controller box not requiredRight or left profile accommodates system layout or add-onsSyringe capacity from 5 cc to 6 oz.Available heated feed tube for enhanced flow rate stabilityAdd the PS-2000 Priming Station for an absolutely bubble-free fluid path

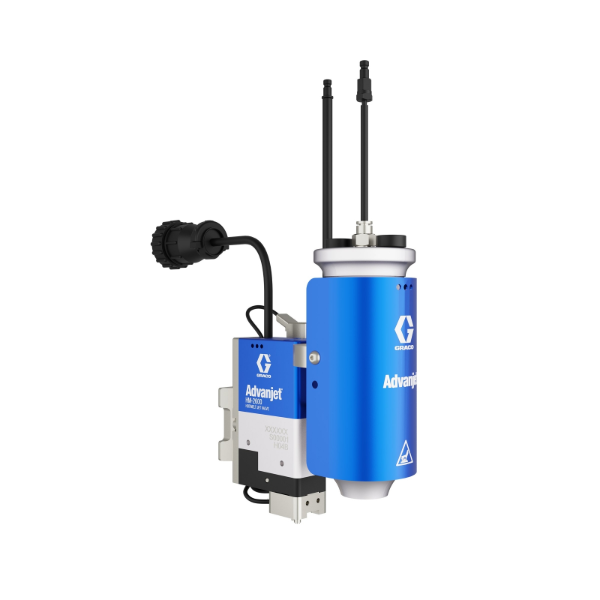

GG 26B971

ADVANJET VALVE, HM-2600, MFT

Advanjet HM-2600b Hot Melt Jet Valve, Metal Feed Tube The Advanjet HM-2600b Jet Valve with advanced high-temperature diaphragm is easy to use and especially easy to clean. The secret is the novel diaphragm design. A single easily replaceable diaphragm eliminates dynamic fluid seals common in all other jets. Only the nozzle plate and diaphragm are in contact with the fluid. The jetting mechanism is isolated from the fluid to ensure contamination-free operation. Specifically Designed for High-temperature Operations Smart Heating Extends Material and Jet LifeDual independent temperature controllers for the jet and the melter allow heating the nozzle to optimum jetting temperature while keeping the PUR at reduced temperature for extended life. The HM-2600b nozzle and syringe heaters provide jetting temperatures up to 150°C. Thermal isolation keeps the jet actuator below 55°C during operation while jetting fluid at 150°C. Clean Melting for Quick CleaningDesigned for easy cleaning, the HM-2600b syringe melter features a disposable feed tube. To eliminate having to clean residual PUR between the syringe and the jet, a thermal jacket surrounds the high-temperature feed tube, so the syringe can be removed with the feed tube attached. The unique disposable feed tube means minimal cleaning and quick syringe exchange. Additionally, the feed tube locking feature allows for “hot swapping” a preheated syringe for uninterrupted production. Standalone ControllerThe HM-2600C Controller has been designed specifically for PUR dispensing, including dual independent temperature controllers and dual independent power supplies for the jet and the melter. Precision air regulators and gauges allow fine-tuning of jetting parameters. Six independent recipes can be easily input and stored from the fully programmable front panel, and an RS-232 computer interface offers PC integration. Recipes can be triggered via a digital I/O connection for easy robot integration. Features:Hot melt dispensing up to 150°CLine speeds up to 100mm/secReadily achievable 400 μm linesDesigned for quick and easy cleaningDual independent temperature controllers for the jet and the melter to optimize jetting performance and maximize material lifeUnique disposable feed tubeNo fluid seals to clean or replaceAdvanced high-temperature diaphragm with tungsten carbide tipTungsten carbide nozzle for long life

GG HE120-0045

Quantm Pump, Qhe-Fgff1Ssepeoeps140031

GG HE120-0048

Quantm Pump, Qhe-Hsff1Sscwpoepssa0021

GG HE120-0050

Quantm Pump, Qhe-Hsff1Sscwspepssa0021

GG HE120-0052

Quantm Pump, Qhe-Hsff1Ssfkfkfkssa0021

GG HE120-0053

Quantm Pump, Qhe-Hsff1Ssptpoepssa0021

GG HE120-0055

QUANTM PUMP, QHE-HSFF1SSSPSPEPSSA0021

QUANTM h120, 2"Tri-clamp, HS SST Electric Diaphragm Pump, 200-240 V, FEP AL Center, SS Seat, SP Ball, SP Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. With a 32 Ra surface finish, the groundbreaking new QUANTM high-sanitation pumps offer a higher level of cleanability and protection against bacteria compared to other food-grade pumps. This polished design provides the ideal solution for many food and beverage applications that require higher levels of care or CIP options, as well as personal care and pharmaceutical applications. With a rotating stand for easy cleaning and draining, These electric pumps are ideal for applications involving materials such as tomato puree, diced tomato, general food ingredients, creams, lotions and medicated ingredients. The powerful new electric motor delivers up to 8x more continuous torque at low speeds than conventional motors and the fast, easy plug-and-play installation allows you to easily replace existing pumps without additional investment or infrastructure rework. Revolutionary Design

• Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
• Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
• Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
• Quiet operation reduces plant noise and improves employee safety and health
• Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

• FEP coated aluminum electric drive
• 240 VAC 1Ph motor with 15 ft cord and NEMA L15-20 plug
• Non-hazardous

Materials of Construction

• 32 Ra surface finish 316L stainless steel fluid section with tri-clamp center port
• Internal components include 316L stainless steel seat, Santoprene ball, Santoprene diaphragm and EPDM manifold o-ring
• EN 2.1 material certification

GG HE120-0056

Quantm Pump, Qhe-Hsff1Ssbnbnbnssa0021

GG HE120-0054

Quantm Pump, Qhe-Hsff1Ssptpsepssa0021

GG HE120-0057

Quantm Pump, Qhe-Hsff1Ssepeoepssa0021

GG HE120-0072

Quantm Pump, Qhe-Hsff1Sscwpoepssa0031

GG HE120-0077

Quantm Pump, Qhe-Hsff1Ssptpoepssa0031

GG HE120-0076

Quantm Pump, Qhe-Hsff1Ssfkfkfkssa0031

GG HE120-0078

Quantm Pump, Qhe-Hsff1Ssptpsepssa0031

GG HE120-0079

Quantm Pump, Qhe-Hsff1Ssspspepssa0031

GG HE120-0081

Quantm Pump, Qhe-Hsff1Ssepeoepssa0031

GG HE120-0080

Quantm Pump, Qhe-Hsff1Ssbnbnbnssa0031

GG HE120-0100

Quantm Pump, Qhe-3Aff1Ssfkfkfkssa0021

GG HE120-0101

QUANTM PUMP, QHE-3AFF1SSPTPOEPSSA0021

QUANTM h120, 2"Tri-clamp, 3A SST Electric Diaphragm Pump, 200-240 V, FEP AL Center, SS Seat, PT Ball, PO Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. The groundbreaking new QUANTM 3A hygienic electric pumps rival our high sanitary pumps from a build construction standpoint as they are outfitted with all stainless steel 316L construction with 32 Ra surface finish. These electric pumps come equipped with a leak sensor and are approved and certified by an outside agency for use in 3A applications. From yogurts to ice cream bases and cottage or ricotta cheese to other dairy ingredients, QUANTM 3A hygienic electric pumps are ideal for dairy applications requiring this approval certification. They also are ideal for handling other ingredients that go into those processes like fruit variegates, chocolate syrups, and other flavorings that make your favorite ice creams. The powerful new electric motor delivers up to 8x more continuous torque at low speeds than conventional motors and the fast, easy plug-and-play installation allows you to easily replace existing pumps without additional investment or infrastructure rework. Revolutionary Design

• Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
• Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
• Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
• Quiet operation reduces plant noise and improves employee safety and health
• Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

• FEP coated aluminum electric drive
• 240 VAC 1Ph motor with 15 ft cord and NEMA L15-20 plug
• Non-hazardous

Materials of Construction

• 32 Ra surface finish 316L stainless steel fluid section with tri-clamp center port
• Internal components include 316L stainless steel seat, PTFE ball, PTFE overmold diaphragm and EPDM manifold o-ring
• EN 2.1 material certification

GG HE120-0106

Quantm Pump, Qhe-3Aff1Sspteoepssa0021

GG HE120-0125

Quantm Pump, Qhe-3Aff1Ssptpoepssa0031

GG HE120-0130

Quantm Pump, Qhe-3Aff1Sspteoepssa0031

GG HE120-0144

Quantm Pump, Qhe-Phff1Sscwpoepssa0021

GG HE120-0148

Quantm Pump, Qhe-Phff1Ssfkfkfkssa0021

GG HE120-0149

Quantm Pump, Qhe-Phff1Ssptpoepssa0021

GG HE120-0150

Quantm Pump, Qhe-Phff1Ssptpsepssa0021

GG HE120-0151

Quantm Pump, Qhe-Phff1Ssspspepssa0021

GG HE120-0152

Quantm Pump, Qhe-Phff1Ssbnbnbnssa0021

GG HE120-0153

Quantm Pump, Qhe-Phff1Ssepeoepssa0021

GG HE120-0156

Quantm Pump, Qhe-Phff1Sscwpoepssa0031

GG HE120-0161

Quantm Pump, Qhe-Phff1Ssptpoepssa0031

GG HE120-0162

Quantm Pump, Qhe-Phff1Ssptpsepssa0031

GG HE120-0163

Quantm Pump, Qhe-Phff1Ssspspepssa0031

GG HE120-0164

Quantm Pump, Qhe-Phff1Ssbnbnbnssa0031

GG HE120-0160

Quantm Pump, Qhe-Phff1Ssfkfkfkssa0031

GG HE120-0168

Quantm Pump, Qhe-Fgff2Sscwpopts130021

GG HE120-0165

Quantm Pump, Qhe-Phff1Ssepeoepssa0031

GG HE120-0169

Quantm Pump, Qhe-Fgff2Sscwpspts130021

GG HE120-0172

Quantm Pump, Qhe-Fgff2Ssfkfkfks130021

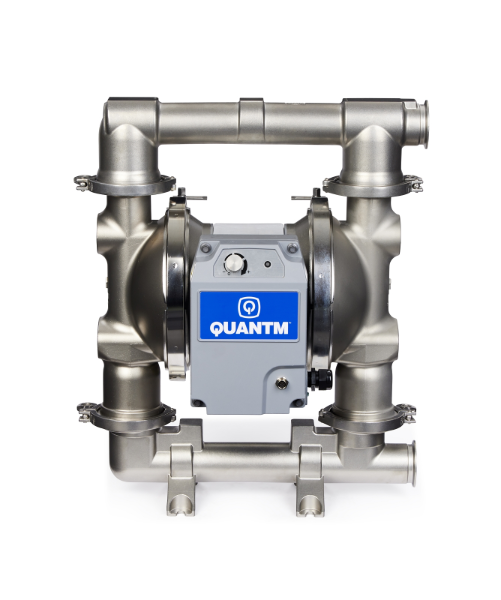

GG HE120-0173

QUANTM PUMP, QHE-FGFF2SSPTPOPTS130021

QUANTM h120, 2" FG SST Electric Diaphragm Pump, 200-240 V, FEP AL Center, SS Seat, PT Ball, PO Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. Graco food-grade pumps are our most popular series for general food transfer. With their all-stainless-steel construction and 125 Ra surface finish, the groundbreaking new QUANTM food-grade electric pumps are certified to handle a wide range of food and beverage products and meet certification requirements for some personal care applications as well. From dressings, sauces, oils, syrups to soaps, creams and solvents, QUANTM electric food-grade pumps are a workhorse for almost any hygienic food-grade application. The powerful new electric motor delivers up to 8x more continuous torque at low speeds than conventional motors and the fast, easy plug-and-play installation allows you to easily replace existing pumps without additional investment or infrastructure rework. Revolutionary Design

• Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
• Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
• Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
• Quiet operation reduces plant noise and improves employee safety and health
• Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

• FEP coated aluminum electric drive
• 240 VAC 1Ph motor with 15 ft cord and IEC 60320-C20 plug
• Non-hazardous

Materials of Construction

• 125 Ra surface finish 316 stainless steel fluid section with tri-clamp center port
• Internal components include 316L stainless steel seat, PTFE ball, PTFE overmold diaphragm and PTFE manifold o-ring
• EN 2.1 material certification

GG HE120-0174

QUANTM PUMP, QHE-FGFF2SSPTPSPTS130021

QUANTM h120, 2" FG SST Electric Diaphragm Pump, 200-240 V, FEP AL Center, SS Seat, PT Ball, PS Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. Graco food-grade pumps are our most popular series for general food transfer. With their all-stainless-steel construction and 125 Ra surface finish, the groundbreaking new QUANTM food-grade electric pumps are certified to handle a wide range of food and beverage products and meet certification requirements for some personal care applications as well. From dressings, sauces, oils, syrups to soaps, creams and solvents, QUANTM electric food-grade pumps are a workhorse for almost any hygienic food-grade application. The powerful new electric motor delivers up to 8x more continuous torque at low speeds than conventional motors and the fast, easy plug-and-play installation allows you to easily replace existing pumps without additional investment or infrastructure rework. Revolutionary Design

• Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
• Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
• Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
• Quiet operation reduces plant noise and improves employee safety and health
• Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

• FEP coated aluminum electric drive
• 240 VAC 1Ph motor with 15 ft cord and IEC 60320-C20 plug
• Non-hazardous

Materials of Construction

• 125 Ra surface finish 316 stainless steel fluid section with tri-clamp center port
• Internal components include 316L stainless steel seat, PTFE ball, PTFE/Santoprene 2-Piece diaphragm and PTFE manifold o-ring
• EN 2.1 material certification

GG HE120-0175

Quantm Pump, Qhe-Fgff2Ssspspeps130021

GG HE120-0176

Quantm Pump, Qhe-Fgff2Ssbnbneps130021

GG HE120-0177

Quantm Pump, Qhe-Fgff2Ssepeoeps130021

GG HE120-0180

Quantm Pump, Qhe-Fgff2Sscwpopts140021

GG HE120-0181

Quantm Pump, Qhe-Fgff2Sscwpspts140021

GG HE120-0184

Quantm Pump, Qhe-Fgff2Ssfkfkfks140021

GG HE120-0185

Quantm Pump, Qhe-Fgff2Ssptpopts140021

GG HE120-0186

Quantm Pump, Qhe-Fgff2Ssptpspts140021

GG HE120-0187

Quantm Pump, Qhe-Fgff2Ssspspeps140021

GG HE120-0188

Quantm Pump, Qhe-Fgff2Ssbnbneps140021

GG HE120-0189

Quantm Pump, Qhe-Fgff2Ssepeoeps140021

GG HE120-0192

Quantm Pump, Qhe-Fgff2Sscwpopts130031

GG HE120-0193

Quantm Pump, Qhe-Fgff2Sscwpspts130031

GG HE120-0196

Quantm Pump, Qhe-Fgff2Ssfkfkfks130031

GG HE120-0197

Quantm Pump, Qhe-Fgff2Ssptpopts130031

GG HE120-0198

Quantm Pump, Qhe-Fgff2Ssptpspts130031

GG HE120-0199

Quantm Pump, Qhe-Fgff2Ssspspeps130031

GG HE120-0200

Quantm Pump, Qhe-Fgff2Ssbnbneps130031

GG HE120-0201

Quantm Pump, Qhe-Fgff2Ssepeoeps130031

GG HE120-0204

Quantm Pump, Qhe-Fgff2Sscwpopts140031

GG HE120-0208

Quantm Pump, Qhe-Fgff2Ssfkfkfks140031

GG HE120-0205

Quantm Pump, Qhe-Fgff2Sscwpspts140031

GG HE120-0209

Quantm Pump, Qhe-Fgff2Ssptpopts140031

GG HE120-0210

Quantm Pump, Qhe-Fgff2Ssptpspts140031

GG HE120-0211

Quantm Pump, Qhe-Fgff2Ssspspeps140031

GG HE120-0212

Quantm Pump, Qhe-Fgff2Ssbnbneps140031

GG HE120-0213

Quantm Pump, Qhe-Fgff2Ssepeoeps140031

GG HE120-0216

Quantm Pump, Qhe-Hsff2Sscwpoepssa0021

GG HE120-0220

Quantm Pump, Qhe-Hsff2Ssfkfkfkssa0021

GG HE120-0218

Quantm Pump, Qhe-Hsff2Sscwspepssa0021

GG HE120-0221

Quantm Pump, Qhe-Hsff2Ssptpoepssa0021

GG HE120-0222

QUANTM PUMP, QHE-HSFF2SSPTPSEPSSA0021

QUANTM h120, 2"Tri-clamp, HS SST Electric Diaphragm Pump, 200-240 V, FEP AL Center, SS Seat, PT Ball, PS Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. With a 32 Ra surface finish, the groundbreaking new QUANTM high-sanitation pumps offer a higher level of cleanability and protection against bacteria compared to other food-grade pumps. This polished design provides the ideal solution for many food and beverage applications that require higher levels of care or CIP options, as well as personal care and pharmaceutical applications. With a rotating stand for easy cleaning and draining, These electric pumps are ideal for applications involving materials such as tomato puree, diced tomato, general food ingredients, creams, lotions and medicated ingredients. The powerful new electric motor delivers up to 8x more continuous torque at low speeds than conventional motors and the fast, easy plug-and-play installation allows you to easily replace existing pumps without additional investment or infrastructure rework. Revolutionary Design

• Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
• Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
• Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
• Quiet operation reduces plant noise and improves employee safety and health
• Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

• FEP coated aluminum electric drive
• 240 VAC 1Ph motor with 15 ft cord and IEC 60320-C20 plug
• Non-hazardous

Materials of Construction

• 32 Ra surface finish 316L stainless steel fluid section with tri-clamp center port
• Internal components include 316L stainless steel seat, PTFE ball, PTFE/Santoprene 2-Piece diaphragm and EPDM manifold o-ring
• EN 2.1 material certification

GG HE120-0223

Quantm Pump, Qhe-Hsff2Ssspspepssa0021

GG HE120-0224

Quantm Pump, Qhe-Hsff2Ssbnbnbnssa0021

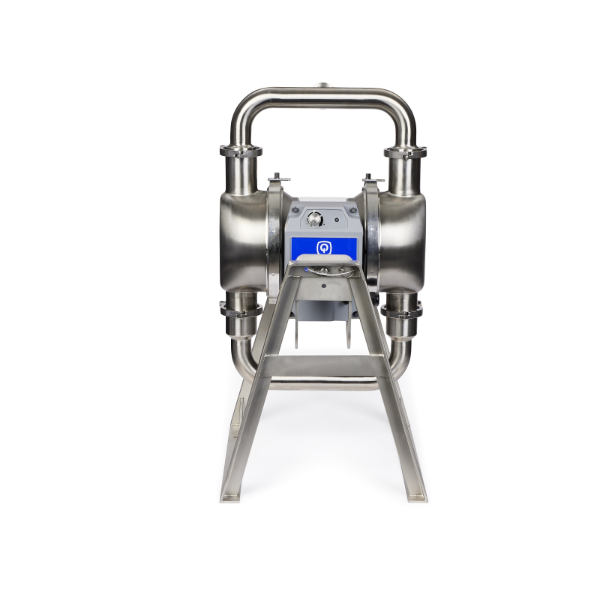

GG HE120-0225

QUANTM PUMP, QHE-HSFF2SSEPEOEPSSA0021

QUANTM h120, 2"Tri-clamp, HS SST Electric Diaphragm Pump, 200-240 V, FEP AL Center, SS Seat, EP Ball, EO Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. With a 32 Ra surface finish, the groundbreaking new QUANTM high-sanitation pumps offer a higher level of cleanability and protection against bacteria compared to other food-grade pumps. This polished design provides the ideal solution for many food and beverage applications that require higher levels of care or CIP options, as well as personal care and pharmaceutical applications. With a rotating stand for easy cleaning and draining, These electric pumps are ideal for applications involving materials such as tomato puree, diced tomato, general food ingredients, creams, lotions and medicated ingredients. The powerful new electric motor delivers up to 8x more continuous torque at low speeds than conventional motors and the fast, easy plug-and-play installation allows you to easily replace existing pumps without additional investment or infrastructure rework. Revolutionary Design

• Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
• Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
• Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
• Quiet operation reduces plant noise and improves employee safety and health
• Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

• FEP coated aluminum electric drive
• 240 VAC 1Ph motor with 15 ft cord and IEC 60320-C20 plug
• Non-hazardous

Materials of Construction

• 32 Ra surface finish 316L stainless steel fluid section with tri-clamp center port
• Internal components include 316L stainless steel seat, EPDM ball, EPDM overmold diaphragm and EPDM manifold o-ring
• EN 2.1 material certification

GG HE120-0240

Quantm Pump, Qhe-Hsff2Sscwpoepssa0031

GG HE120-0244

Quantm Pump, Qhe-Hsff2Ssfkfkfkssa0031

GG HE120-0245

Quantm Pump, Qhe-Hsff2Ssptpoepssa0031

GG HE120-0246

Quantm Pump, Qhe-Hsff2Ssptpsepssa0031

GG HE120-0247

Quantm Pump, Qhe-Hsff2Ssspspepssa0031

GG HE120-0248

Quantm Pump, Qhe-Hsff2Ssbnbnbnssa0031

GG HE120-0249

Quantm Pump, Qhe-Hsff2Ssepeoepssa0031

GG HE120-0268

Quantm Pump, Qhe-3Aff2Ssfkfkfkssa0021

GG HE120-0269

QUANTM PUMP, QHE-3AFF2SSPTPOEPSSA0021

QUANTM h120, 2"Tri-clamp, 3A SST Electric Diaphragm Pump, 200-240 V, FEP AL Center, SS Seat, PT Ball, PO Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. The groundbreaking new QUANTM 3A hygienic electric pumps rival our high sanitary pumps from a build construction standpoint as they are outfitted with all stainless steel 316L construction with 32 Ra surface finish. These electric pumps come equipped with a leak sensor and are approved and certified by an outside agency for use in 3A applications. From yogurts to ice cream bases and cottage or ricotta cheese to other dairy ingredients, QUANTM 3A hygienic electric pumps are ideal for dairy applications requiring this approval certification. They also are ideal for handling other ingredients that go into those processes like fruit variegates, chocolate syrups, and other flavorings that make your favorite ice creams. The powerful new electric motor delivers up to 8x more continuous torque at low speeds than conventional motors and the fast, easy plug-and-play installation allows you to easily replace existing pumps without additional investment or infrastructure rework. Revolutionary Design

• Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
• Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
• Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
• Quiet operation reduces plant noise and improves employee safety and health
• Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

• FEP coated aluminum electric drive
• 240 VAC 1Ph motor with 15 ft cord and IEC 60320-C20 plug
• Non-hazardous

Materials of Construction

• 32 Ra surface finish 316L stainless steel fluid section with tri-clamp center port
• Internal components include 316L stainless steel seat, PTFE ball, PTFE overmold diaphragm and EPDM manifold o-ring
• EN 2.1 material certification

GG HE120-0274

Quantm Pump, Qhe-3Aff2Sspteoepssa0021

GG HE120-0293

Quantm Pump, Qhe-3Aff2Ssptpoepssa0031

GG HE120-0298

Quantm Pump, Qhe-3Aff2Sspteoepssa0031

GG HE120-0312

Quantm Pump, Qhe-Phff2Sscwpoepssa0021

GG HE120-0316

Quantm Pump, Qhe-Phff2Ssfkfkfkssa0021

GG HE120-0317

Quantm Pump, Qhe-Phff2Ssptpoepssa0021

GG HE120-0318

Quantm Pump, Qhe-Phff2Ssptpsepssa0021

GG HE120-0319

Quantm Pump, Qhe-Phff2Ssspspepssa0021

GG HE120-0320

Quantm Pump, Qhe-Phff2Ssbnbnbnssa0021

GG HE120-0321

Quantm Pump, Qhe-Phff2Ssepeoepssa0021

GG HE120-0324

Quantm Pump, Qhe-Phff2Sscwpoepssa0031

GG HE120-0328

Quantm Pump, Qhe-Phff2Ssfkfkfkssa0031

GG HE120-0329

Quantm Pump, Qhe-Phff2Ssptpoepssa0031
