GRACO INC. S10595

GG 26B400

GG 26B410

GG 26B415

GG 26B420

GG 26B421

GG 26B430

KIT, SEAT 1590 FG SS

Graco 26B430 1.5-inch 316 Stainless Steel Seat Kit

GG 26B431

KIT, BALL-F1/G1 CW

Graco 26B431 1.5-inch Polychloroprene Weighted Check Ball Kit

GG 26B438

GG 26B451

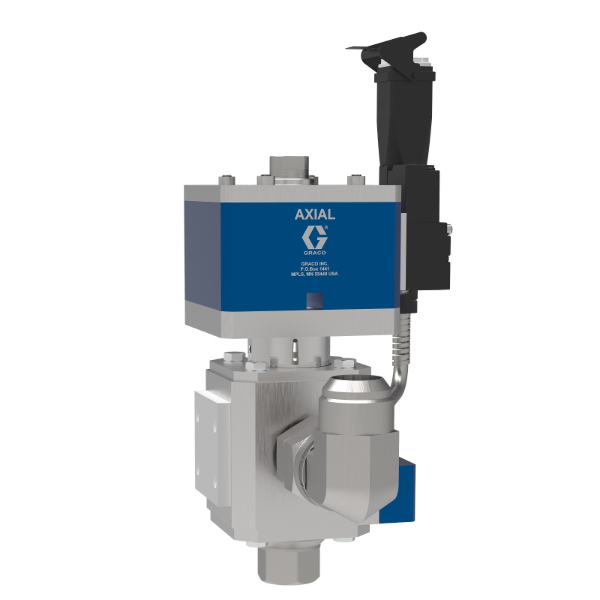

AXIAL VALVE, 38, ADJ/SOL, WEL

GG 26B452

AXIAL VALVE, 38, ADJ/RM, AMB

Graco 26B452 Axial Dispense Valve, Ambient, Remote Mount Solenoid

The Axial Rotating Dispense Valve offers high reliability for robotic glass bonding applications.

• Unique swivel design prevents from twining of hoses, airlines, and electrical
• Easily dispense around corners with the correct position of the bead
• High degree of accuracy and repeatability
• Wear-resistant seals and hardened components for long life
• Easy repeatable mounting for robotic and automated applications
• Ideal for one component urethane applications

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Sealing, Glazing
• Applicator Type: Rotating Ball/Seat

• Component Type: Single Component
• Connection Type: JIC

• For Use With: E-Flo iQ Metering System, PCF Metering System

• Gun Activation: Automatic
• Gun Mount: Robot
• Gun Type: Rotating Dispense

• Inlet Thread Type: SAE, JIC

• Maximum Air Pressure (bar): 8

• Maximum Air Pressure (kPa): 800
• Maximum Air Pressure (MPa): 0.8
• Maximum Air Pressure (psi): 120

• Maximum Current Draw (µA): 0.5

• Maximum Flow Rate (cc/min): 2000

• Maximum Fluid Pressure (bar): 276
• Maximum Fluid Pressure (MPa): 28
• Maximum Fluid Pressure (psi): 4000

• Maximum Fluid Pressure (bar): 276
• Maximum Fluid Pressure (MPa): 28
• Maximum Fluid Pressure (psi): 4000

• Maximum Viscosity (cP): 3000000
• Maximum Viscosity (mPa·s): 3000000

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kPa): 241
• Maximum Working Pressure (MPa): 24
• Maximum Working Pressure (psi): 3500

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air Inlet Pressure (MPa): 0.55
• Minimum Air Inlet Pressure (psi): 80

• Minimum Viscosity (cP): 100000
• Minimum Viscosity (mPa·s): 100000

• Mount Location: Robot

• Power Type: Pneumatic

GG 26B453

AXIAL VALVE, 38, ADJ/RM, WEL

Graco 26B453 Axial Dispense Valve, Heated, Remote Mount Solenoid

The Axial Rotating Dispense Valve offers high reliability for robotic glass bonding applications.

• Unique swivel design prevents from twining of hoses, airlines, and electrical
• Easily dispense around corners with the correct position of the bead
• High degree of accuracy and repeatability
• Wear-resistant seals and hardened components for long life
• Easy repeatable mounting for robotic and automated applications
• Ideal for one component urethane applications

• Ambient/Warm Melt/Hot Melt: Warm
• Application: Sealing, Glazing
• Applicator Type: Rotating Ball/Seat

• Component Type: Single Component
• Connection Type: JIC

• For Use With: E-Flo iQ Metering System, PCF Metering System

• Gun Activation: Automatic
• Gun Mount: Robot
• Gun Type: Rotating Dispense

• Inlet Thread Type: SAE, JIC

• Maximum Air Pressure (bar): 8

• Maximum Air Pressure (kPa): 800
• Maximum Air Pressure (MPa): 0.8
• Maximum Air Pressure (psi): 120

• Maximum Current Draw (µA): 0.5

• Maximum Flow Rate (cc/min): 2000

• Maximum Fluid Pressure (bar): 276
• Maximum Fluid Pressure (MPa): 28
• Maximum Fluid Pressure (psi): 4000

• Maximum Fluid Pressure (bar): 276
• Maximum Fluid Pressure (MPa): 28
• Maximum Fluid Pressure (psi): 4000

• Maximum Viscosity (cP): 3000000
• Maximum Viscosity (mPa·s): 3000000

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kPa): 241
• Maximum Working Pressure (MPa): 24
• Maximum Working Pressure (psi): 3500

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air Inlet Pressure (MPa): 0.55
• Minimum Air Inlet Pressure (psi): 80

• Minimum Viscosity (cP): 100000
• Minimum Viscosity (mPa·s): 100000

• Mount Location: Robot

• Power Type: Pneumatic

GG 26B457

GG 26B472

GG 26B482

GG 26B488

GG 26B489

GG 26B491

IQ SNUFF BACK VALVE, 25, 45/S, ADJ/RM, AMB

Graco 26B491 iQ Dispense Valve, Snuff Back, Ambient, NPT Tip, 45° Outlet, 0in (000mm) Nozzle, Remote Mount Solenoid

The iQ Snuff-Back Dispense Valve offers high reliability for single component sealant and adhesive dispensing applications.

• Maximize dispense time while minimizing maintenance costs and effort
• Delivers reliable and consistent performance with snuff back action to prevent dripping
• Ideal for low to high viscosity materials
• Easy repeatable mounting for robotic and automated applications.
• For use with the Precision Swirl Valves

• Air Inlet Size (in): 1/8
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Ambient/Warm Melt/Hot Melt: Ambient
• Applicator Type: Snuff Back

• Component Type: Single Component

• Fluid Inlet Size (in): 1/4
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Gun Activation: Automatic

• Maximum Air Pressure (bar): 8.3

• Maximum Air Pressure (MPa): 0.83
• Maximum Air Pressure (psi): 120

• Maximum Fluid Pressure (bar): 276
• Maximum Fluid Pressure (MPa): 28
• Maximum Fluid Pressure (psi): 4000

• Maximum Fluid Pressure (bar): 276
• Maximum Fluid Pressure (MPa): 28
• Maximum Fluid Pressure (psi): 4000

• Mount Location: Remote Mount Solenoid
• Nozzle Size (in): N/A
• Nozzle Size (mm): N/A

• Outlet Block Length (in): NA
• Outlet Block Length (mm): NA

GG 26B496

KIT, DIAPHRAGM-C2 FK

Graco 26B496 FKM (Viton) Diaphragm Kit for 1/2-inch Pump

GG 26B497

KIT, DIAPHRAGM-C2 PU

Graco 26B497 Molded FDA Polyurethane Diaphragm Kit for 1/2-inch Pumps

GG 26B520

PERFORMAA GUN, AL, 5000

Graco 26B520 PerformAA 5000 Airless Gun

Performance Above All with material specific air caps and fine finish spray tips for superior spray performance. Light weight gun designed for operator comfort with optimized balance, trigger pull and ergonomics.

• High quality 5000 psi airless spray gun
• Airless air cap for fine finish airless spraying
• Carbide fluid seat and carbide ball for durability

• Model: PerformAA 50 Airless

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPSM

• Applicator Type: Manual

• Bleed Type: Non-Bleeder

• Compatible Material: Epoxies, High Solids, Lacquer, Latex, Plural Component Materials, Polyurethane, Solventborne, Solventborne Paints, Urethane, UV Coating, Varnish
• Compatible Spray Tip: AXM, AXF

• Feed Type: Pressure Feed

• Fluid Adjustment Knob: N/A
• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: NPSM

• Gun Activation: Manual
• Gun Included: 1
• Gun Type: Airless Gun
• Gun Weight (g): 453
• Gun Weight (kg): 0.45
• Gun Weight (lb): 1
• Gun Weight (oz): 16
• Gun Weight with Tip and Guard (g): 490
• Gun Weight with Tip and Guard (oz): 17.4
• Gun Weight without Tip and Guard (g): 460

• Gun Weight without Tip and Guard (oz): 16.2

• Includes: Carbide Seat, Tip Guard, Tip of Choice, Tool Kit

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (MPa): 0.7
• Maximum Air Inlet Pressure (psi): 100
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Fluid Pressure (bar): 345
• Maximum Fluid Pressure (kPa): 34500
• Maximum Fluid Pressure (MPa): 34.5
• Maximum Fluid Pressure (psi): 5000
• Maximum Fluid Temperature (°C): 43
• Maximum Fluid Temperature (°F): 110

• Maximum Fluid Pressure (bar): 345
• Maximum Fluid Pressure (kPa): 34500
• Maximum Fluid Pressure (MPa): 34.5
• Maximum Fluid Pressure (psi): 5000
• Maximum Fluid Temperature (°C): 43
• Maximum Fluid Temperature (°F): 110

• Overall Height (cm): 20.8
• Overall Height (in): 8.2
• Overall Height (mm): 208
• Overall Length (cm): 17.25
• Overall Length (in): 6.8
• Overall Length (mm): 173

• Product Type: Spray Gun

GG 26B523

KIT, O-RING-C2 EP-8

Graco 26B523 0.5-inch EPDM Seal Kit

GG 26B524

KIT, O-RING-C2 FK-PT-8

Graco 26B524 0.5-inch Encapsulated Viton Seal Kit

GG 26B533

KIT, O-RING-C2 PT-8

Graco 26B533 0.5-inch PTFE Seal Kit for FG Pump Models

GG 26B543

GG 26B544

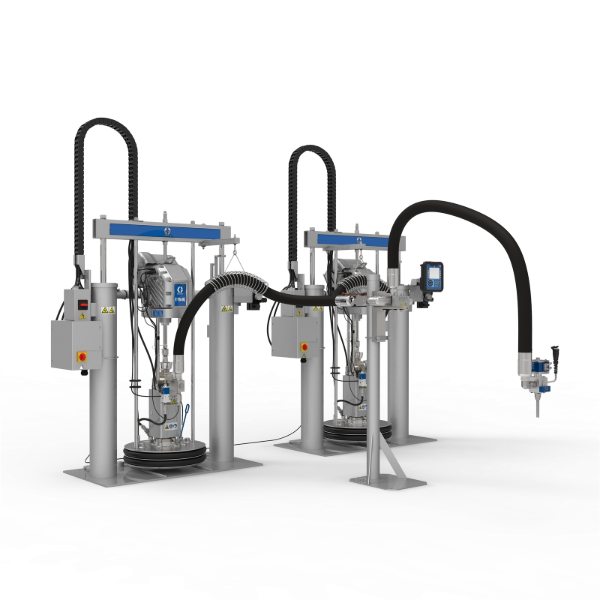

E-FLO IQ SYSTEM, IQU, SGL, 1H15, 2H0

Graco 26B544 Single E-Flo iQ System for Urethanes, Check-Mate 200cc, Heated 55 Gal., D200s, 15 ft hose

The E-Flo iQ Metering & Dispensing System our tank-to-tip metering system for single component urethanes. This dispensing solution was designed to meter directly from the drum, making it an intelligent system that delivers sustained in-plant performance, minimizes maintenance costs and reduces system complexity.

• Single Heated E-Flo iQ Urethane Supply Sytem

  • Delivers consistent control and accurate performance
  • Quiet electric servo-driven motor for lower sound levels
  • Provides continuous dispensing without the need to reload
  • Check-Mate Severe Duty lower for long life and reliable material movement
• High-Quality Heated Hoses

  • Graco heated hoses are insulated for an accurate and uniform material temperature.
  • Equipped with 15 ft hose
• Axial Rotating Dispense Valves Suited for Urethane Dispense
  • Triangular head ideal for urethane and sealant dispense for automotive window and windshield glazing
  • Delivers reliable and consistent beads in high flow applications
  • Compact and lightweight design allows for lower payload
  • Rotating valve prevents twining and reduces wear
  • Remote mounted solenoid

• Air Inlet Size (in): 1
• Air Inlet Size (mm): 25

• Ambient/Warm Melt/Hot Melt: Warm Melt
• Applicator Type: Rotating Ball/Seat

• Configuration: Single

• Container Size: Drum

• Fluid Outlet Size (cm): 2.54
• Fluid Outlet Size (in): 1.0
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Gateway: EtherNet/IP User Interface, PROFINET User Interface, PROFIBUS User Interface, DeviceNet User Interface

• Input Cycle Rate (Hz): 50/60

• Material Container Volume (gal): 55
• Material Container Volume (l): 200

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 125

• Maximum Ambient Temperature (°C): 49
• Maximum Ambient Temperature (°F): 120

• Maximum Flow Rate (cc/min): 5000

• Maximum Flow Rate (L/min): 5.0

• Maximum Fluid Temperature (°C): 70
• Maximum Fluid Temperature (°F): 158
• Maximum Fluid Viscosity (cP): 3000000

• Maximum Fluid Temperature (°C): 70
• Maximum Fluid Temperature (°F): 158
• Maximum Fluid Viscosity (cP): 3000000

• Maximum Fluid Working Pressure (bar): 240
• Maximum Fluid Working Pressure (MPa): 28
• Maximum Fluid Working Pressure (psi): 3500
• Maximum Hose Length (ft): 15

• Maximum Working Pressure (kPa): 28000
• Maximum Working Pressure (MPa): 28
• Maximum Working Pressure (psi): 4000

• Minimum Ambient Temperature (°C): 0
• Minimum Ambient Temperature (°F): 32

• Minimum Flow Rate (cc/min): 10
• Minimum Flow Rate (L/min): 0.01

• Minimum Fluid Viscosity (cP): 100000

• Minimum Voltage (V ac): 200

• Phase: 1, 3

• Power Rating (HP): 2.5 hp
• Power Type: Electric, Pneumatic

• Ram Post Diameter (in): 6.5

GG 26B545

E-FLO IQ SYSTEM, IQU, SGL, 1H20, 2H0

Graco 26B545 Single E-Flo iQ System for Urethanes, Check-Mate 200cc, Heated 55 Gal., D200s, 20 ft hose

The E-Flo iQ Metering & Dispensing System our tank-to-tip metering system for single component urethanes. This dispensing solution was designed to meter directly from the drum, making it an intelligent system that delivers sustained in-plant performance, minimizes maintenance costs and reduces system complexity.

• Single Heated E-Flo iQ Urethane Supply Sytem

  • Delivers consistent control and accurate performance
  • Quiet electric servo-driven motor for lower sound levels
  • Provides continuous dispensing without the need to reload
  • Check-Mate Severe Duty lower for long life and reliable material movement
• High-Quality Heated Hoses

  • Graco heated hoses are insulated for an accurate and uniform material temperature.
  • Equipped with 20 ft hose
• Axial Rotating Dispense Valves Suited for Urethane Dispense
  • Triangular head ideal for urethane and sealant dispense for automotive window and windshield glazing
  • Delivers reliable and consistent beads in high flow applications
  • Compact and lightweight design allows for lower payload
  • Rotating valve prevents twining and reduces wear
  • Remote mounted solenoid

• Air Inlet Size (in): 1
• Air Inlet Size (mm): 25

• Ambient/Warm Melt/Hot Melt: Warm Melt
• Applicator Type: Rotating Ball/Seat

• Configuration: Single

• Container Size: Drum

• Fluid Outlet Size (cm): 2.54
• Fluid Outlet Size (in): 1.0
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Gateway: EtherNet/IP User Interface, PROFINET User Interface, PROFIBUS User Interface, DeviceNet User Interface

• Input Cycle Rate (Hz): 50/60

• Material Container Volume (gal): 55
• Material Container Volume (l): 200

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 125

• Maximum Ambient Temperature (°C): 49
• Maximum Ambient Temperature (°F): 120

• Maximum Flow Rate (cc/min): 5000

• Maximum Flow Rate (L/min): 5.0

• Maximum Fluid Temperature (°C): 70
• Maximum Fluid Temperature (°F): 158
• Maximum Fluid Viscosity (cP): 3000000

• Maximum Fluid Temperature (°C): 70
• Maximum Fluid Temperature (°F): 158
• Maximum Fluid Viscosity (cP): 3000000

• Maximum Fluid Working Pressure (bar): 240
• Maximum Fluid Working Pressure (MPa): 28
• Maximum Fluid Working Pressure (psi): 3500
• Maximum Hose Length (ft): 20

• Maximum Working Pressure (kPa): 28000
• Maximum Working Pressure (MPa): 28
• Maximum Working Pressure (psi): 4000

• Minimum Ambient Temperature (°C): 0
• Minimum Ambient Temperature (°F): 32

• Minimum Flow Rate (cc/min): 10
• Minimum Flow Rate (L/min): 0.01

• Minimum Fluid Viscosity (cP): 100000

• Minimum Voltage (V ac): 200

• Phase: 1, 3

• Power Rating (HP): 2.5 hp
• Power Type: Electric, Pneumatic

• Ram Post Diameter (in): 6.5

GG 26B546

E-FLO IQ SYSTEM, IQU, SGL, 1H10, 2H10

Graco 26B546 Single E-Flo iQ System for Urethanes, Check-Mate 200cc, Heated 55 Gal., D200s, 10 ft hose, 10 ft hose (WIP)

The E-Flo iQ Metering & Dispensing System our tank-to-tip metering system for single component urethanes. This dispensing solution was designed to meter directly from the drum, making it an intelligent system that delivers sustained in-plant performance, minimizes maintenance costs and reduces system complexity.

• Single Heated E-Flo iQ Urethane Supply Sytem

  • Delivers consistent control and accurate performance
  • Quiet electric servo-driven motor for lower sound levels
  • Provides continuous dispensing without the need to reload
  • Check-Mate Severe Duty lower for long life and reliable material movement
• High-Quality Heated Hoses

  • Graco heated hoses are insulated for an accurate and uniform material temperature.
  • Equipped with a total of 20 ft of hose (one 10 ft hose and one 10 ft hose WIP)
• Axial Rotating Dispense Valves Suited for Urethane Dispense
  • Triangular head ideal for urethane and sealant dispense for automotive window and windshield glazing
  • Delivers reliable and consistent beads in high flow applications
  • Compact and lightweight design allows for lower payload
  • Rotating valve prevents twining and reduces wear
  • Remote mounted solenoid

• Air Inlet Size (in): 1
• Air Inlet Size (mm): 25

• Ambient/Warm Melt/Hot Melt: Warm Melt
• Applicator Type: Rotating Ball/Seat

• Configuration: Single

• Container Size: Drum

• Fluid Outlet Size (cm): 2.54
• Fluid Outlet Size (in): 1.0
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Gateway: EtherNet/IP User Interface, PROFINET User Interface, PROFIBUS User Interface, DeviceNet User Interface

• Input Cycle Rate (Hz): 50/60

• Material Container Volume (gal): 55
• Material Container Volume (l): 200

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 125

• Maximum Ambient Temperature (°C): 49
• Maximum Ambient Temperature (°F): 120

• Maximum Flow Rate (cc/min): 5000

• Maximum Flow Rate (L/min): 5.0

• Maximum Fluid Temperature (°C): 70
• Maximum Fluid Temperature (°F): 158
• Maximum Fluid Viscosity (cP): 3000000

• Maximum Fluid Temperature (°C): 70
• Maximum Fluid Temperature (°F): 158
• Maximum Fluid Viscosity (cP): 3000000

• Maximum Fluid Working Pressure (bar): 240
• Maximum Fluid Working Pressure (MPa): 28
• Maximum Fluid Working Pressure (psi): 3500
• Maximum Hose Length (ft): 20

• Maximum Working Pressure (kPa): 28000
• Maximum Working Pressure (MPa): 28
• Maximum Working Pressure (psi): 4000

• Minimum Ambient Temperature (°C): 0
• Minimum Ambient Temperature (°F): 32

• Minimum Flow Rate (cc/min): 10
• Minimum Flow Rate (L/min): 0.01

• Minimum Fluid Viscosity (cP): 100000

• Minimum Voltage (V ac): 200

• Phase: 1, 3

• Power Rating (HP): 2.5 hp
• Power Type: Electric, Pneumatic

• Ram Post Diameter (in): 6.5

GG 26B547

E-FLO IQ SYSTEM, IQU, SGL, 1H10, 2H15

Graco 26B547 Single E-Flo iQ System for Urethanes, Check-Mate 200cc, Heated 55 Gal., D200s 15 ft hose, 10 ft hose (WIP)

The E-Flo iQ Metering & Dispensing System our tank-to-tip metering system for single component urethanes. This dispensing solution was designed to meter directly from the drum, making it an intelligent system that delivers sustained in-plant performance, minimizes maintenance costs and reduces system complexity.

• Single Heated E-Flo iQ Urethane Supply Sytem

  • Delivers consistent control and accurate performance
  • Quiet electric servo-driven motor for lower sound levels
  • Provides continuous dispensing without the need to reload
  • Check-Mate Severe Duty lower for long life and reliable material movement
• High-Quality Heated Hoses

  • Graco heated hoses are insulated for an accurate and uniform material temperature.
  • Equipped with a total of 25 ft of hose (one 15 ft hose and one 10 ft hose WIP)
• Axial Rotating Dispense Valves Suited for Urethane Dispense
  • Triangular head ideal for urethane and sealant dispense for automotive window and windshield glazing
  • Delivers reliable and consistent beads in high flow applications
  • Compact and lightweight design allows for lower payload
  • Rotating valve prevents twining and reduces wear
  • Remote mounted solenoid

• Air Inlet Size (in): 1
• Air Inlet Size (mm): 25

• Ambient/Warm Melt/Hot Melt: Warm Melt
• Applicator Type: Rotating Ball/Seat

• Configuration: Single

• Container Size: Drum

• Fluid Outlet Size (cm): 2.54
• Fluid Outlet Size (in): 1.0
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Gateway: EtherNet/IP User Interface, PROFINET User Interface, PROFIBUS User Interface, DeviceNet User Interface

• Input Cycle Rate (Hz): 50/60

• Material Container Volume (gal): 55
• Material Container Volume (l): 200

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 125

• Maximum Ambient Temperature (°C): 49
• Maximum Ambient Temperature (°F): 120

• Maximum Flow Rate (cc/min): 5000

• Maximum Flow Rate (L/min): 5.0

• Maximum Fluid Temperature (°C): 70
• Maximum Fluid Temperature (°F): 158
• Maximum Fluid Viscosity (cP): 3000000

• Maximum Fluid Temperature (°C): 70
• Maximum Fluid Temperature (°F): 158
• Maximum Fluid Viscosity (cP): 3000000

• Maximum Fluid Working Pressure (bar): 240
• Maximum Fluid Working Pressure (MPa): 28
• Maximum Fluid Working Pressure (psi): 3500
• Maximum Hose Length (ft): 25

• Maximum Working Pressure (kPa): 28000
• Maximum Working Pressure (MPa): 28
• Maximum Working Pressure (psi): 4000

• Minimum Ambient Temperature (°C): 0
• Minimum Ambient Temperature (°F): 32

• Minimum Flow Rate (cc/min): 10
• Minimum Flow Rate (L/min): 0.01

• Minimum Fluid Viscosity (cP): 100000

• Minimum Voltage (V ac): 200

• Phase: 1, 3

• Power Rating (HP): 2.5 hp
• Power Type: Electric, Pneumatic

• Ram Post Diameter (in): 6.5

GG 26B548

E-FLO IQ SYSTEM, IQU, SGL, 1H10, 2H20

Graco 26B548 Single E-Flo iQ System for Urethanes, Check-Mate 200cc, Heated 55 Gal., D200s, 20 ft hose, 10 ft hose (WIP)

The E-Flo iQ Metering & Dispensing System our tank-to-tip metering system for single component urethanes. This dispensing solution was designed to meter directly from the drum, making it an intelligent system that delivers sustained in-plant performance, minimizes maintenance costs and reduces system complexity.

• Single Heated E-Flo iQ Urethane Supply Sytem

  • Delivers consistent control and accurate performance
  • Quiet electric servo-driven motor for lower sound levels
  • Provides continuous dispensing without the need to reload
  • Check-Mate Severe Duty lower for long life and reliable material movement
• High-Quality Heated Hoses

  • Graco heated hoses are insulated for an accurate and uniform material temperature.
  • Equipped with a total of 30 ft of hose (one 20 ft hose and one 10 ft hose WIP)
• Axial Rotating Dispense Valves Suited for Urethane Dispense
  • Triangular head ideal for urethane and sealant dispense for automotive window and windshield glazing
  • Delivers reliable and consistent beads in high flow applications
  • Compact and lightweight design allows for lower payload
  • Rotating valve prevents twining and reduces wear
  • Remote mounted solenoid

• Air Inlet Size (in): 1
• Air Inlet Size (mm): 25

• Ambient/Warm Melt/Hot Melt: Warm Melt
• Applicator Type: Rotating Ball/Seat

• Configuration: Single

• Container Size: Drum

• Fluid Outlet Size (cm): 2.54
• Fluid Outlet Size (in): 1.0
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Gateway: EtherNet/IP User Interface, PROFINET User Interface, PROFIBUS User Interface, DeviceNet User Interface

• Input Cycle Rate (Hz): 50/60

• Material Container Volume (gal): 55
• Material Container Volume (l): 200

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 125

• Maximum Ambient Temperature (°C): 49
• Maximum Ambient Temperature (°F): 120

• Maximum Flow Rate (cc/min): 5000

• Maximum Flow Rate (L/min): 5.0

• Maximum Fluid Temperature (°C): 70
• Maximum Fluid Temperature (°F): 158
• Maximum Fluid Viscosity (cP): 3000000

• Maximum Fluid Temperature (°C): 70
• Maximum Fluid Temperature (°F): 158
• Maximum Fluid Viscosity (cP): 3000000

• Maximum Fluid Working Pressure (bar): 240
• Maximum Fluid Working Pressure (MPa): 28
• Maximum Fluid Working Pressure (psi): 3500
• Maximum Hose Length (ft): 30

• Maximum Working Pressure (kPa): 28000
• Maximum Working Pressure (MPa): 28
• Maximum Working Pressure (psi): 4000

• Minimum Ambient Temperature (°C): 0
• Minimum Ambient Temperature (°F): 32

• Minimum Flow Rate (cc/min): 10
• Minimum Flow Rate (L/min): 0.01

• Minimum Fluid Viscosity (cP): 100000

• Minimum Voltage (V ac): 200

• Phase: 1, 3

• Power Rating (HP): 2.5 hp
• Power Type: Electric, Pneumatic

• Ram Post Diameter (in): 6.5

GG 26B549

GG 26B550

GG 26B551

GG 26B552

GG 26B553

GG 26B554

E-FLO IQ SYSTEM, IQU, TDM, 1H10, 2H20

• Delivers consistent control and accurate performance
• Quiet electric servo-driven motor for lower sound levels
• Provides continuous dispensing without the need to reload
• Check-Mate Severe Duty lower for long life and reliable material movement

• Graco heated hoses are insulated for an accurate and uniform material temperature.
• Equipped with a total of 40 ft of hose (two 10 ft hoses for pumps to manifold and one 20 ft hose from manifold to valve)

• Triangular head ideal for urethane and sealant dispense for automotive window and windshield glazing
• Delivers reliable and consistent beads in high flow applications
• Compact and lightweight design allows for lower payload
• Rotating valve prevents twining and reduces wear
• Remote mounted solenoid

• The communication gateway module (CGM) has integrated mapping of all of the programming data.
• Available protocols include EtherNet I/P, PROFINET, DeviceNet, or PROFIBUS.

GG 26B555

GG 26B556

E-FLO IQ SYSTEM, IQU, TDM, 1H15, 2H15

• Delivers consistent control and accurate performance
• Quiet electric servo-driven motor for lower sound levels
• Provides continuous dispensing without the need to reload
• Check-Mate Severe Duty lower for long life and reliable material movement

• Graco heated hoses are insulated for an accurate and uniform material temperature.
• Equipped with a total of 45 ft of hose (two 15 ft hoses for pumps to manifold and one 15 ft hose from manifold to valve)

• Triangular head ideal for urethane and sealant dispense for automotive window and windshield glazing
• Delivers reliable and consistent beads in high flow applications
• Compact and lightweight design allows for lower payload
• Rotating valve prevents twining and reduces wear
• Remote mounted solenoid

• The communication gateway module (CGM) has integrated mapping of all of the programming data.
• Available protocols include EtherNet I/P, PROFINET, DeviceNet, or PROFIBUS.

GG 26B557

E-FLO IQ SYSTEM, IQU, TDM, 1H15, 2H20

• Delivers consistent control and accurate performance
• Quiet electric servo-driven motor for lower sound levels
• Provides continuous dispensing without the need to reload
• Check-Mate Severe Duty lower for long life and reliable material movement

• Graco heated hoses are insulated for an accurate and uniform material temperature.
• Equipped with a total of 50 ft of hose (two 15 ft hoses for pumps to manifold and one 20 ft hose from manifold to valve)

• Triangular head ideal for urethane and sealant dispense for automotive window and windshield glazing
• Delivers reliable and consistent beads in high flow applications
• Compact and lightweight design allows for lower payload
• Rotating valve prevents twining and reduces wear
• Remote mounted solenoid

• The communication gateway module (CGM) has integrated mapping of all of the programming data.
• Available protocols include EtherNet I/P, PROFINET, DeviceNet, or PROFIBUS.

GG 26B558

GG 26B559

GG 26B576

PERFORMAA GUN, AA, AUTO, QD

Graco 26B576 PerformAA Auto Air Assist Spray Gun with Quick Drying (QD) air cap

Automatic air-assisted spray gun delivers performance above all when spraying quick drying material.

• Automatic air-assisted sprayer is easy to set up, use and service on flat lines, robots, reciprocators and other automated systems
• Air cap is geometrically designed for the finest atomization with the least amount of guesswork when spraying quick dry coating.
• Air cap angle indicators help operators and maintenance technicians set and quickly repeat the exact angle needed to optimize spray. For greater accuracy and ease, especially with flat line finishing, add the Graco Gauge kit 26B736.

• Series: Auto

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPSM

• Applicator Type: Automatic

• Bleed Type: Bleeder
• Body Material: Metal

• Compatible Material: Epoxies, High Solids, Lacquer, Latex, Plural Component Materials, Polyurethane, Solventborne, Urethane, UV Coating, Varnish,

• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Type: NPSM

• Gun Activation: Automatic
• Gun Type: Air-Assisted Gun
• Gun Weight (g): 544
• Gun Weight (kg): 0.544
• Gun Weight (lb): 1.2
• Gun Weight (oz): 19.2

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (MPa): 0.7
• Maximum Air Inlet Pressure (psi): 100
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Fluid Pressure (bar): 280
• Maximum Fluid Pressure (kPa): 28000
• Maximum Fluid Pressure (MPa): 28
• Maximum Fluid Pressure (psi): 4000
• Maximum Fluid Temperature (°C): 49
• Maximum Fluid Temperature (°F): 120

• Maximum Fluid Pressure (bar): 280
• Maximum Fluid Pressure (kPa): 28000
• Maximum Fluid Pressure (MPa): 28
• Maximum Fluid Pressure (psi): 4000
• Maximum Fluid Temperature (°C): 49
• Maximum Fluid Temperature (°F): 120

• Overall Height (cm): 7.6
• Overall Height (in): 3
• Overall Height (mm): 76.2
• Overall Length (cm): 13
• Overall Length (in): 5.3
• Overall Length (mm): 135
• Overall Width (cm): 5.1
• Overall Width (in): 2
• Overall Width (mm): 50.8

• Product Type: Spray Gun

• Purge Method: Air

GG 26B577

PERFORMAA GUN, AA, AUTO, HV

Graco 26B577 PerformAA Auto Air Assist Spray Gun with High Viscosity (HV) air cap

Automatic air-assisted spray gun delivers performance above all when spraying high viscosity material.

• Automatic air-assisted sprayer is easy to set up, use and service on flat lines, robots, reciprocators and other automated systems
• Air cap is geometrically designed for the finest atomization with the least amount of guesswork when spraying coatings with high viscosity.
• Air cap angle indicators help operators and maintenance technicians set and quickly repeat the exact angle needed to optimize spray. For greater accuracy and ease, especially with flat line finishing, add the Graco Gauge kit 26B736.

• Series: Auto

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPSM

• Applicator Type: Automatic

• Bleed Type: Bleeder
• Body Material: Metal

• Compatible Material: High Solids, Acid Catalyzed, Epoxies, Plural Component Materials, Polyurethane, Solventborne, Urethane, UV Coating, Waterborne

• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Type: NPSM

• Gun Activation: Automatic
• Gun Type: Air-Assisted Gun
• Gun Weight (g): 544
• Gun Weight (kg): 0.544
• Gun Weight (lb): 1.2
• Gun Weight (oz): 19.2

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (MPa): 0.7
• Maximum Air Inlet Pressure (psi): 100
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Fluid Pressure (bar): 280
• Maximum Fluid Pressure (kPa): 28000
• Maximum Fluid Pressure (MPa): 28
• Maximum Fluid Pressure (psi): 4000
• Maximum Fluid Temperature (°C): 49
• Maximum Fluid Temperature (°F): 120

• Maximum Fluid Pressure (bar): 280
• Maximum Fluid Pressure (kPa): 28000
• Maximum Fluid Pressure (MPa): 28
• Maximum Fluid Pressure (psi): 4000
• Maximum Fluid Temperature (°C): 49
• Maximum Fluid Temperature (°F): 120

• Overall Height (cm): 7.6
• Overall Height (in): 3
• Overall Height (mm): 76.2
• Overall Length (cm): 13
• Overall Length (in): 5.3
• Overall Length (mm): 135
• Overall Width (cm): 5.1
• Overall Width (in): 2
• Overall Width (mm): 50.8

• Product Type: Spray Gun

• Purge Method: Air

GG 26B613

GG 26B614

GG 26B615

GG 26B616

GG 26B617

GG 26B632

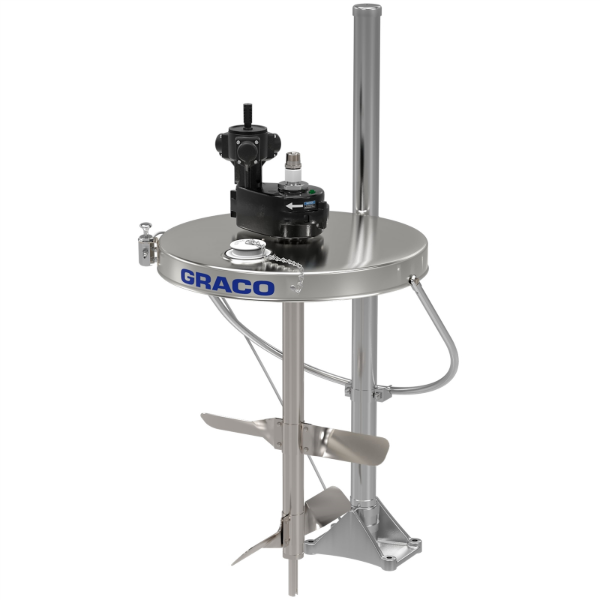

AGITATOR, 6:1 GEAR REDUCTION

GG 26B637

GG 26B640

GG 26B642

GG 26B643

GG 26B644

GG 26B645

GG 26B651

GG 26B657

GG 26B663

GG 26B664

GG 26B686

KIT, O-RING-D1 PT-8

Graco 26B686 1-inch PTFE Seal Kit

GG 26B687

GG 26B688

KIT, O-RING-D1 FK-PT-8

Graco 26B688 1-inch Encapsulated Viton Seal Kit

GG 26B689

KIT, O-RING-D2 EP-4

Graco 26B689 1-inch EPDM Seal Kit for FG Pump Models

GG 26B705

GG 26B709

GG 26B716

GG 26B718

GG 26B728

GG 26B729

GG 26B753

GG 26B772

KIT, SAFETY, LOCK OUT, UNIDRUM

The Unidrum Ram Safety Kit is designed and engineered to help insure the safety of your workers around the UniDrum system for both operation and maintenance.

GG 26B774

KIT, SAFETY, LOCK OUT, UNIDRUM, 1

The Unidrum Ram Safety Kit is designed and engineered to help insure the safety of your workers around the UniDrum system for both operation and maintenance.

GG 26B776

GG 26B777

GG 26B780

GG 26B811

GG 26B812

GG 26B815

GG 26B816

GG 26B818

GG 26B819

GG 26B822

GG 26B823

GG 26B824

GG 26B825

GG 26B826

GG 26B827

GG 26B829

GG 26B830

GG 26B831

GG 26B835

GG 26B837

GG 26B841

GG 26B843

GG 26B844

GG 26B845

GG 26B847

KIT,SEAL,160,ELITE

GG 26B880

GG 26B926

GG 26B932

GG 26B933
