GRACO INC. S10595

GG G15C03

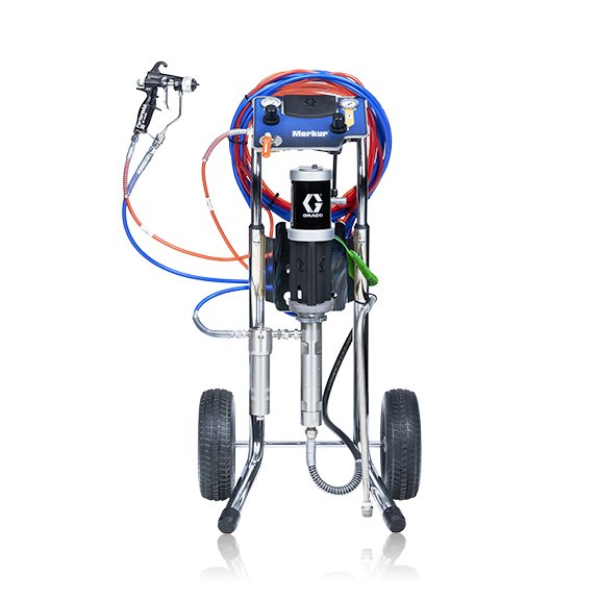

MERKUR SYSTEM, PUMP, 15:1, 25CC, CART, STD

Graco G15C03 15:1 Merkur Pump, 0.4 gpm (1.5 lpm) fluid flow, Cart Mount, Pump/Gun Air Controls, Suction Hose

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

• Proven to outperform and outlast other pumps in their class
• Highest technology air motor on the market
• Low air consumption for increased efficiency

• Model: Merkur

• Compatible Material: Waterborne, Solventborne, High Solids, Single Components, Topcoats, Varnish, Lacquer, Acid Catalysts, Enamel, UV Coating

• Fluid Inlet Size (cm): 1.27
• Fluid Inlet Size (in): 1/2
• Fluid Inlet Size (mm): 12.7
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 0.9525
• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Type: NPT

• Gun Included: 0
• Gun Model: No Applicator
• Gun Technology: Bare Package
• Gun Type: No Applicator

• Hose Inlet Diameter (cm): 0.476
• Hose Inlet Diameter (in): 3/16
• Hose Inlet Diameter (mm): 4.76

• Includes: Pump and Gun Air Controls, Suction Hose

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (psi): 100

• Maximum Flow Rate (GPM): 0.4
• Maximum Flow Rate (L/min): 1.5

• Maximum Working Pressure (bar): 103
• Maximum Working Pressure (kPa): 10300
• Maximum Working Pressure (psi): 1500

• Mount Type: Cart Mount

• Power Source: Air

• Pressure Type: High Pressure
• Product Type: Bare Package

• Pump Ratio: 15:1
• Pump Type: Pneumatic Piston Pump

GG G15C05

GG G15C15

GG G15C17

MERKUR SYSTEM, PUMP, 15:1, 25CC, CART, STD

GG G15C21

GG G15C33

GG G15C78

GG G15W11

MERKUR SYSTEM, PUMP, 15:1, 25CC, WALL, STD

GG G15W13

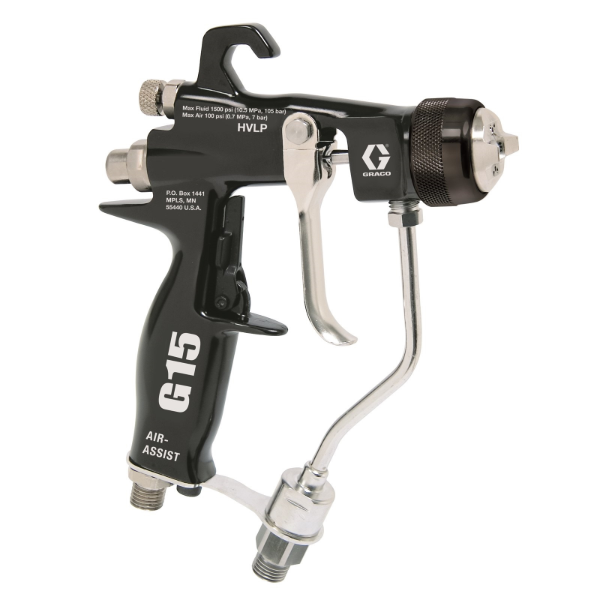

GG G15W26

MERKUR SYSTEM PUMP 15:1 50CC WALL SMT

GG G18W09

MERKUR SYSTEM PUMP 18:1 125CC WALL STD

GG G23B02

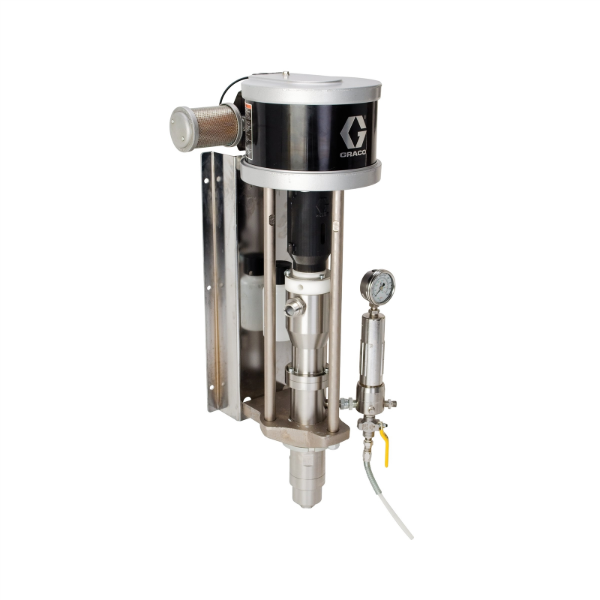

MERKUR BELLOWS SYSTEM, PUMP, 100CC, SMT

GG G23B27

GG G23C01

GG G23C05

MERKUR SYSTEM PUMP 23:01 100CC CT STD

Graco G23C05 23:1 Merkur Pump, 1.6 gpm (6 lpm) fluid flow, Cart Mount, Pump/Gun Air Controls, Suction Hose

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

• Proven to outperform and outlast other pumps in their class
• Highest technology air motor on the market
• Low air consumption for increased efficiency

• Model: Merkur

• Compatible Material: Waterborne, Solventborne, High Solids, Single Components, Topcoats, Varnish, Lacquer, Acid Catalysts, Enamel, UV Coating

• Fluid Inlet Size (cm): 1.905
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 0.9525
• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Type: NPT

• Gun Included: 0
• Gun Model: No Applicator
• Gun Technology: Bare Package
• Gun Type: No Applicator

• Hose Inlet Diameter (cm): 0.476
• Hose Inlet Diameter (in): 3/16
• Hose Inlet Diameter (mm): 4.76

• Includes: Pump and Gun Air Controls, Suction Hose

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (psi): 100

• Maximum Flow Rate (GPM): 1.6
• Maximum Flow Rate (L/min): 6.0

• Maximum Working Pressure (bar): 159
• Maximum Working Pressure (kPa): 15900
• Maximum Working Pressure (psi): 2300

• Mount Type: Cart Mount

• Power Source: Air

• Pressure Type: High Pressure
• Product Type: Bare Package

• Pump Ratio: 23:1
• Pump Type: Pneumatic Piston Pump

GG G23C07

GG G23C11

GG G24B05

MERKUR BELLOWS SYSTEM, PUMP, 150CC, STD

Graco G24B05 Merkur Bellows 24:1 Ratio Pump Package with V-Packing Seal, Cart Mount, Fluid Filter

Graco’s Merkur bellows piston pumps provide low maintenance with no seals exposed to the atmosphere. These pumps are designed to eliminate conventional throat seals, providing high reliability for moisture-sensitive materials.

• Highest technology air motor on the market
• Low air consumption for increased efficiency
• Simple air motor design and minimal parts reduces repair time
• 300 series stainless steel pump construction provides long-lasting durability

• Model: Merkur
• Series: Bellows

• Application: Supply

• Compatible Material: Waterborne, Solventborne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish, UV Coating

• Fluid Inlet Size (cm): 2.5400
• Fluid Inlet Size (in): 1
• Fluid Inlet Size (mm): 25.4000
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 1.905
• Fluid Outlet Size (in): 3/4
• Fluid Outlet Size (mm): 19.05
• Fluid Outlet Thread Gender: Male
• Fluid Outlet Thread Type: NPT

• Gun Model: No Applicator
• Gun Technology: Bare Package
• Gun Type: No Applicator

• Includes: Pump Only Air Controls, Fluid Filter, V-Packing

• Material: Stainless Steel

• Maximum Flow Rate (gpm @ 60 cpm): 2.4

• Maximum Operating Temperature (°F): 120

• Maximum Working Pressure (bar): 165
• Maximum Working Pressure (kPa): 16500
• Maximum Working Pressure (MPa): 16.5
• Maximum Working Pressure (psi): 2400

• Motor Type: Pneumatic

• Mount Location: Cart Mount
• Mount Type: Cart Mount

• Number of Pieces: 2

• Product Type: Bare Package

• Pump Ratio: 24:1
• Pump Type: Pneumatic Piston Pump

GG G24B02

MERKUR BELLOWS SYSTEM, PUMP, 150CC, SMT

GG G24B17

MERKUR BELLOWS SYSTEM, PUMP, 150CC, STD

GG G24B25

GG G24B27

GG G25B01

GG G25B07

GG G25B17

GG G25B18

GG G25B33

GG G28C09

MERKUR SYSTEM PUMP 28:1 125CC CART STD

GG G28C23

GG G28W01

MERKUR SYSTEM PUMP 28:01 125CC WA STD

GG G28W04

GG G28W11

MERKUR SYSTEM PUMP 28:1 125CC WALL STD

GG G30C05

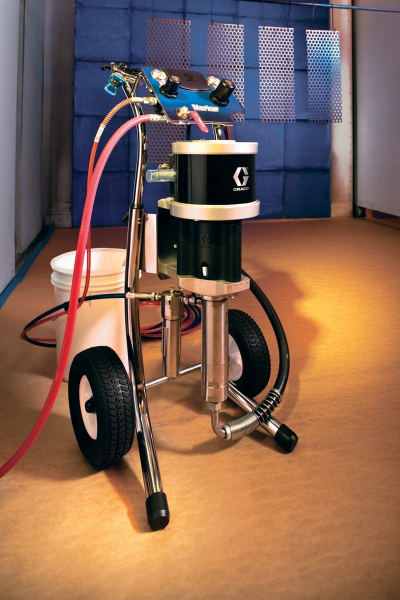

MERKUR SYSTEM, PUMP, 30:1, 25CC, CART, STD

GG G30C09

MERKUR SYSTEM, PUMP, 30:1, 25CC, CART, STD

GG G30C17

MERKUR SYSTEM, PUMP, 30:1, 25CC, CART, STD

GG G30C19

MERKUR SYSTEM, PUMP, 30:1, 25CC, CART, STD

GG G30C27

MERKUR SYSTEM,PUMP,30:1,25CC,CART,STD

Graco G30C27 30:1 Merkur AA Package, 0.4 gpm (1.5 lpm) fluid flow, Cart Mount, PerformAA 50 Gun, Pump Air Controls, Gun Air/Fluid Hose, Fluid Filter, Hopper

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

• Proven to outperform and outlast other pumps in their class
• Highest technology air motor on the market
• Low air consumption for increased efficiency

GG G30C57

MERKUR SYSTEM,PUMP,30:1,75CC CT ,STD

Graco G30C57 30:1 Merkur Airless Package, 1.2 gpm (4.5 lpm) fluid flow, Cart Mount, XTR5+ Gun, Pump Air Controls, Gun Fluid Hose, Fluid Filter

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

• Proven to outperform and outlast other pumps in their class
• Highest technology air motor on the market
• Low air consumption for increased efficiency

GG G30C61

MERKUR SYSTEM, PUMP, 30:1, 75CC, 240V, STD

Graco G30C61 30:1 Merkur Airless Package, 1.2 gpm (4.5 lpm) flow, Cart Mount, 240V Heater, XTR5+ Gun, Pump Air Controls, Gun Fluid Hose, Fluid Filter

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

• Proven to outperform and outlast other pumps in their class
• Highest technology air motor on the market
• Low air consumption for increased efficiency

• Model: Merkur

• Convertible: Non-Convertible

• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Type: NPT

• Gun Included: 1
• Gun Model: XTR5+
• Gun Technology: Airless
• Gun Type: Airless

• Hose Inlet Diameter (cm): 0.5
• Hose Inlet Diameter (in): 3/16
• Hose Inlet Diameter (mm): 5

• Includes: 240 V Heater, Pump Only Air Controls, Gun Hose, Suction Hose, Fluid Filter

• Maximum Flow Rate (GPM): 1.2
• Maximum Flow Rate (L/min): 4.5

• Maximum Hose Length (ft): 25
• Maximum Hose Length (m): 7.5

• Maximum Working Pressure (bar): 207
• Maximum Working Pressure (kPa): 20700
• Maximum Working Pressure (MPa): 20.7
• Maximum Working Pressure (psi): 3000

• Motor Type: Pneumatic

• Mount Type: Cart Mount

• Number of Guns: 1

• Power Source: Air

• Pressure Type: High Pressure
• Product Type: Spray Package

• Pump Ratio: 30:1
• Pump Type: Pneumatic Piston Pump

GG G30C35

GG G30C51

MERKUR SYSTEM PUMP 30:01 75CC CT STD

GG G30C69

MERKUR SYSTEM, PUMP, 30:1, 75CC CART, STD

GG G30C71

GG G30C85

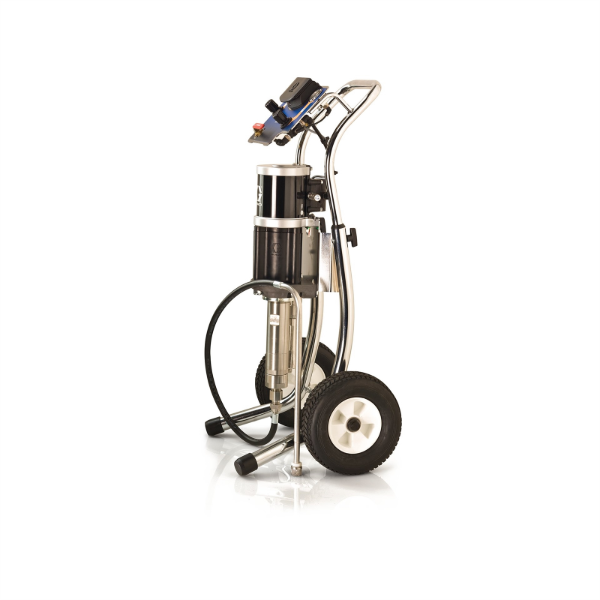

MERKUR SYSTEM, PUMP, 30:1, 75CC, CART, STD

GG G30C87

GG G30T01

GG G30T09

GG G30W11

MERKUR SYSTEM PUMP 30:01 25CC WA STD

GG G30W09

MERKUR SYSTEM PUMP 30:01 25CC WA STD

GG G30W05

MERKUR SYSTEM PUMP 30:01 25CC WA STD

GG G30W03

GG G30W13

MERKUR SYSTEM PUMP 30:1 25CC WALL STD

GG G30W56

GG G30W57

MERKUR SYSTEM PUMP 30:01 75CC WA STD

GG G30W77

MERKUR SYSTEM, PUMP, 30:1, 75CC WA, STD

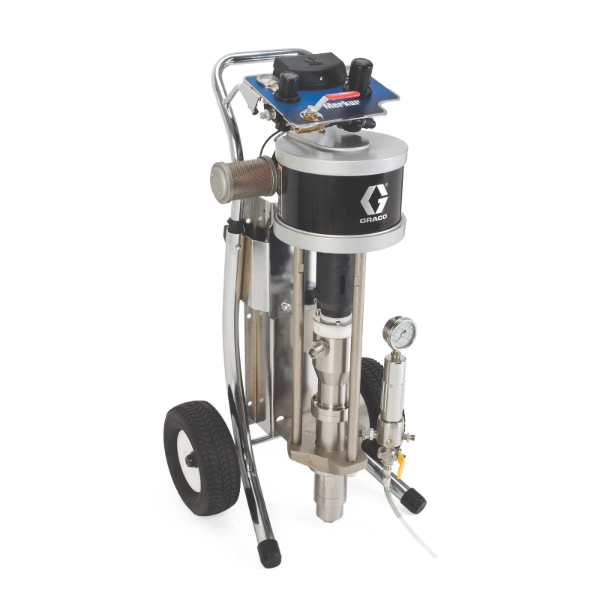

GG G35B01

MERKUR BELLOWS SYSTEM, PUMP, 100CC, STD

GG G35B03

MERKUR BELLOWS SYSTEM, PUMP, 100CC, STD

GG G35B05

MERKUR BELLOWS SYSTEM, PUMP, 100CC, STD

GG G35B10

GG G35B17

MERKUR BELLOWS SYSTEM, PUMP, 100CC, STD

GG G35B21

MERKUR BELLOWS SYSTEM, PUMP, 100CC, STD

Merkur Air Motor Technology

• Highest technology air motor on the market
• Low air consumption for increased efficiency
• Simple air motor design and minimal parts reduces repair time

Leak Proof Pump Lower

• Easy-to-flush design allows for fast color changes and reduced material waste
• 300 series stainless steel pump construction provides long-lasting durability
• Fewer parts and online replacement bellows seal means improved serviceability, lower cost of ownership and reduced downtime

Less Pulsation for Better Results

• Merkur is designed to provide a smooth, rapid changeover for a better, more consistent finish and less user fatigue

Air Valve

• Provides smooth and rapid changeover

Quick Removal Coupler

• Allows for easy disassembly of the pump lower from the air motor

Quick Removal Coupler

• Allows for easy disassembly of the pump lower from the air motor

Improved Bellows Seal Design

• Eliminates throat seal leakage and lubrication

Overflow Chamber (Optional)

• D-shaped seal and overflow chamber contains the material within the pump in case of bellows leakage

Throat and Piston Packings

• Spring-loaded to maintain long packing life – no adjustments needed
• Available with V-Packing seals for abrasives or U-Cup seals for UV coatings

GG G35B25

GG G35B27

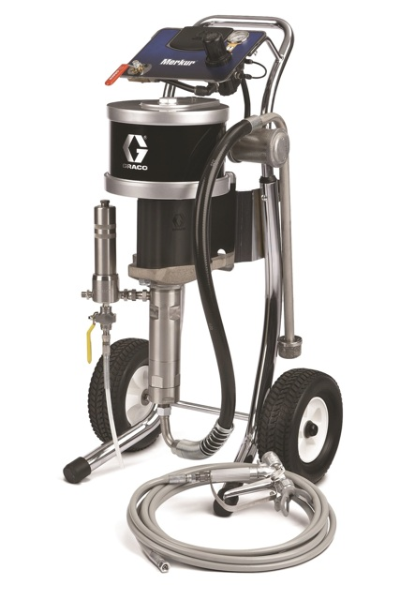

GG G36C04

MERKUR SYSTEM, PUMP, 36:1, 100CC CT, SMT

Graco G36C04 Merkur 36:1 Cart-Mount Airless Spray Package, XTR-5 Gun, 519 XHD Tip, 25 ft (7.6 m) Fluid Hose, Fluid Filter, DataTrak

The Merkur Airless Sprayer for protective coatings is ideal for touch-ups or other smaller projects. Its light weight and portability make it a great mobile auxiliary system to finish up a job in tight areas. Ideal for coatings that don’t require the pressure and flow of a larger sprayer.

• Compact – fits into tight areas
• Sprays medium to higher solids coatings – up to 4800 psi (331 bar)
• Ideal for applications such as steel fabrication, marine, rail, industrial and structural steel
• Stainless steel option allows for waterborne coatings

• Model: Merkur
• Series: Standard

• Air Inlet Size (in): 1/2
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Compatible Material: Protective Coating
• Compatible Replacement Pump: W36DBS

• Control Type: Fixed Ratio
• Convertible: Non-Convertible

• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 3/8, 1/4
• Fluid Outlet Size (mm): 9.525, 6.35
• Fluid Outlet Thread Gender: Male
• Fluid Outlet Thread Type: NPT

• Frame Configuration: Cart Mount

• Hose Inlet Diameter (cm): 0.635
• Hose Inlet Diameter (in): 1/4
• Hose Inlet Diameter (mm): 6.35

• Includes: XTR-5 Spray Gun, 512 XHD Tip, Fluid Hose, Fluid Filter
• Inlet Paint Strainer: 8 Mesh, 16 Mesh

• Lower Configuration: Stainless Steel, 3/4 in. Inlet, Fluid Filter

• Material Application: Paints, Primers

• Maximum Air Inlet Pressure (psi): 100

• Maximum Flow Rate (GPM): 1.6
• Maximum Flow Rate (L/min): 6.0

• Maximum Fluid Working Pressure (psi): 3600

• Maximum Sound Pressure Level (dB(A)): 68.9

• Maximum Tip Size (in): 0.029

• Maximum Working Pressure (bar): 248
• Maximum Working Pressure (kPa): 24800
• Maximum Working Pressure (MPa): 24.8
• Maximum Working Pressure (psi): 3600

• Mix Ratio: 36:1
• Motor Type: Pneumatic Motor

• Mount Type: Cart Mount

• Number of Guns: 1

• Outlet Paint Filter: 60 Mesh Stainless Steel Screen

• Package Options: XTR-5 Gun, DataTrak, 1/4 in. x 25 ft. (7.6 m) Hose

• Power Source: Air
• Pressure Control Type: Air Regulator

• Product Type: Single Leg

• Pump Pressure Ratio: 36:1
• Pump Rod Type: Carbon Steel
• Pump Sleeve Material: Stainless Steel
• Pump Type: Displacement Pump, Pneumatic Piston Pump

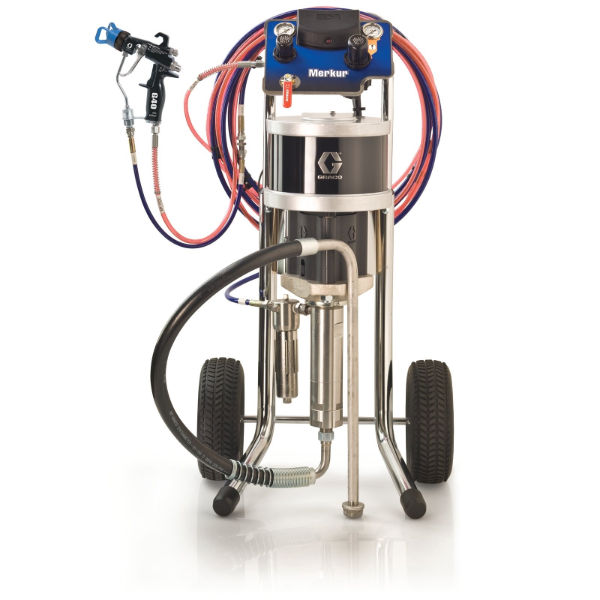

GG G36C11

MERKUR SYSTEM PUMP 36:1 100CC CART STD

GG G36C16

MERKUR SYSTEM, PUMP, 36:1, 100CC, CART, SMT

Graco G36C16 Merkur 36:1 Cart-Mount Airless Spray Package, XTR-5 Gun, 519 XHD Tip, 25 ft (7.6 m) Fluid Hose, Fluid Filter, Drain Valve, DataTrak

The Merkur Airless Sprayer for protective coatings is ideal for touch-ups or other smaller projects. Its light weight and portability make it a great mobile auxiliary system to finish up a job in tight areas. Ideal for coatings that don’t require the pressure and flow of a larger sprayer.

• Compact – fits into tight areas
• Sprays medium to higher solids coatings – up to 4800 psi (331 bar)
• Ideal for applications such as steel fabrication, marine, rail, industrial and structural steel
• Stainless steel option allows for waterborne coatings

• Model: Merkur
• Series: Standard

• Air Inlet Size (in): 1/2
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Compatible Material: Protective Coating
• Compatible Replacement Pump: W36DBS

• Control Type: Fixed Ratio
• Convertible: Non-Convertible

• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 3/8, 1/4
• Fluid Outlet Size (mm): 9.525, 6.35
• Fluid Outlet Thread Gender: Male
• Fluid Outlet Thread Type: NPT

• Frame Configuration: Cart Mount

• Hose Inlet Diameter (cm): 0.635
• Hose Inlet Diameter (in): 1/4
• Hose Inlet Diameter (mm): 6.35

• Includes: XTR-5 Spray Gun, 512 XHD Tip, Fluid Hose, Fluid Filter
• Inlet Paint Strainer: 8 Mesh, 16 Mesh

• Lower Configuration: Stainless Steel, 3/4 in. Inlet, Fluid Filter, Drain Valve

• Material Application: Paints, Primers

• Maximum Air Inlet Pressure (psi): 100

• Maximum Flow Rate (GPM): 1.6
• Maximum Flow Rate (L/min): 6.0

• Maximum Fluid Working Pressure (psi): 3600

• Maximum Sound Pressure Level (dB(A)): 68.9

• Maximum Tip Size (in): 0.029

• Maximum Working Pressure (bar): 248
• Maximum Working Pressure (kPa): 24800
• Maximum Working Pressure (MPa): 24.8
• Maximum Working Pressure (psi): 3600

• Mix Ratio: 36:1
• Motor Type: Pneumatic Motor

• Mount Type: Cart Mount

• Number of Guns: 1

• Outlet Paint Filter: 60 Mesh Stainless Steel Screen

• Package Options: 1/4 in. x 25 ft. (7.6 m) Hose, XTR-5 Gun, DataTrak

• Power Source: Air
• Pressure Control Type: Air Regulator

• Product Type: Single Leg

• Pump Pressure Ratio: 36:1
• Pump Rod Type: Carbon Steel
• Pump Sleeve Material: Stainless Steel
• Pump Type: Pneumatic Piston Pump, Displacement Pump

GG G36W01

MERKUR SYSTEM PUMP 36:01 100CC WA STD

GG G36W06

GG G36W07

MERKUR SYSTEM, PUMP, 36:1, 100CC WA, STD

The Merkur Airless Sprayer for protective coatings is ideal for touch-ups or other smaller projects. Its light weight and portability make it a great mobile auxiliary system to finish up a job in tight areas. Ideal for coatings that don’t require the pressure and flow of a larger sprayer.

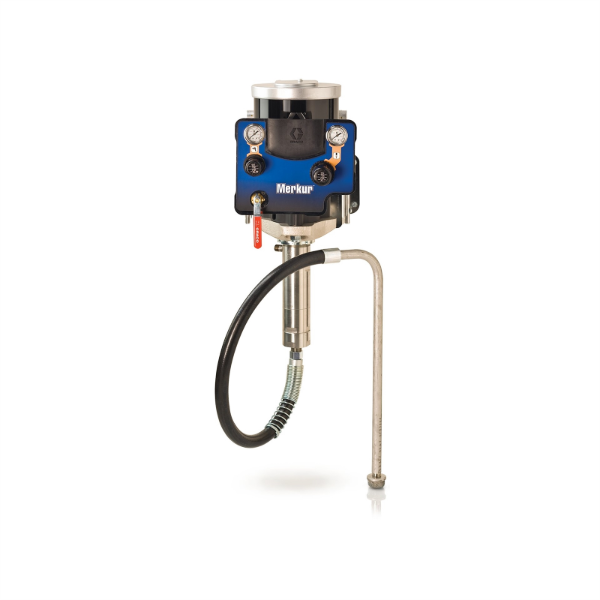

GG G36W08

MERKUR SYSTEM, PUMP, 36:1, 100CC WA, SMT

The Merkur Airless Sprayer for protective coatings is ideal for touch-ups or other smaller projects. Its light weight and portability make it a great mobile auxiliary system to finish up a job in tight areas. Ideal for coatings that don’t require the pressure and flow of a larger sprayer.

GG G36W17

MERKUR SYSTEM, PUMP, 36:1, 100CC WALL, STD

GG G36W13

MERKUR SYSTEM PUMP 36:1 100CC WALL STD

GG G45C03

MERKUR SYSTEM, PUMP 45:1, 50CC CT, STD

The Merkur Airless Sprayer for protective coatings is ideal for touch-ups or other smaller projects. Its light weight and portability make it a great mobile auxiliary system to finish up a job in tight areas. Ideal for coatings that don’t require the pressure and flow of a larger sprayer.

GG G45C04

MERKUR SYSTEM, PUMP 45:1, 50CC CRT, SMT

The Merkur Airless Sprayer for protective coatings is ideal for touch-ups or other smaller projects. Its light weight and portability make it a great mobile auxiliary system to finish up a job in tight areas. Ideal for coatings that don’t require the pressure and flow of a larger sprayer.

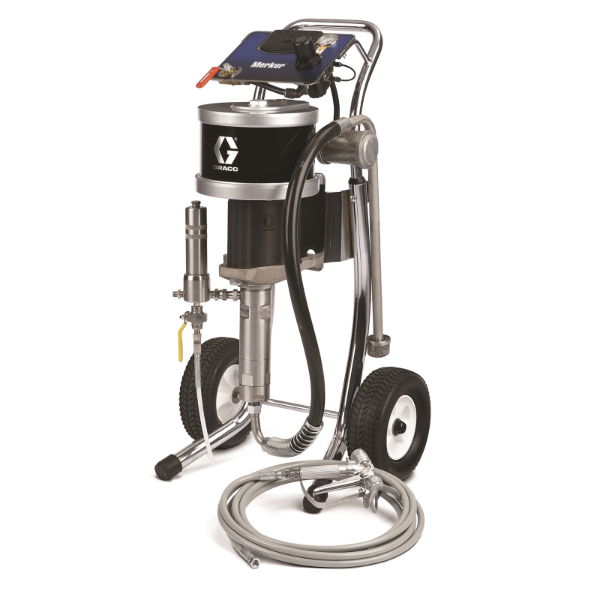

GG G45C05

MERKUR SYSTEM, PUMP 45:1, 50CC CT, STD

Graco G45C05 Merkur 45:1 Cart-Mount Airless Spray Package, 1.5 gal hopper, XTR-5 Gun, 519 XHD Tip, 25 ft (7.6 m) FluidHose, FluidFilter, DrainValve

The Merkur Airless Sprayer for protective coatings is ideal for touch-ups or other smaller projects. Its light weight and portability make it a great mobile auxiliary system to finish up a job in tight areas. Ideal for coatings that don’t require the pressure and flow of a larger sprayer.

• Compact – fits into tight areas
• Sprays medium to higher solids coatings – up to 4800 psi (331 bar)
• Ideal for applications such as steel fabrication, marine, rail, industrial and structural steel
• Stainless steel option allows for waterborne coatings

• Model: Merkur
• Series: Standard

• Air Inlet Size (in): 1/2
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Compatible Material: Protective Coating
• Compatible Replacement Pump: W45BAS

• Control Type: Fixed Ratio
• Convertible: Non-Convertible

• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 3/8, 1/4
• Fluid Outlet Size (mm): 9.525, 6.35
• Fluid Outlet Thread Gender: Male
• Fluid Outlet Thread Type: NPT

• Frame Configuration: Cart Mount

• Hose Inlet Diameter (cm): 0.635
• Hose Inlet Diameter (in): 1/4
• Hose Inlet Diameter (mm): 6.35

• Includes: XTR-5 Spray Gun, 512 XHD Tip, Fluid Hose, Fluid Filter
• Inlet Paint Strainer: 8 Mesh, 16 Mesh

• Lower Configuration: Stainless Steel, 3/4 in. Inlet, Fluid Filter, Drain Valve

• Material Application: Paints, Primers

• Maximum Air Inlet Pressure (psi): 100

• Maximum Flow Rate (GPM): 0.8
• Maximum Flow Rate (L/min): 3.0

• Maximum Fluid Working Pressure (psi): 4500

• Maximum Sound Pressure Level (dB(A)): 70.2

• Maximum Tip Size (in): 0.025

• Maximum Working Pressure (bar): 310
• Maximum Working Pressure (kPa): 31000
• Maximum Working Pressure (MPa): 31
• Maximum Working Pressure (psi): 4500

• Mix Ratio: 45:1
• Motor Type: Pneumatic Motor

• Mount Type: Cart Mount

• Number of Guns: 1

• Outlet Paint Filter: 60 Mesh Stainless Steel Screen

• Package Options: XTR-5 Gun, 1.5 gal (6 L) Hopper, 1/4 in. x 25 ft. (7.6 m) Hose

• Power Source: Air
• Pressure Control Type: Air Regulator

• Product Type: Single Leg

• Pump Pressure Ratio: 45:1
• Pump Rod Type: Carbon Steel
• Pump Sleeve Material: Stainless Steel
• Pump Type: Pneumatic Piston Pump

GG G45C06

MERKUR SYSTEM, PUMP 45:1, 50CC CT, SMT

Graco G45C06 Merkur 45:1 Cart-Mount Airless Spray Package, XTR-5 Gun, 519 XHD Tip, 25 ft (7.6 m) Fluid Hose, FluidFilter, DataTrak, Drain Valve

The Merkur Airless Sprayer for protective coatings is ideal for touch-ups or other smaller projects. Its light weight and portability make it a great mobile auxiliary system to finish up a job in tight areas. Ideal for coatings that don’t require the pressure and flow of a larger sprayer.

• Compact – fits into tight areas
• Sprays medium to higher solids coatings – up to 4800 psi (331 bar)
• Ideal for applications such as steel fabrication, marine, rail, industrial and structural steel
• Stainless steel option allows for waterborne coatings
• The Merkur Airless Sprayer for protective coatings is ideal for touch-ups or other smaller projects. Its light weight and portability make it a great mobile auxiliary system to finish up a job in tight areas. Ideal for coatings that don’t require the pressure and flow of a larger sprayer.

• Model: Merkur
• Series: Standard

• Air Inlet Size (in): 1/2
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Compatible Material: Protective Coating
• Compatible Replacement Pump: W45BBS

• Control Type: Fixed Ratio
• Convertible: Non-Convertible

• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 3/8, 1/4
• Fluid Outlet Size (mm): 9.525, 6.35
• Fluid Outlet Thread Gender: Male
• Fluid Outlet Thread Type: NPT

• Frame Configuration: Cart Mount

• Hose Inlet Diameter (cm): 0.635
• Hose Inlet Diameter (in): 1/4
• Hose Inlet Diameter (mm): 6.35

• Includes: XTR-5 Spray Gun, 512 XHD Tip, Fluid Hose, Fluid Filter
• Inlet Paint Strainer: 8 Mesh, 16 Mesh

• Lower Configuration: Stainless Steel, 3/4 in. Inlet, Fluid Filter, Drain Valve

• Material Application: Paints, Primers

• Maximum Air Inlet Pressure (psi): 100

• Maximum Flow Rate (GPM): 0.8
• Maximum Flow Rate (L/min): 3.0

• Maximum Fluid Working Pressure (psi): 4500

• Maximum Sound Pressure Level (dB(A)): 70.2

• Maximum Tip Size (in): 0.025

• Maximum Working Pressure (bar): 310
• Maximum Working Pressure (kPa): 31000
• Maximum Working Pressure (MPa): 31
• Maximum Working Pressure (psi): 4500

• Mix Ratio: 48:1
• Motor Type: Pneumatic Motor

• Mount Type: Cart Mount

• Number of Guns: 1

• Outlet Paint Filter: 60 Mesh Stainless Steel Screen

• Package Options: XTR-5 Gun, 1.5 gal (6 L) Hopper, DataTrak, 1/4 in. x 25 ft. (7.6 m) Hose

• Power Source: Air
• Pressure Control Type: Air Regulator

• Product Type: Single Leg

• Pump Pressure Ratio: 45:1
• Pump Sleeve Material: Stainless Steel
• Pump Type: Displacement Pump, Pneumatic Piston Pump

GG G45C11

MERKUR SYSTEM PUMP 45:1 50CC CT STD

GG G45C21

GG G45NXT

GG G45W05

MERKUR SYSTEM, PUMP 45:1, 50CC WA, STD

The Merkur Airless Sprayer for protective coatings is ideal for touch-ups or other smaller projects. Its light weight and portability make it a great mobile auxiliary system to finish up a job in tight areas. Ideal for coatings that don’t require the pressure and flow of a larger sprayer.

GG G45W03

MERKUR SYSTEM PUMP 45:1 50CC WA STD

GG G45W06

MERKUR SYSTEM, PUMP 45:1, 50CC WA, SMT

Graco G45W06 Merkur 45:1 Wall-Mount Airless Spray Package, XTR-5 Gun, 519 XHD Tip, 25 ft (7.6 m) Fluid Hose, Fluid Filter, DataTrak

The Merkur Airless Sprayer for protective coatings is ideal for touch-ups or other smaller projects. Its light weight and portability make it a great mobile auxiliary system to finish up a job in tight areas. Ideal for coatings that don’t require the pressure and flow of a larger sprayer.

• Compact – fits into tight areas
• Sprays medium to higher solids coatings – up to 4800 psi (331 bar)
• Ideal for applications such as steel fabrication, marine, rail, industrial and structural steel
• Stainless steel option allows for waterborne coatings

• Model: Merkur
• Series: Standard

• Air Inlet Size (in): 1/2
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Compatible Material: Protective Coating
• Compatible Replacement Pump: W45BBS

• Control Type: Fixed Ratio
• Convertible: Non-Convertible

• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 3/8, 1/4
• Fluid Outlet Size (mm): 9.525, 6.35
• Fluid Outlet Thread Gender: Male
• Fluid Outlet Thread Type: NPT

• Frame Configuration: Wall Mount

• Hose Inlet Diameter (cm): 0.635
• Hose Inlet Diameter (in): 1/4
• Hose Inlet Diameter (mm): 6.35

• Includes: XTR-5 Spray Gun, 5129 XHD Tip, Fluid Hose, Fluid Filter
• Inlet Paint Strainer: 8 Mesh, 16 Mesh

• Lower Configuration: Stainless Steel, 3/4 in. Inlet, Fluid Filter

• Material Application: Paints, Primers

• Maximum Air Inlet Pressure (psi): 100

• Maximum Flow Rate (GPM): 0.8
• Maximum Flow Rate (L/min): 3.0

• Maximum Fluid Working Pressure (psi): 4500

• Maximum Sound Pressure Level (dB(A)): 70.2

• Maximum Tip Size (in): 0.025

• Maximum Working Pressure (bar): 310
• Maximum Working Pressure (kPa): 31000
• Maximum Working Pressure (MPa): 31
• Maximum Working Pressure (psi): 4500

• Mix Ratio: 45:1
• Motor Type: Pneumatic Motor

• Mount Type: Wall Mount

• Number of Guns: 1

• Outlet Paint Filter: 60 Mesh Stainless Steel Screen

• Package Options: XTR-5 Gun, 1/4 in. x 25 ft. (7.6 m) Hose

• Power Source: Air
• Pressure Control Type: Air Regulator

• Product Type: Single Leg

• Pump Pressure Ratio: 45:1
• Pump Sleeve Material: Stainless Steel
• Pump Type: Displacement Pump, Pneumatic Piston Pump

GG G45W11

MERKUR SYSTEM PUMP 45:1 50CC WA STD

GG G45W13

MERKUR SYSTEM PUMP 45:1 50CC WALL STD

GG G45W21

GG G48C03

MERKUR SYSTEM, PUMP, 48:1, 75CC, CART, STD

The Merkur Airless Sprayer for protective coatings is ideal for touch-ups or other smaller projects. Its light weight and portability make it a great mobile auxiliary system to finish up a job in tight areas. Ideal for coatings that don’t require the pressure and flow of a larger sprayer.

GG G48C04

MERKUR SYSTEM, PUMP, 48:1, 75CC CT, SMT

Graco G48C04 Merkur 48:1 Cart-Mount Airless Spray Package, XTR-5 Gun, 519 XHD Tip, 25 ft (7.6 m) Fluid Hose, Fluid Filter, DataTrak

The Merkur Airless Sprayer for protective coatings is ideal for touch-ups or other smaller projects. Its light weight and portability make it a great mobile auxiliary system to finish up a job in tight areas. Ideal for coatings that don’t require the pressure and flow of a larger sprayer.

• Compact – fits into tight areas
• Sprays medium to higher solids coatings – up to 4800 psi (331 bar)
• Ideal for applications such as steel fabrication, marine, rail, industrial and structural steel
• Stainless steel option allows for waterborne coatings

• Model: Merkur
• Series: Standard

• Air Inlet Size (in): 1/2
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Compatible Material: Protective Coating
• Compatible Replacement Pump: W48CAS

• Control Type: Fixed Ratio
• Convertible: Non-Convertible

• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 3/8, 1/4
• Fluid Outlet Size (mm): 9.525, 6.35
• Fluid Outlet Thread Gender: Male
• Fluid Outlet Thread Type: NPT

• Frame Configuration: Cart Mount

• Hose Inlet Diameter (cm): 0.635
• Hose Inlet Diameter (in): 1/4
• Hose Inlet Diameter (mm): 6.35

• Includes: XTR-5 Spray Gun, 512 XHD Tip, Fluid Hose, Fluid Filter
• Inlet Paint Strainer: 8 Mesh, 16 Mesh

• Lower Configuration: Stainless Steel, 3/4 in. Inlet, Fluid Filter

• Material Application: Paints, Primers

• Maximum Air Inlet Pressure (psi): 100

• Maximum Flow Rate (GPM): 1.2
• Maximum Flow Rate (L/min): 4.5

• Maximum Fluid Working Pressure (psi): 4800

• Maximum Sound Pressure Level (dB(A)): 68.9

• Maximum Tip Size (in): 0.025

• Maximum Working Pressure (bar): 331
• Maximum Working Pressure (kPa): 33100
• Maximum Working Pressure (MPa): 33.1
• Maximum Working Pressure (psi): 4800

• Mix Ratio: 48:1
• Motor Type: Pneumatic Motor

• Mount Type: Cart Mount

• Number of Guns: 1

• Outlet Paint Filter: 60 Mesh Stainless Steel Screen

• Package Options: XTR-5 Gun, DataTrak, 1/4 in. x 25 ft. (7.6 m) Hose

• Power Source: Air
• Pressure Control Type: Air Regulator

• Product Type: Single Leg

• Pump Pressure Ratio: 48:1
• Pump Rod Type: Carbon Steel
• Pump Sleeve Material: Stainless Steel
• Pump Type: Displacement Pump, Pneumatic Piston Pump

GG G48C07

MERKUR SYSTEM, PUMP, 48:1, 75CC, CART, STD

GG G48C13

MERKUR SYSTEM, PUMP, 48:1, 75CC CART, STD

GG G48W01

MERKUR SYSTEM PUMP 48:01 75CC WA STD

GG G48W05

MERKUR SYSTEM, PUMP, 48:1, 75CC WA, STD

The Merkur Airless Sprayer for protective coatings is ideal for touch-ups or other smaller projects. Its light weight and portability make it a great mobile auxiliary system to finish up a job in tight areas. Ideal for coatings that don’t require the pressure and flow of a larger sprayer.

GG G48W03

MERKUR SYSTEM PUMP 48:01 75CC WA STD

GG G48W06

MERKUR SYSTEM, PUMP, 48:1, 75CC WA, SMT

Graco G48W06 Merkur 48:1 Wall-Mount Airless Spray Package, XTR-5 Gun, 519 XHD Tip, 25 ft (7.6 m) Fluid Hose, Fluid Filter, DataTrak

The Merkur Airless Sprayer for protective coatings is ideal for touch-ups or other smaller projects. Its light weight and portability make it a great mobile auxiliary system to finish up a job in tight areas. Ideal for coatings that don’t require the pressure and flow of a larger sprayer.

• Compact – fits into tight areas
• Sprays medium to higher solids coatings – up to 4800 psi (331 bar)
• Ideal for applications such as steel fabrication, marine, rail, industrial and structural steel
• Stainless steel option allows for waterborne coatings

• Model: Merkur
• Series: Standard

• Air Inlet Size (in): 1/2
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Compatible Material: Protective Coating
• Compatible Replacement Pump: W48CAS

• Control Type: Fixed Ratio
• Convertible: Non-Convertible

• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 3/8, 1/4
• Fluid Outlet Size (mm): 9.525, 6.35
• Fluid Outlet Thread Gender: Male
• Fluid Outlet Thread Type: NPT

• Frame Configuration: Wall Mount

• Includes: XTR-5 Spray Gun, 5129 XHD Tip, Fluid Hose, Fluid Filter
• Inlet Paint Strainer: 8 Mesh, 16 Mesh

• Lower Configuration: Stainless Steel, 3/4 in. Inlet, Fluid Filter

• Material Application: Paints, Primers

• Maximum Air Inlet Pressure (psi): 100

• Maximum Flow Rate (GPM): 1.2
• Maximum Flow Rate (L/min): 4.5

• Maximum Fluid Working Pressure (psi): 4800

• Maximum Sound Pressure Level (dB(A)): 68.9

• Maximum Tip Size (in): 0.025

• Maximum Working Pressure (bar): 331
• Maximum Working Pressure (kPa): 33100
• Maximum Working Pressure (MPa): 33.1
• Maximum Working Pressure (psi): 4800

• Mix Ratio: 48:1
• Motor Type: Pneumatic Motor

• Mount Type: Wall Mount

• Number of Guns: 1

• Outlet Paint Filter: 60 Mesh Stainless Steel Screen

• Package Options: XTR-5 Gun, 1/4 in. x 25 ft. (7.6 m) Hose

• Power Source: Air
• Pressure Control Type: Air Regulator

• Product Type: Single Leg

• Pump Pressure Ratio: 48:1
• Pump Rod Type: Carbon Steel
• Pump Sleeve Material: Stainless Steel
• Pump Type: Displacement Pump, Pneumatic Piston Pump

GG G48W07

GG G48W13

MERKUR SYSTEM PUMP 48:01 75CC WALL STD

GG G48W11

MERKUR SYSTEM PUMP 48:01 75CC WA STD

GG G48W15

GG GAM-139

GG GC0016

GG GC0057
