Gmax Ii 5900 Sprayer,Standard

GG 17E831

GMAX II 5900 SPRAYER, STANDARD

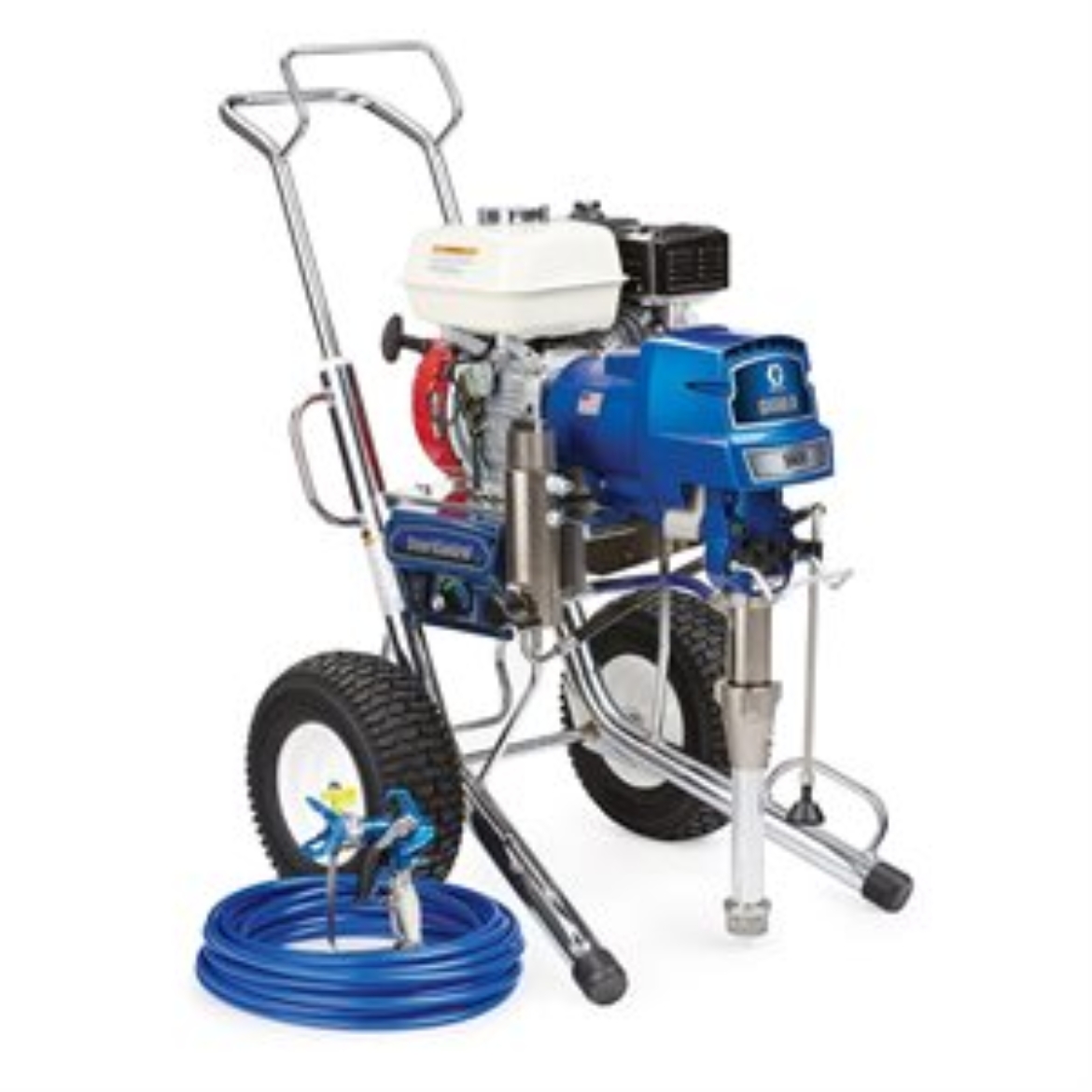

Graco 17E831 GMAX II 5900 Standard Series Gas Airless Sprayer, Hi-Boy

With the ability to spray up to 1.6 gallons per minute, the GMAX II 5900 is the industry standard for the professional contractor who sprays a wide variety of coatings on residential, commercial and industrial jobs.

• Endurance Chromex Piston Pump


  The most reliable pump

  Lasts 2X longer than the next leading brand

  Repack the pump in minutes with the new QuikPak Cartridge System

  QuikChange pump design allows you to swap the pump easily on the job

  Faster cleaning with the QuikAccess intake foot valve

• SmartControl 3.0


  Consistent spray fan & pressure control

  Handles the widest range of coatings with the most consistent fan pattern

  Lowest dead band at any pressure

• Precision Advantage Drive


  The longest lasting drive

  Hardened steel gears provide extremely quiet operation

  Lifetime Warranty

• Heavy-Duty Prime Valve


  Maintenance-free design withstands high-pressure dumping

• Durable Cart Design


  Rugged and easy-to-maneuver

  Thick chrome over steel and pneumatic wheels for tough jobsite conditions

  Retractable handle doubles as coiled hose storage

• Honda Engine


  Reliable, powerful & easy-to-start

  Oil Alert shuts down engine to prevent damage if oil level drops too low

  Contractor Preferred

• Contractor PC Spray Gun


  All-day comfort & control

  Lightest weight gun in its class

  Up to 50% lighter trigger pull force

  E-Z Fit adjustable trigger length

  Complete gun rebuild in seconds with ProConnect cartridge

  More info: graco.com/ContractorPC

• Jobsite Ready


  Includes RAC X SwitchTip and 50 ft of BlueMax II hose

• Model: GMAX II
• Series: 5900
• Product Series: Standard

• Convertible: Non-Convertible

• Engine Brand: Honda
• Engine Size (HP): 6.5

• Features: Endurance Chromex Pump, SmartControl 3.0, Honda Engine, Advantage Drive, Easy Out Filter, Heavy-Duty Prime Valve, Contractor PC Gun

• Fluid Inlet Size (in): 1-5/16
• Fluid Inlet Size (mm): 33.34
• Fluid Inlet Thread Type: UN-2A

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Type: NPSM

• Frame Configuration: Hi-Boy

• Hose Inlet Diameter (cm): 0.635
• Hose Inlet Diameter (in): 1/4
• Hose Inlet Diameter (mm): 6.35

• Includes: Contractor PC Gun, RAC X LP 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose, TSL 4 oz
• Inlet Paint Strainer: 8 Mesh Stainless Steel Screen

• Maximum Flow Rate (GPM): 1.6
• Maximum Flow Rate (L/min): 6.06

• Maximum Sound Pressure Level (dB(A)): 96

• Maximum Tip Size (in): 0.043
• Maximum Tip Size Gun 1 (in): 0.043
• Maximum Tip Size Gun 2 (in): 0.029
• Maximum Tip Size Gun 3 (in): 0.023

• Maximum Working Pressure (bar): 228
• Maximum Workin
