GL-1 SST INJECTOR, REPLACEMENT

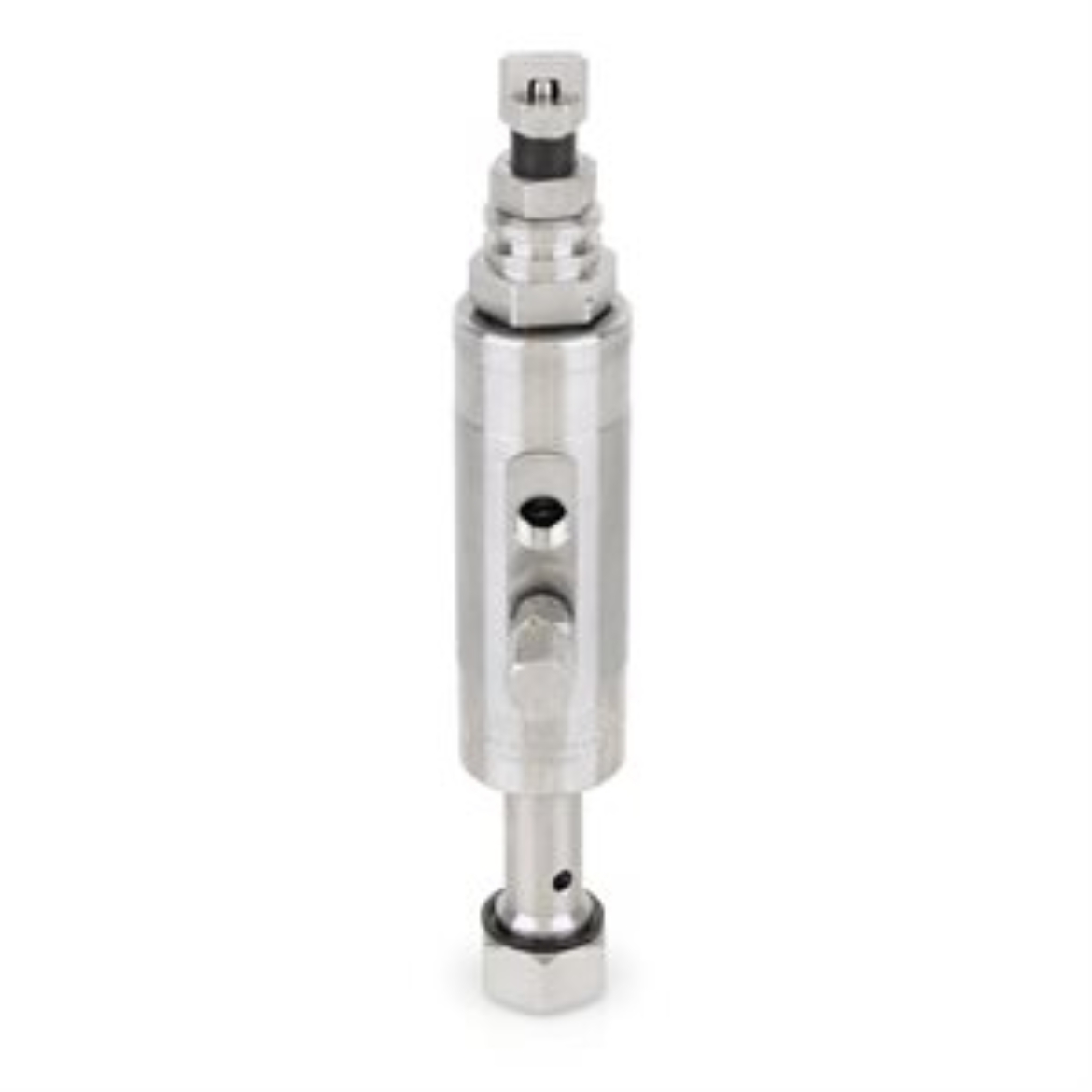

Graco 25N109 GL-1 316 SST Grease Injector - Replacement Injector

Custom fit your system with Gracos adjustable GL-1 series grease injectors. Designed to meet the needs of each lube point, these systems provide years of reliable operation in the harshest operating environments.

• The GL-1 SST injectors are offered as a a replacement injector for manifold systems for easy customization to a variety of applications
• Includes an adjustable hex head nut to make adjusting the output simple
• No vent holes and fully enclosed press fittings to prevent leaking lubricant
• Rugged, single piece uni-body design built for the harshest environments

• Model: GL-1
• Adjustable: Adjustable

• Application: In-Plant Machinery, Off-Road Equipment, In-Plant Equipment and Machinery, Mining, Wind Energy

• Compatible Material: Grease
• Compatible Metering Device: Single Line Parallel, Single Line

• Cycle Indicator: Visual Pin

• Feedback Options: Visual Pin Indication

• For Use With: Grease dispense in highly corrosive environments

• Material: Stainless Steel

• Maximum NLGI Grade: #2

• Maximum Operating Pressure (psi): 3500
• Maximum Operating Temperature ( degree C): 190
• Maximum Operating Temperature ( degree F): 374

• Maximum Output Volume (in cu ): 0.08

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kg/cm 2): 246
• Maximum Working Pressure (kPa): 24132
• Maximum Working Pressure (MPa): 24.1
• Maximum Working Pressure (psi): 3500
• Meter Type: Positive Displacement

• Minimum Operating Pressure (psi): 1850
• Minimum Output Volume (in cu ): 0.008

• Minimum Working Pressure (bar): 128
• Minimum Working Pressure (kg/cm 2): 130
• Minimum Working Pressure (kPa): 12755
• Minimum Working Pressure (MPa): 12.8

• Minimum Working Pressure (psi): 1850

• Number of Adjustment Turns: 10

• Outlet Size (in): 1/8 NPT
• Outlet Thread Gender: Female
• Outlet Thread Type: NPT
