GG 114901
GL-1 INJECTOR, ONE POINT

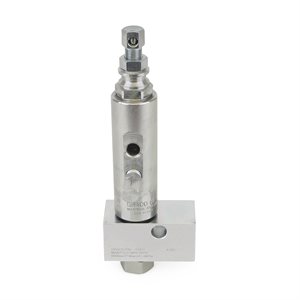

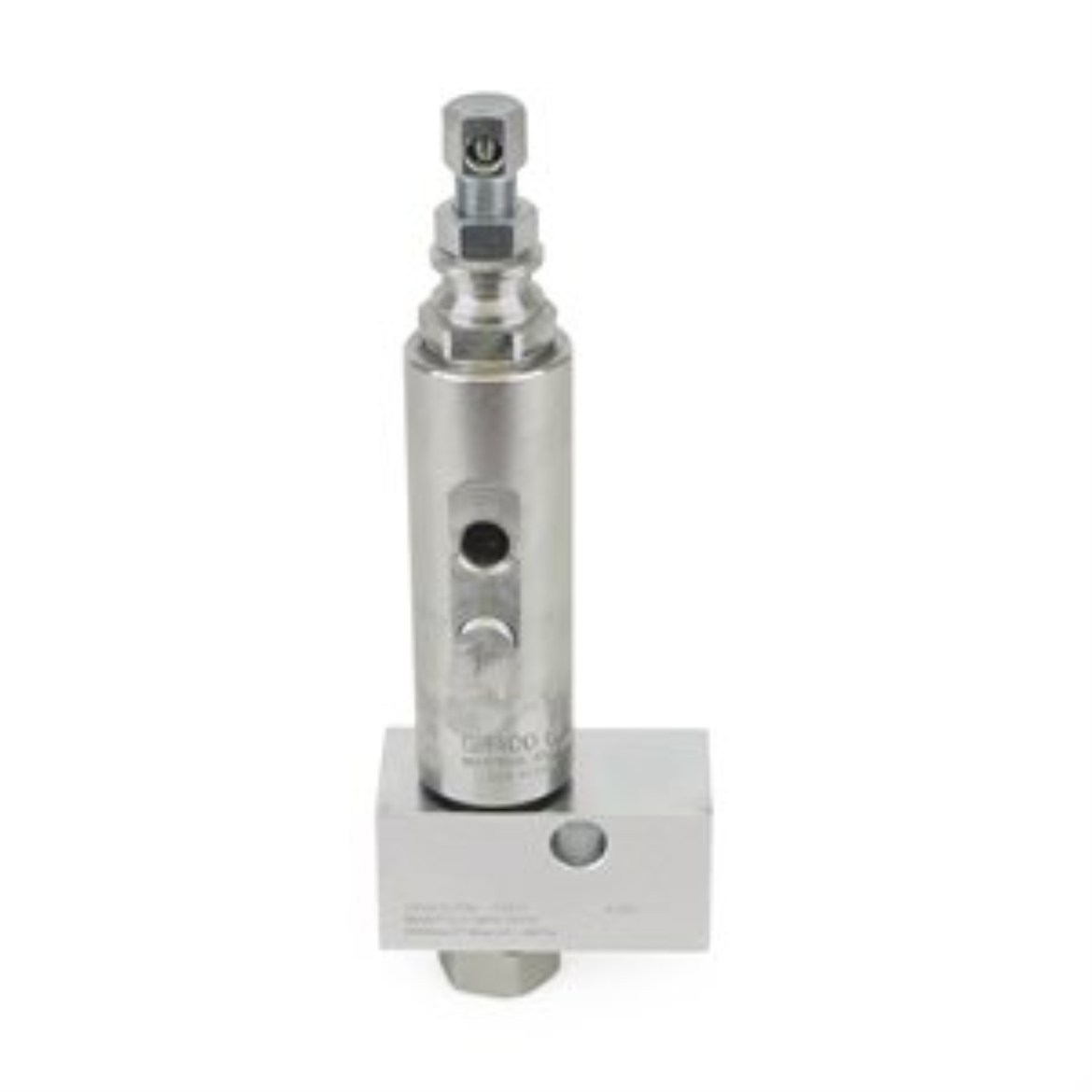

Graco 114901 GL-1™ Grease Injector - 1 Injector and Manifold
Custom fit your system with Graco&prime, s adjustable GL-1 series grease injectors. Designed to meet the needs of each lube point, these systems provide years of reliable operation in the harshest operating environments.
Application: High volume output at high pressures for the most demanding applications
- The GL-1 injectors are offered both as a stand-alone and a replacement injector for manifold systems for easy customization to a variety of applications
- Includes an adjustable hex head nut to make adjusting the output simple
- No vent holes and fully enclosed press fittings to prevent leaking lubricant
- Rugged, single piece uni-body design built for the harshest environments
- Model: GL-1
- Adjustable: Adjustable
- Application: In-Plant Machinery, Off-Road Equipment
- Compatible Material: Grease
- Compatible Metering Device: Single Line Parallel
- Dispense Outlet Size (cm): 0.33
- Dispense Outlet Size (in): 0.13
- Dispense Outlet Size (mm): 3.3
- Dispense Outlet Thread Type: NPT
- For Use With: Single Line Parallel Automatic Lubrication Systems
- Inlet Size (cm): 0.9525
- Inlet Size (in): 3/8
- Inlet Size (mm): 9.525
- Maximum Operating Pressure (psi): 3500
- Maximum Output Volume (in³): 0.08
- Maximum Reset Pressure (psi): 600
- Maximum Working Pressure (bar): 241
- Maximum Working Pressure (kPa): 24100
- Maximum Working Pressure (MPa): 24.1
- Maximum Working Pressure (psi): 3500
- Minimum Operating Pressure (psi): 1850
- Minimum Output Volume (in³): 0.008
- Outlet Size (cm): 0.9525
- Outlet Size (in): 3/8
- Outlet Size (mm): 9.525
- Outlet Thread Type: NPT
