    GH 833 Gas Hydraulic Sprayer, Complete

    Manufacturer: GRACO INC. S10595

    GG 249617

    GH SPRAYER, 833, COMPLETE

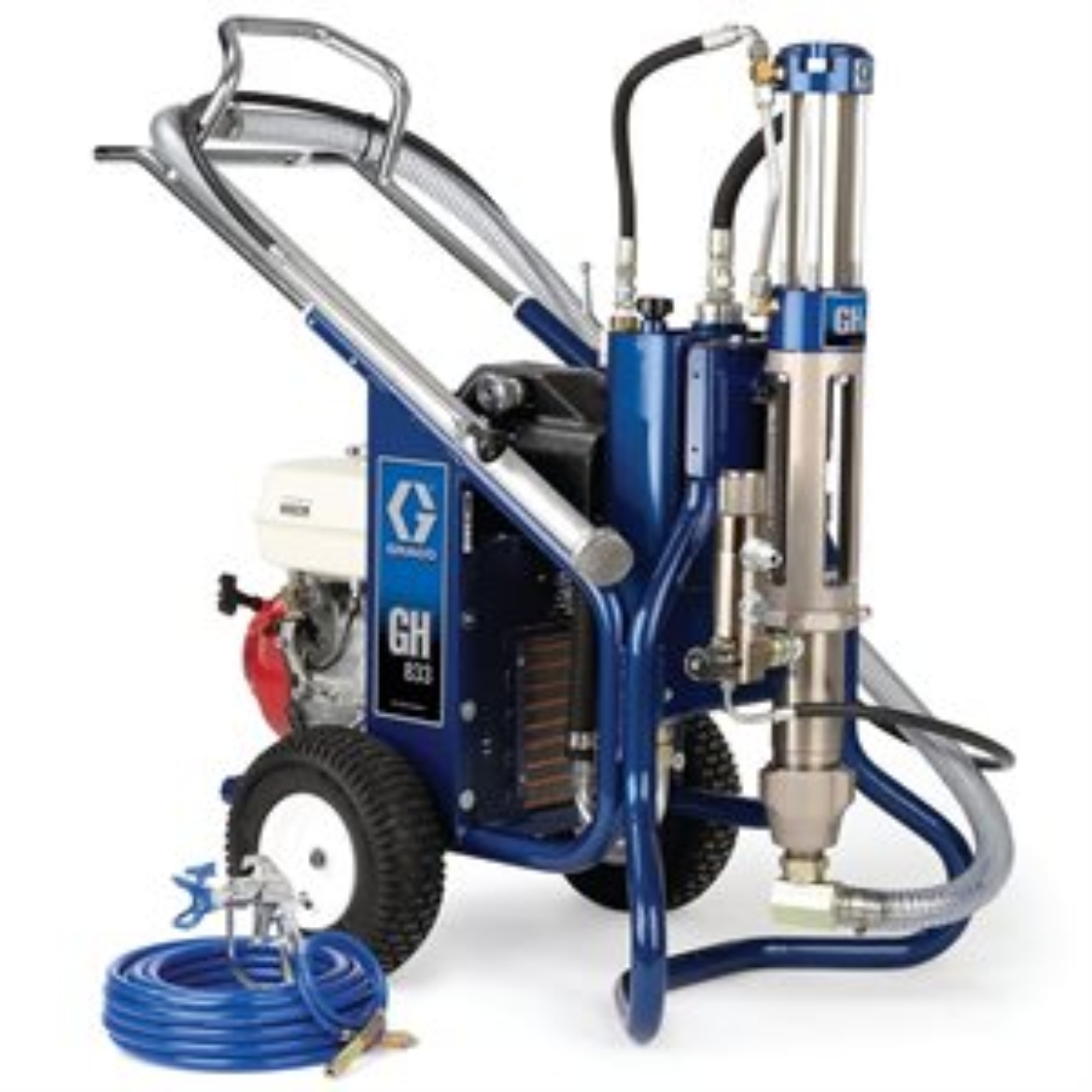

    Graco 249617 GH 833 Gas Hydraulic Sprayer, Complete

    The GH 833 is the preferred choice for high production professional contractors who spray the wide range of materials. This jobsite-proven workhorse is the answer when you demand ruggedness, performance and value.

    • Honda Engine

      390 cc (13 HP) engine with integrated fuel tank to deliver maximum performance

      Contractor preferred engine with Oil Alert

    • Heavy-Duty Hydraulic System

      Faster, more responsive changeover

      O-ring sealed to eliminate leaks

      High-precision pressure control

      No hydraulic reset button needed

      Durable hydraulic lines for long life

    • Heavy-Duty Cooling System

      Large 4 gallon hydraulic reservoir

      Return line hydraulic filter extends life

      No special hydraulic fluid needed

      Proven cooler and blower system

      Easy to use drain plug

    • MaxLife Endurance Pump

      Proven design and performance

      Only 16 cycles per gallon (4.2 cycles per liter)

      Exclusive MaxLife rod and sleeve delivers unmatched durability and life - Graco's best

      Exclusive QuikChange Pump System and QuikAccess Intake Valve eliminates downtime

    • Flow-Through Filter System

      Inside/out design eliminates clogged filters

      Eliminates tip clogs

    • Ready-To-Spray Complete System

      Configured with 50 feet of pressure-rated hose, gun, tips, and all the fittings you will need


    • Model: GH
    • Series: 833
    • Compatible Material: Acrylics, Block Filler, Coal Tar, Contact Cement, Elastomerics, Enamel, Epoxies, Fibered Aluminum Emulsion, Fibered Asphalt Emulsion, Mastics, Non-Fibered Aluminum Emulsion, Non-Fibered Asphalt Emulsion, Paint, Polyester, Polyurethane, Primer, Texture Mud, Waterproofing
    • Compatible Replacement Pump: 287834
    • Control Type: N/A
    • Engine Brand: Honda
    • Engine Size (HP): 13
    • Fluid Inlet Size (in): 1-1/2 to 11-1/2
    • Fluid Inlet Thread Type: MNPT
    • Fluid Outlet Size (in): 1 to 11-1/2
    • Fluid Outlet Thread Type: FNPT
    • Frame Configuration: Cart
    • Includes: Silver Plus Gun, RAC X 517 Spray Tip, RAC X 655 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II HP Airless Hose, 1/4 in x 3 ft BlueMax II HP Airless Whip Hose
    • Material Application: Paints, Primers
    • Maximum Flow Rate (GPM): 4.0
    • Maximum Flow Rate (L/min): 15.1
    • Maximum Hose Length (ft): 50
    • Maximum Hose Length (m): 15
    • Maximum Sound Pressure Level (dB(A)): 91
    • Maximum Tip Size (in): 0.065
    • Maximum Tip Size Gun 2 (in): 0.046
    • Maximum Tip Size Gun 3 (in): 0.037
    • Maximum Tip Size Gun 4 (in): 0.032
    • Maximum Tip Size Gun 5 (in): 0.029
    • Maximum Tip Size Gun 6 (in): 0.026
    • Maximum Working Pressure (bar): 275.8
    • Maximum Working Pressure (kPa): 27580
    • Maximum Working Pressure (MPa): 27.6
    • Maximum Working Pressure (psi): 4000
    • Motor Type: Hydraulic Motor
    • Number of Guns: 6
    • Outlet Paint Filter: 60 Mesh Stainless Steel Screen
    • Power Rating (cc): 390
    • Power Rating (HP): 13
    • Power Rating (kW): 9.7
    • Power Rating (W): 9694
    • Power Source: Gas Hydraulic
    • Pressure Control Type: Pressure Control Knob
    • Product Type
    SKU: GG 249617
    Availability:
    Price: $19,540.00
