FUSION MP GUN, XR4747, RTM040

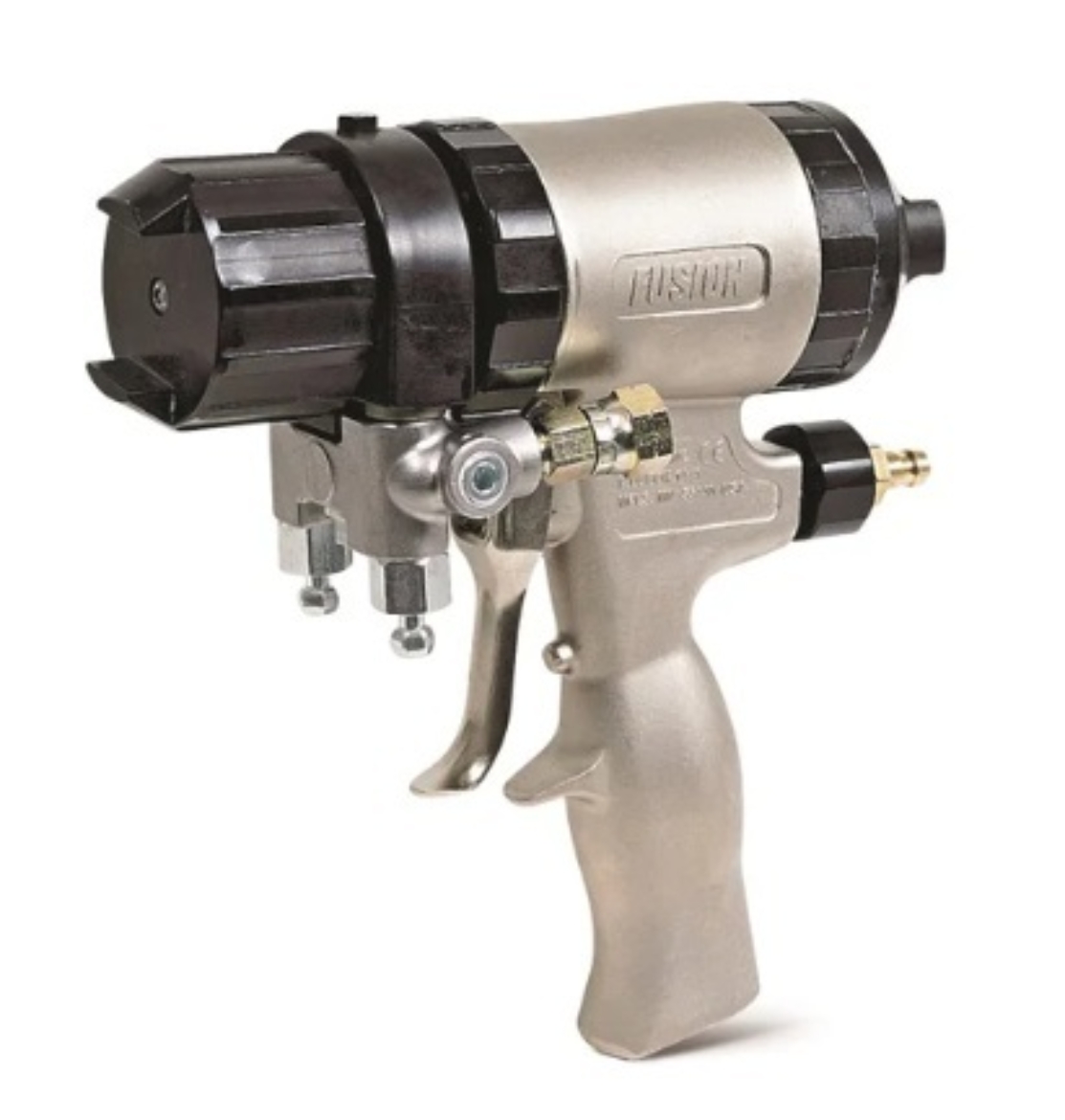

Graco 247018 Round Spray Fusion Mechanical-Purge Direct Impingement Spray Gun

Whether you're spraying polyurea coatings or spray foam insulation, the Fusion MP Gun handles it all. Its rugged design provides excellent mix and material properties – giving you great results at the jobsite.

• Easy mechanical cleaning – mix modules and tips are cleaned with a drill bit
• Long-lasting PolyCarballoy mix module
• Advanced mix module and tip provides superior mixing capabilities

• Model: Fusion MP
• Series: Direct Impingement

• Compatible Material: Polyurea, Non-Flammable Polyurethane Foam
• Component A Inlet Size (cm): 1.27

• Component A Inlet Size (in): 1/2
• Component A Inlet Size (mm): 12.7
• Component A Inlet Thread Type: UNF
• Component B Inlet Thread Type: UNF
• Component Type: Plural-Component

• Gun Type: Mechanical-Purge
• Gun Weight (g): 1315
• Gun Weight (kg): 1.32
• Gun Weight (lb): 2.9
• Gun Weight (oz): 46.4

• Impingement Type: Direct Impingement (DI)

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air Inlet Pressure (MPa): 0.55
• Minimum Air Inlet Pressure (psi): 80

• Mix Module: .047

• Overall Height (cm): 20.6
• Overall Height (in): 8.1
• Overall Height (mm): 206
• Overall Length (cm): 19.3
• Overall Length (in): 7.6
• Overall Length (mm): 193
• Overall Width (cm): 7.9
• Overall Width (in): 3.1
• Overall Width (mm): 79
