Fluid Regulator

GG 223623

REGULATOR, PRESS, FLUID

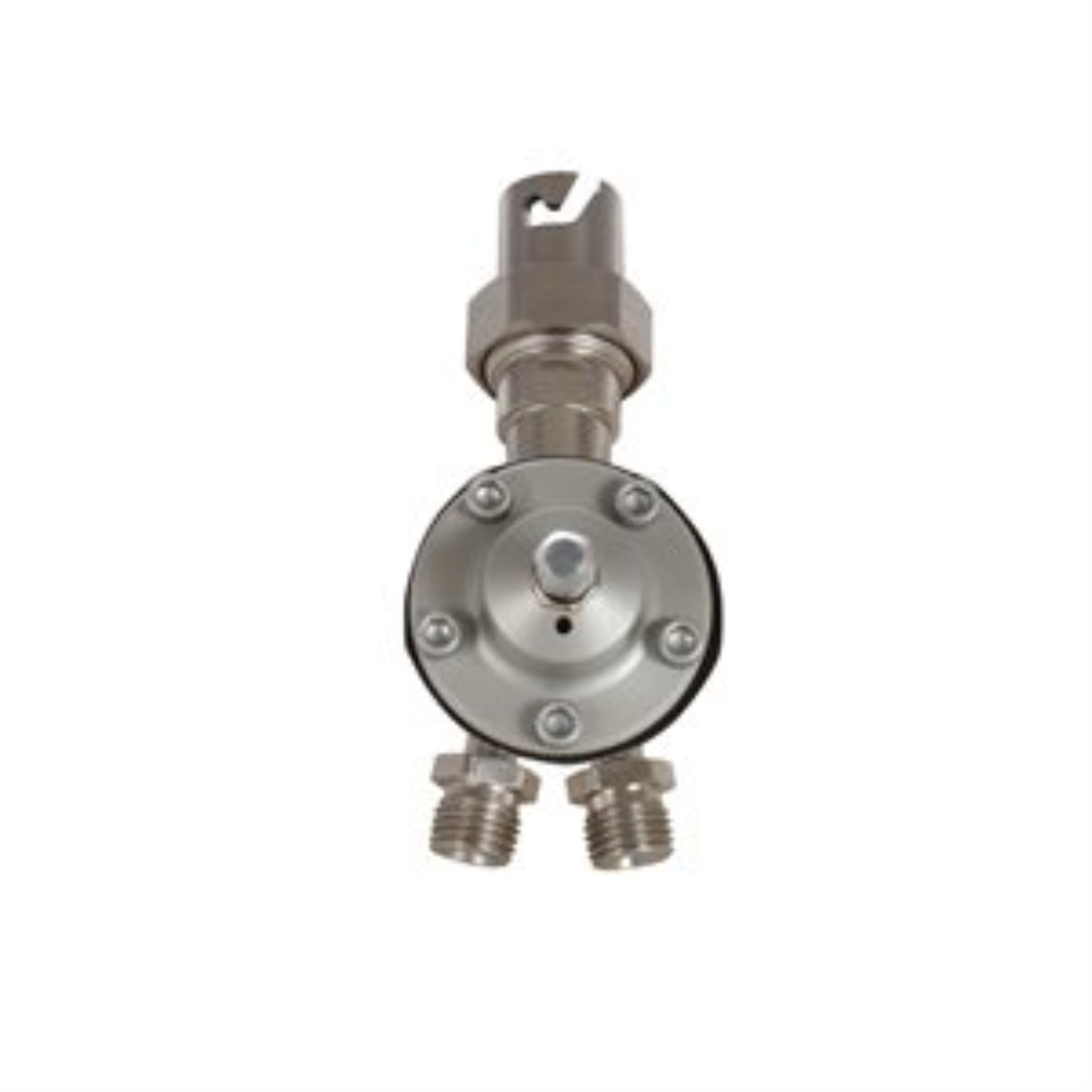

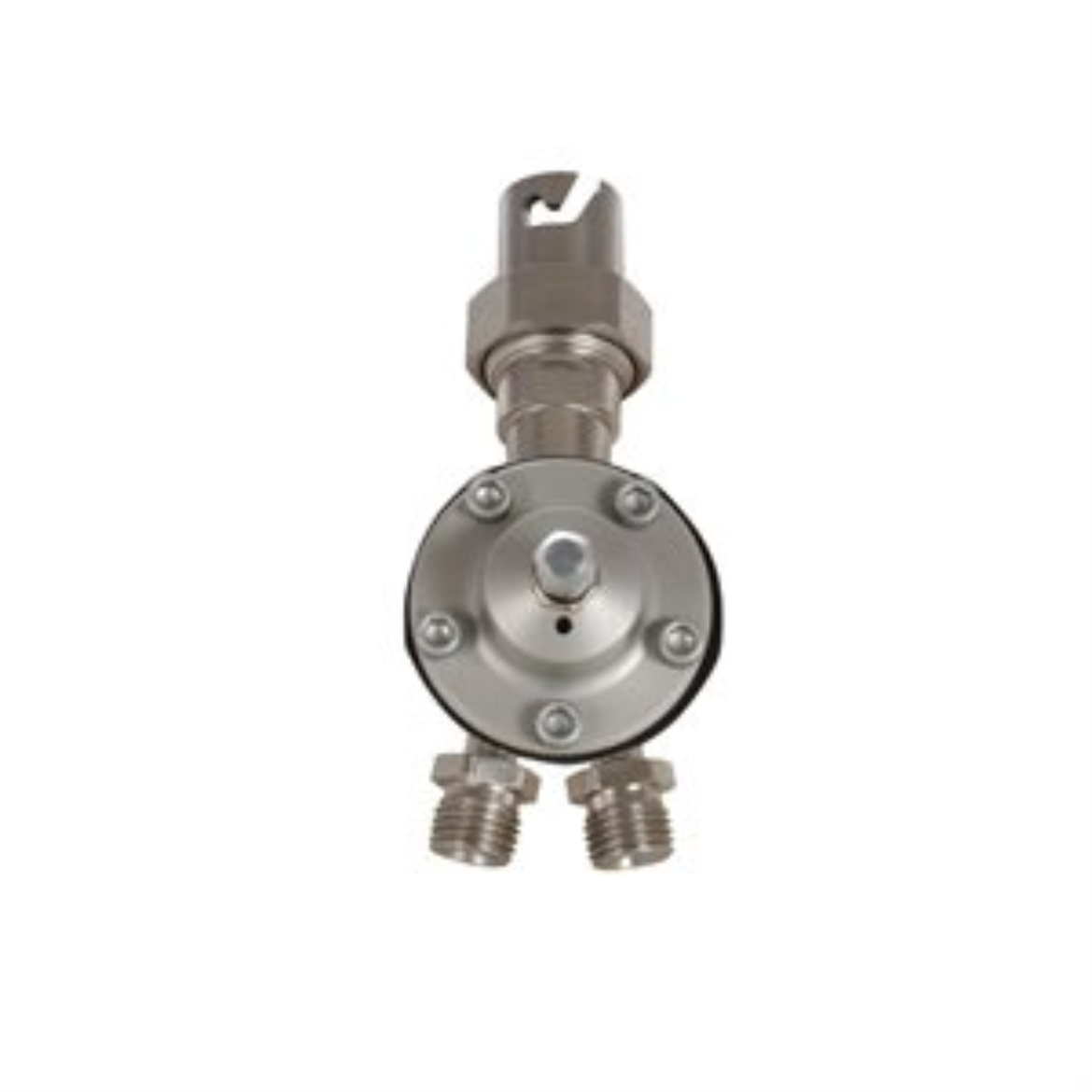

Graco 223623 Gun Mounted Fluid Regulator, 3/8 twistlock inlet/outlet, 200 max inbound fluid psi (14 bar), SST wetted parts

• Stainless steel materials are compatible with catalyst and waterborne materials
• Easy and accurate pressure adjustment at the gun to fine tune pressure settings during production
• Connects quickly to spray guns using twistlock connector

• Includes: Regulator Only
• Inlet Size (cm): 0.635
• Inlet Size (in): 1/4
• Inlet Size (mm): 6.35

• Inlet Thread Type: NPSM

• Maximum Regulated Pressure (bar): 2.4
• Maximum Regulated Pressure (kPa): 240
• Maximum Regulated Pressure (MPa): 0.24
• Maximum Regulated Pressure (psi): 35

• Maximum Working Pressure (bar): 13.8
• Maximum Working Pressure (kPa): 1380
• Maximum Working Pressure (MPa): 1.4
• Maximum Working Pressure (psi): 200

• Minimum Regulated Pressure (bar): 0.34
• Minimum Regulated Pressure (kPa): 34
• Minimum Regulated Pressure (MPa): 0.034
• Minimum Regulated Pressure (psi): 5

• Outlet Size (cm): 0.635
• Outlet Size (in): 1/4
• Outlet Size (mm): 6.35
