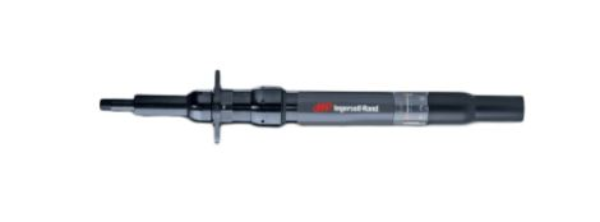

IR QE4ST015B20Q04

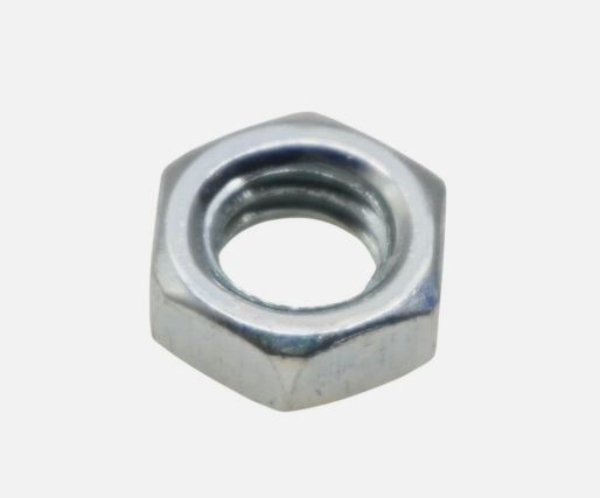

IR Y12-106

VI 6901055

VI 73076487

GG 115937

GG 121980

GG 255246

GG 654507

HUSKY PUMP, 15120P, P2, PP/SP/SP/PT

Graco 654507 Husky 15120 PP Pump, End Flange, PP Center Section, PP Seats, SP Balls & SP Diaphragm

The Husky 15120 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.

• Overall improved efficiency (up to 40% more efficient)
• Highest fluid flow rate in its class
• Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps
• 1-1/2 in (38.1 mm) ANSI center and end-porting options available
• High flow - 120 gpm (454 lpm) in a compact, portable size
• Fluid pressure to 125 psi (8.6 bar, 0.86 MPa)
• Lube-free operation
• Available in polypropylene and PVDF

• Model: Husky
• Series: 15120

• Air Exhaust Port Size (in): 1
• Air Exhaust Port Thread Gender: Female
• Air Exhaust Port Thread Type: NPT
• Air Inlet Size (in): 1/2
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Ball Material: Santoprene

• Center Section Material: Polypropylene

• Compatible Material: Antifreeze, Detergents, Windshield Washer Fluid, Diesel Exhaust Fluid, Cutting Oil, Water, Water, Water - Wastewater Transfer

• Connection Type: End Flange ANSI/DIN

• Diaphragm Compatible Material: Santoprene
• Diaphragm Material: Santoprene

• Fluid Inlet Size (cm): 3.81
• Fluid Inlet Size (in): 1-1/2
• Fluid Inlet Size (mm): 38.1
• Fluid Inlet Thread Gender: Female

• Fluid Outlet Size (cm): 3.81
• Fluid Outlet Size (in): 1-1/2
• Fluid Outlet Size (mm): 38.1
• Fluid Outlet Thread Gender: Female
• Fluid Section Material: Polypropylene

• Manifold Configuration: End Port
• Manifold O-Ring Material: PTFE
• Material: Polypropylene

• Maximum Air Consumption (SCFM): 85
• Maximum Air Pressure (bar): 8.6

• Maximum Air Pressure (kPa): 860
• Maximum Air Pressure (MPa): 0.86
• Maximum Air Pressure (psi): 125

• Maximum Cycle Rate (CPM): 183

• Maximum Flow Rate (GPM): 120
• Maximum Flow Rate (L/min): 454

• Maximum Fluid Pressure (bar): 8.6
• Maximum Fluid Pressure (kPa): 860
• Maximum Fluid Pressure (MPa): 0.86
• Maximum Fluid Pressure (psi): 125

• Maximum Fluid Pressure (bar): 8.6
• Maximum Fluid Pressure (kPa): 860
• Maximum Fluid Pressure (MPa): 0.86
• Maximum Fluid Pressure (psi): 125

• Maximum Operating Temperature ( degree C): 66
• Maximum Operating Temperature ( degree F): 150

• Maximum Solid Size (cm): 0.635
• Maximum Solid Size (in): 0.25
• Maximum Solid Size (mm): 6.35

• Minimum Operating Temperature ( degree C): 0
• Minimum Operating Temperature ( degree F): 32

• Minimum Storage Temperature ( degree C): 0
• Minimum Storage Temperature ( degree F): 32

• Power Source: Air
