FRP RS CHOP SYSTEM, IC, 13:1, CMB, 25, HF

Graco 24W438 13:1 Ratio Internal Mix Chop System with 25 ft (7.6 m) Hose, Cart, Mast, Boom and High Flow Gun

To keep material costs low, the system has been designed so that it doesn't need a surge bottle and a low amount of solvent and resin is needed to prime the pump. It also features a dual trigger function, allowing operators to change from wet-out to chop without removing the chopper. By purely using Graco components, that are proven in multiple industries, you will have a solution that is technologically advanced, durable and long lasting.

• Optimized Ratio Stability
  • Adjustable ratio catalyst pump - no tools are required for a quick and easy ratio change.
  • Precision engineered linkage offers you superior ratio control and consistent cure
• Lower Cost of Ownership
  • Easy maintenance - fewer repair parts
  • Long lasting seals mean less downtime
  • Pumps last longer between planned maintenances
  • No surge bottle necessary, less parts, solvent and resin needed to prime the pump
• Optional DataTrak Control
  • Monitors resin usage - Helps ensure product quality by tracking resin usage per piece, shift or day
  • Tracks cycles for preventive maintenance schedule
  • Displays real time flow rate - eliminates material waste due to worn spray tips
• Gravity Fed Catalyst System
  • Keeps the catalyst pump primed for consistent delivery
• New Linkage and Catalyst Pump
  • Truly engineered linkage for superior ratio control
  • Allows for infinite adjustment of catalyst percentage - no tools required
  • Ensures proper catalyst percentage and optimum results
  • Variance of 1% or less
• Balanced Graco NXT Air Motor
  • Provides same output pressure on upstroke and downstroke, resulting in more consistent spray pattern
  • Shortened stroke on pump for better spray pattern
• Control Panel
  • Easy user interface with all gauges in one location
• Stable, Lightweight Cart
  • Easy to maneuver
  • Strong, durable casters

• Model: FRP
• Series: IC

• Air Inlet Size (in): 1/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Component A Inlet Size (in): 3/8
• Component B Inlet Size (in): 1-5/16
• Component B Thread Gender: Male
• Component B Thread Type: UN-2A

• Fluid Inlet Size (in): 3/4
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 3/4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Hose Length (ft): 25
• Hose Length (m): 7.6

• Includes: Hose, Cart, Mast, Boom

• Maximum Air Inlet Pressure (bar): 6.9
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Flow Rate (cc/min): 5680

• Maximum Flow Rate (GPM): 1.5
• Maximum Flow Rate (L/min): 5.68

GG 255246

GG 654507

HUSKY PUMP, 15120P, P2, PP/SP/SP/PT

Graco 654507 Husky 15120 PP Pump, End Flange, PP Center Section, PP Seats, SP Balls & SP Diaphragm

The Husky 15120 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.

• Overall improved efficiency (up to 40% more efficient)
• Highest fluid flow rate in its class
• Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps
• 1-1/2 in (38.1 mm) ANSI center and end-porting options available
• High flow - 120 gpm (454 lpm) in a compact, portable size
• Fluid pressure to 125 psi (8.6 bar, 0.86 MPa)
• Lube-free operation
• Available in polypropylene and PVDF

• Model: Husky
• Series: 15120

• Air Exhaust Port Size (in): 1
• Air Exhaust Port Thread Gender: Female
• Air Exhaust Port Thread Type: NPT
• Air Inlet Size (in): 1/2
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Ball Material: Santoprene

• Center Section Material: Polypropylene

• Compatible Material: Antifreeze, Detergents, Windshield Washer Fluid, Diesel Exhaust Fluid, Cutting Oil, Water, Water, Water - Wastewater Transfer

• Connection Type: End Flange ANSI/DIN

• Diaphragm Compatible Material: Santoprene
• Diaphragm Material: Santoprene

• Fluid Inlet Size (cm): 3.81
• Fluid Inlet Size (in): 1-1/2
• Fluid Inlet Size (mm): 38.1
• Fluid Inlet Thread Gender: Female

• Fluid Outlet Size (cm): 3.81
• Fluid Outlet Size (in): 1-1/2
• Fluid Outlet Size (mm): 38.1
• Fluid Outlet Thread Gender: Female
• Fluid Section Material: Polypropylene

• Manifold Configuration: End Port
• Manifold O-Ring Material: PTFE
• Material: Polypropylene

• Maximum Air Consumption (SCFM): 85
• Maximum Air Pressure (bar): 8.6

• Maximum Air Pressure (kPa): 860
• Maximum Air Pressure (MPa): 0.86
• Maximum Air Pressure (psi): 125

• Maximum Cycle Rate (CPM): 183

• Maximum Flow Rate (GPM): 120
• Maximum Flow Rate (L/min): 454

• Maximum Fluid Pressure (bar): 8.6
• Maximum Fluid Pressure (kPa): 860
• Maximum Fluid Pressure (MPa): 0.86
• Maximum Fluid Pressure (psi): 125

• Maximum Fluid Pressure (bar): 8.6
• Maximum Fluid Pressure (kPa): 860
• Maximum Fluid Pressure (MPa): 0.86
• Maximum Fluid Pressure (psi): 125

• Maximum Operating Temperature ( degree C): 66
• Maximum Operating Temperature ( degree F): 150

• Maximum Solid Size (cm): 0.635
• Maximum Solid Size (in): 0.25
• Maximum Solid Size (mm): 6.35

• Minimum Operating Temperature ( degree C): 0
• Minimum Operating Temperature ( degree F): 32

• Minimum Storage Temperature ( degree C): 0
• Minimum Storage Temperature ( degree F): 32

• Power Source: Air

GG C27063

GG GDCA59

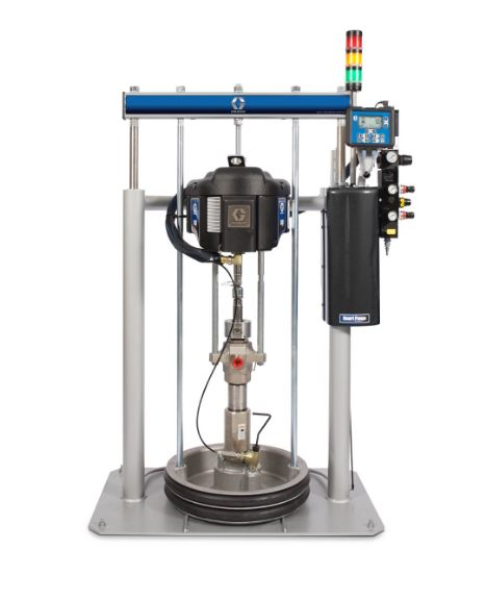

DURA-FLO SUPPLY UNIT,57:1,3.0 RAM,200L

Graco GDCA59 57:1 Ratio 200 L 3.0 RAM Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

Application: Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials

• For large drums up to 200 liter (55 gal)
• Graco D200 - For high-volume in-plant applications
• Industry-first controls give you immediate and important information at the touch of a button Quick placement of drum
• Platen wipers can be replaced in seconds
• Pump's quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
• High-quality, durable parts reduce maintenance time, maximize uptime

• Model: Dura-Flo
• Series: D200

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
