GG 208000
FILTER, LIQUID HP

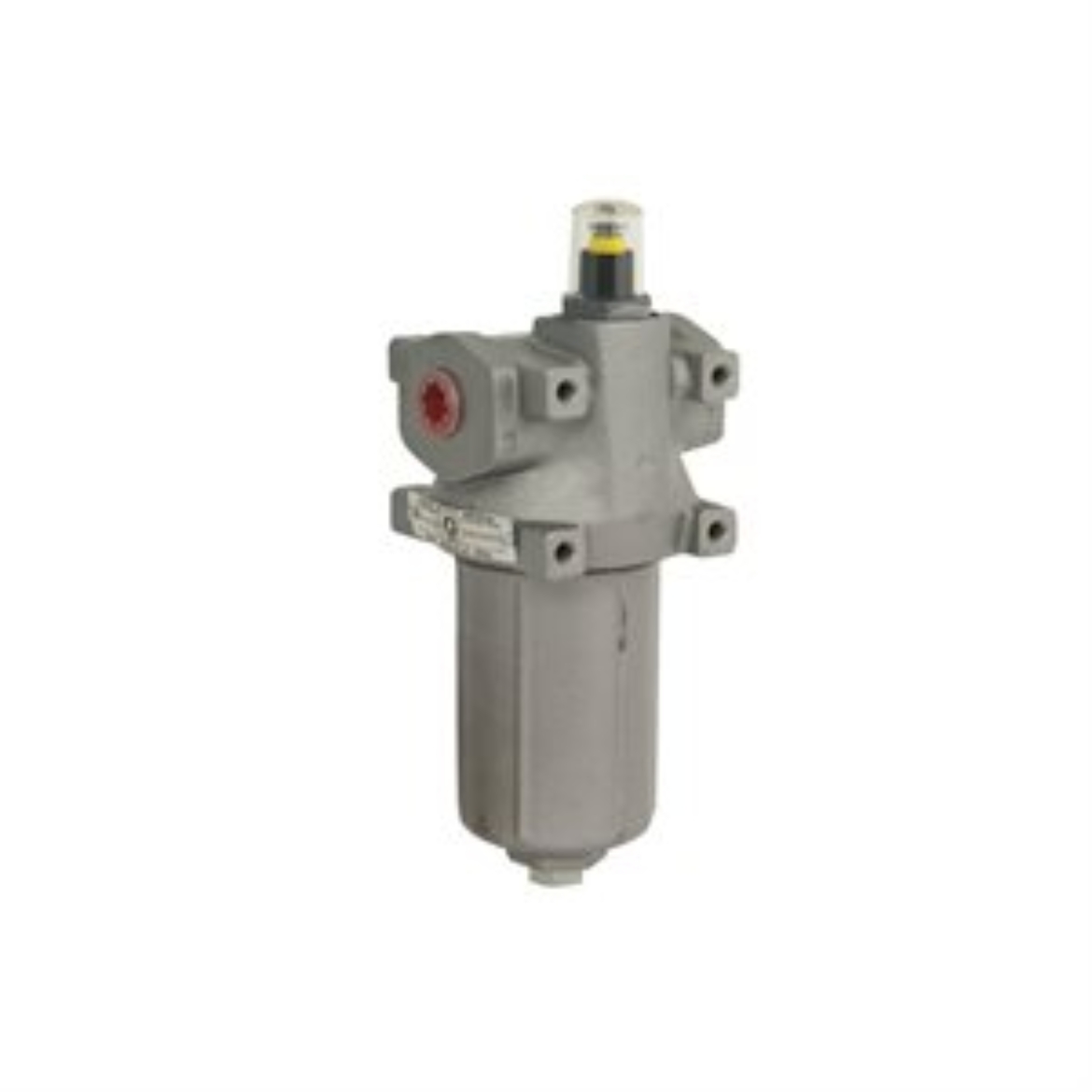

Graco 208000 High Pressure Red Alert Filter, 0.050 in (1.3 mm) stab point element mesh (590 micron) element
Filtering is your best defense against premature pump wear, gun wear, surface defects, reworks and tip plugging. The unique red pop-up indicator reveals when fluid filter element requires replacement. Built-in bypass valving directs continuous flow through separate passage when filter clogs, preventing downtime.
Application: Large flow capacity is ideal for large circulation and supply systems.
- Red Alert indicator signals filter element replacement to ensure efficient filtration
- Integrated mounting holes make installation to frame and equipment easy
- Bottom port for installing quick flush ball valve
- Inlet Size (cm): 3.18
- Inlet Size (in): 1-1/4
- Inlet Size (mm): 31.75
- Maximum Flow Rate (GPM): 6
- Maximum Flow Rate (L/min): 22.7
- Maximum Working Pressure (bar): 210
- Maximum Working Pressure (kPa): 21000
- Maximum Working Pressure (MPa): 21
- Maximum Working Pressure (psi): 3000
- Outlet Size (cm): 3.18
- Outlet Size (in): 1-1/4
- Outlet Size (mm): 31.75
- Outlet Thread Type: NPT
- Overall Depth (cm): 17
- Overall Depth (in): 6.56
- Overall Depth (mm): 167
- Overall Height (cm): 33
- Overall Height (in): 13.08
- Overall Height (mm): 335
- Overall Width (cm): 17
- Overall Width (in): 6.56
- Overall Width (mm): 167
