GG 243775
ULTRA-LITE 6000 GUN, FLOW

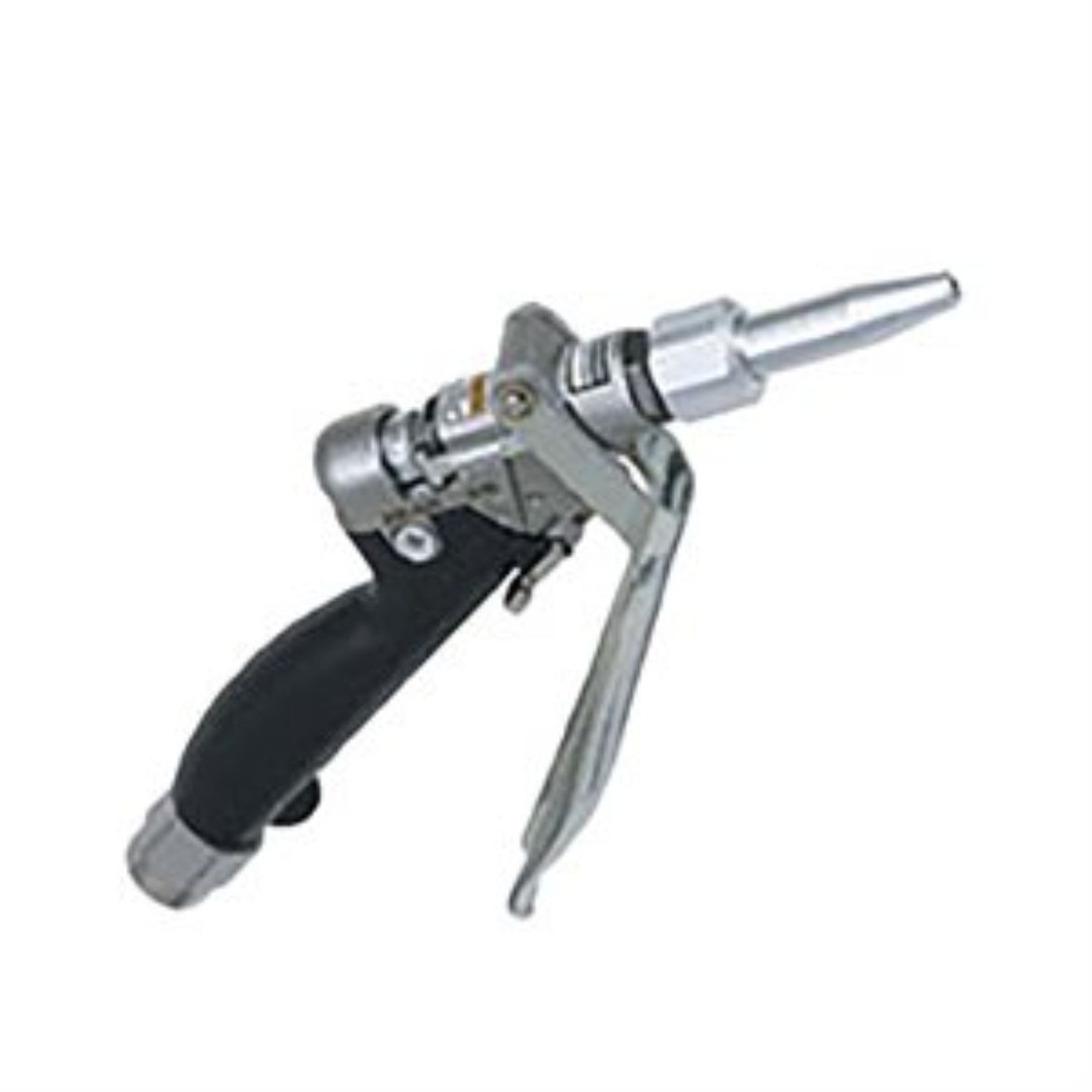

Graco 243775 Ultra-Lite 6000 Flow Gun with Tapered Valve Needle
The operator-friendly Ultra-Lite 6000 combines ergonomic design with high-operating pressure for dispensing low-to-medium viscosity industrial and automotive sealants and adhesives.
Application: For precise control of low-to-medium viscosity materials
- Operating pressures to 6000 psi (414 bar, 41.4 MPa).
- 150° head/handle angle is more comfortable for operator
- Changeable tips for a variety of dispensing needs
- Compatible with a variety of nozzles (1/4 in NPT (F) with nut for metal flanged nozzle). Order nozzle separately.
- Model: Ultra-Lite
- Series: 6000
- Application: Bonding, Sealing, Gasketing, Potting, Encapsulation
- Connection Type: Threaded, Flange
- Maximum Working Pressure (bar): 415
- Maximum Working Pressure (kg/cm²): 422
- Maximum Working Pressure (kPa): 41500
- Maximum Working Pressure (MPa): 41.5
- Maximum Working Pressure (psi): 6000
- Nozzle Size (cm): 0.508
- Nozzle Size (in): 0.2
- Nozzle Size (mm): 5.08
