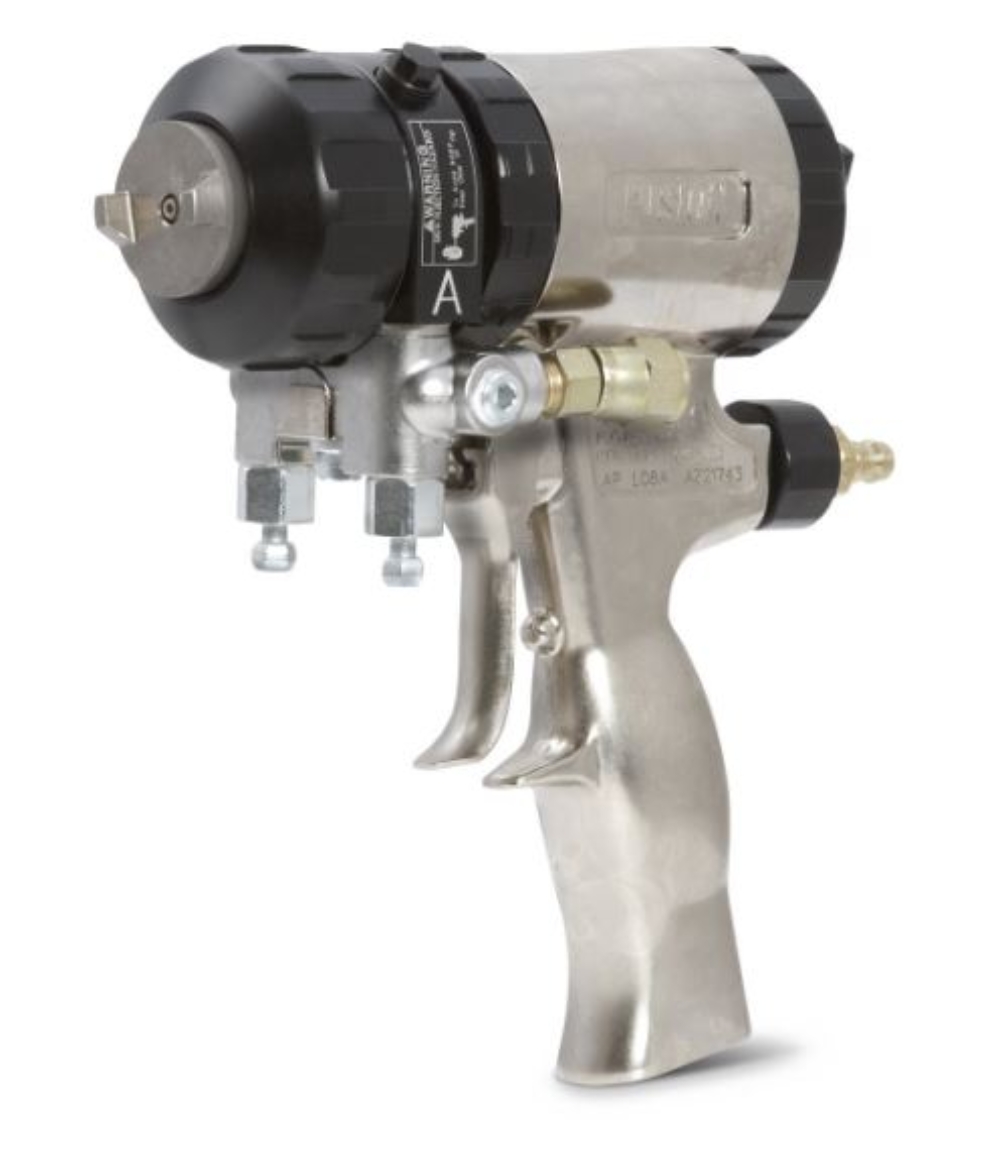

Flat Pattern Fusion Air-Purge Gun with 0.038 in (0.96 mm) Orifice Size, 0.029 in (0.74 mm) Impingement Port and 16-18 in (406-457 mm) Pattern Size

GG 247117

FUSION AP GUN, AF2929, FT0838

Graco 247117 Flat Pattern Fusion Air-Purge Gun with 0.038 in (0.96 mm) Orifice Size, 0.029 in (0.74 mm) Impingement Port and 16-18 in (406-457 mm) Pattern Size

With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.

• Easy air-blast tip cleaning reduces build-up and tip clogging.
• Long-lasting side seals means less downtime for maintenance
• Quick-release fluid housing - lets you easily change the mix chambers without tools
• Ergonomic handle

• Model: Fusion AP
• Series: Flat

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35

• Compatible Material: Polyurea, Non-Flammable Polyurethane Foam

• Fluid Orifice Size (cm): 0.097
• Fluid Orifice Size (in): 0.038
• Fluid Orifice Size (mm): 0.97

• Gun Type: Air Purge Gun
• Gun Weight (g): 1130
• Gun Weight (kg): 1.1
• Gun Weight (lb): 2.5
• Gun Weight (oz): 40

• Impingement Port Size (in): 0.029
• Impingement Port Size (mm): 0.70
• Includes: AF2929 Mix Chamber, FT0838 Flat Tip

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature ( degree C): 93
• Maximum Fluid Temperature ( degree F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature ( degree C): 93
• Maximum Fluid Temperature ( degree F): 200

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air Inlet Pressure (MPa): 0.55
• Minimum Air Inlet Pressure (psi): 80

• Mix Chamber: 00 (.029)

• Overall Height (cm): 20.6
• Overall Height (in): 8.1
• Overall Height (mm): 206
• Overall Length (cm): 19.1
• Overall Length (in): 7.5
• Overall Length (mm): 191
• Overall Width (cm): 8.4
• Overall Width (in): 3.3
• Overall Width (mm): 84

• Pattern Size (in): 16-18 in @ 24 in from target
