Fireball 425 Pump,75:1,Trk Pkg

GG 243818

FIREBALL 425 PUMP, 75:1, TRK PKG

Graco 243818 Fire-Ball 425 Series 75:1 400 lb. (181 kg) Open-Head Cover-Mounted Package

The Fire-Ball 425 features a large air motor to supply the power you need for long pipe runs and higher-volume dispensing. An ideal choice for applications where multiple dispenses happen at the same time.

• Durable Casting - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated dirtyair environments for long life without repair.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 425

• Air Inlet Size (in): 0.5
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Material: Grease

• Container Size (lb): 400

• Fluid Inlet Type: Slotted

• Fluid Outlet Size (cm): 0.9525
• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

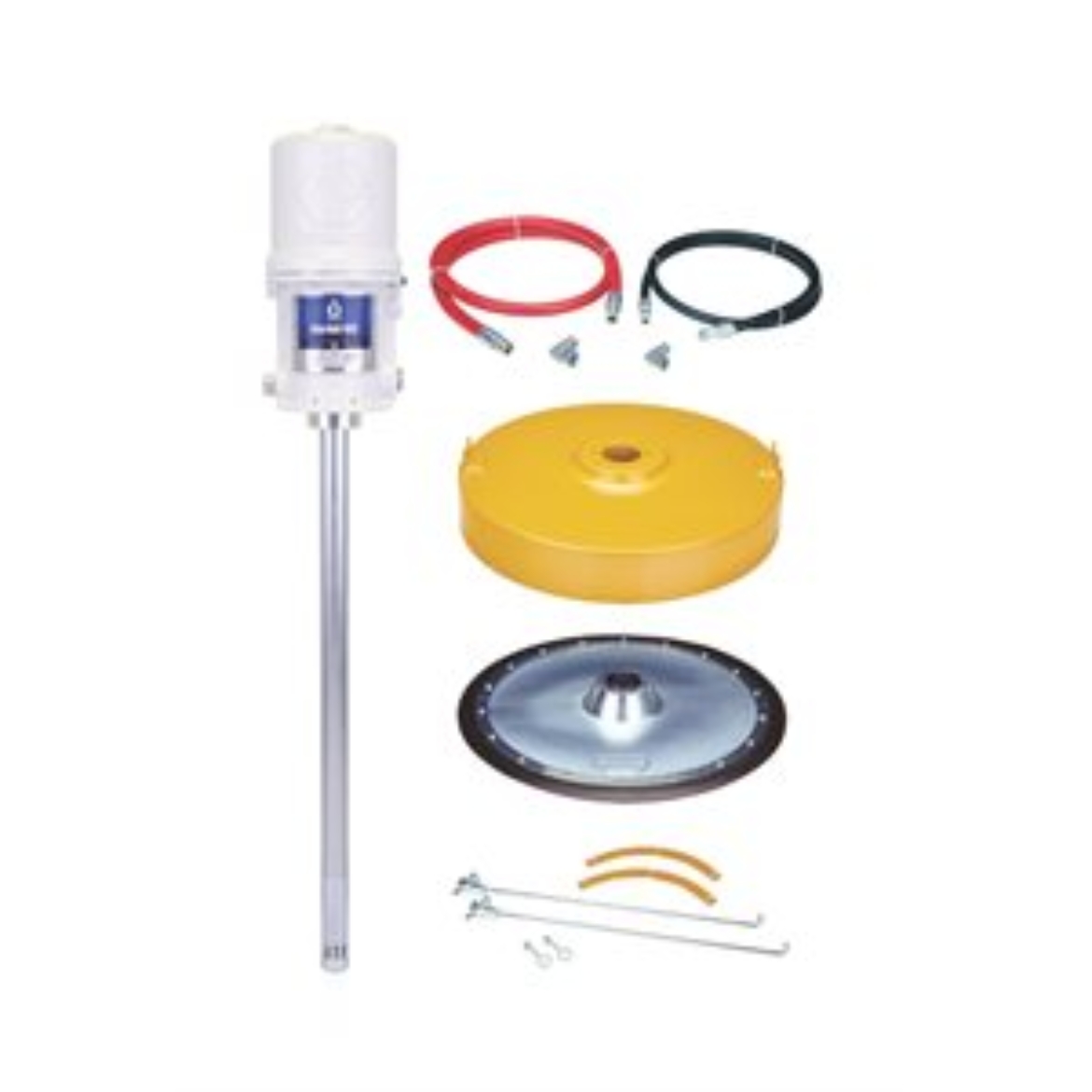

• Includes: Fireball 75:1 425 Pump, Hose and Fitting Kit, Cover, Follow Plate, Hold-Down Kit

• Maximum Air Working Pressure: 100

• Maximum Working Pressure (bar): 276
• Maximum Working Pressure (kPa): 27600
• Maximum Working Pressure (MPa): 27.6
• Maximum Working Pressure (psi): 4000

• Motor Type: Pneumatic

• Mount Location: Truck Mount

• Power Type: Pneumatic

• Pump Ratio: 75:1
• Pump Weight (lb): 37
