GG 289239
FINEX GUN, GRACO, 2, HVLP, 1.4

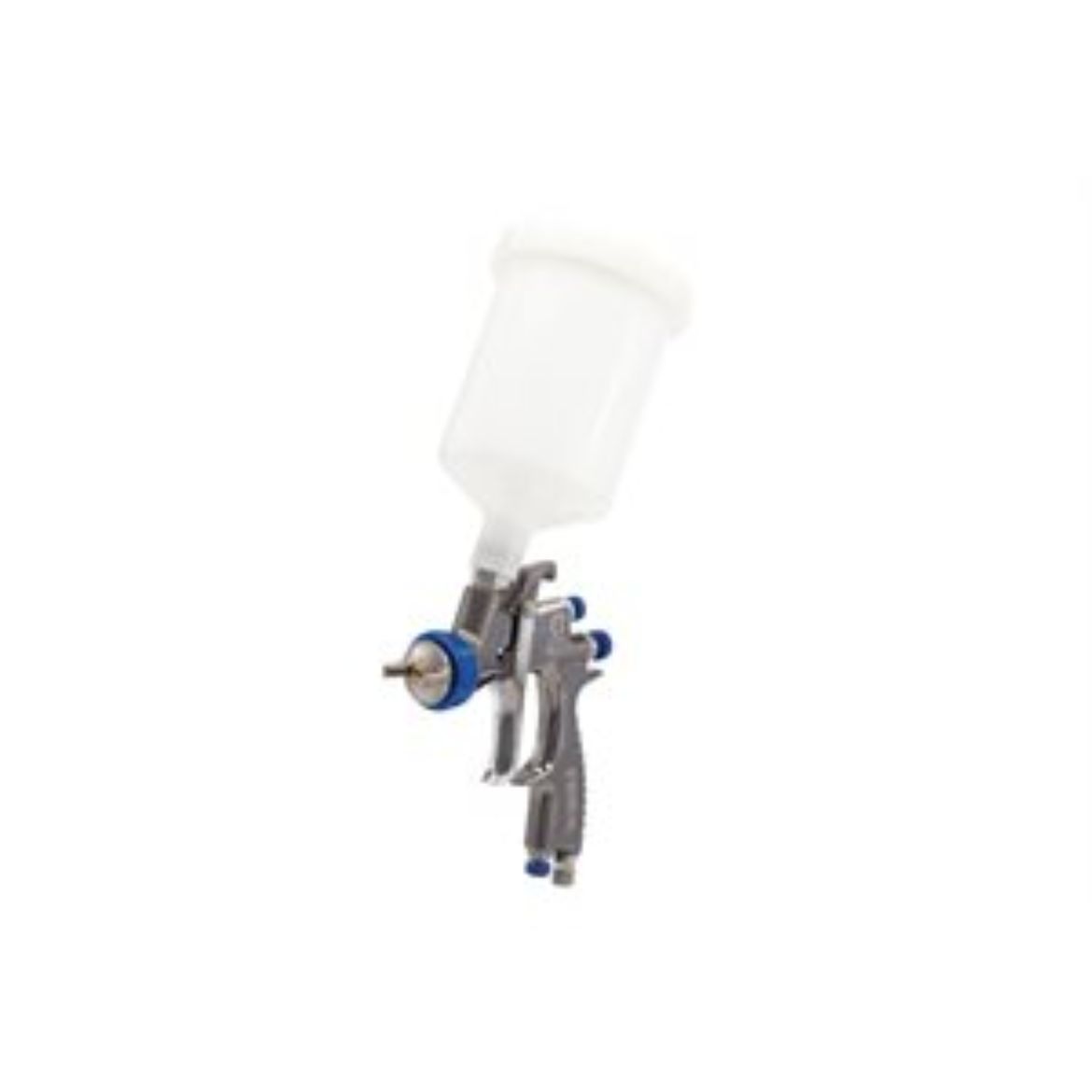

Graco 289239 Finex Air Spray Gravity Feed Gun, HVLP, 0.055 in (1.4 mm) needle/ nozzle size
Well-balanced and lightweight, the Finex gun design offers a more affordable way to spray. Available in either pressure feed or gravity feed guns options and HVLP or conventional technologies.
- Aircaps optimized for high quality spray performance
- Lightweight, ergonomic gun
- Lightest trigger pull in its category
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: NPSM
- Bleed Type: Non-Bleeder
- Body Material: Metal
- Compatible Material: Epoxies, High Solids, Latex, Plural Component Materials, Sealants, Solvent borne, Urethane, Waterborne
- Feed Type: Standard Gravity Feed
- Fluid Inlet Size (cm): 0.9525
- Fluid Inlet Size (in): 3/8
- Fluid Inlet Size (mm): 9.525
- Fluid Inlet Thread Type: NPSM
- Fluid Orifice Size (cm): 0.14
- Fluid Orifice Size (in): 0.055
- Fluid Orifice Size (mm): 1.4
- Gun Activation: Manual
- Gun Included: 1
- Gun Type: HVLP Gun
- Gun Weight (kg): 0.54
- Gun Weight (lb): 1.2
- Includes: Air Cap, Needle Assembly, Nozzle, Tool Kit, Cup
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kPa): 700
- Maximum Air Inlet Pressure (MPa): 0.7
- Maximum Air Inlet Pressure (psi): 100
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (kPa): 700
- Maximum Air Pressure (MPa): 0.7
- Maximum Air Pressure (psi): 100
- Maximum Fluid Pressure (bar): 7
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Temperature (°C): 43
- Maximum Fluid Temperature (°F): 109
- Maximum Fluid Pressure (bar): 7
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Temperature (°C): 43
- Maximum Fluid Temperature (°F): 109
