Finex Gun, Graco

GG 24J601

FINEX GUN, GRACO

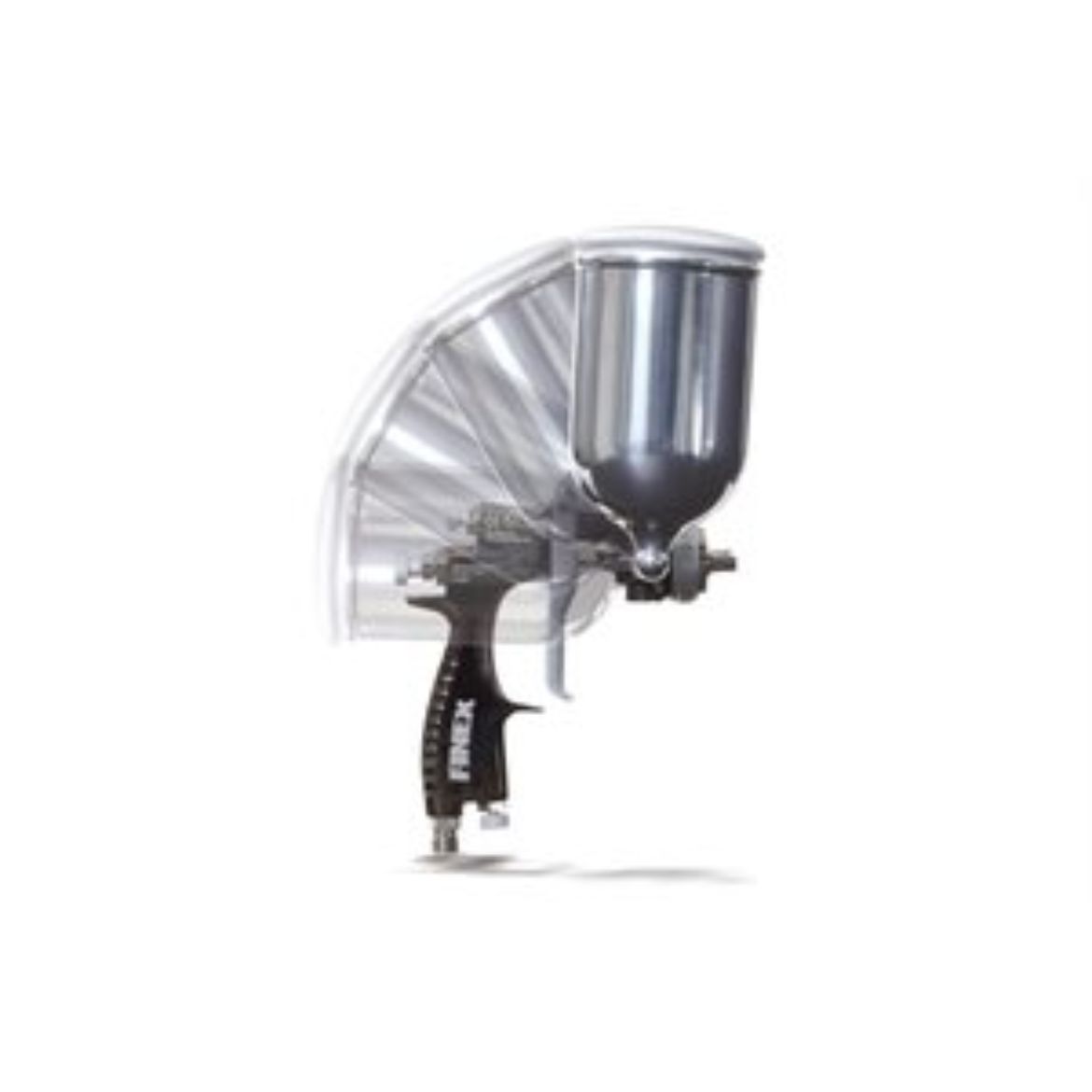

Graco 24J601 Finex Air Spray Gravity Feed Side Cup Gun, conventional, 0.039 in (1.0 mm) needle/ nozzle size

The Finex Side Cup Gun has a cup that swivels – ideal for end users spraying in tight spaces. Available in either HVLP or conventional technologies.

• Aluminum cup is included with the gun
• Cup swivels for spraying in small spaces
• Light trigger pull for operator comfort
• Integrated air inlet adjustment (cheater) valve

• Model: Finex

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPSM

• Applicator Type: Manual

• Bleed Type: Non-Bleeder
• Body Material: Metal

• Compatible Material: Epoxies, High Solids, Latex, Plural Component Materials, Sealants, Solvent borne, Urethane, Waterborne

• Feed Type: Side-Cup Gravity Feed

• Fluid Inlet Size (cm): 0.9525
• Fluid Inlet Size (in): 3/8
• Fluid Inlet Size (mm): 9.525
• Fluid Inlet Thread Type: NPSM
• Fluid Orifice Size (cm): 0.10
• Fluid Orifice Size (in): 0.039
• Fluid Orifice Size (mm): 1.0

• Gun Activation: Manual
• Gun Included: 1
• Gun Type: Conventional Gun
• Gun Weight (kg): 0.54
• Gun Weight (lb): 1.2

• Includes: Air Cap, Needle Assembly, Nozzle, Tool Kit, Cup

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (MPa): 0.7
• Maximum Air Inlet Pressure (psi): 100
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature (°C): 43
• Maximum Fluid Temperature (°F): 109

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature (°C): 43
• Maximum Fluid Temperature (°F): 109

• Product Type: Spray Gun
