GG 915516
FILTER, BAG

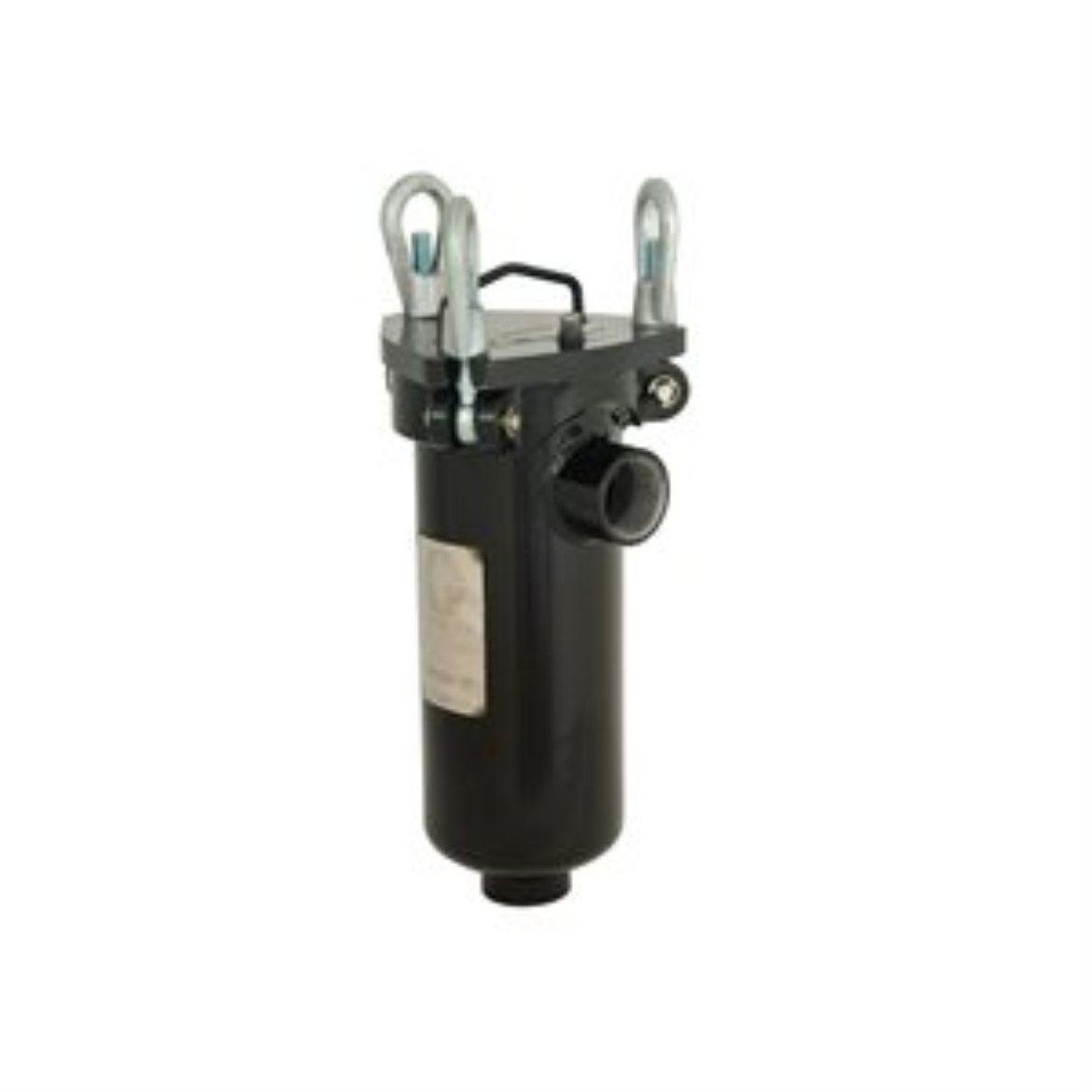

Graco 915516 Model 6 Bag Filter Housing, SST, 15 gpm (56.7 lpm), 300 psi (20.7 bar)
Model 6 bag filters can process large volumes of industrial paints and other industrial fluids. Standard filter assembly includes housing, cover, cover o-ring and unlined stainless steel basket. Order filters bags separately.
Application: Model 6 bag filters for high flow capacity
- Inlet Size (cm): 3.18
- Inlet Size (in): 1-1/4
- Inlet Size (mm): 31.75
- Material: Stainless Steel
- Maximum Flow Rate (GPM): 15
- Maximum Flow Rate (L/min): 57
- Maximum Working Pressure (bar): 35
- Maximum Working Pressure (kPa): 3500
- Maximum Working Pressure (MPa): 3.5
- Maximum Working Pressure (psi): 500
- Outlet Size (cm): 3.18
- Outlet Size (in): 1-1/4
- Outlet Size (mm): 31.75
- Outlet Thread Type: NPT
