Bag Filter Housing, Model 12, CS, 30 GPM, 500 PSI

GG 915518

FILTER, BAG

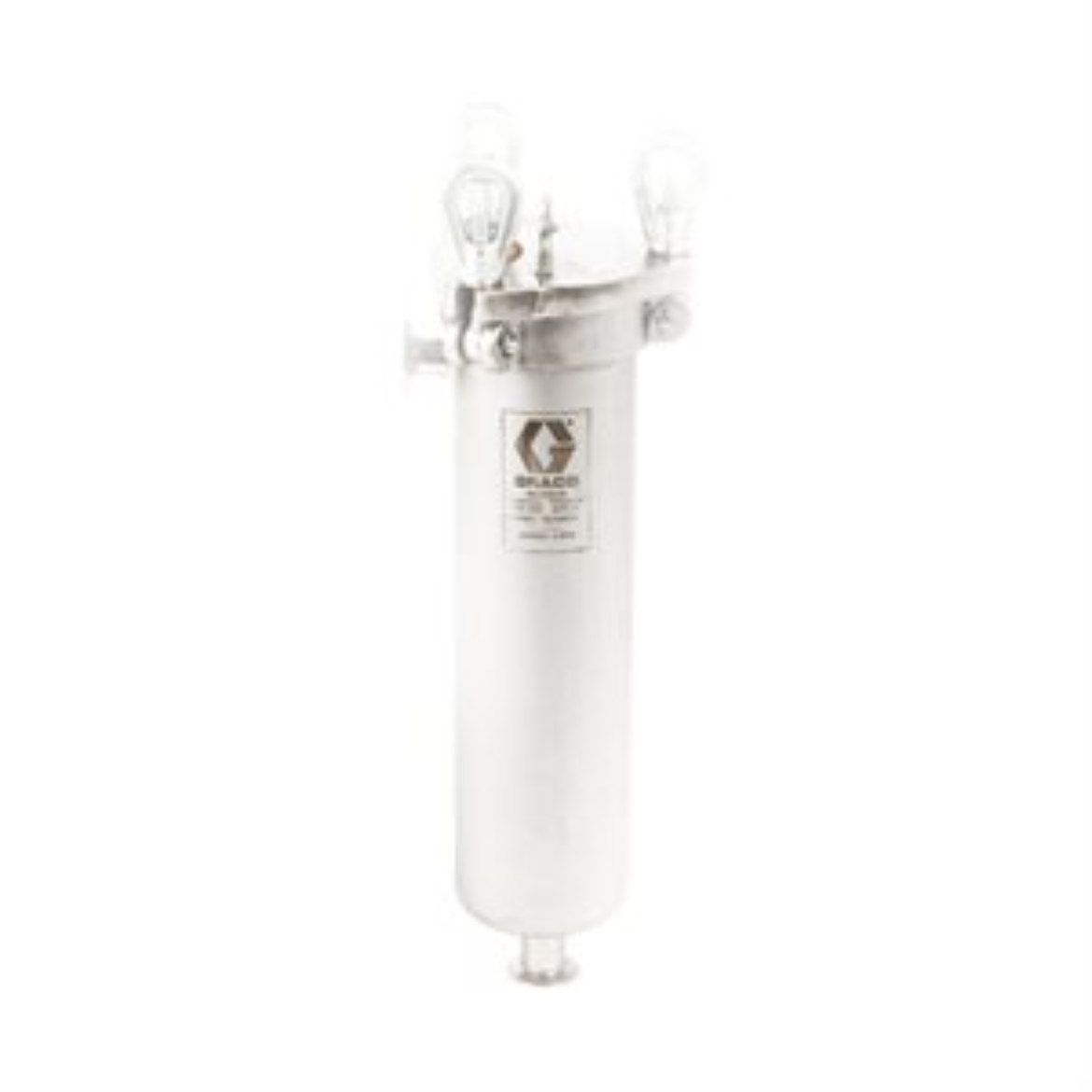

Graco 915518 Model 12 Bag Filter Housing, CS, 30 gpm (113.4 lpm), 500 psi (21 bar)

Model 12 bag filters can process large volumes of industrial paints and other industrial fluids. Standard filter assembly includes housing, cover, cover o-ring and unlined stainless steel basket. Order filters bags separately.

• Inlet Size (cm): 3.81
• Inlet Size (in): 1-1/2
• Inlet Size (mm): 38.1

• Inlet Thread Type: NPT

• Material: Stainless Steel

• Maximum Flow Rate (GPM): 15
• Maximum Flow Rate (L/min): 57

• Maximum Working Pressure (bar): 35
• Maximum Working Pressure (kPa): 3500
• Maximum Working Pressure (MPa): 3.5
• Maximum Working Pressure (psi): 500

• Outlet Size (cm): 3.81
• Outlet Size (in): 1-1/2
• Outlet Size (mm): 38.1
• Outlet Thread Type: NPT
