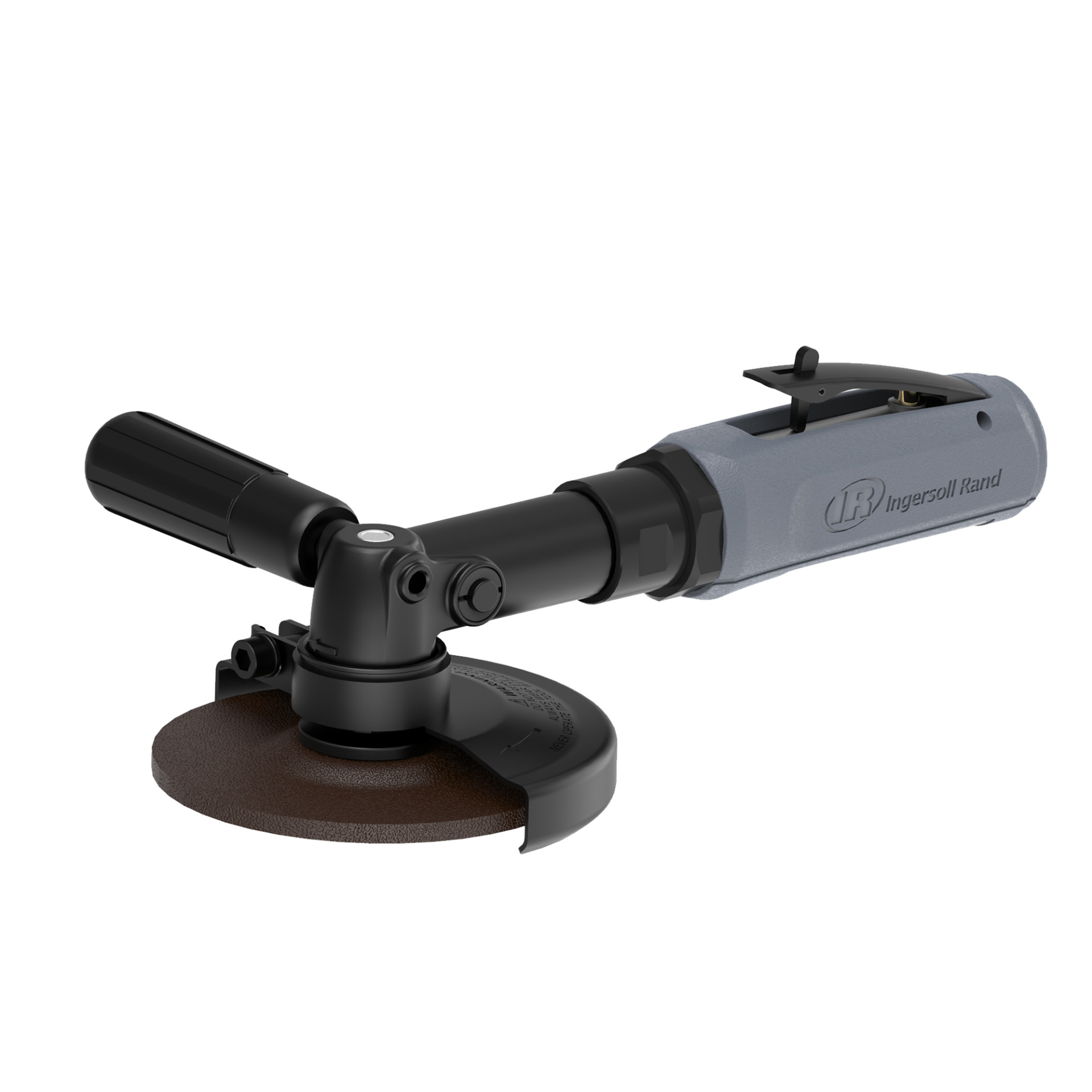

IR 445
Extended Air Angle Grinder, 5" Type 27 Wheel, 12,000 RPM, 0.9 HP, 5/8"-11 Thread, Rear Exhaust
Don’t let grinding in tight spaces slow you down. The 440 Series Air Extended Angle Grinders from Ingersoll Rand® deliver dependable performance featuring a powerful 0.9 hp motor that maximizes material removal and reduces job completion time in hard-to-reach areas. At under 4lbs, its lightweight construction, slim grip, and low-profile lever throttle make it an ideal tool for all day use without operator fatigue. An adjustable guard allows for orientation changes in seconds and spindle lock enables quick abrasive changeovers with a single wrench. The 440 Series Air Extended Angle Grinders are offered in three guard sizes from 4” to 5”. For reliable grinding in hard-to-reach areas, keep your operation running with the 440 Series Extended Angle Grinders.
Features And Benefits
- Powerful 0.9 hp 12,000 rpm motor maximizes material removal, reducing job completion time in hard-to-reach areas.
- Extended angle head with reduced height over spindle provides superior accessibility in confined spaces.
- Adjustable guard allows for orientation changes in seconds and spindle lock enables quick abrasive changeovers with a single wrench.
- At under 4lbs, its lightweight construction, slim grip, and low-profile lever throttle make it an ideal tool for all day use without operator fatigue.
- Left or right auxiliary handle position for operator preference.
Includes: Tool, 1 Wrench, Safety Manual, Auxiliary Handle
Product Application and Uses: Designed for material removal using a rotated abrasive wheel for general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, construction, aerospace, and metal fabrication.
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 32
Air Consumption @ Free Speed (l/min): 906
Air Consumption @ Load (cfm): 27.5
Air Consumption @ Load (l/min): 779
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/8"-11 Thread
Average Air Consumption (cfm): 27.5
Average Air Consumption (l/min): 779
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Right Angle
Configuration/Handle Type: Auxiliary Handle
Duty Rating: Standard Duty
Exhaust Location: Rear
Grinder Type: Angle Grinder
Gripping Length (in): 4.8
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 3.43
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 10.56
Product Height (in): 3.2
Product Weight (lb): 3.7
Rated Power (hp): 0.9
Rated Power (kW): 0.67
Side to Center Distance (in): 0.98
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): 89/100
Special Features: Adjustable guard, spindle lock, extended angle head
Speed Setting: Variable Speed
Standards/Certifications: CE, UKCA
Vibration Level (m/s2): 5.87
Vibration Uncertainy K* (m/s2): 1.38
Warranty: 1-year
Wheel Diameter (in): 5
Wheel Thickness (in): 1/4
Wheel Type: Type 27
