GG 24R809
EXACTABLEND AGP SYSTEM, 100CC/100CC, BOOM

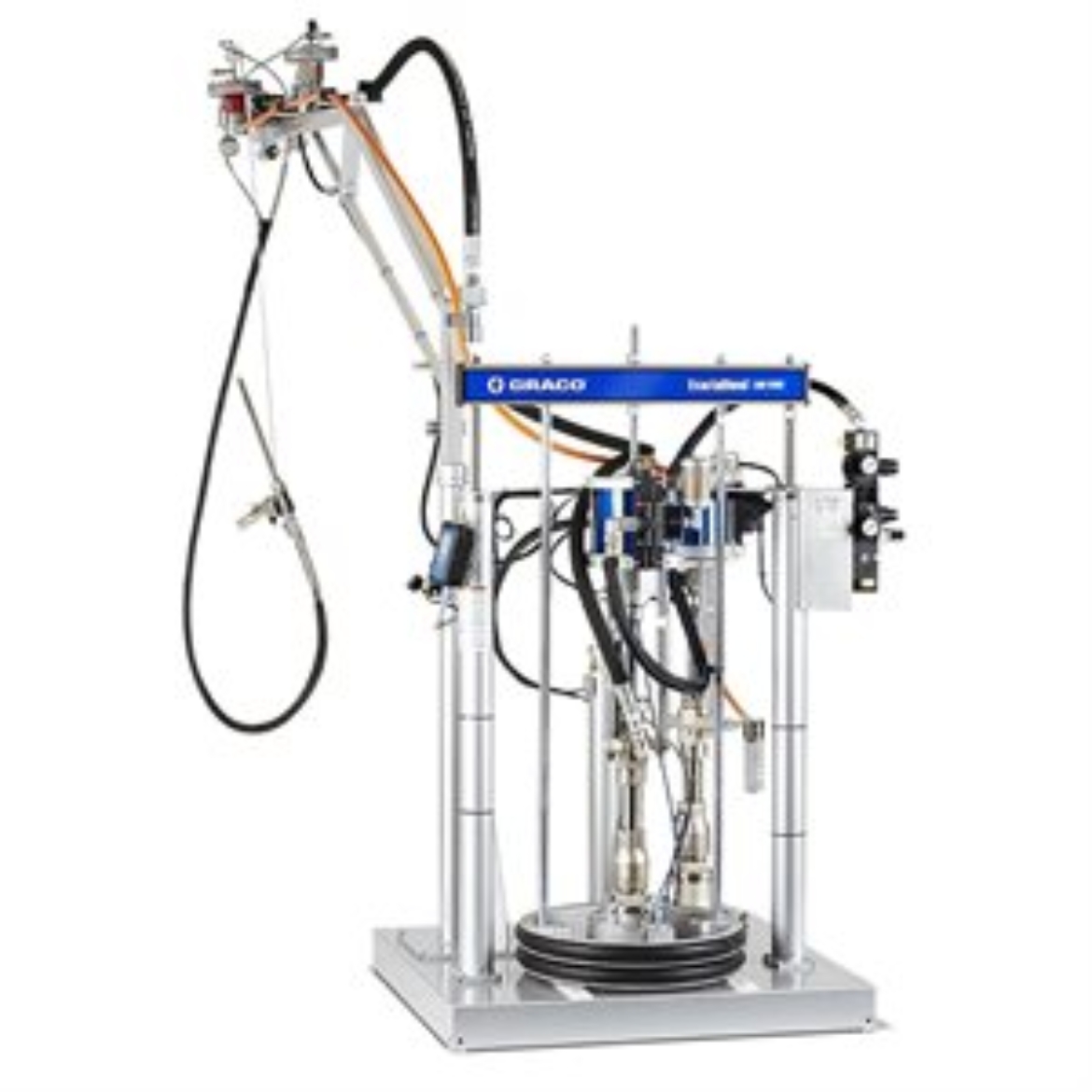

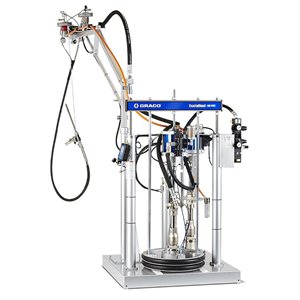

Graco 24R809 55/5 gal (200/19 L) AGP-S100 Silicone Machine with Boom
The Graco ExactaBlend AGP (Advanced Glazing Proportioner) provides on-ratio dispensing of two-component sealants and adhesives for curtainwall, insulating glass and other applications. The variable ratio ExactaBlend AGP offers advanced technologies at an affordable price.
Application: Precise application of silicone materials in insulating glass or structural glazing applications is critical for delivering superior adhesion, durability and leak-free performance.
Advanced pumping technology creates a better, more consistent bead – which results in reduced rework and less wasted material.
- Real-time ratio assurance means less waste, more profits
Provides automatic shut-down if off-ratio conditions occur
Cuts material waste and reduces rework for a healthier bottom line
- Optimal mix for quality assurance
Ultimately reduces the chance of seal failure on insulating glass
Results in better quality end product
- Easy to operate
Quick and easy setup – operator simply enters the ratio setting
Easy to switch ratio settings
- Optional data download provides reports on ratio, flow rate and material usage
A & B material usage
Flow rate
Alarm events
Ratio
- Model: Exactablend
- Series: AGP
- Catalyst Inlet Size (in): 1/4
- Catalyst Inlet Thread Gender: Female
- Catalyst Inlet Thread Type: NPT
- Maximum Working Pressure (bar): 207
- Maximum Working Pressure (kPa): 20700
- Maximum Working Pressure (MPa): 21
- Maximum Working Pressure (psi): 3000
- Minimum Flow Rate (kg/min): 1
- Minimum Flow Rate (lb/min): 2.21
