GG 25T820
EGP TRANSFER PUMP, 115V, 4.25GPM

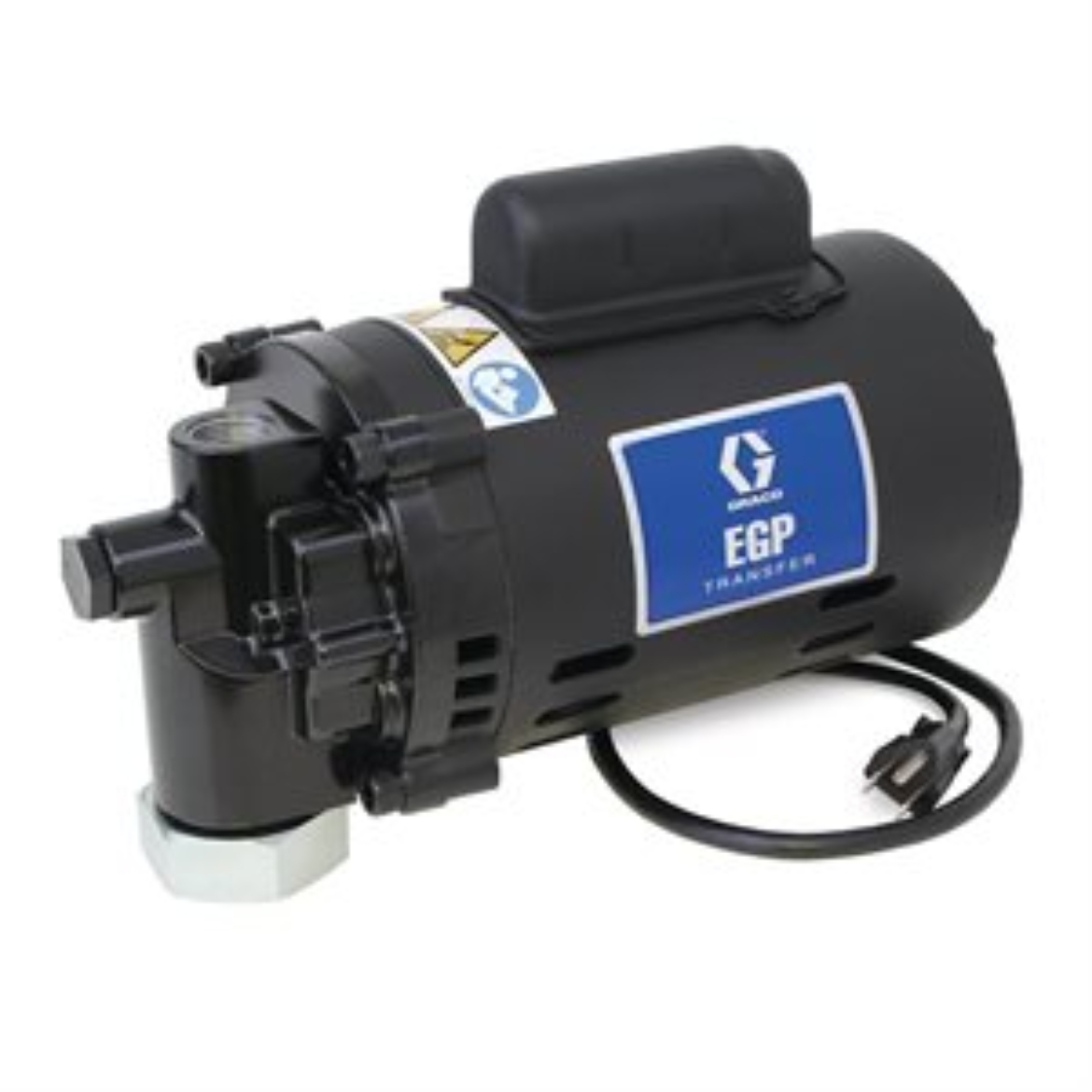

Graco 25T820 EGP™ Transfer Pump and Dispense Package, 115 VAC, 3.9 gpm (14.8 lpm), 65 psi (4.5 bar)
Choose cost-saving convenience with the all-new Graco EGP electric pumps. Attach the EGP transfer pump directly to roll-around barrels for more mobility in more places. These pumps offer the same powerful, high-quality performance you’ve come to expect from Graco — only for less operating cost and more convenience.
Application: Use the EGP Transfer Pump in locations where compressed air is unavailable or too cumbersome for shortdistance fluid transfer.
- Electrical Flexibility - Available in 12 VDC and 115 VAC power options.
- Smooth Fluid Flow 8 gpm (30 lpm) - Output flow is continuous and non-pulsating up to 8 gpm (30 lpm).
- Heavy-Duty Motor with Long Life - Industrial-grade electric motors with over-temperature protection on 115 VAC models.
- Pump Protection - Includes inlet strainer to keep larger debris out of pump housing and extend pump life.
- Plug and Play - Self-priming, precision-machined pump design.
- Compatible Material: Oil, Hydraulic Fluid, Antifreeze
- Fluid Pressure Control Type: Internal Bypass
- Inlet Thread Gender: Female
- Inlet Thread Size (in): 1
- Inlet Thread Type: NPT
- Maximum Flow Rate (GPM): 4
- Maximum Flow Rate (L/min): 15.1
- Maximum Speed (RPM): 1700
- Maximum Working Pressure (bar): 4.5
- Maximum Working Pressure (MPa): 0.5
- Maximum Working Pressure (psi): 65
- Outlet Thread Gender: Female
- Outlet Thread Size: 0.75
- Overall Depth (in): 12.5
- Overall Depth (mm): 317.5
- Overall Height (in): 8
- Overall Height (mm): 203.2
- Overall Width (in): 6.75
- Overall Width (mm): 171.4
- Power Rating (HP): 0.5
- Power Type: Electric
