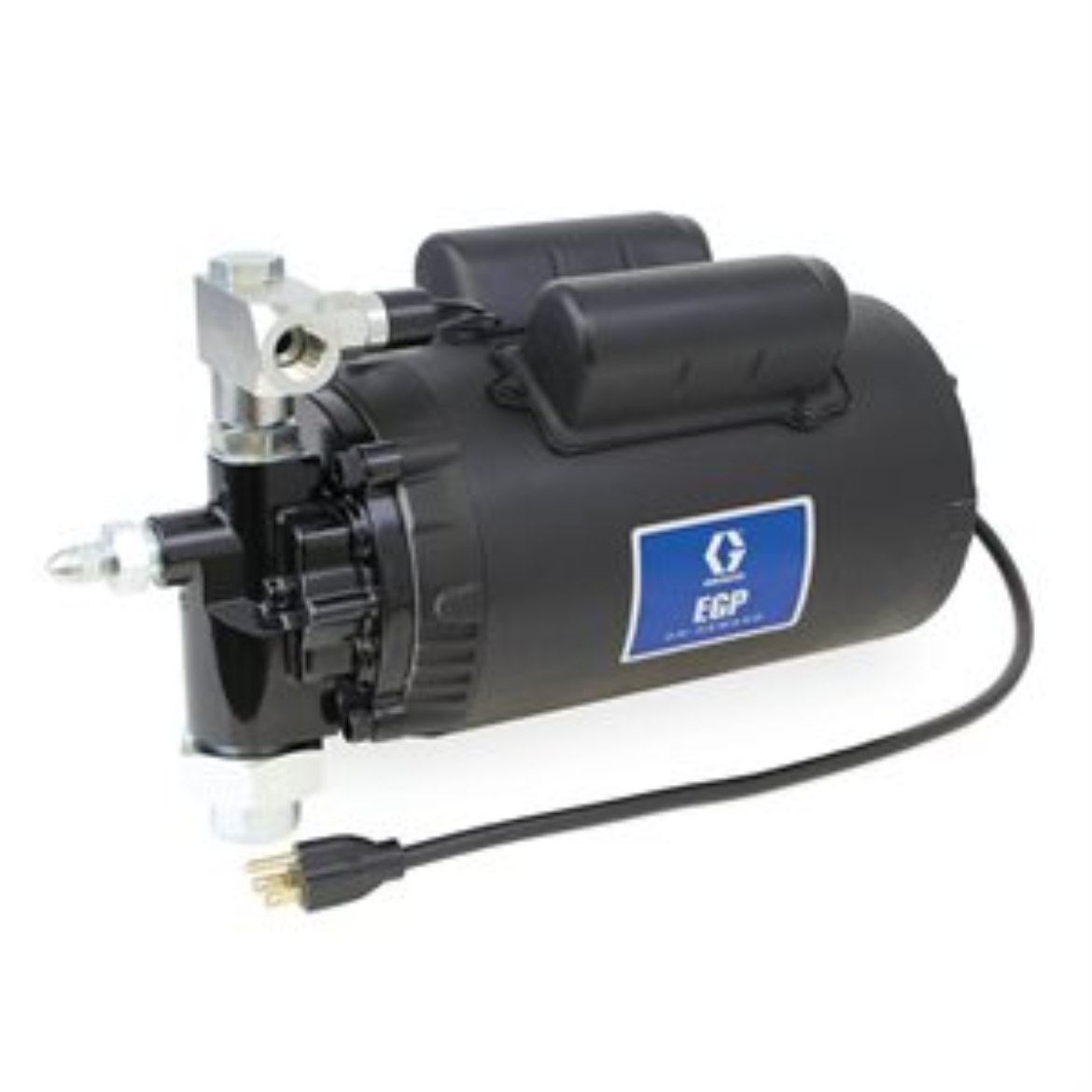

GG 25T817
EGP ON DEMAND PUMP, 115V, 4GPM
Graco 25T817 EGP On-Demand Pump, 115 VAC, 3.7 gpm (14.0 lpm), 500 psi (34.5 bar)
Choose cost-saving convenience with the all-new Graco EGP electric pumps. Install the EGP on-demand pump to replace traditional pneumatic pumps and reduce operating costs. These pumps offer the same powerful, high-quality performance you've come to expect from Graco - only for less operating cost and more convenience.
Application: Install the EGP On-Demand Pump in a variety of applications including workshops, mobile trucks and industrial plants. Use it as an energy-efficient option to standard pneumatic pumps.
- Electrical Flexibility - Available in 12 VDC and 115 VAC power options.
- Smooth Fluid Flow 4 gpm (15 lpm) - Output flow is continuous and non-pulsating up to 4 gpm (15 lpm).
- Heavy-Duty Motor with Long Life - Industrial-grade electric motors with over-temperature protection on 115 VAC models.
- Pump Reliability - Internal inlet and outlet checks keep pump section flooded to maintain prime for reliable performance.
- Simultaneous Dispenses - Pump long distances and supply fluid to multiple dispense points.
- Fluid Pressure Control Type: Internal Bypass, Electrical Pressure Shut Off Switch
- Inlet Thread Gender: Female
- Inlet Thread Size (in): 0.75
- Inlet Thread Type: NPT
- Maximum Current (A): 14.4
- Maximum Flow Rate (GPM): 4
- Maximum Flow Rate (L/min): 15.1
- Maximum Speed (RPM): 1750
- Maximum Working Pressure (bar): 34.5
- Maximum Working Pressure (psi): 500
- Outlet Thread Gender: Female
- Outlet Thread Size (in): 0.5
- Outlet Thread Type: NPT
- Overall Depth (in): 12.5
- Overall Depth (mm): 317.5
- Overall Height (in): 8
- Overall Height (mm): 203.2
- Overall Width (in): 6.75
- Overall Width (mm): 171.4
- Power Rating (HP): 1.5
- Power Type: Electric
