GG 17P481
EDGE II GUN, HVLP, PACKAGED

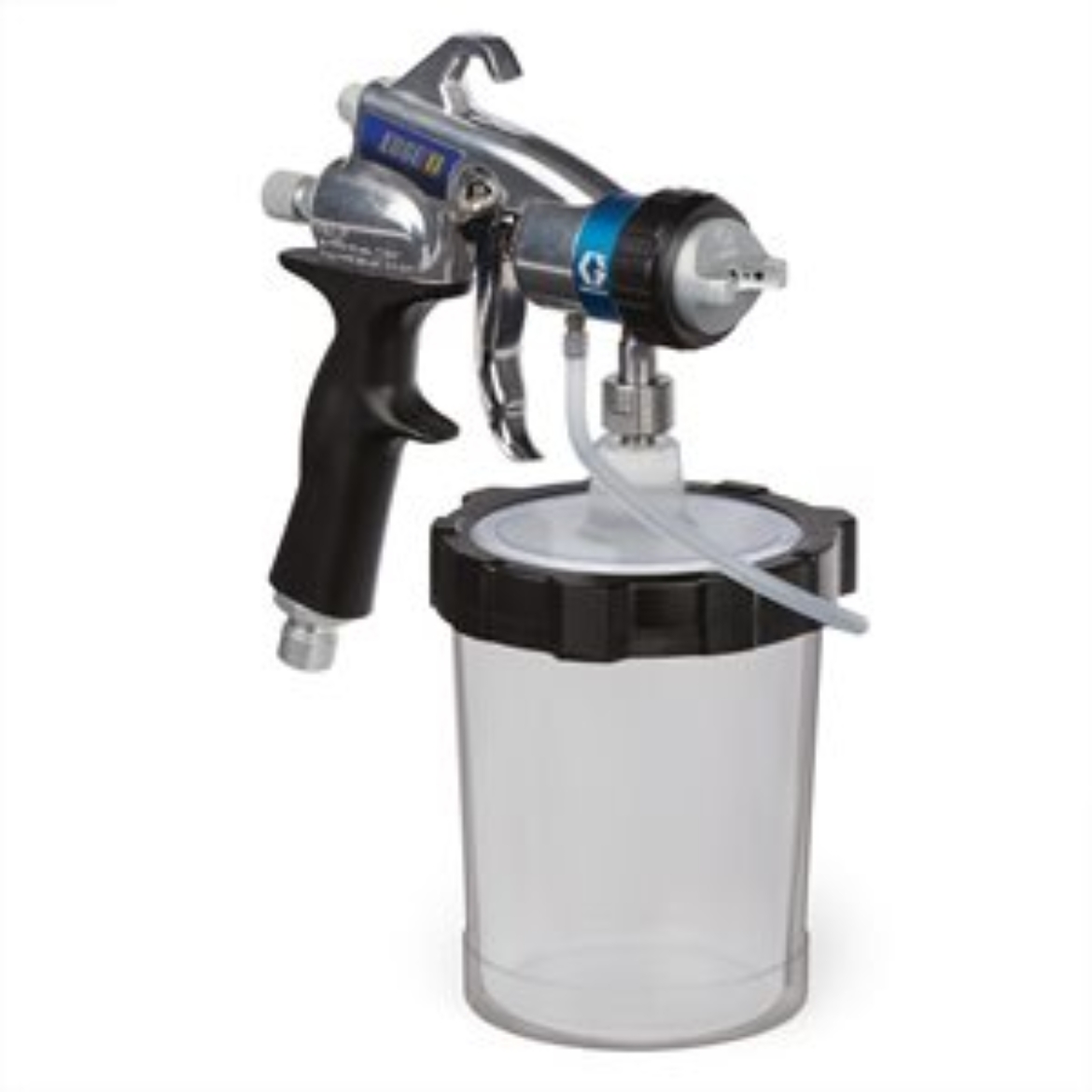

Graco 17P481 EDGE II Gun with FlexLiner System
Maximize your spraying performance with the innovative HVLP EDGE II Gun. Cutting edge technology such as intuitive gun controls, Quick Release fluid set, and optimized air pressure and airflow will help you achieve the highest quality finish available in fine finish spraying.
- Integrated Flow Control
Combines material and air flow into one simple control
Optimized to spray the majority of fine finish applications
Quick adjustment with 360 degree rotation and indicator for repeatable spray setting
- Adjustable Air Cap
3-position rotation to change spray pattern
Conveniently located at the front of the gun
Allows more air pressure into the material cup to spray heavier material
Easily clean and reuse versus replace
Located by gun to reduce clogged valves due to paint contamination
- EasyGlide 2-Finger Trigger and Ergonomic Handle
Trigger has up to 75% lighter pull than competition
2-finger trigger design gives more control while spraying
Form-fitted handle stays cool to the touch for extended use
- Model: HVLP
- Series: EDGE II
- Compatible Material: Varnish, Enamel, Latex, Stains
- For Use With: FinishPro HVLP Sprayers
- Gun Activation: Manual
- Gun Type: HVLP Gun
- Gun Weight (oz): 20
- Includes: 1 qt FlexLiner Cup, #3 Quick Release Fluid Set
- Maximum Air Inlet Pressure (bar): 0.7
- Maximum Air Inlet Pressure (kPa): 70
- Maximum Air Inlet Pressure (MPa): 0.07
- Maximum Air Inlet Pressure (psi): 10
- Maximum Air Pressure (bar): 0.7
- Maximum Air Pressure (kPa): 70
- Maximum Air Pressure (MPa): 0.07
- Maximum Air Pressure (psi): 10
- Maximum Fluid Pressure (bar): 3.5
- Maximum Fluid Pressure (kPa): 350
- Maximum Fluid Pressure (MPa): 0.35
- Maximum Fluid Pressure (psi): 50
- Maximum Fluid Pressure (bar): 3.5
- Maximum Fluid Pressure (kPa): 350
- Maximum Fluid Pressure (MPa): 0.35
- Maximum Fluid Pressure (psi): 50
