EDGE II GUN, HVLP, CUP, PKGD

Manufacturer: GRACO INC. S10595

GG 17P653

EDGE II GUN, HVLP, CUP, PKGD

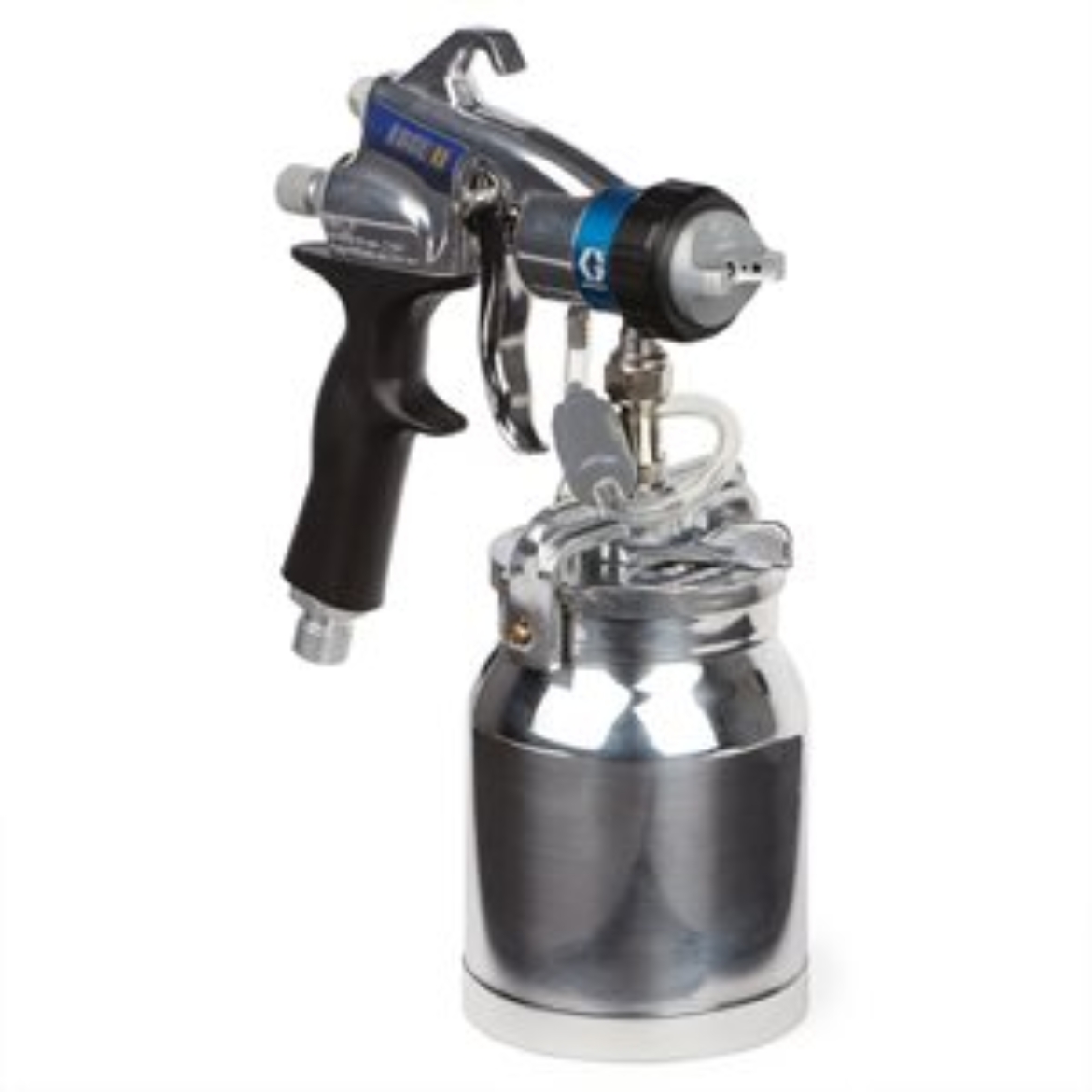

Graco 17P653 EDGE II Gun with Metal Cup

Maximize your spraying performance with the innovative HVLP EDGE II Gun. Cutting edge technology such as intuitive gun controls, Quick Release fluid set, and optimized air pressure and airflow will help you achieve the highest quality finish available in fine finish spraying.

  • Integrated Flow Control

    Combines material and air flow into one simple control

    Optimized to spray the majority of fine finish applications

    Quick adjustment with 360° rotation and indicator for repeatable spray setting

  • Adjustable Air Cap

    3-position rotation to change spray pattern

    Conveniently located at the front of the gun

  • Exclusive Quick Clean Check Valve

    Allows more air pressure into the material cup to spray heavier material

    Easily clean and reuse versus replace

    Located by gun to reduce clogged valves due to paint contamination

  • Quick Release Needle Design

    Change out needles from the front of the gun with just a click

    Easy to change, easy to clean with no tools needed

    Remove front air cap and nozzle

    Slide trigger lever to release needle

    Pull needle out


  • Model: HVLP
  • Series: EDGE II
  • Compatible Material: Varnish, Enamel, Latex, Stains
  • For Use With: FinishPro HVLP Sprayers
  • Gun Activation: Manual
  • Gun Type: HVLP Gun
  • Gun Weight (oz): 20
  • Includes: 1 qt (0.95 L) Metal Cup, #3 Quick Release Fluid Set
  • Maximum Air Inlet Pressure (bar): 0.7
  • Maximum Air Inlet Pressure (kPa): 70
  • Maximum Air Inlet Pressure (MPa): 0.07
  • Maximum Air Inlet Pressure (psi): 13
  • Maximum Air Pressure (bar): 0.7
  • Maximum Air Pressure (kPa): 70
  • Maximum Air Pressure (MPa): 0.07
  • Maximum Air Pressure (psi): 10
  • Maximum Fluid Pressure (bar): 3.5
  • Maximum Fluid Pressure (kPa): 350
  • Maximum Fluid Pressure (MPa): 0.35
  • Maximum Fluid Pressure (psi): 50
  • Maximum Fluid Pressure (bar): 3.5
  • Maximum Fluid Pressure (kPa): 350
  • Maximum Fluid Pressure (MPa): 0.35
  • Maximum Fluid Pressure (psi): 50
SKU: GG 17P653
Availability:
Price: $675.00
