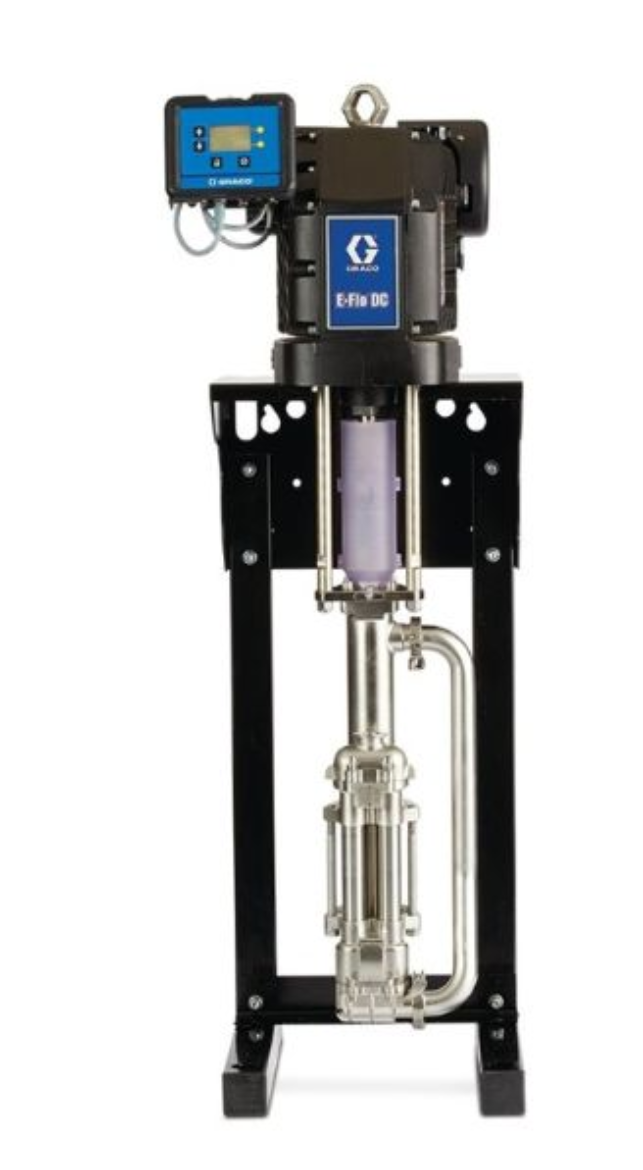

E-Flo DC 4-Ball Electirc Circulation Pump, 2000cc,2 HP, Advanced, Tri Clamp Stand

GG EC4441

E-FLO PUMP, 2HP, 2000, ADV, TRI, SLD, STND

Graco EC4441 E-Flo DC 4-Ball Electric Circulation Pump, 2000cc, 2 HP, Advanced, ATEX/FM/IECEx, Sealed, Ultralife Rod/Cylinder, Tri-Clamp, Stand

E-Flo DC (Dual Control) electric pumps are up to five times more efficient than pneumatic pumps, lowering energy bills and saving money. Unique 4-ball lower minimizes pulsation while increasing flow rates. Advanced control module improves performance with Intelligent Paint Kitchen (IPK) compatibility.

• Sealed lower has longer maintenance cycles, plus it can be used for every pumping application in your mix room, including catalyzed coatings
• Minimal pulsation at changeover provides a more consistent finish
• Electric motor eliminates icing – giving you smoother pump operation and better finished product

• Model: E-Flo
• Series: DC 4-Ball

• Application: Circulation

• Compatible Material: Solventborne, High Solids, Xirallic, Metallics, Varnish, CARC

• Fluid Inlet Size (in): 1-1/2
• Fluid Inlet Size (mm): 38.1

• Fluid Outlet Size (in): 1-1/2
• Fluid Outlet Size (mm): 38.1
• Fluid Section Type: Sealed

• Includes: Advanced Control Input, Stand

• Input Voltage (V ac): 250

• Material: Stainless Steel

• Maximum Continuous Cycle Rate (CPM): 20

• Maximum Flow Rate (GPM): 10.5
• Maximum Flow Rate (L/min): 39.75

• Maximum Input Amperage (A): 20

• Maximum Operating Temperature (°C): 40
• Maximum Operating Temperature (°F): 104

• Maximum Working Pressure (bar): 15.2
• Maximum Working Pressure (kPa): 1520
• Maximum Working Pressure (MPa): 1.5
• Maximum Working Pressure (psi): 220

• Minimum Operating Temperature (°C): 0
• Minimum Operating Temperature (°F): 32

• Motor Type: AC

• Portable: Non-Portable

• Power Rating (HP): 2
