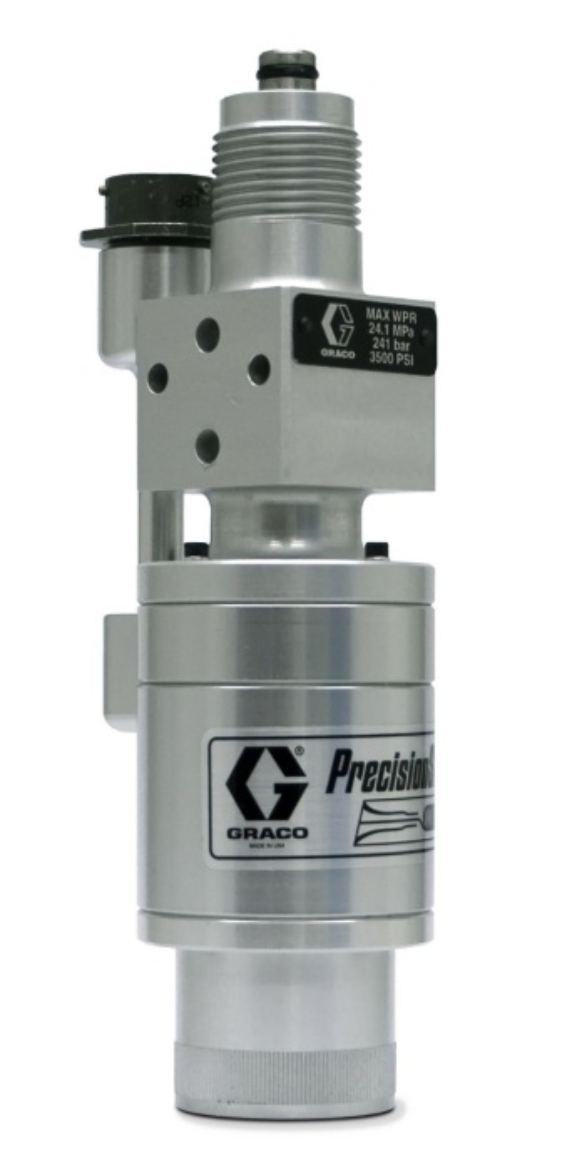

GG 243403
DISPENSER, ORBITAL TOOL MOUNT
Standard PrecisionSwirl Orbital Dispenser, 0.028 in (0.7 mm) Coupler Offset for Larger Bead Widths Typical for Seam Sealing Applications
PrecisionSwirl features adjustable rotational speed, stand-off distance and flow rate for greater control and for better penetration on irregular shaped parts. It is compatible with most sealants including expandable sealers, heat cure epoxy and PVC plastisol.
PrecisionSwirl produces no air turbulence so the bead profile is consistent over the bead length, reducing squeeze-out, repair and scrap. The applicator produces a wide variety of pattern widths, material thicknesses and patterns.
Applies a uniform swirl pattern in robotic applications
Delivers open bead or closed continuous bead patterns
Provides circular loop swirl bead pattern
Swirl pattern has uniform bead profile and consistent edges
Increased tip standoff simplifies robot programming
Swirl pattern can be varied along the bead path
Swirl orbital applicator has no dynamic seals
