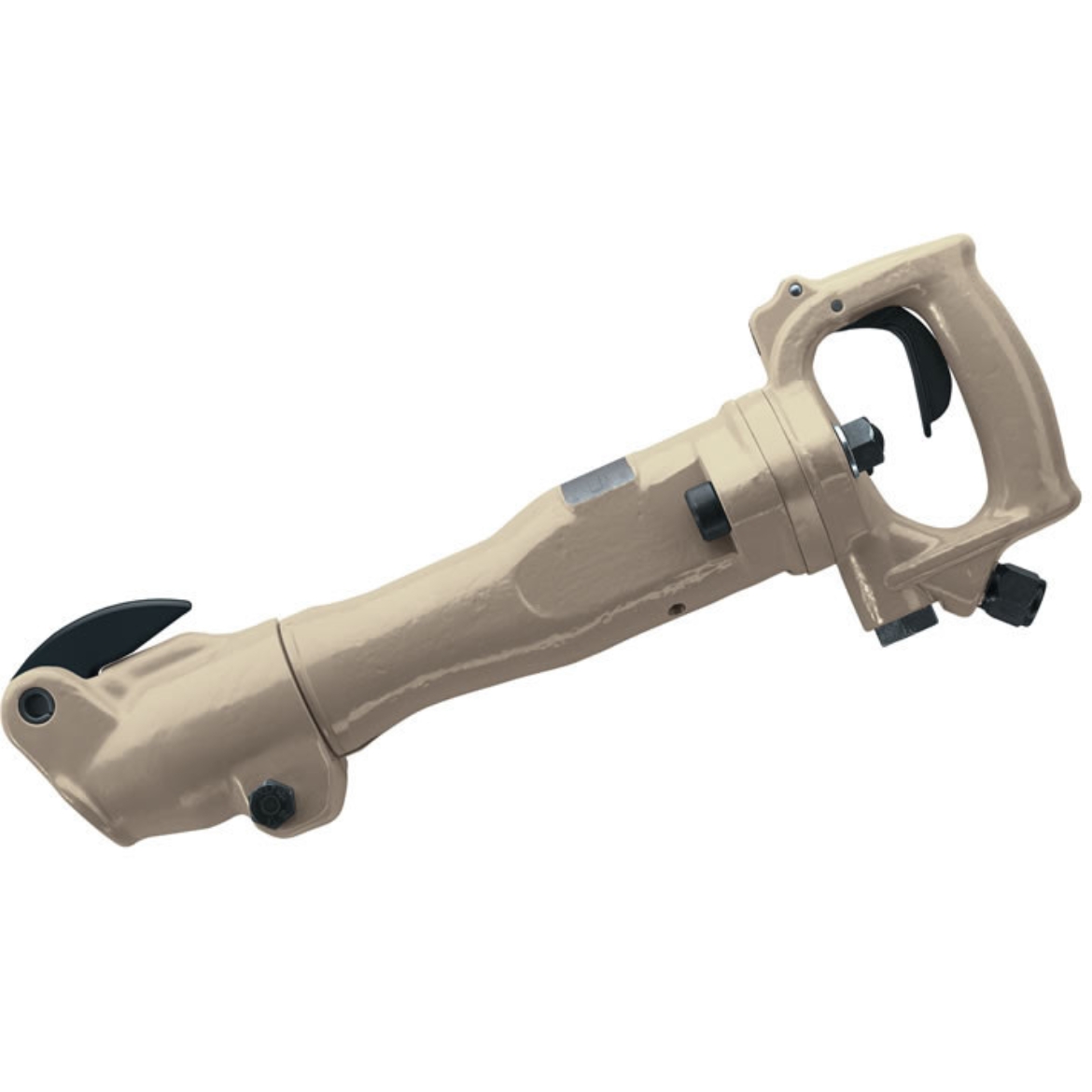

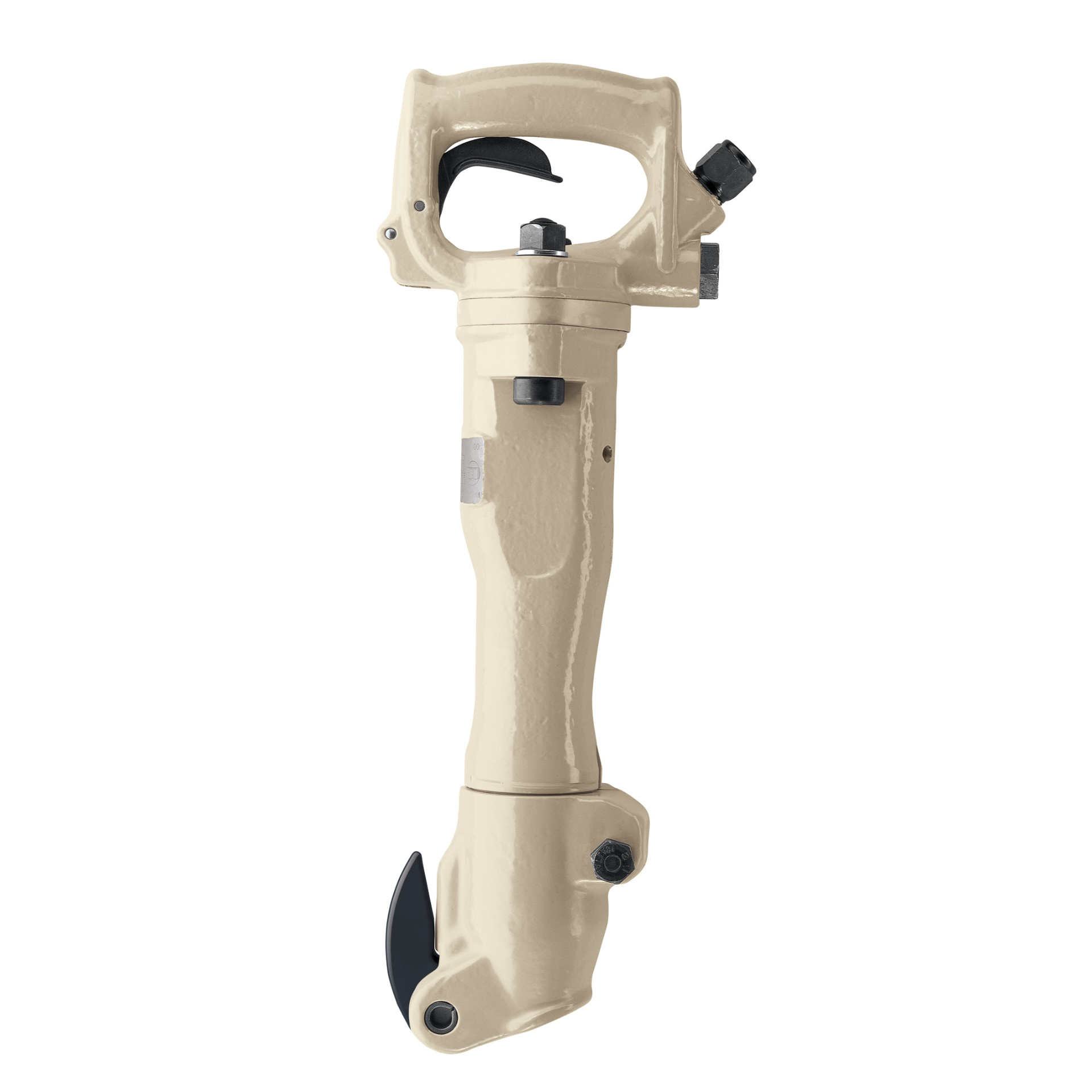

Digger 93La1

IR 93LA1

Digger, 7/8 x 3-1/4" Hex Shank, 2350 BPM, 2.5" Stroke Length, 1.69" Bore

Description: Ideal for digging clay, frozen ground, horizontal concrete demolition, tunneling, and bridgework, the 93 Series diggers can tackle almost anything. With a short, powerful 2.5 inch piston stroke and multiple configurations available, you can remove material quickly and easily.

Features And Benefits:

• Access: The 93 Series features a tease throttle for maximum precision, coupled with a D-shape handle to allow access to tighter spaces.
• Durability: With a rubber buffer retainer to absorb shock and protect the tool, the 93 Series diggers will last for years.
• Reliability: The side exhaust and steel cone increase user safety and productivity for better use every time.
• Weight: Built with premium materials, the 93 Series diggers are lightweight and easy to use.

Product Application and Uses:

Ideal for digging clay, frozen ground, horizontal concrete demolition, tunneling, and bridgework

• Actuation/Throttle Type/Switch Type: Inside Trigger
• Air Consumption @ Load (cfm): 45
• Air Consumption @ Load (l/min): 12.74
• Air Inlet: 3/8" NPT
• Air Pressure (psi): 90

• Blows per Min: 2350
• Bore Diameter (in): 1.69

• Collar Type: Round
• Color: Beige
• Configuration/Handle Type: D-Handle
• Duty Rating: Industrial Duty

• Exhaust Location: Side

• Housing Material: Aluminum

• Max Pressure (bar): 6.2
• Min Hose Size (in): 1/2

• Power Source: Air Powered
• Product Length (in): 18.88

• Product Weight (lb): 23
• Retainer Type: Latch

• Shank SIze (in): 7/8 x 3-1/4
• Shank Type: Hex

• Stroke Length (in): 2.5

• Vibration Level (m/s2): 28 / 8.0
• Warranty: 1-year

• Accessories: 22040778
• Accessories: 22040935
• Accessories: 45510542
• Accessories: 45510559
• Accessories: 45510583
• Accessories: 45510682
• Accessories: 45510690
• Accessories: 45510708
• Accessories: 45510716
• Accessories: 45512621
• Accessories: 45512639
• Accessories: 45512647
• Accessories: 50050269
• Accessories: 50050285
• Accessories: 50189596
• Accessories: 50195288
• Accessories: 50195296
• Accessories: 50199207
• Accessories: 50199215
• Accessories: 51305860
