Diaphragm Pump,515P-Pp01Ap4Ppfkptpt-Fk

GG 24G745

DIAPHRAGM PUMP, 515P-PP01AP4PPFKPTPT-FK

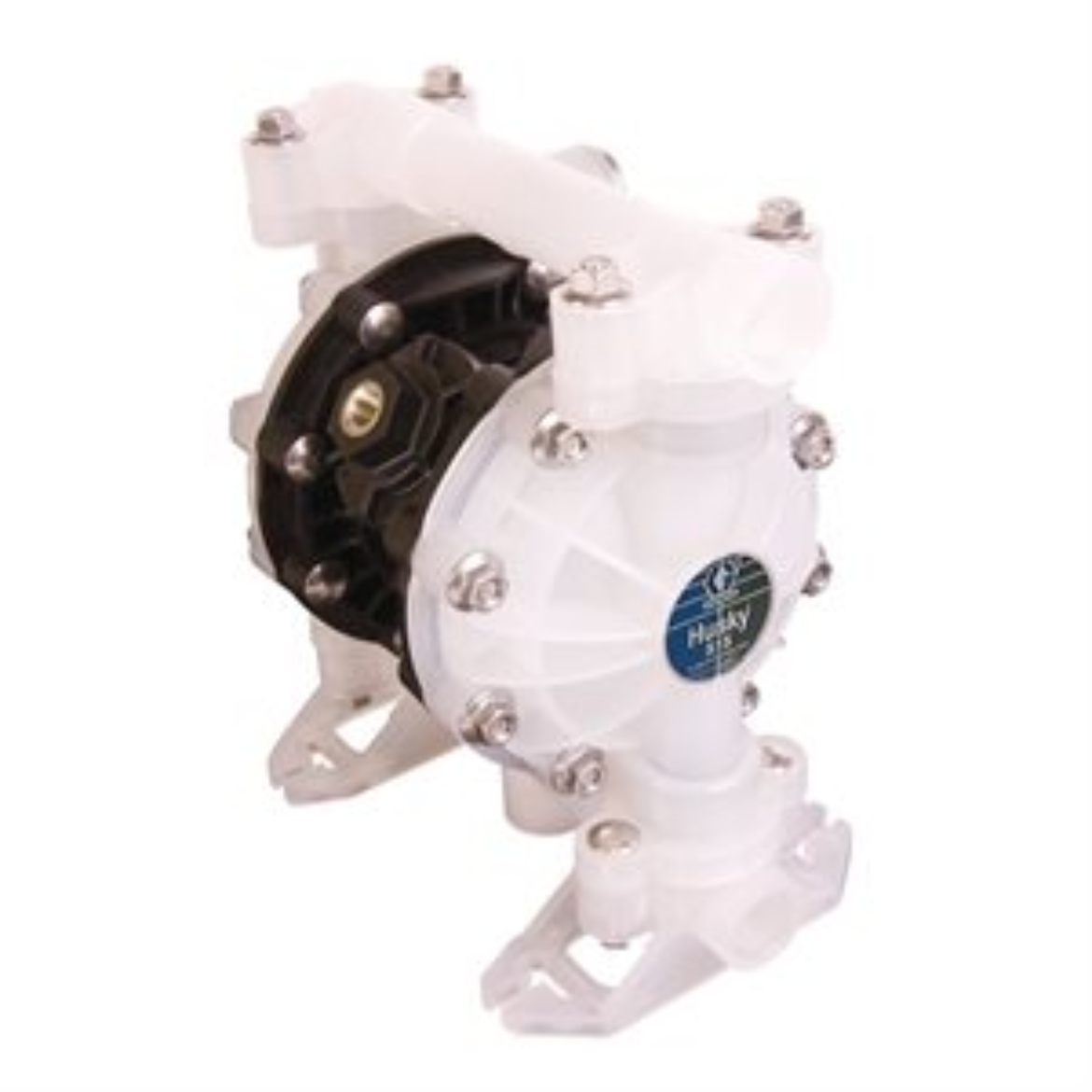

Graco 24G745 SD Blue Husky 515 Series Pump - 3/4 in. BSPP

The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.

• Center and end porting options.
• No mechanical seals to cause fluid leaks or failures
• Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
• Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
• Split manifold option to pump multiple fluids without mixing
• Delivery up to 15 gpm (56.7 lpm)
• Easy-to-service air valve and ball checks
• Reliable air valve for years of dependable performance

• Model: SD

• Air Exhaust Port Size (in): 3/8
• Air Exhaust Port Thread Gender: Female
• Air Exhaust Port Thread Type: NPT
• Air Inlet Size (in): 1/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Ball Material: Fluoroelastomer

• Center Section Material: Polypropylene

• Compatible Material: Diesel Exhaust Fluid

• Connection Type: Threaded

• Diaphragm Material: PTFE

• Fluid Inlet Size (cm): 1.905
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: BSPP

• Fluid Outlet Size (cm): 1.905
• Fluid Outlet Size (in): 3/4
• Fluid Outlet Size (mm): 19.05
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: BSPP
• Fluid Section Material: Polypropylene

• For Use With: DEF

• Manifold O-Ring Material: PTFE

• Maximum Air Consumption (SCFM): 28
• Maximum Air Pressure (bar): 3.4

• Maximum Air Pressure (kPa): 340
• Maximum Air Pressure (MPa): 0.3
• Maximum Air Pressure (psi): 50

• Maximum Cycle Rate (CPM): 400

• Maximum Flow Rate (GPM): 15
• Maximum Flow Rate (L/min): 56.8

• Maximum Fluid Pressure (bar): 3.4
• Maximum Fluid Pressure (kPa): 340
• Maximum Fluid Pressure (MPa): 0.3
• Maximum Fluid Pressure (psi): 50

• Maximum Fluid Pressure (bar): 3.4
• Maximum Fluid Pressure (kPa): 340
• Maximum Fluid Pressure (MPa): 0.3
• Maximum Fluid Pressure (psi): 50

• Maximum Operating Temperature (°C): 66
• Maximum Operating Temperature (°F): 150

• Maximum Solid Size (cm): 0.2383
• Maximum Solid Size (in): 0.09375
• Maximum Solid Size (mm): 2.4

• Minimum Operating Temperature (°C): 4
• Minimum Operating Temperature (°F): 40

• Overall Height (in): 10.63

• Power Source: Air
