Diaphragm

GG HE30-0263

Quantm Pump, Qhc-Hsff5Ssspspepssa0031

GG HE30-0264

Quantm Pump, Qhc-Hsff5Ssbnbnbnssa0031

GG HE30-0279

Quantm Pump, Qhc-Hsff2Sscwpoepssa0021

GG HE30-0283

Quantm Pump, Qhc-Hsff2Sscwspepssa0021

GG HE30-0284

Quantm Pump, Qhc-Hsff2Ssfkfkfkssa0021

GG HE30-0286

Quantm Pump, Qhc-Hsff2Ssptpoepssa0021

GG HE30-0287

QUANTM PUMP, QHC-HSFF2SSPTPSPTSSA0021

QUANTM h30, 1"Tri-clamp, HS SST Electric Diaphragm Pump, 200-240 V, FEP AL Center, SS Seat, PT Ball, PS Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. With a 32 Ra surface finish, the groundbreaking new QUANTM high-sanitation pumps offer a higher level of cleanability and protection against bacteria compared to other food-grade pumps. This polished design provides the ideal solution for many food and beverage applications that require higher levels of care or CIP options, as well as personal care and pharmaceutical applications. With a rotating stand for easy cleaning and draining, These electric pumps are ideal for applications involving materials such as tomato puree, diced tomato, general food ingredients, creams, lotions and medicated ingredients. The powerful new electric motor delivers up to 8x more continuous torque at low speeds than conventional motors and the fast, easy plug-and-play installation allows you to easily replace existing pumps without additional investment or infrastructure rework. Revolutionary Design

• Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
• Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
• Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
• Quiet operation reduces plant noise and improves employee safety and health
• Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

• FEP coated aluminum electric drive
• 240 VAC 1Ph motor with 15 ft cord and IEC 60320-C14 plug
• Non-hazardous
Materials of Construction
• 32 Ra surface finish 316L stainless steel fluid section with tri-clamp center port
• Internal components include 316L stainless steel seat, PTFE ball, PTFE/Santoprene 2-Piece diaphragm and PTFE manifold o-ring
• EN 2.1 material certification

GG HE30-0288

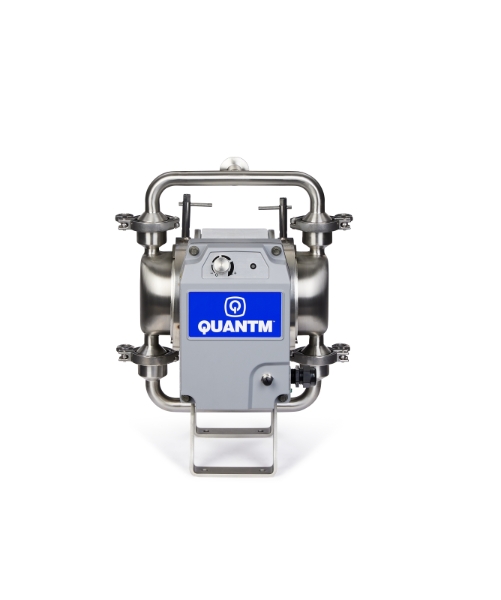

QUANTM PUMP, QHC-HSFF2SSPTPSEPSSA0021

QUANTM h30, 1"Tri-clamp, HS SST Electric Diaphragm Pump, 200-240 V, FEP AL Center, SS Seat, PT Ball, PS Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. With a 32 Ra surface finish, the groundbreaking new QUANTM high-sanitation pumps offer a higher level of cleanability and protection against bacteria compared to other food-grade pumps. This polished design provides the ideal solution for many food and beverage applications that require higher levels of care or CIP options, as well as personal care and pharmaceutical applications. With a rotating stand for easy cleaning and draining, These electric pumps are ideal for applications involving materials such as tomato puree, diced tomato, general food ingredients, creams, lotions and medicated ingredients. The powerful new electric motor delivers up to 8x more continuous torque at low speeds than conventional motors and the fast, easy plug-and-play installation allows you to easily replace existing pumps without additional investment or infrastructure rework. Revolutionary Design

• Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
• Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
• Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
• Quiet operation reduces plant noise and improves employee safety and health
• Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

• FEP coated aluminum electric drive
• 240 VAC 1Ph motor with 15 ft cord and IEC 60320-C14 plug
• Non-hazardous
Materials of Construction
• 32 Ra surface finish 316L stainless steel fluid section with tri-clamp center port
• Internal components include 316L stainless steel seat, PTFE ball, PTFE/Santoprene 2-Piece diaphragm and EPDM manifold o-ring
• EN 2.1 material certification

GG HE30-0290

Quantm Pump, Qhc-Hsff2Ssspspepssa0021

GG HE30-0291

Quantm Pump, Qhc-Hsff2Ssbnbnbnssa0021

GG HE30-0306

Quantm Pump, Qhc-Hsff2Sscwpoepssa0031

GG HE30-0311

Quantm Pump, Qhc-Hsff2Ssfkfkfkssa0031

GG HE30-0313

Quantm Pump, Qhc-Hsff2Ssptpoepssa0031

GG HE30-0315

Quantm Pump, Qhc-Hsff2Ssptpsepssa0031

GG HE30-0317

Quantm Pump, Qhc-Hsff2Ssspspepssa0031

GG HE30-0318

Quantm Pump, Qhc-Hsff2Ssbnbnbnssa0031

GG HE30-0333

Quantm Pump, Qhc-Hsff6Sscwpoepssa0021

GG HE30-0337

Quantm Pump, Qhc-Hsff6Sscwspepssa0021

GG HE30-0338

Quantm Pump, Qhc-Hsff6Ssfkfkfkssa0021

GG DFD666

HUSKY PUMP, 2150S-PA01AS2SPSPSPPT

Graco DFD666 Husky 2150 SS 2 in. (51 mm) BSP Standard Pump, AL Center Section, SP Seats, SP Balls & SP Diaphragm

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

• Overall improved efficiency (up to 40% more efficient)
• Highest fluid flow rate in its class
• Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps
• Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
• 2 in. (51 mm) ANSI end-porting
• Fluid flow up to 150 gpm (568 lpm)
• Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
• Lube-free operation
• Epoxy-coated air section for tough environmental conditions
• Available in aluminum, 316 stainless steel, ductile iron and polypropylene

• Model: Husky
• Series: 2150

• Air Exhaust Port Size (in): 3/4
• Air Exhaust Port Thread Gender: Female
• Air Exhaust Port Thread Type: NPT
• Air Inlet Size (in): 1/2
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Ball Material: Santoprene

• Center Section Material: Aluminum

• Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water - Wastewater Transfer

• Connection Type: Threaded

• Diaphragm Compatible Material: Santoprene
• Diaphragm Material: Santoprene

• Fluid Inlet Size (cm): 5.08
• Fluid Inlet Size (in): 2
• Fluid Inlet Size (mm): 50.8
• Fluid Inlet Thread Type: BSPT

• Fluid Outlet Size (cm): 5.08
• Fluid Outlet Size (in): 2
• Fluid Outlet Size (mm): 50.8
• Fluid Outlet Thread Type: BSPT
• Fluid Section Material: Stainless Steel

• Manifold Configuration: End Port
• Manifold O-Ring Material: PTFE
• Material: Stainless Steel

• Maximum Air Consumption (SCFM): 175
• Maximum Air Pressure (bar): 8

• Maximum Air Pressure (kPa): 800
• Maximum Air Pressure (MPa): 0.8
• Maximum Air Pressure (psi): 120

• Maximum Cycle Rate (CPM): 145

• Maximum Flow Rate (GPM): 150
• Maximum Flow Rate (L/min): 568

• Maximum Fluid Pressure (bar): 8
• Maximum Fluid Pressure (kPa): 800
• Maximum Fluid Pressure (MPa): 0.8
• Maximum Fluid Pressure (psi): 120

• Maximum Fluid Pressure (bar): 8
• Maximum Fluid Pressure (kPa): 800
• Maximum Fluid Pressure (MPa): 0.8
• Maximum Fluid Pressure (psi): 120

• Maximum Operating Temperature (°C): 82
• Maximum Operating Temperature (°F): 180

• Maximum Solid Size (cm): 0.635
• Maximum Solid Size (in): 0.25
• Maximum Solid Size (mm): 6.35

• Overall Height (in): 23.6

• Power Source: Air

GG DF5A11

HUSKY PUMP, 2150F-PA01AF2PVPTPTPT

Husky 2150 PVDF 2 in. (51 mm) NPT Standard Pump, AL Center Section, PVDF Seats, PTFE Balls & PTFE Diaphragm

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

Overall improved efficiency (up to 40% more efficient) Highest fluid flow rate in its class Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps Expanded material offering to handle endless applications Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump 2 in. (51 mm) ANSI end-porting Fluid flow up to 150 gpm (568 lpm) Fluid pressure to 120 psi (8.4 bar, 0.84 MPa) Lube-free operation Epoxy-coated air section for tough environmental conditions Available in aluminum, 316 stainless steel, ductile iron and polypropylene

GG DFD911

HUSKY PUMP, 2150S-PA01AS2PPPTPTPT

Husky 2150 SS 2 in. (51 mm) BSP Standard Pump, AL Center Section, PP Seats, PTFE Balls & PTFE Diaphragm

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

Overall improved efficiency (up to 40% more efficient) Highest fluid flow rate in its class Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps Expanded material offering to handle endless applications Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump 2 in. (51 mm) ANSI end-porting Fluid flow up to 150 gpm (568 lpm) Fluid pressure to 120 psi (8.4 bar, 0.84 MPa) Lube-free operation Epoxy-coated air section for tough environmental conditions Available in aluminum, 316 stainless steel, ductile iron and polypropylene

GG DT2911

HUSKY PUMP, 1590P-PS01AP2PPPTPTPT

Husky 1590 PP Air Operated Double Diaphragm Plastic Pump, PP/PT

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class Expanded material offering to handle endless applications Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump Offered in ATEX configuration. 1-1/2 in. (38.1 mm) ANSI end-porting High flow - 100 gpm (378 lpm) in a compact, portable size Fluid pressure to 120 psi (8.4 bar, 0.84 MPa) Lube-free operation Available in polypropylene, aluminum and stainless steel Epoxy-coated air section for tough environmental conditions

GG DFF666

HUSKY PUMP, 2150I-PA01AI2SPSPSPPT

Husky 2150 Cast Iron Air Operated Double Diaphragm Metal Pump

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

Overall improved efficiency (up to 40% more efficient) Highest fluid flow rate in its class Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps Expanded material offering to handle endless applications Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump 2 in. (51 mm) ANSI end-porting Fluid flow up to 150 gpm (568 lpm) Fluid pressure to 120 psi (8.4 bar, 0.84 MPa) Lube-free operation Epoxy-coated air section for tough environmental conditions Available in aluminum, 316 stainless steel, ductile iron and polypropylene

GG DFR341

Husky Pump, 2150S-Pa01As5-1Sssdptpt
