CSP VALVE, 8 OUTLET, NPT, PKG

Manufacturer: GRACO INC. S10595

GG 24Z487

CSP VALVE, 8 OUTLET, NPT, PKG

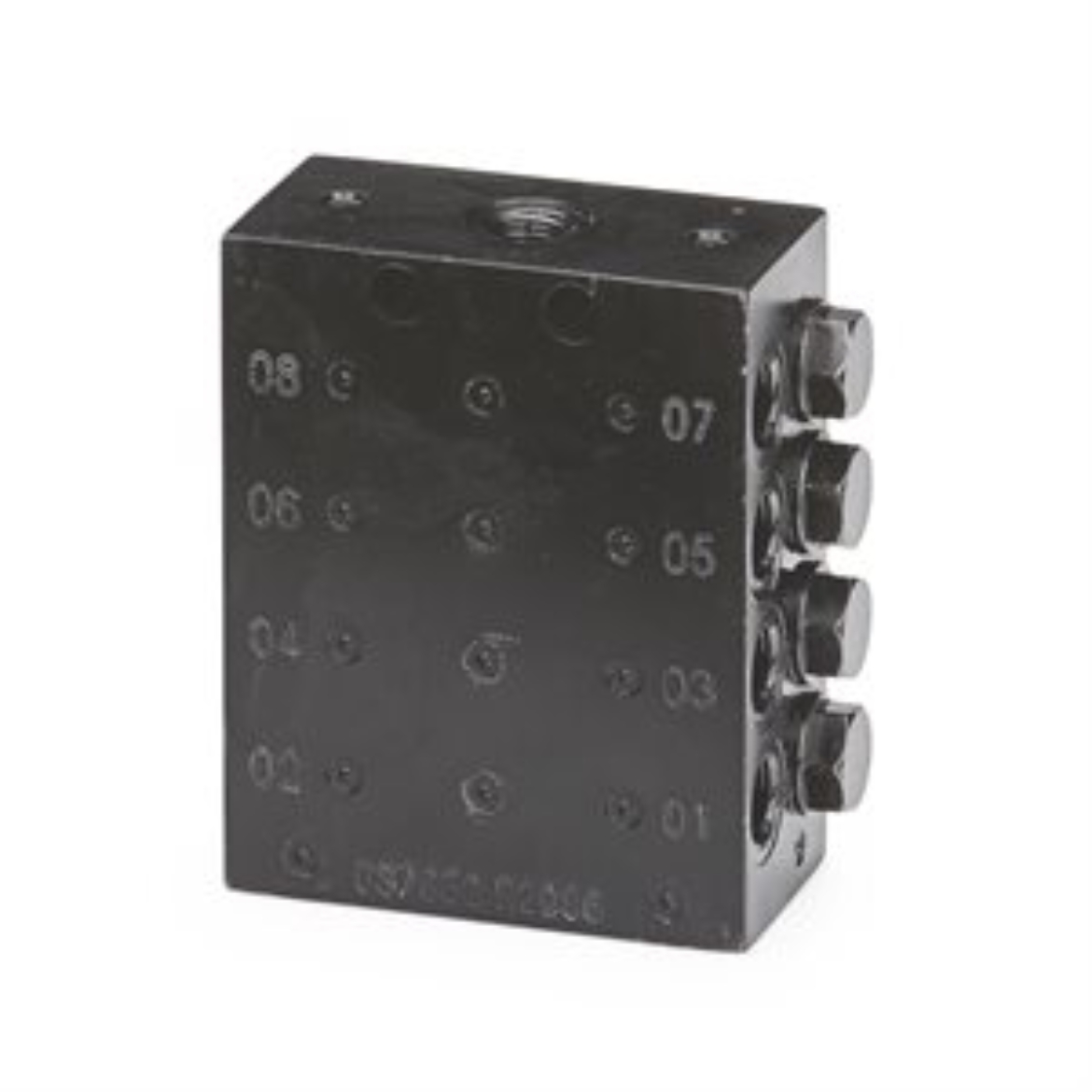

Graco 24Z487 CSP Divider Valve, 1/8 inch NPT, 8 Outlets

Compact Series Progressive (CSP) valve with broad market versatility. Combine with field-proven G-Series pumps for a complete system solution.

  • 1/8 inch NPT inlet
  • Space efficient design with 8 outlets, without indicator
  • Outlets can be combined to meet larger bearing needs
  • High output pressure - maximum working pressure of 5,076 psi (350 bar) for both oil and grease


  • Model: Trabon
  • Series: CSP
  • Application: On-Road Vehicles, Off-Road Equipment
  • Compatible Material: Oil, Grease
  • Cycle Indicator: None
  • Discharge Per Piston Stroke (in³): N/A
  • Divider Valve Series: CSP
  • Inlet Size (cm): 0.3175
  • Inlet Size (in): 1/8
  • Inlet Size (mm): 3.175
  • Inlet Thread Type: NPT
  • Material: Carbon Steel
  • Maximum NLGI Grade: #2
  • Maximum Operating Temperature (°C): 100
  • Maximum Operating Temperature (°F): 212
  • Maximum Working Pressure (bar): 350
  • Maximum Working Pressure (kPa): 35000
  • Maximum Working Pressure (psi): 5076
  • Minimum Output Volume (cm³): 0.2
  • Minimum Working Pressure (bar): 15
  • Minimum Working Pressure (kPa): 1500
  • Minimum Working Pressure (psi): 217.5
  • Number of Outlets: 8
  • Outlet Thread Gender: Female
  • Outlet Thread Type: NPT
SKU: GG 24Z487
Availability:
Price: $202.50
