GG 558906
COUPLER, 1/4, W/CHECK

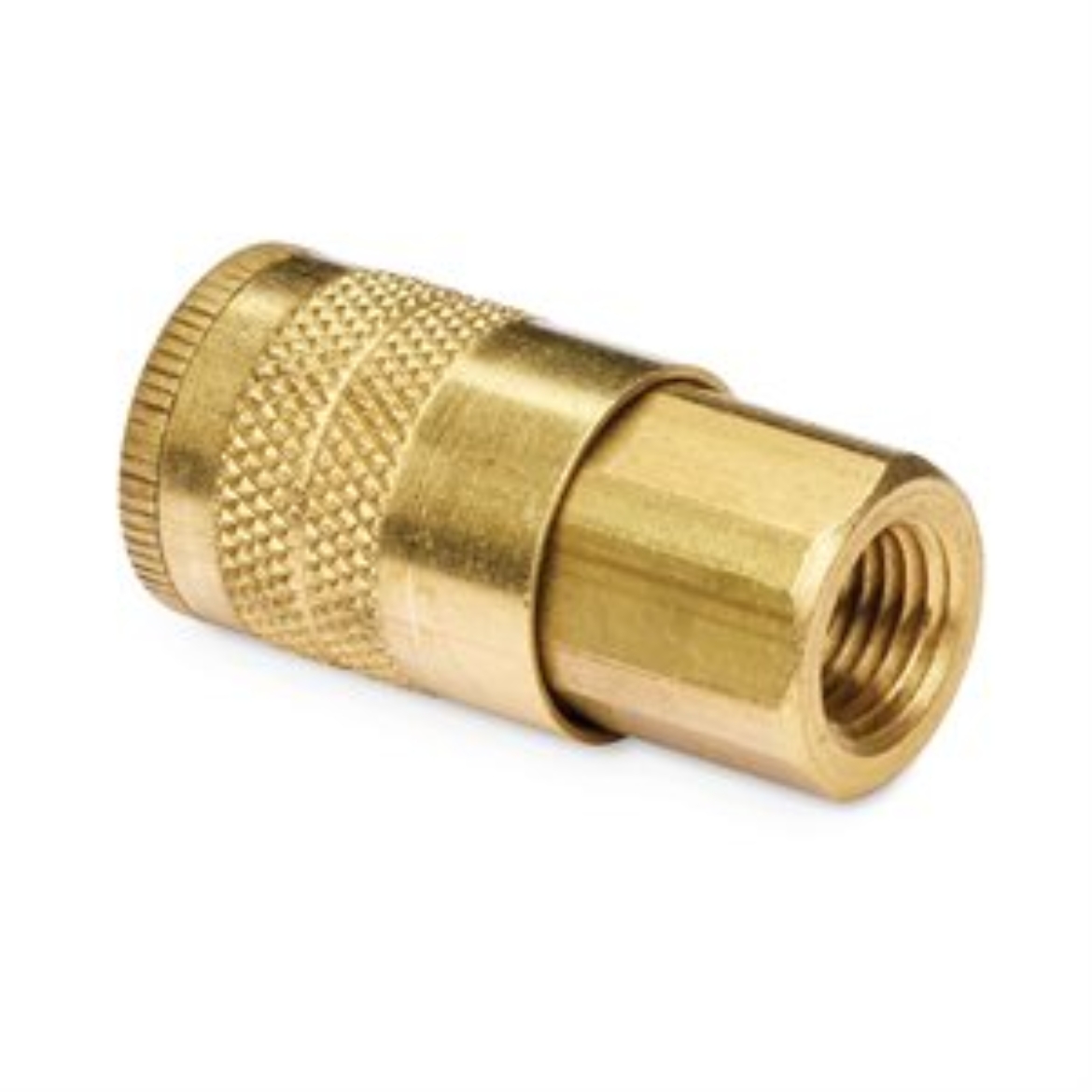

Graco 558906 Mating Coupler/Coupling for grease fill stud on Trabon Reservoirs, 1/4 in. NPT female, with Check
Application: For use with Modu-Flo, E-Series, Lube Master, LubriSystem, PH and other Trabon grease pumps. 1/4 inch NPT female thread connects to end of hose on grease pump used to refill the reservoir.
- Mating Coupler for Trabon Grease Fill Stud
- Former part numbers: Lubriquip 506-322-000, Trabon 6322
- Mates to fill stud 557374
- Trabon part number 6322
- Connection Type: Threaded
- End A Inlet Thread Gender: Female
- End A Inlet Thread Type: NPTF
- Inlet Thread Gender: Female
- Maximum Working Pressure (bar): 21
- Maximum Working Pressure (kPa): 2100
- Maximum Working Pressure (MPa): 2.1
- Maximum Working Pressure (psi): 300
- Outlet Size (in): 1/4 inch diameter Quick Disconnect, mates to air chuck style grease fill stud used on Trabon grease reservoirs
- Outlet Thread Gender: None
