Contractor Flat Tip, Spray 815

GG 269815

CONTRACTOR FLAT TIP, SPRAY 815

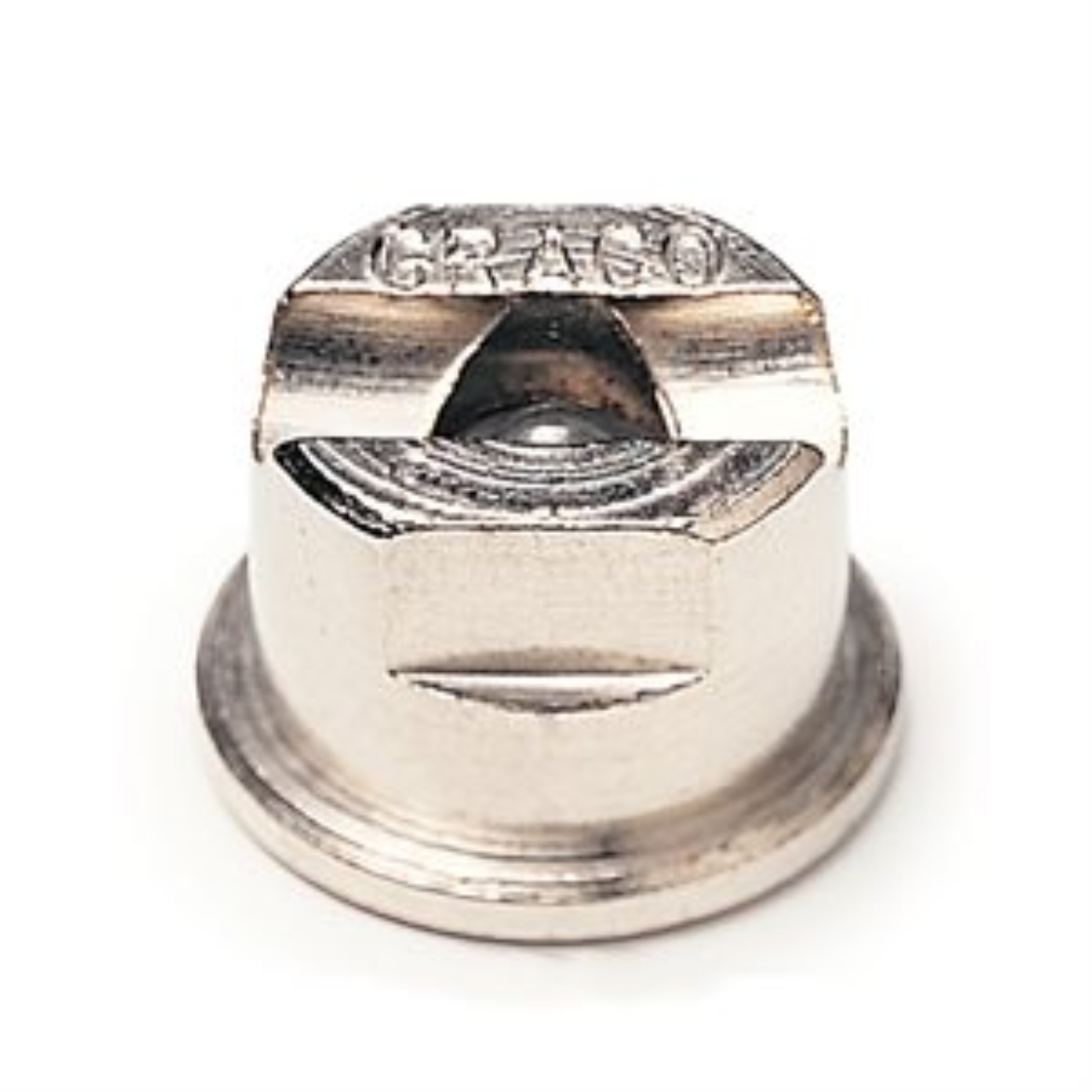

Graco 269815 Contractor Flat Tip, 815

The 815 Contractor Flat Tip produces a 16 to 18 inch fan and has a 0.015 inch orifice.

• Model: Contractor
• Series: Flat Tip

• Compatible Material: Architectural Coating

• For Use With: Silver Plus Airless Spray Gun

• Maximum Fan Width (cm): 40
• Maximum Fan Width (in): 16
• Maximum Fan Width (mm): 457

• Maximum Flow Rate (GPM): 0.24
• Maximum Flow Rate (L/min): 0.91

• Maximum Working Pressure (bar): 345
• Maximum Working Pressure (kPa): 34500
• Maximum Working Pressure (psi): 5000

• Minimum Fan Width (in): 16
• Minimum Fan Width (mm): 406

• Orifice Diameter (in): 0.015

• Pattern Size (in): 16 to 18
• Pattern Size (mm): 406.4 to 457.2
