Contractor Flat Tip, Spray 717

GG 269717

CONTRACTOR FLAT TIP, SPRAY 717

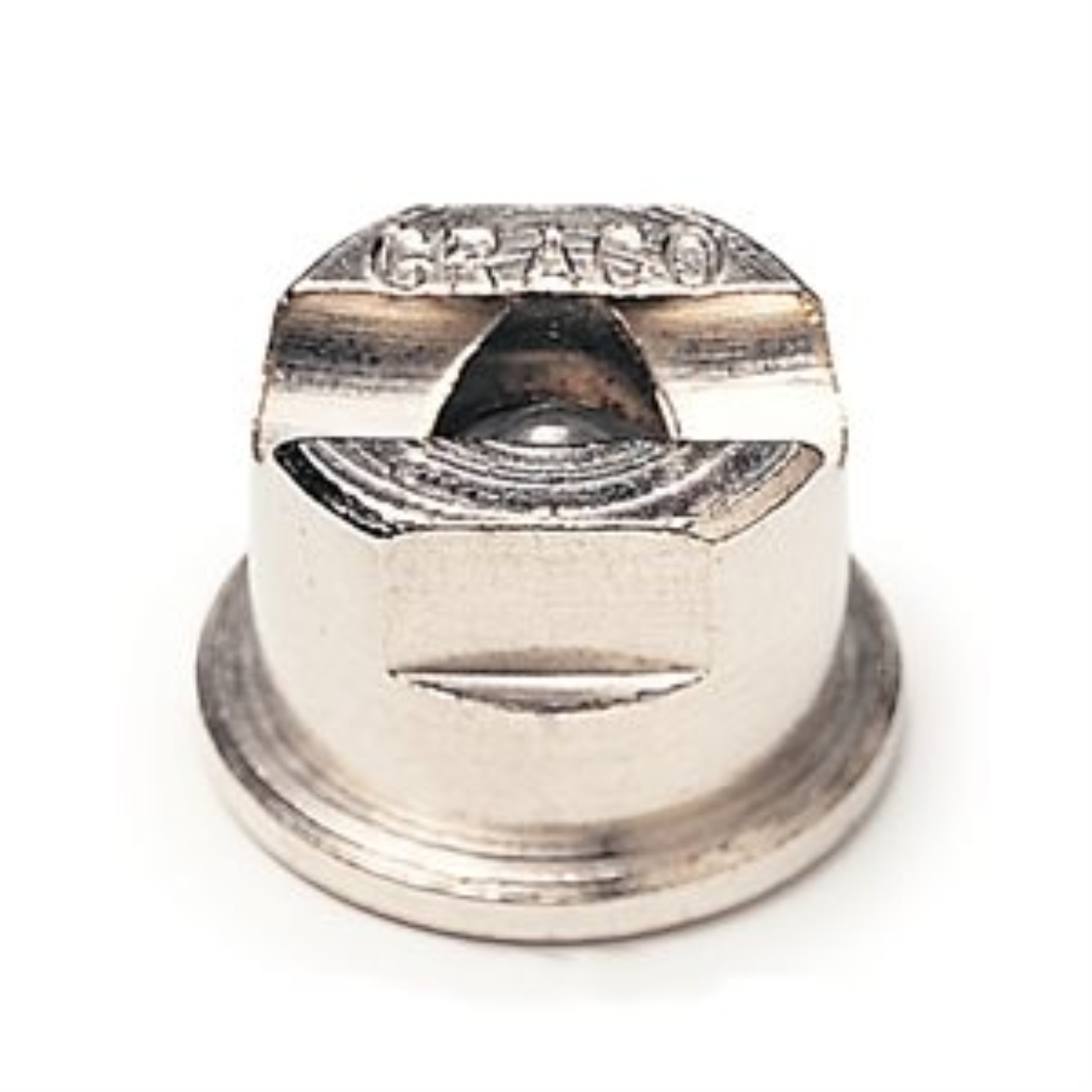

Graco 269717 Contractor Flat Tip, 717

The 717 Contractor Flat Tip produces a 14 to 16 inch fan and has a 0.017 inch orifice.

• Model: Contractor
• Series: Flat Tip

• Compatible Material: Architectural Coating

• For Use With: Silver Plus Airless Spray Gun

• Maximum Fan Width (cm): 35
• Maximum Fan Width (in): 14
• Maximum Fan Width (mm): 406

• Maximum Flow Rate (GPM): 0.31
• Maximum Flow Rate (L/min): 1.17

• Maximum Working Pressure (bar): 345
• Maximum Working Pressure (kPa): 34500
• Maximum Working Pressure (psi): 5000

• Minimum Fan Width (in): 14
• Minimum Fan Width (mm): 356

• Orifice Diameter (in): 0.017

• Pattern Size (in): 14 to 16
• Pattern Size (mm): 355.6 to 406.4
