Contractor Flat Tip, Spray

GG 269417

CONTRACTOR FLAT TIP, SPRAY

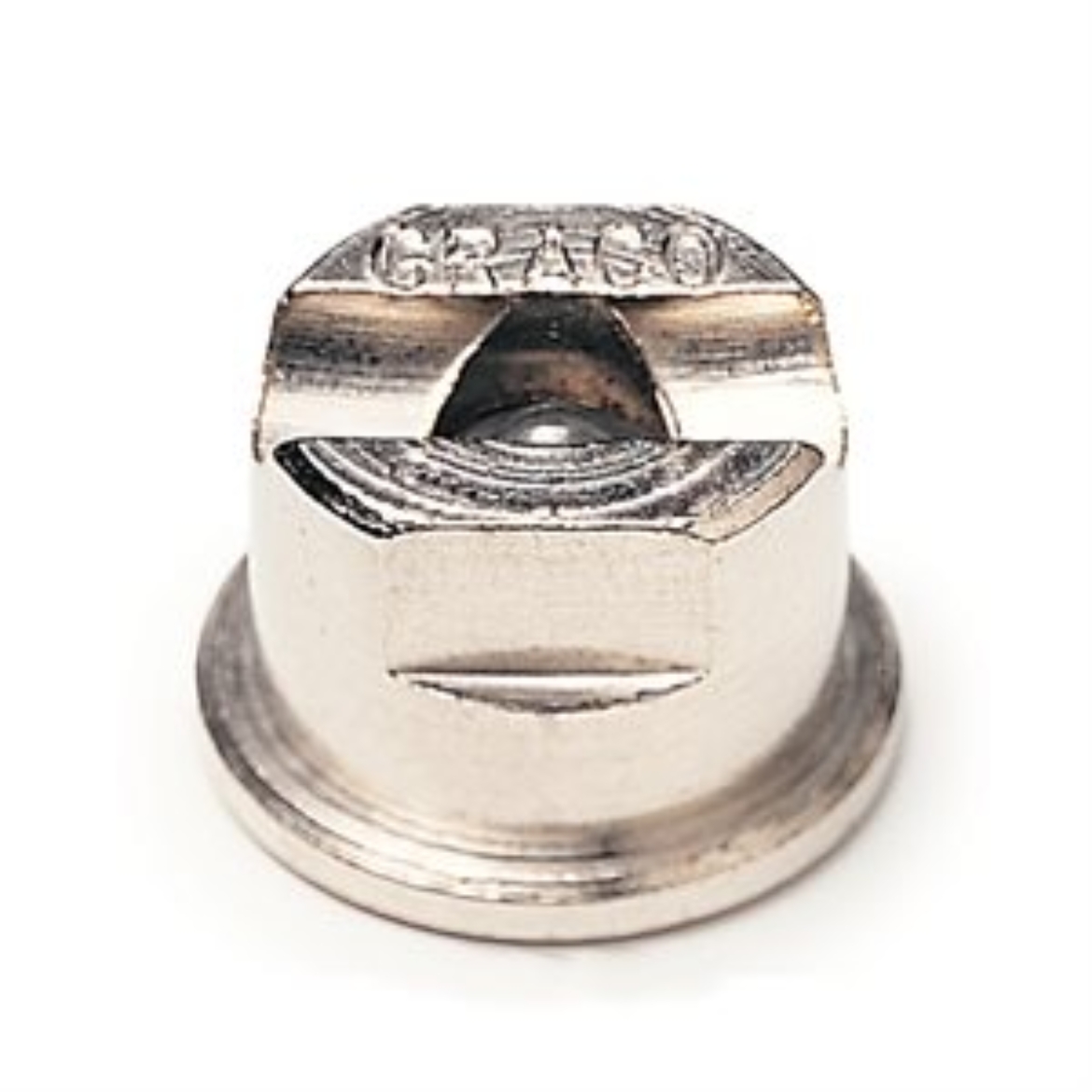

Graco 269417 Contractor Flat Tip, 417

The 417 Contractor Flat Tip produces an 8 to 10 inch fan and has a 0.017 inch orifice.

• Model: Contractor
• Series: Flat Tip

• Compatible Material: Architectural Coating

• For Use With: Silver Plus Airless Spray Gun

• Maximum Fan Width (cm): 20
• Maximum Fan Width (in): 8
• Maximum Fan Width (mm): 254

• Maximum Flow Rate (GPM): 0.31
• Maximum Flow Rate (L/min): 1.17

• Maximum Working Pressure (bar): 345
• Maximum Working Pressure (kPa): 34500
• Maximum Working Pressure (psi): 5000

• Minimum Fan Width (in): 8
• Minimum Fan Width (mm): 203

• Orifice Diameter (in): 0.017

• Pattern Size (in): 8 to 10
• Pattern Size (mm): 203.2 to 254
