GG 269325
CONTRACTOR FLAT TIP, SPRAY

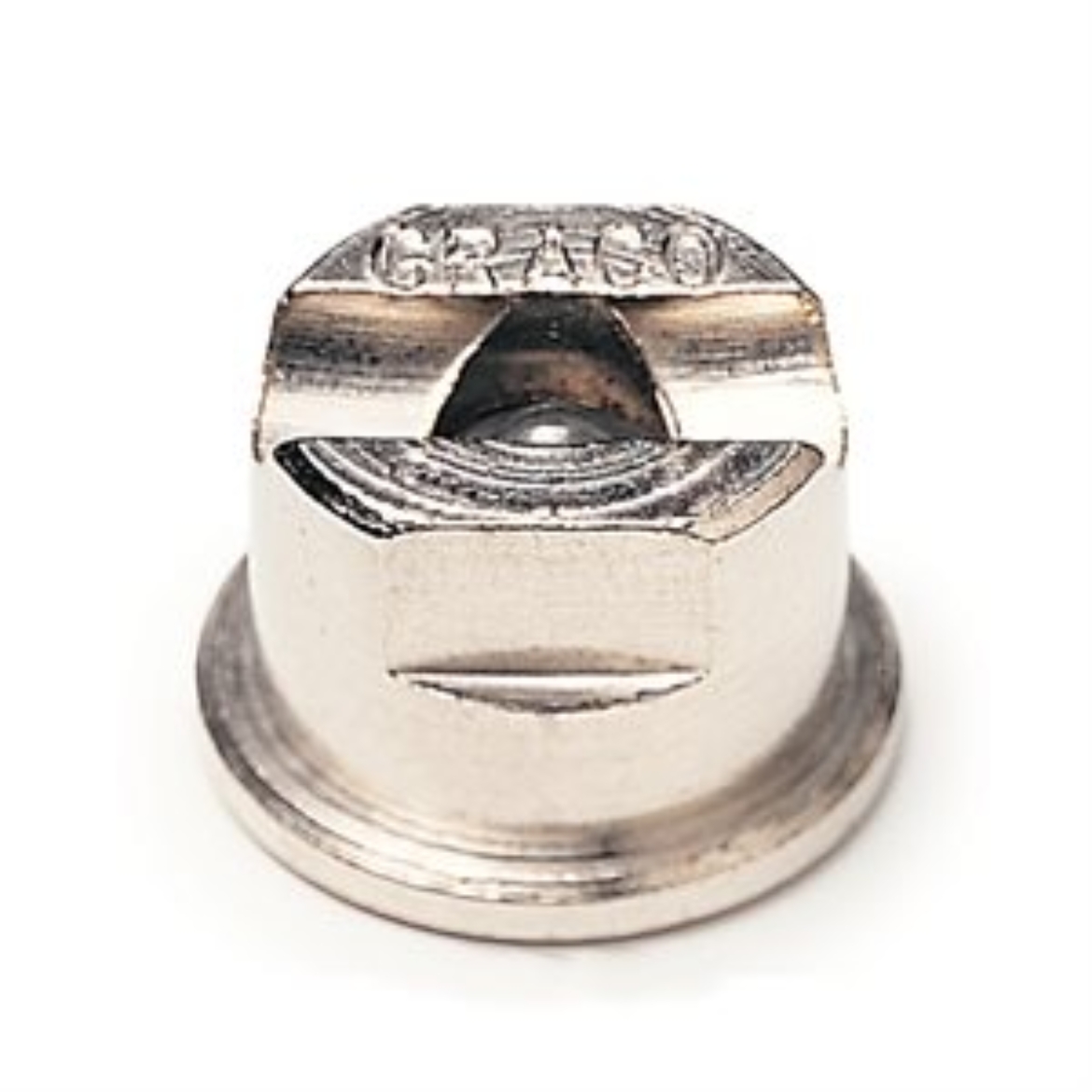

Graco 269325 Contractor Flat Tip, 325
The 325 Contractor Flat Tip is designed for narrow surfaces and thicker materials. The 325 Flat Tip has a 0.025 inch orifice and produces a 6 to 8 inch fan.
- Model: Contractor
- Series: Flat Tip
- Compatible Material: Architectural Coating
- For Use With: Silver Plus Airless Spray Gun
- Maximum Fan Width (cm): 15
- Maximum Fan Width (in): 6
- Maximum Fan Width (mm): 203
- Maximum Flow Rate (GPM): 0.67
- Maximum Flow Rate (L/min): 2.54
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 6
- Minimum Fan Width (mm): 152
- Orifice Diameter (in): 0.025
- Pattern Size (in): 6 to 8
- Pattern Size (mm): 152.4 to 203.2
