Contractor Flat Tip, Spray 525

GG 269525

CONTRACTOR FLAT TIP, SPRAY 525

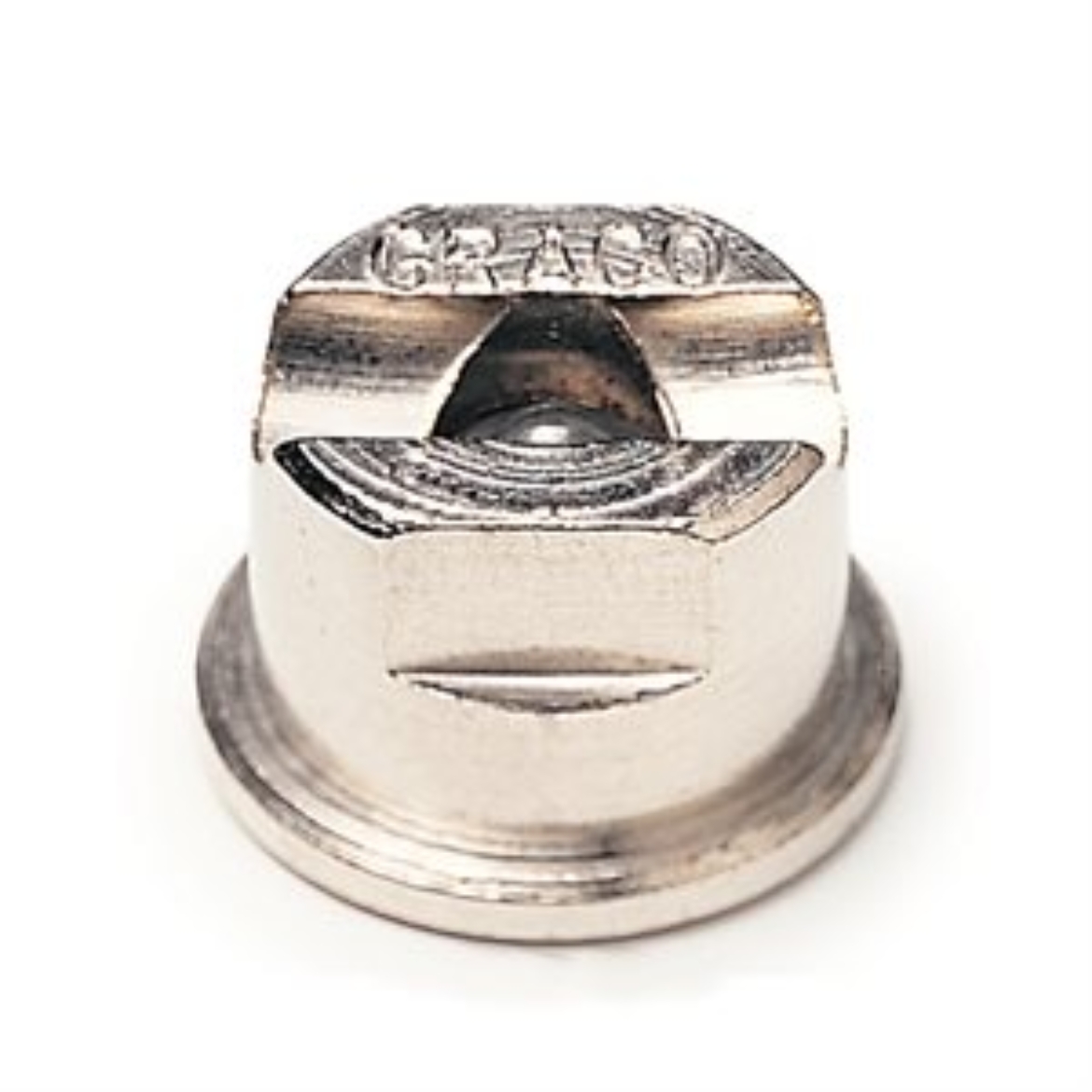

Graco 269525 Contractor Flat Tip, 525

The 525 Contractor Flat Tip produces a 10 to 12 inch fan and has a 0.025 inch orifice.

• Model: Contractor
• Series: Flat Tip

• Compatible Material: Architectural Coating

• For Use With: Silver Plus Airless Spray Gun

• Maximum Fan Width (cm): 25
• Maximum Fan Width (in): 10
• Maximum Fan Width (mm): 305

• Maximum Flow Rate (GPM): 0.67
• Maximum Flow Rate (L/min): 2.54

• Maximum Working Pressure (bar): 345
• Maximum Working Pressure (kPa): 34500
• Maximum Working Pressure (psi): 5000

• Minimum Fan Width (in): 10
• Minimum Fan Width (mm): 254

• Orifice Diameter (in): 0.025

• Pattern Size (in): 10 to 12
• Pattern Size (mm): 254 to 304.8
