GG 269315
CONTRACTOR FLAT TIP, SPRAY

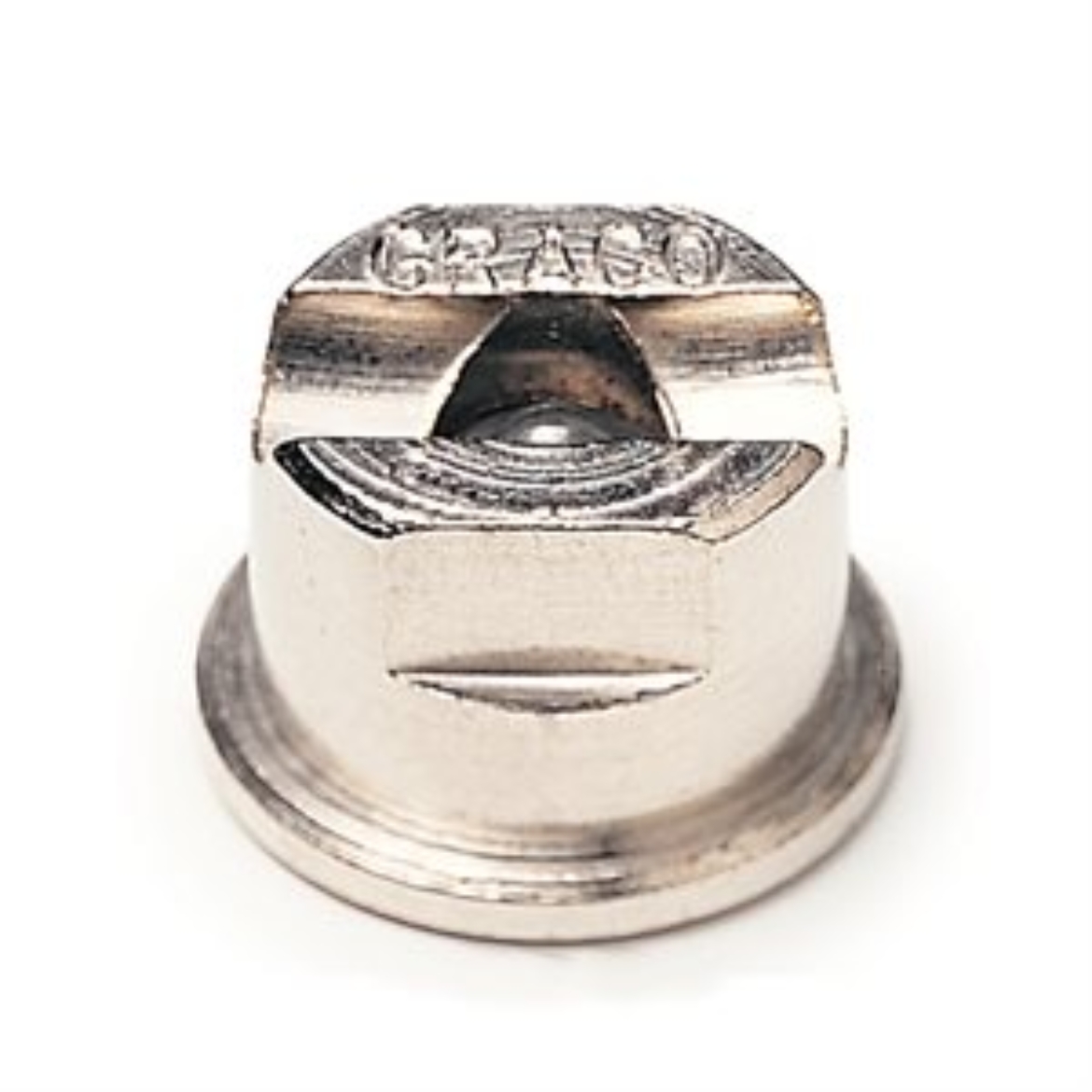

Graco 269315 Contractor Flat Tip, 315
The 315 Contractor Flat Tip is designed for narrow surfaces. The 315 Flat Tip has a 0.015 inch orifice and produces a 6 to 8 inch fan.
- Model: Contractor
- Series: Flat Tip
- Compatible Material: Architectural Coating
- For Use With: Silver Plus Airless Spray Gun
- Maximum Fan Width (cm): 15
- Maximum Fan Width (in): 6
- Maximum Fan Width (mm): 203
- Maximum Flow Rate (GPM): 0.24
- Maximum Flow Rate (L/min): 0.91
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 6
- Minimum Fan Width (mm): 152
- Orifice Diameter (in): 0.015
- Pattern Size (in): 6 to 8
- Pattern Size (mm): 152.4 to 203.2
