GG 269215
CONTRACTOR FLAT TIP, SPRAY 215

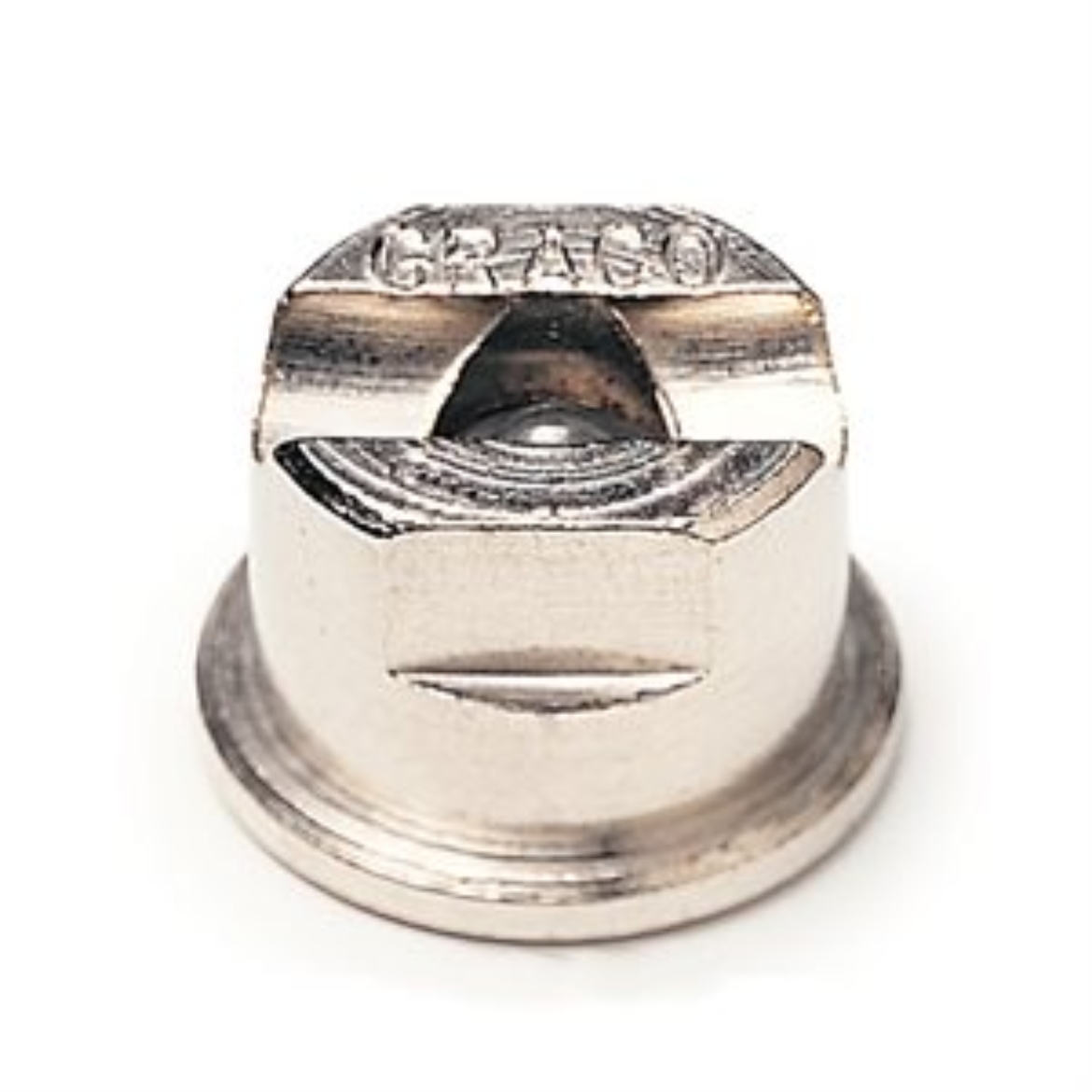

Graco 269215 Contractor Flat Tip, 215
The 215 Contractor Flat Tip is designed for narrower surfaces. The 215 Flat Tip has a 0.015 inch orifice and produces a 4 to 6 inch fan.
- Model: Contractor
- Series: Flat Tip
- Compatible Material: Architectural Coating
- For Use With: Silver Plus Airless Spray Gun
- Maximum Fan Width (cm): 10
- Maximum Fan Width (in): 4
- Maximum Fan Width (mm): 152
- Maximum Flow Rate (GPM): 0.24
- Maximum Flow Rate (L/min): 0.91
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 4
- Minimum Fan Width (mm): 102
- Orifice Diameter (in): 0.015
- Pattern Size (in): 4 to 6
- Pattern Size (mm): 101.6 to 152.4
