GG 269427

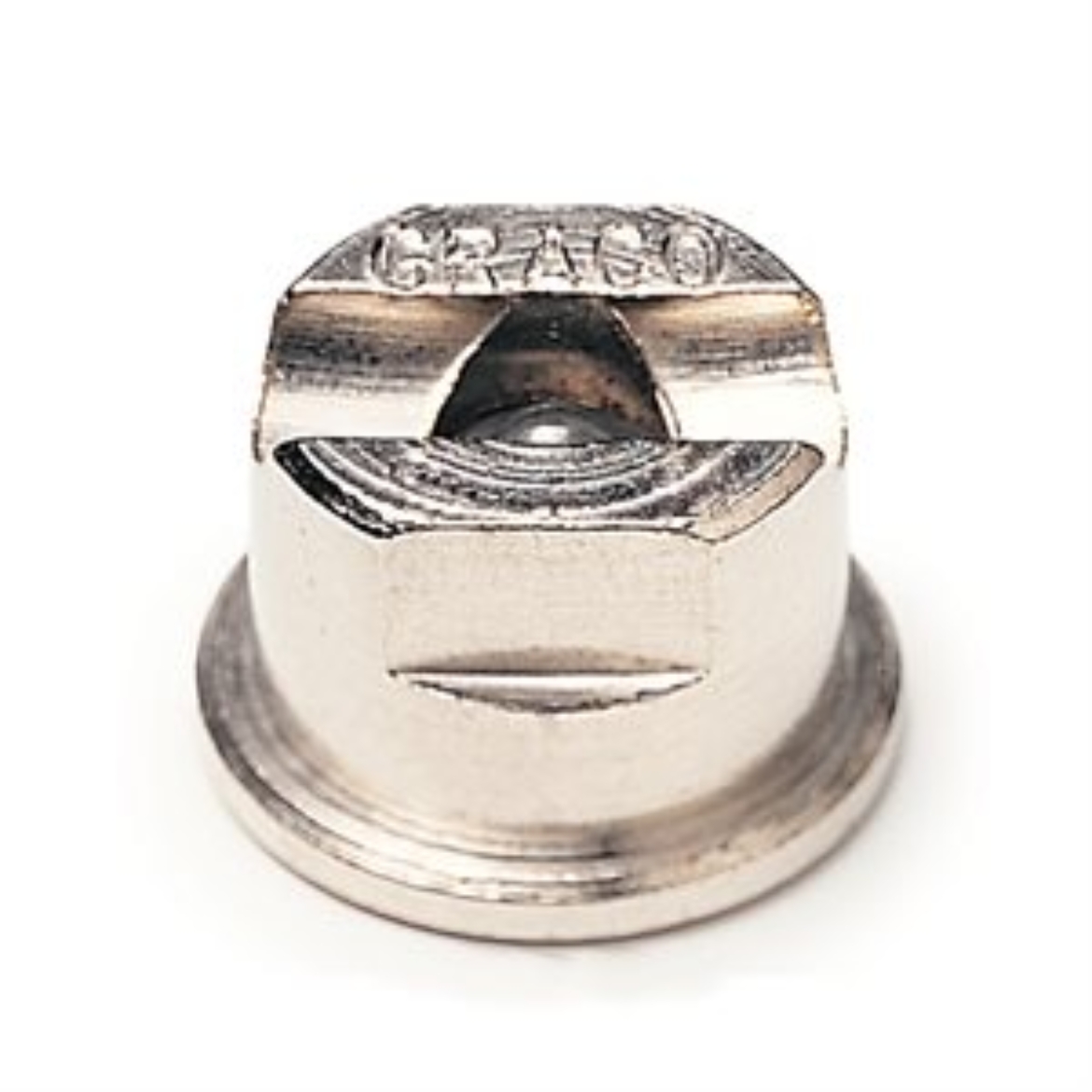

CONTRACTOR FLAT TIP, SPRAY
Graco 269427 Contractor Flat Tip, 427
The 427 Contractor Flat Tip produces an 8 to 10 inch fan and has a 0.027 inch orifice.
- Model: Contractor
- Series: Flat Tip
- Compatible Material: Architectural Coating
- For Use With: Silver Plus Airless Spray Gun
- Maximum Fan Width (cm): 20
- Maximum Fan Width (in): 8
- Maximum Fan Width (mm): 254
- Maximum Flow Rate (GPM): 0.74
- Maximum Flow Rate (L/min): 2.80
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 8
- Minimum Fan Width (mm): 203
- Orifice Diameter (in): 0.027
- Pattern Size (in): 8 to 10
- Pattern Size (mm): 203.2 to 254
