IR CL500K-2C10-C6

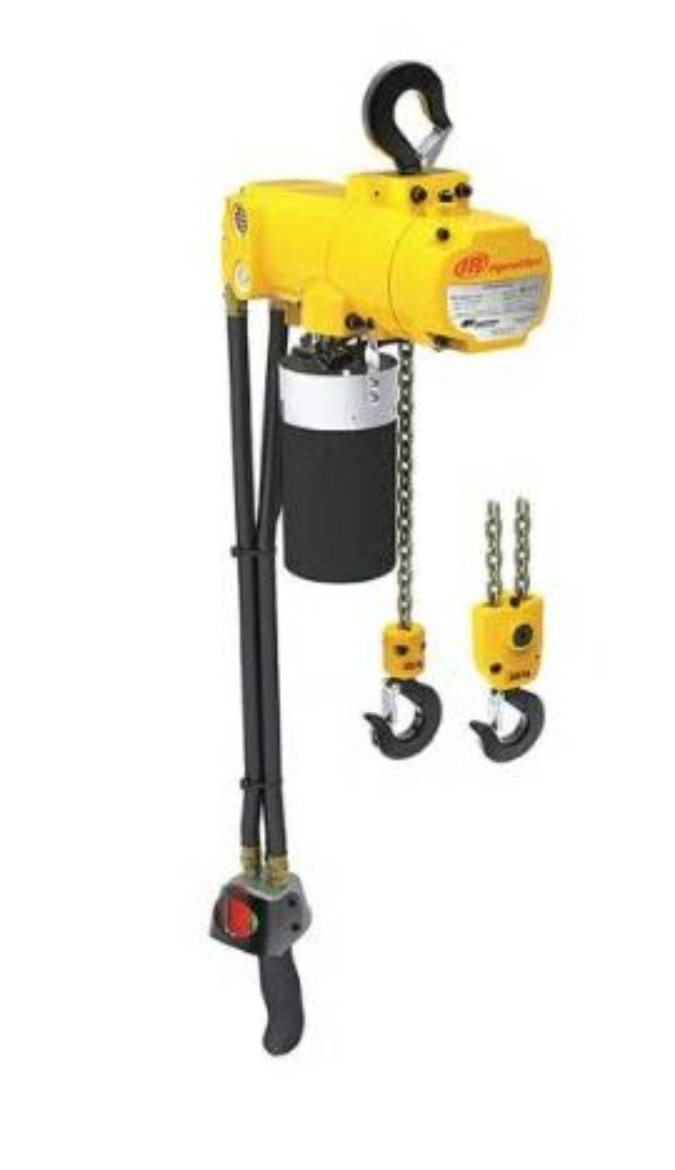

CL500K-2C10-C6 Air Hoist, 1100 Lb Capacity, 10ft Lift, Pendant Control, Hook Mount
Designed for production applications and loads up to 1100 lbs. Exceptional durability with an ASME HST-5 rating of A5 (FEM/ISO mechanism classification of 1Am/M4) the CLK Series hoist are duty-rated to operate 800 full-load hours between overhauls.
Product Application/Uses:
The Compact Lift Air Chain Hoists (CLK) are designed for industrial, assembly and general utility applications.Features and Benefits:
- Meets ASME HST-5 Specifications and OSHA requirements
- Rugged, lightweight and compact design
- Disc brake is non-asbestos and spring engaged with air release
- Internal muffler reduces sound levels to a best-in-the-industry 75 dBA
- High-strength aluminum housing for maximum portability and weather resistance. Strong yet lightweight with a durable powdercoated finish.
- Upper and lower limit stops prevent dangerous over-travel of the hook
- 100% duty cycle multi-vane (6) air motor offers a high-torque and low-maintenance design. Air porting under the vanes creates smooth operation, positive starting, and long life.
- Bottom latch-type swivel hooks meet OSHA requirements and are supported by anti-friction needle type thrust bearings.
- Ergonomic pendent handle is rugged and durable. Guard covers both levers and can be used with or without gloves.
Capacity (lb): 1100
Lift (ft): 10
