Chipper Hex Nozzlew/Retainer W3A1

IR W3A1

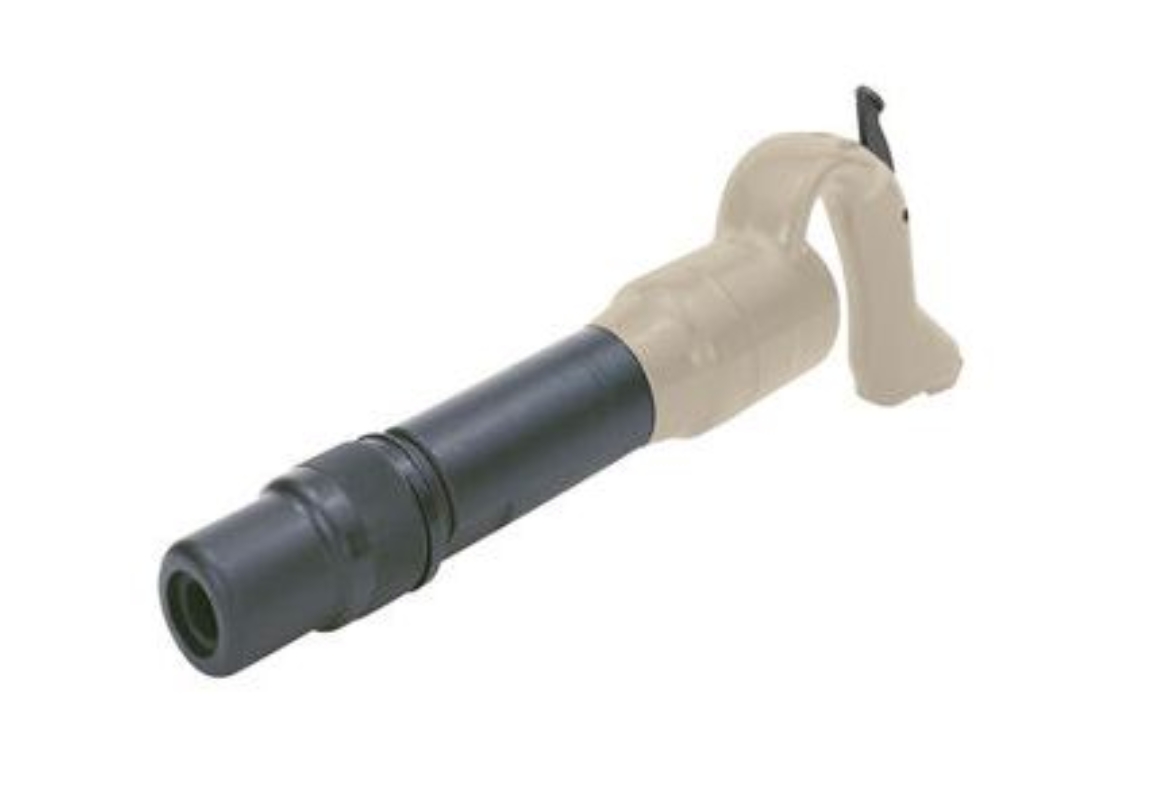

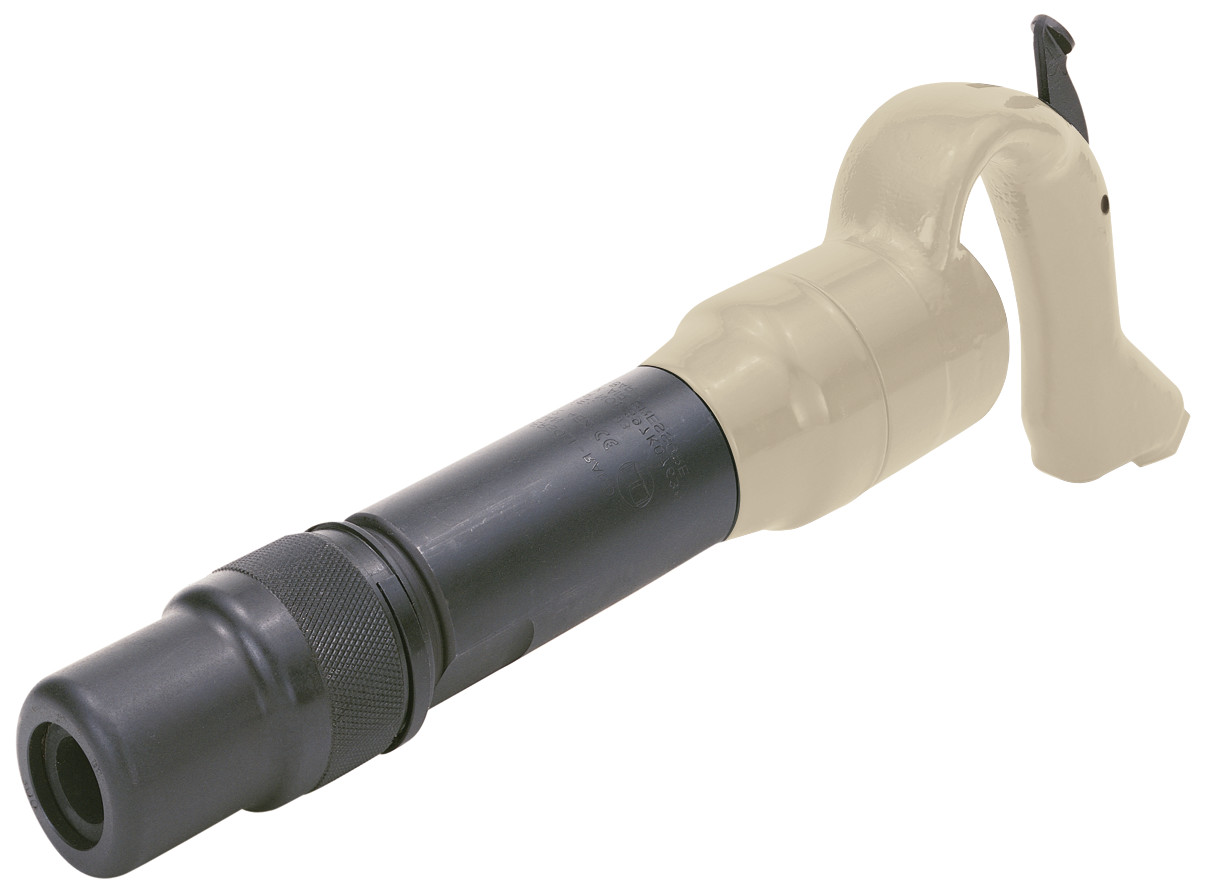

Air Chipping Hammer, 3" Stroke, 1725 BPM, Hex Shank Round Collar

Description: As the strongest chipping hammers in the Ingersoll Rand lineup, the W Series chipping hammers are ready to take on even the toughest of jobs.

Features And Benefits:

• Power: With a die cast aluminum housing and a swan neck handle, these tools are as ergonomic as they are powerful and have an excellent power-to-weight ratio, making handling a breeze.
• Durability: These hammers have a heavy duty front end featuring a threaded barrel and rubber buffered retainer for increased steel and retainer life, to last you a long time. Comes with a 1-year warranty.

Product Application and Uses:

These Air Percussive Chipping Hammers are designed for chipping, cutting, chiseling and breaking of hardened materials through repetitive application of linear impacts of a tool steel that is retained and driven by the chipper.

• Actuation/Throttle Type/Switch Type: Outside Trigger
• Air Consumption @ Load (cfm): 29
• Air Consumption @ Load (l/min): 821
• Air Inlet: 3/8" NPT
• Air Pressure (psi): 90

• Blows per Min: 1725
• Bore Diameter (in): 1.13

• Collar Type: Round
• Color: Beige
• Configuration/Handle Type: Swan Neck
• Duty Rating: Industrial Duty

• Exhaust Location: Side - Adjustable

• Housing Material: Aluminum

• Max Pressure (bar): 6.2
• Min Hose Size (in): 1/2
• Muffler: No

• Power Source: Air Powered
• Product Length (in): 18.25

• Product Weight (lb): 16.63
• Retainer Type: Threaded barrel with rubber buffered

• Shank SIze (in): 0.58
• Shank Type: Hex

• Stroke Length (in): 3

• Warranty: 1-year

• Accessories: H3R-214-12
• Accessories: H3R-214-18
• Accessories: H3R-214B-12
• Accessories: H3R-214B-18
• Accessories: H3R-214D-12
• Accessories: H3R-214F-12
• Accessories: H3R-214F-18
• Accessories: H3R-214F-24
• Accessories: H3R-214F-36
• Accessories: H3R-214F-72
• Accessories: H3R-214F-9
• Accessories: H3R-214M-12
• Accessories: H3R-214M-18
• Accessories: H3R-214M-24
• Accessories: H3R-214M-36
• Accessories: H3R-214T-9
• Accessories: H3R-424-12
• Accessories: H3R-424-18
• Accessories: H3R-424-24

• Lubrication: 10P
