BPR MEDIUM PRESSURE 3000 MAX PSI 5 GPM MAX FLOW SST PNEU

GG 25R490

REGULATOR, BACK PRES, MP, AIR, 30 TO 1

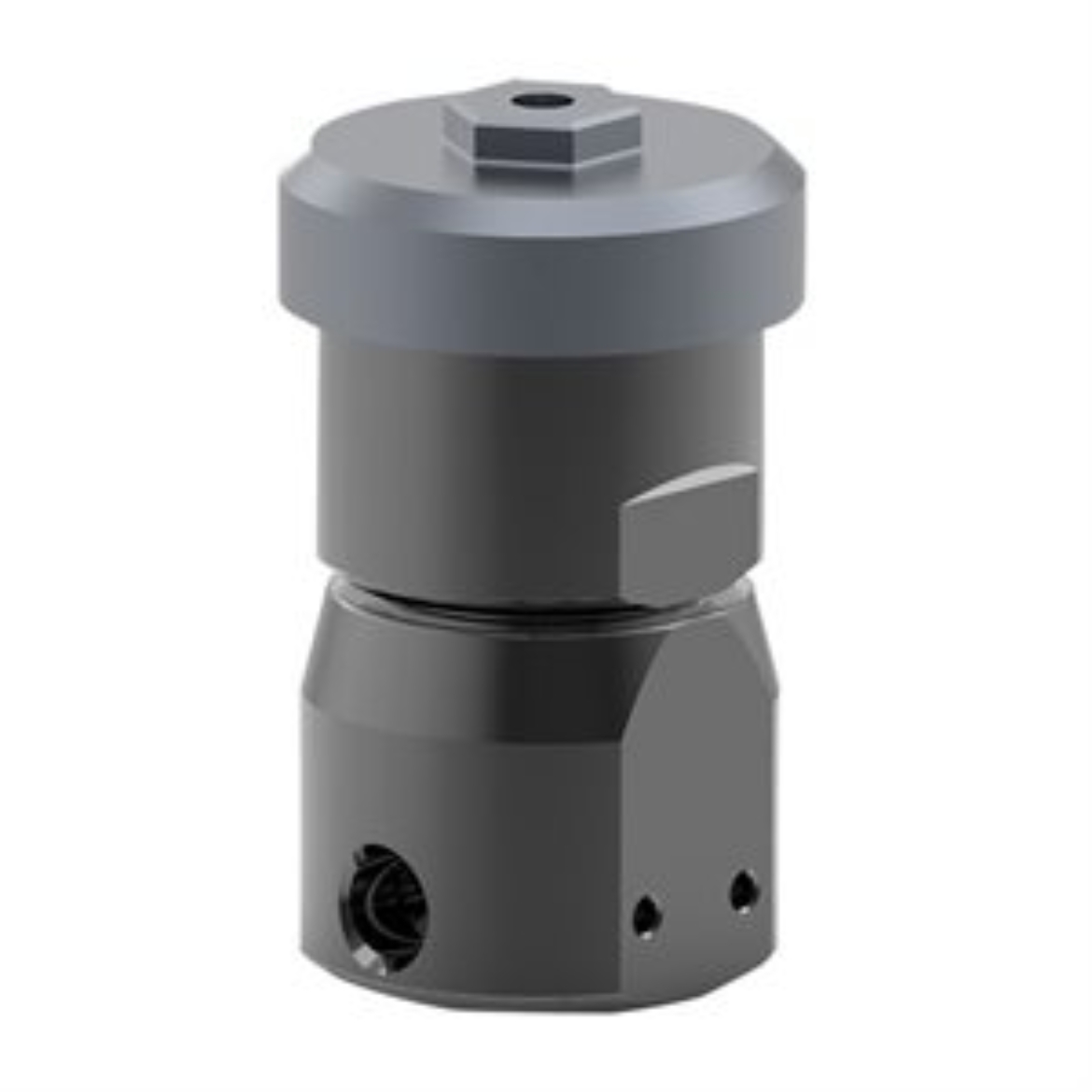

Graco 25R490 Medium Pressure Fluid Back Pressure Regulator, 3000 Max psi, 5 gpm Max flow rate, SST, Pneumatic

Improve finishing process control with this medium pressure, pneumatic back pressure regulator (BPR).

• Interface with Graco's Intelligent Paint Kitchen (IPK), controlling pressure and flow without human intervention.
• Gain better resolution than other BPR brands, adjusting more accurately to keep fluid pressure at desired levels.

• Compatible Material: Waterborne, Solvent borne

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Type: NPT

• Inlet Size (cm): 0.95
• Inlet Size (in): 0.375
• Inlet Size (mm): 9.5

• Inlet Thread Type: NPT

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kg/cm²): 7
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Flow Rate (GPM): 5
• Maximum Flow Rate (L/min): 19

• Maximum Operating Temperature (°C): 50
• Maximum Operating Temperature (°F): 122

• Maximum Regulated Pressure (bar): 207
• Maximum Regulated Pressure (kg/cm²): 207
• Maximum Regulated Pressure (kPa): 20700
• Maximum Regulated Pressure (psi): 3000

• Maximum Viscosity (cP): 250

• Maximum Working Pressure (bar): 211
• Maximum Working Pressure (kg/cm²): 211
• Maximum Working Pressure (kPa): 20680
• Maximum Working Pressure (psi): 3000

• Minimum Operating Temperature (°C): 0
• Minimum Operating Temperature (°F): 32

• Minimum Regulated Pressure (bar): 17
• Minimum Regulated Pressure (kg/cm²): 17
• Minimum Regulated Pressure (kPa): 1720
• Minimum Regulated Pressure (psi): 250

• Outlet Size (cm): 0.95
• Outlet Size (in): 0.375
• Outlet Size (mm): 9.5
• Outlet Thread Type: NPT
